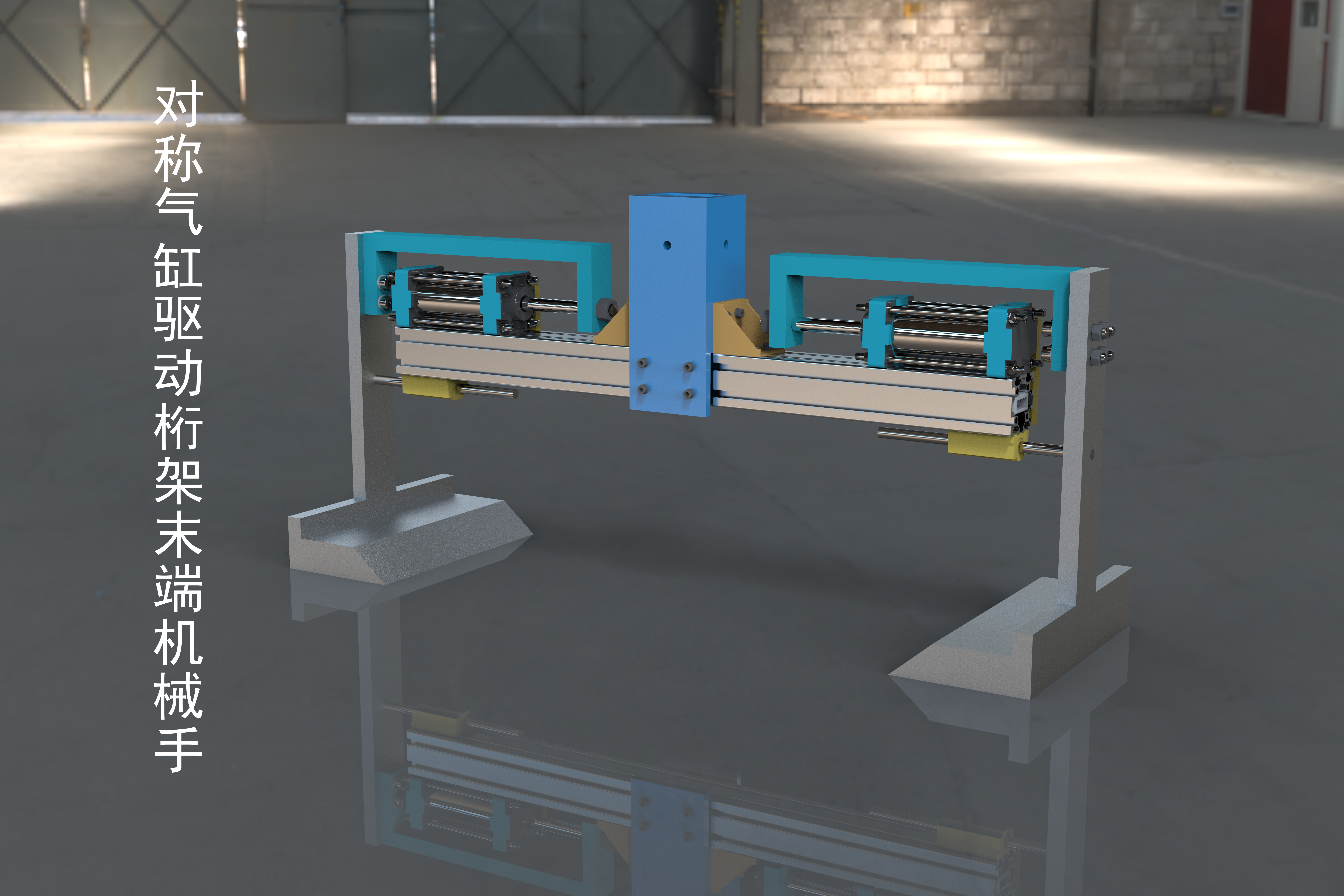

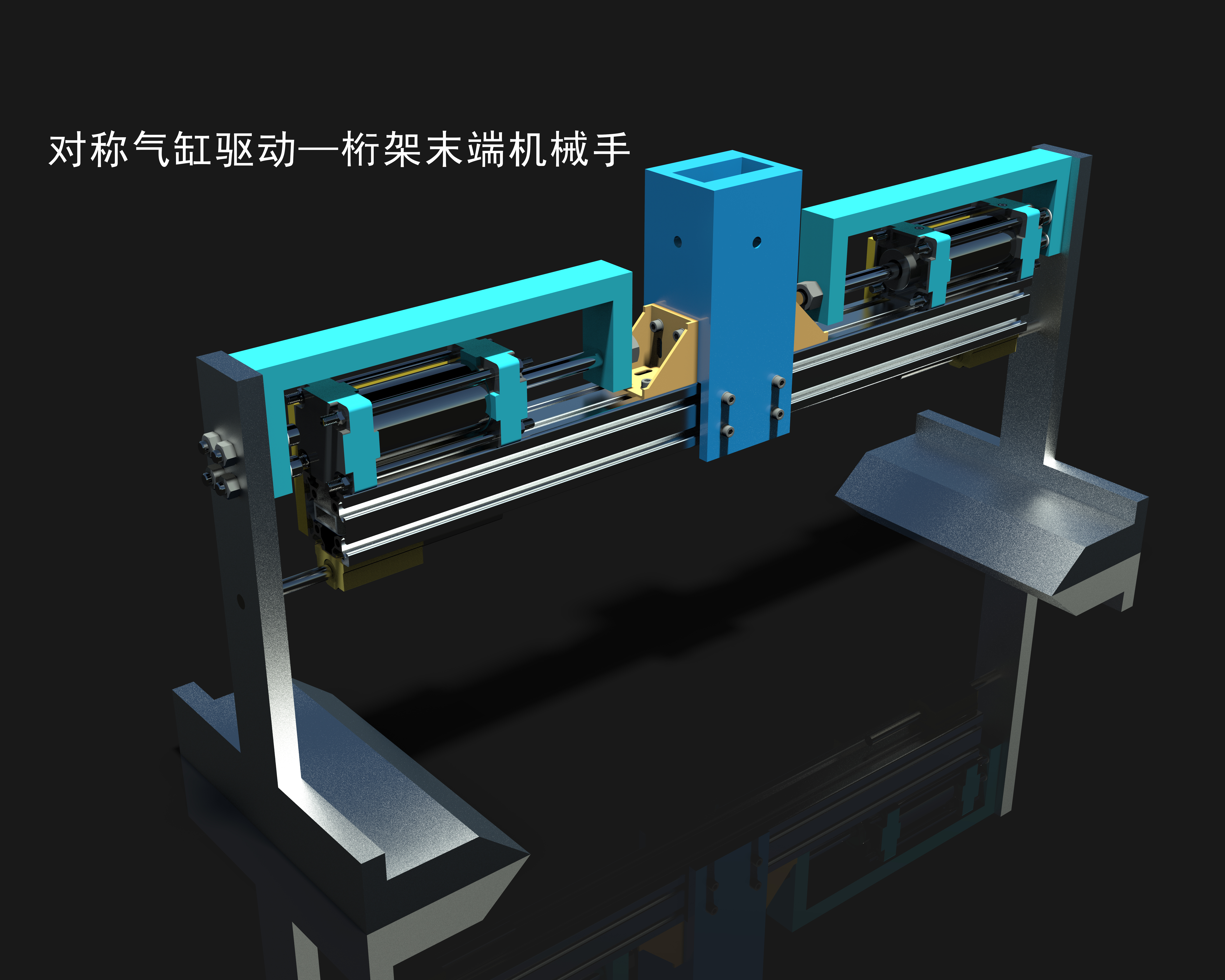

Product name: Symmetrical cylinder drive-truss end manipulator

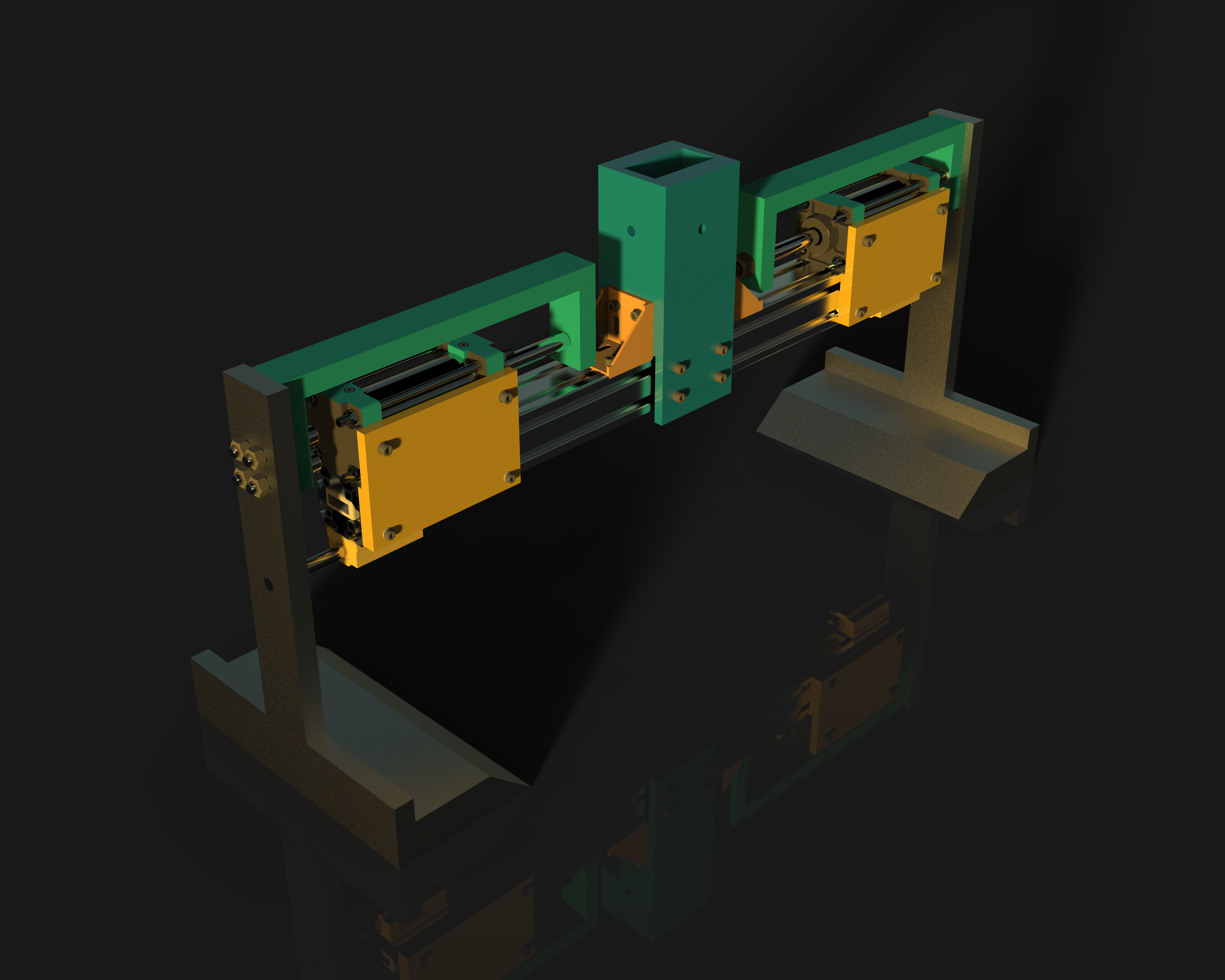

Product introduction: double cylinders are symmetrically driven, each component is customized and flexible, and the cylinder position and aluminum profile length can be adjusted according to the bearing needs.
Features: The working medium is inexhaustible and inexhaustible air, and the air itself does not cost money. The exhaust treatment is simple, does not pollute the environment, and has low cost. Low pressure level, safe to use.
Product name: Symmetrical cylinder drive-truss end manipulator
Product composition: 1 × single-slot industrial aluminum profile [MV-8-6060-800], 1 × top connector, 2 × linear bearing, 2 × steel column, 2 × CA2 standard cylinder series [CDA2B-50-75], 2 × LE-JJ big corner piece [LE-JJ-6060], 2 × fixed plate, 2 × cargo shovel.
This product strongly protrudes symmetrical beauty. The parts used are widely visible in the market and the parts are easy to process.
Features: The working medium is inexhaustible and inexhaustible air, and the air itself does not cost money. The exhaust treatment is simple, does not pollute the environment, and has low cost. Low pressure level, safe to use.

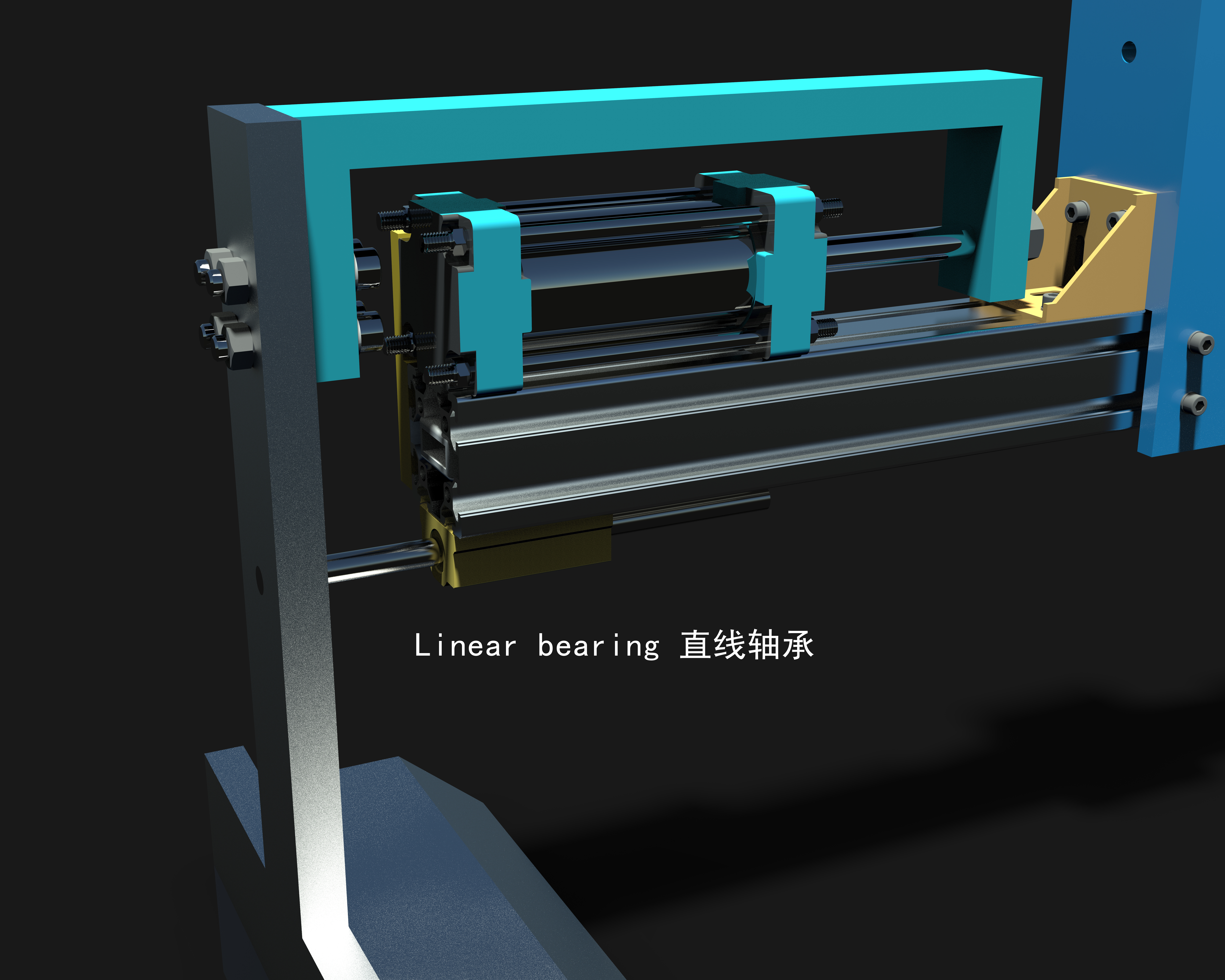

Linear bearing linear bearing is a linear motion system, which is used in conjunction with a cylindrical shaft for linear stroke, and plays a guiding and partial bearing role in this mechanism when used in conjunction with a guide shaft.

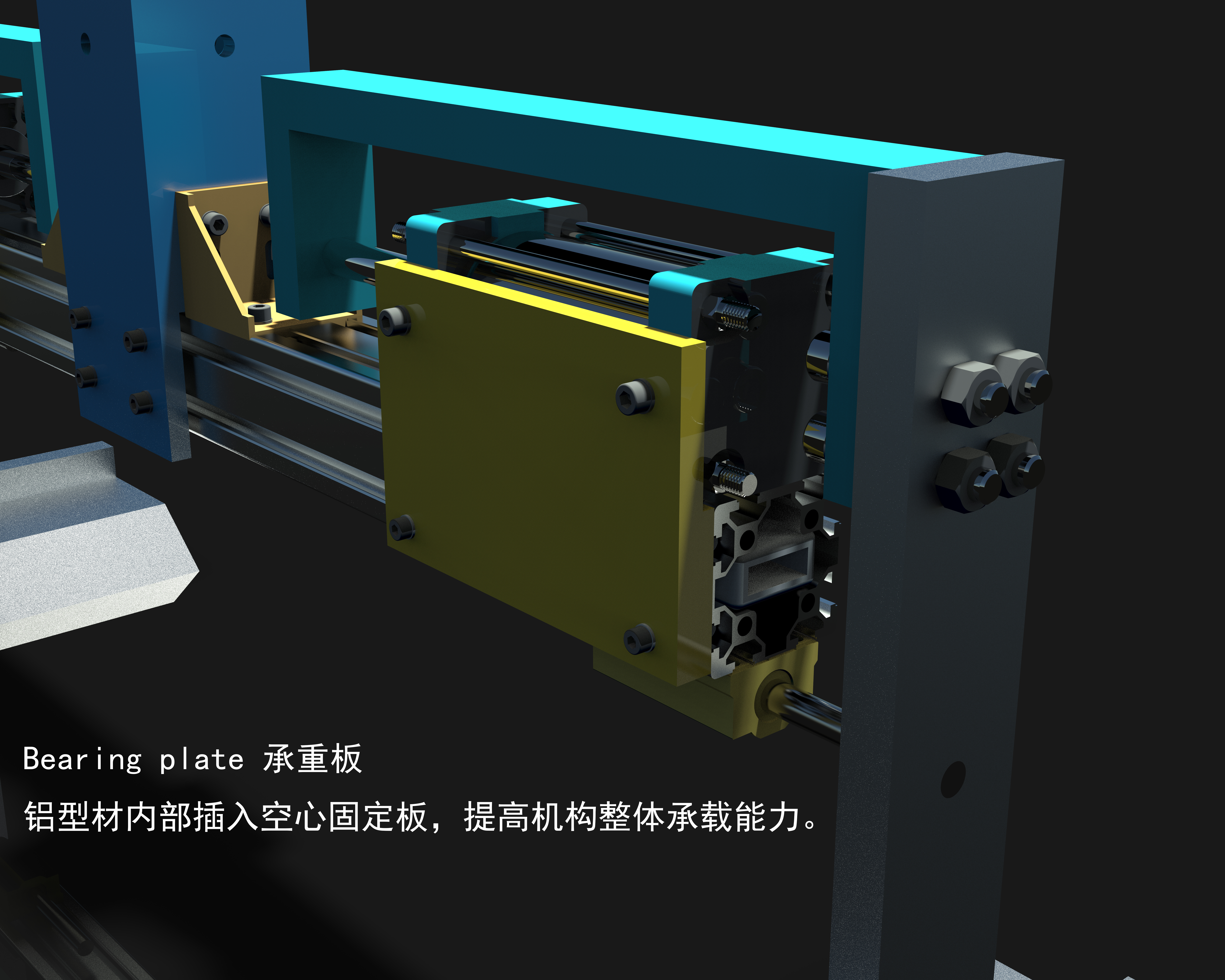

Bearing plate bearing plate; A hollow fixing plate is inserted into the aluminum profile to improve the overall bearing capacity of the mechanism.

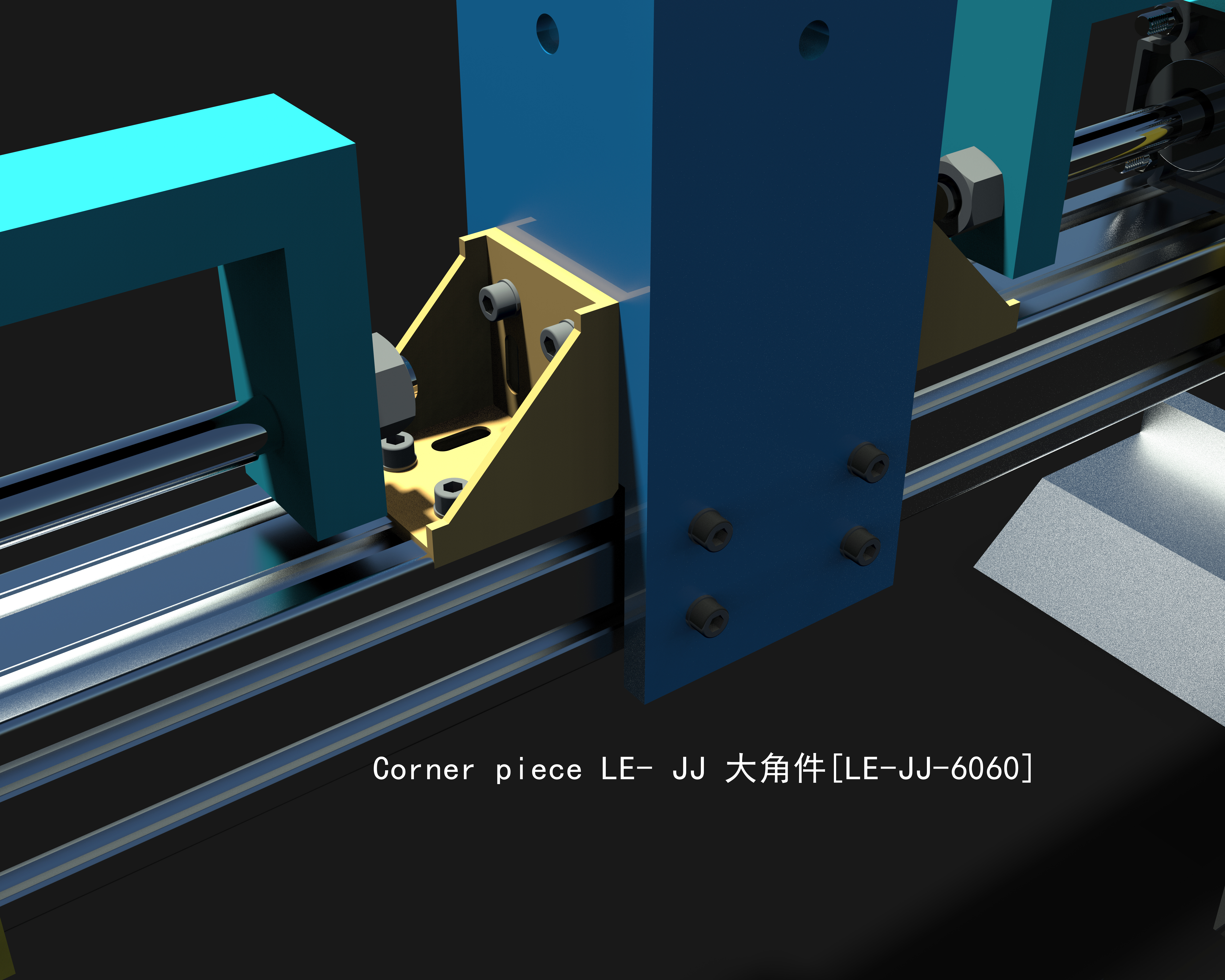

Corner piece LE-JJ big corner [LE-JJ-6060] fixed and loaded

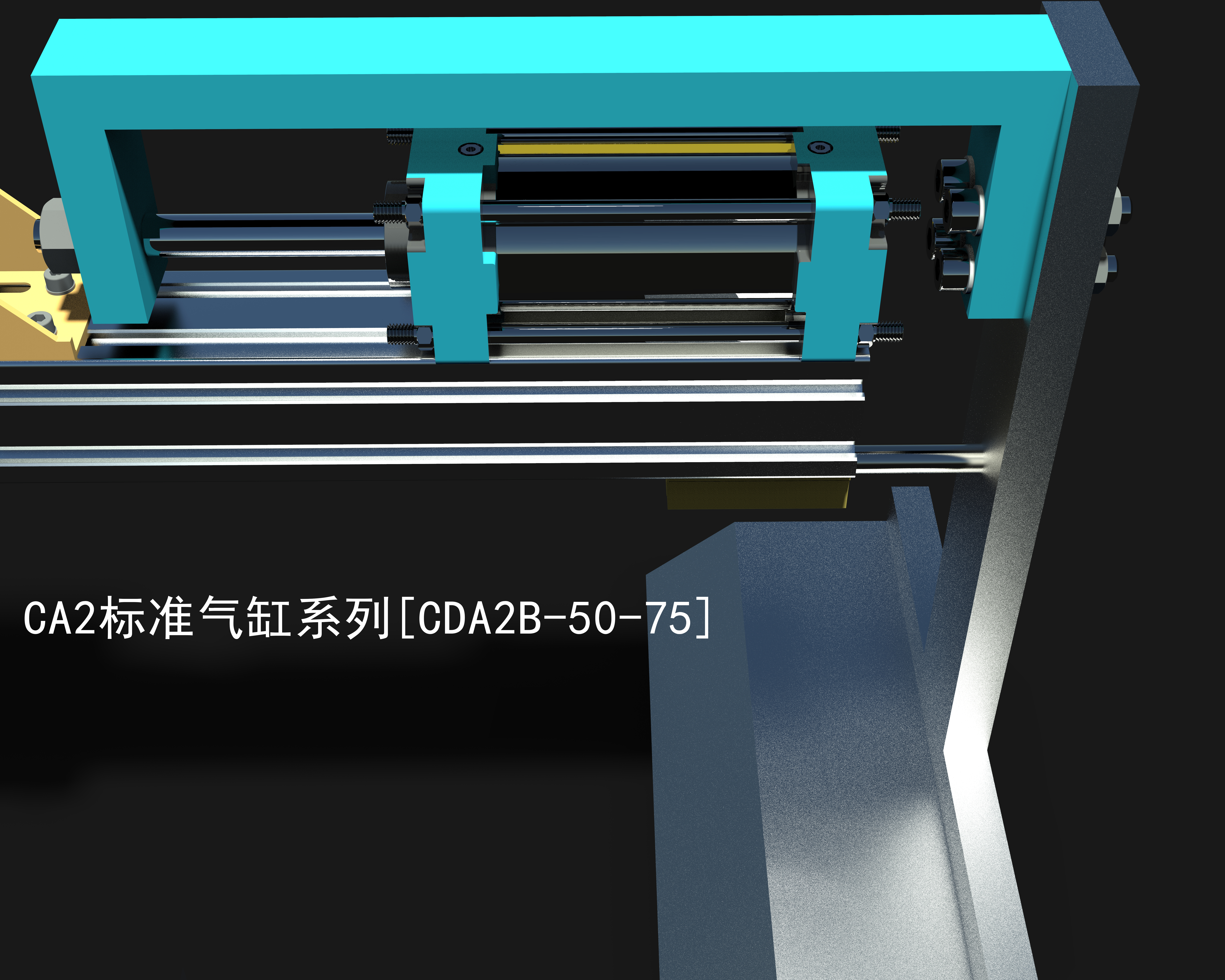

CA2 standard cylinder series [CDA2B-50-75] The cylinder has the characteristics of simple and convenient operation, simple installation, large output power, and can adapt to a variety of harsh use environments.

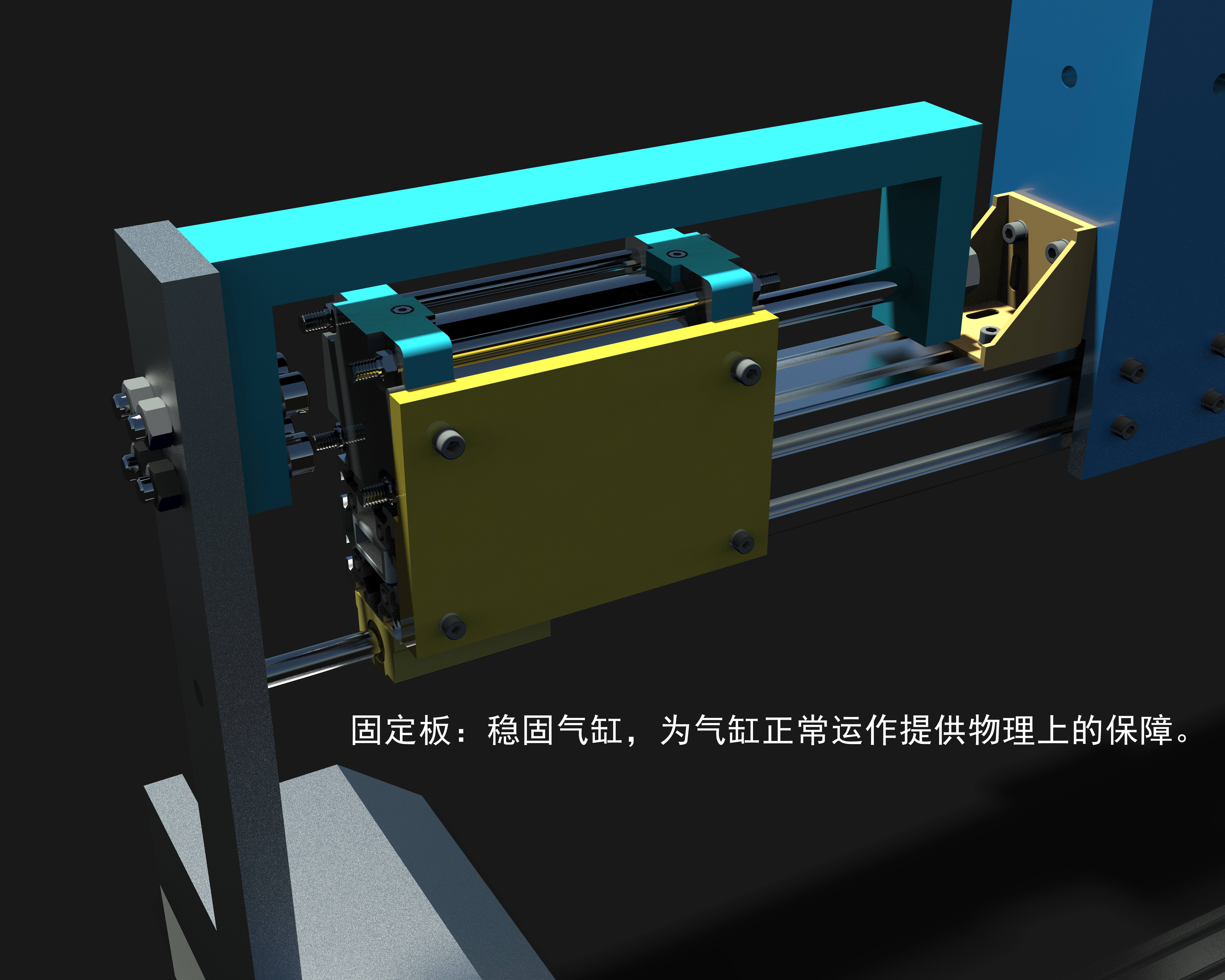

Fixed plate: stabilize the cylinder and provide physical guarantee for the normal operation of the cylinder.
