L-shaped disarming camera

2021-June
0-1 Design Studio
Designer: Akai

At present, the base of the low-cost card camera on the market only supports angle adjustment and supports the host. When users need to disarm, they need to manually turn the camera to or turn off the power supply. At present, there is no design product for innovative operation experience in this situation, so that users can operate more conveniently. The key is to completely close the camera detection surface.
In the existing co-positioning products due to cost constraints, it is impossible to use high-cost means such as motor steering to achieve physical withdrawal function, on the other hand, due to the height requirements of the camera base, the size of the whole machine is large, resulting in limited packaging cost optimization. Under the premise of the same cost of products at the same price, we can realize the physical withdrawal function of high-end products, improve the user experience and product competitiveness, reduce the product volume and reduce the transportation cost.
The L-shaped disarming camera adopts an L-shaped base, which forms a complete square after folding the base and the host. At the same time, the contact surface during folding forms a closed area for physical disarming. After folding, the shape is square and regular, the volume is small, and the packaging loss is reduced.

L-shaped disarm camera
At present, the ba-se of the low-cost card camera on the market only supports angle adjustment and supports the host. When the user needs to disarm, he needs to manually turn the camera or turn off the power. More convenient operation, the key is to completely close the camera detection surface.
Due to the cost limitation of existing products with the same positioning, it is impossible to use high-cost means such as motor steering to realize the physical disarm function. On the other hand, due to the height requirements of the camera ba-se, the large size of the whole machine limits the optimization of packaging costs. Under the premise of the same cost of products of the same price, realizing the physical disarming function that only high-end products have, improving user experience and product competitiveness, while reducing product size and reducing transportation costs are our primary problems.
The L-shaped disarm camera adopts an L-shaped ba-se, and the ba-se and the main unit are folded to form a complete square, and the contact surface when folded forms a closed area for physical disarming. After folding, the shape is square and neat, the volume is small, and the packaging loss is reduced.

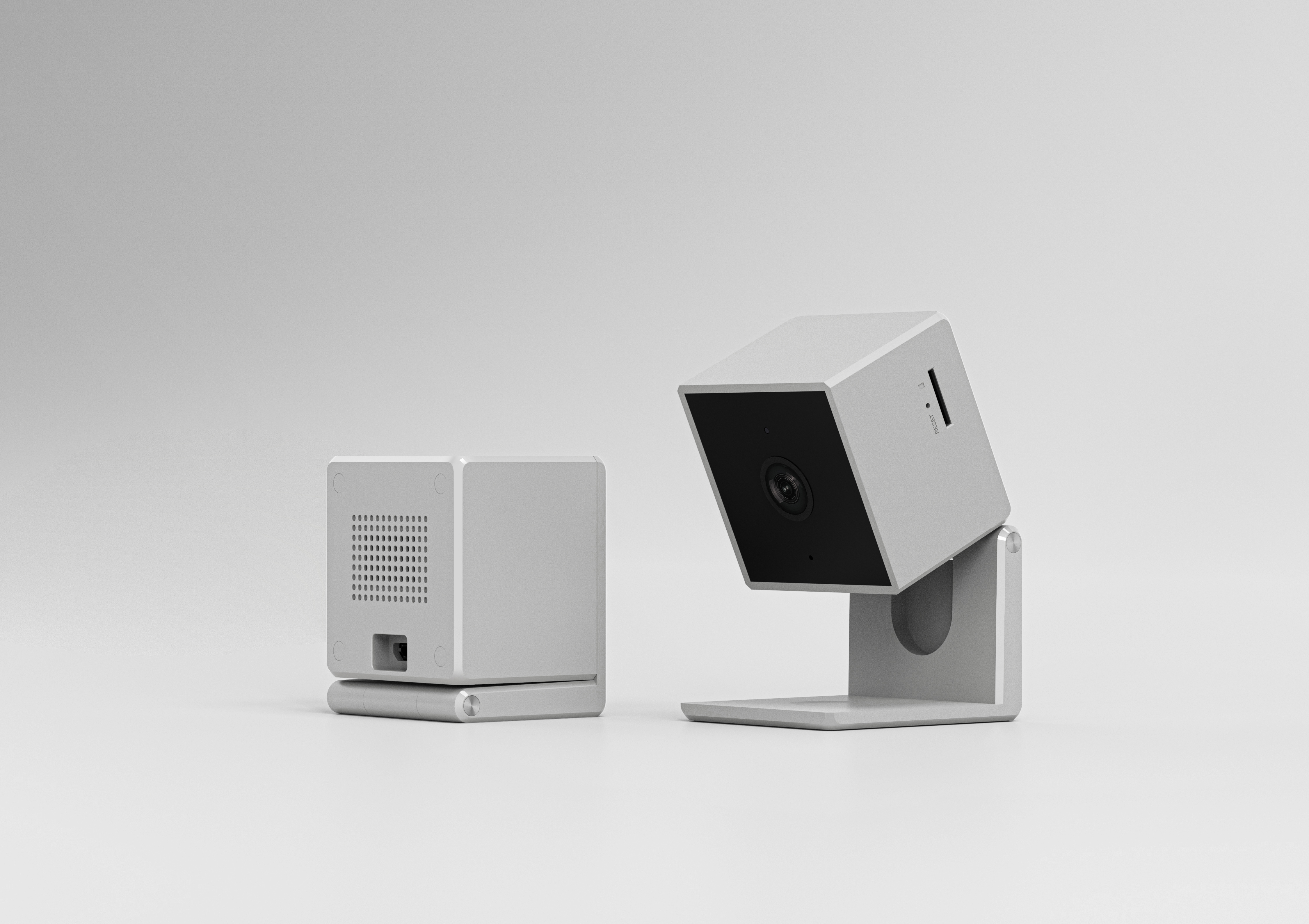

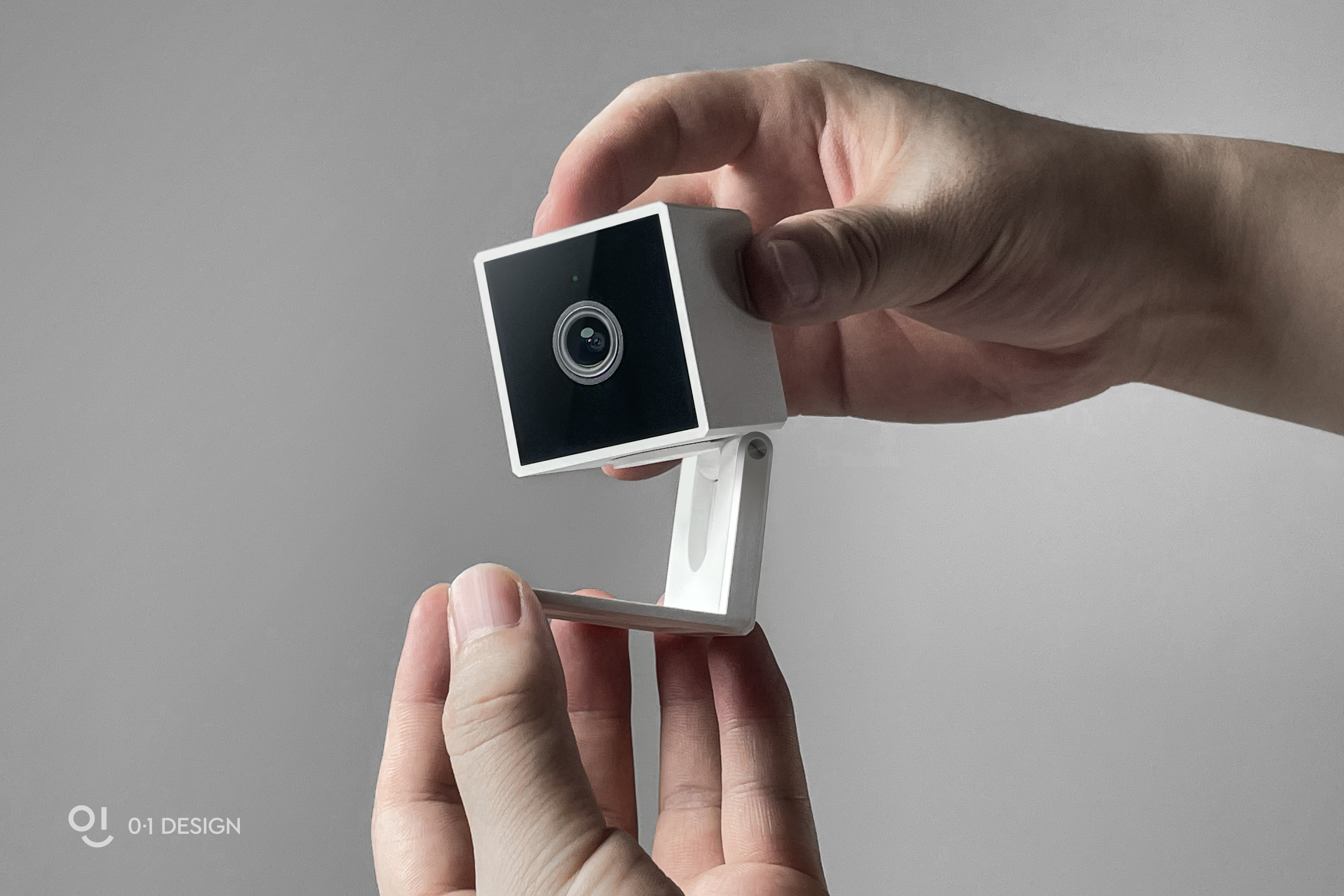

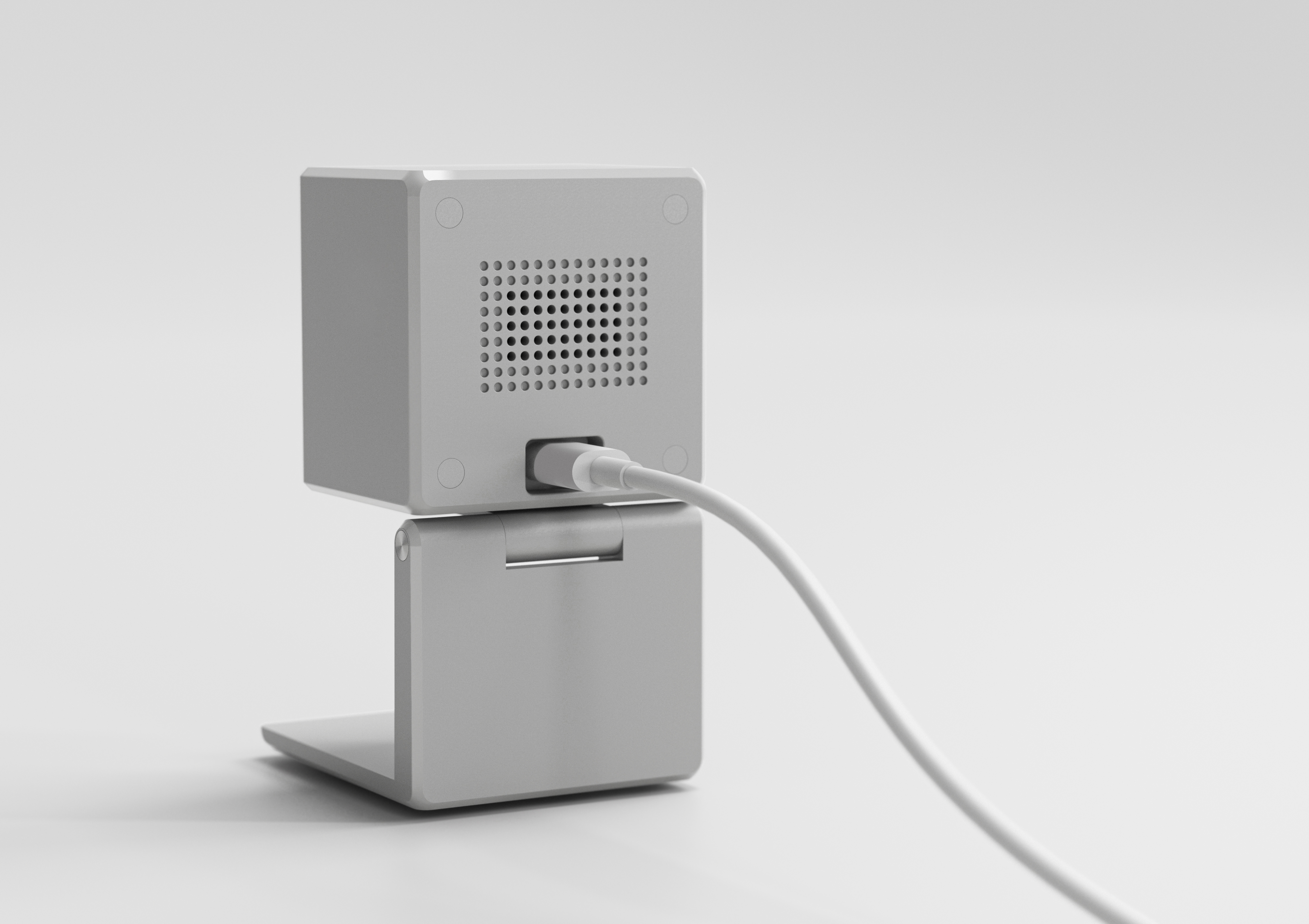

The L-shaped disarming camera can realize horizontal angle adjustment and pitch angle adjustment, and the whole machine can be folded within the pitch angle range.
TheL-shaped disarm camera can realize horizontal angle adjustment and pitch angle adjustment, and the whole machine can be folded within the range of the pitch angle.

When the host is in the collapsed state, it fills into the space enclosed by the L shape

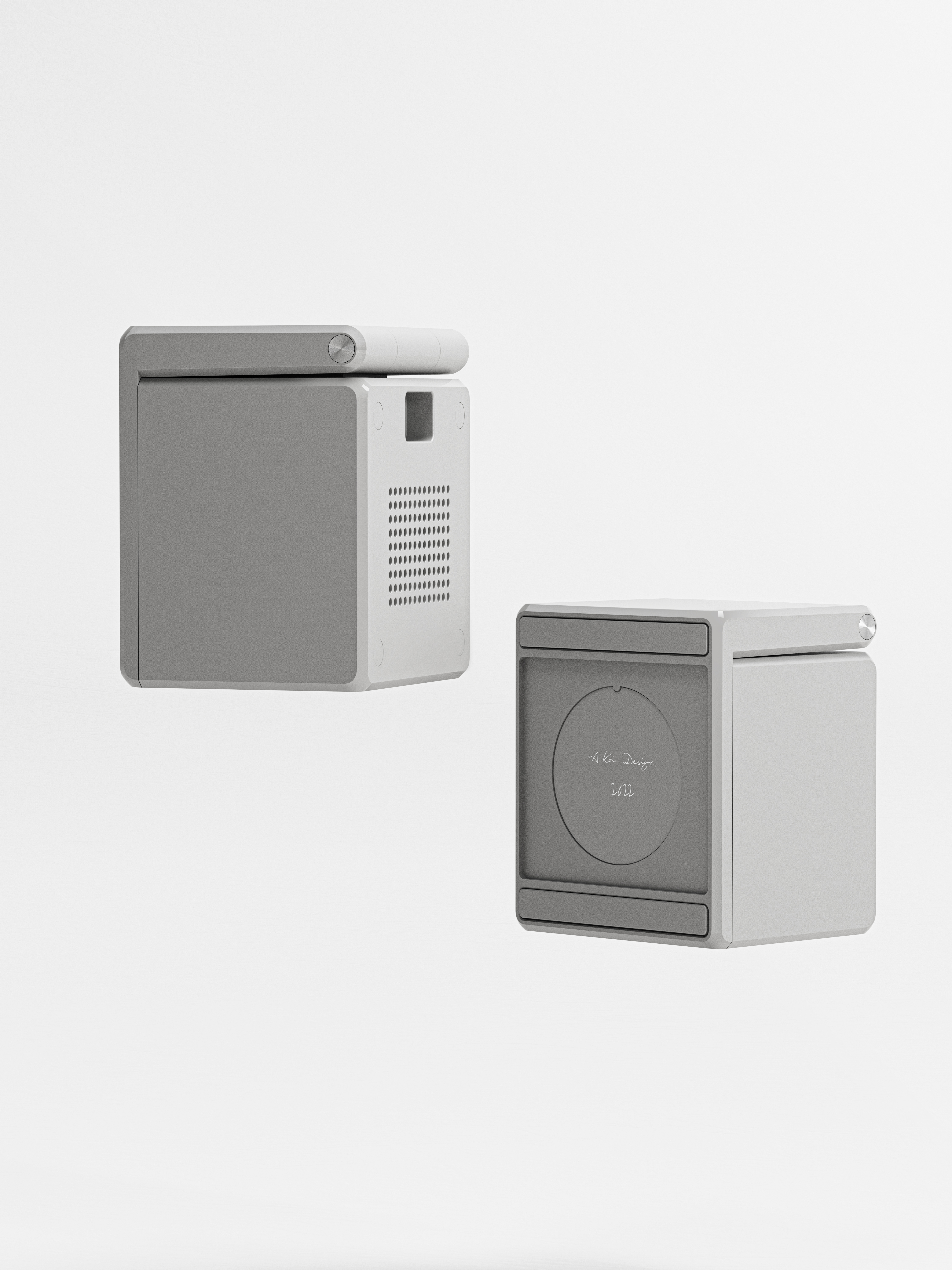

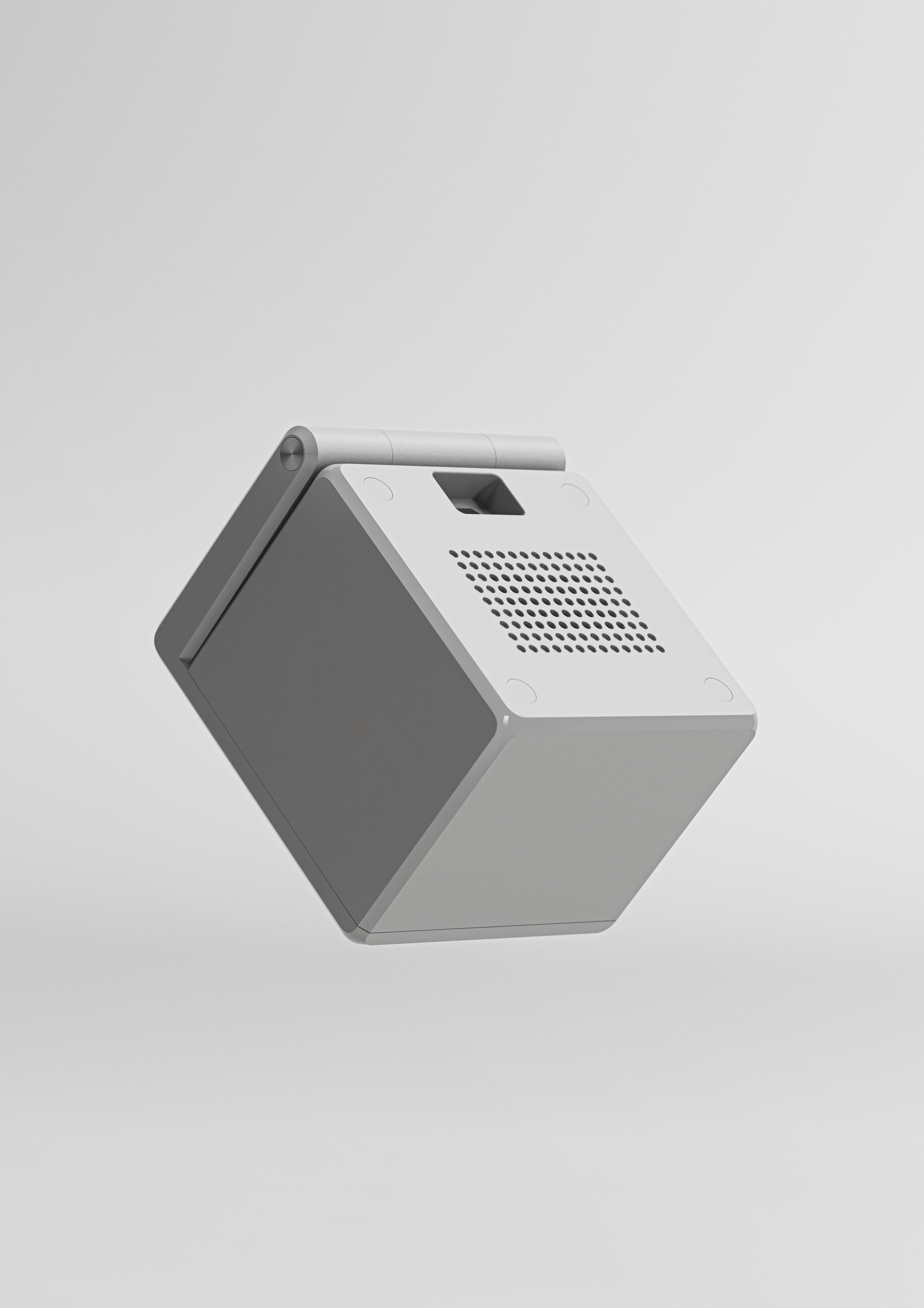

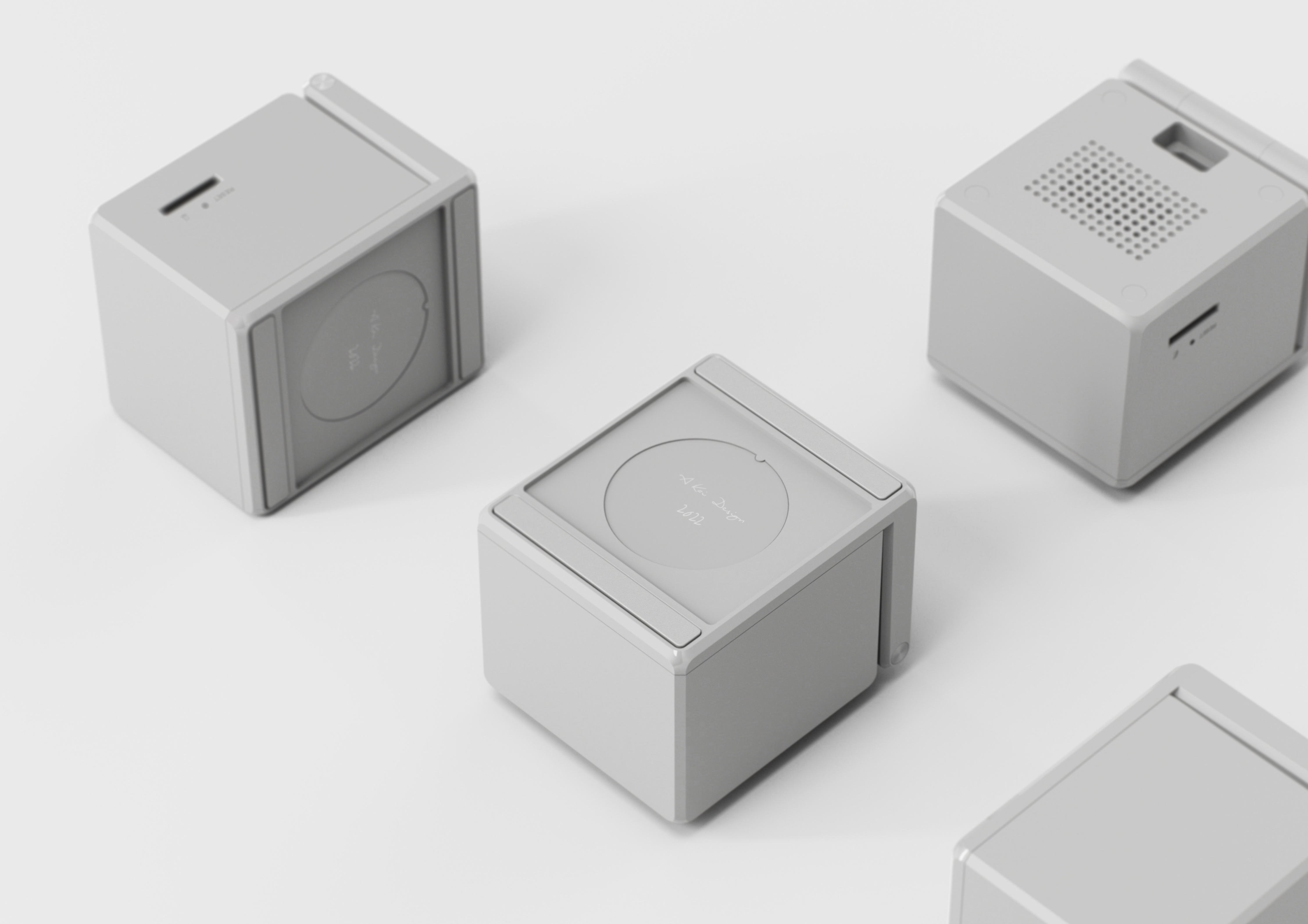

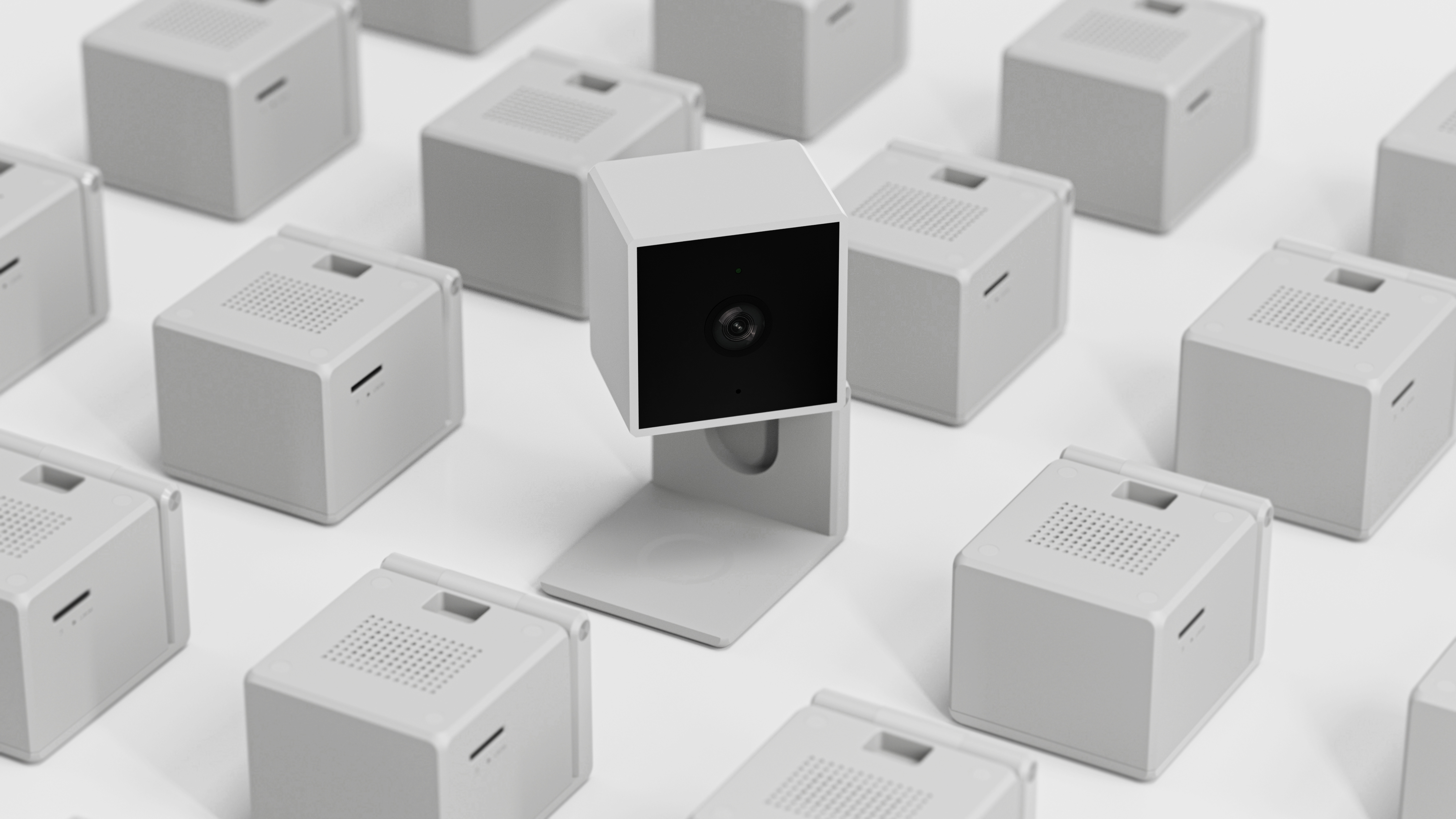

The folded host and base form a complete square shape.
When the host is in the folded state, it fills the space enclosed by the L shape

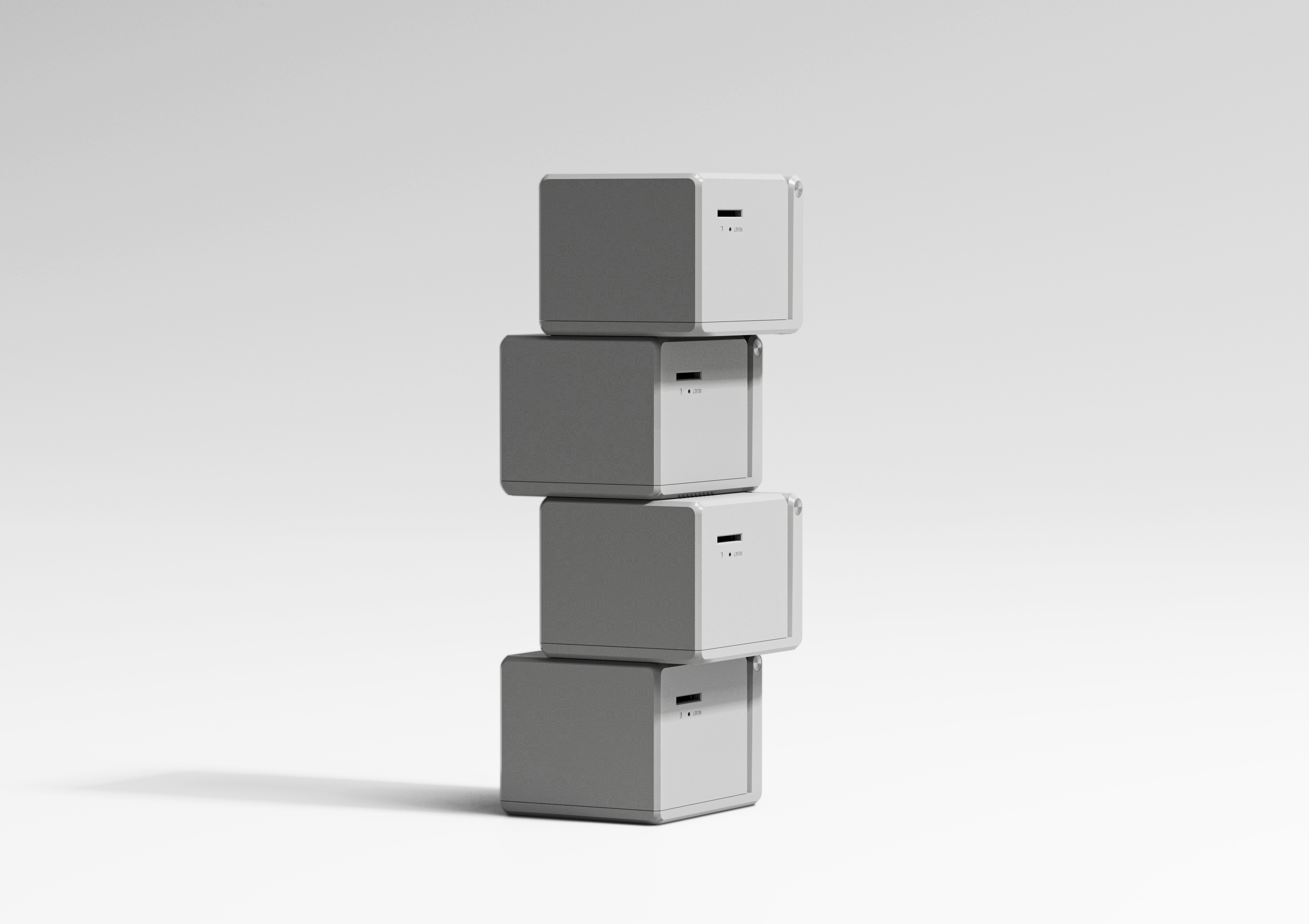

The folded host and ba-se form a complete block shape.

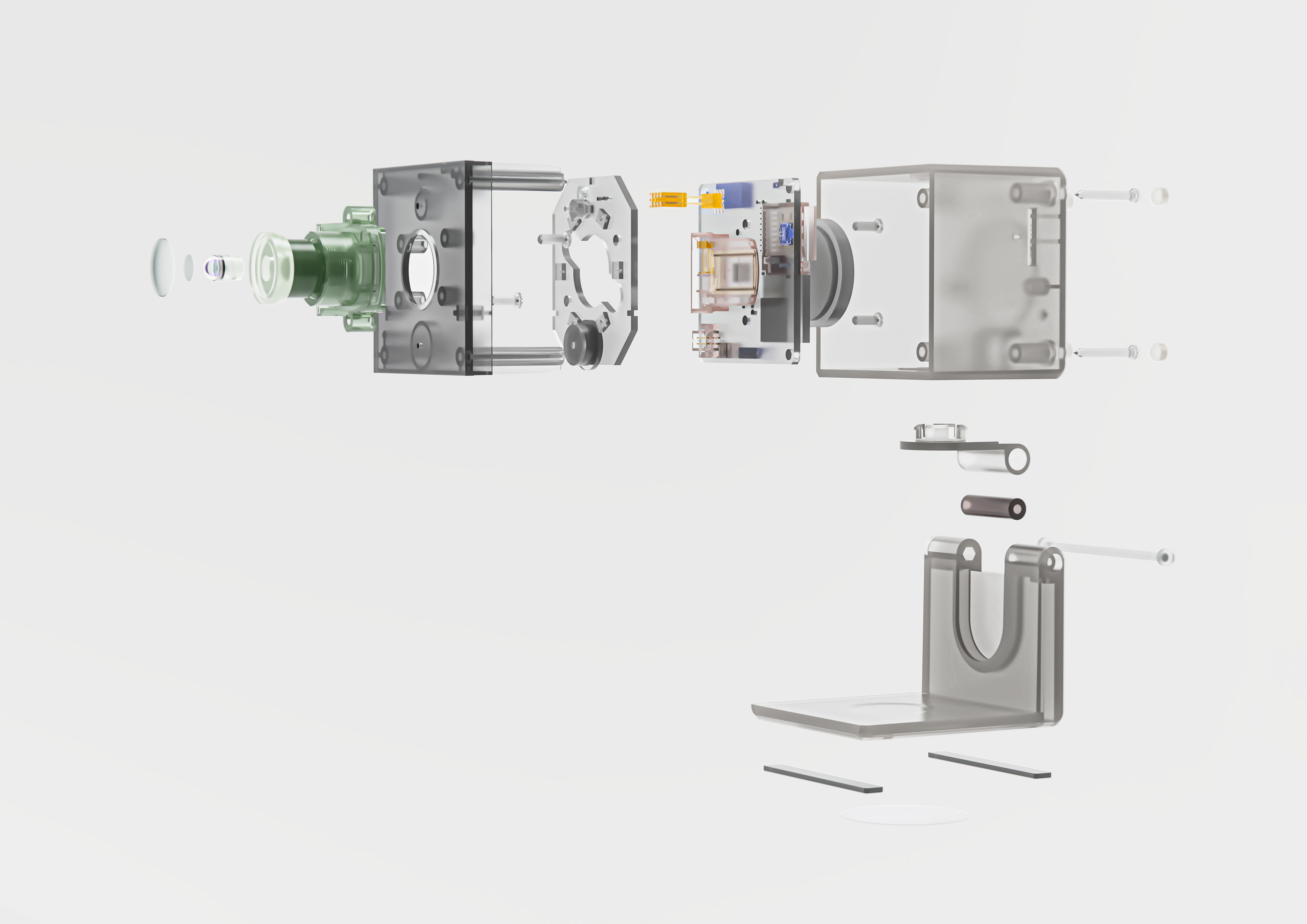

Decomposition diagram
Transparent material display effect
Exploded View
Transparent material display effect
