Mechatronics System for Mold Hoisting

Pioneer of Bridge Equipment in China

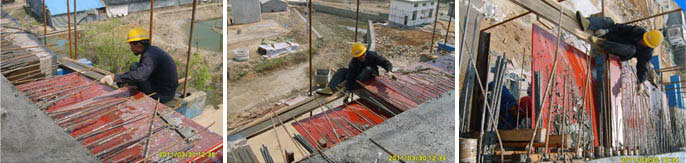

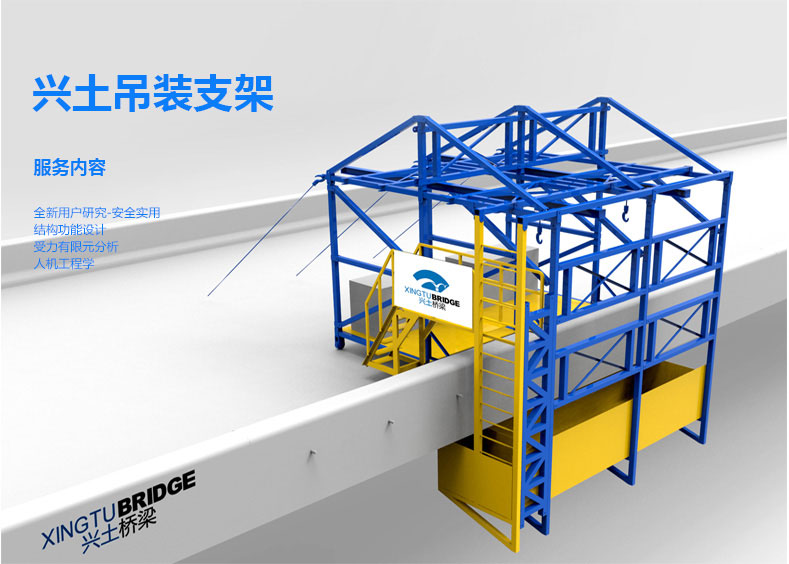

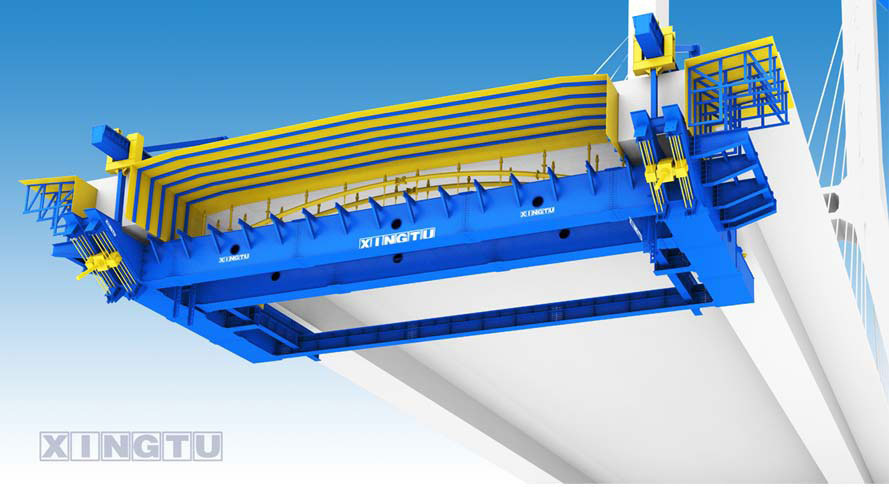

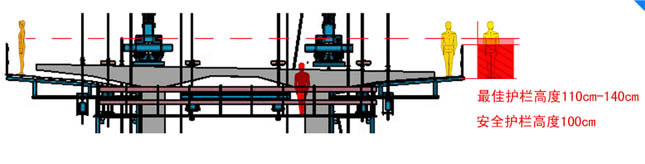

The hoisting platform is used for concrete pouring of bridge guardrails. For a long time, due to the poor equipment in this field, the engineering efficiency is low, the safety is poor, and accidents occur from time to time. Tengying system analyzes the whole installation and use of man-machine operation process, integrates mechatronics technology, realizes the system automatic walking, steering, automatic hoisting, platform lifting, and fills the gap of professional equipment in this field in China.

Xingtu is a large domestic bridge equipment group. At the beginning of the cooperation, Tengying also felt that the company questioned our capabilities, but we have won the trust of customers and the recognition of the market with our truth-seeking and pragmatic style and unique design thinking. Now Tengying and Xingtu have gone hand in hand for five years., And set up an industrial design cooperation center within the enterprise.

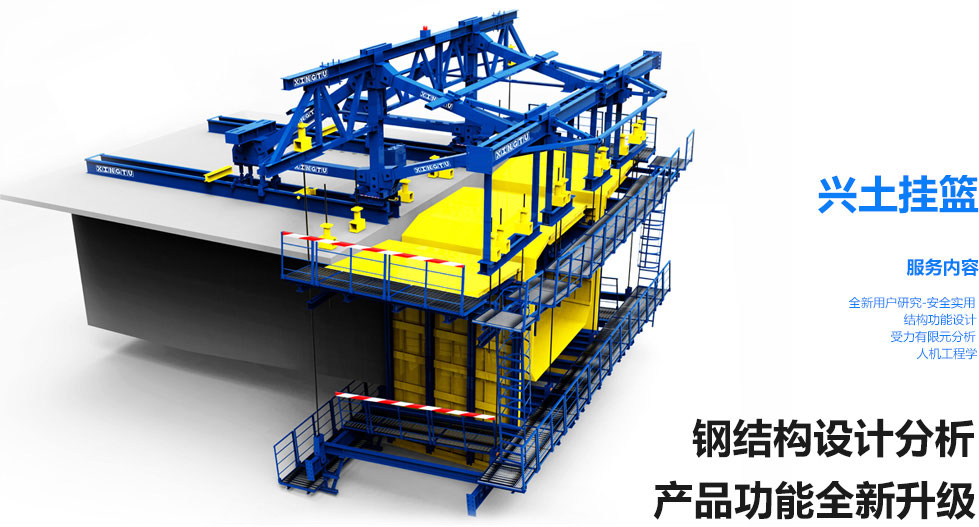

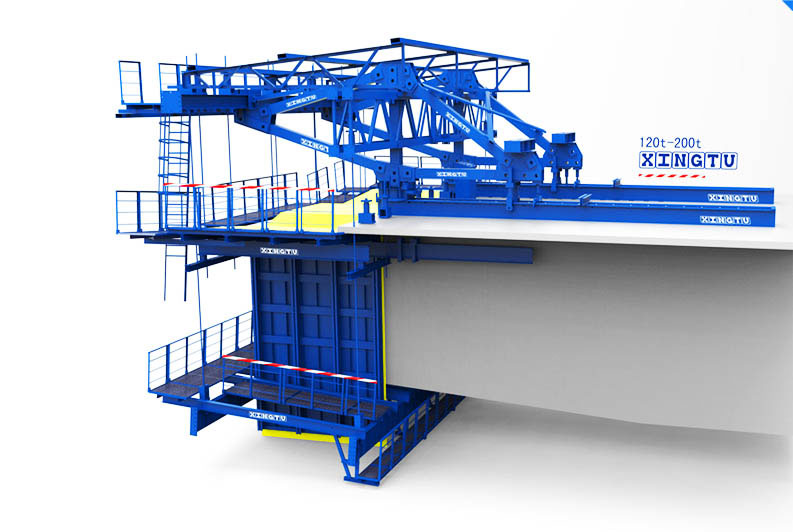

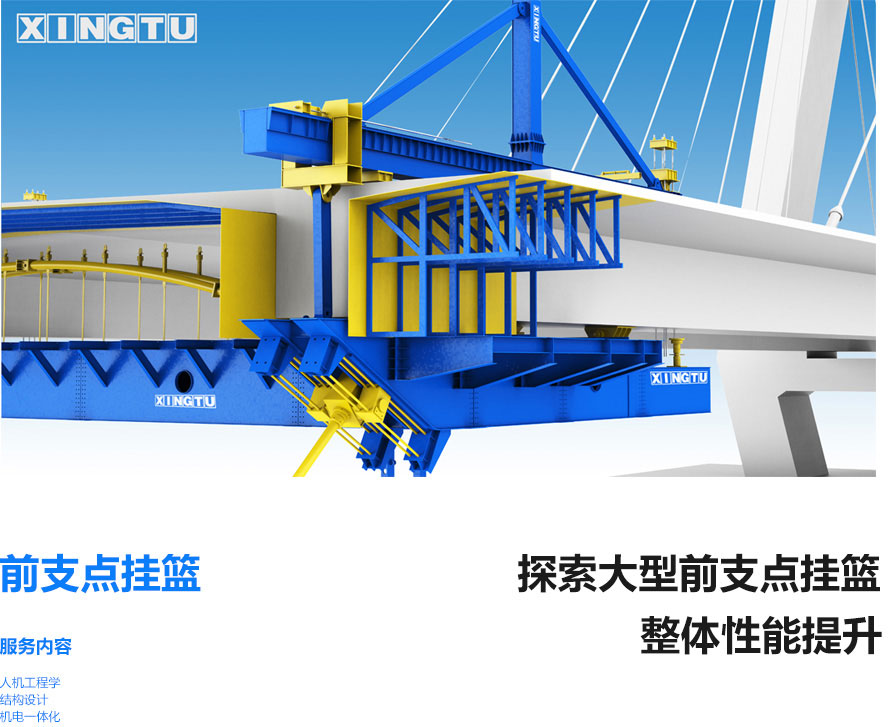

The front fulcrum hanging basket is also called traction hanging basket. During the construction process, the rear end of the hanging basket is anchored to the end of the cast beam. It can give full play to the role of zipper and jointly bear the concrete load of the cast beam section. Tengwin systematically coordinates weighing, formwork, cable hanging, anchoring, thrust stopping and walking systems, and realizes mechatronics coordination among systems.

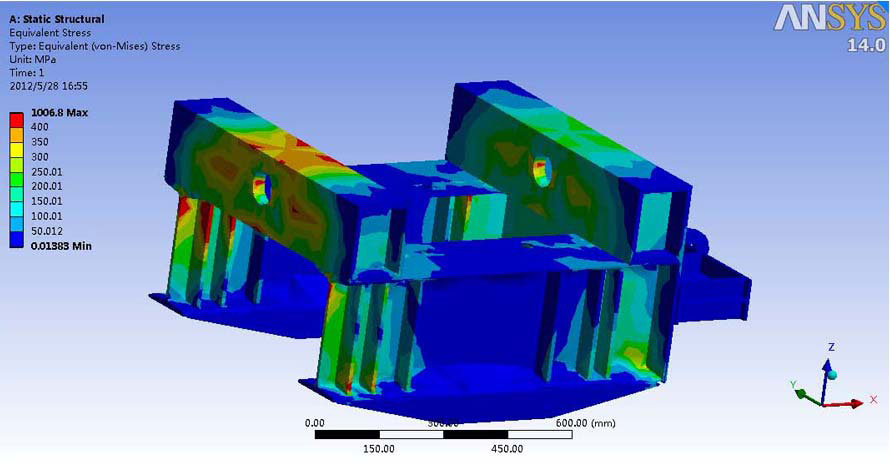

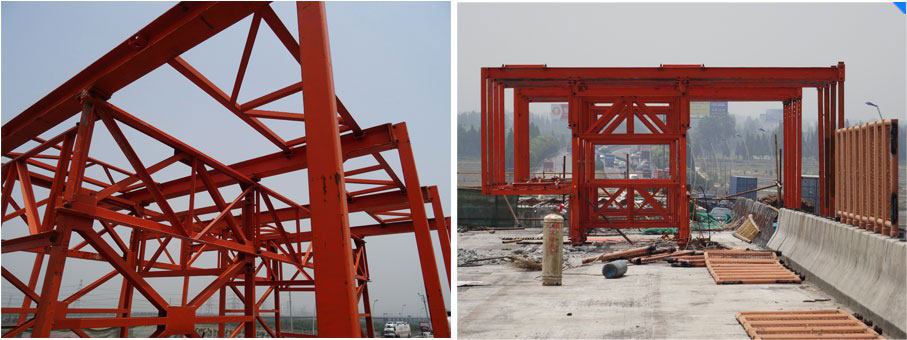

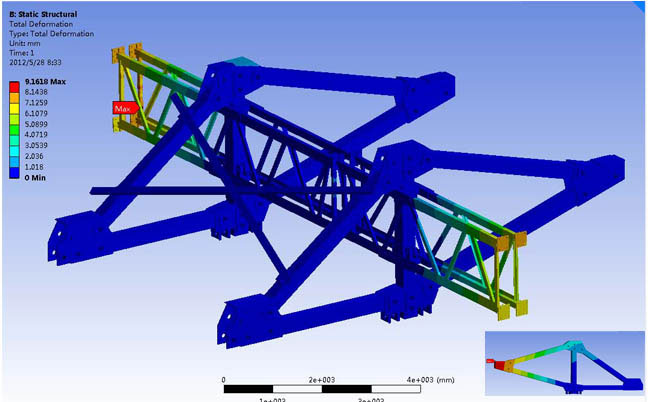

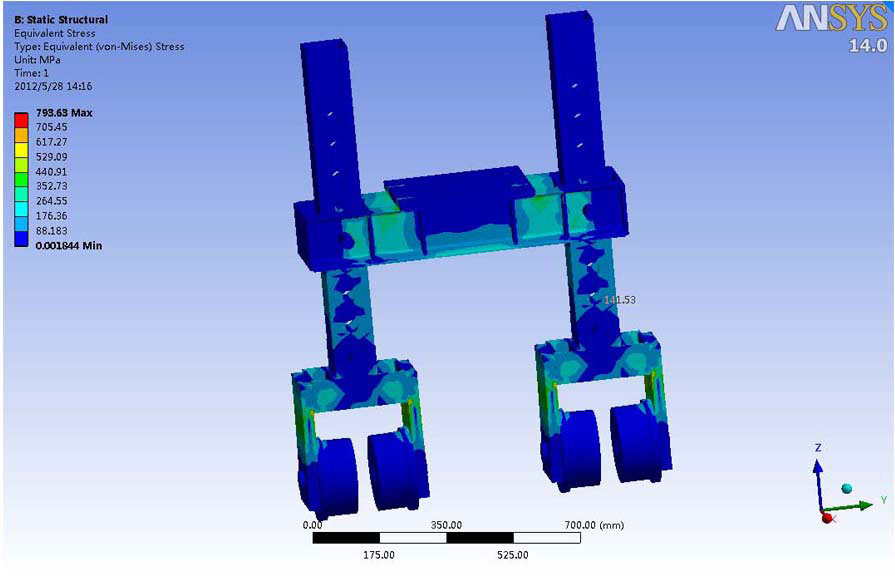

Design Analysis of Steel Structure

New upgrade of product functions

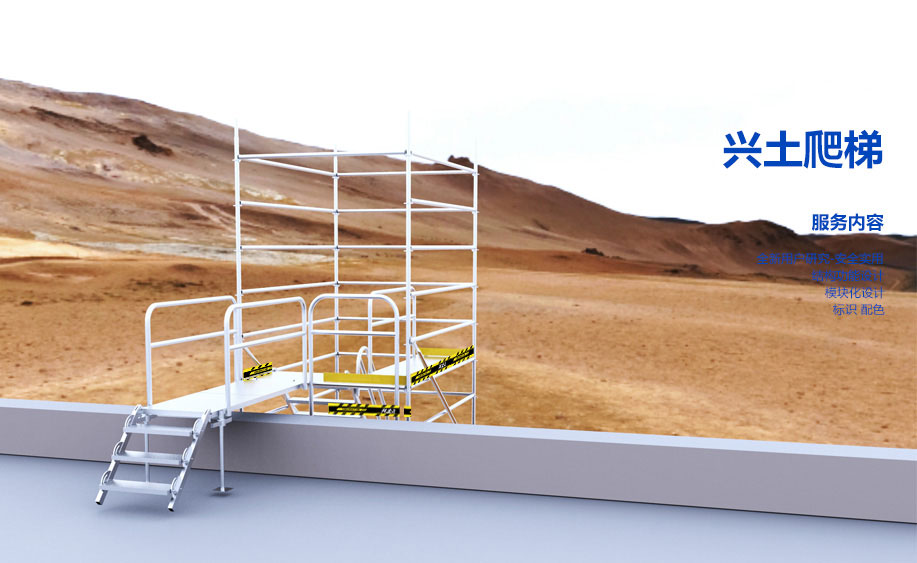

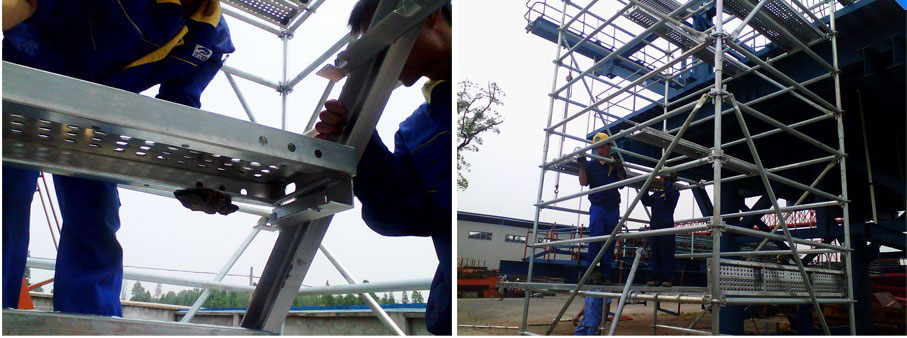

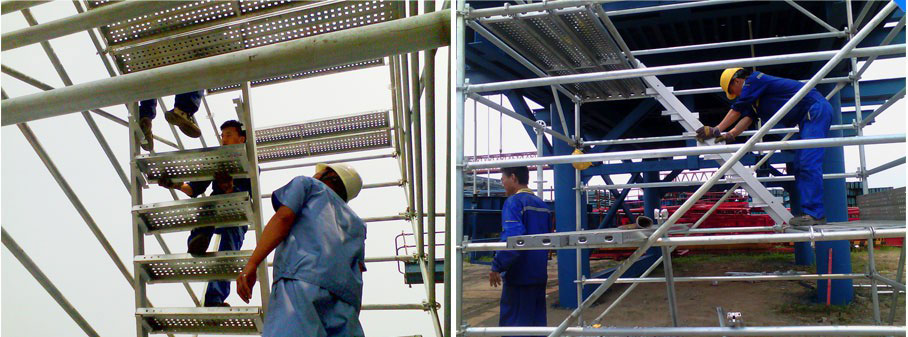

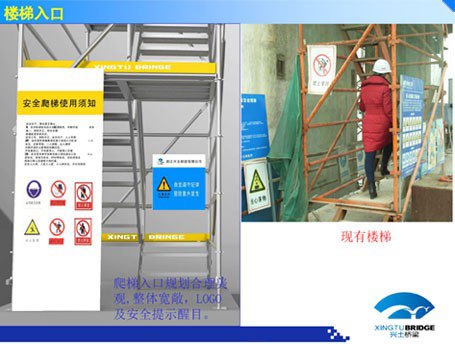

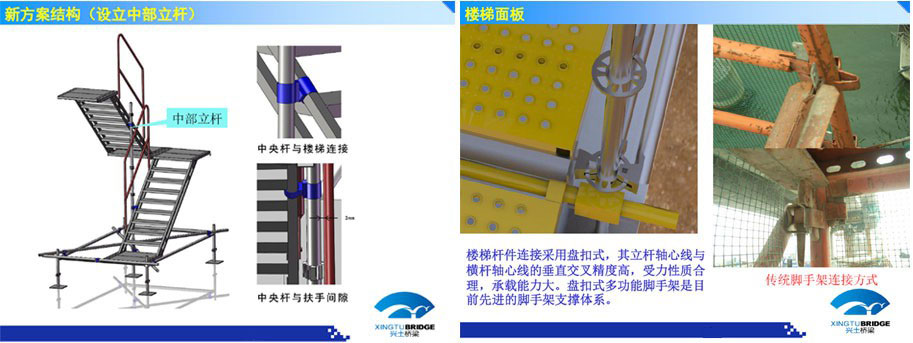

The high pier ladder of the bridge is specially built for the construction of the bridge, which is responsible for the safety. The whole design process has encountered the challenges of wind resistance, stability and modularization. We borrowed from the current modular construction method of scaffolding, and made breakthroughs in structural reinforcement, overall assembly and use. Later, we continued to discuss with the Xingtu Engineering Department, and debugged and tested multiple prototypes. The final product performance in the domestic market far exceeds that of the same industry. Occupy the market in one fell swoop.
