Physical diagram

In complex products, vehicles, etc., simple body shaping is indispensable. We can quickly understand how to draw simple shapes and understand perspective easily. Such a complicated form is actually the same ~ it is nothing more than a straight line turning into a curve with many details ~ you should learn to take it apart and draw it.

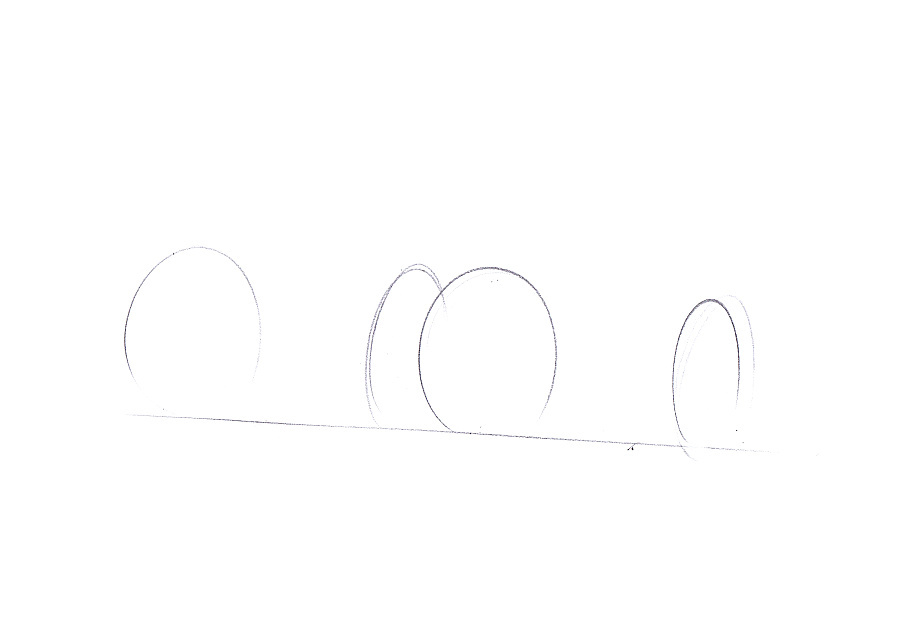

1. Draw the four wheels of the jeeep car according to the perspective relationship as a basic reference.

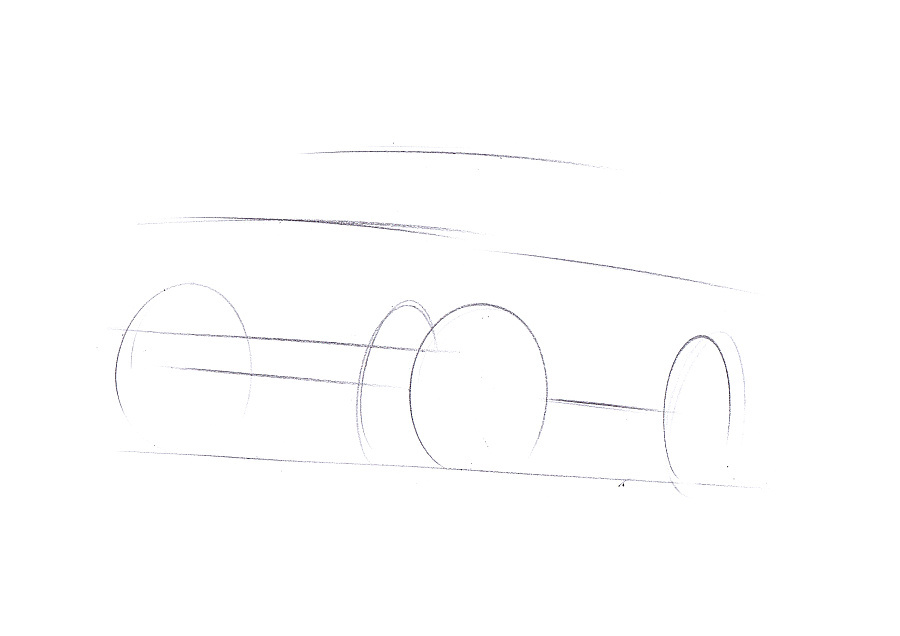

2. Draw the key perspective line of the car.

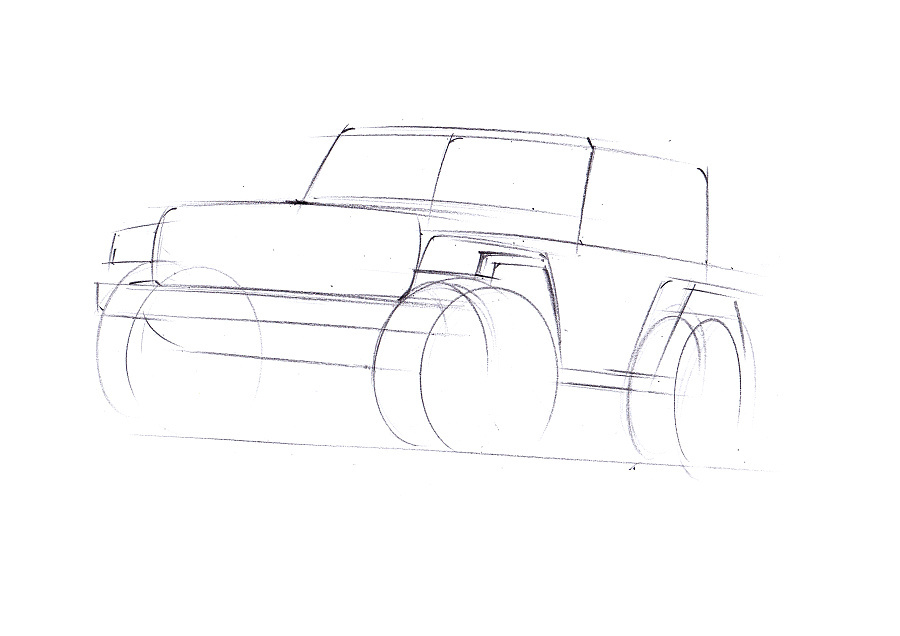

3. Continue to build the basic form, here refers to the simple basic form, do not refine.

4. Go to chamfer the basic rectangle and hit the light and shadow.

5. Use a blue marker to draw the basic color of the car body. Note that when using a pen, you need to draw according to the direction of the curved surface of the car body.

6. Draw the darkest part with a heavier CG6 ~

7. The front windshield ~ is also divided with toner ~ stick it with sticky paper to block the places that do not need to be smeared ~ so as to have more glass texture.

8. Finally, deepen the turning point of the body and use a pencil to close the shape to deepen the contrast. Then use a white high-gloss pen (actually the same as the correction fluid) to highlight at the turning point to enhance the contrast.
