Design background: entry-level multifunctional rice cooker, overseas market

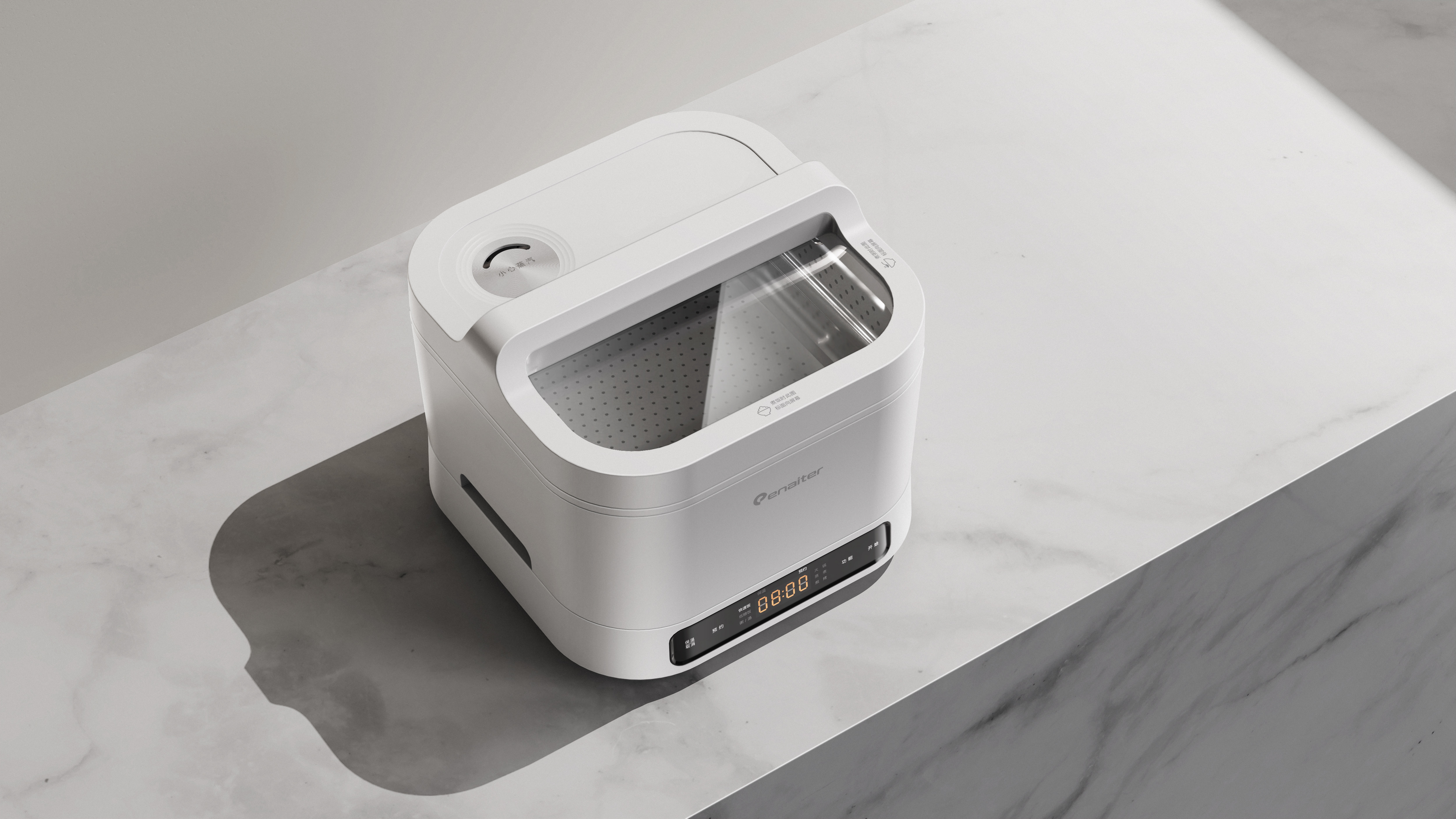

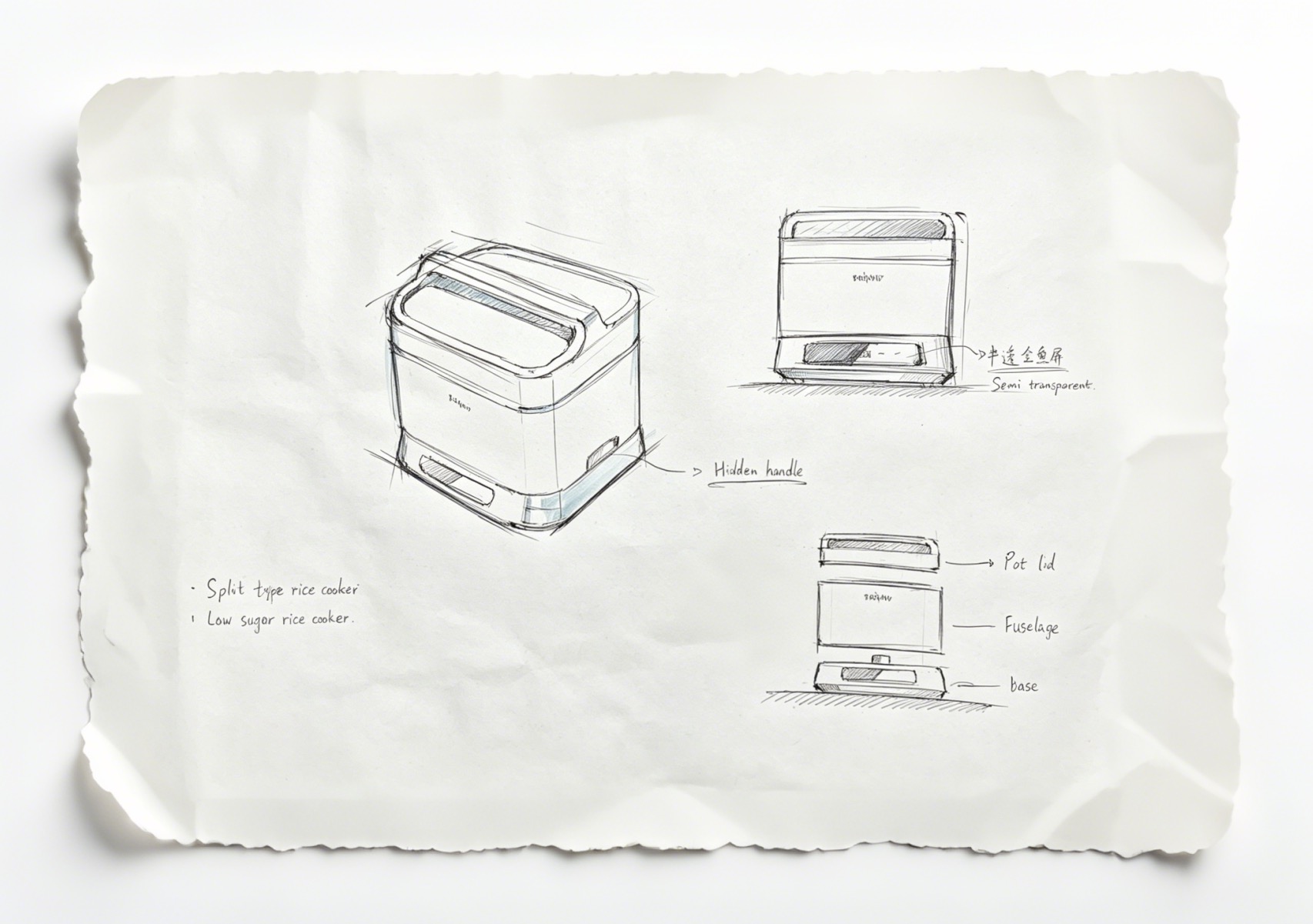

Design concept: simple shape, no extra parts, the cost for improving the experience and material texture. For example, to make a split structure, the rice can be directly taken to the dining table after cooking without pulling out the thread. The large window uses high-temperature resistant high-definition glass.
The same size square is larger than the round capacity, to meet the use of family members, whether cooking or electric hot pot is very convenient

Design difficulties: it is necessary to coordinate the visual presentation of the handle, window and exhaust port to avoid the cheap and homogeneous pot cover shape in the market; The layout of each element of the final finished product is coordinated and unified, which is more advanced than competitive quality and has strong differentiation identification.

Design ingenuity: there is a problem of porridge overflow in the product development stage. the engineer gives the suggestion that the opening around the top of the lid should increase the entry of cold air, but this will destroy the integrity of the product. All of a sudden, I remembered that there was a scene of eating hot pot. Turning the filter screen of hot pot 90 degrees can raise the shelf to expose the food.

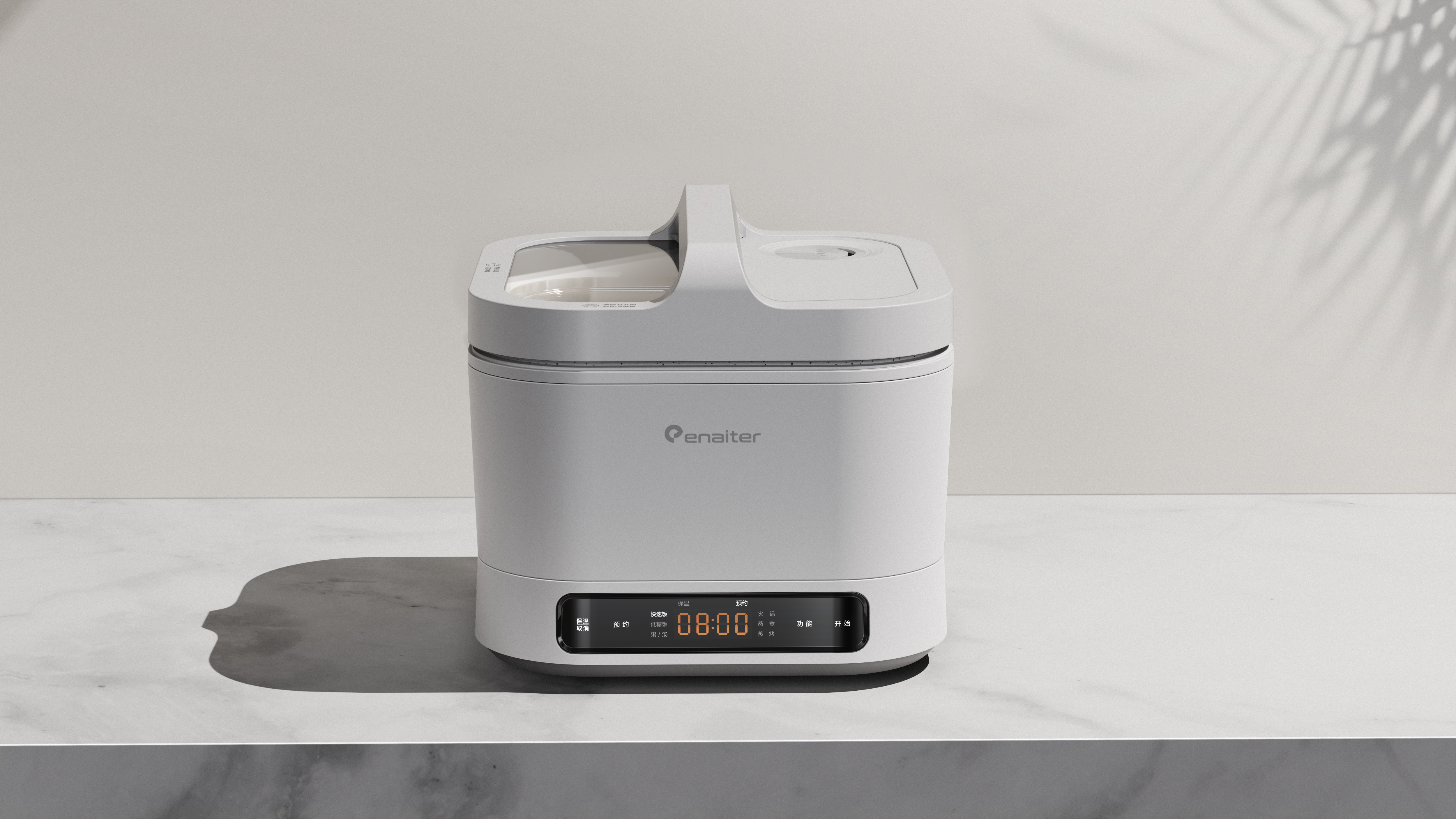

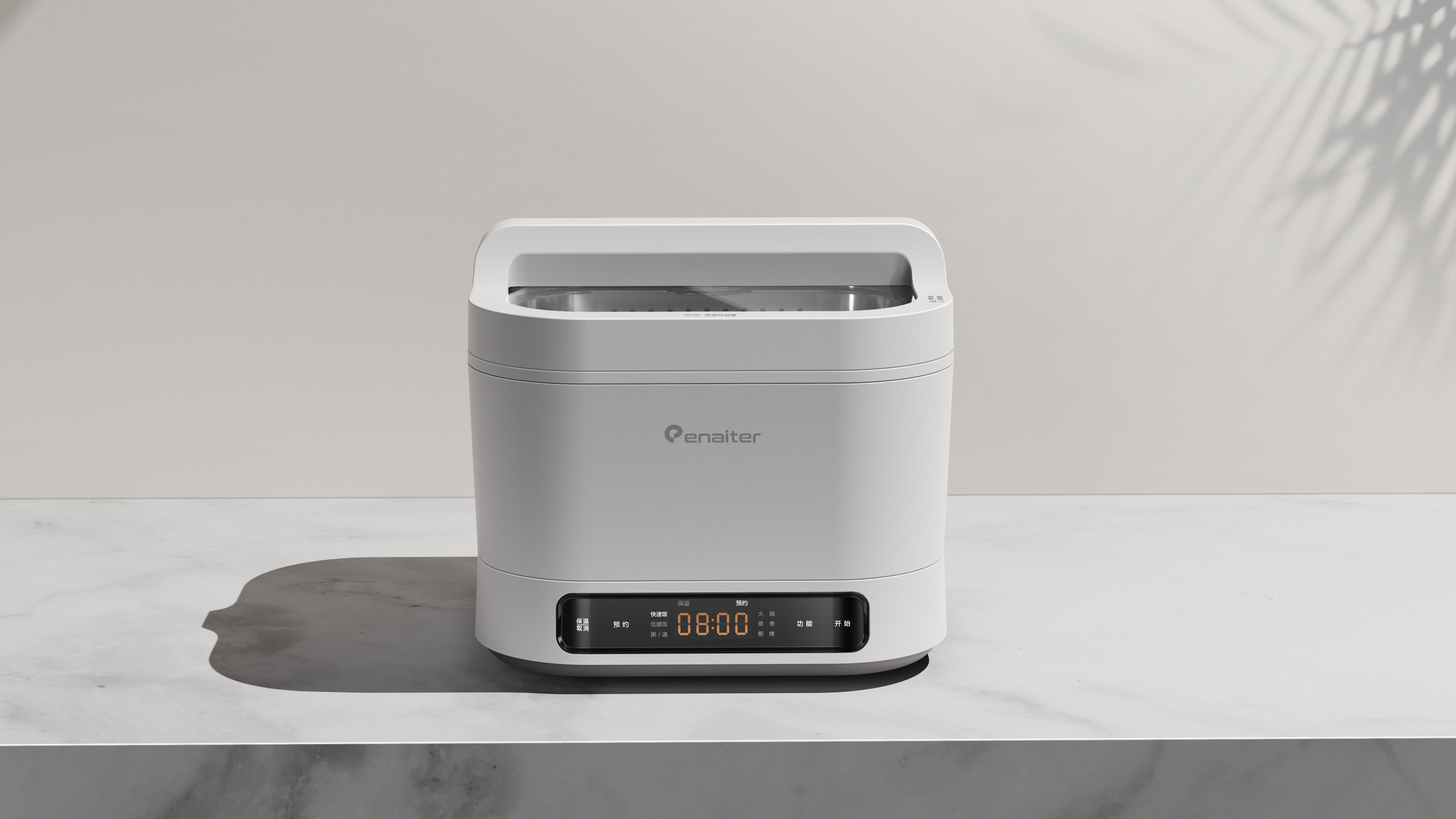

Then why can't I turn the lid of the rice cooker 90 degrees to form an air intake groove around it, so that the top of the lid does not need to open multiple holes. The engineer found that the method is feasible after testing, and the structure has been optimized. The structure of the effect diagram is not final.
In fact, after debugging the program, the overflow probability can be reduced without turning 90 degrees, and allowing users to turn 90 degrees does increase the learning cost. However, this can be used as an important guarantee for after-sales. When the problem occurs when the user uses it, we can tell him to rotate the lid according to the silk-screen instructions on the lid.

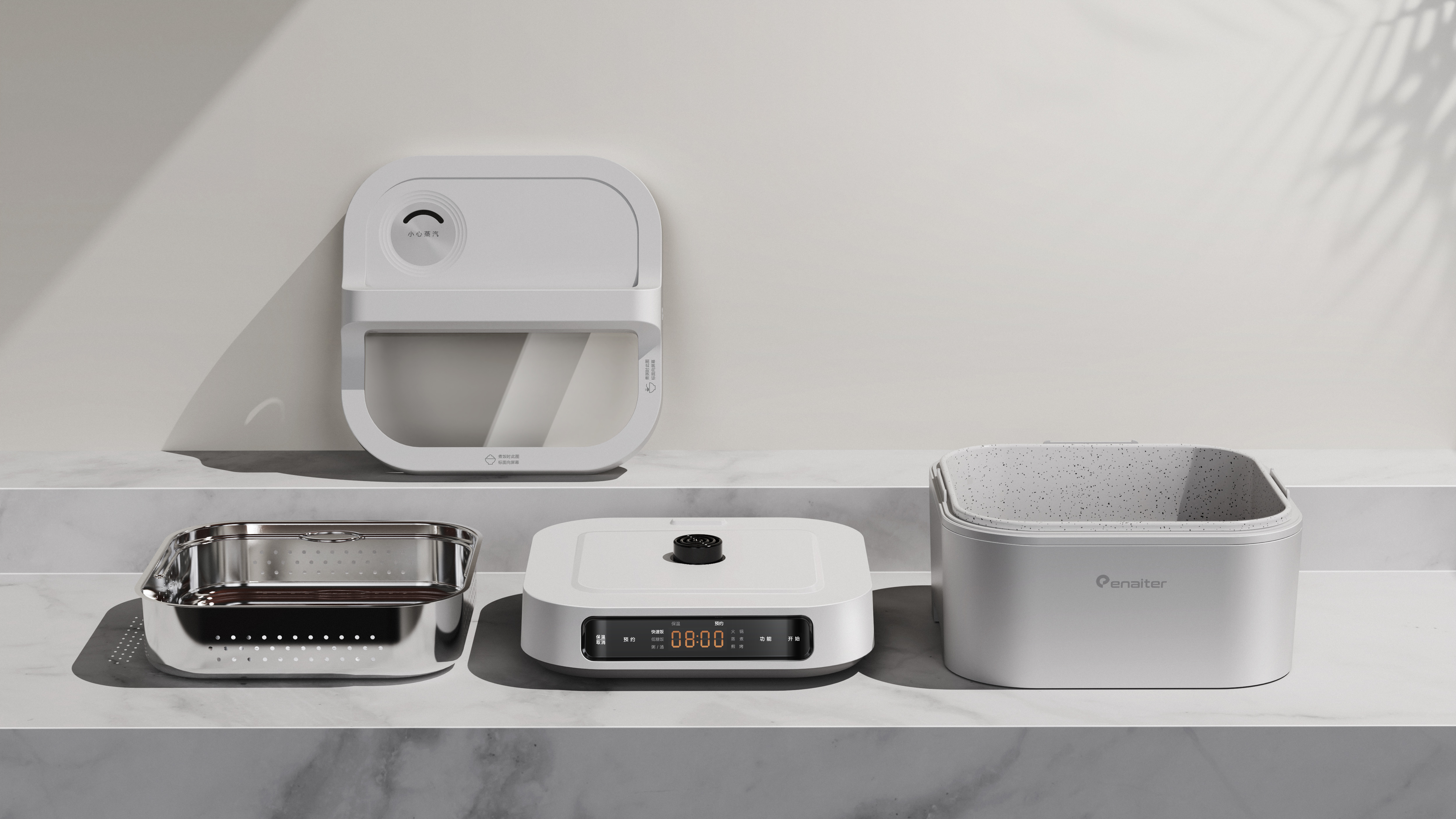

Product highlights: 1. Split structure without unplugging and moving to the dining table; 2. Easy to clean; 3. Large capacity; 4. Multi-function; 5. Low manufacturing cost and high cost performance

Appearance patent application time: 2022
