BZD190 intelligent explosion-proof dimming LED lamp LED intelligent explosion-proof lamp LED explosion-proof dimming lamp applicable scope:
1. Suitable for explosive zha gas mixture temperature group T1 ~ T6 places.
2. Suitable for explosive zha gas mixture dangerous places: Zone 1 and Zone 2.
3. Suitable for combustible dust places: 21 areas, 22 areas.
4. It is suitable for hazardous places of Class ⅡA, Ⅱ B and Ⅱ C explosive zhan gas mixture.
5. Suitable for chemical plant, warehouse, boiler room, storage room, tank area, steel plant and other workshops or plant for fixed lighting.

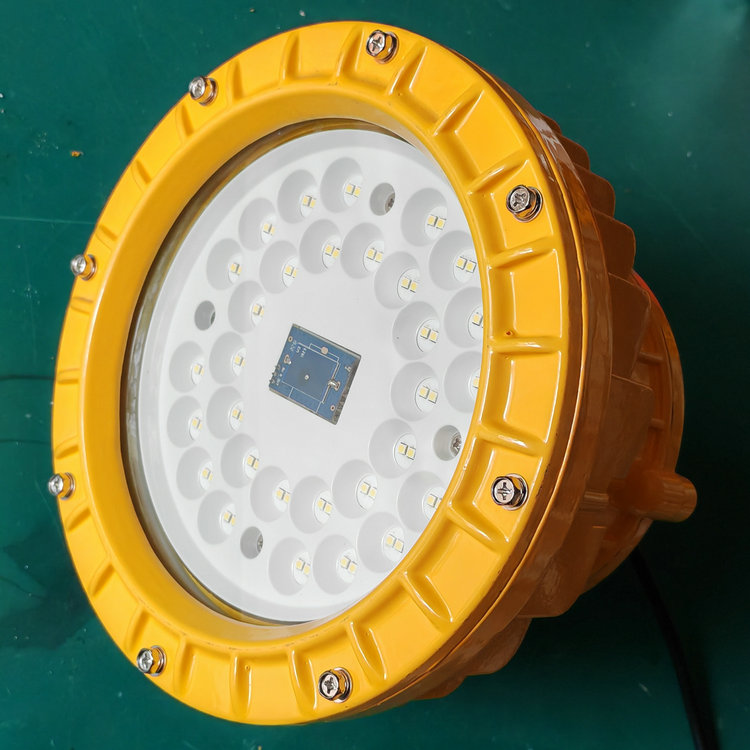

Dimming lamp-1.jpg

BZD190 intelligent explosion-proof dimming LED lamp product features:
Save electricity, reduce carbon dioxide emissions indicators, the maximum energy saving of 70%;
Reduce the power loss of the lamp, reduce the temperature rise of the work, and extend the service life of the lamp;
Reduce the maintenance workload of lamps
Reduce the effective load of the power supply line, reduce the power tolerance requirements of the circuit breaker, wire and lighting switch of the power supply circuit, and improve the reliability and safety of power supply.
Improve the frequency of back-and-forth detection of the workload of maintenance personnel
Save manpower and material resources at the same time, solve the lighting power and industrial production power distribution problem.
The intelligent dimming function can realize the brightness of 100 immediately after sensing the movement of the human body within the monitored range. After the personnel leave, the brightness of the lamp will be delayed for 30 seconds to 2 minutes, and the brightness of the lamp will return to the weak current state (50%).

BZD190 intelligent explosion-proof dimming LED lamp dimming parameters:
1. Installation height: 2.5-5m
2. Induction range: 15-20m
3. Control measurement angle: 30-120 ℃
4. Dimming brightness: 100 for some and 50% for no one (customizable 20-100)
6. Delay time: 30s (customizable 10s-2min)
Mainly to achieve the following functions:
(1) Realize a variety of intelligent control modes such as single lamp control, group control, sub-zone control, time control, and single lamp dimming control of lighting fixtures in the transformation area.
(2) Realize real-time collection of operating parameters such as voltage, current, power, temperature, etc. of any lamp,(3) Realize accurate and fast linkage between any lamp and personnel positioning system, and accurately realize "people come to light and people go to light off", and the sensing distance can be set through the software platform.
(4) The work of any lamp can be set through the software platform, such as the constant light mode, the human light mode, the time control plan mode and other intelligent modes.

Dimming lamp-7.jpg
