F-shaped faucet

2020-04-13 Kitchen&Bathroom 3059 9 11

Morris

China · Other Industries

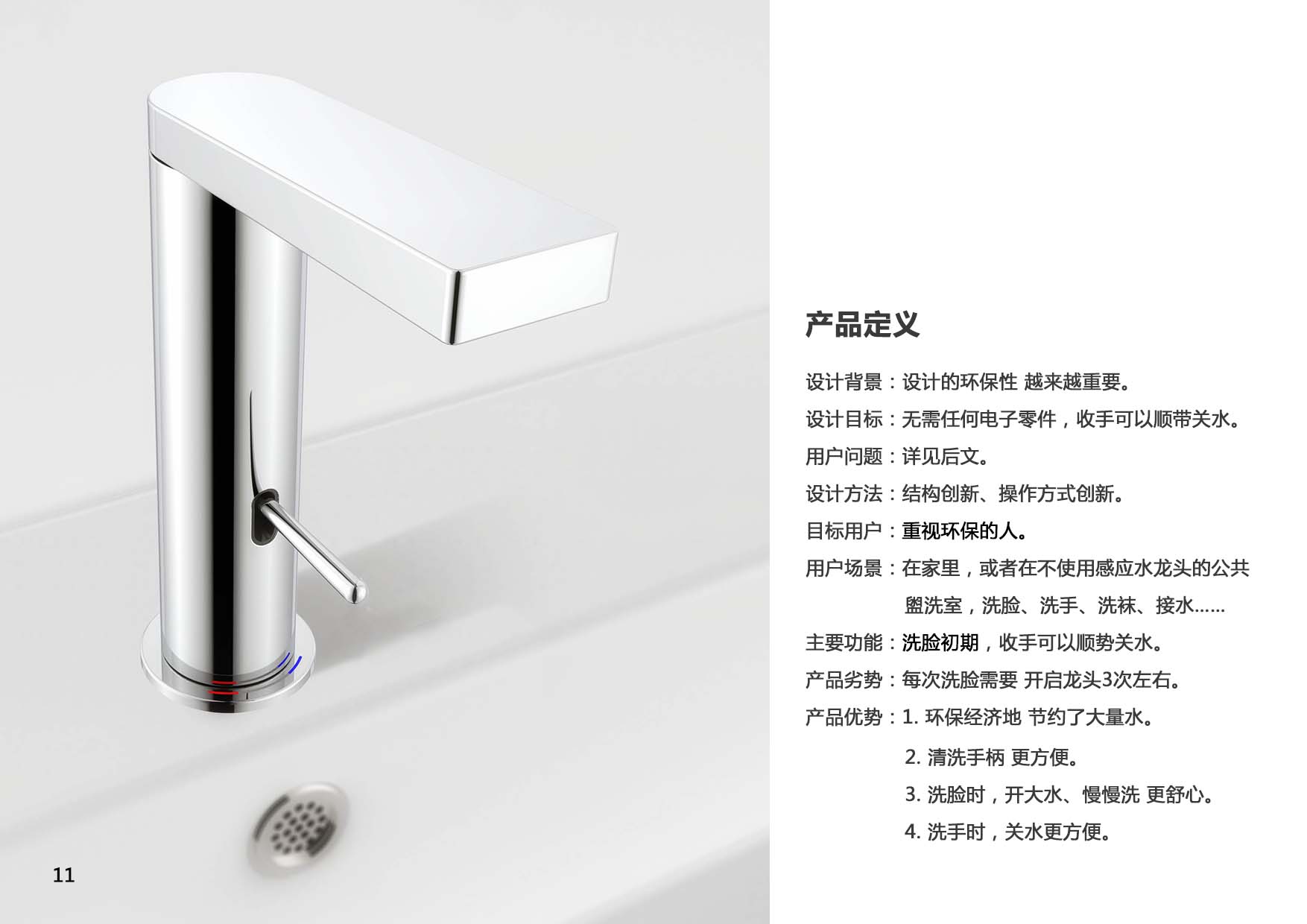

█ Most families do not use inductive faucets. At the beginning of washing face (clean water washing face stage), when wiping face with water in hand, the faucet is still running.

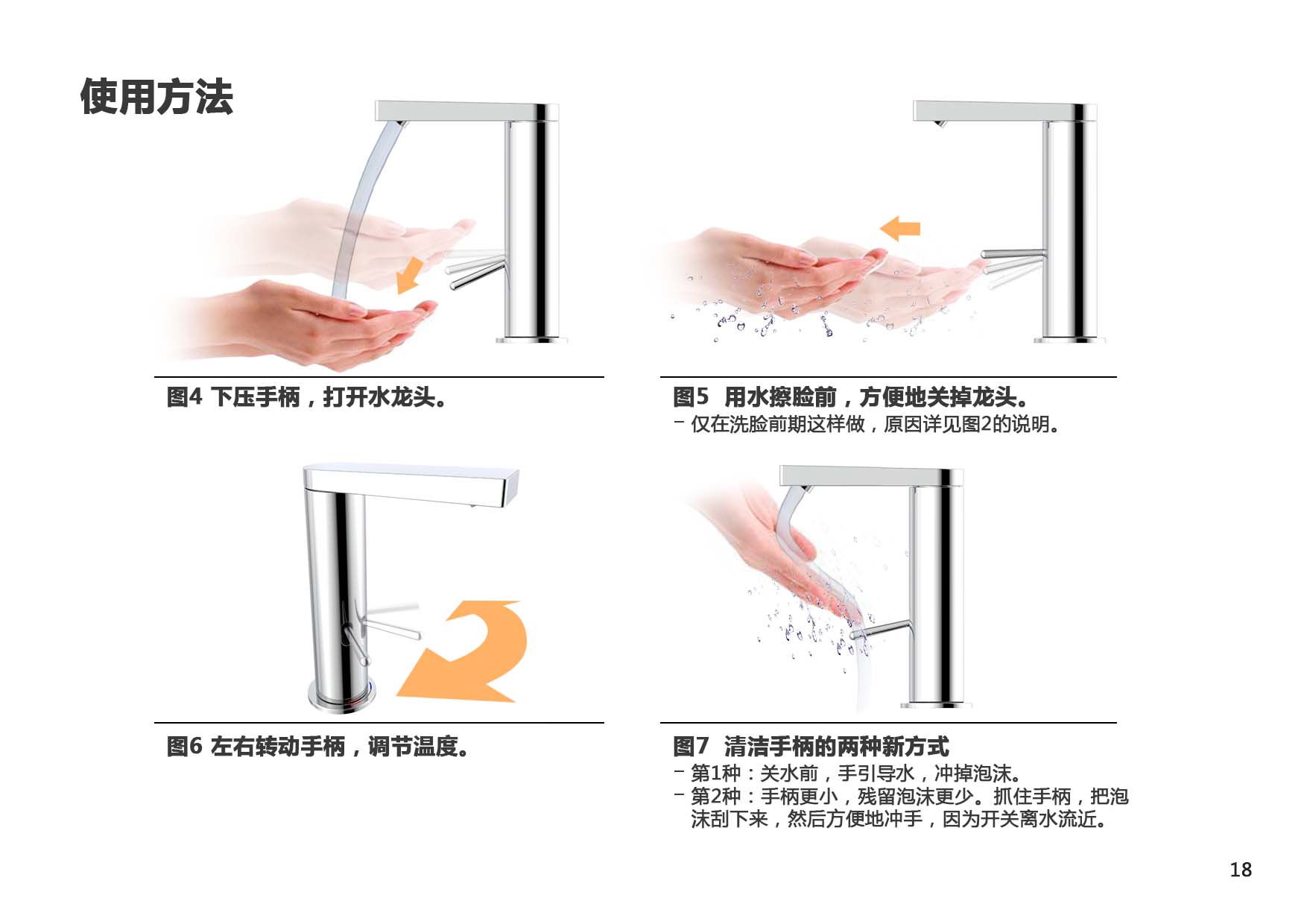

█ Solution: At the beginning of washing your face, turn off the water when you stop. In the later stage of washing your face, the water is not turned off when you stop. Reason: In the initial stage, it takes a long time to scrub your face (massage your face), and it is not only scrubbed once, which wastes more water. In the later period, users want to quickly wash off the foam, scrub quickly, and waste less water.
█ Since there is no copyright of a certain picture, I have to omit some pages. It has been patented.

Creative design,water tap,environment protection,
Creative design,water tap,environment protection,
Creative design,water tap,environment protection,
11 22
Comment

Comment Board (9)

ZYX 2020-05-15
Reply

Switch bubbler to understand
https://item.taobao.com/item.htm?spm=a230r.1.14.39.12e07237YbKKvl&id=618330123305&ns=1&abbucket=9#detail

MorrisOwner 2020-06-15
Reply
I thought about it. I didn't choose this plan at the beginning because it is not suitable for some scenes.
Write a comment
云青. 2020-04-17
Reply

It is feasible in theory, but the difficulty lies in the fact that the valve core itself is in the middle of the main body. How to connect the waterway with the water outlet is a small problem. Unless the valve core bias of 25 is not concentric with the main body, it is possible to pass through a copper tube with a smaller diameter.

MorrisOwner 2020-04-17
Reply
the spool diameter is 25, not offset, and the distance from the inner surface of the inner tube is 10. This is the data I adopted.
MorrisOwner 2020-04-18
Reply
Sorry, it's not 10, it's 7. I remember wrong.
Write a comment
荔枝肉 2020-04-14
Reply

If you adjust the temperature left and right, how can the main body of the faucet be fixed on the table?

MorrisOwner 2020-04-15
Reply

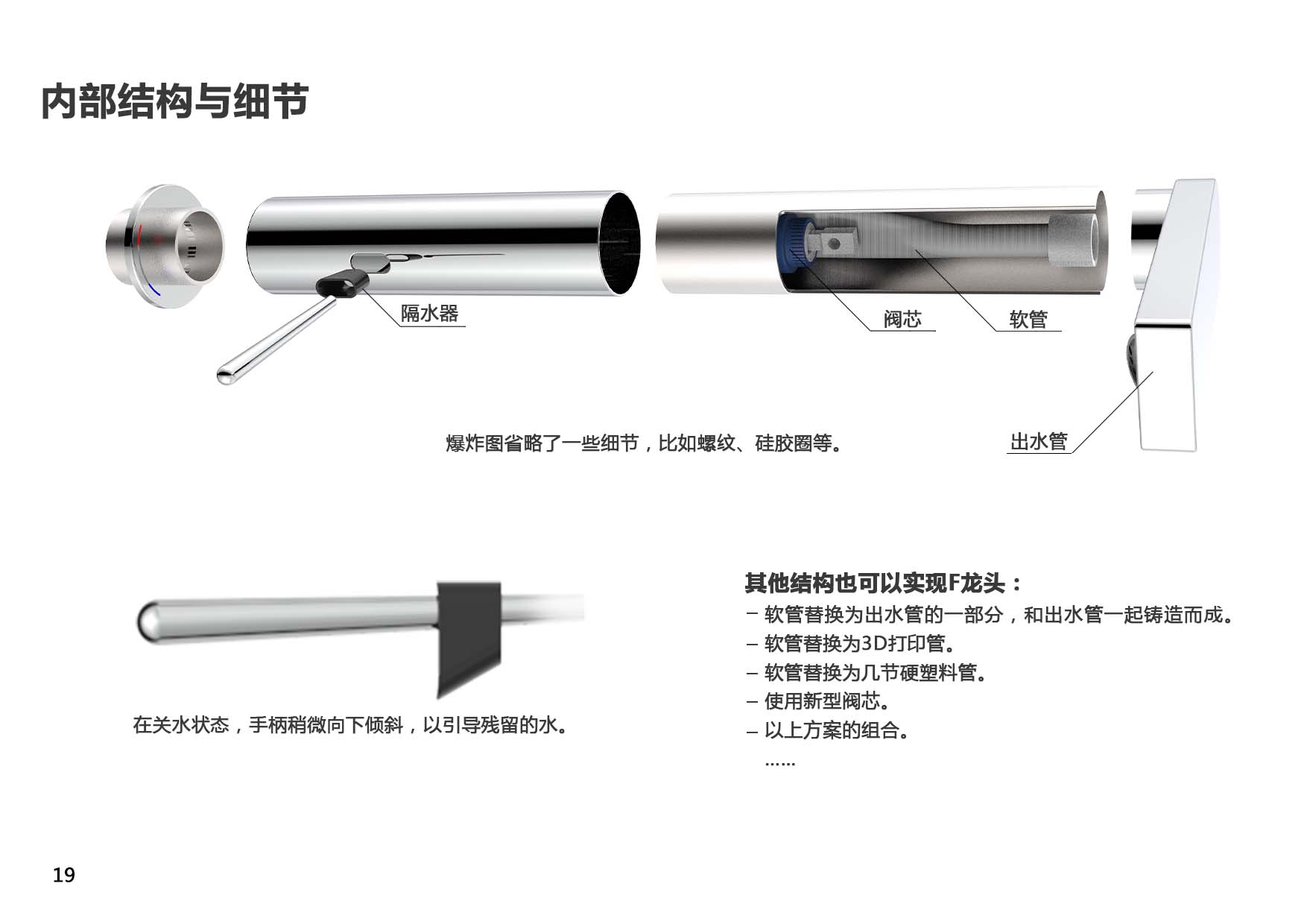

The inner shell, the base (the part with the temperature printed) and the outlet pipe are tightly screwed together and cannot be fixed.

The shell is loosely placed on the base, loosely sleeved with the inner shell, and the silicone ring is anti-friction. It rotates with the handle.

See Figure 3 for details.
Write a comment
三人与歌 2020-04-13
Reply

This can also save water, and it is also convenient to 666 after washing.

生命一旅程 2020-04-13
Reply

Creative awesome
