Multi-functional medical detection catheter series

AOKI

China · Medical Instruments

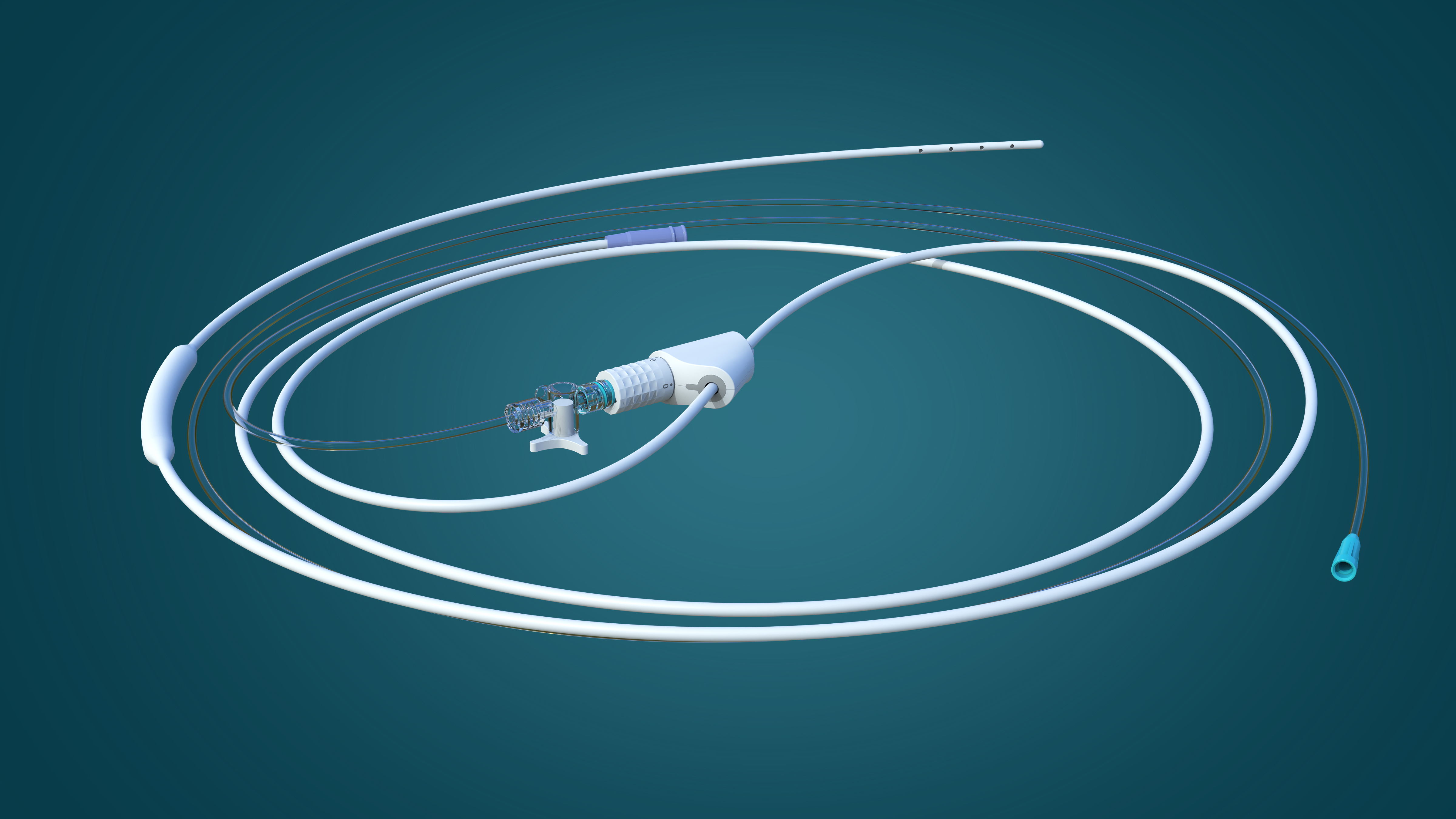

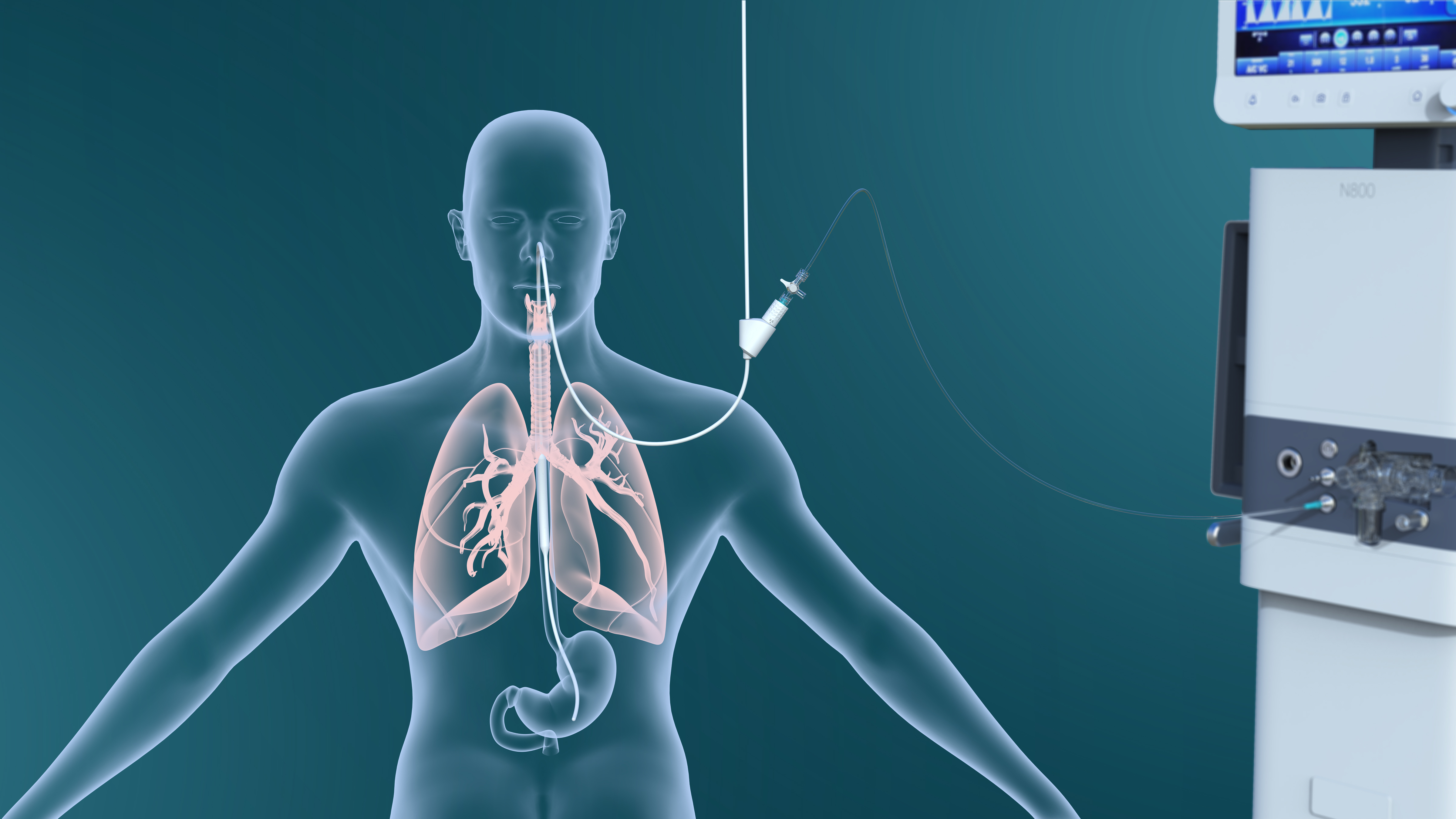

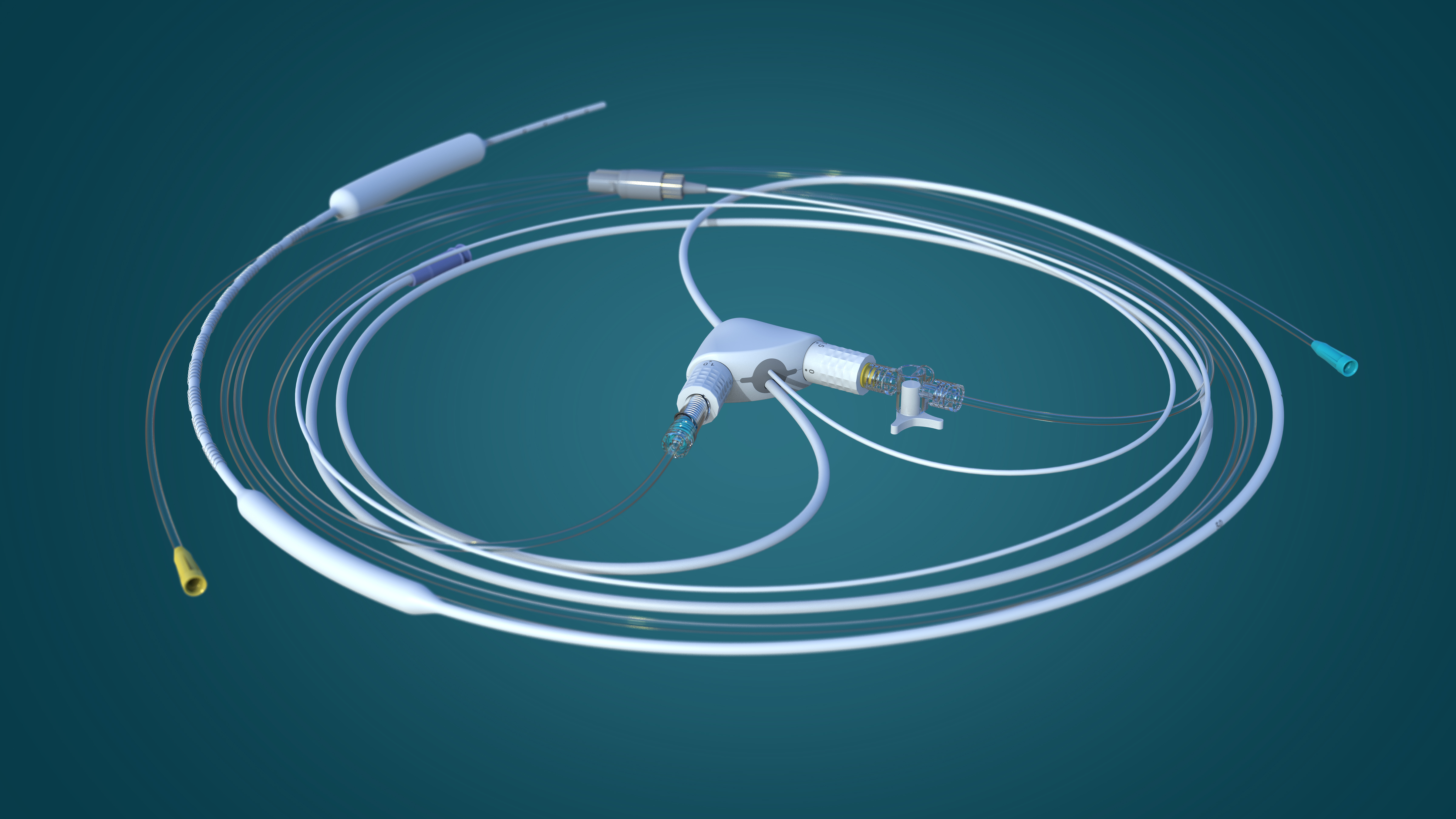

This is an innovative product design that assists health care workers in the treatment of severe cases of new coronary pneumonia and ICU patients by measuring parameters such as EMG signals and cross-lung pressure. This test catheter integrates the functions of nasal feeding, electrical signal, esophageal pressure and gastric pressure detection. By simplifying the operation process and visual and tactile ease of use design to reduce the difficulty of medical staff operation. The use of highly corrosion-resistant medical materials reduces the pain and damage of intubation to patients. It improves the accuracy of test results and helps doctors evaluate and diagnose.
This is an innovative product design that assists medical staff in the treatment of severe COVID-19 and ICU patients by measuring parameters such as diaphragm EMG and transpulmonary pressure. This detection catheter integrates multiple functions of nasal feeding, electrical signal, esophageal pressure and gastric pressure detection. It reduces the difficulty of operation by medical staff by simplifying the operation process and the visual and tactile ease of use design. Use highly corrosion-resistant medical materials to reduce intubation pain and damage to patients. Improve the accuracy of test results and help doctors evaluate and diagnose.

Esophageal pressure，gastric pressure，trans-pulmonary pressure，nasal feeding，Diaphragmatic electrical signal monitoring，Multi-function medical catheter，

14 11

阿南 2023-05-06

Excellent

夜不饰寂丶 2023-05-06

GOOD JOB

搞虾米 2023-05-06

good design

etherealelf 2023-05-06

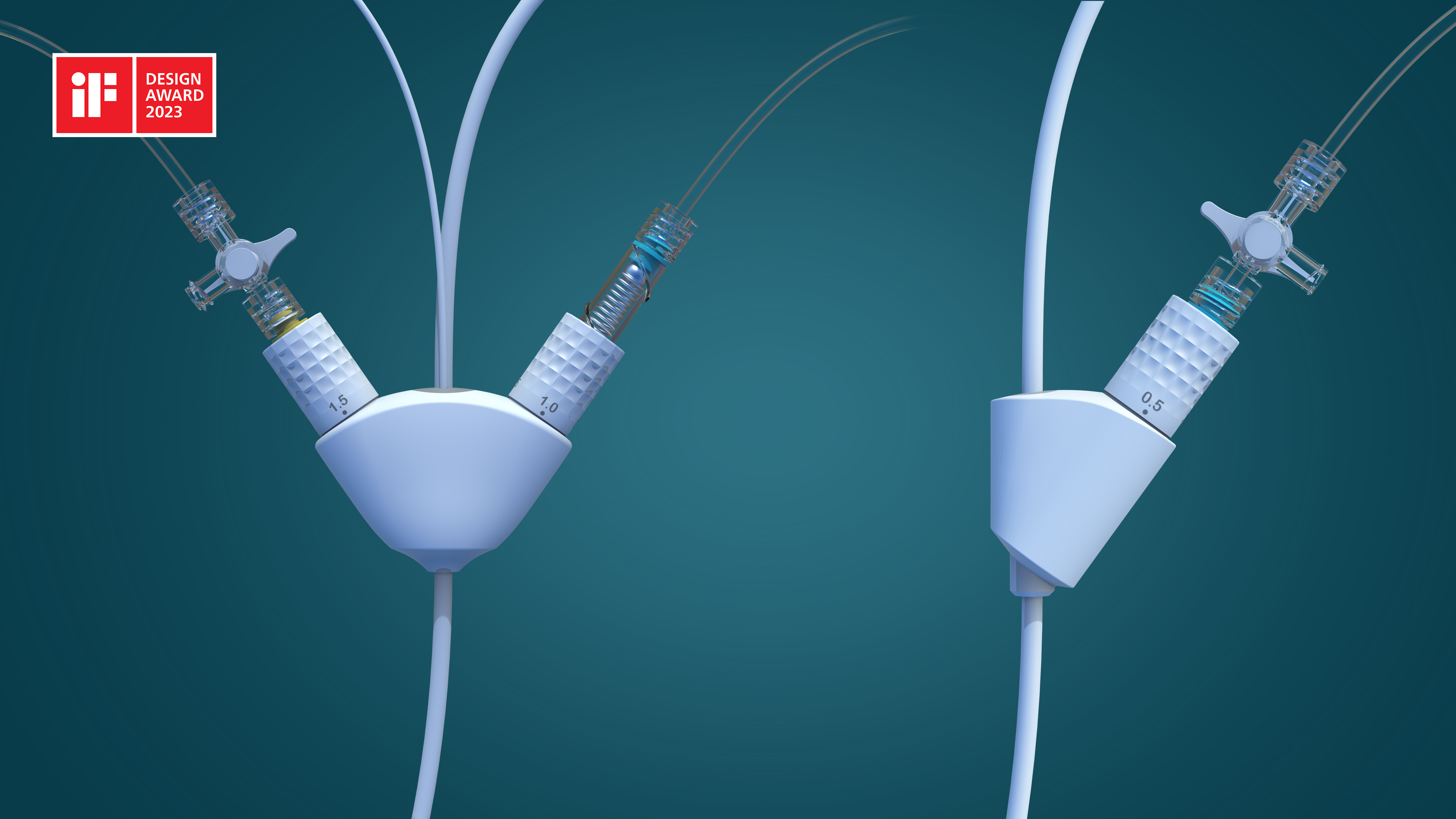

Excuse me, big brother, how is the texture of the square concave array on the surface of the mouth part modeled?

ZHIYONG CHEN 2023-05-08

Hardware can do knurling, plastic can do row position

etherealelf 2023-05-08

Thank you very much!
Can you tell me that the lower plastic row position is a structure similar to making an inclined top in the mold design?

https://www.mouldsnet.cn/news/jishuwenxian/201704/show_358373.html?btwaf=20693588

Row position and inclined top are collectively referred to as sliders. The row position is generally the side core die structure outside the part, and the slider is pressed on the spring yellow. When the mold is opened, the elastic tension will spring the slider open and the side core will be pulled out. The inclined top is the internal side core-out die structure of the part, and no spring is required. After the mold is opened, the parts stay in the rear mold, the thimble pushes out the module, allowing it to move upward on the inclined plane, and finally the inner core is separated.
Slant Top/Row Bit Difference
Two different things, one for the outer buckle and one for the inner buckle
From the point of view of assembly, the inclined top is more difficult to match than the slider, in other words, the fitter usually chooses the slider.. The above words are what I searched,. Ha ha ha

etherealelf 2023-05-10

Thank you very much!
