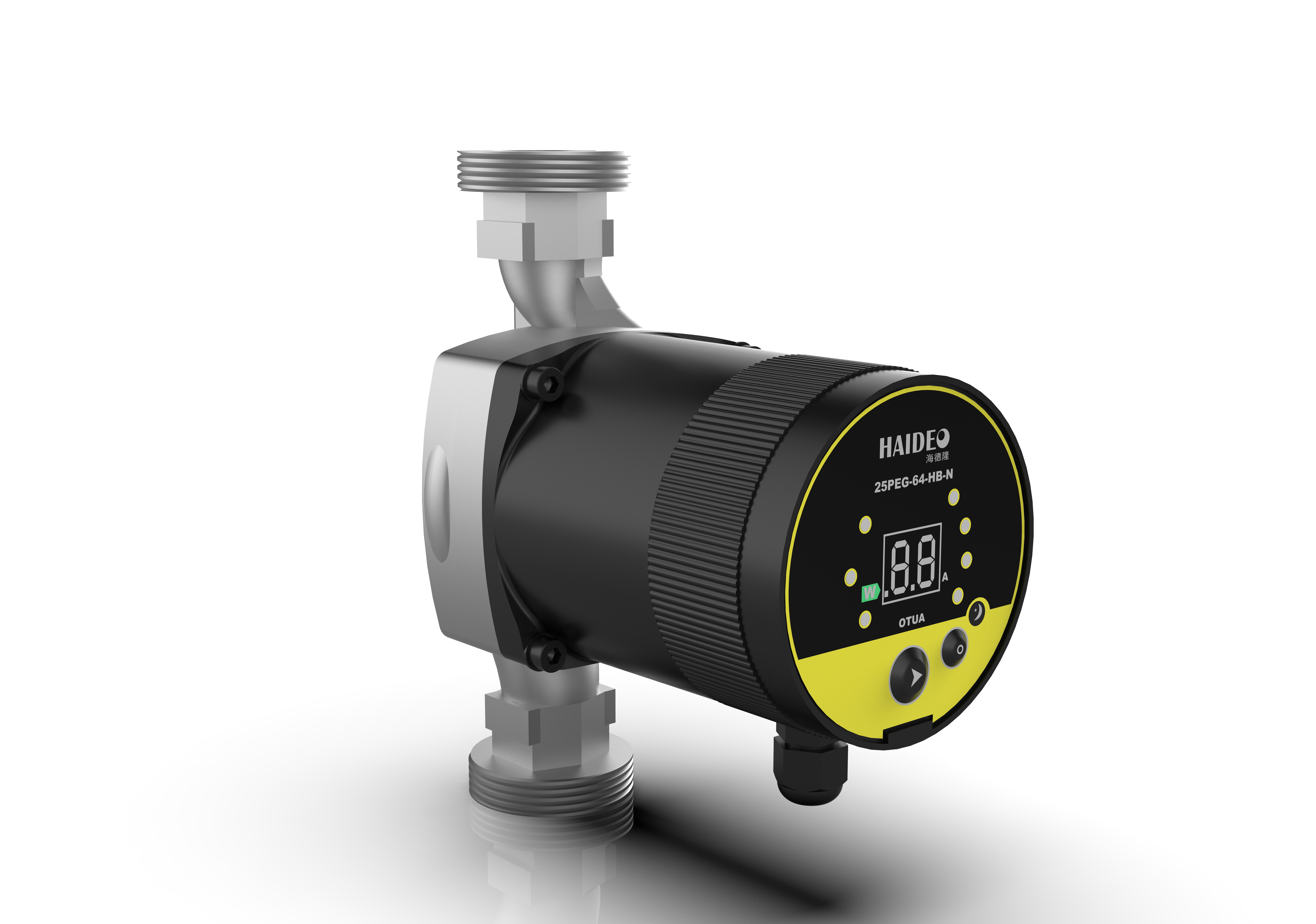

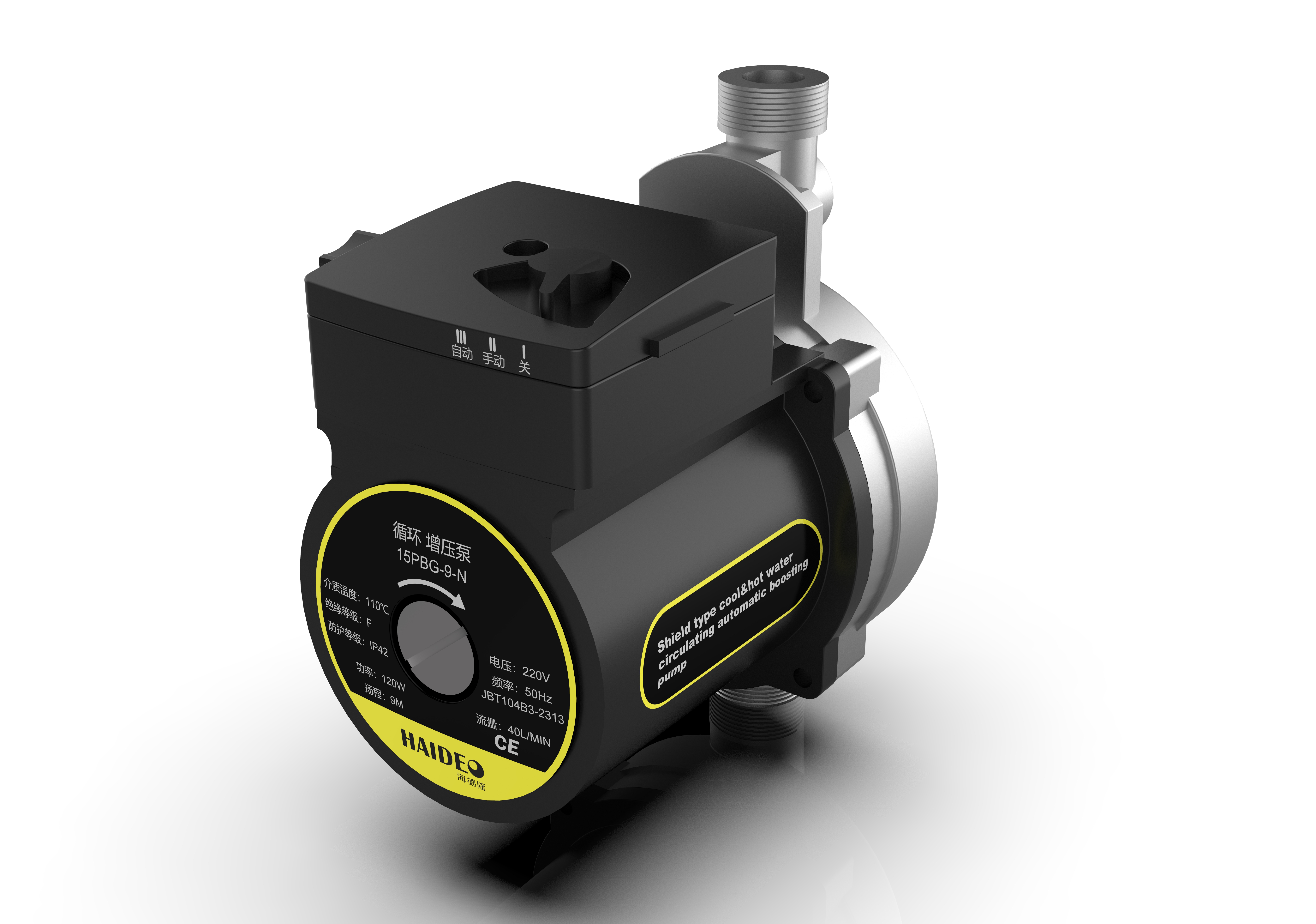

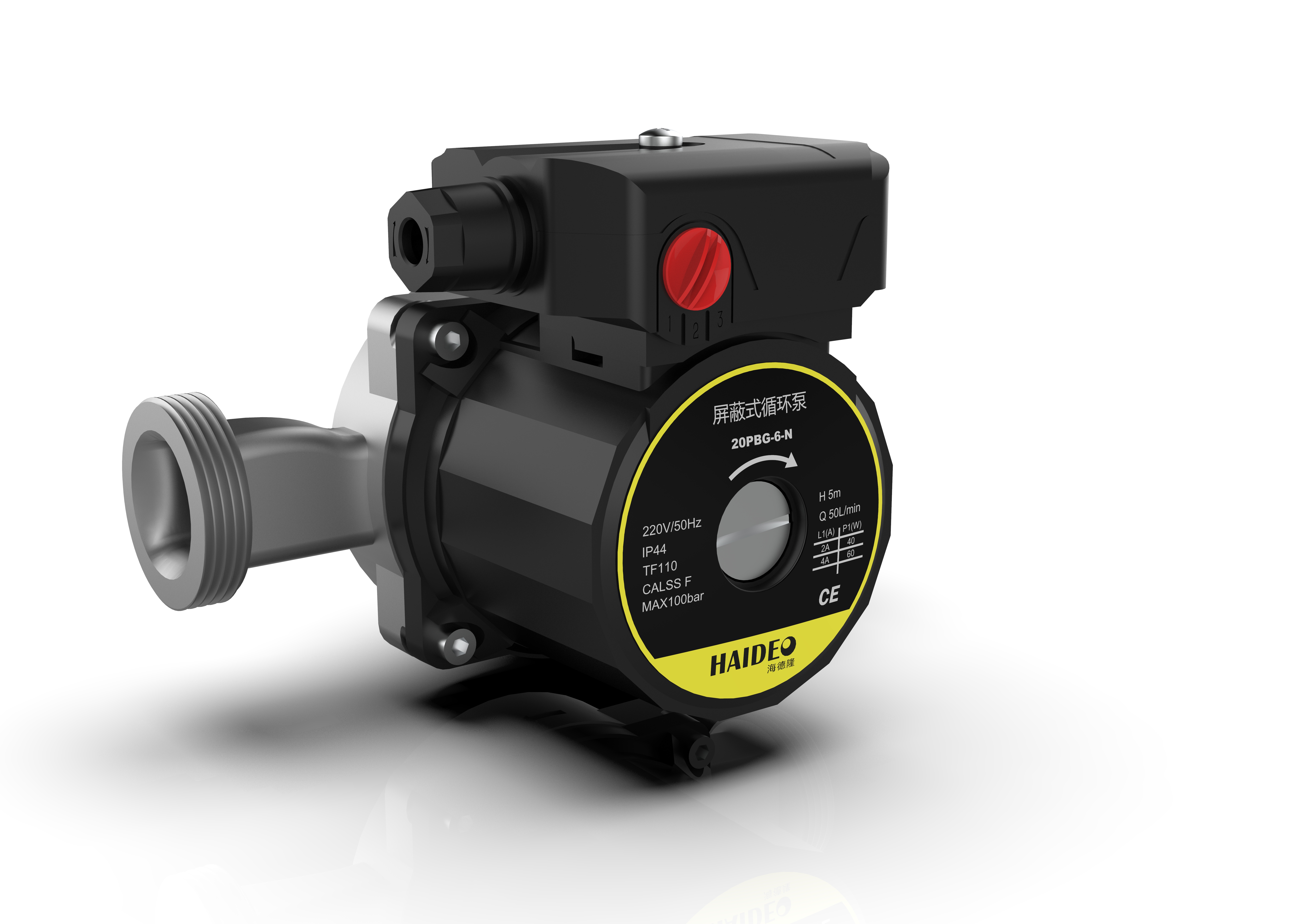

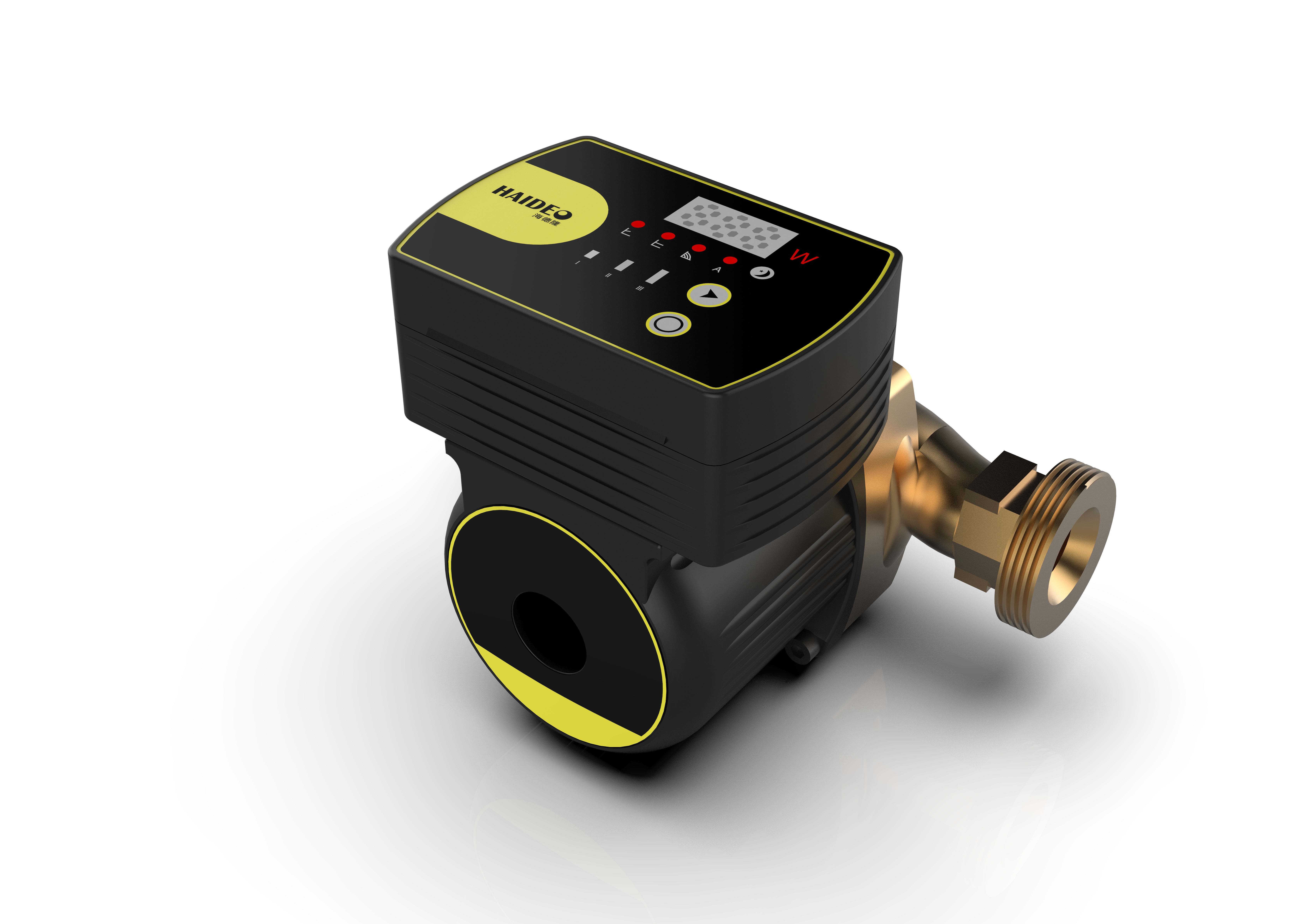

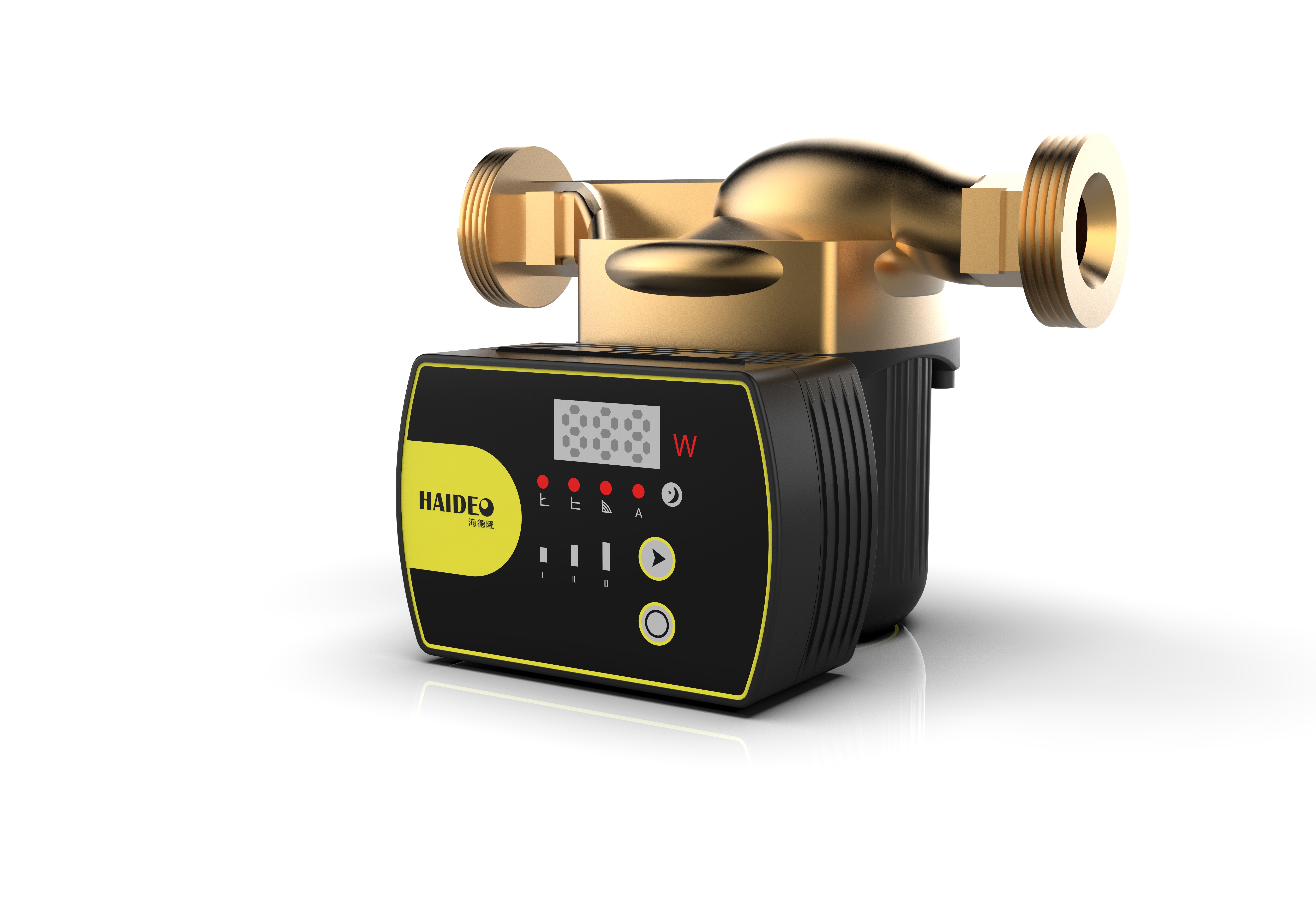

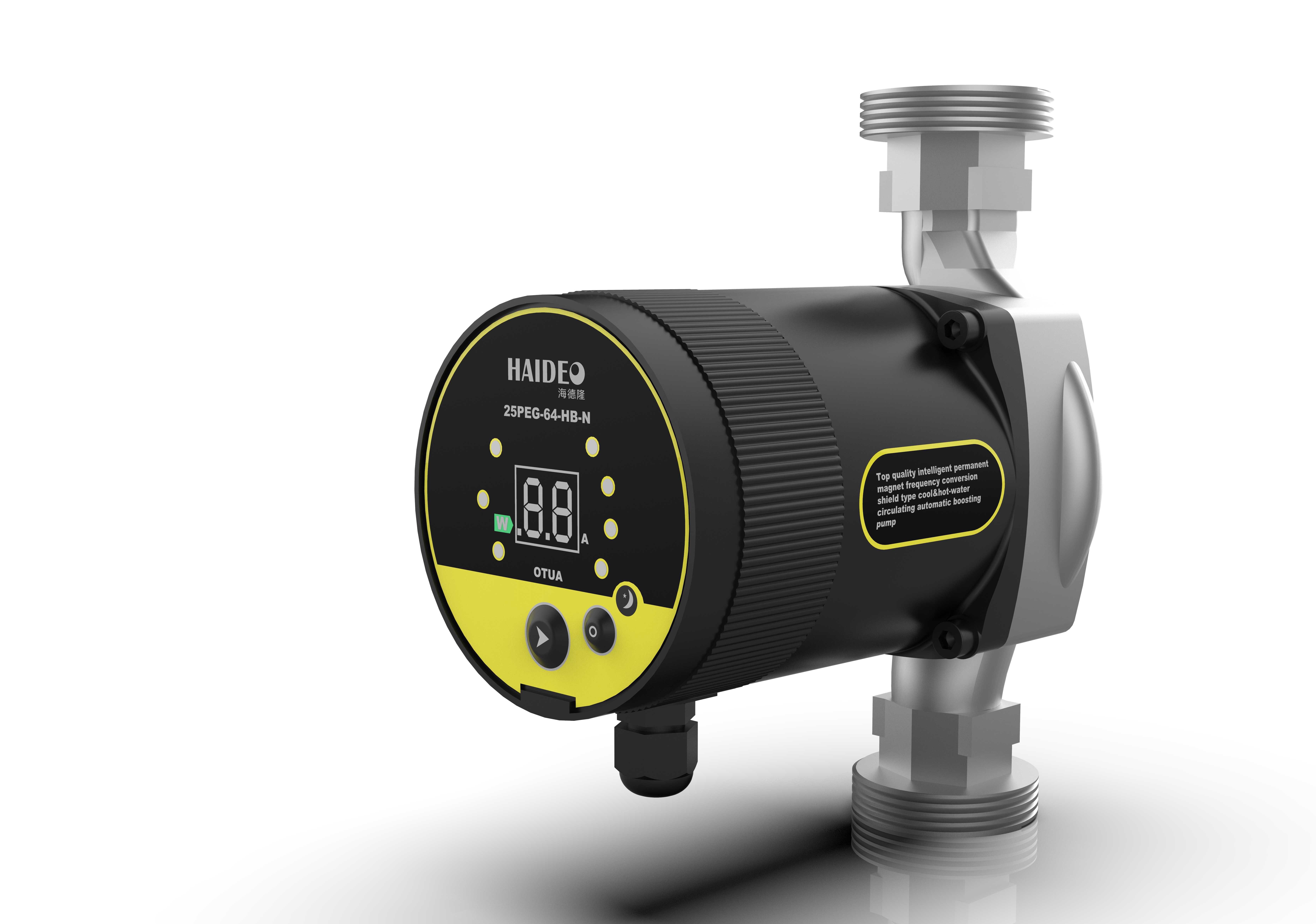

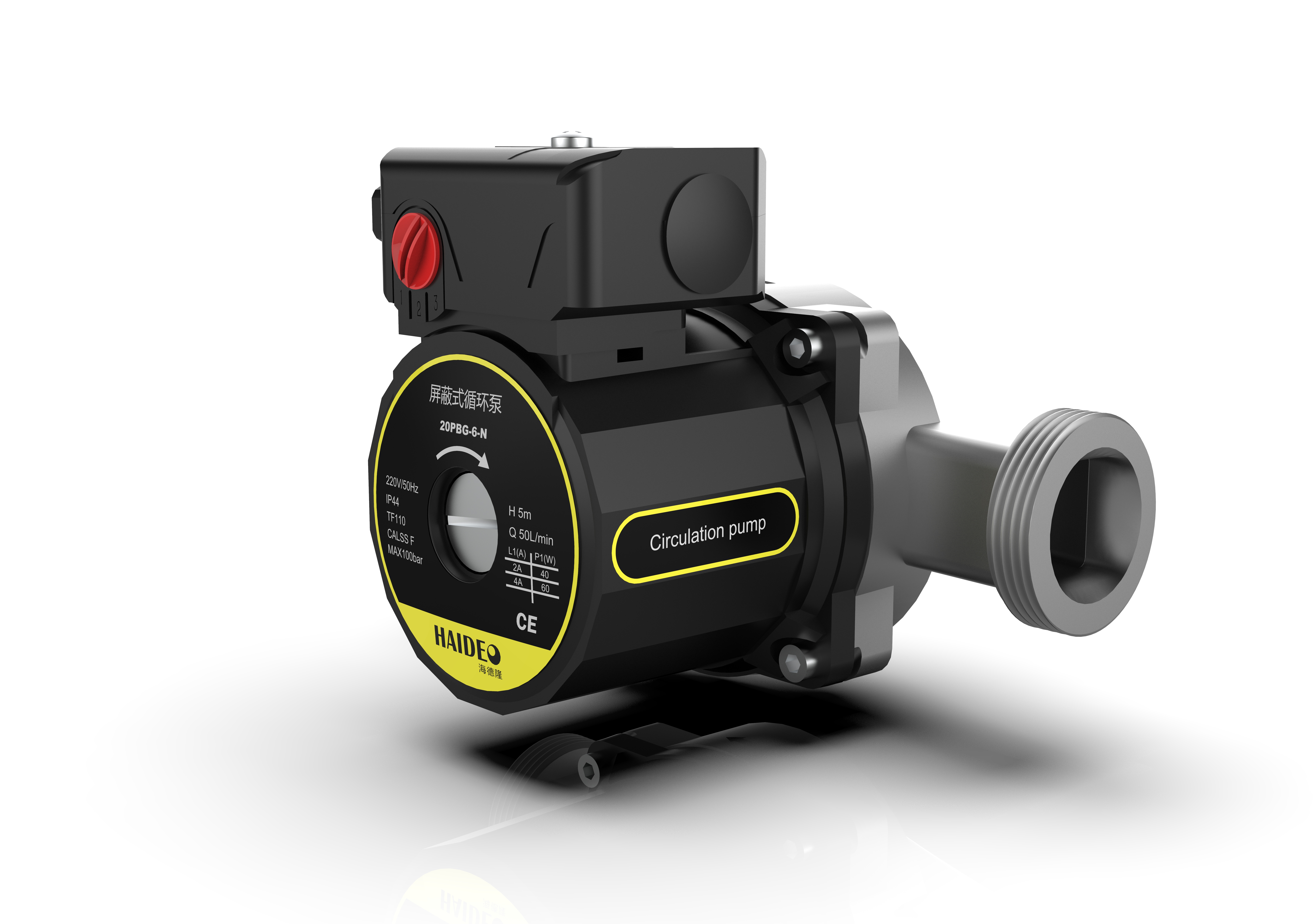

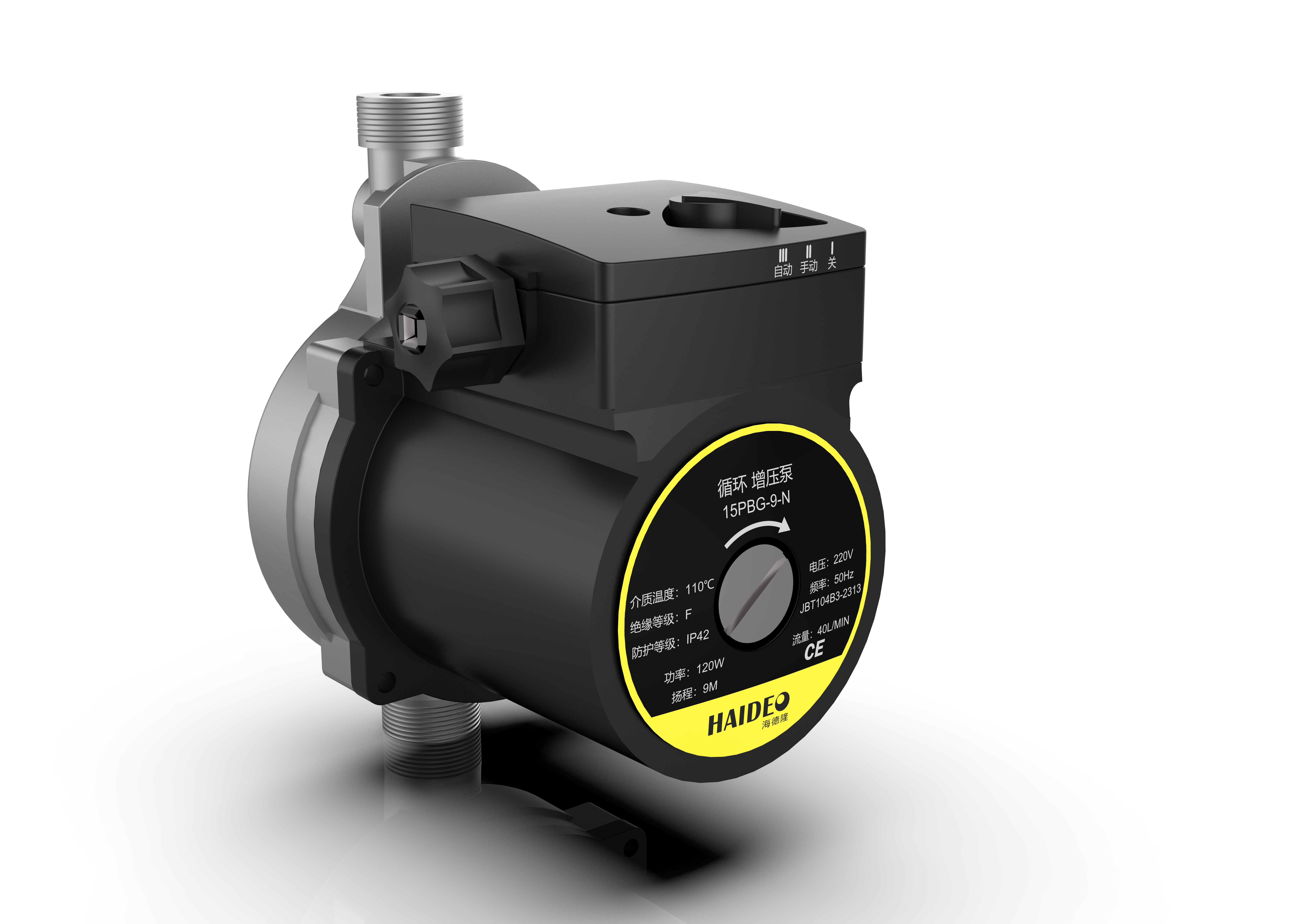

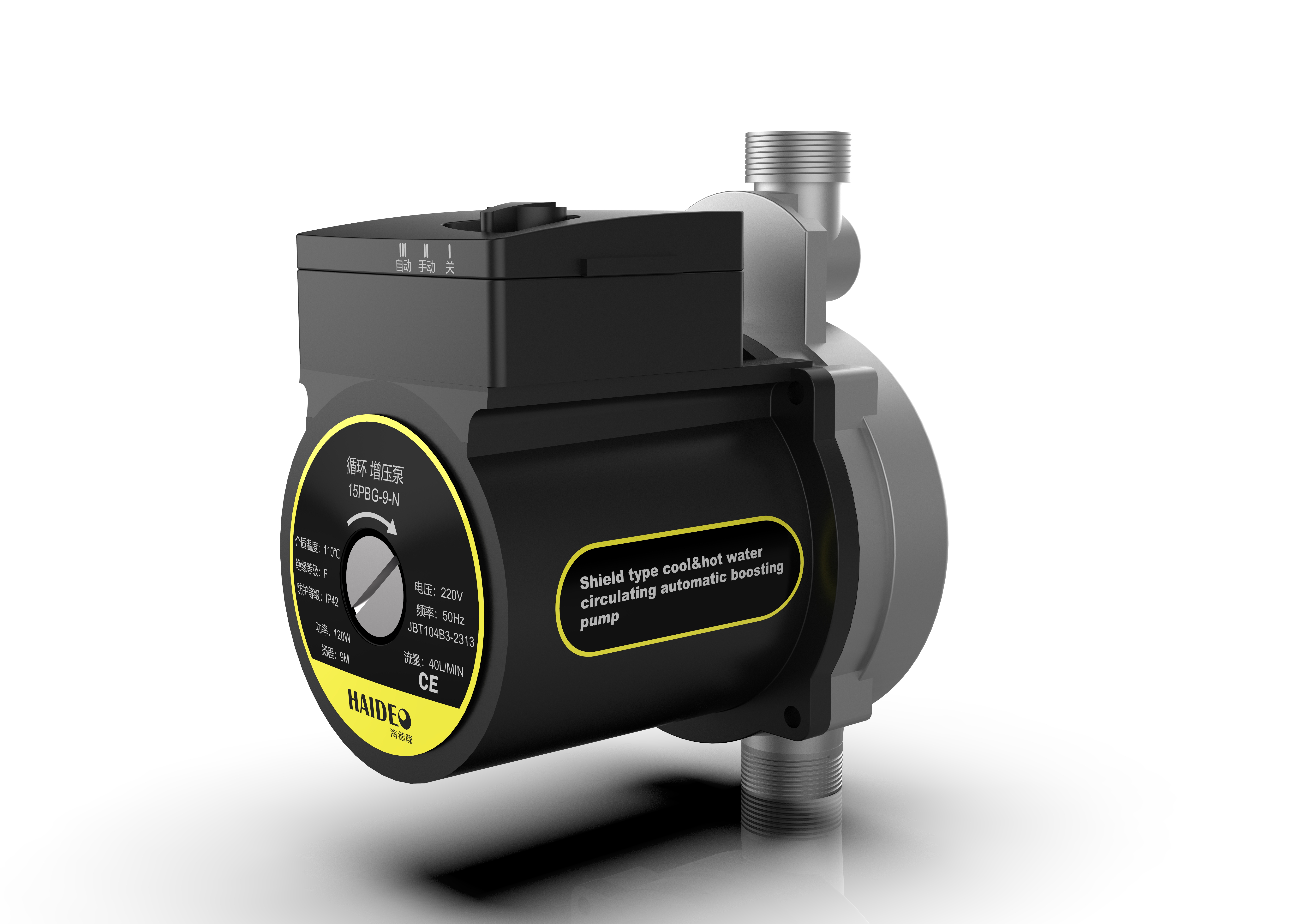

Industrial Design of Shielded Pump

1, motor and water pump integrated structure, water pump and motor for coaxial connection;

2. The inner side of the stator of the motor and the outer side of the rotor have a shielding sleeve, and the inner side of the shielding sleeve is connected with the pump;

3. The installation mode is divided into horizontal and vertical

4. The motor eliminates the cooling fan, and the motor is cooled by the circulating medium between the stator and the rotor, and the surface of the motor base is used for cooling.

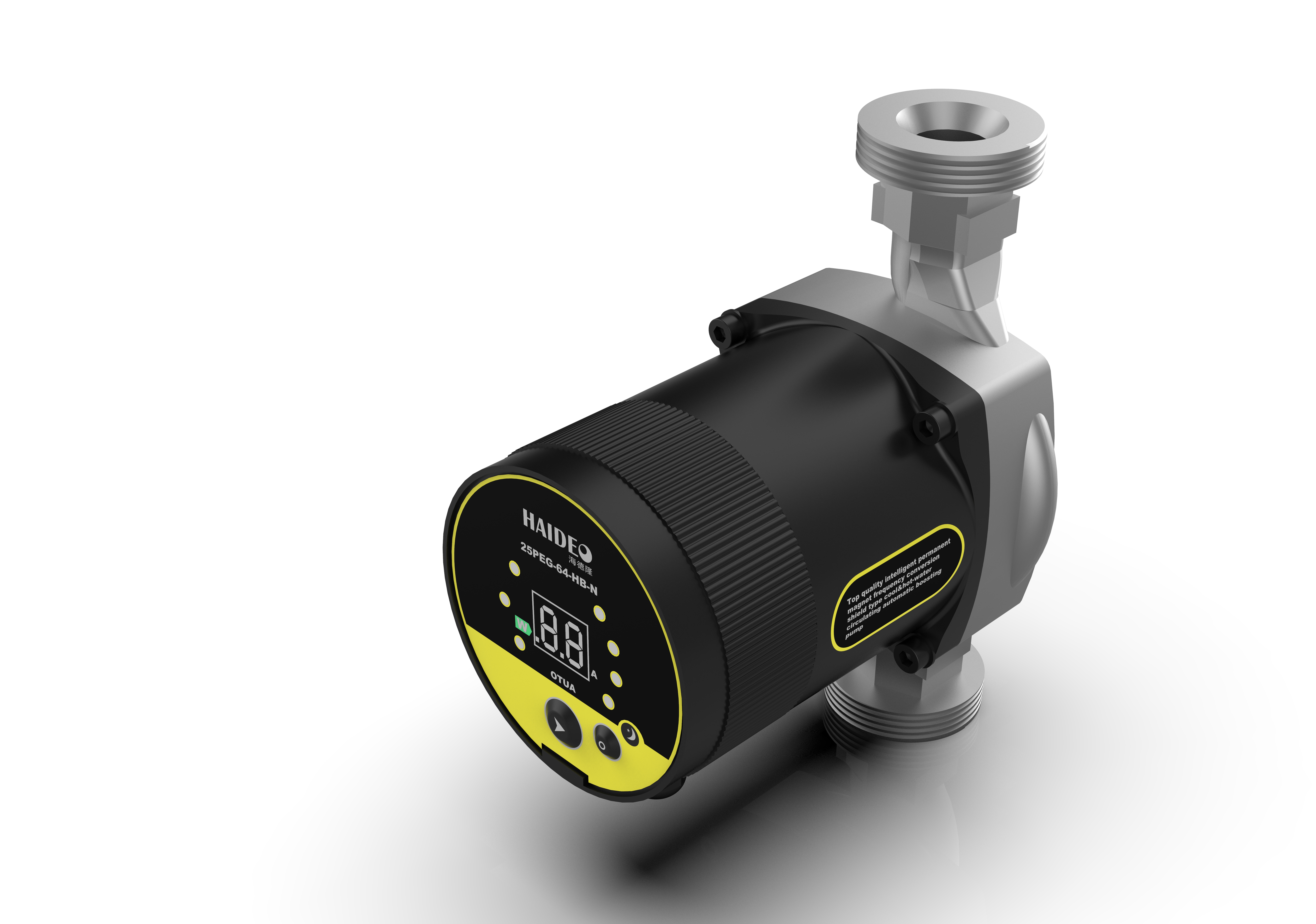

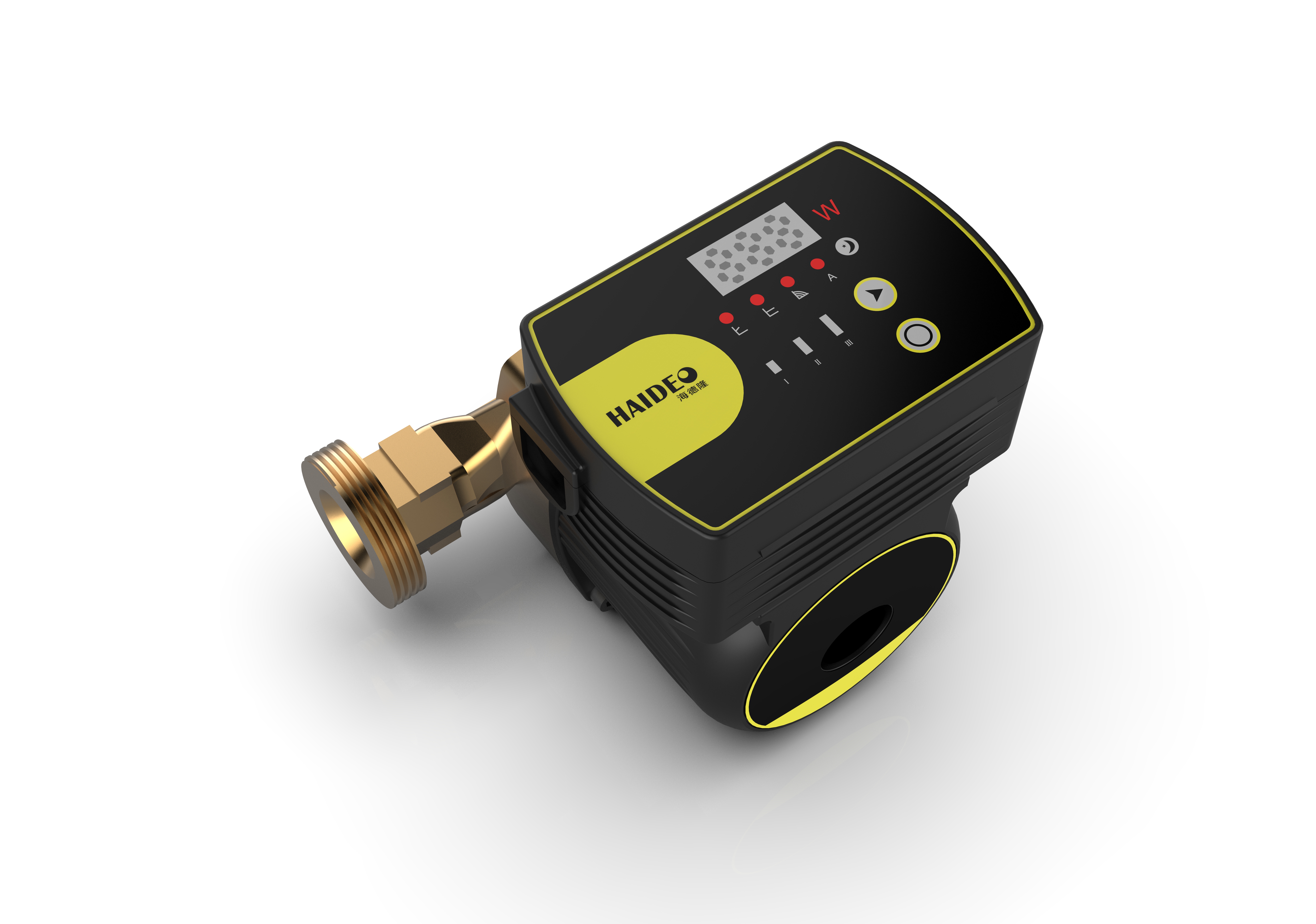

Folding product features
1. The integrated structure of motor and pump adopts static seal to make the electric pump completely leak-free;

2, fully enclosed, no leakage structure can transport toxic and harmful liquid substances;

3. The shielded water-cooled motor and the cooling fan are used to make the pump run with low noise and mute, which is suitable for occasions with high environmental noise requirements;

4. Graphite sliding bearings lubricated by conveying media make the operation noise lower and no manual refueling, thus reducing the maintenance cost. In recent years, the bearing material has been added with silicon carbide SIC, superhard, etc., and its service life is better than that of graphite bearings.

5. The vertical structure can be installed on the pipeline like a valve, which is convenient and quick to install, and only the motor and impeller need to be extracted during maintenance, without removing the pipeline.

6. It can be installed and operated with shock absorbers or shock absorbers to make the electric pump less noisy during operation.
