This graduation design work is aimed at the conceptual cleaning product design of pet cats. Based on the actual cleaning needs of pet owners and the living habits of pets, it conducts in-depth systematic research, and combines the related product design process and related design analysis methods to finally propose two innovative optimization design schemes.

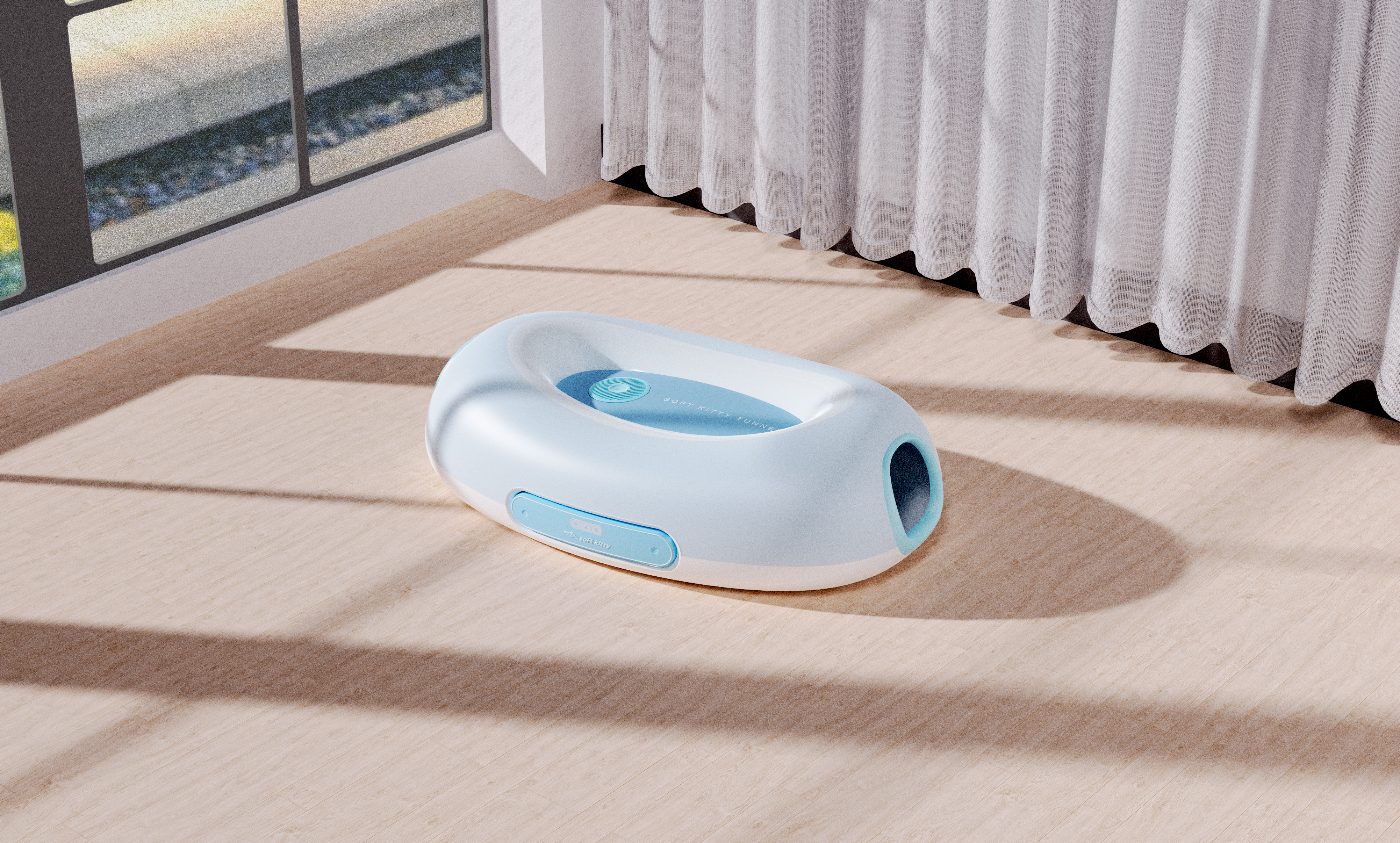

#1 integrated cat litter basin/Integrated cat litter Basin

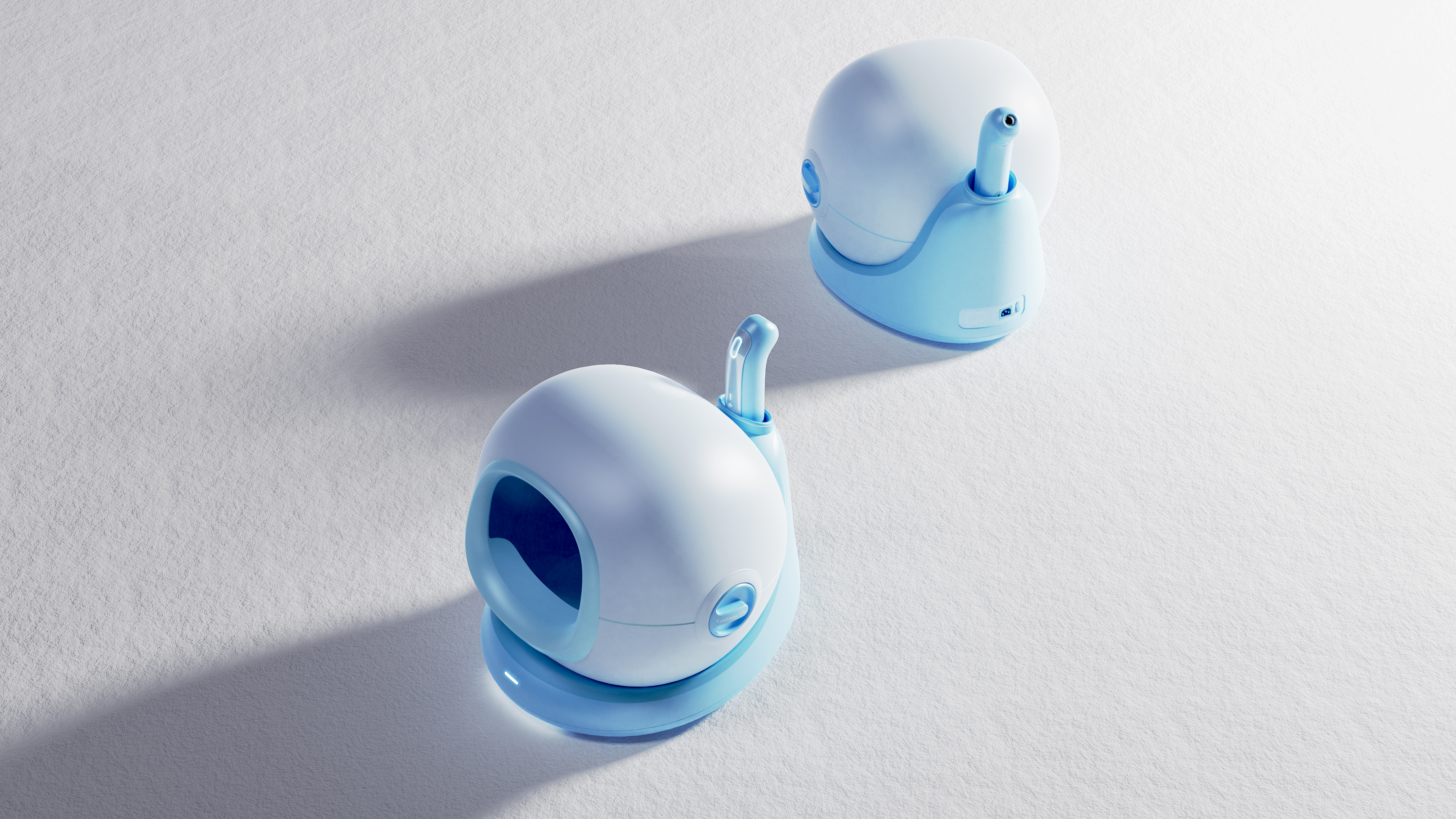

The front of the litter box is often dirty, because cats will bury their own excrement, which is related to their nature. This integrated litter box can perfectly solve this problem: I integrated the vacuum cleaner into the litter box to form an air duct from the suction port of the vacuum cleaner to the bottom of the litter box. In this way, the user's cleaning efficiency is greatly improved, the user's hands are almost completely liberated, labor and worry-saving, and a new storage space for the vacuum cleaner is found, which greatly saves the user's home space.

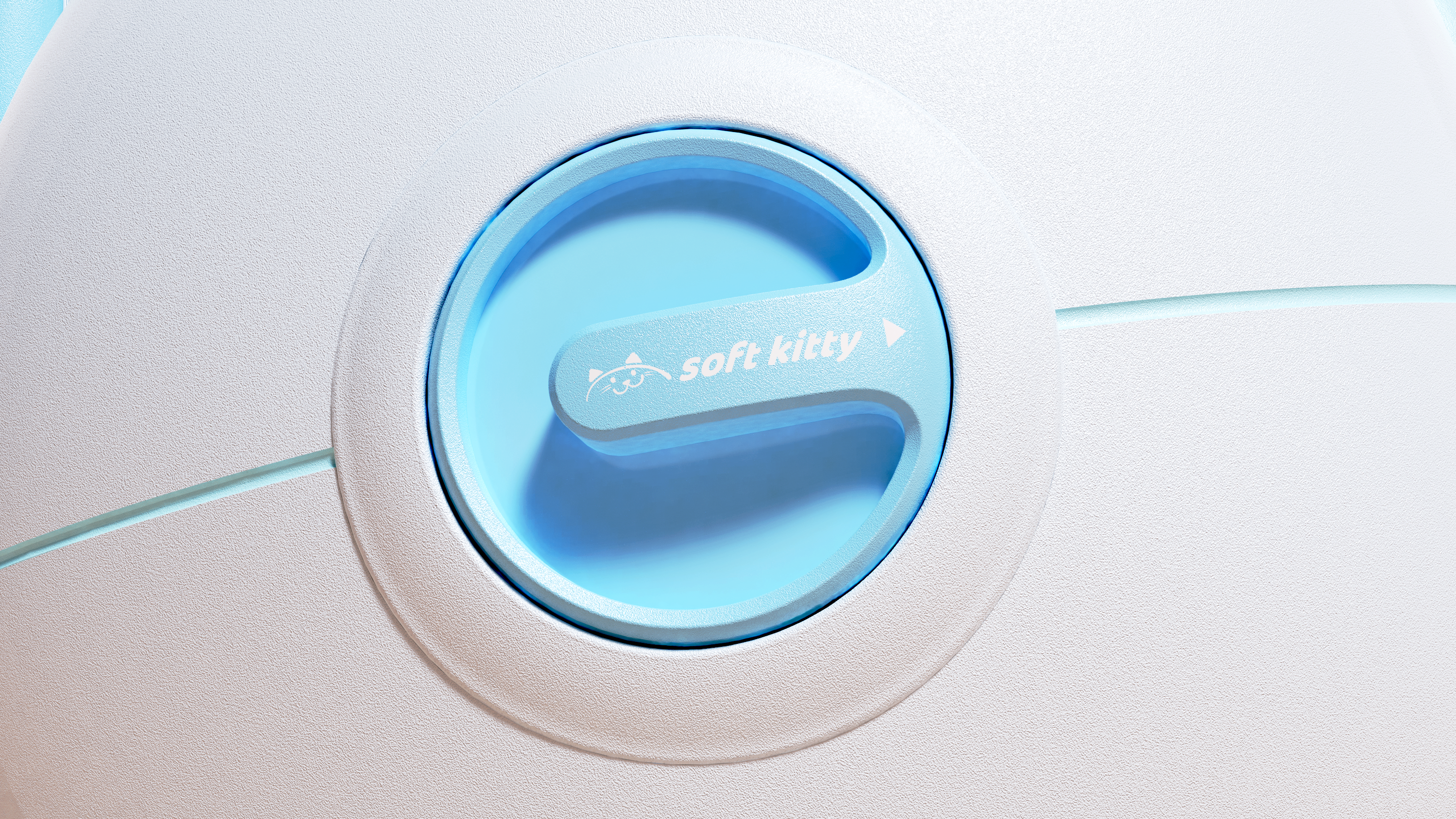

Turn off the knob to turn up the upper cover and shovel cat litter.

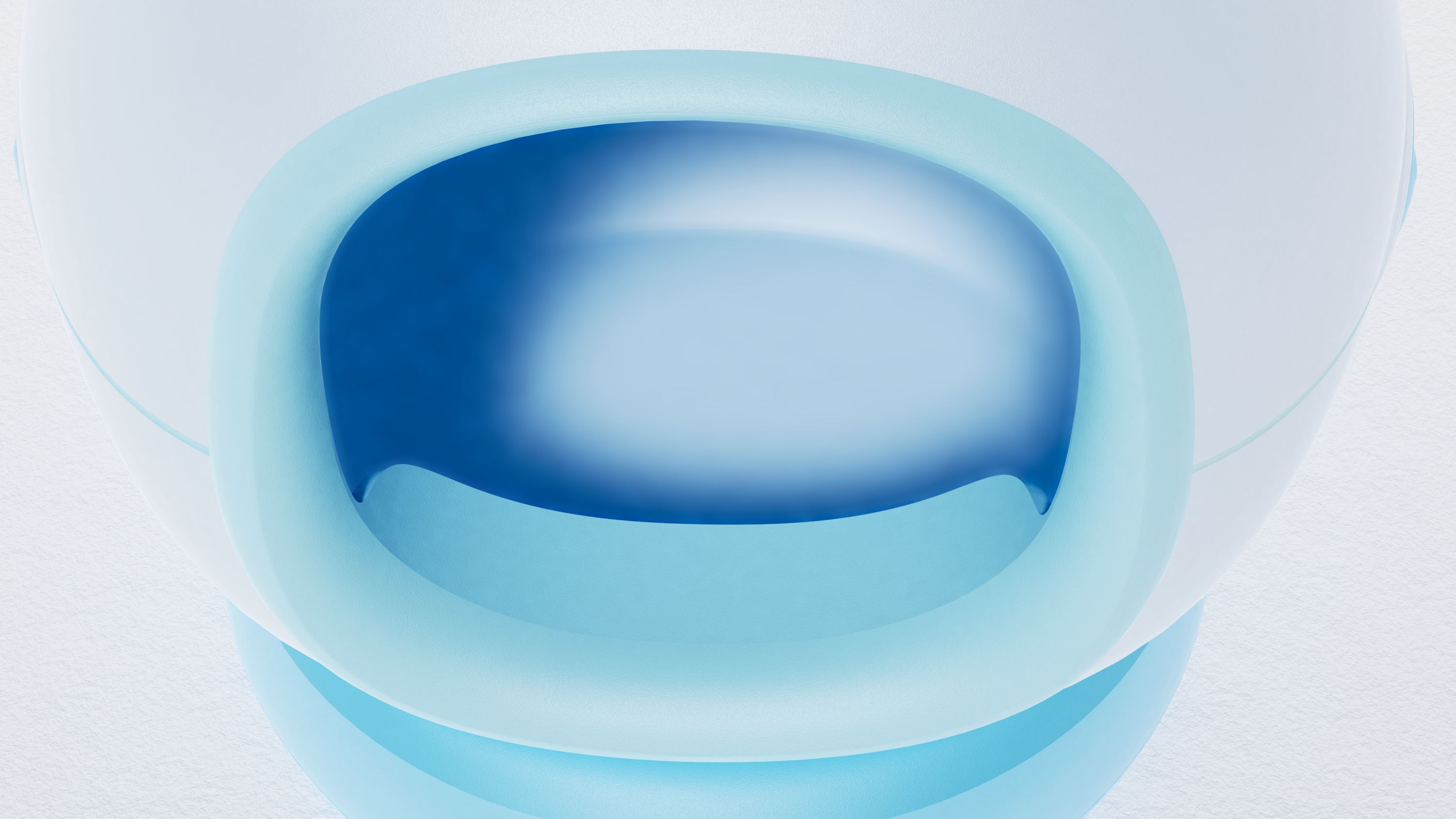

The entrance of the cat litter basin is equipped with pedals to facilitate the entry and exit of pet cats.

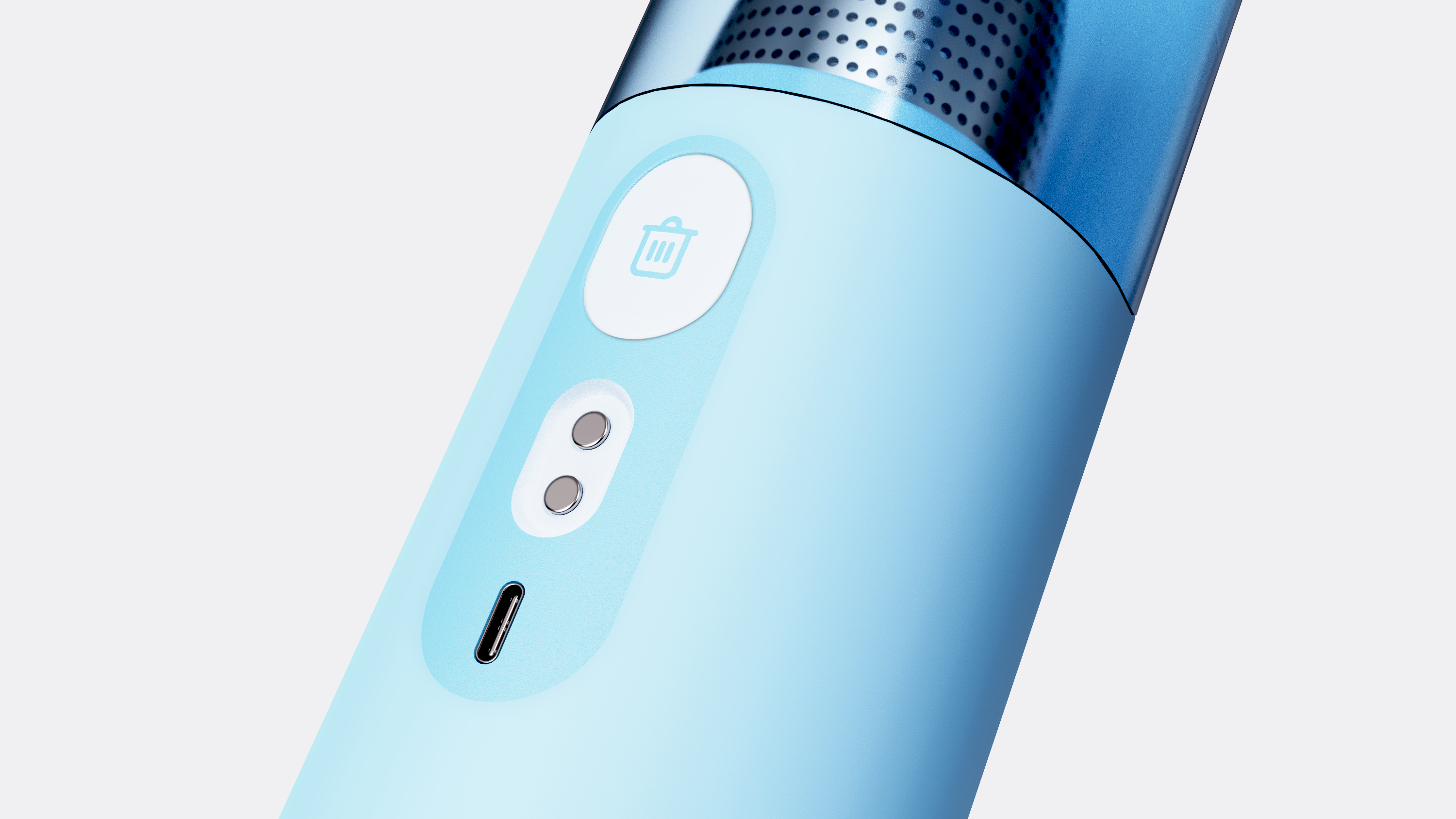

The vacuum cleaner is equipped with a large button to facilitate user operation.

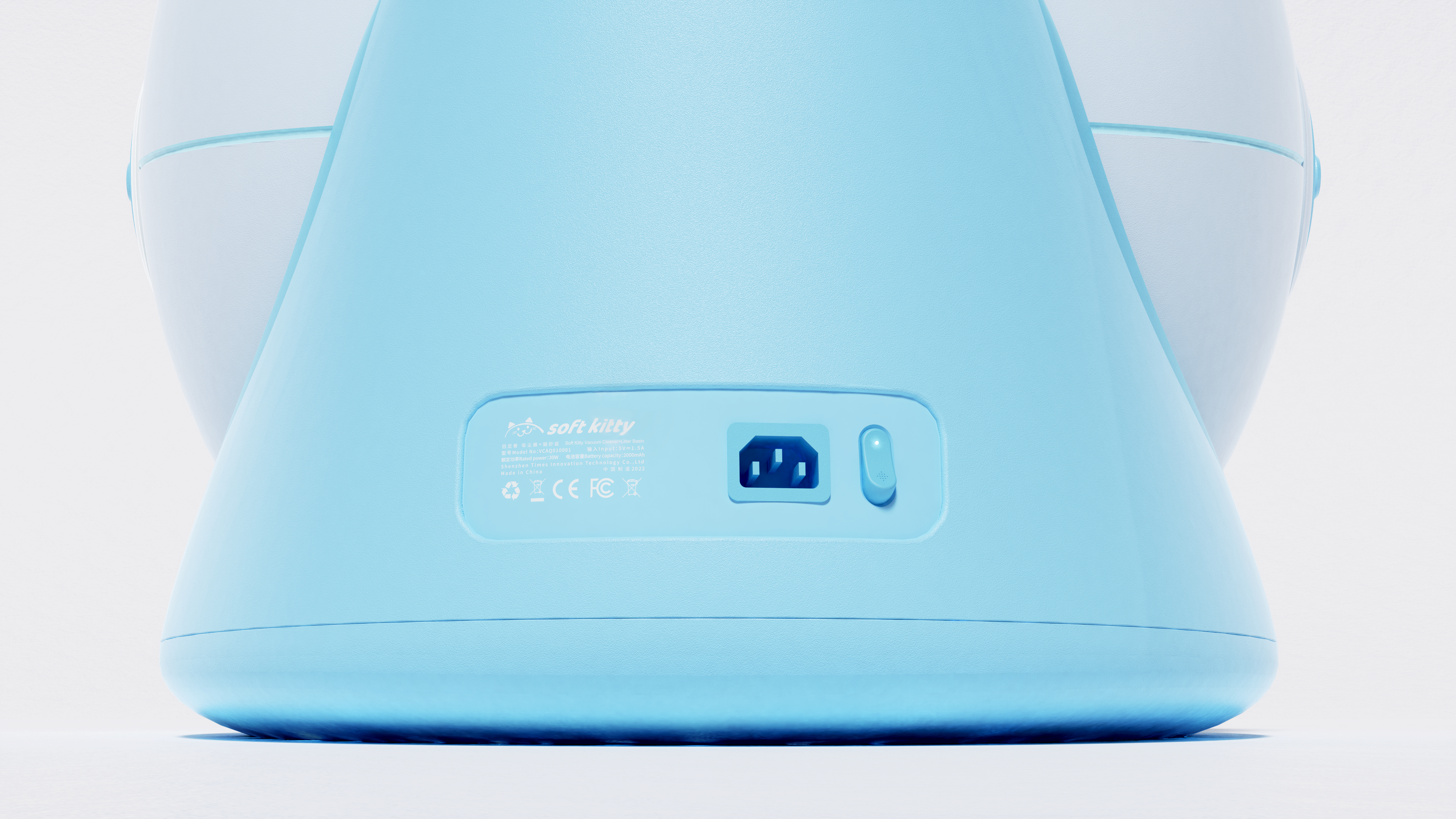

The back is equipped with an interface and a switch to charge the vacuum cleaner.

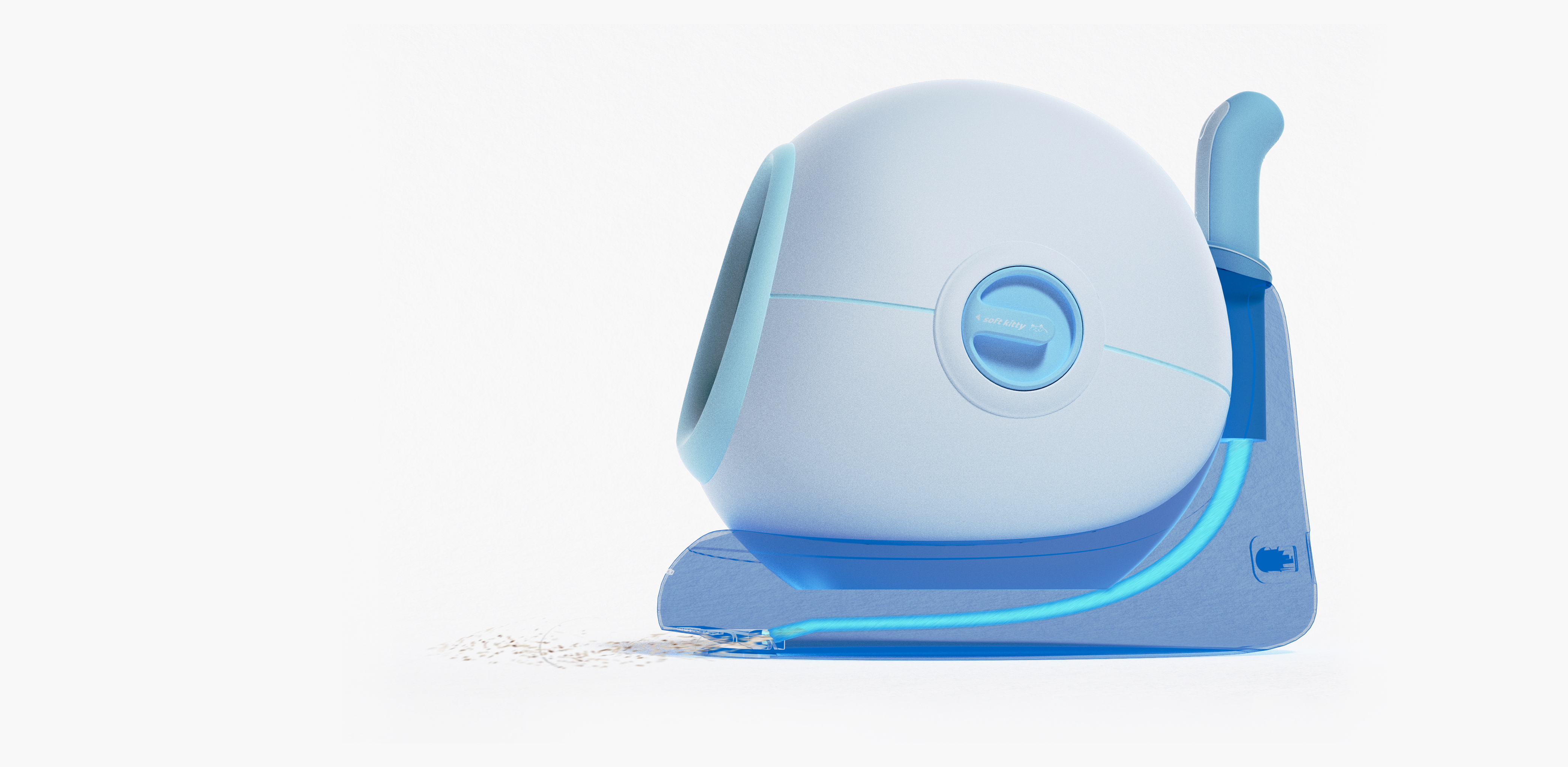

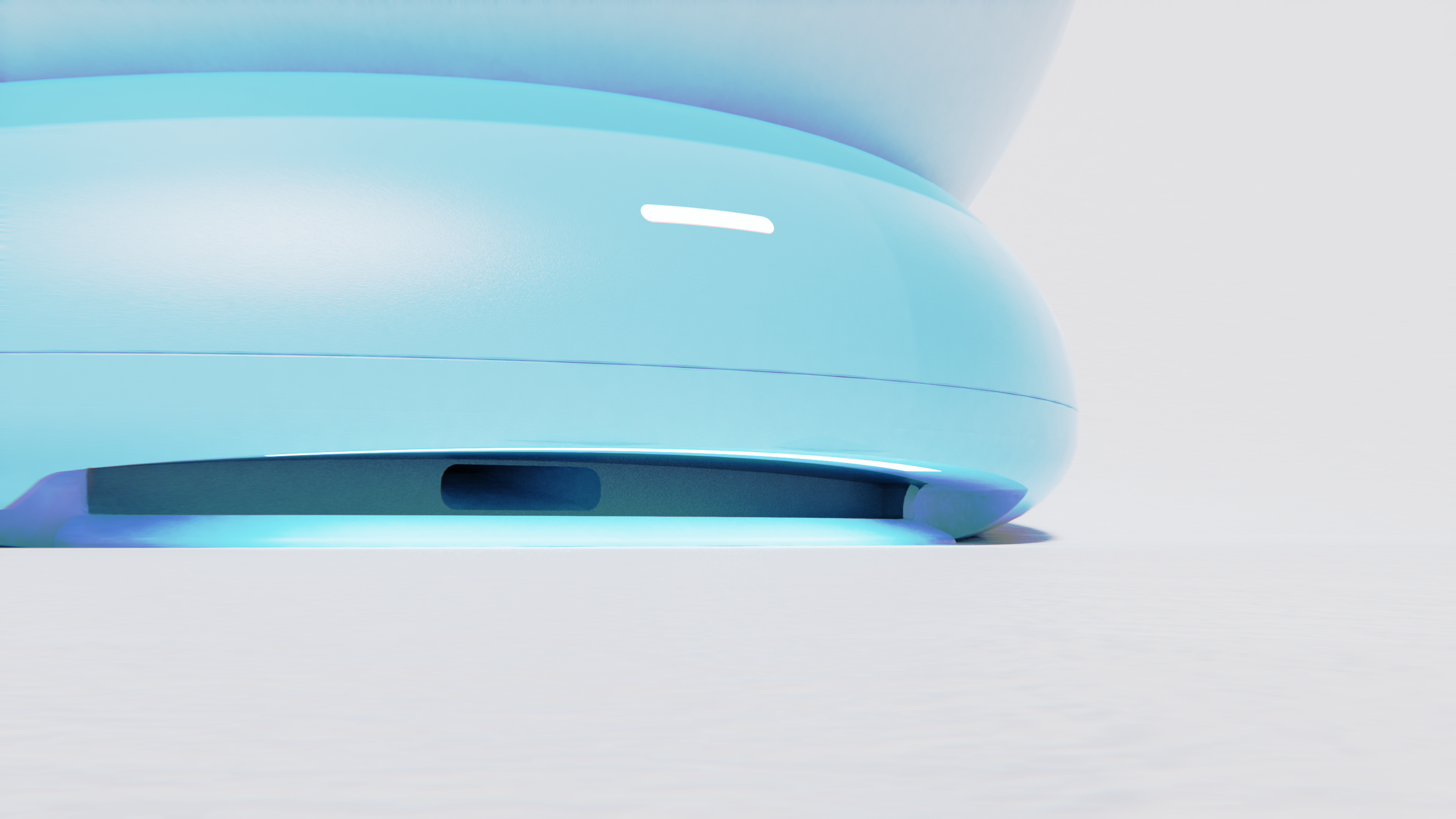

The dust suction port at the bottom is equipped with light board, so that the cleaning process is more visual.

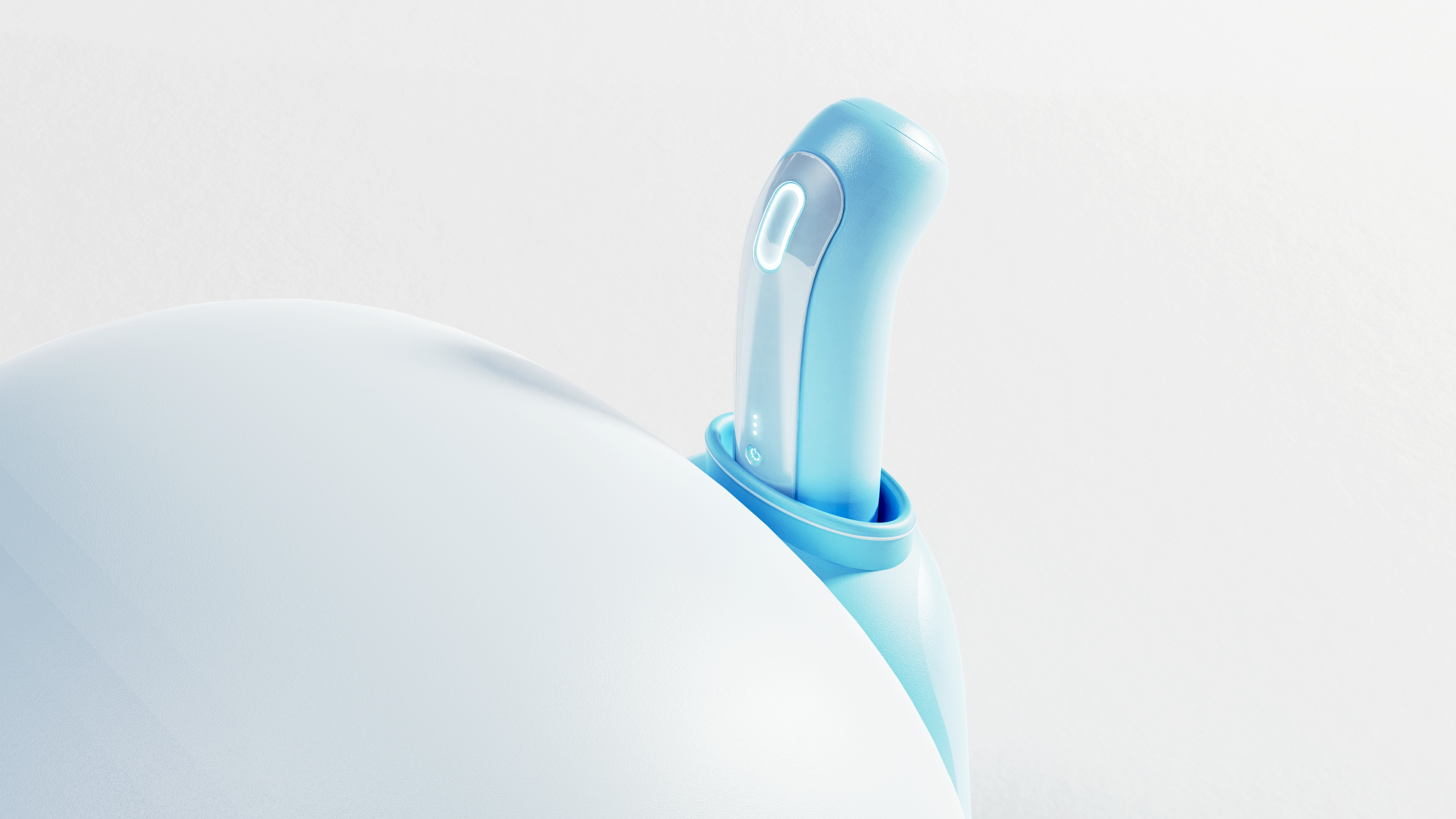

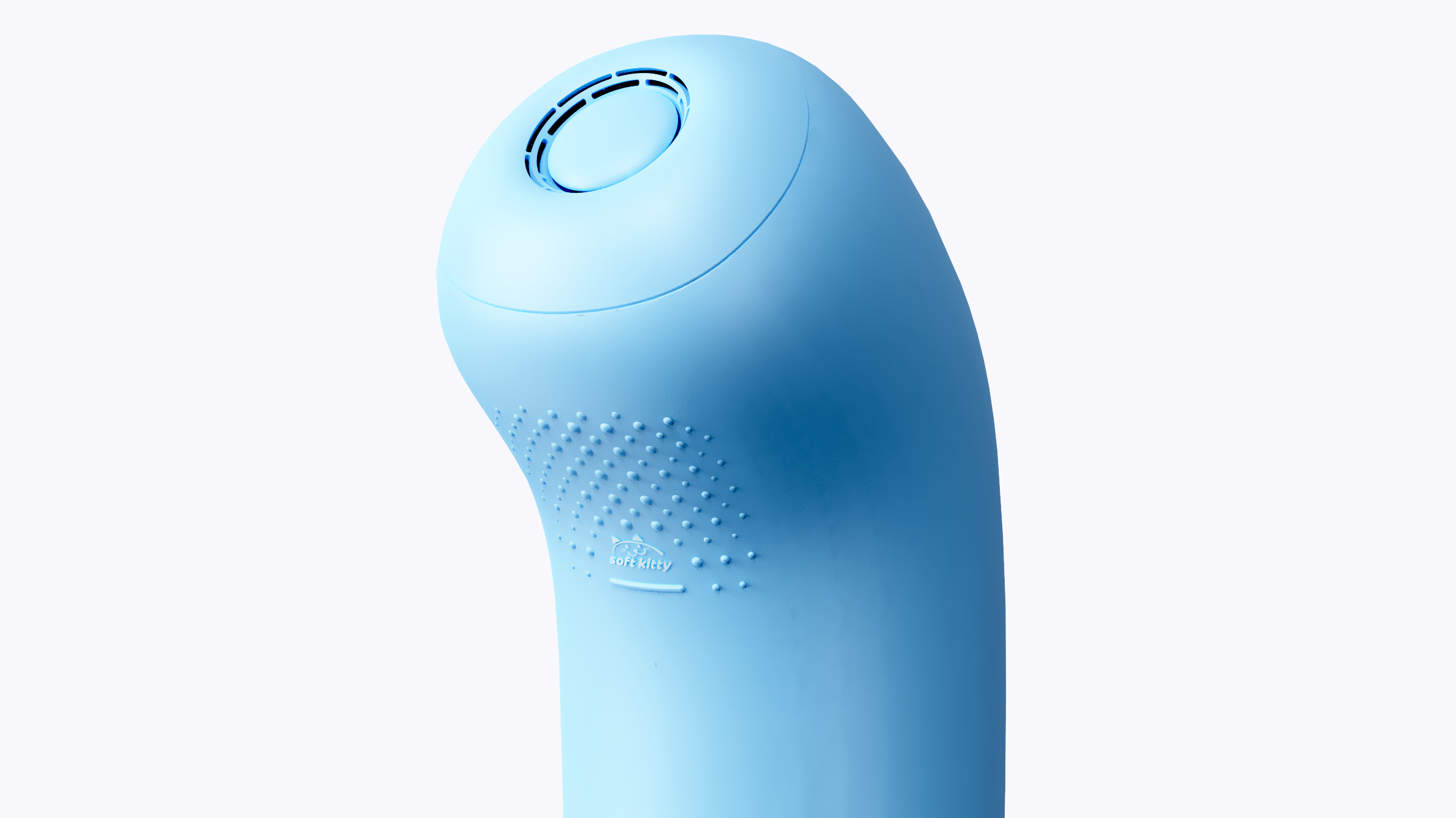

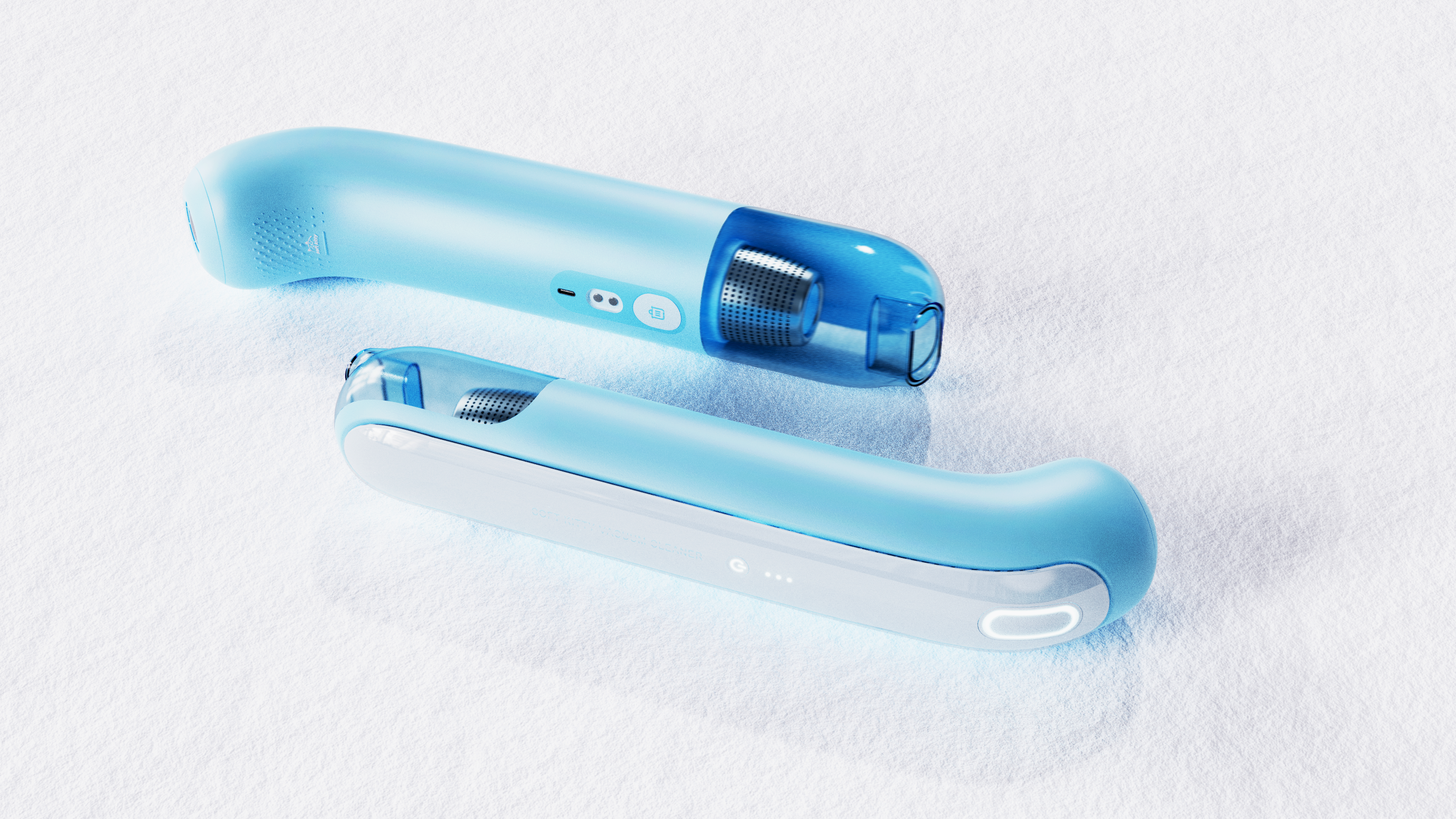

The vacuum cleaner adopts a round and full shape, which is suitable for cat litter box and easy to take.
#2 self-cleaning cat tunnel/Self cleaning cat tunnel

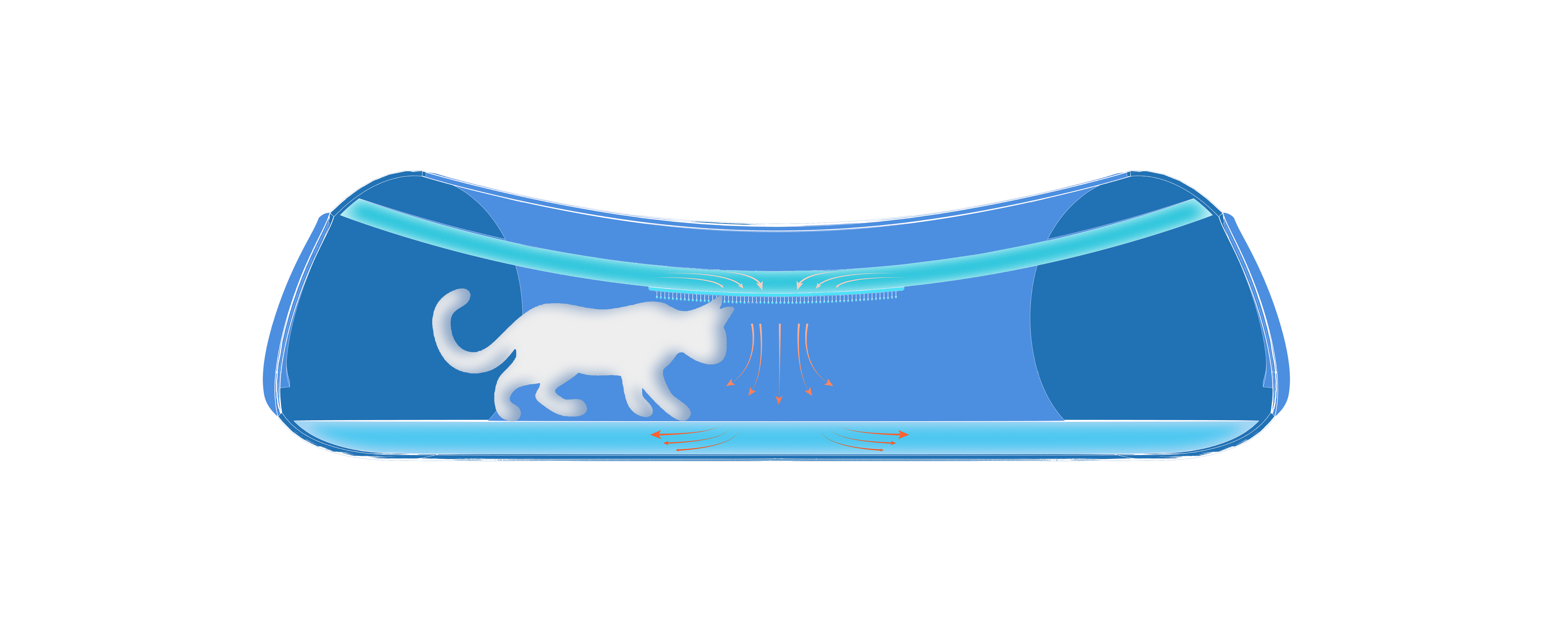

A brand-new cat tunnel designed for the problem of cat hair: using the cat's nature of drilling holes and being bristled, a cat comb is placed on the top of the cat tunnel. when the cat crawls in the cat tunnel, it can remove the cat hair on its body, so that the pet's behavior can drive its own cleaning, and also relieve the owner's anxiety caused by the large amount of cat hair on the ground.

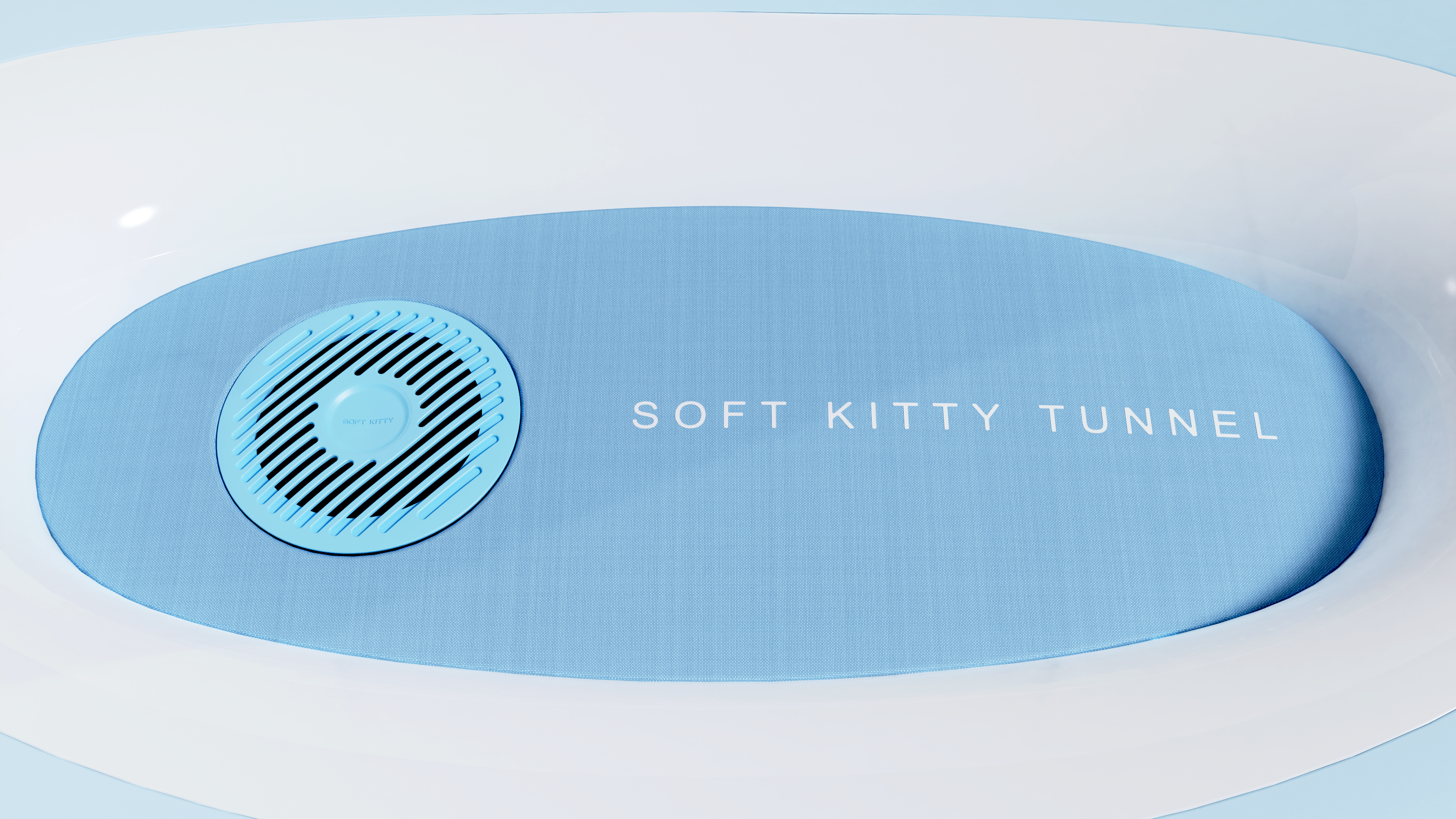

There is an air outlet on the top of the cat tunnel, and it is made of cloth. The cat can also rest on it.

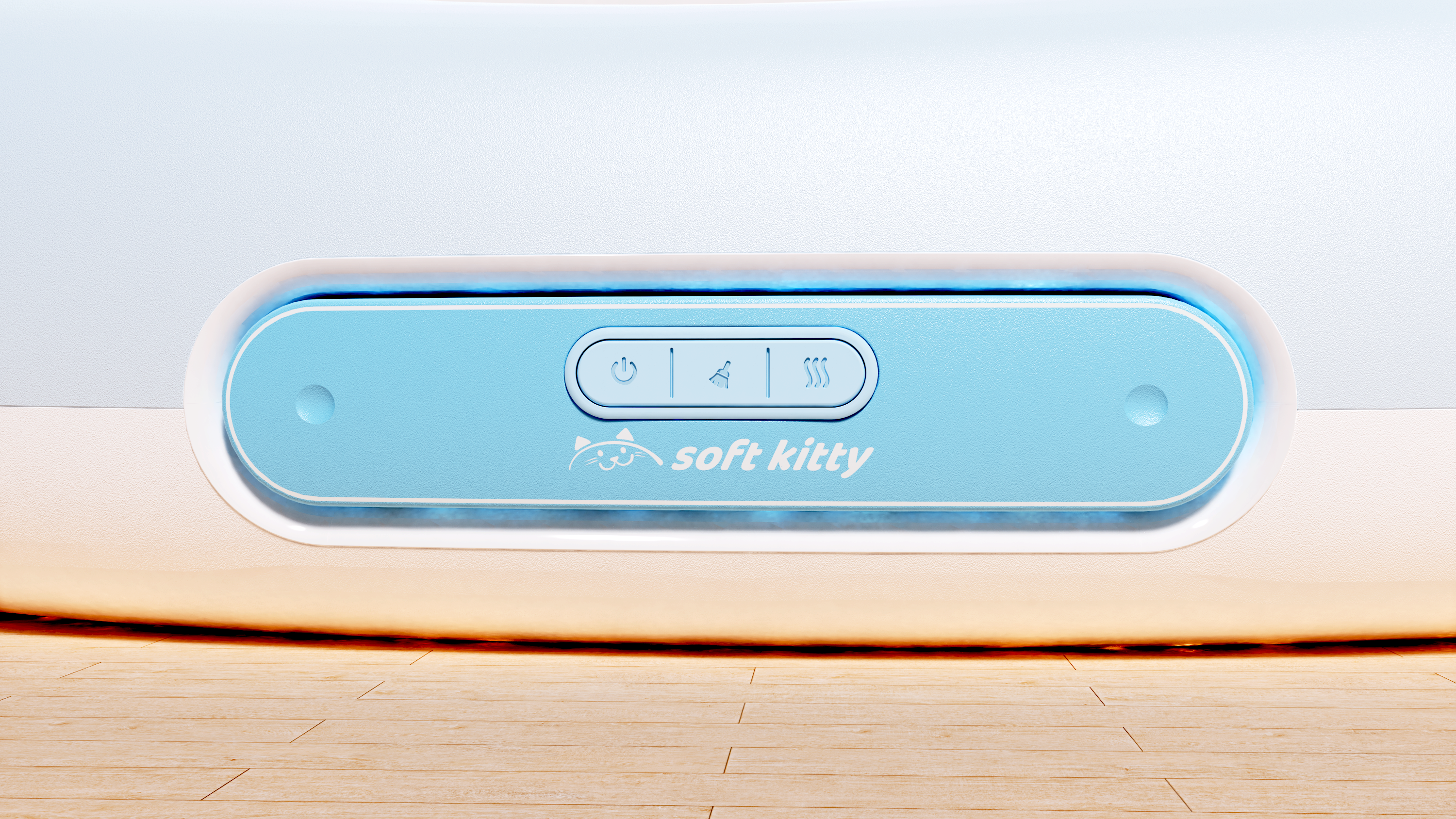

There is a button on the drawer, which can open the function of collecting hair and refreshing the air in the inner cabin with one key.

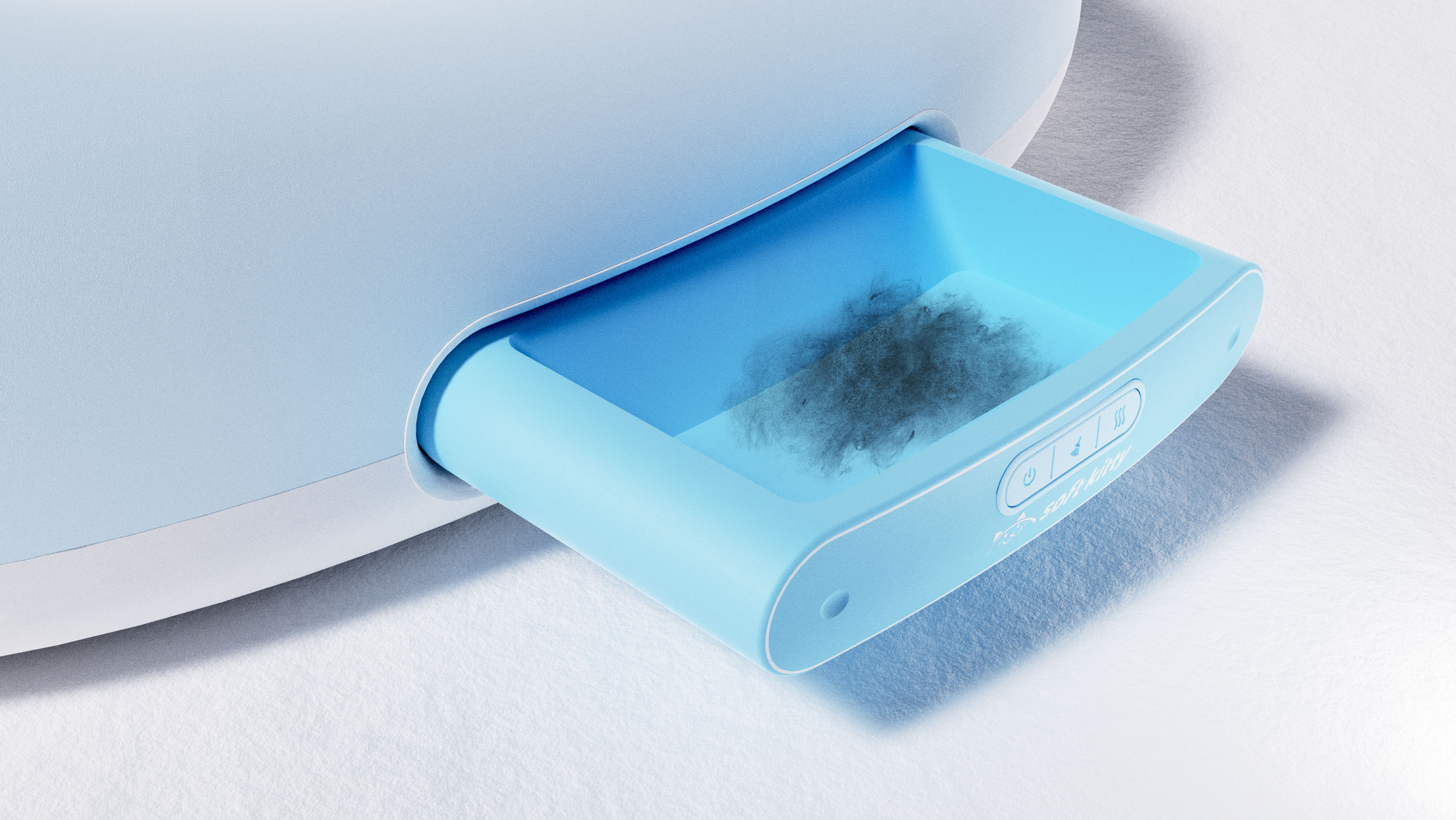

There is a drawer on the side, which can store the collected cat hair in it.
