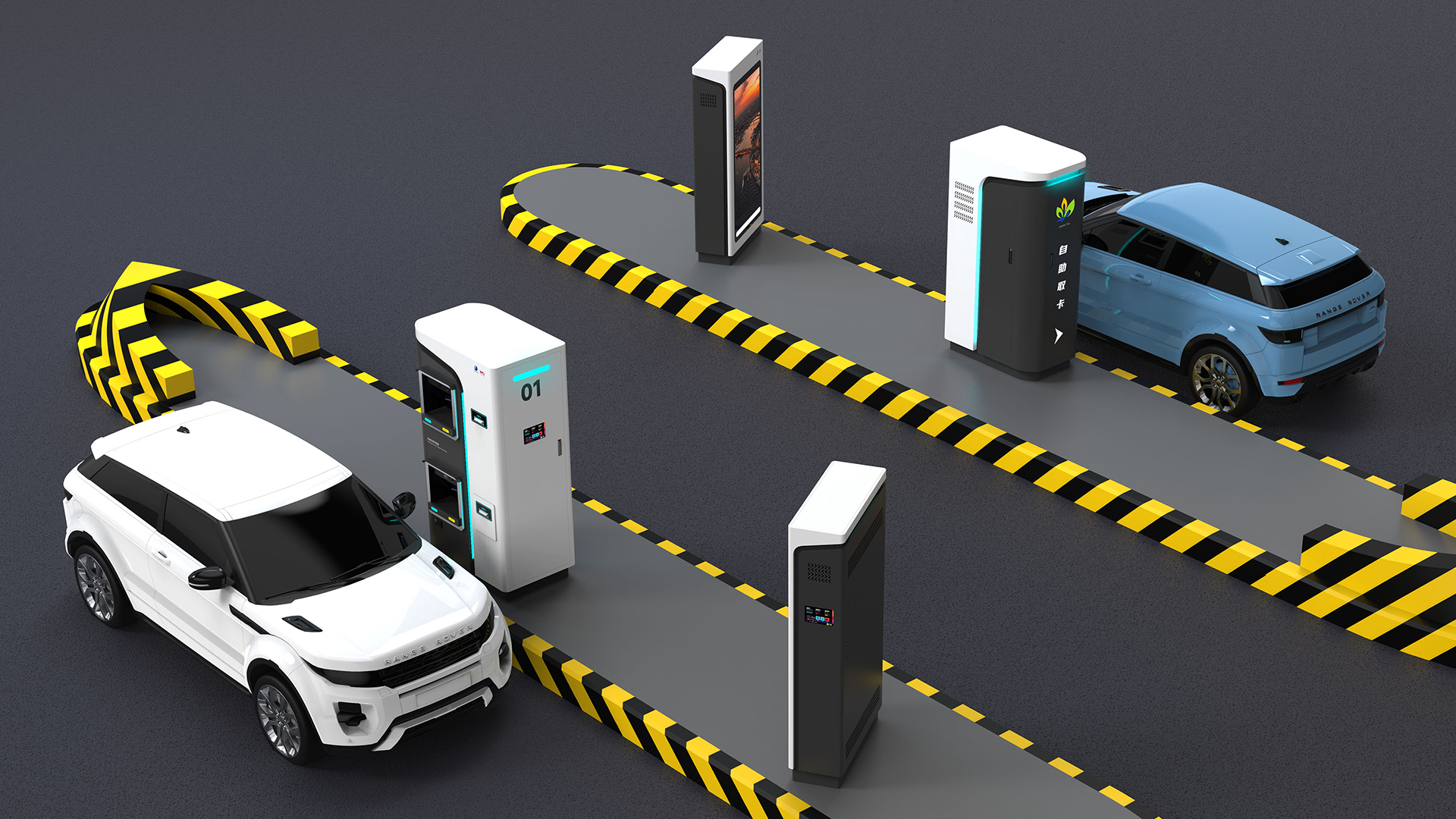

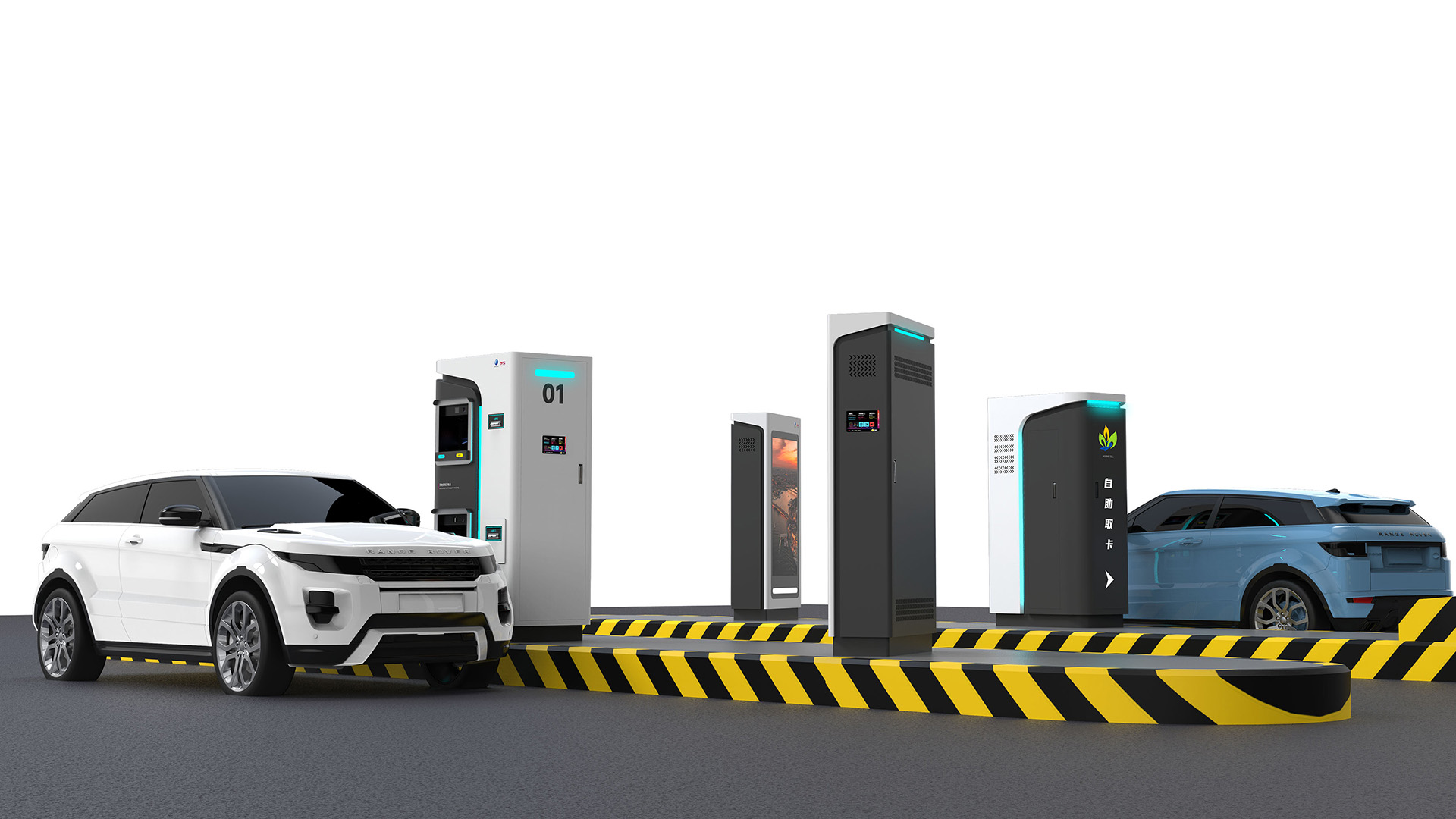

Project background: The highway toll system is divided into 4 products, namely, card issuing machine, payment machine and two economic large screens. It is mainly used in the import and export platforms of expressways to replace the traditional artificial island platform card collection and manual payment in an intelligent way. The system can not only be applied to the harsh outdoor environment, but also carry out the digital management of the entire highway system in a convenient way. At the same time, the product has a high card throughput, reducing the frequency of staff replacement, saving manpower. Automatic sterilization is set up inside the machine to reduce the risk of transmission caused by card exchange in the epidemic environment.

Innovative value: The highway toll system liberates the traditional manual mode, saves the social labor force, and reduces the impact of bad weather on the efficiency of high-speed toll collection. At the same time, the traffic efficiency of all vehicles is improved, and the traffic congestion at the import and export is alleviated. The system will be fully integrated into China's existing high-speed toll system to improve China's transportation operation infrastructure.

Innovative concept: The purpose of the highway toll system is to build an intelligent island platform. Only through 4 devices, the original large number of devices are integrated, so that the island equipment is less, but the function is more complete. Intelligent operation of products, without real-time monitoring personnel.

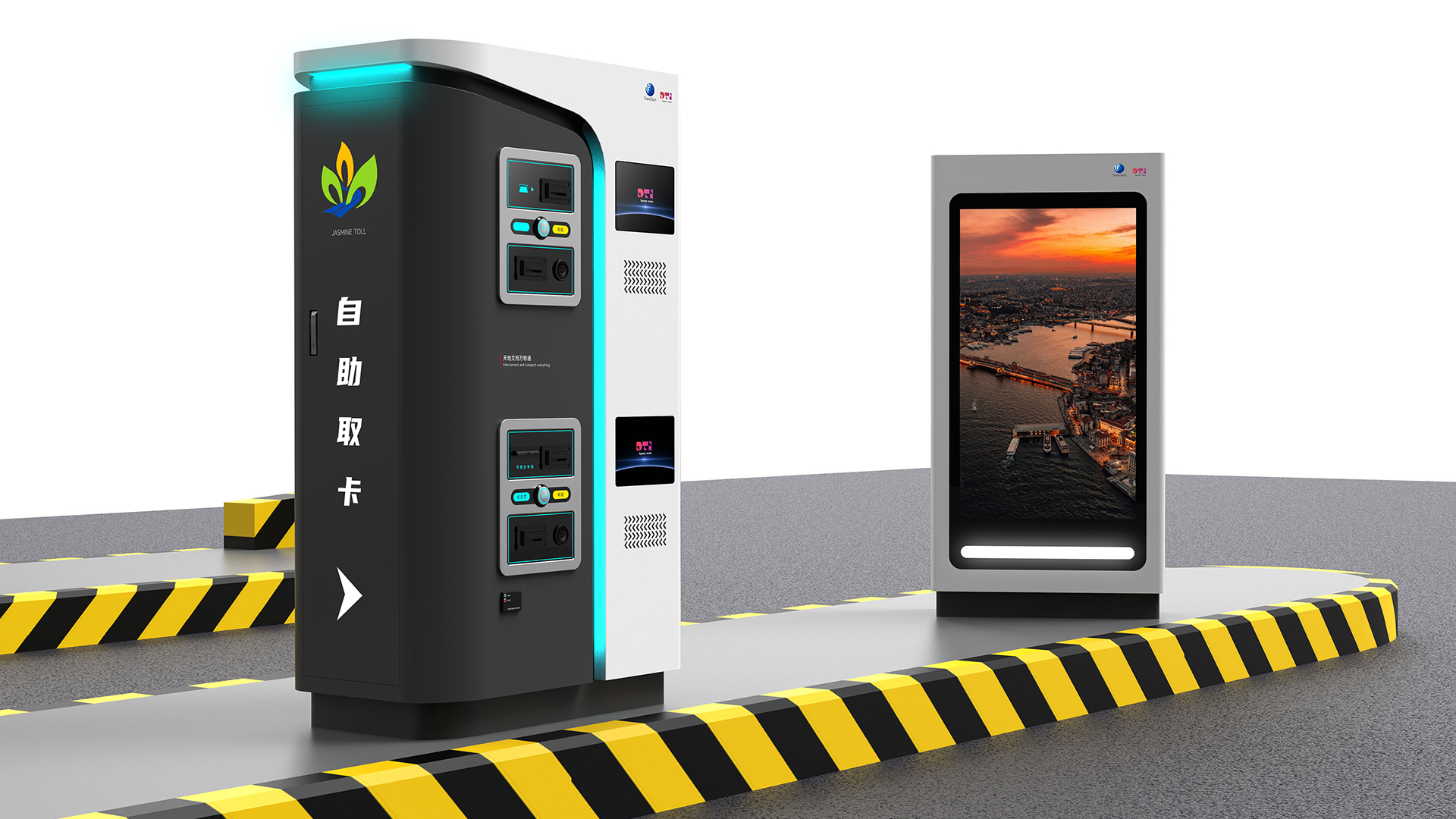

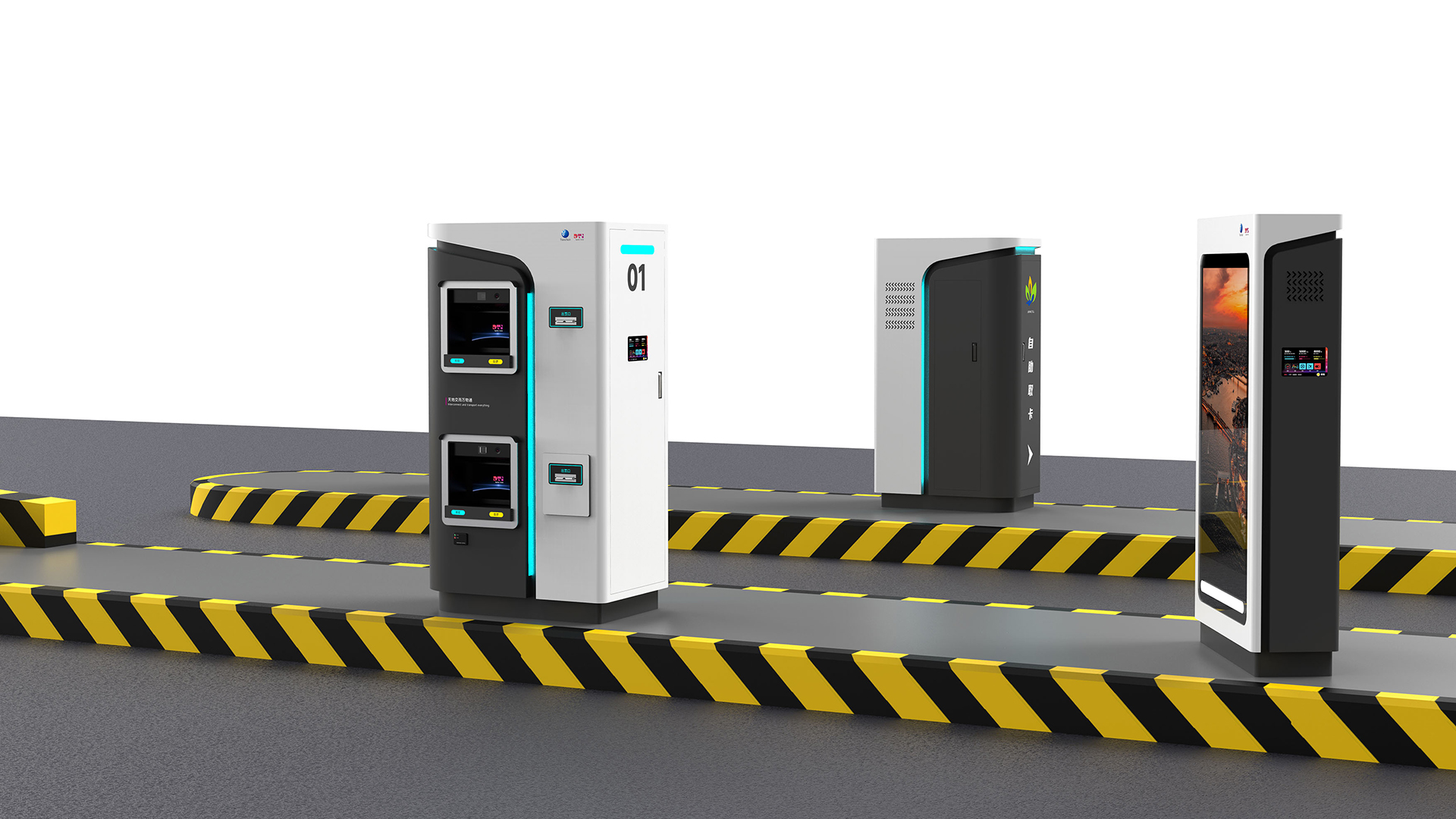

Appearance innovation: in the appearance design, the product is simple and atmospheric. The shape of the card issuing machine and the payment machine is in the form of left and right packages, which is visually directional. The whole product is in the transition from the side to the front of the large arc, and the non-angular design is more caring for people and reduces the psychological distance. The creation of lights and the collision of materials make the product more professional.

1. The design of the system product, whether it is a card issuing machine or a payment machine, fully takes into account the use needs of drivers, passengers and staff. On the layout of the operation panel of the card issuing machine, the user can complete the card taking with one key, and the card taking panel can automatically expand and contract, which is convenient for drivers and passengers to take the card. The design of the payment machine adopts a large window type open card operation, without the traditional complex alignment, and supports a variety of payment methods. The convenience of product operation makes the overall vehicle traffic efficiency significantly improved.

2. The expressway toll collection system has changed from the traditional artificial island platform mode to an intelligent and integrated management mode, which is not only the upgrading of equipment but also represents the future development direction of the industry. For the first time, large window delivery is adopted on the equipment, automatic antivirus and sterilization device and card telescopic mechanism are adopted.
