Rotary dual-purpose plug

2021-06-05 Tools&Equipment 6034 15 48

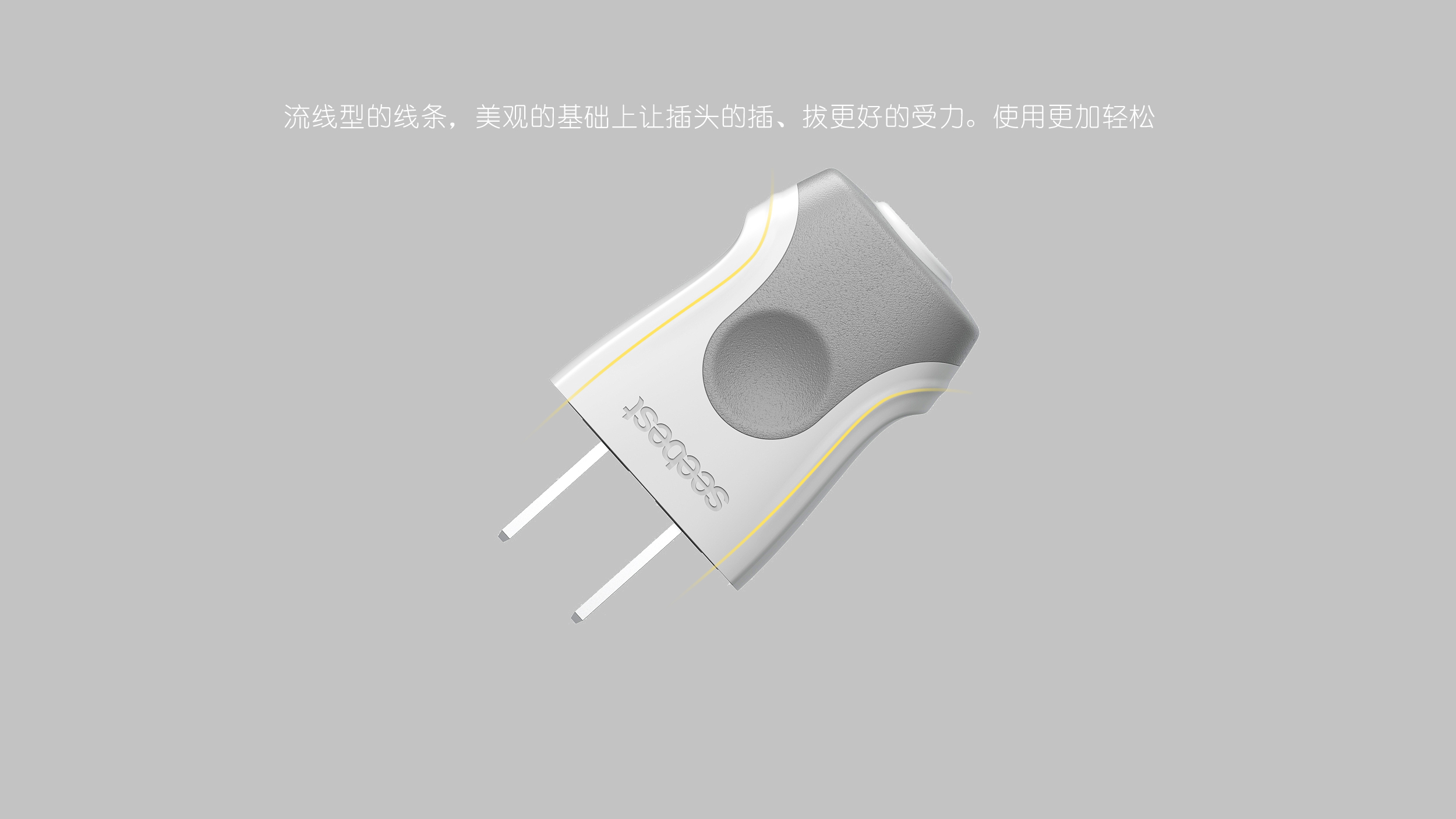

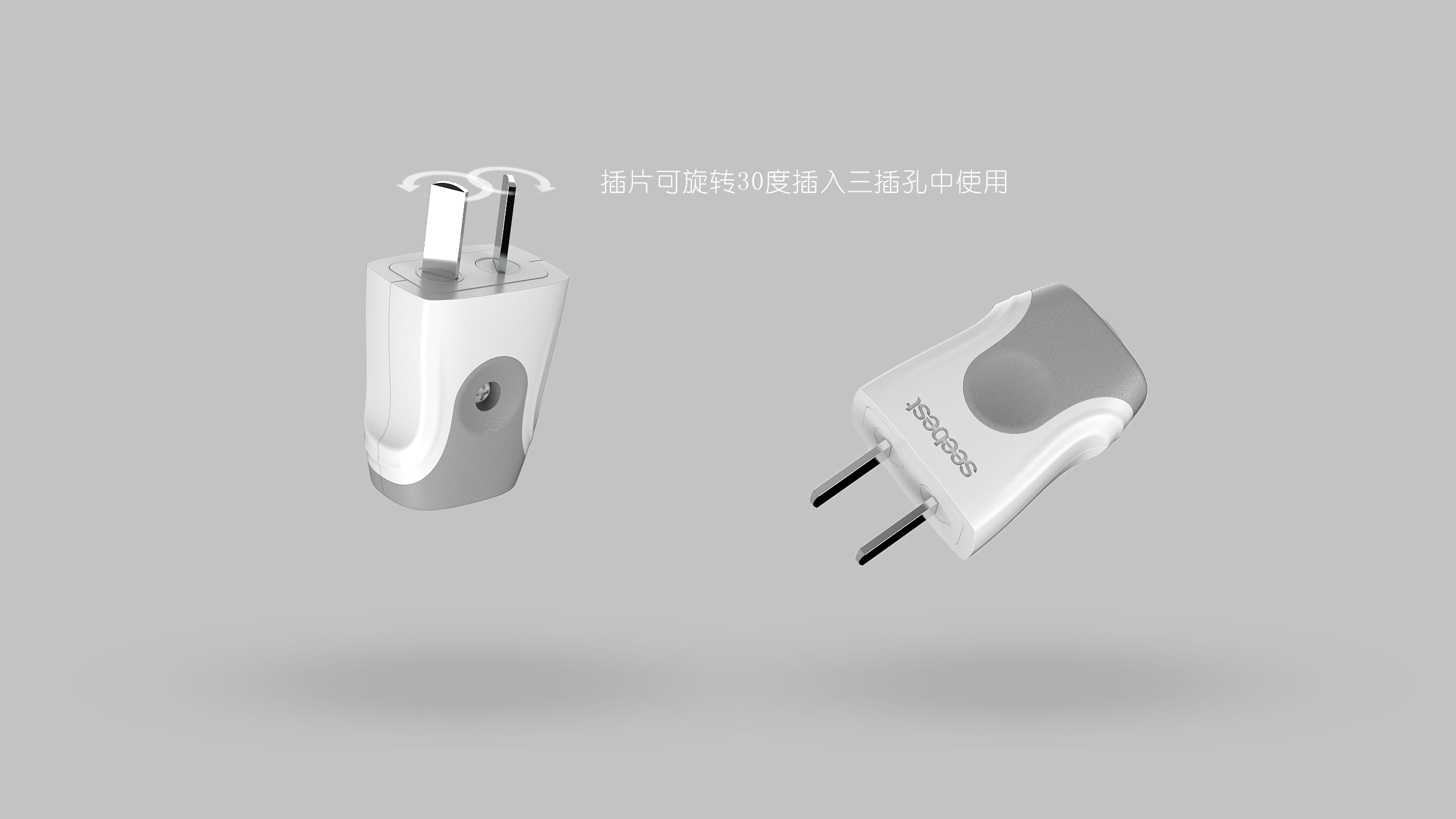

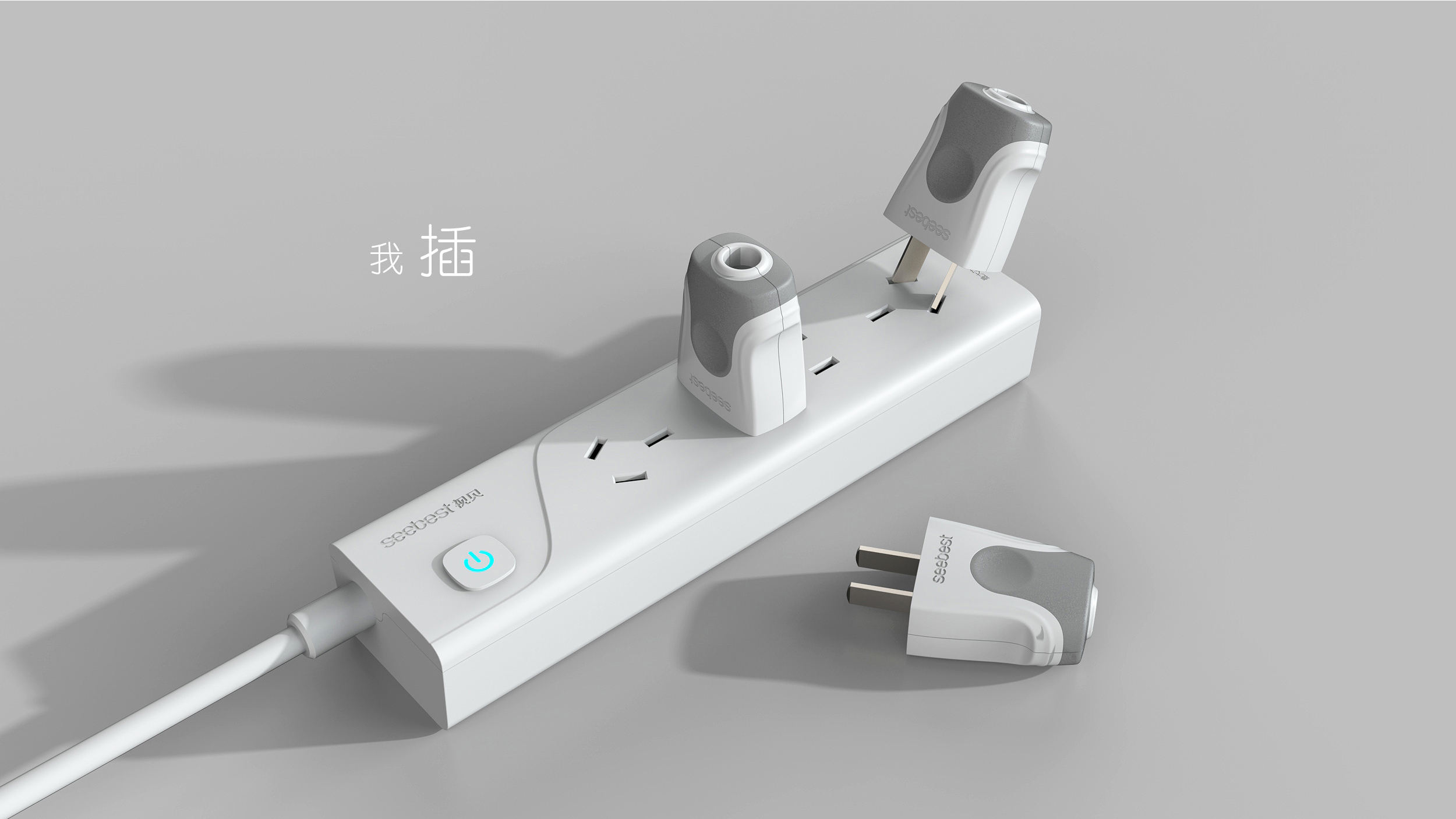

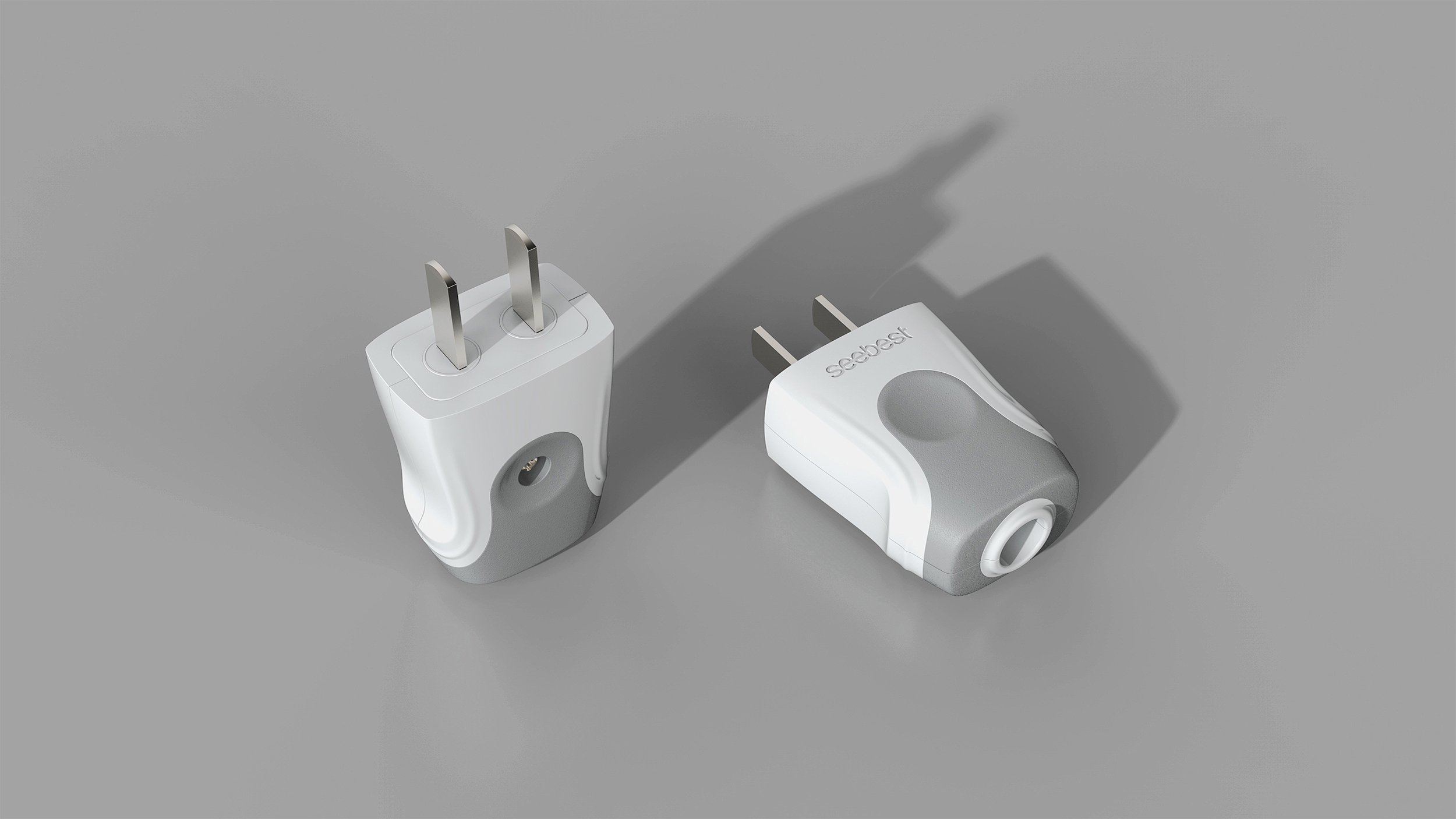

A rotary plug designed for Shibei Technology two years ago can be used in two-plug and three-plug socket holes at the same time, so that the power supply of electrical appliances is no longer limited to a single hole. The line design that conforms to the radian of the fingers makes the plug fashionable and the experience easier.

Plug，Socket，Electricity consumption，rotate，tool，

48 100

Users’ other works View More

Traffic Headset

A fat stepping machine

Massage chair one

Overview of the Decade

Comment

Comment Board （15）

王楚昂 2021-07-15

This design has been used for a long time. It was originally used at home.

黑仔Owner 2021-08-19

Yes, the rotating plug was the first to be produced in several years. At present, there are some similar products on the market. This design is mainly to upgrade the appearance.

王楚昂 2021-08-20

Write a comment

bjh007 2021-06-11

Is the rotation center spacing between the two holes and the three holes the same? Is there any difference

黑仔Owner 2021-06-11

The same

Write a comment

拔毛红萝卜 2021-06-07

Haha, the elder of Shibei is good. I like this plug you designed very much. I didn't expect to see it on the general elephant.

黑仔Owner 2021-06-08

Are you...

Write a comment

花木琳子 2021-06-07

Is it really good to insert the three jacks rashly? Obviously, there is no grounding wire still inserted.

黑仔Owner 2021-06-08

This may involve some knowledge of electricity consumption. If you have time to ask Tara, it should be clearer than I explained in a few words.

花木琳子 2021-06-11

After checking, I saw that most of the information was that this design did not want to be inserted incorrectly, so it was designed in this way. Let it turn straight and insert, which is a potential safety hazard.

黑仔Owner 2021-06-11

The difference between the two plugs and the three sockets lies in whether there is a grounding wire, while the original two plugs are not connected to the ground wire. All of them, whether they are inserted into the two plugs or inserted into the three-pronged hole at an angle, are exactly the same for the two plugs (both have no grounding wire). If the three-pronged plug is broken straight and inserted into the two insertion holes, there is a potential safety hazard.

花木琳子 2021-06-21

I see, thank you for your detailed explanation.
