"Bow and arrow sight"-unique mechanical beauty, deducing precision manufacturing.
Category: Product Design | Industry Equipment | Sports Shooting Accessories, Bow and Arrow Sight
Service Content: Appearance Design | Structure Design
Service Date: December 2015

Background: Bow and arrow sights are mainly used for compound bows and arrows, including fixed brackets, aiming frames, sight modules and other components. The mainstream bow and arrow sights currently in use are mainly 5-pin sights. The biggest advantage is that they can quickly aim at the distance of different targets. However, the sights currently used are based on the distance of the visual target and select the corresponding front sight for effective aiming and shooting. The position size of each front sight is determined according to the empirical value, which will have a large error, and it will be installed and fixed during production, and it does not have the function of front.

Insight: At present, most of the products of similar sights on the market are simple in structure, cheap, and even have a sense of assembly and patchwork. Visually, it is difficult to bring a stable and reliable impression to users. In the actual use process, many products have strange shapes, poor stability, and are very inconsistent with the matching of bows and arrows. They cannot even be used in an environment with poor light sources and cannot form effective assistance.

Strategy: First, add an adjustable optical fiber front sight needle module to meet the needs of poor light sources in the jungle, wild and other environments, and clearly aim at the indicator target. It has greatly improved the content of product innovation and technology. At the same time, the precise adjustment of the scale of the 5-pin sight can effectively improve the long-distance shooting accuracy and rapid aiming level. Second: Break the traditional image of the sight and enhance the added value of the product. Incorporate military, competitive, field and other specific styles, and integrate bow and arrow and environment in the process of aiming and shooting to enhance the immersive experience effect.

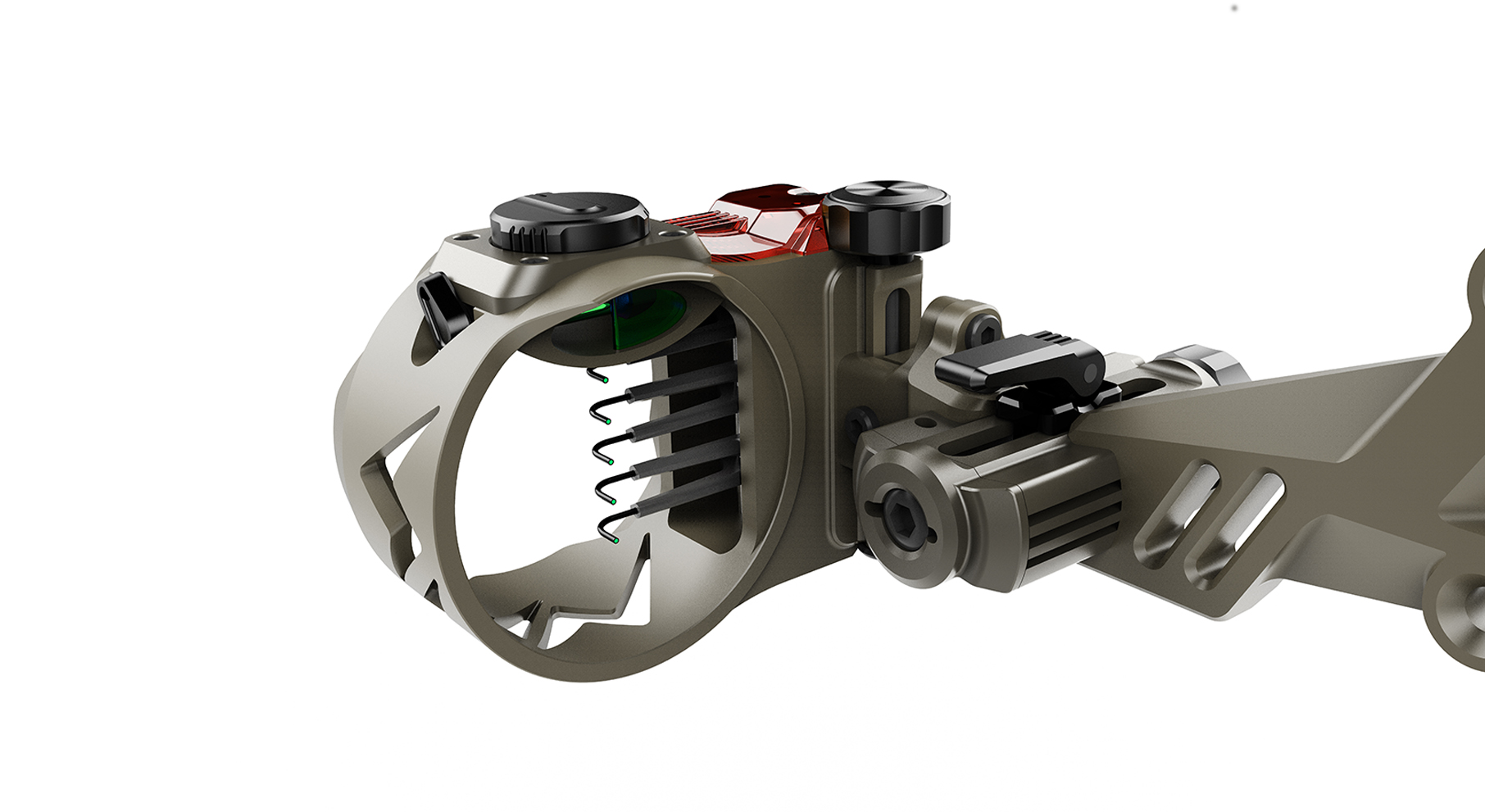

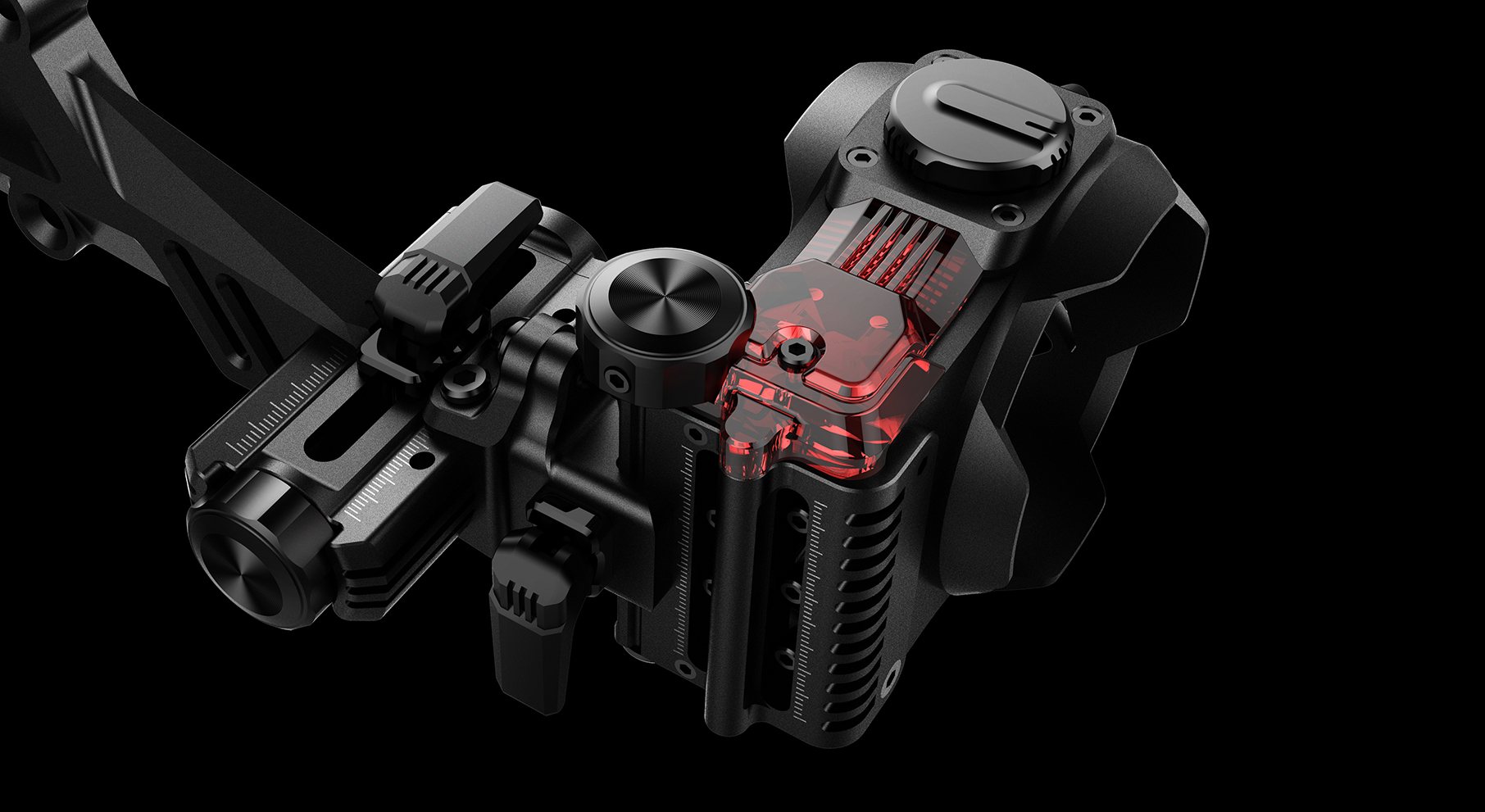

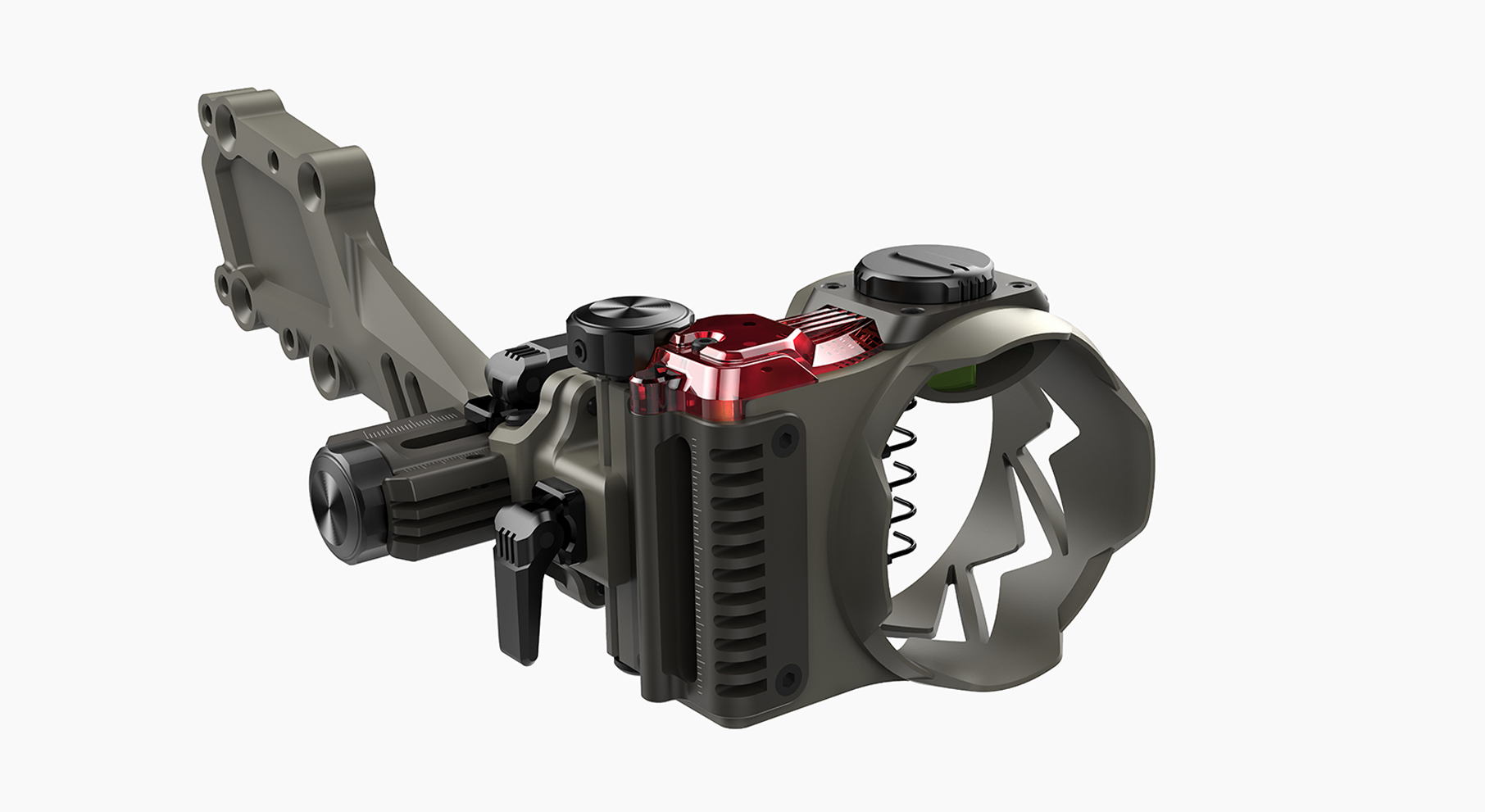

Design: Grasp your own rhythm, find the right time, and hit it with one hit. It is a perfect experience that an excellent bow and arrow sight can bring. And its unique mechanical beauty, precise sense of technology and professionalism are attractive characteristics of appearance. This bow and arrow sight has a sharp appearance and exquisite hollow details, which can not only reduce weight, but also protect the sight module well, minimizing the error caused by impact and collision. The tenon structure of woodworking is used between the fixed bracket, aiming frame and other modules, and the finishing of precision CNC machine tools can reduce the effects of structural looseness and scale deviation caused by continuous arrow shock. The fine probe feedback adjustment structure and plastic lock buckle can further improve the accuracy of aiming and shooting.
