When I first worked on July 8, 2018, the internship salary was 1100 yuan/month, and the probation period was 3 months. At that time, modeling garbage, rendering was more garbage (of course, rendering is also quite good now), and the process and materials were not very familiar. After a three-month probation period, the salary reached 2880 yuan/month.

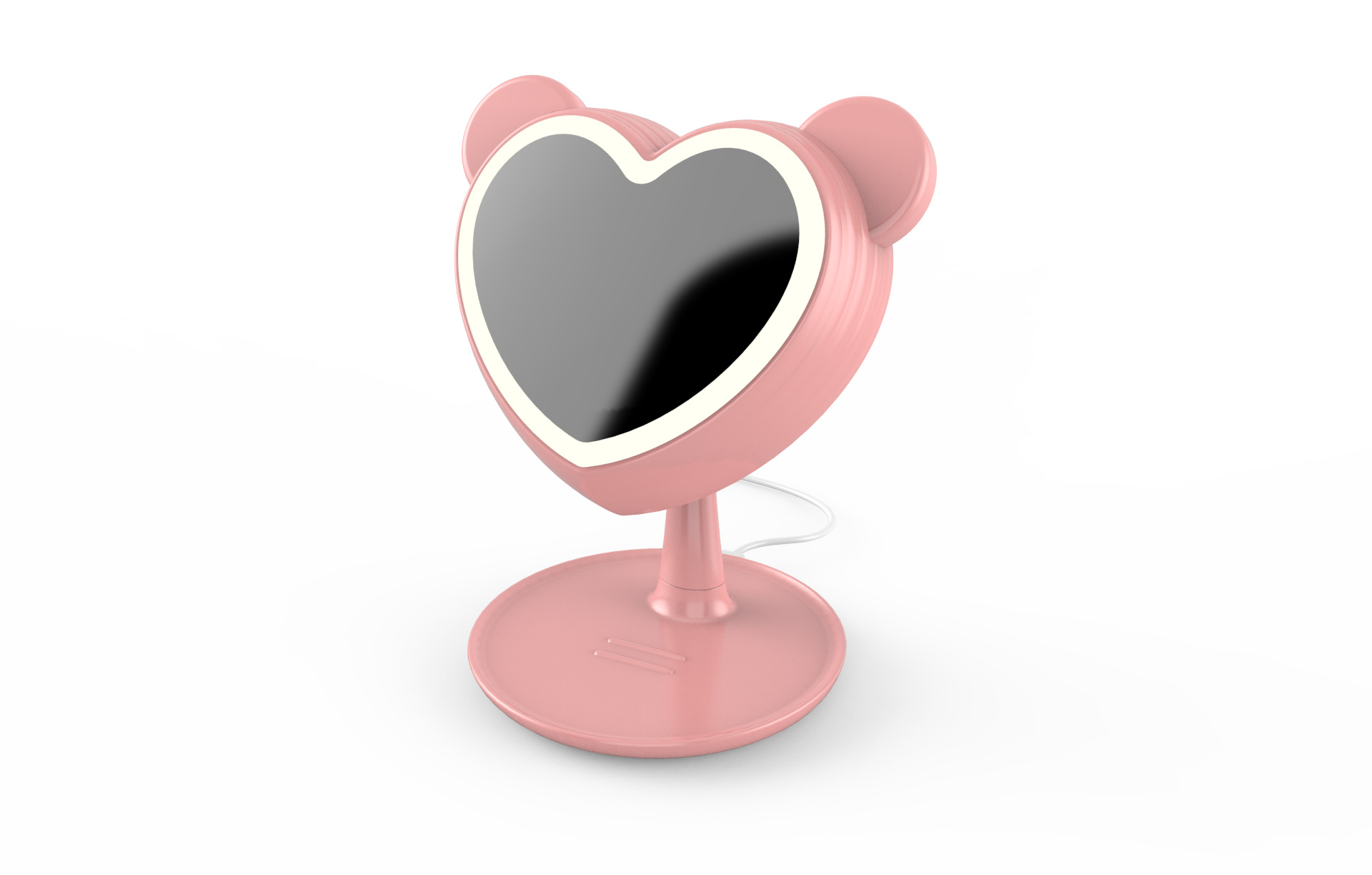

Mickey Mouse Love Cosmetic Mirror Lamp Design Scheme 1

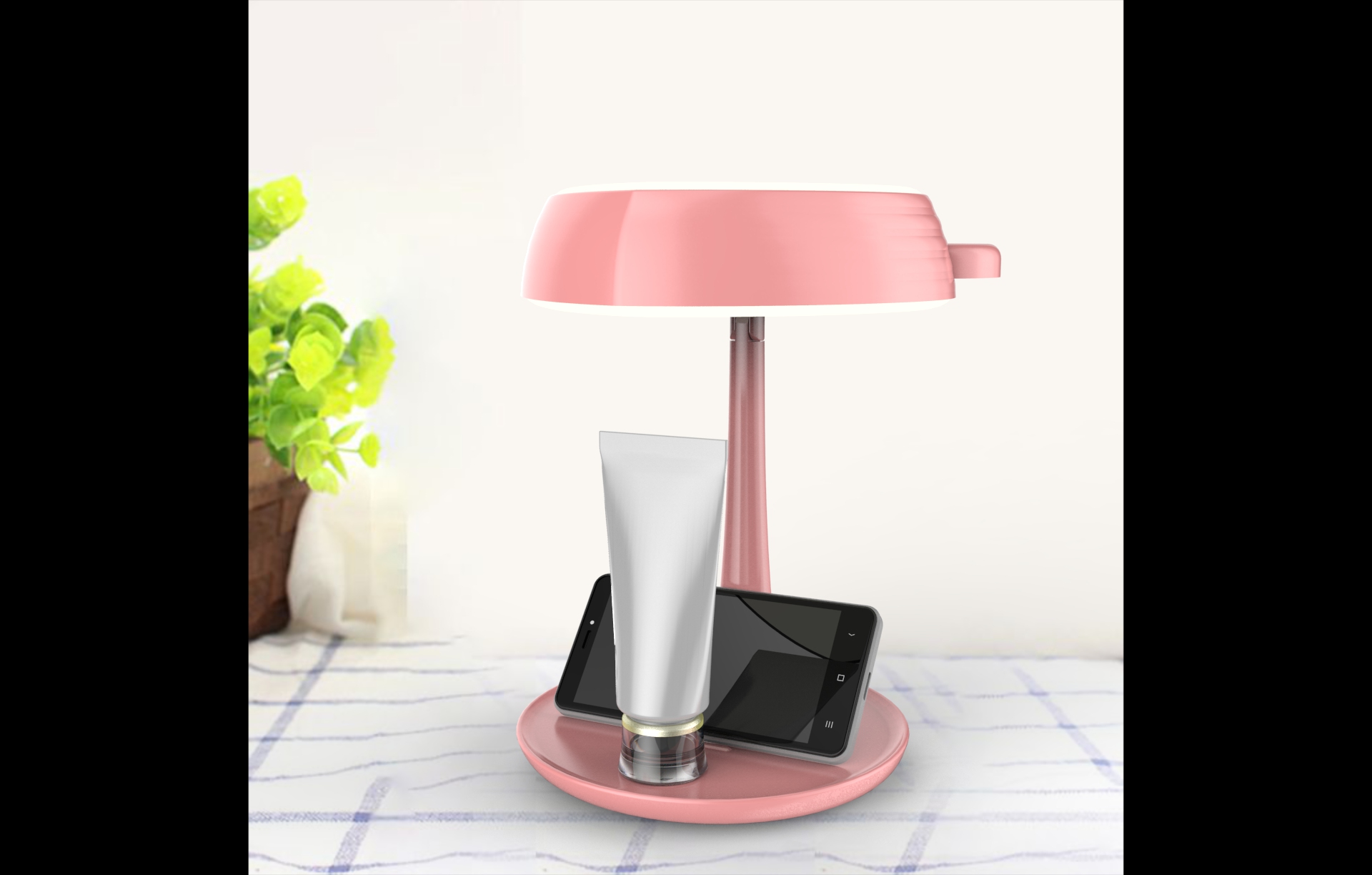

The first product designed in the early 7th of the internship period, the mobile phone is my own red rice note4, and skin care products are the skin care products I think about. keyshot rendering can only be done by fools, and the background is transparent and low.

Mickey Mouse Love Cosmetic Mirror Lamp Design Scheme 1
The product is characterized by a round base and a rear center of gravity of the pole. The middle two crossbars are slots for placing mobile phones, and the bottom of the pole is wider to better place the mobile phone. At the same time, the upright rod is arranged backward, which can leave a lot of space in front. The shape is upward, using the Mickey Mouse shape symbol, and the USB charging cable at the tail symbolizes Mickey Mouse's tail.

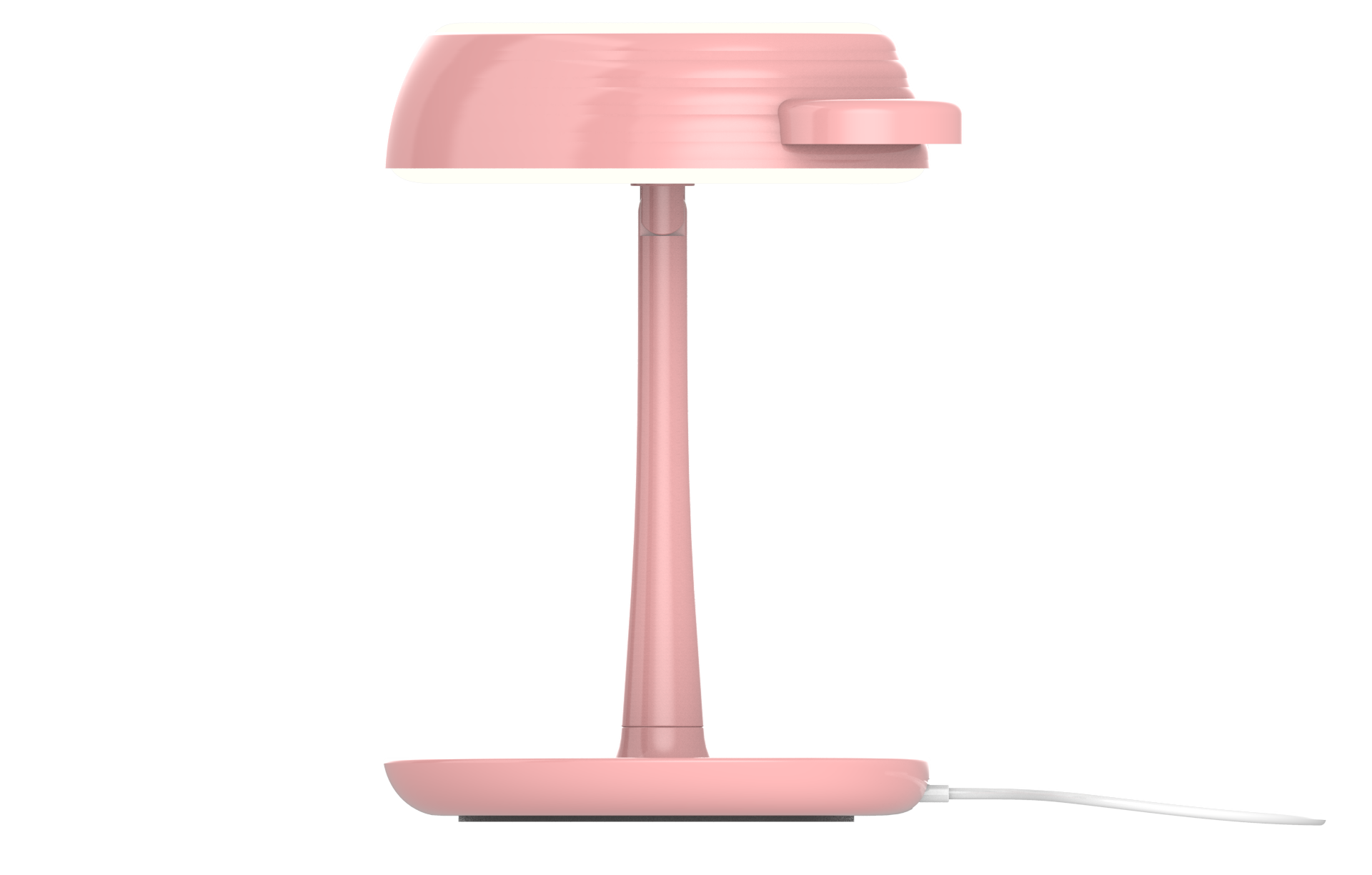

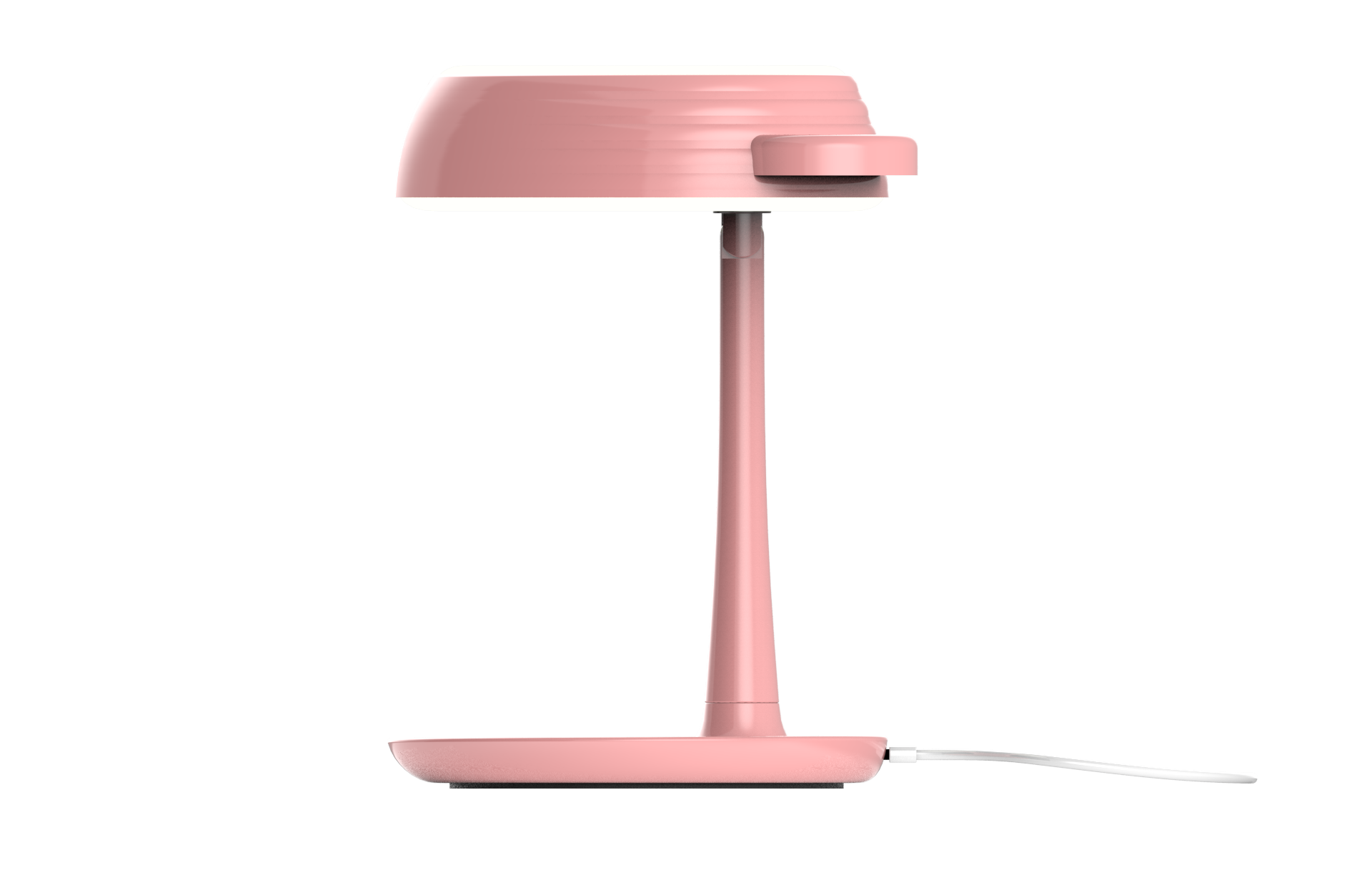

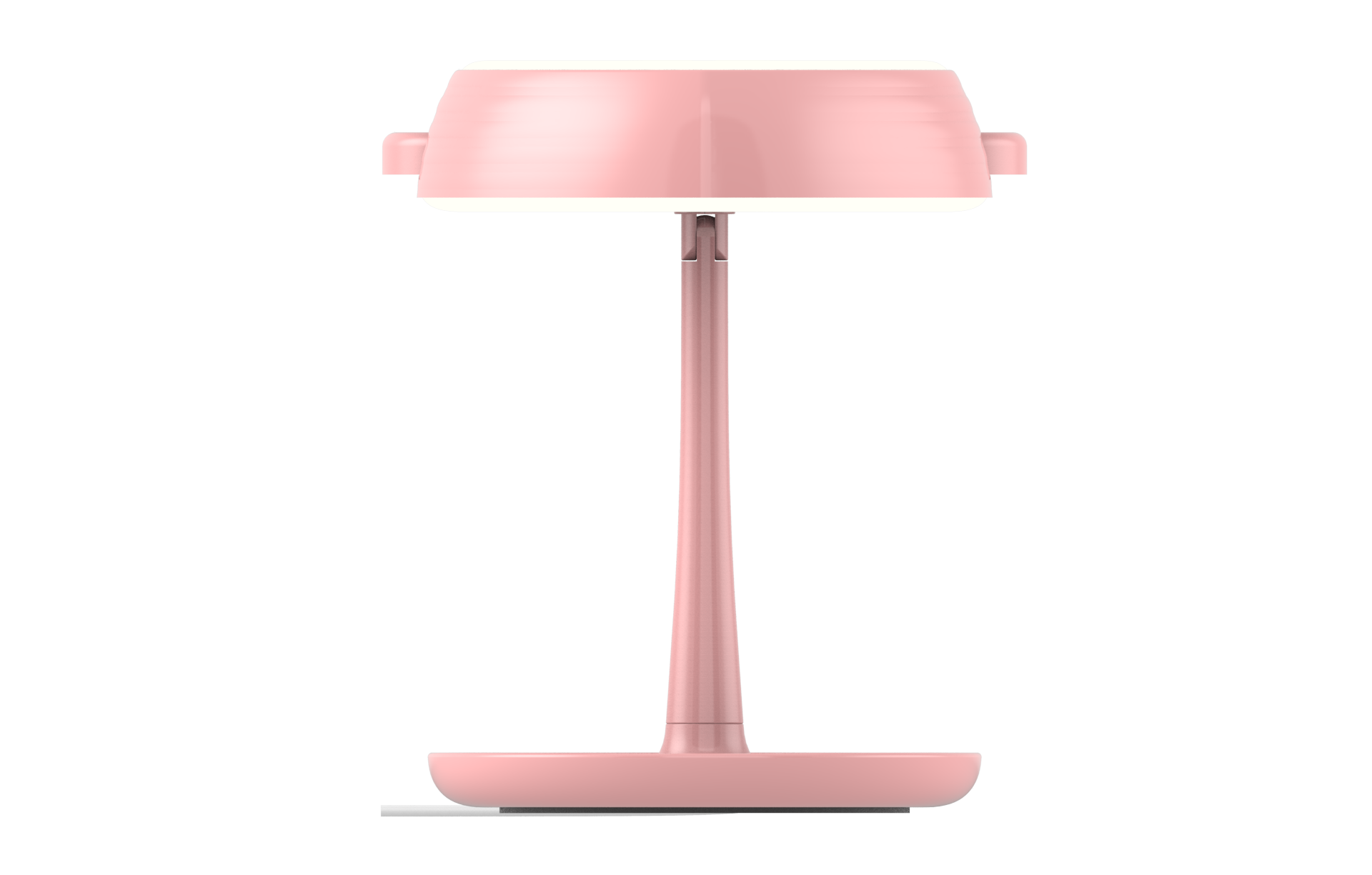

Side view

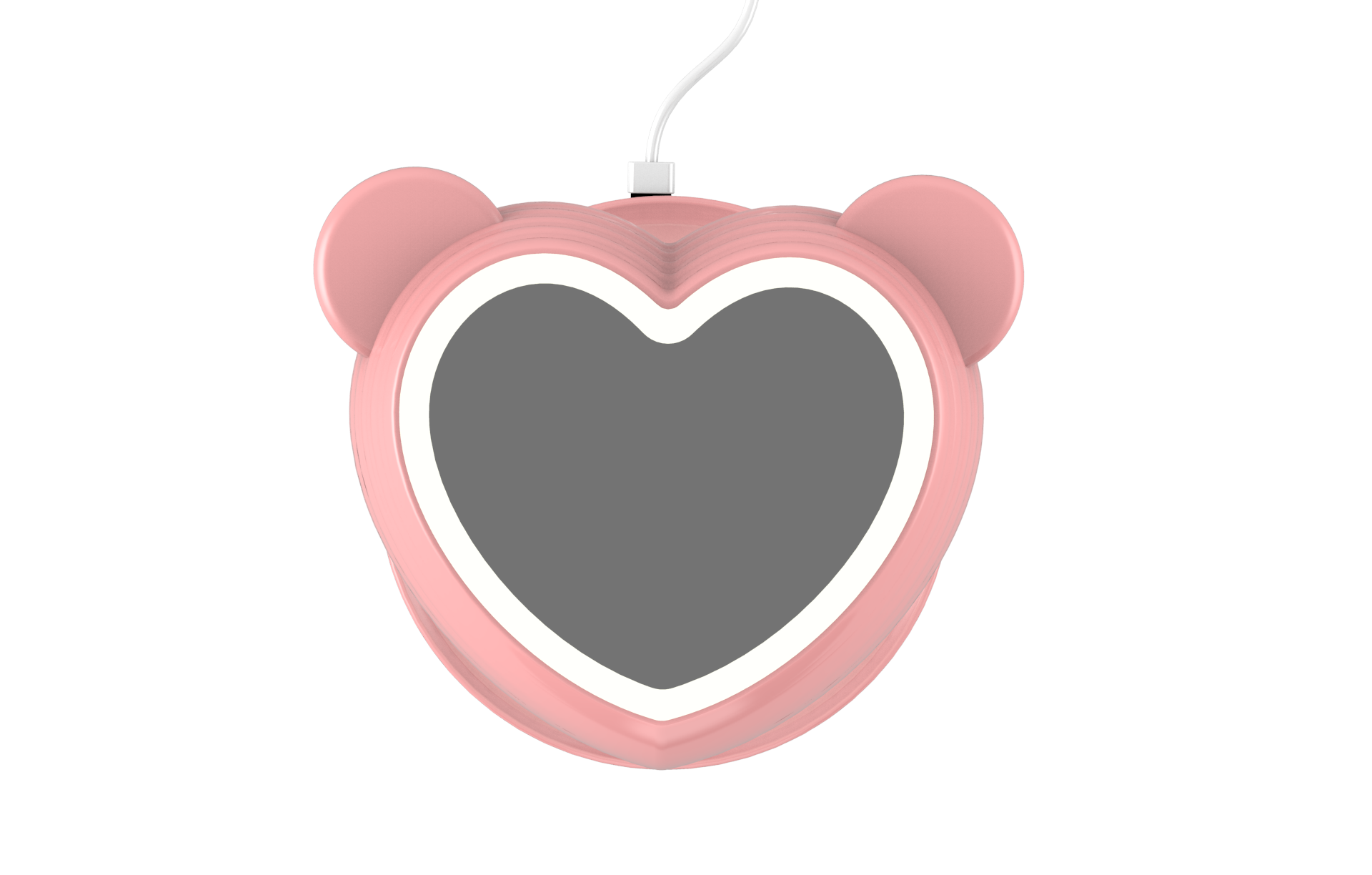

Top view

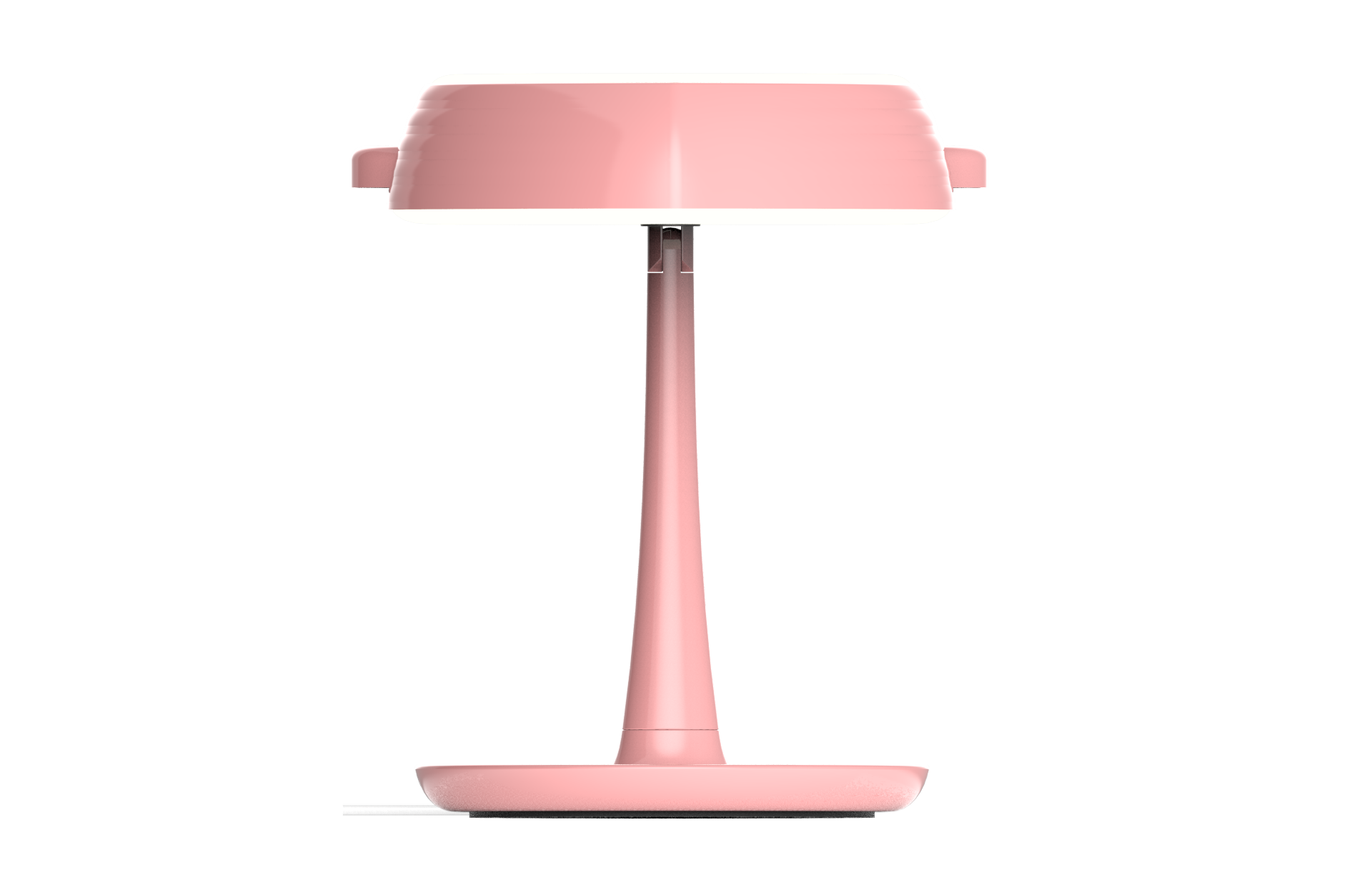

Orthogonal view

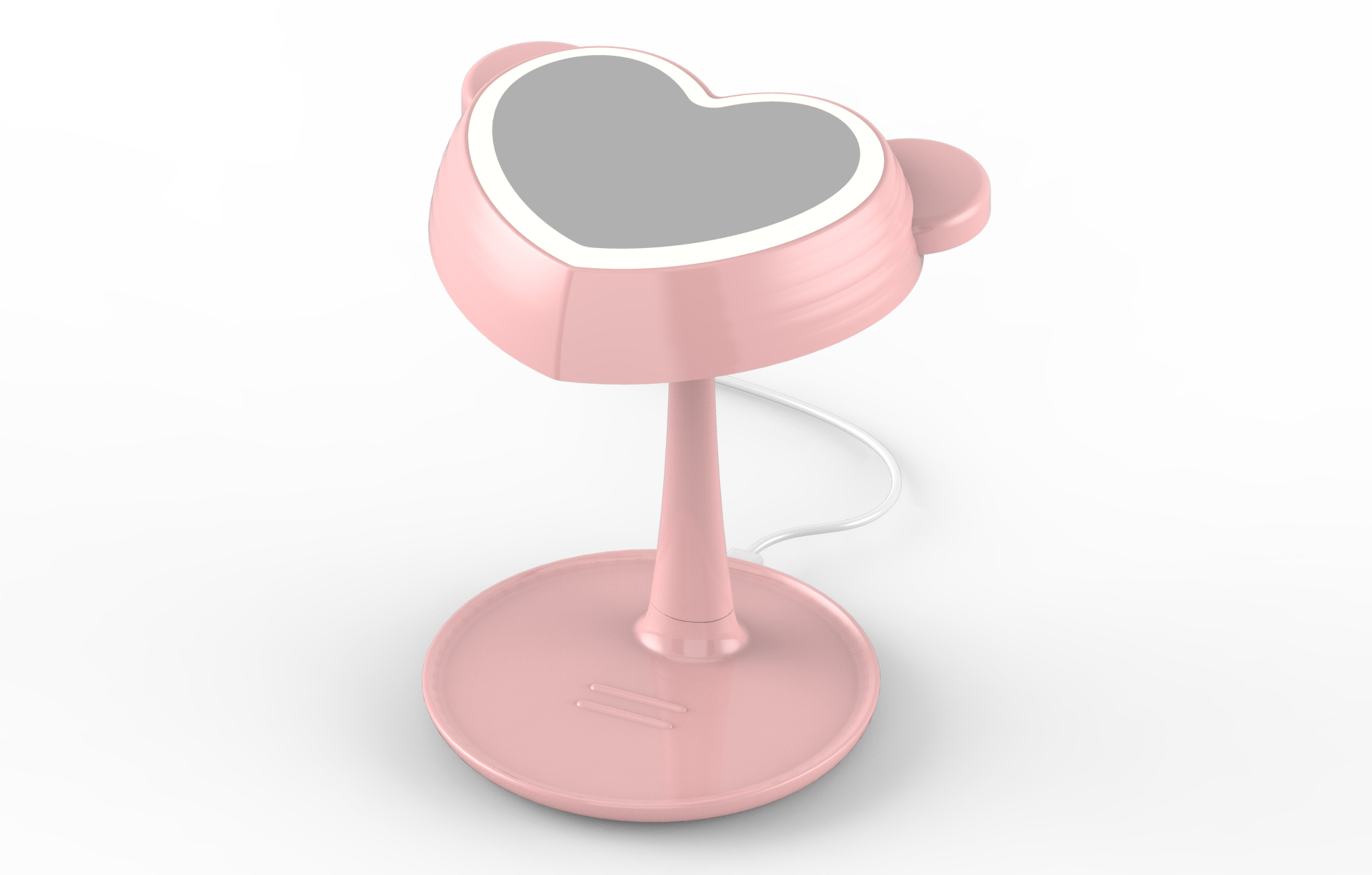

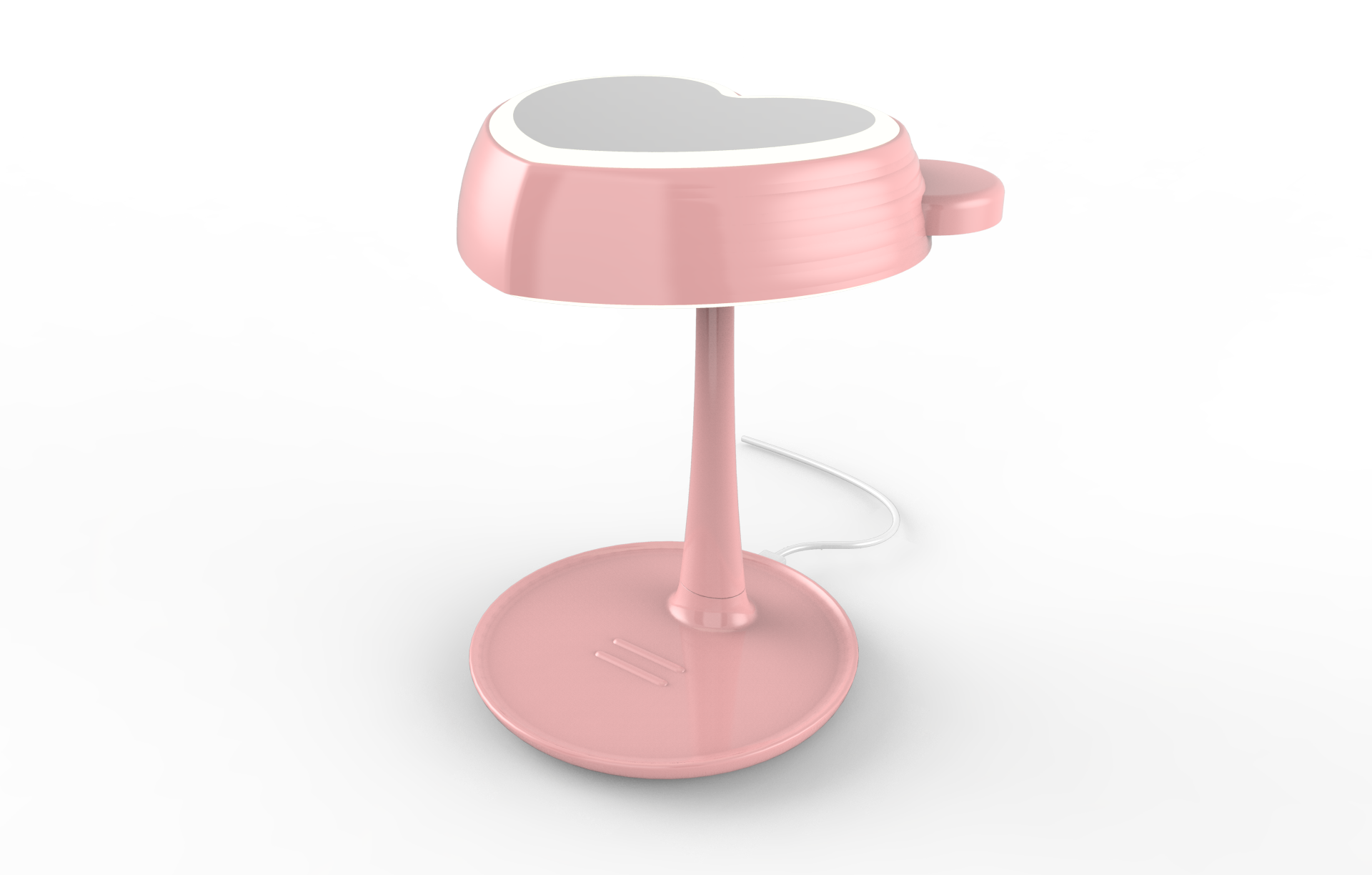

Design Scheme 1 of Love Cosmetic Mirror Lamp
The light of the top makeup mirror comes out, the light area increases, and it can illuminate the face of the makeup face.

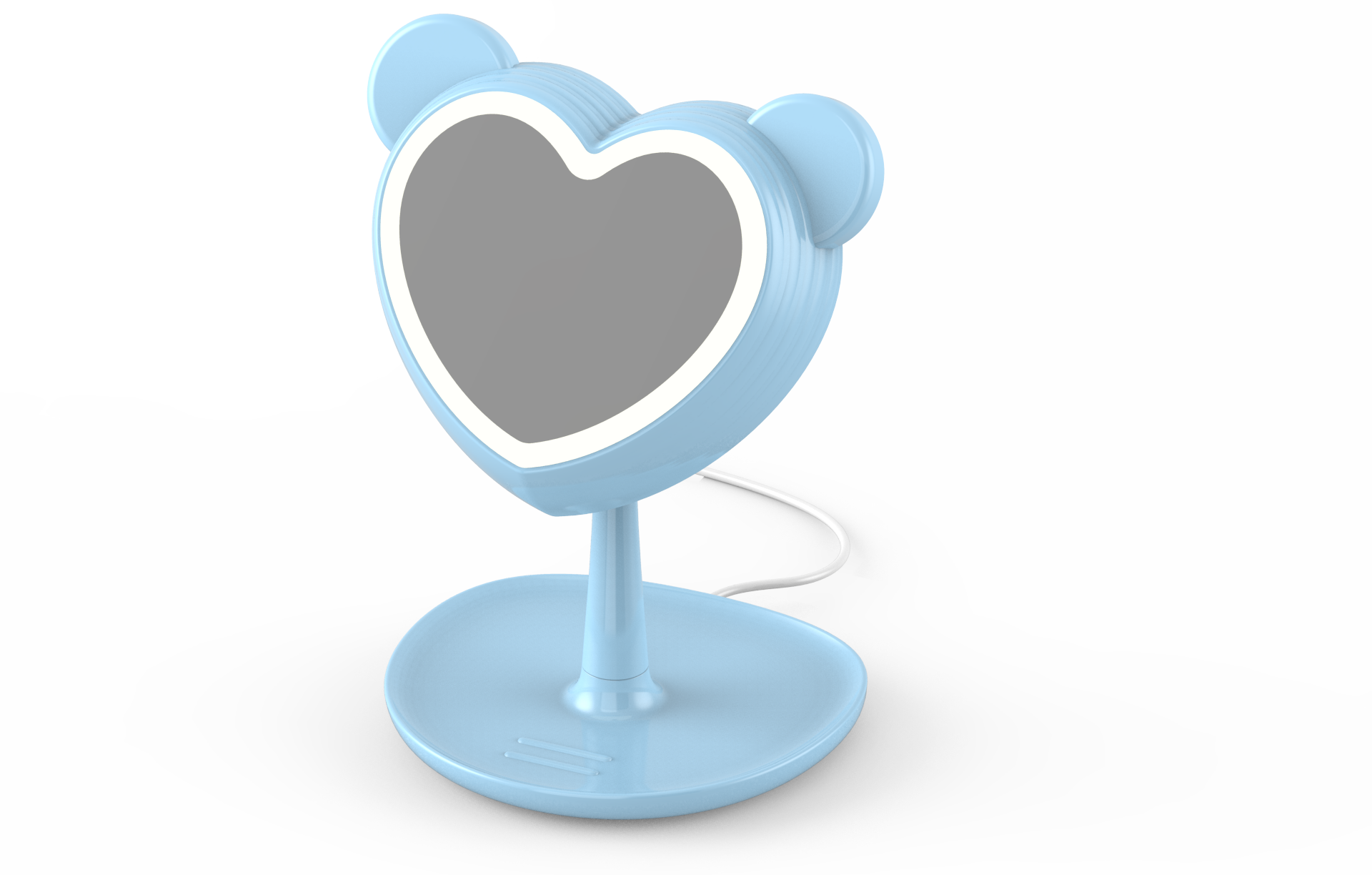

Mickey Mouse Love Cosmetic Mirror Lamp Design Scheme II
The product is characterized by an irregular shape of the base and a center of gravity of the pole. It is also to follow up the market's choices. The shape is upward, and the Mickey Mouse shape symbol is also retained. The USB charging cable at the tail symbolizes Mickey Mouse's tail.

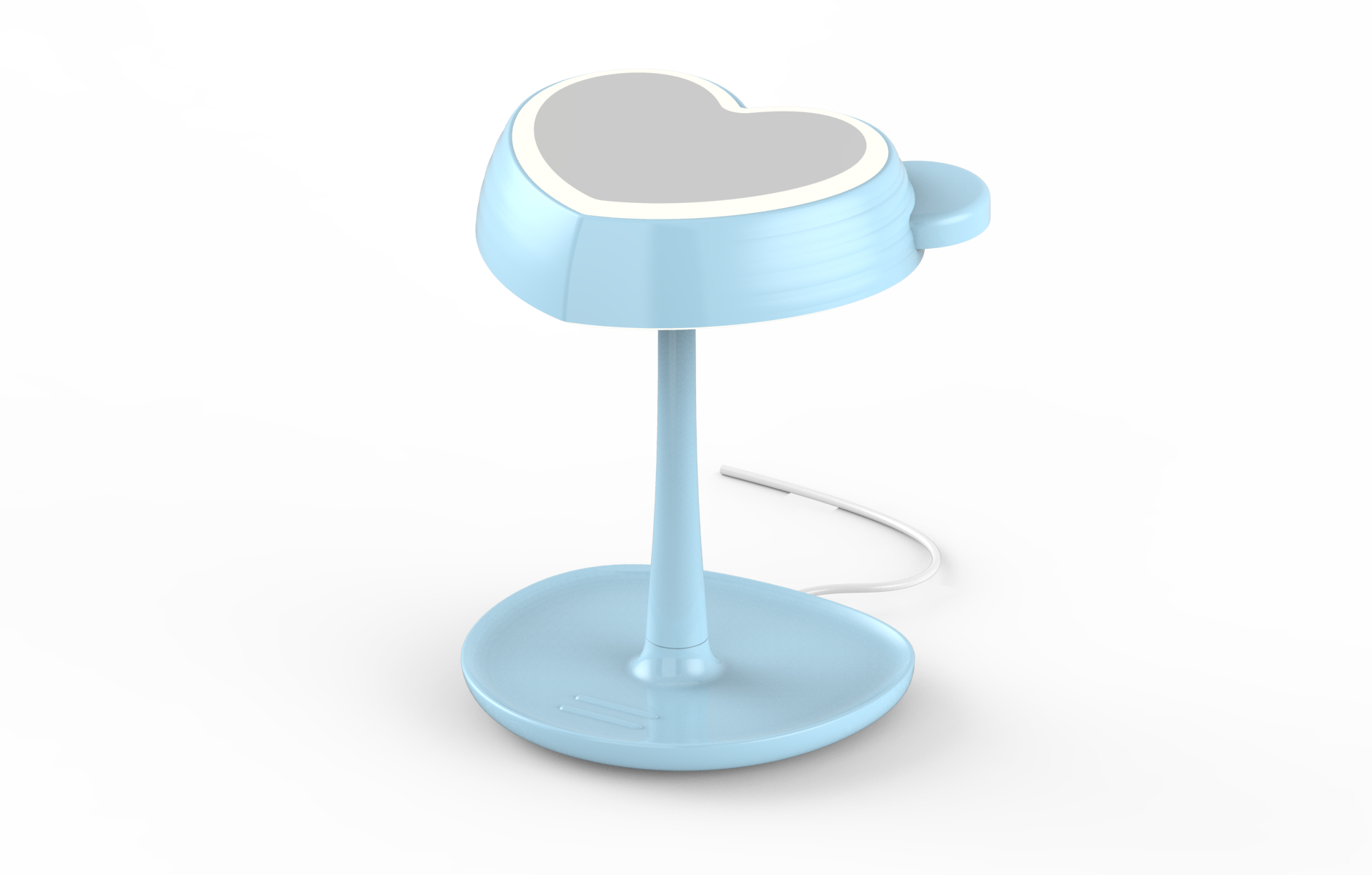

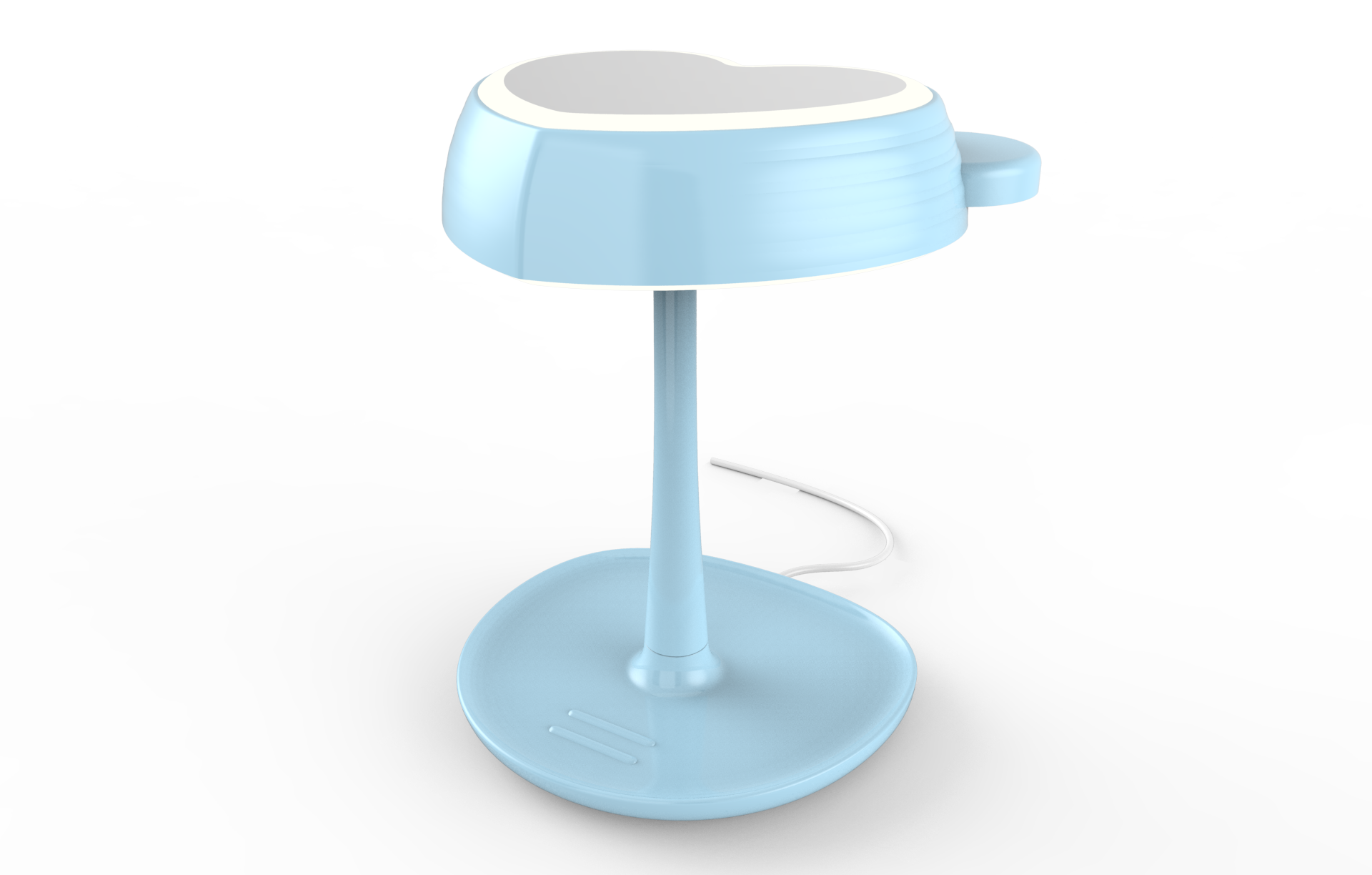

Love Cosmetic Mirror Lamp Design Scheme II
The product is characterized by an irregular shape of the base and a center of gravity of the pole.

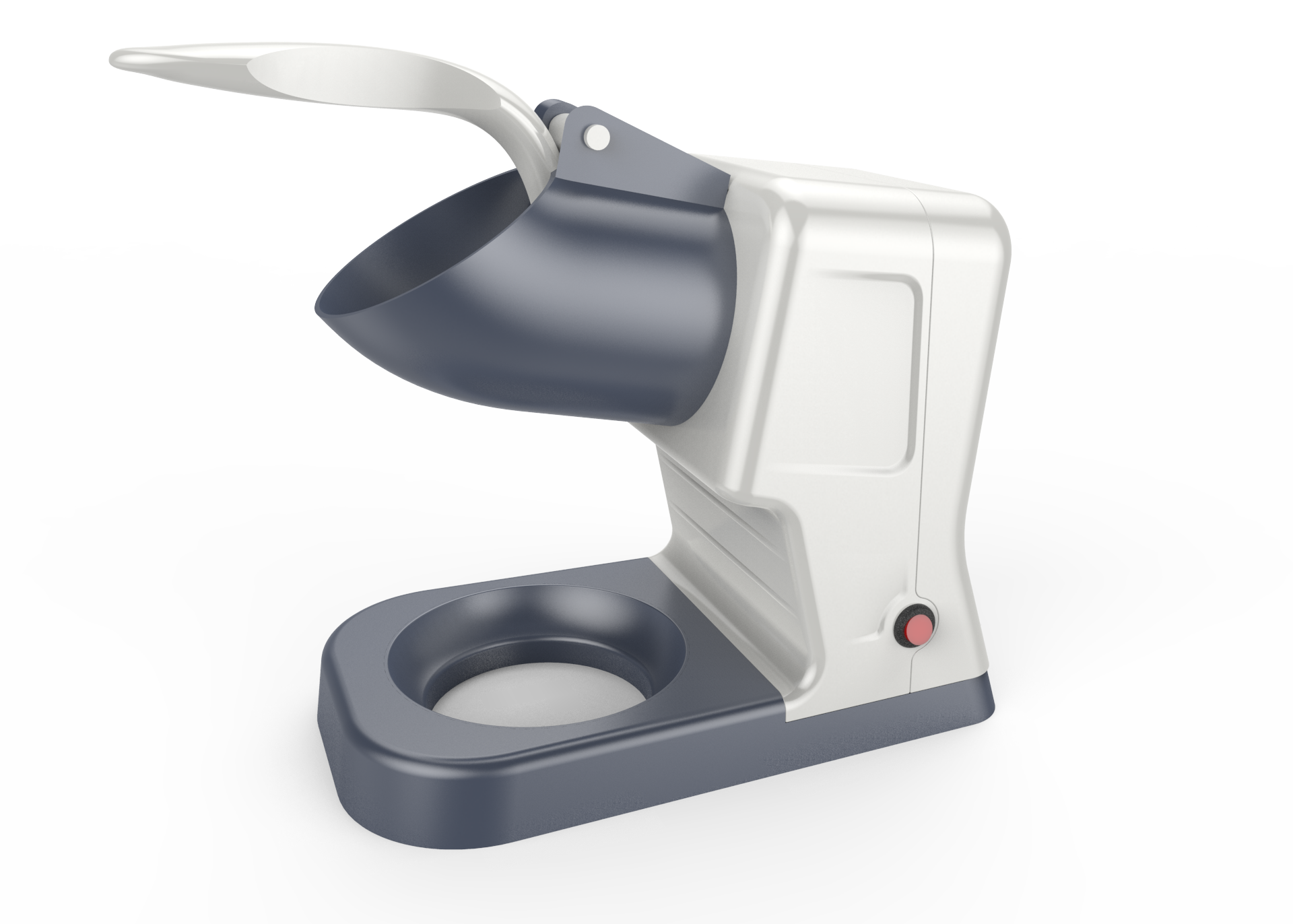

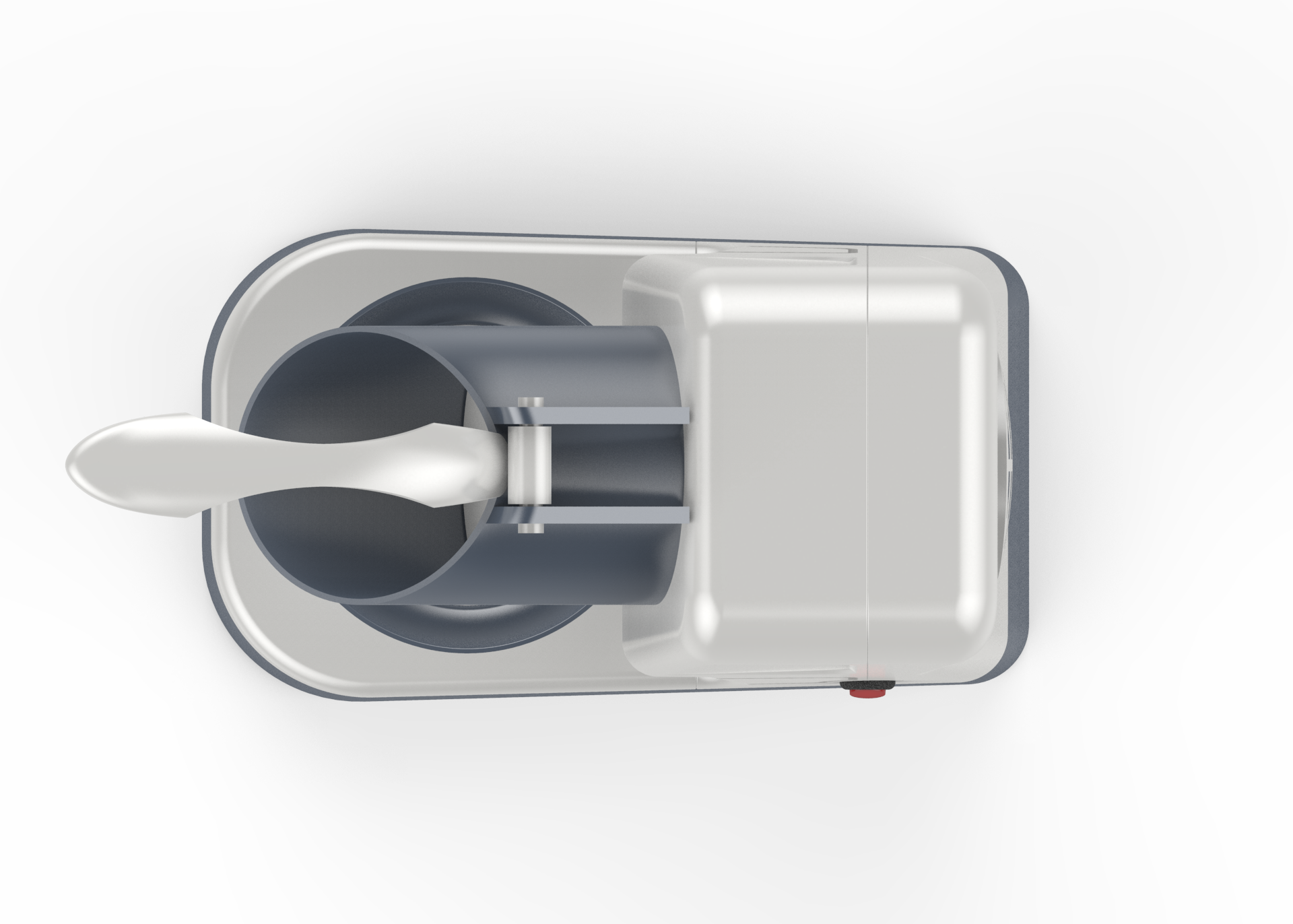

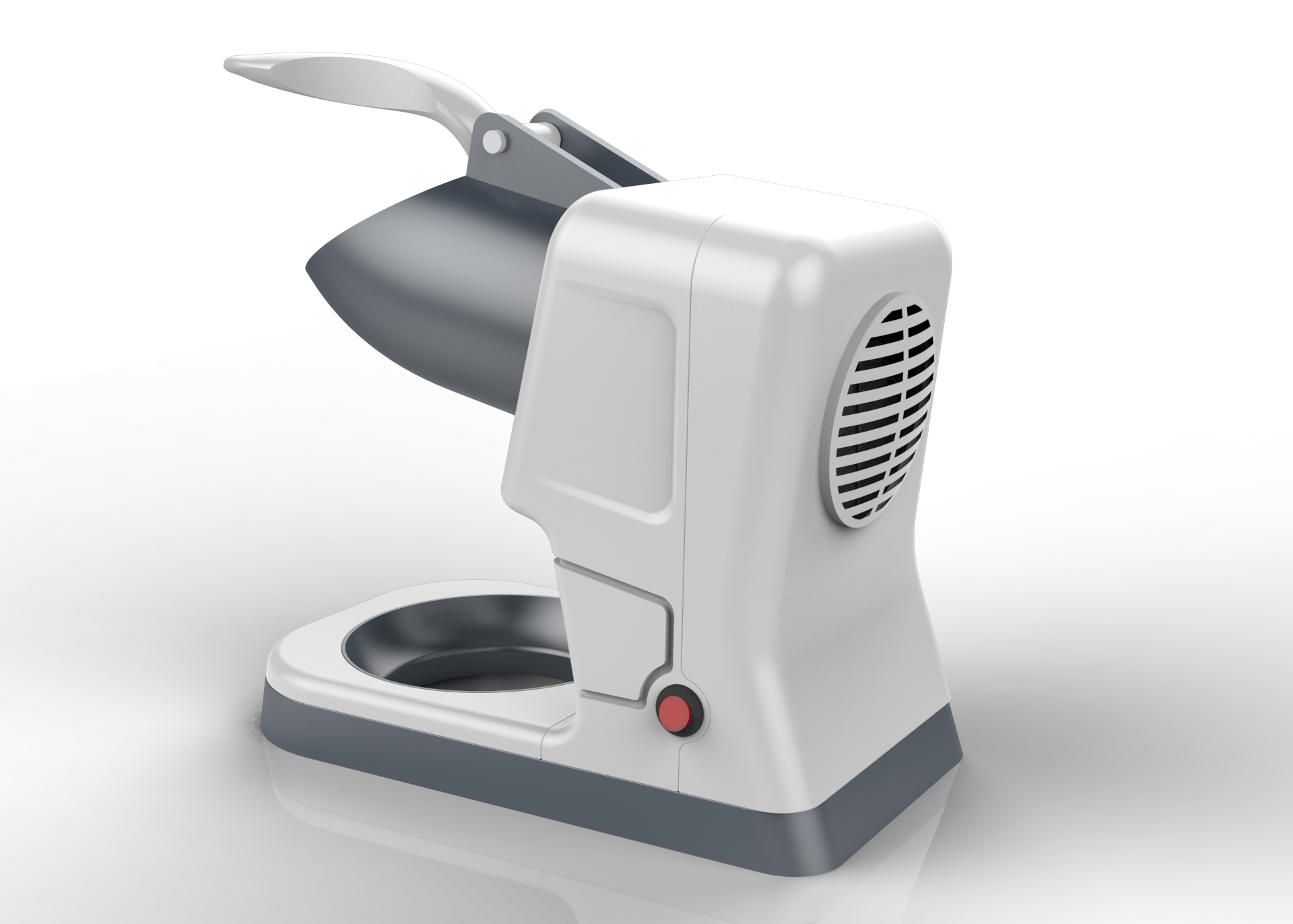

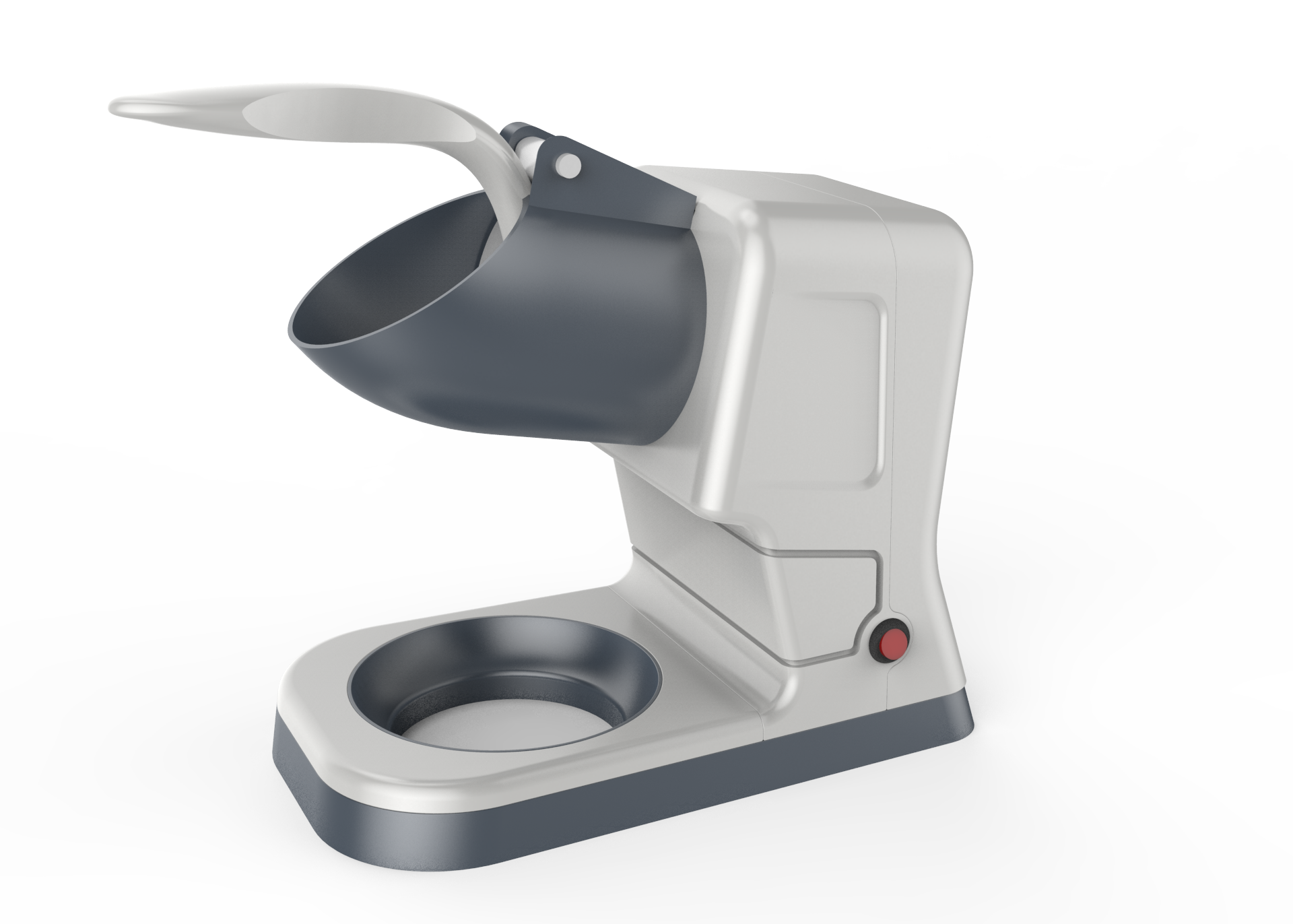

Press type ice crusher
The second product designed in the middle and late stages of the internship period in 7 months refers to the square shapes of Braun and Ulm on the basis of visual power, and the air outlet at the back refers to a radio air outlet of Dietrams.

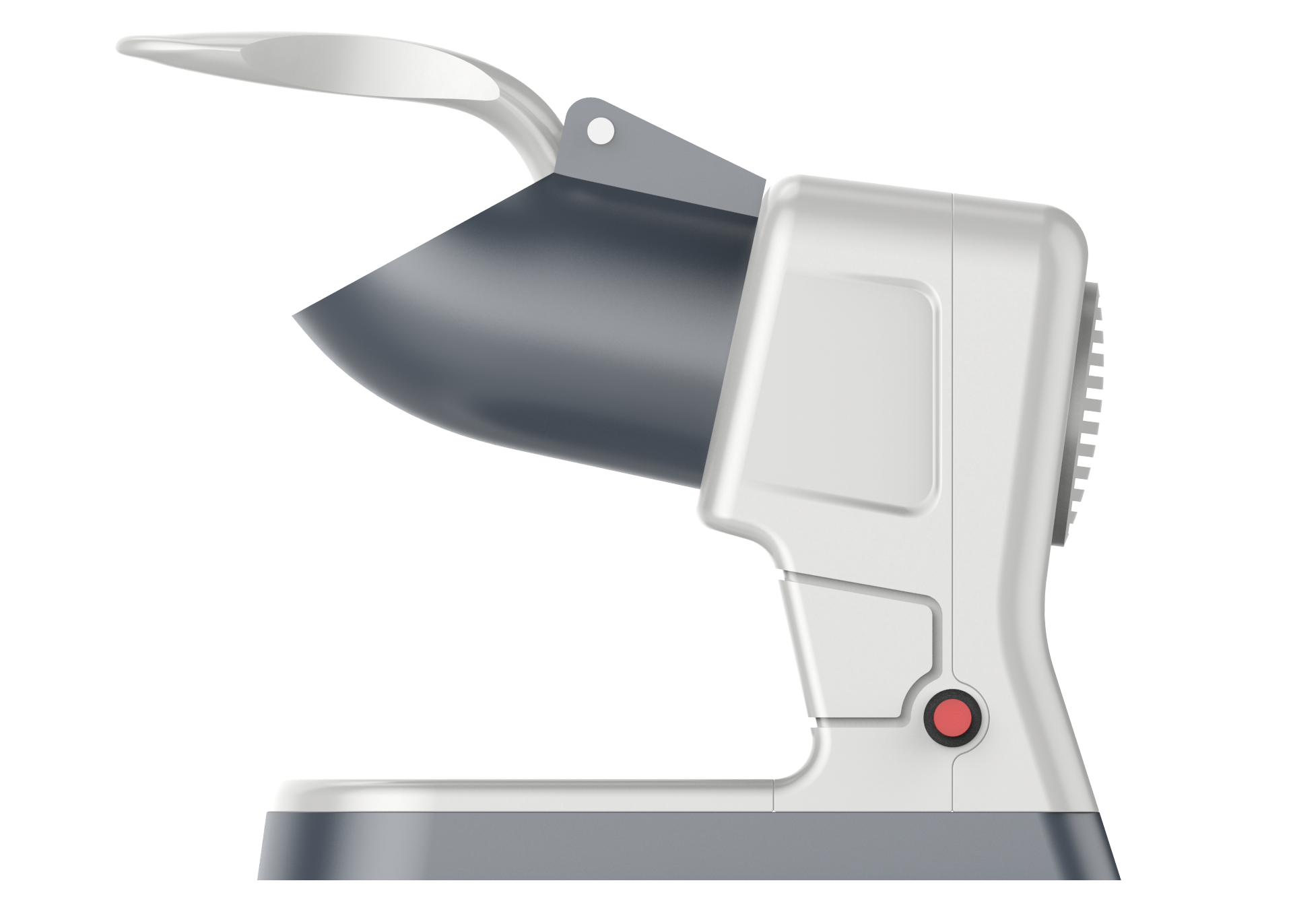

Side view

You can put a bowl at the front circle and wait for the ice on it to fall into the bowl.

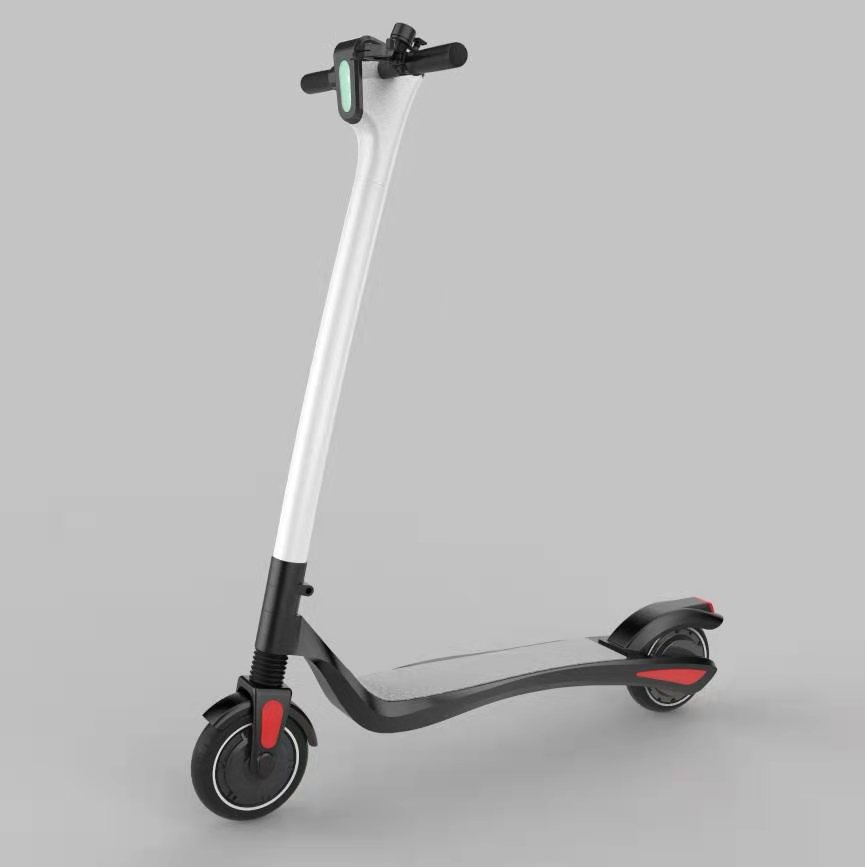

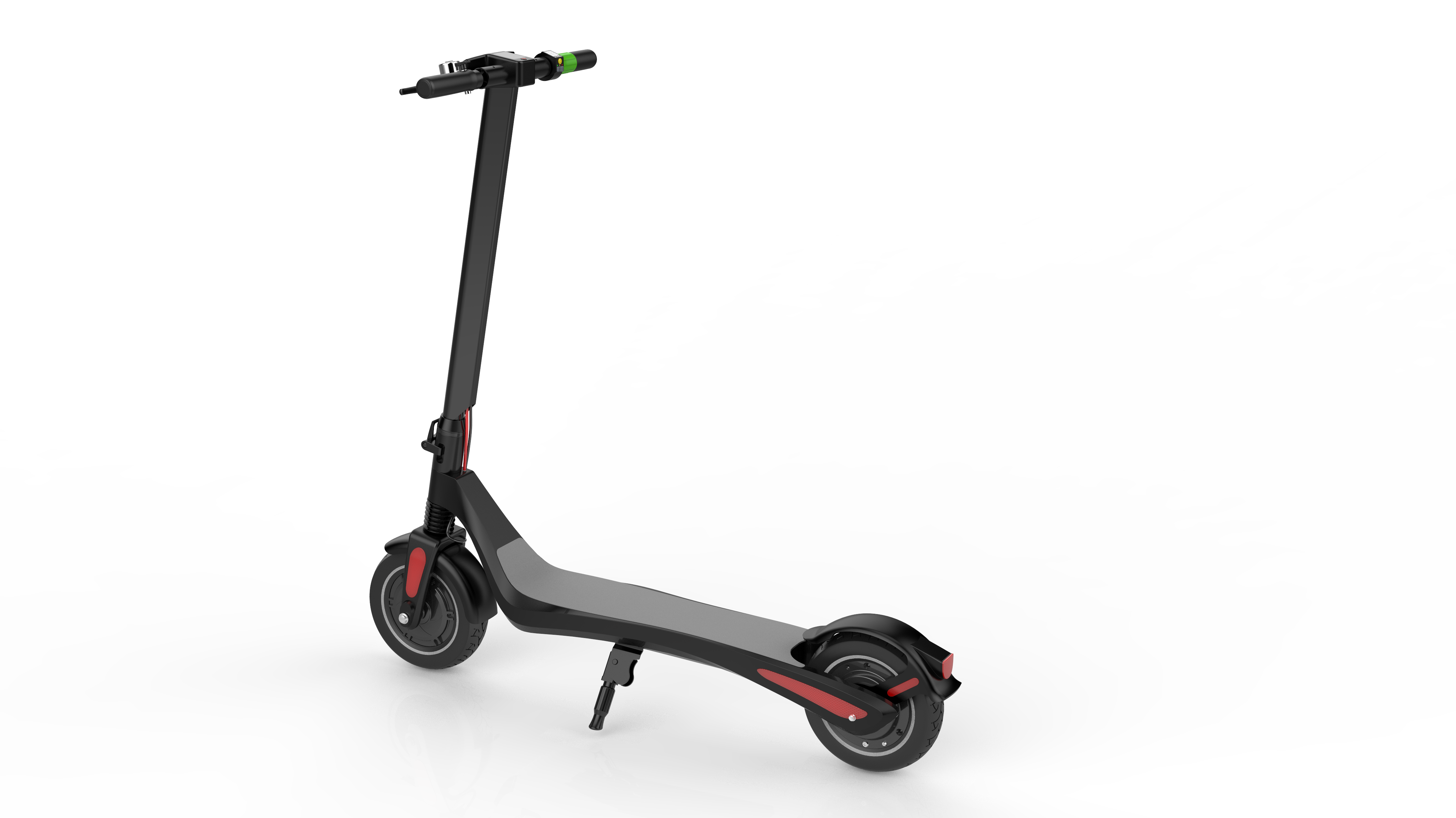

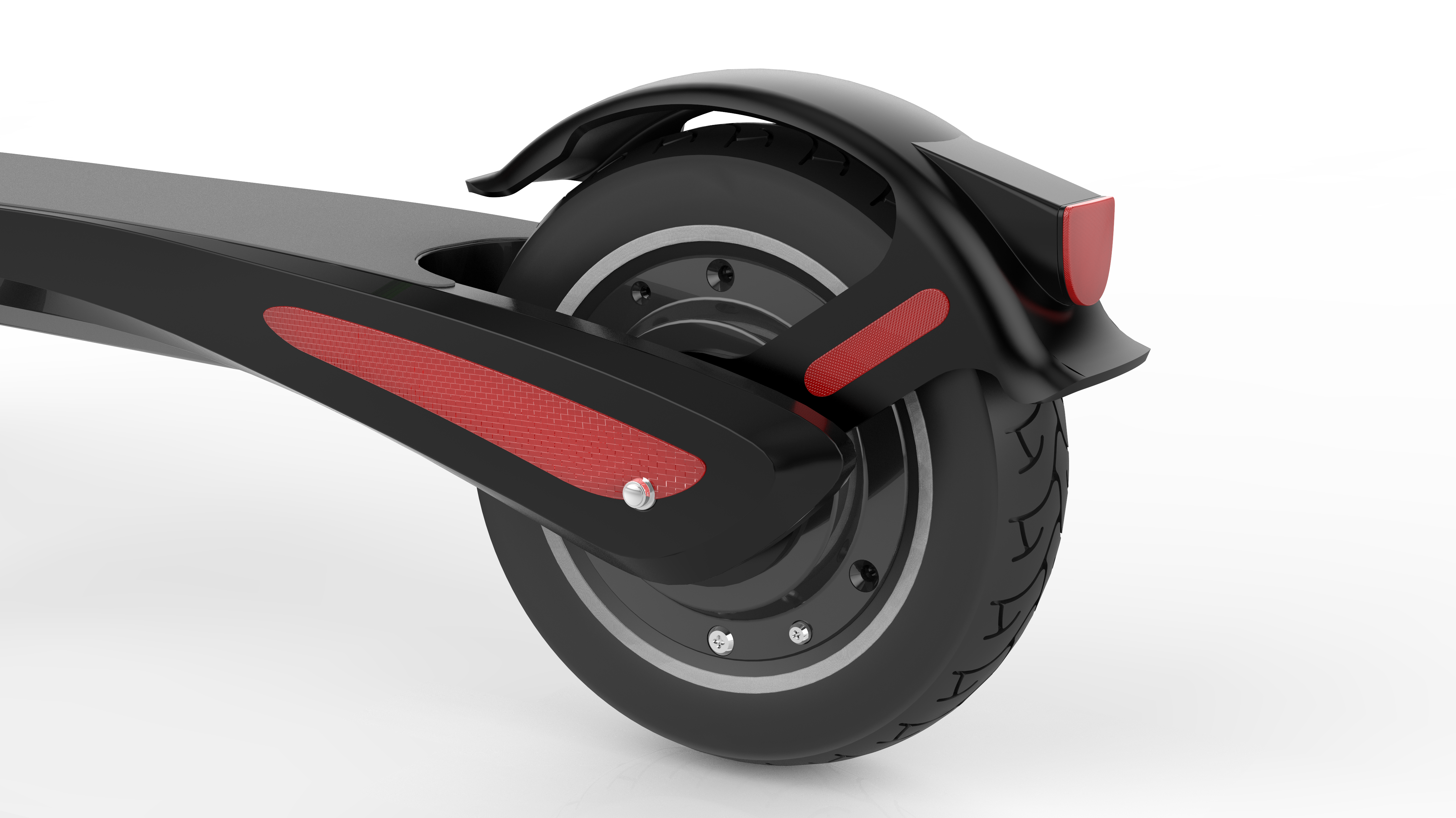

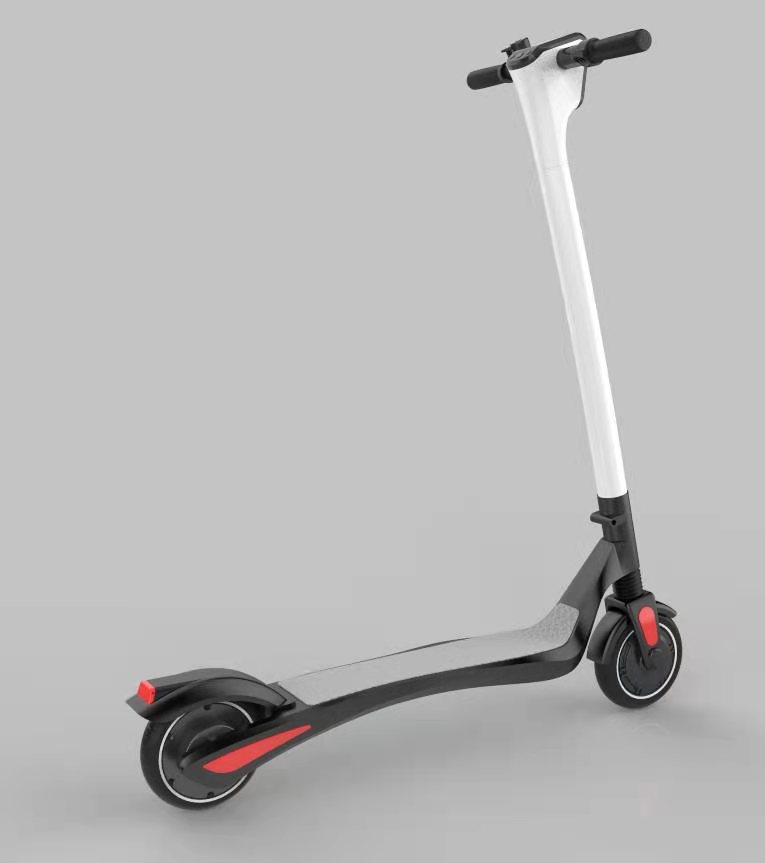

Share the first electric scooter
Designed in early August 2018, the chassis processing technology is planned to use magnesium alloy die-casting, and the modeling uses streamline motion modeling, drawing on the design of some general electric scooters (such as the curved pole)

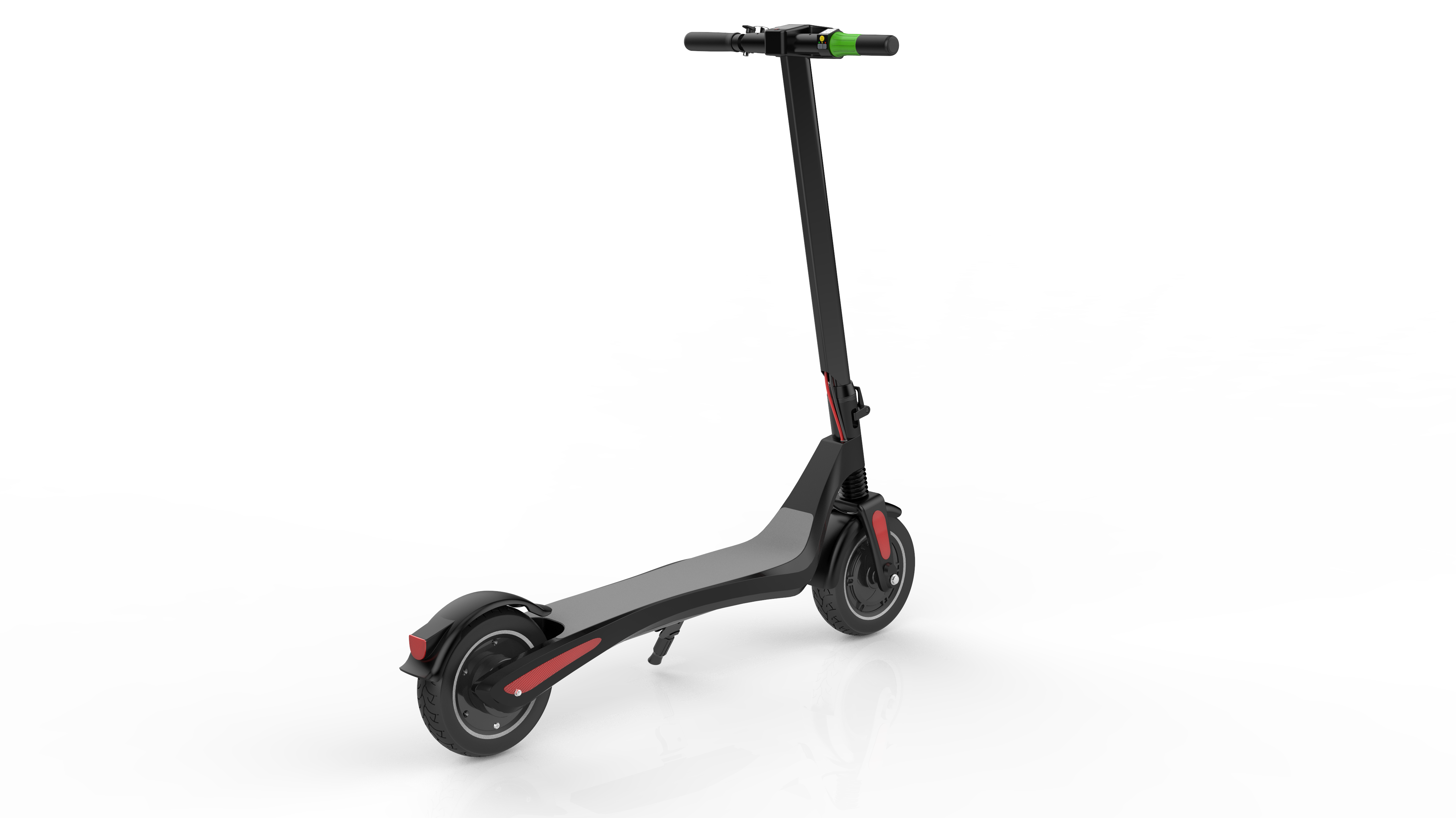

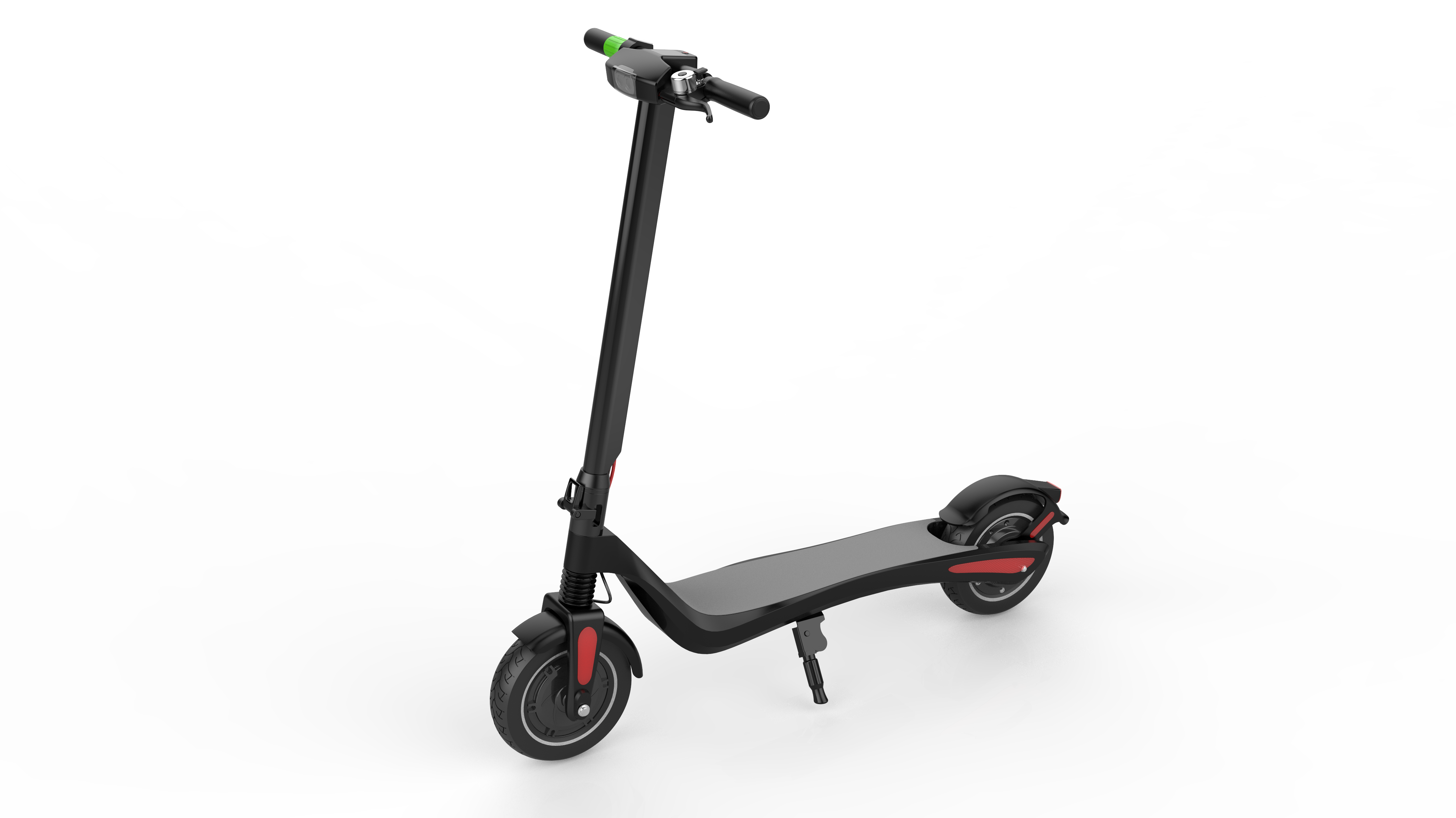

Share the second paragraph of electric scooter
From mid-August to mid-September 2018, the vertical rod was designed with profile technology, and the hiding of wiring should also be considered. The protection wires are reduced by the illegal destruction crowd.

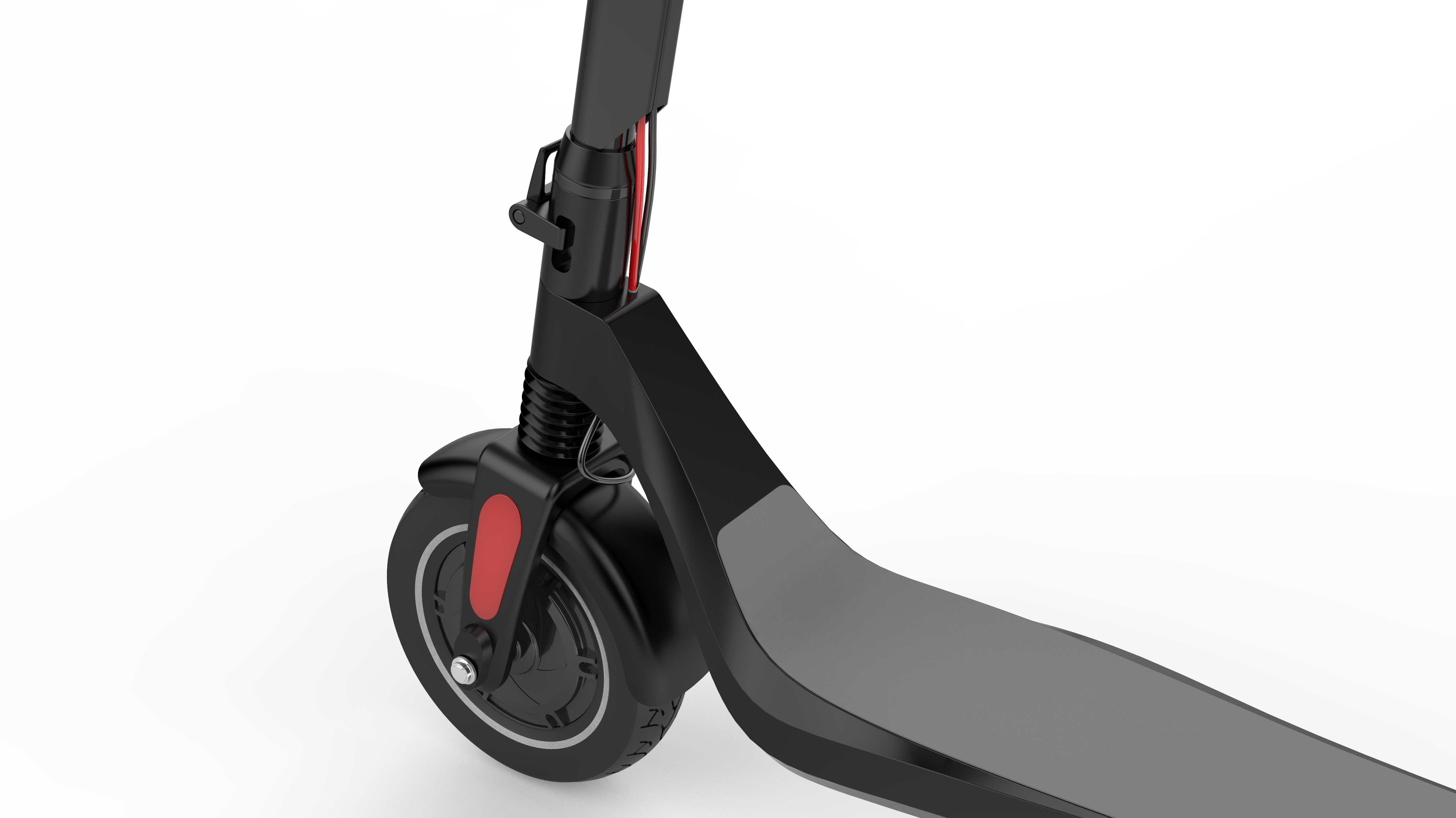

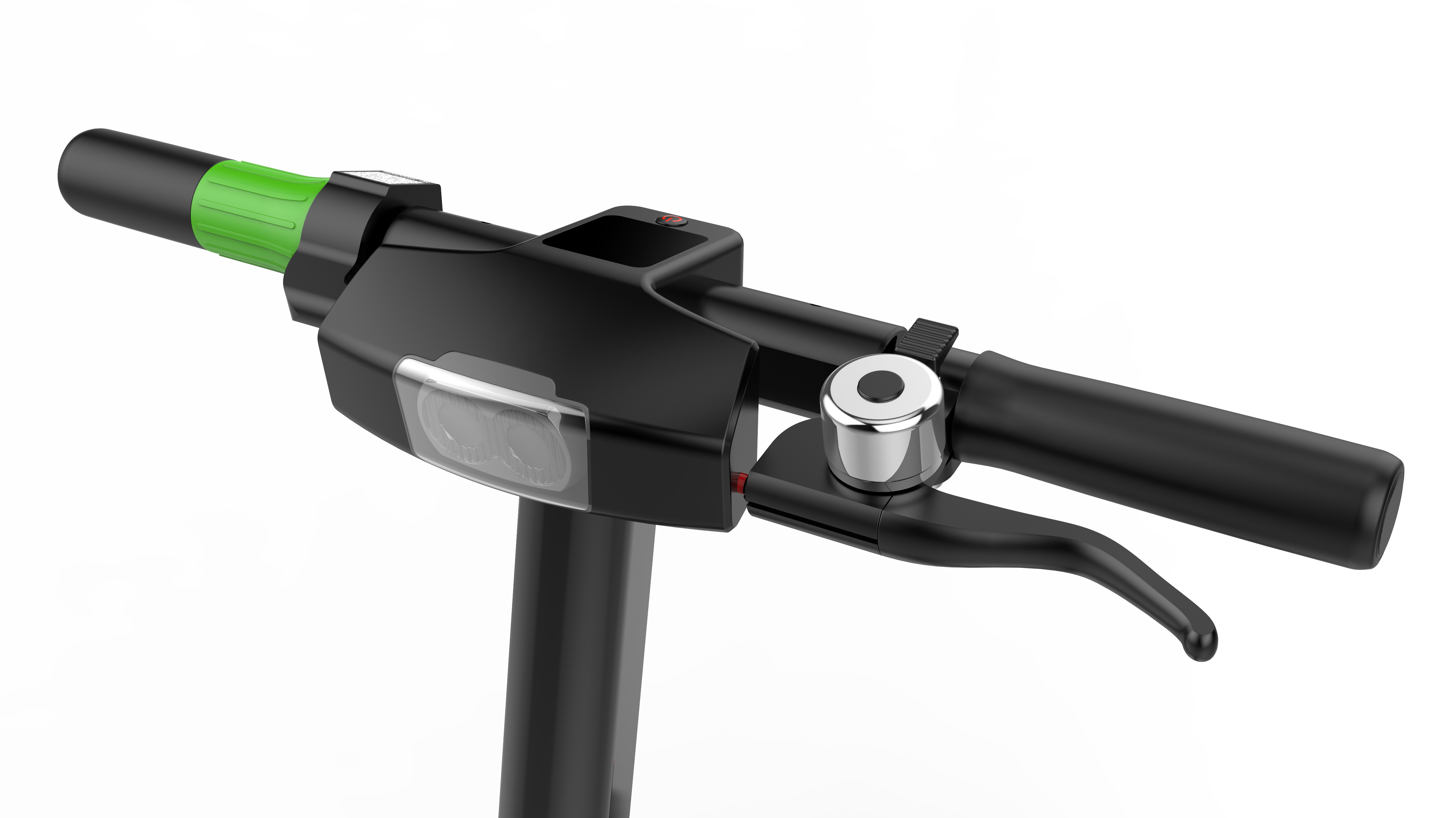

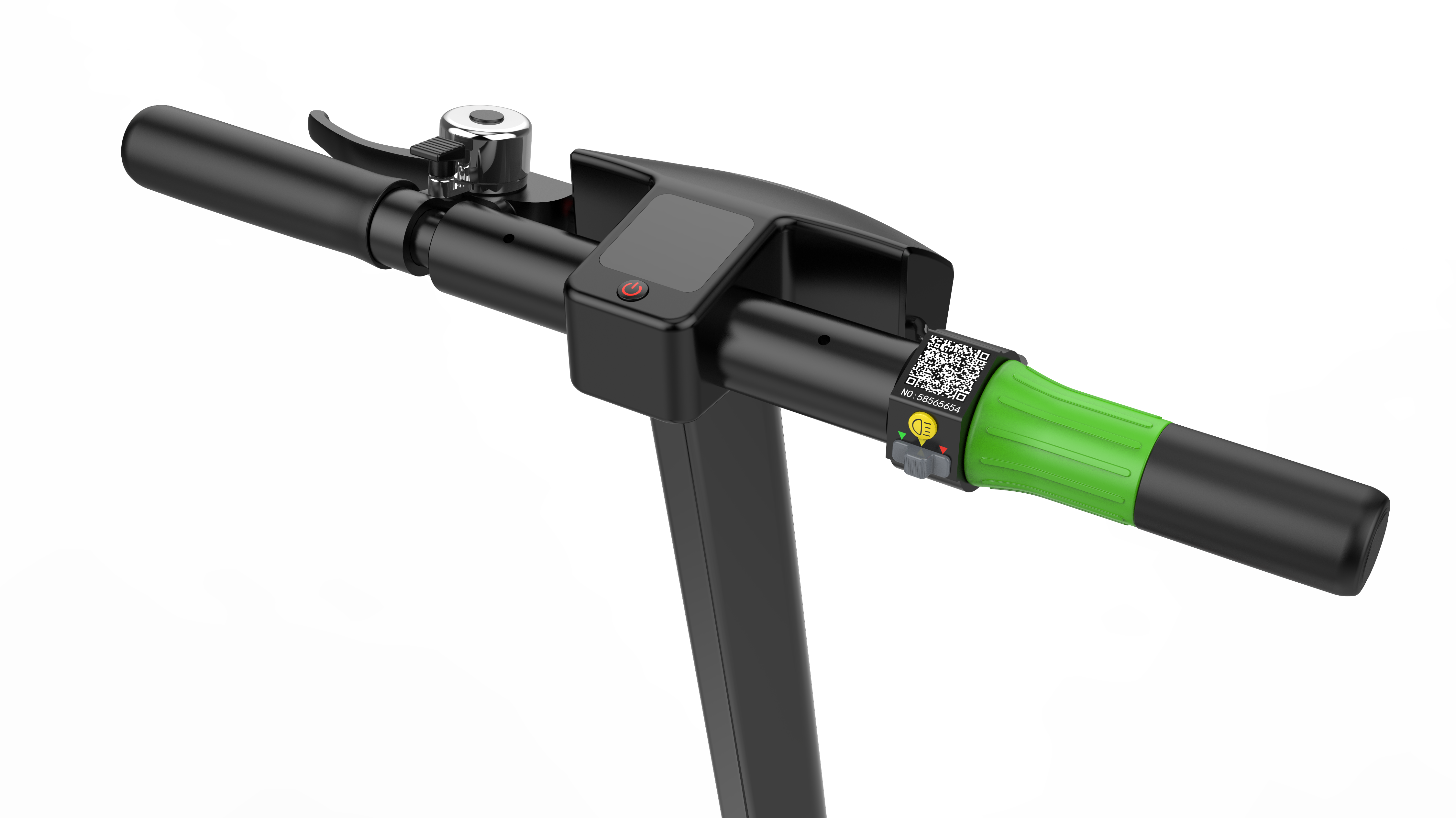

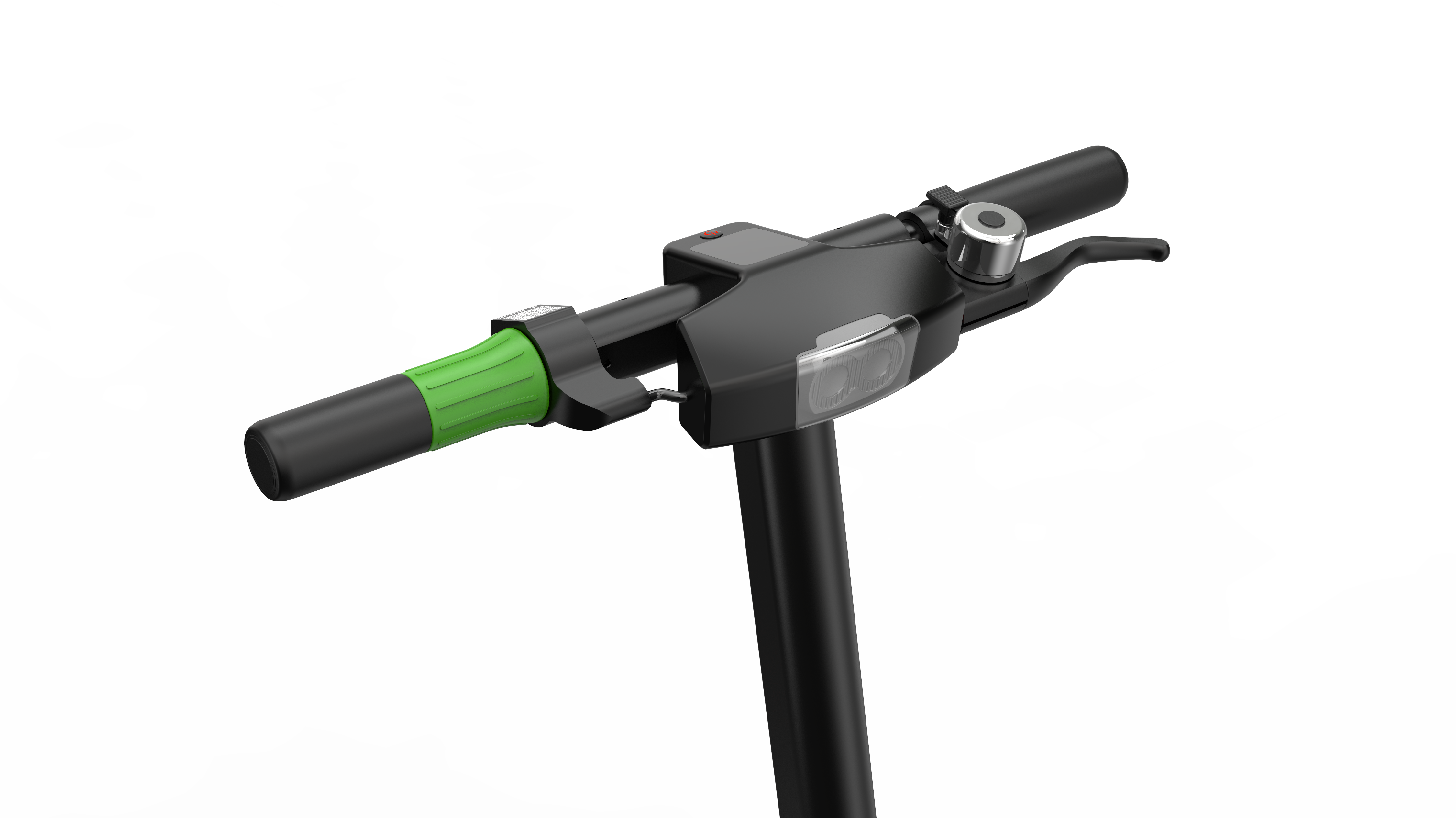

The front of the control area is too large to better hide the wires and brake wires into the housing for protection.

The pole uses a profile process in order to minimize the exposed area of the trace. The protection wires are reduced by the illegal destruction crowd.

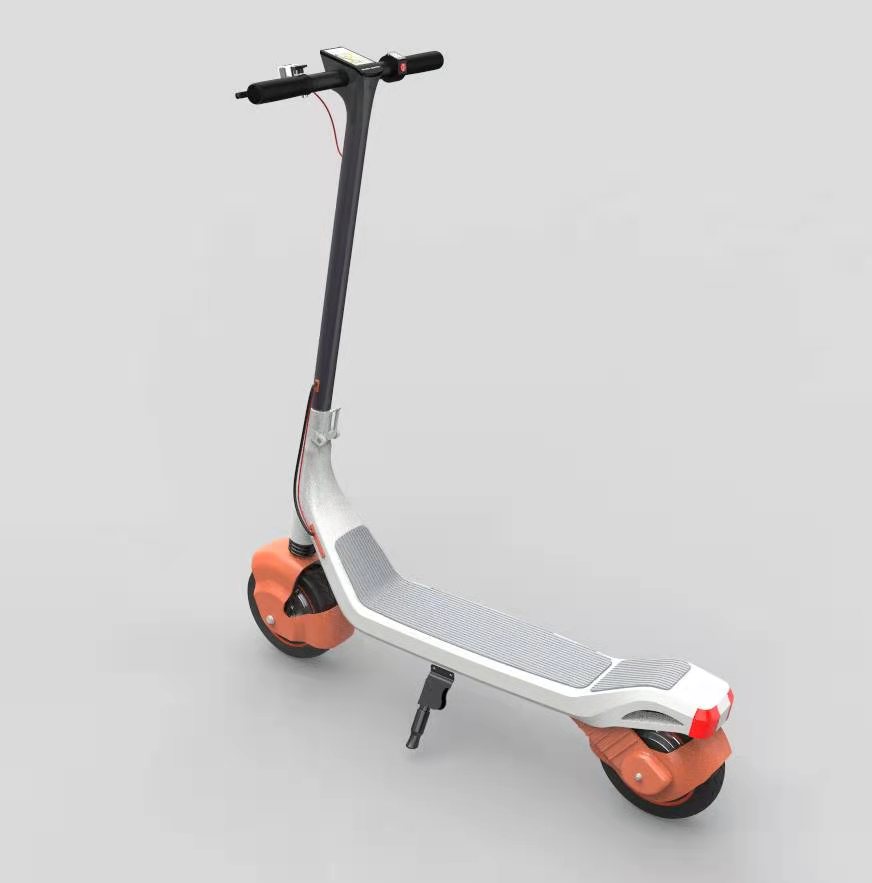

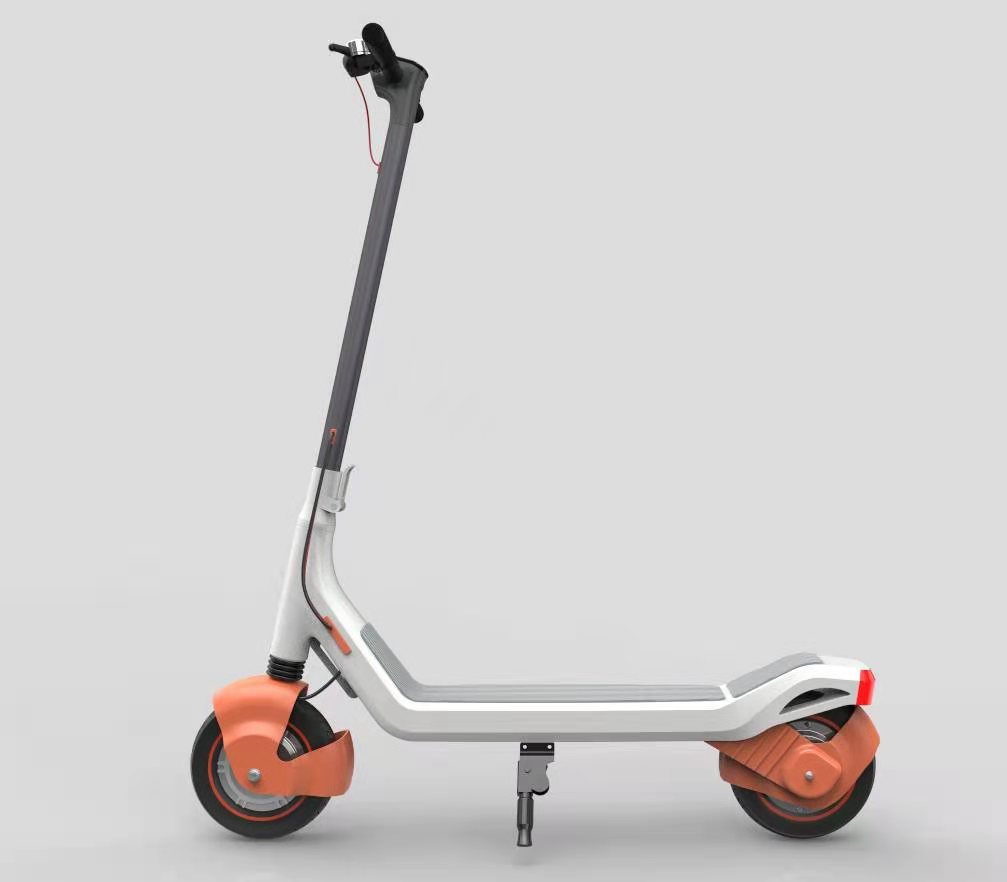

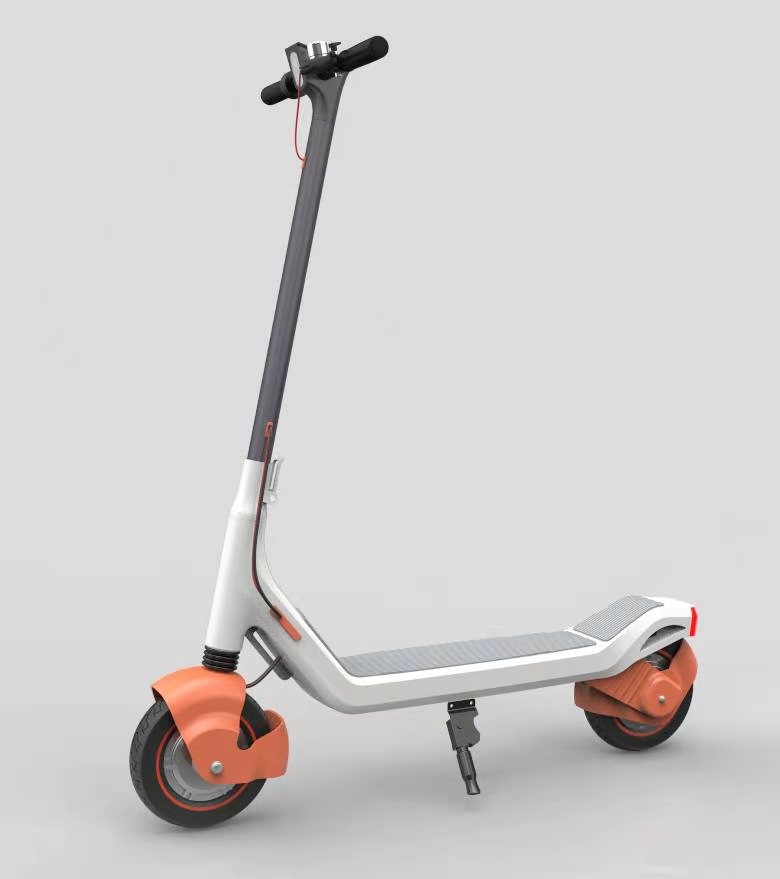

Share the third model of electric scooter
Design from mid-September to mid-October 2018
This was done after the second design was rejected. The shape refers to Eslinger's Yamaha motorcycle. It is completely a conceptual design. The craftsmanship is not feasible at all. It is self-used.

The top control screen uses a full screen and is loaded into Android (Android) for shared route navigation, which is also a conceptual idea. It is self-employed.

After finishing the above three products, I really got to know the industrial design industry. Although the products were not selected and were not confirmed, the modeling level improved rapidly and I began to realize some technological problems. After the probation period became a full member, the salary was 2880 yuan/month. The focus of product design was on the design of electric tool products.
