Sheet metal machine tools

2023-12-15 Tools&Equipment 5863 17 43

Sheet metal machine tools

2023-12-15 Tools&Equipment 5863 17 43

我不吃牛肉

China · Home Appliance

Small practice sharing

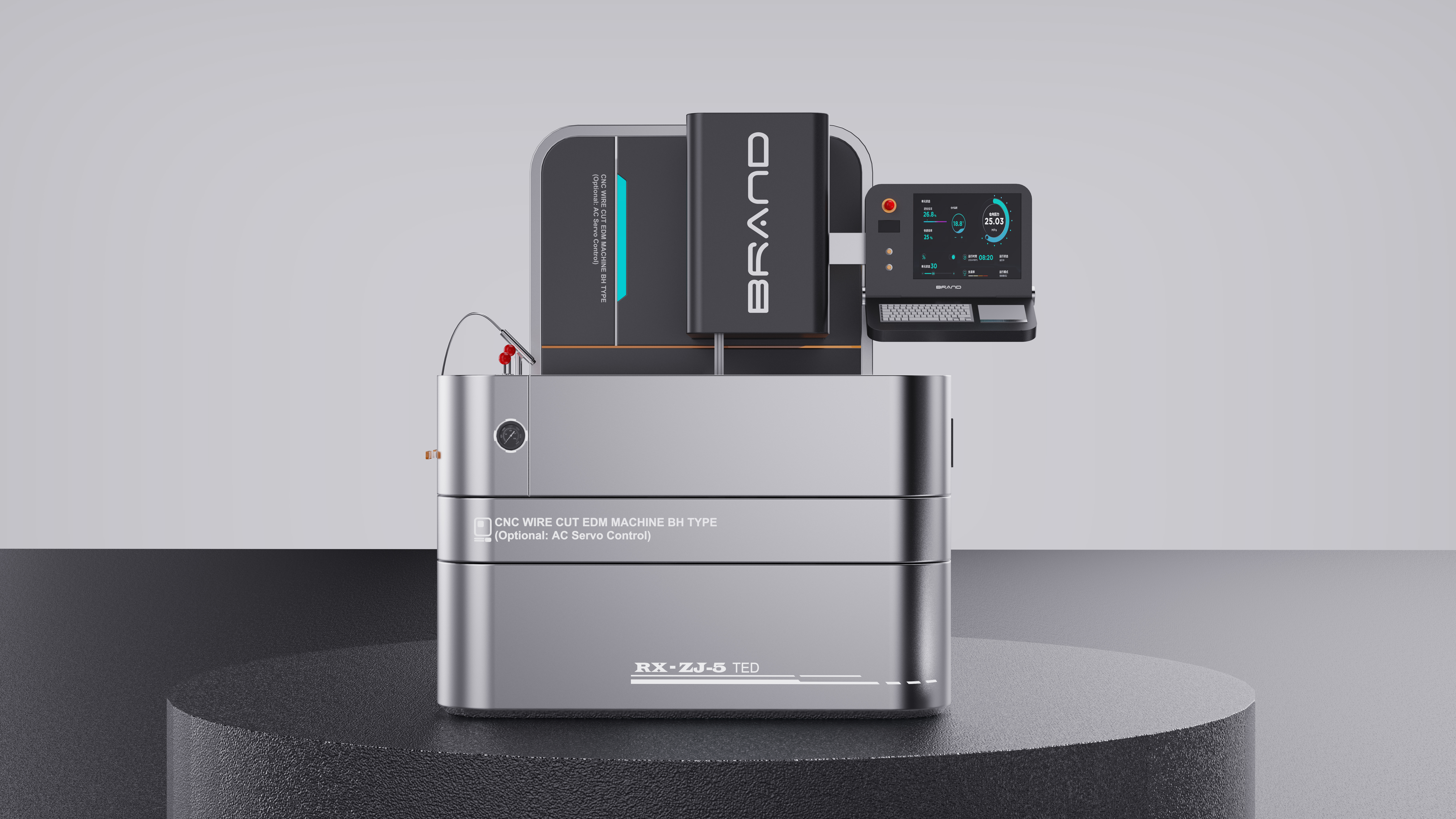

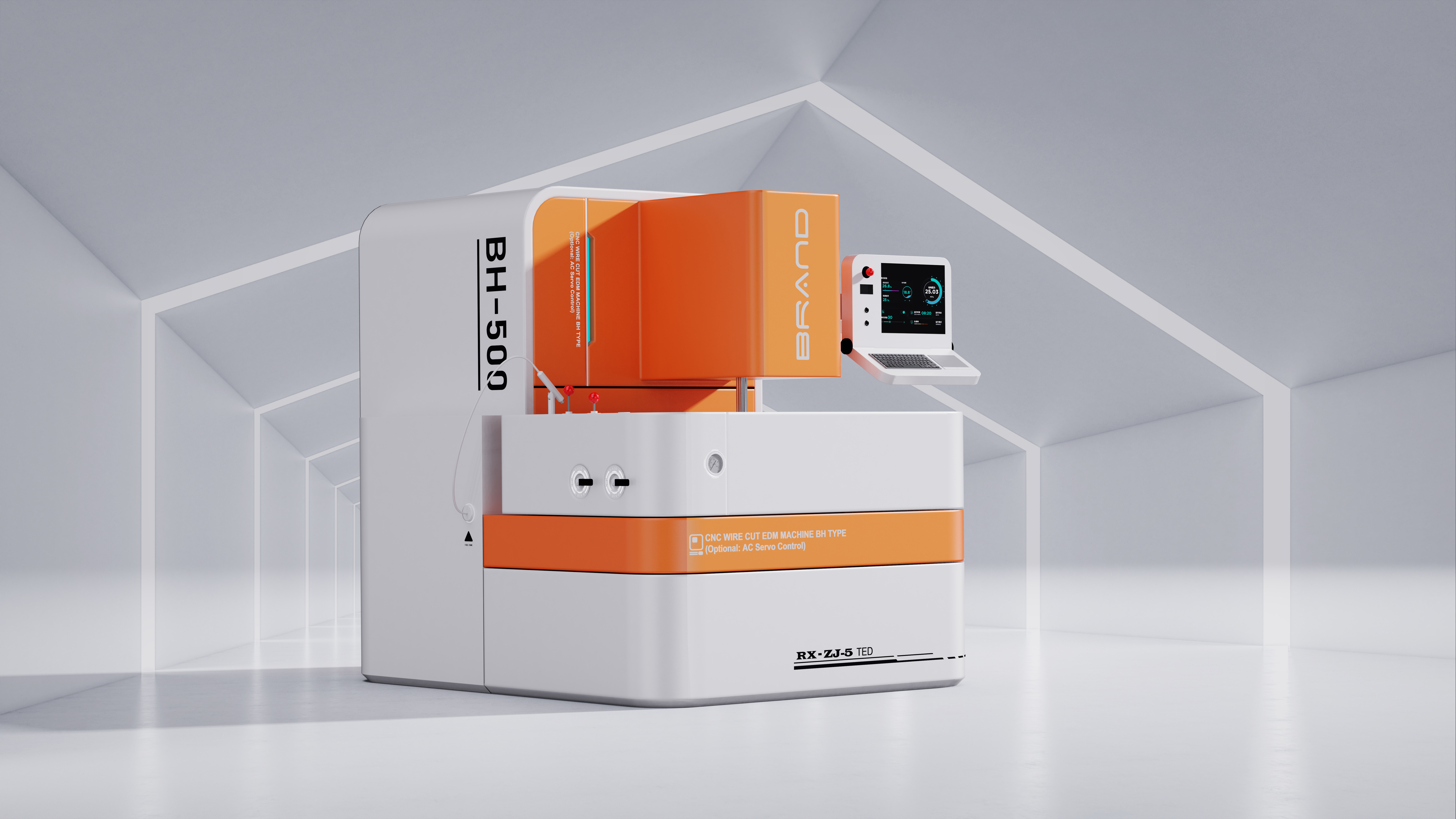

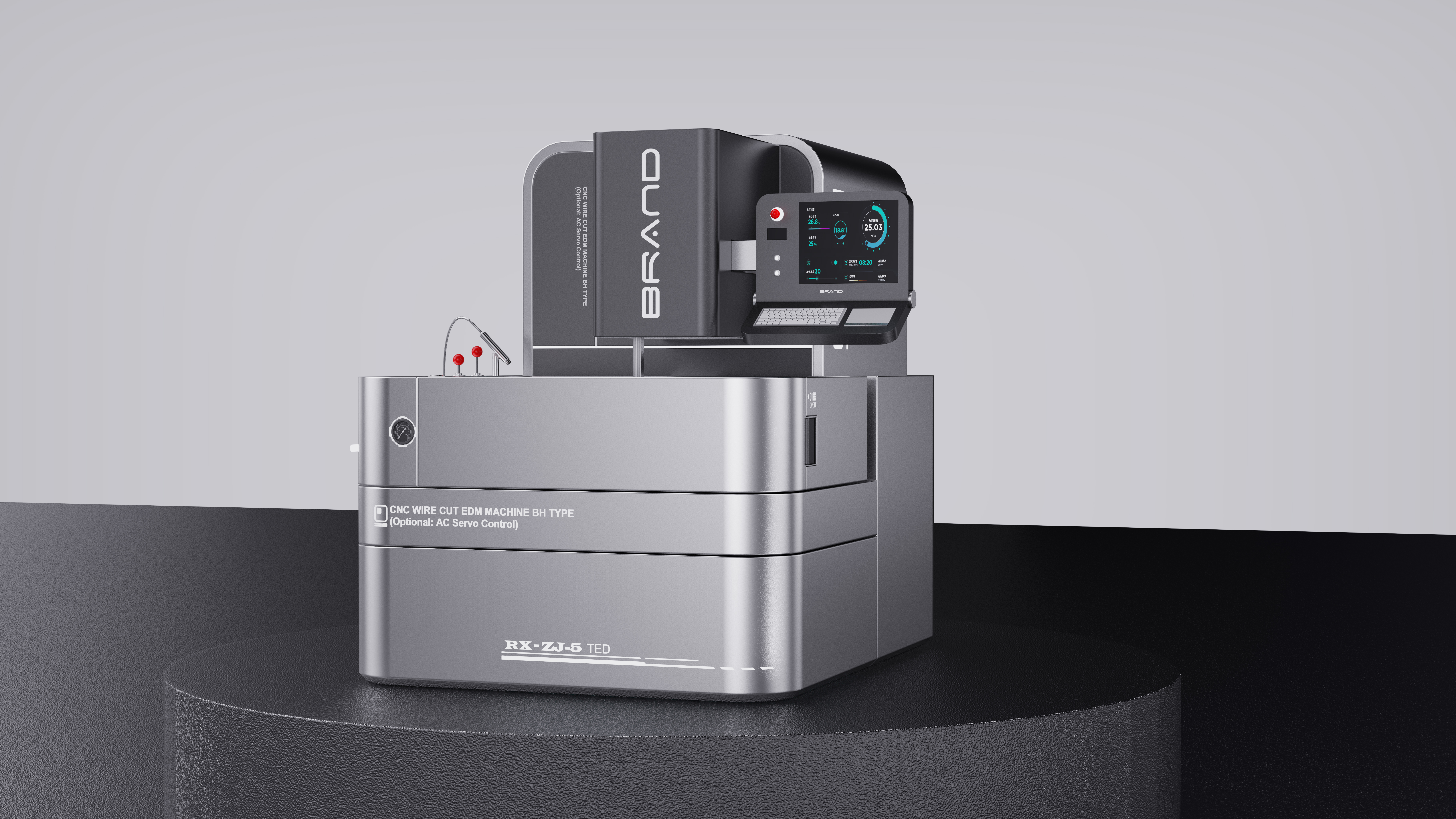

spark machine

43 83

Comment

Comment Board （17）

膨化食品 2024-04-03

Is BRAND a font or a map

夏目 2023-12-28

Hello, how do you divide this into pieces? How to make a mold? Because I don't know much about the process, I want to ask, thank you

我不吃牛肉Owner 2024-01-03

This general use of sheet metal bending process

Write a comment

此行山高水长 2023-12-23

Is this a spark machine?

我不吃牛肉Owner 2023-12-25

Yes

Write a comment

叮叮猫 2023-12-20

good

足迹主人 2023-12-19

The fixing strength of the top sheet metal part may be slightly weak, which is not conducive to transportation, and the difficulty of assembly may increase.
The screen printing font is a little more than a little lost, and the flat screen printing may be much more convenient.
The head screen printing is so big that it may look more delicate if it is smaller.

我不吃牛肉Owner 2023-12-19

OK, thank you, there are still many deficiencies in the design at the beginning, thank you for pointing out.

嘚 2024-01-08

If you want him to point fingers, he can do it. He will do it.

Write a comment

狮子头 2023-12-19

The front end of the chassis is divided into three pieces. The sheet metal assembly is difficult to align and is prone to unevenness. The middle plate should be recessed by more than 10cm, so that the chassis is more layered and will not be inflexible. Moreover, the requirements for assembly accuracy are not high, resulting in large errors that cannot be seen by human eyes.

我不吃牛肉Owner 2023-12-19

OK, thank you, I still need to learn more.

狮子头 2023-12-19

the design is still very nice

狮子头 2023-12-19

In addition, there is also a problem with the tilt of the keyboard bracket. Since the position where the mouse is placed is left, it must be placed with the mouse, so that the mouse is not going to fall off. Personally, I think the keyboard bracket should be fixed horizontally, and the monitor should have a rotation in the X direction, so that the operator can adjust the angle according to his own perspective. This kind of machine is estimated to have a small batch, and the cost of making computer stents by itself is too high. Generally, it is selected from the market site, and the variety is also very rich. It can adjust the position and angle in multiple dimensions. You can always find a suitable one, and the price is up to 300 yuan. If you make it yourself, not only does it not have a professional stents supplier to do it well, but the cost is several times higher.
