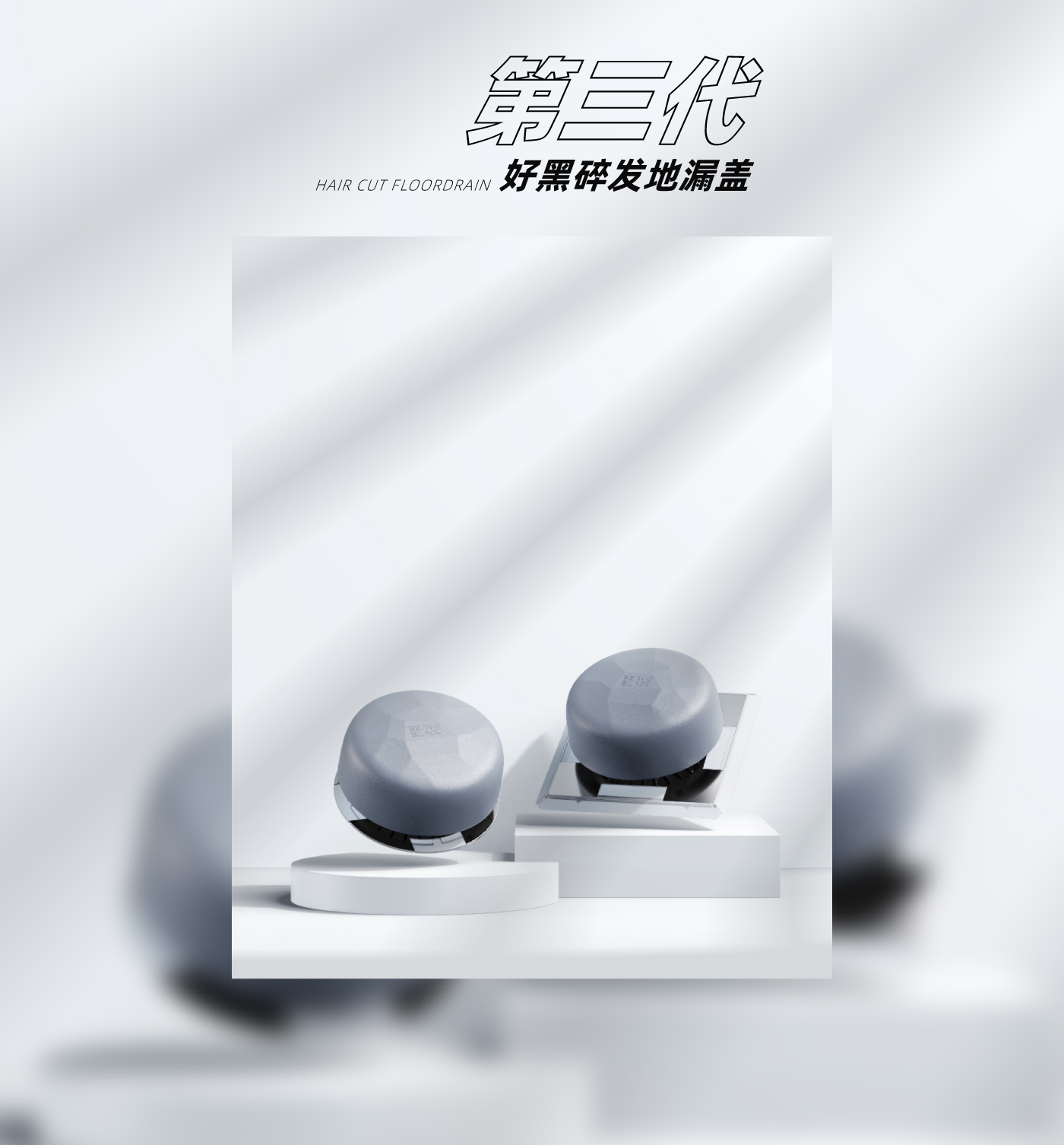

The third generation of good black broken hair leakage cover

好黑科技HowQChan

China · Kitchen&Bathroom

At the beginning of the design of floor drain broken hair cover, it was to provide users with a complete floor drain product experience. Because after our research, there are various problems in buying this product:

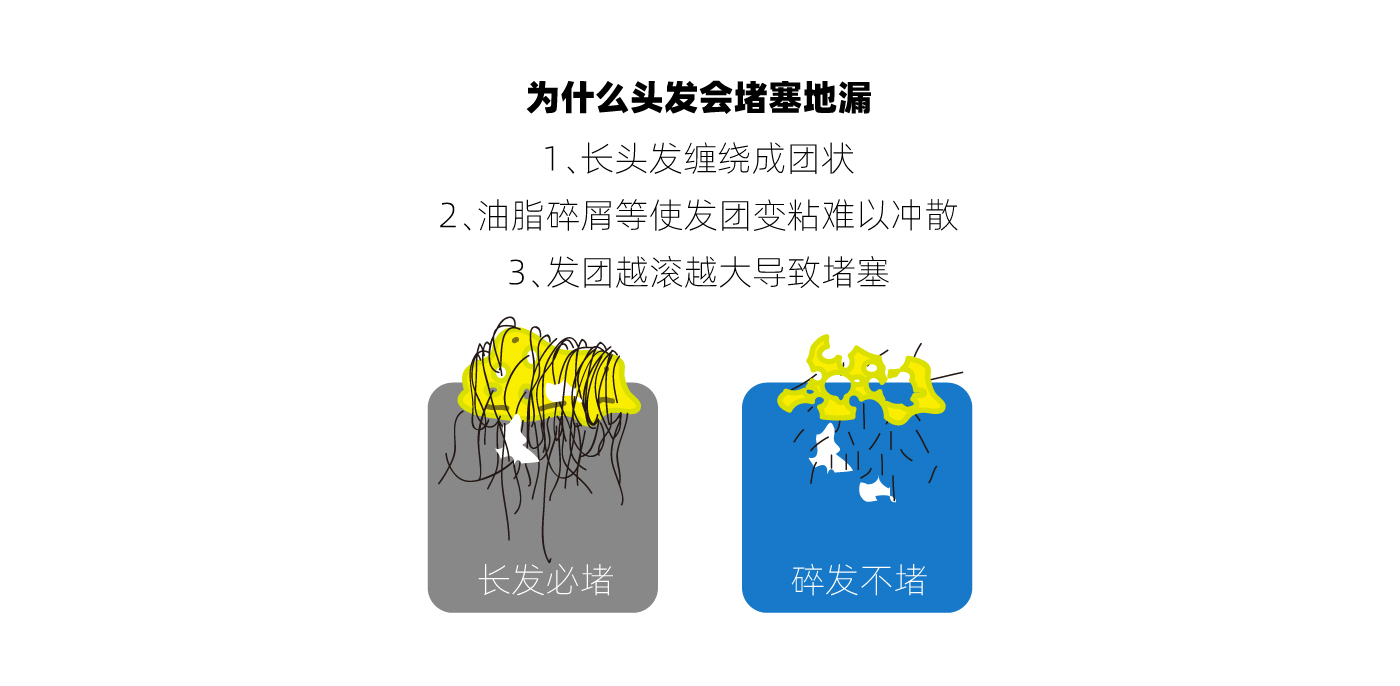

1. For the cover of the floor drain, many users throw the cover aside and are unwilling to use the cover. Because it affects drainage, hair is easily blocked there. But the floor drain without the cover, the hair runs straight to the sewer, which causes other problems. Because of the blockage of the main sewer pipes, the users on the lower floors discharged sewage into the houses on the lower floors. These cases are common and cause poor neighborhood relations, just like the upstairs did not prevent leakage and seepage from going downstairs. There are also their own sewer pipes blocked to please dredge the company, really waste energy and money.
2. The hair filter of the floor drain, like the cover, affects the drainage and becomes a decoration.
3. The cover and filter screen are used, and the cleaning frequency is very high and inconvenient and unhygienic. If there are more women in the family, the feet will be flooded if the water cannot be drained when taking a bath. It is really bad to clean up the floor drain when taking a bath.
4. The inconvenient cleaning of the floor drain makes users unwilling to clean the floor drain. Frequently unclean floor drain will affect the deodorant floor drain core below, which is easy to cause stink.

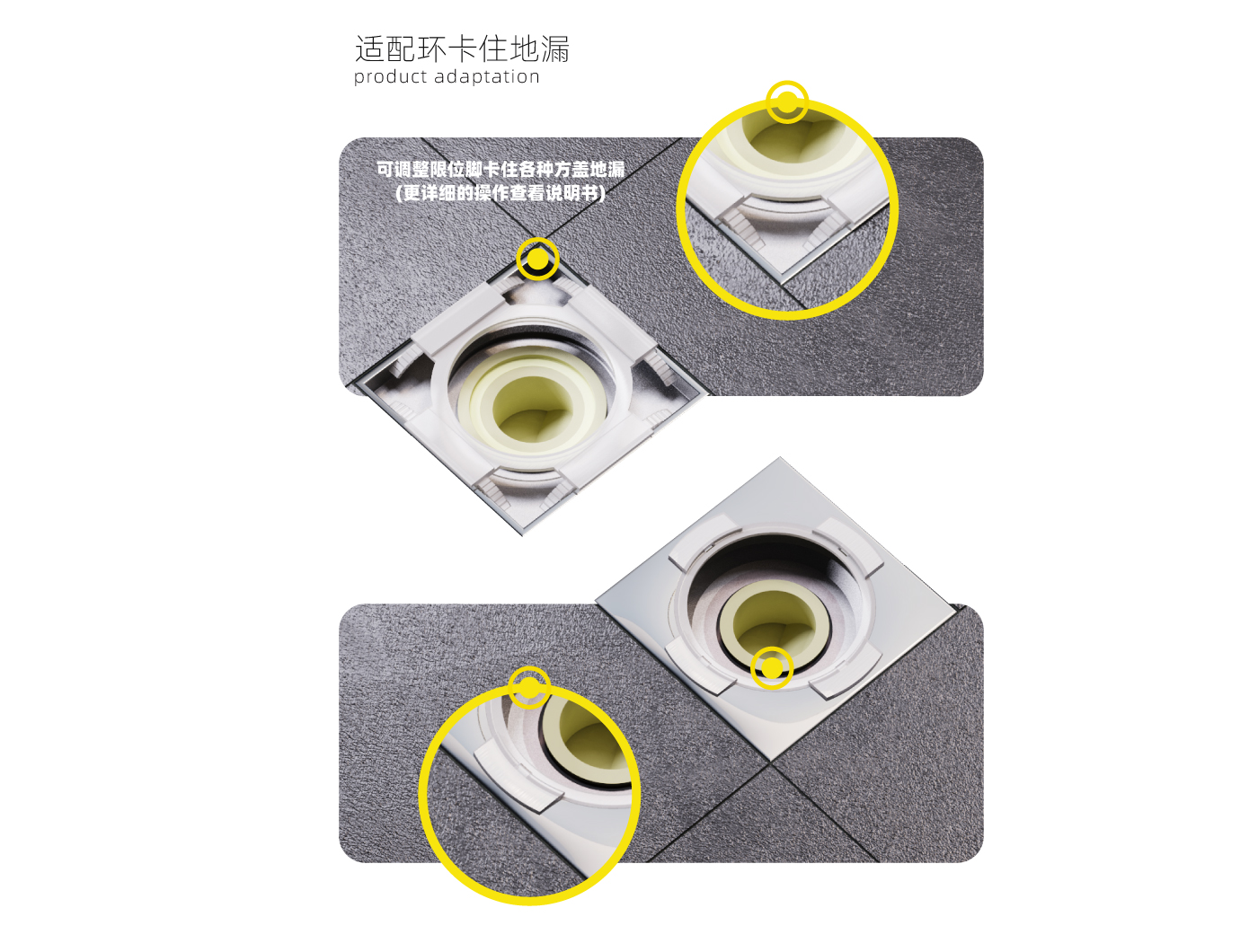

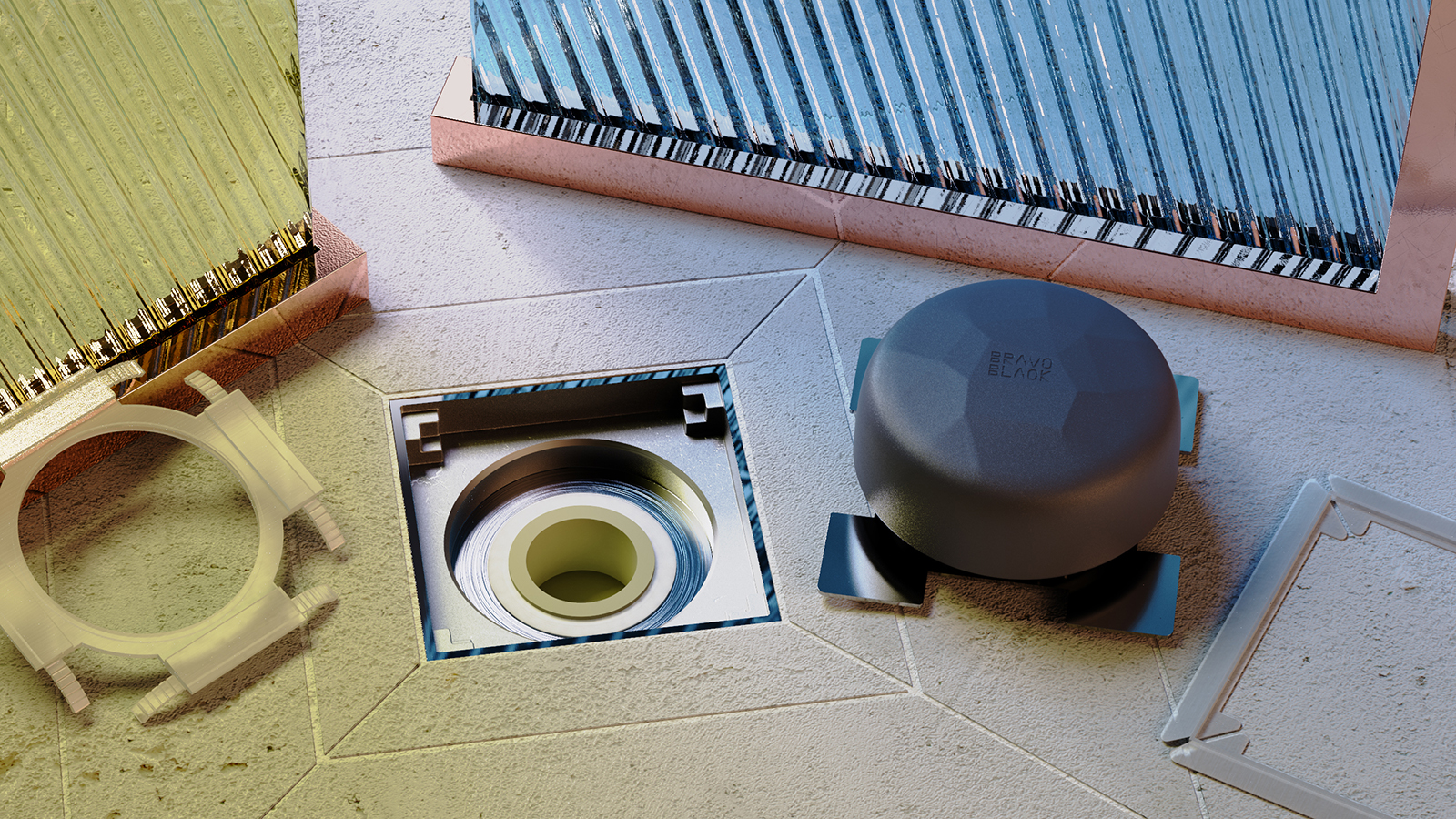

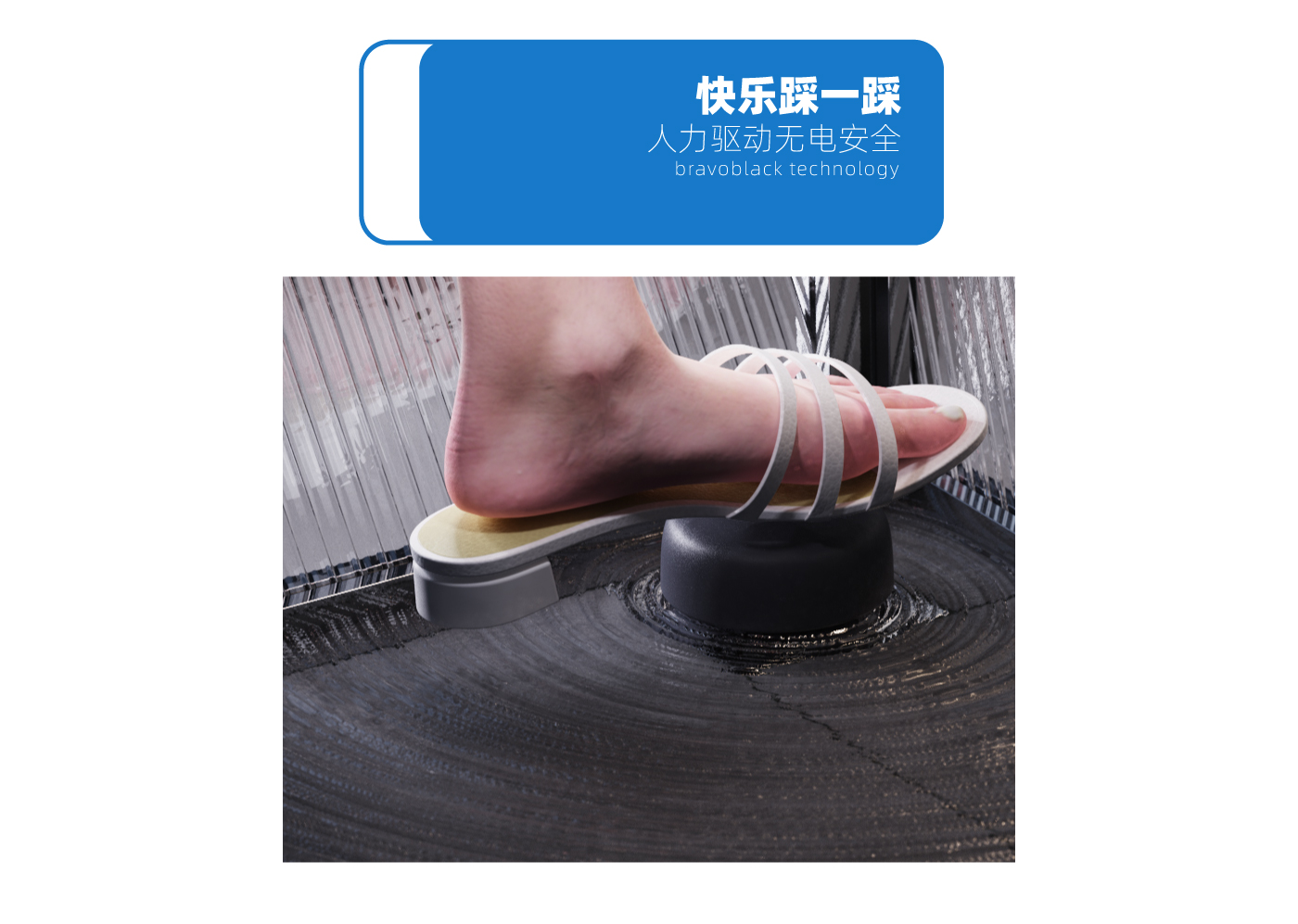

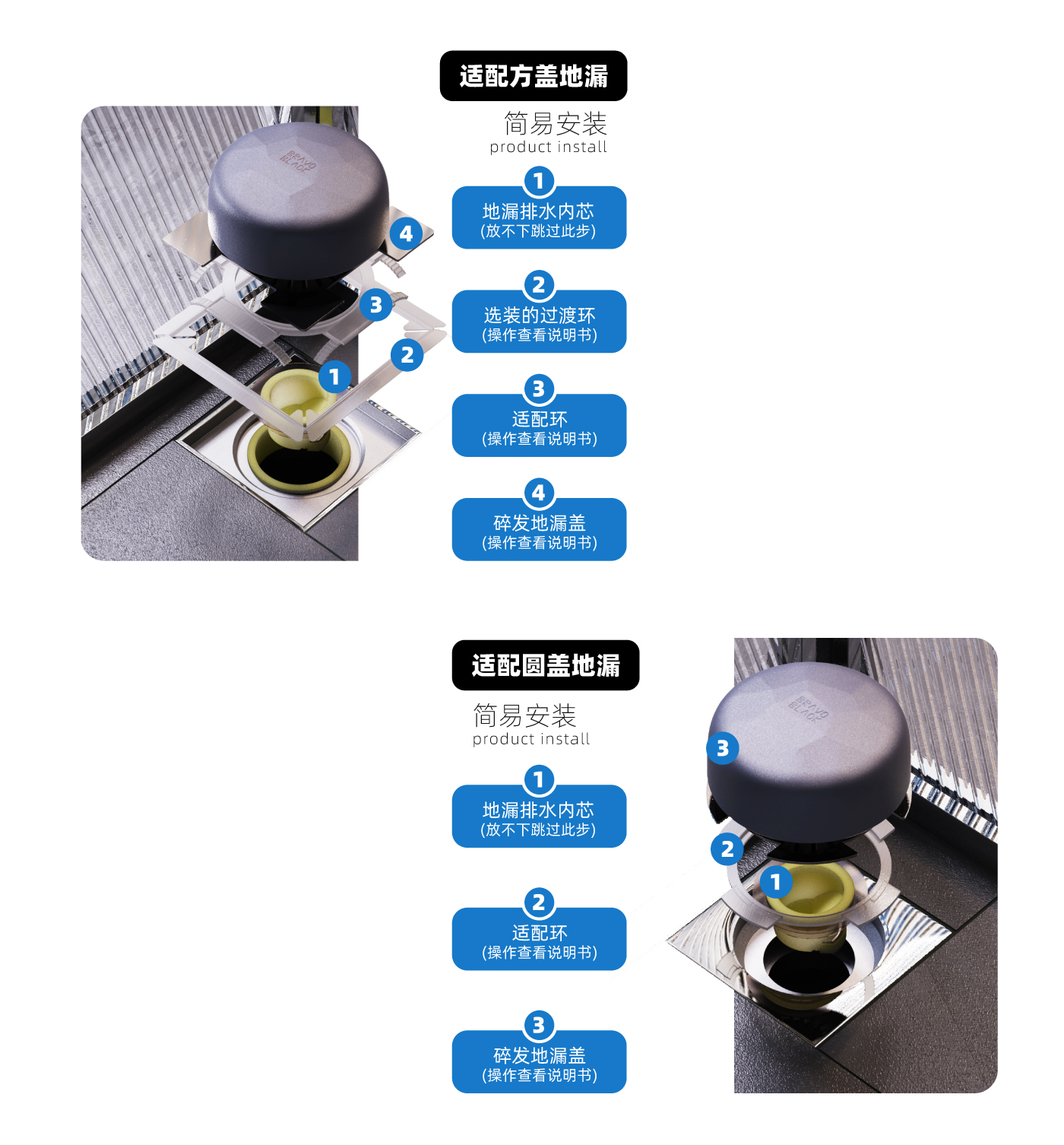

In order to make the product have an excellent experience in the hands of users, we also designed the installation method to be played. Because there are many specifications of floor drains on the market, it is really very, very difficult to be compatible. We design accessories to solve the problem of users taking a ruler to measure floor drain, and solve the problem of inaccurate measurement leading to wrong purchase. In use, it is a button, just like a toilet flush with a hand, we step on the water with our feet. The vast majority of floor drains will be installed at the corners (because drainage requires slope, the design of floor drains at the corners is the most reasonable and understand everything), so we design a button type without tripping users, and it is also the most convenient for users to install without chiseling the original floor drains.

(My understanding of industrial design is to rationalize production, use, transportation, cost, etc., so that every link can have a good experience, so that everything can go with the flow, this is my pursuit of design) It is only personal understanding and does not represent the company's position.

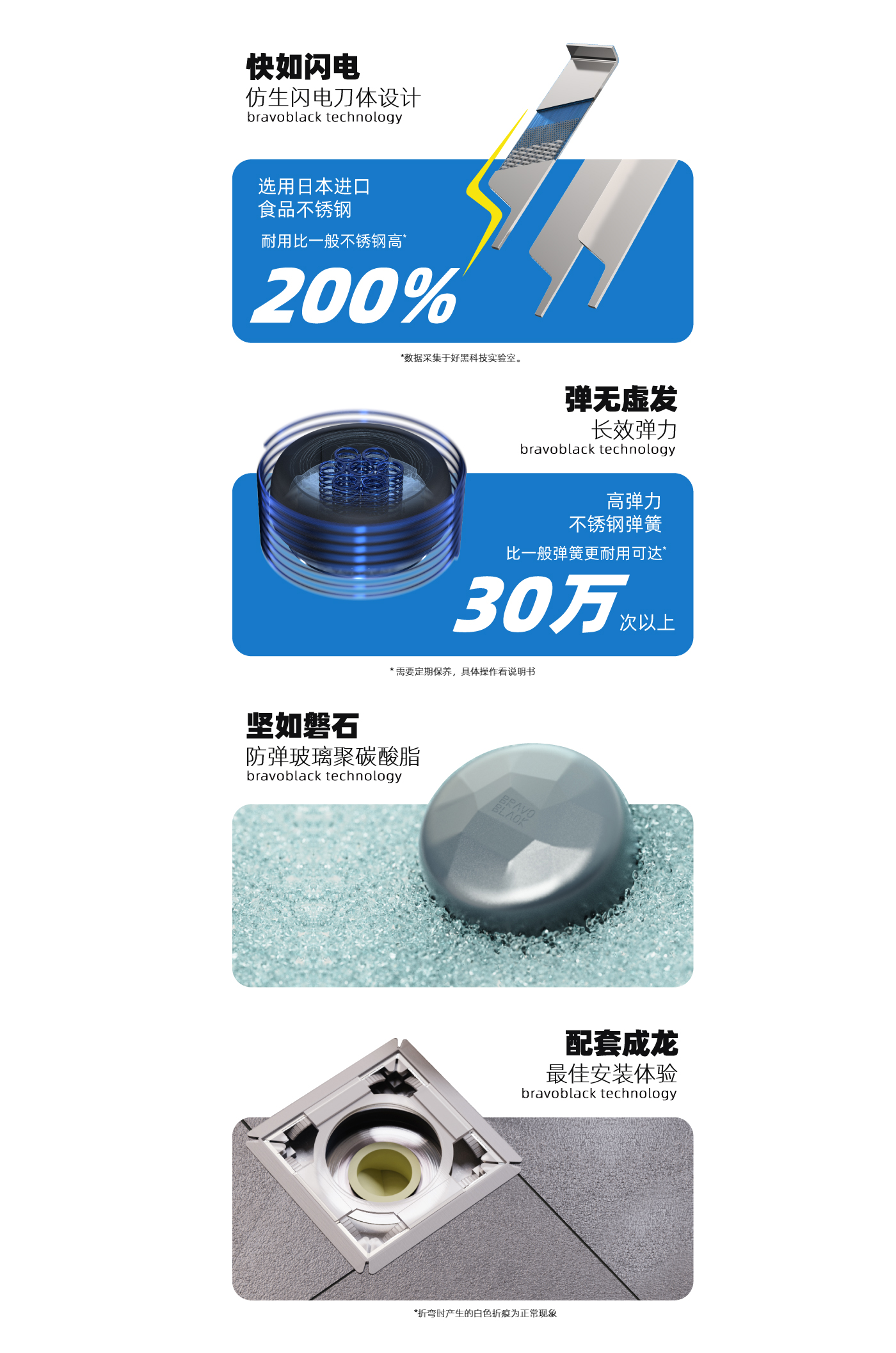

Third Generation Core Upgrade:
1. Support square floor leakage cover

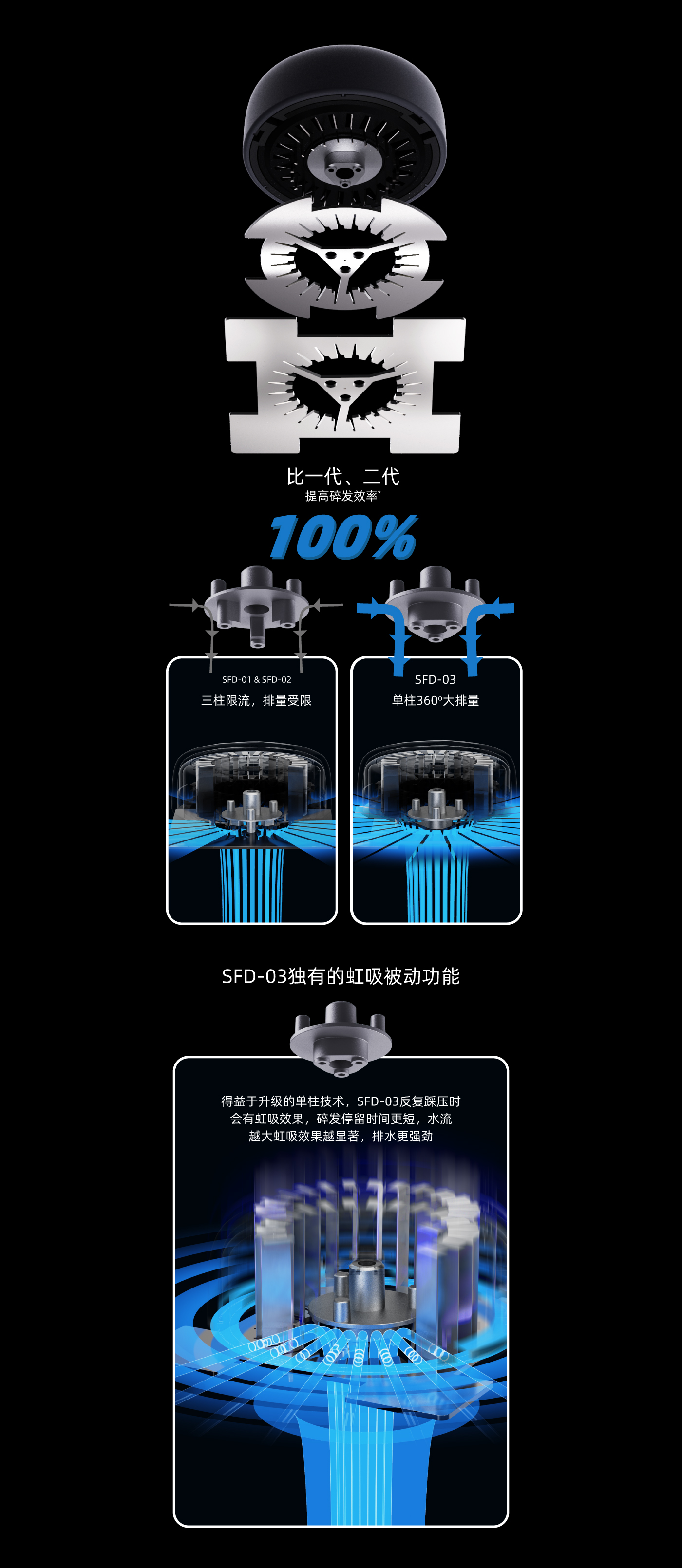

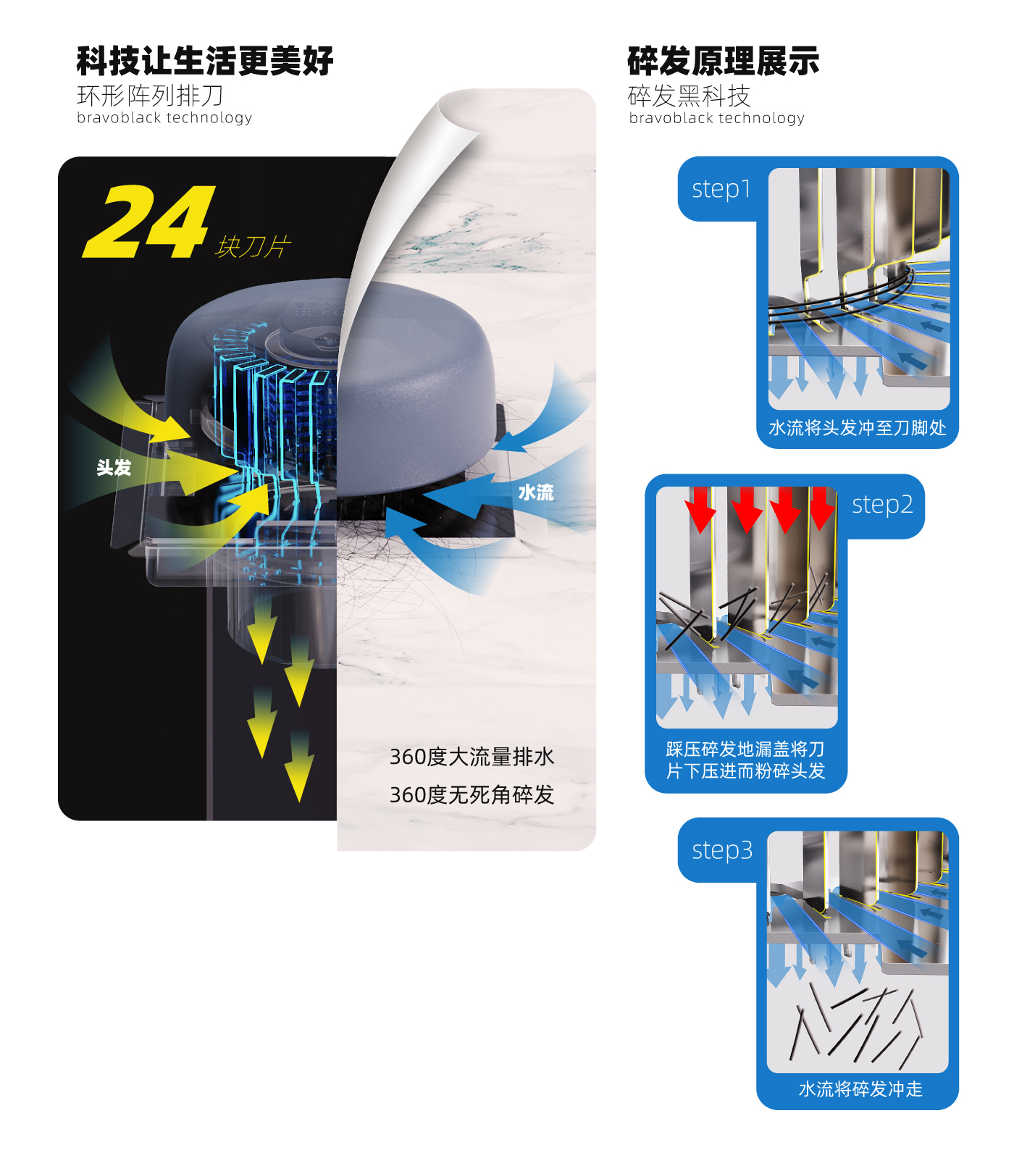

2. 100% to Improve Broken Hair Efficiency
3. No glue installation, easy to take and place

the floor drain，innovate，concise，Kitchen and bathroom design，Hardware design，Home design，Bionics Design ，Texture design，
