Exxon fiber laser cutting equipment series

2019-07-03 Tools&Equipment 10004 13 47

Exxon fiber laser cutting equipment series

2019-07-03 Tools&Equipment 10004 13 47

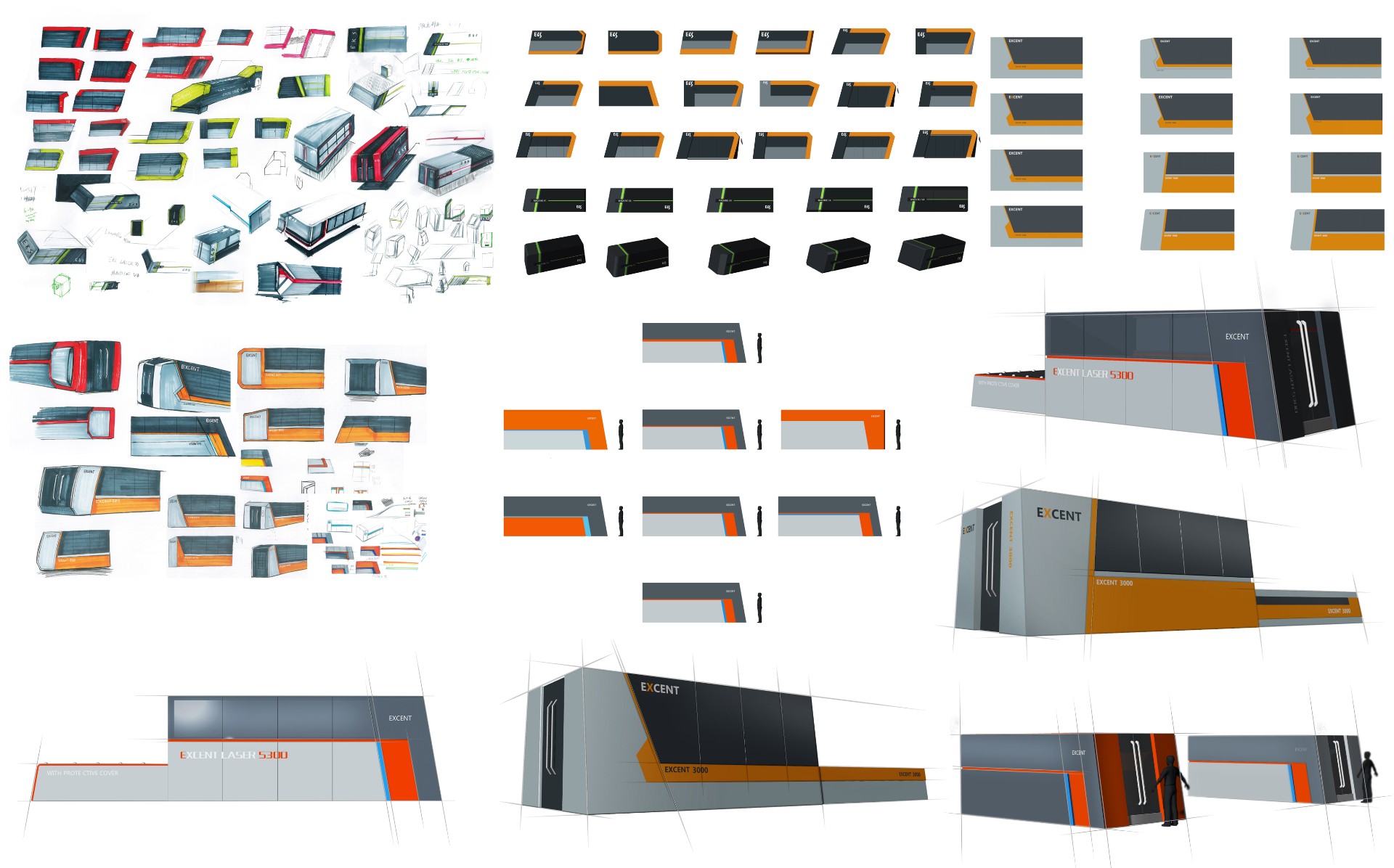

Original concept/First draft 2017

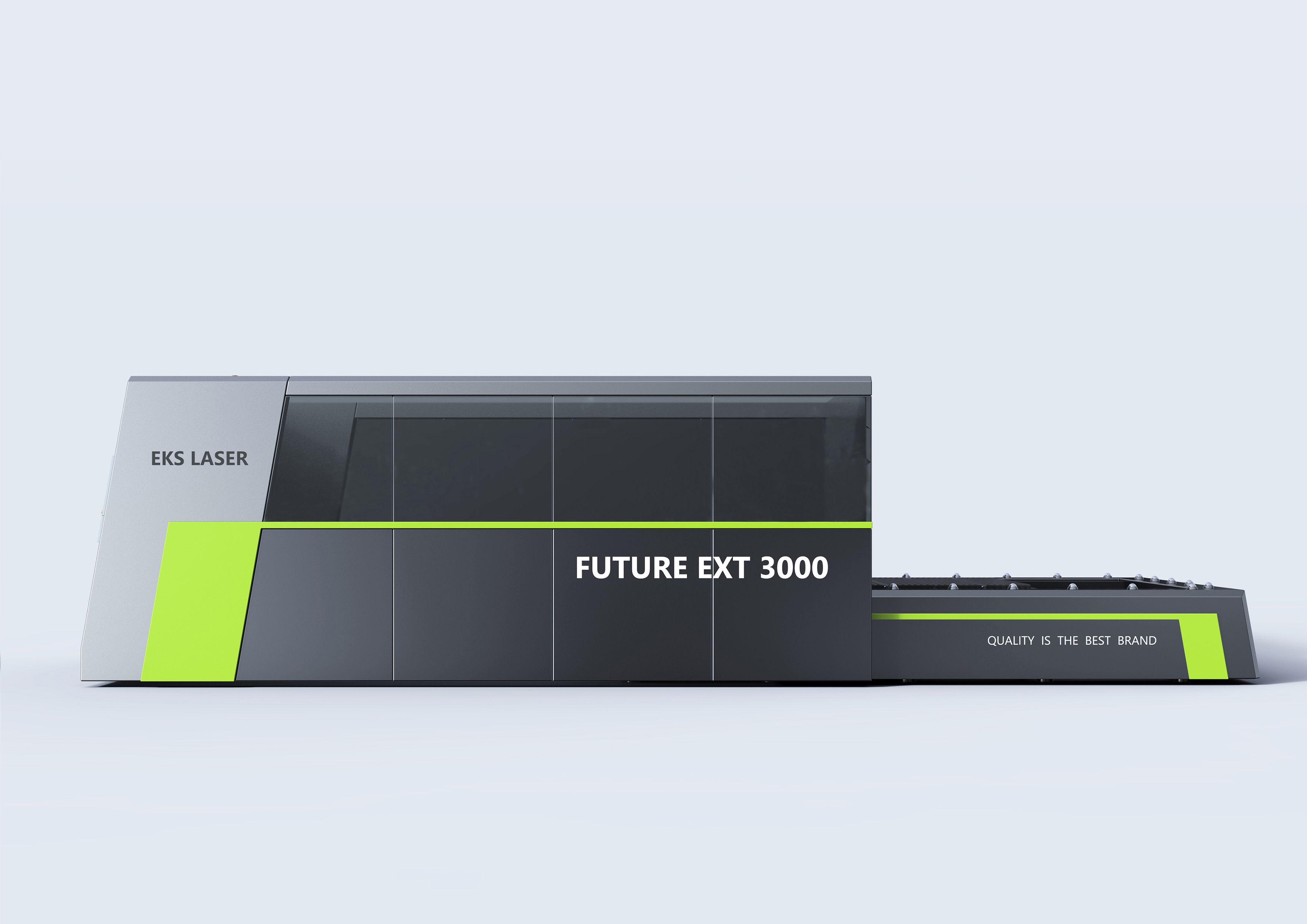

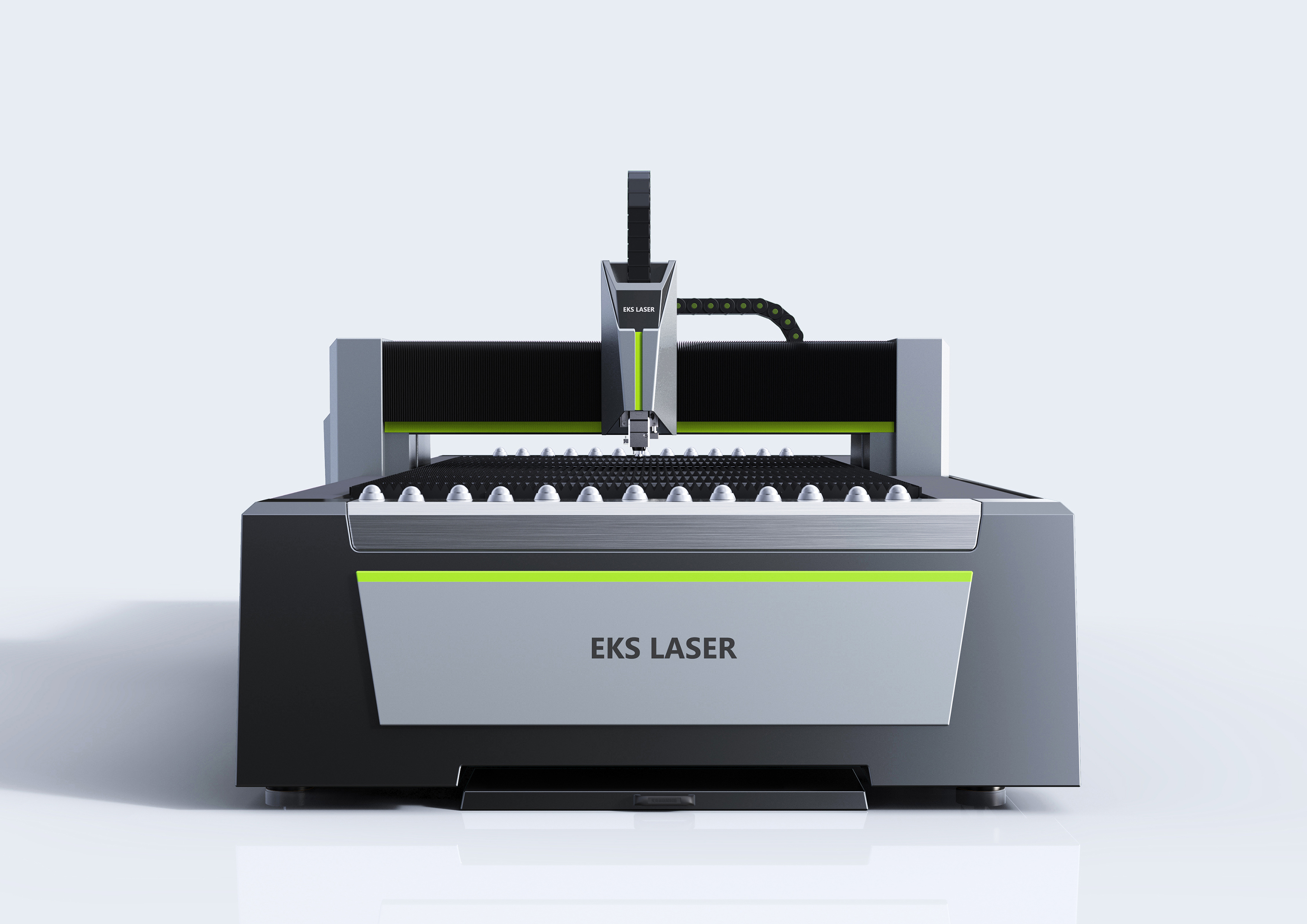

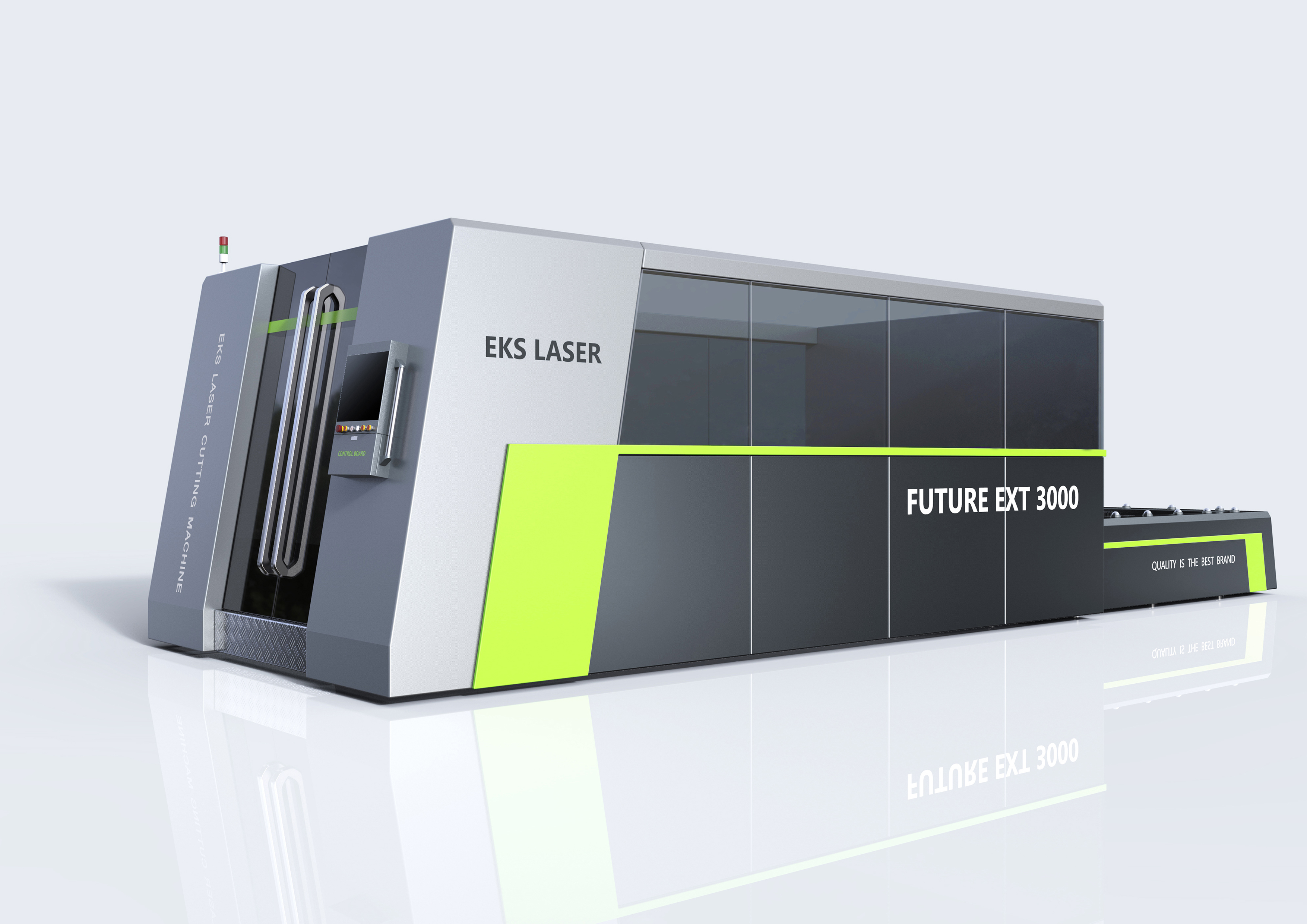

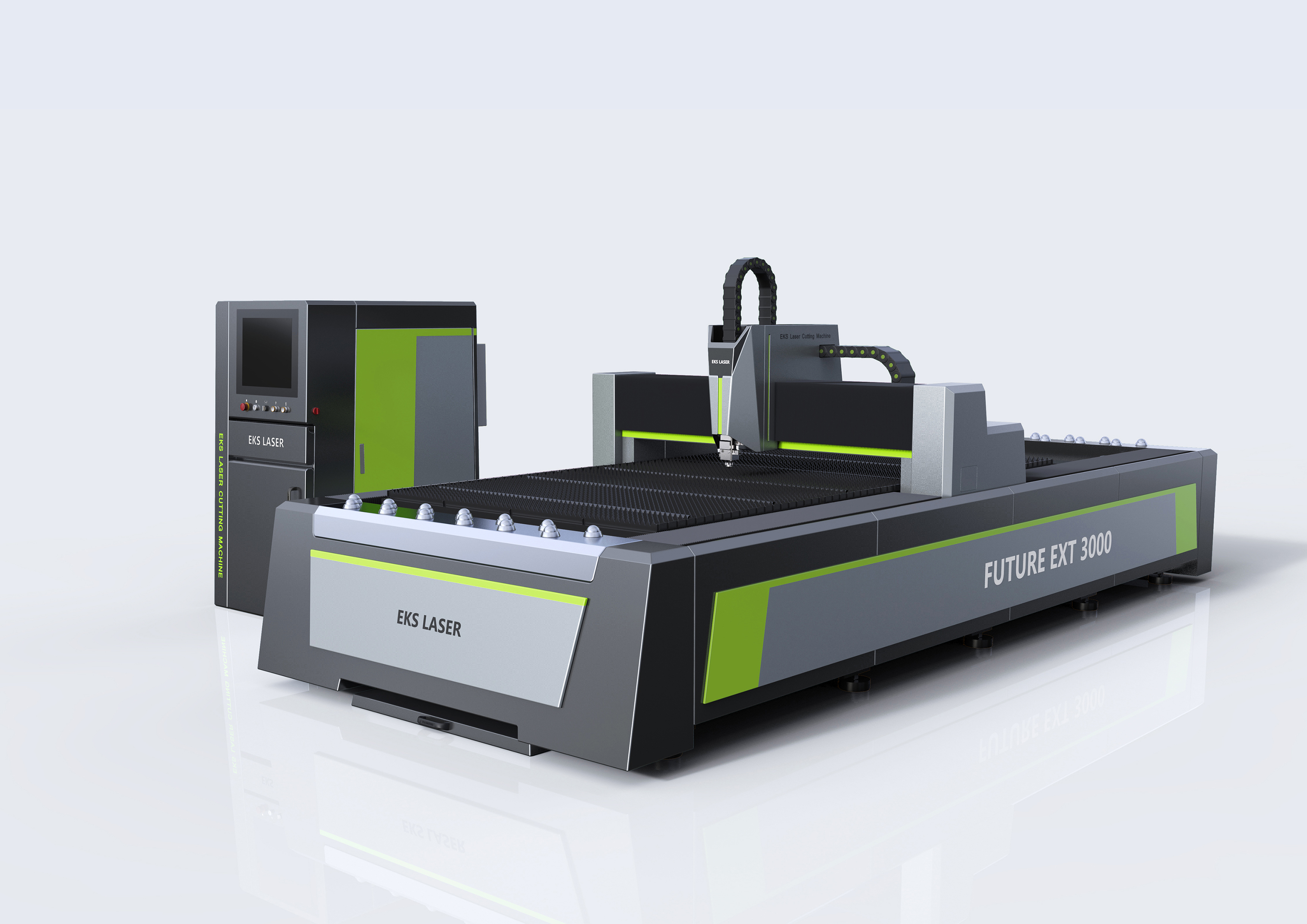

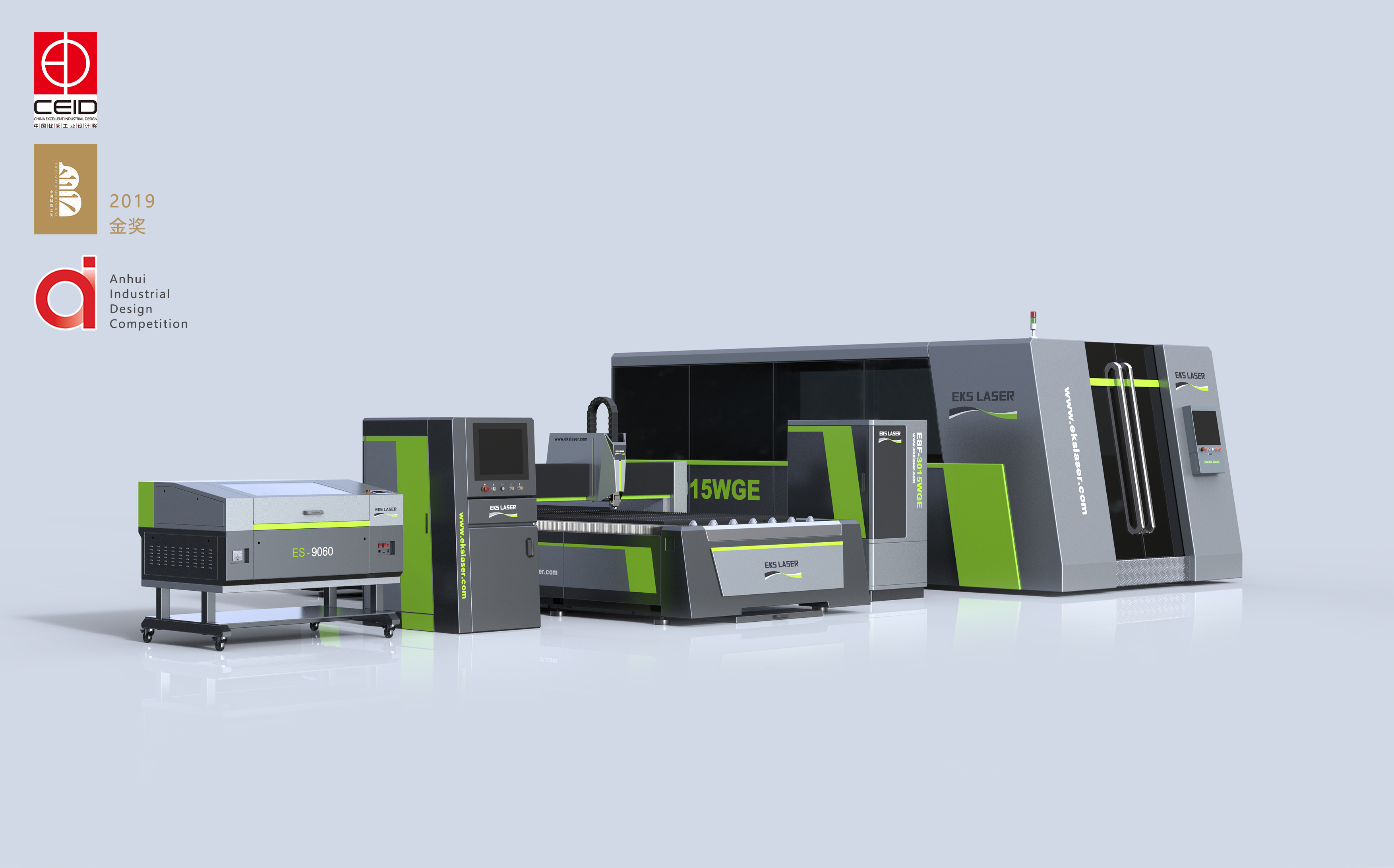

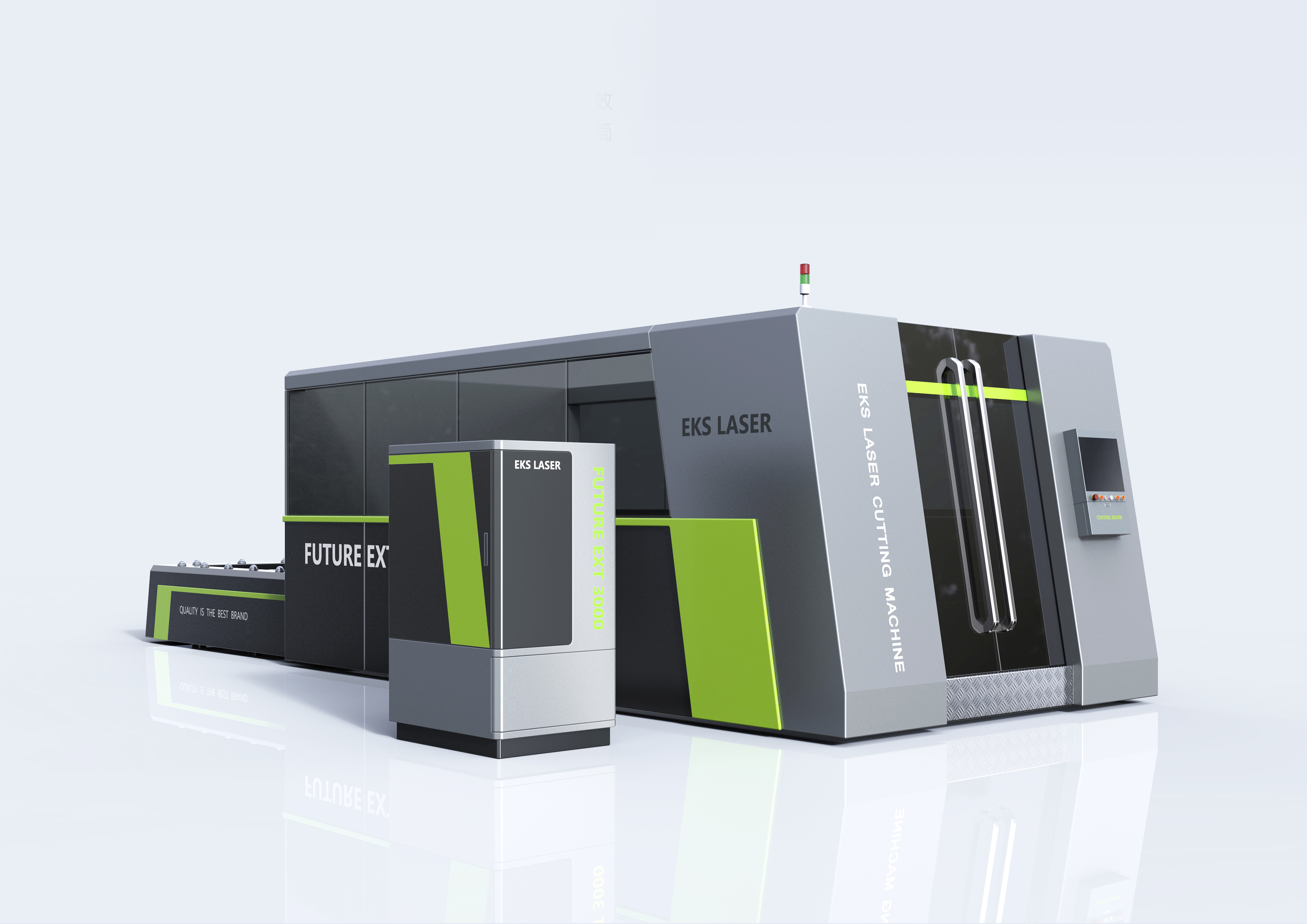

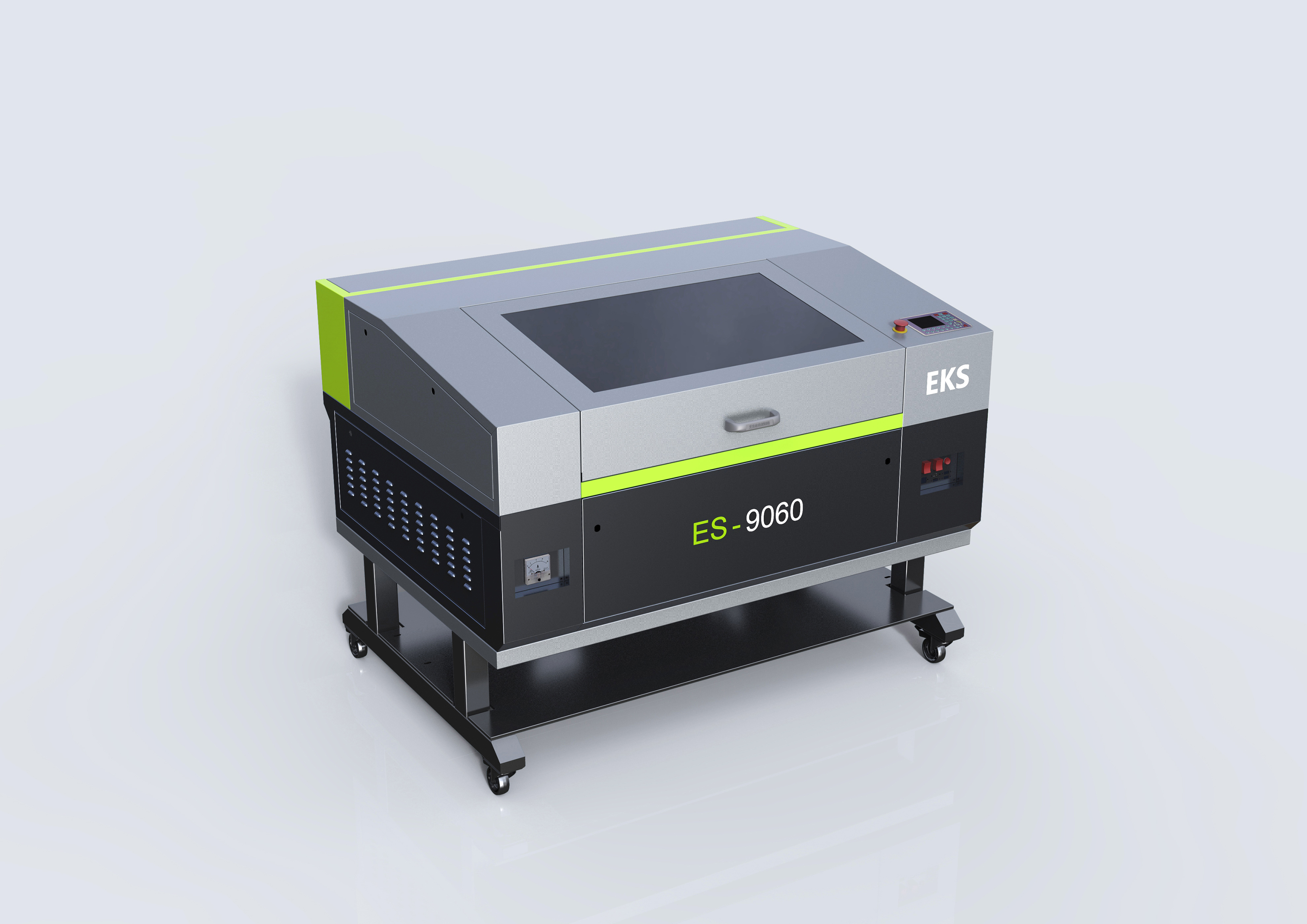

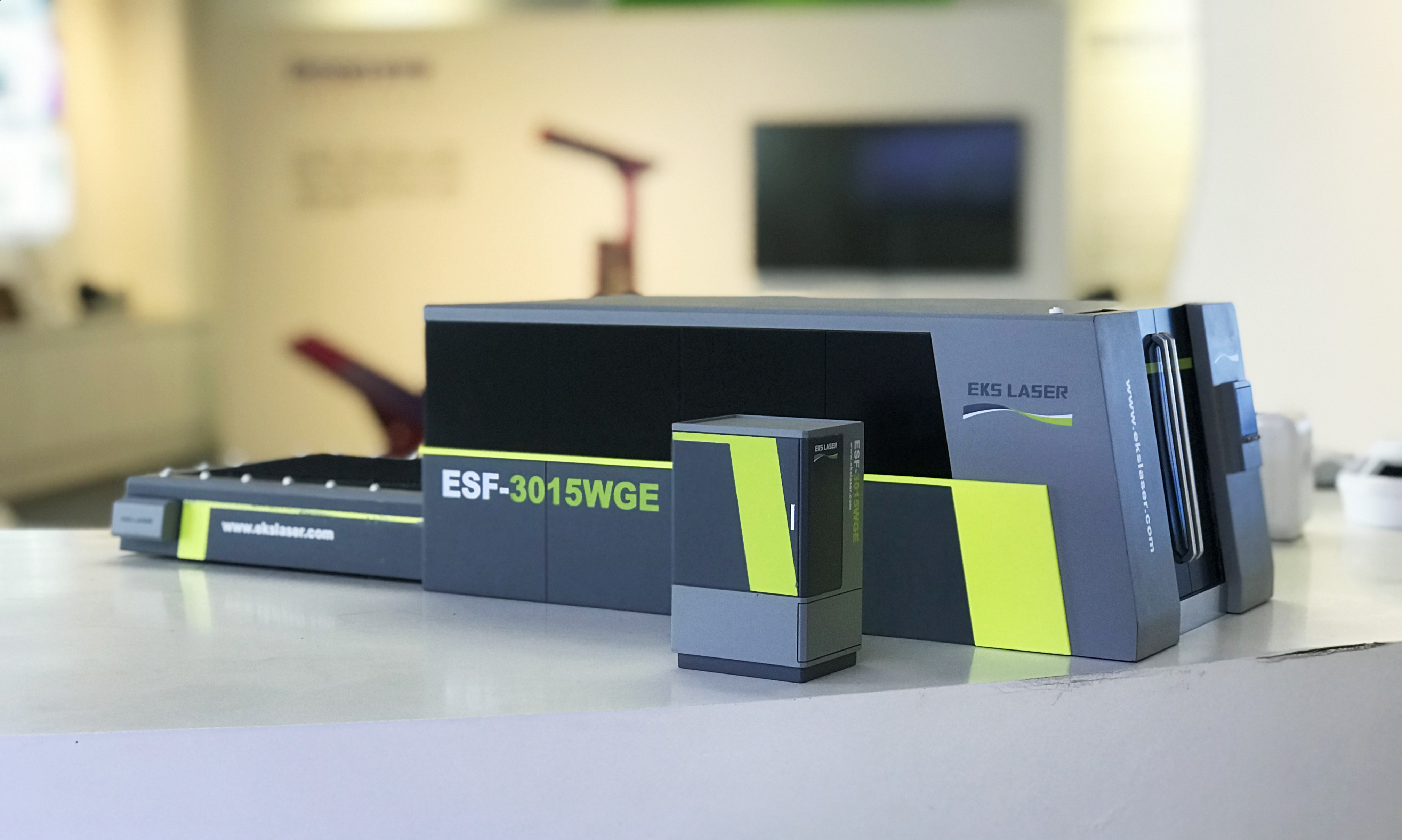

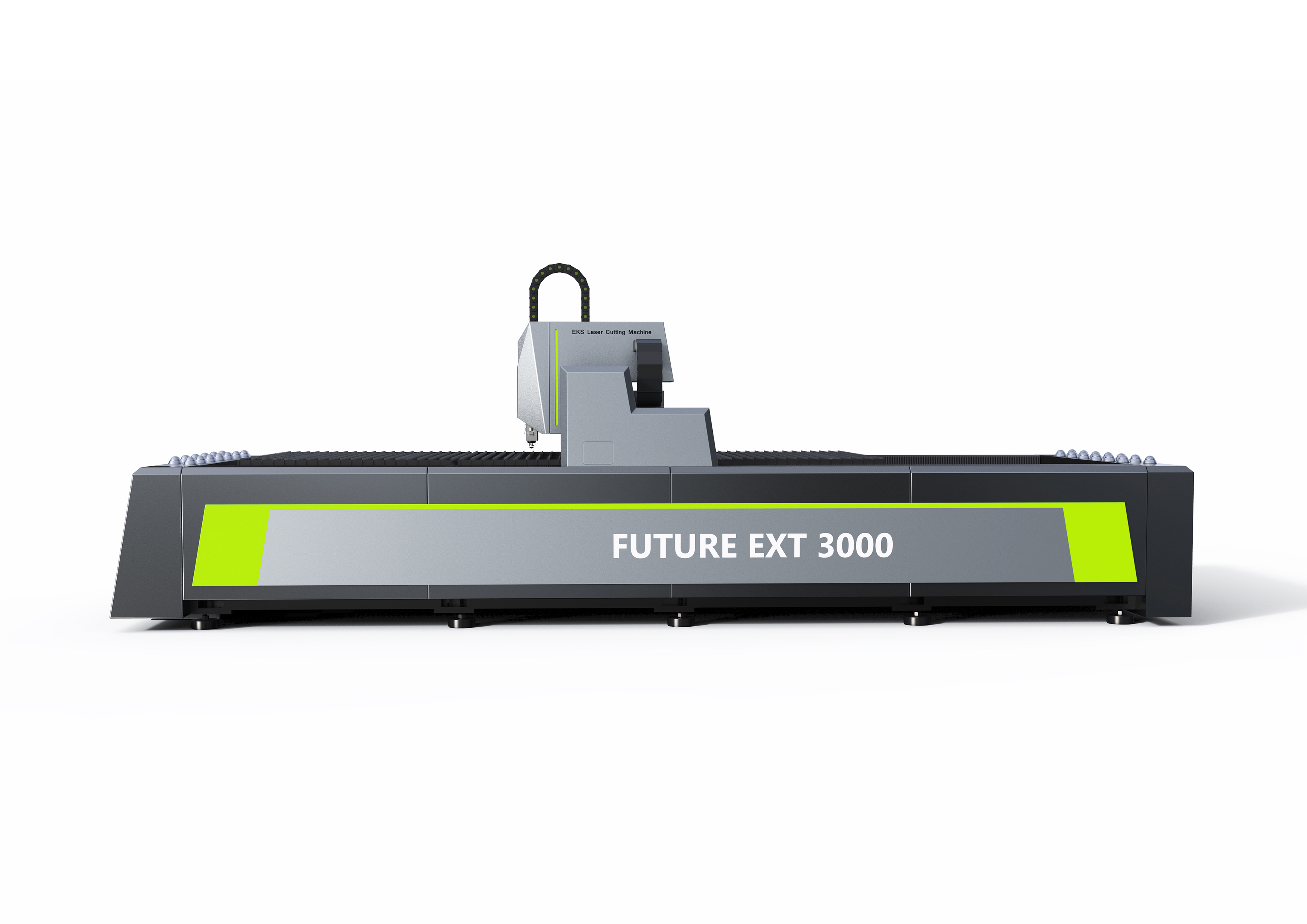

Exxon laser cutting equipment series, from small CO2 laser engraving machine, to medium-sized open dual-drive optical fiber cutting machine, to large-enclosed optical fiber cutting machine, are all available to meet various power and cutting requirements. At the same time, the series pays great attention to safety performance and has various protective measures. Among them, the open dual-drive optical fiber cutting machine is the smallest of the same category, effectively saving production space and transportation costs.

sheet metal，equipment，apparatus，cutting，Machine tool，Optical fiber cutting equipment，Laser cutting machine，Akerson，

Welcome friends from all walks of life to communicate, the above is my WeChat QR code

47 221

Users’ other works View More

Ou Lin Water Purifier Series Design

For the first time that year, I learned to draw products by hand.

Practice

Comment

Comment Board （13）

I DO 2023-12-26

I feel that the reduction degree of the landing scheme and the design scheme is quite high. Customers are willing to spend money to do it. Look at some equipment with four pieces on one side. If my customers will definitely say whether they can change it into one piece, the processing difficulty is too difficult to assemble, and the cost is a bit high... Ha ha the design scheme looks quite imposing and atmospheric.

Panda 2019-07-10

王子龙Owner 2019-07-10

[Bixin]

Write a comment

Craftsman 2019-07-08

I feel that the overall appearance of the first plan is better. The machine tool inside is normal. It is too capricious to use such a large blister. Ha, ha, ha, a little bloated. The second plan feels that the concave decorative parts will be more layered and the door body will be combined more skillfully. Also, the green color is too pink to hold down such a large equipment volume. The plan of the machine tool inside is OK, but the stainless steel in? personal opinion. after all, there are a lot of industrial equipment.

王子龙Owner 2019-07-08

Thank you for your valuable advice. At that time, the boss chose the first plan for many plans. Then it was continuously revised and revised into the second plan. Which pot of blister parts do you mean seems to be basically sheet metal parts. The second option was initially a recessed trim. The boss asked to protrude this one as if to disassemble and install something. Forget ~ but the real thing seems to be flush. The color is roughly 5:3:2. Green is an embellishment color, in order to increase market recognition. I don't know why the boss didn't do it. Thank you very much for your suggestion ~ in short, the comprehensive factors in various situations have become the final plan, ha, ha, ha

Craftsman 2019-07-08

The process that can be recessed is definitely more complicated than protruding. it depends on how the boss makes a choice the plastic-absorbing part I said is the one with the LOGO on the bottom of the machine tool in the first plan. it looks quite full. if it is sheet metal stamping, it is also difficult to handle it
