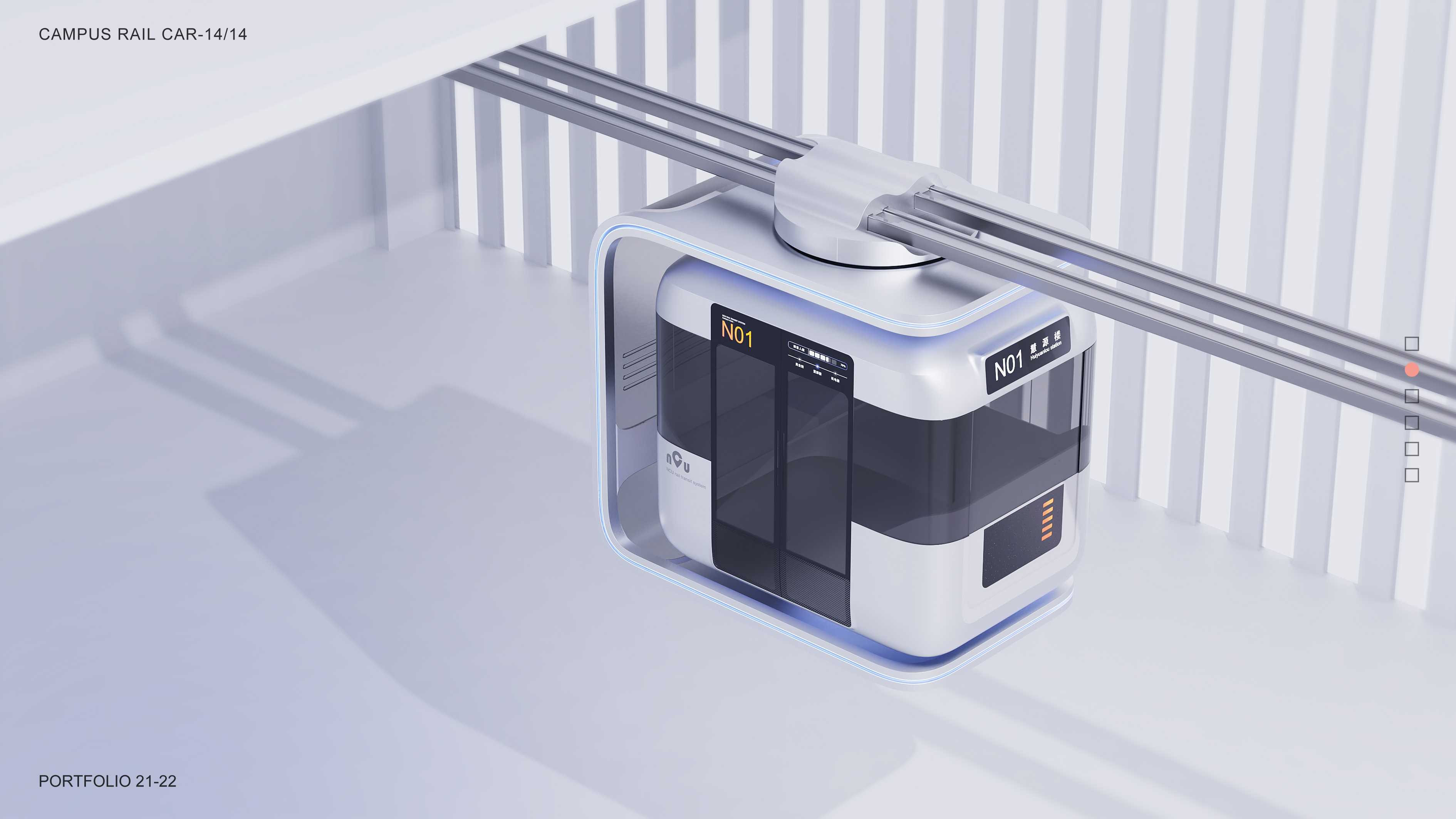

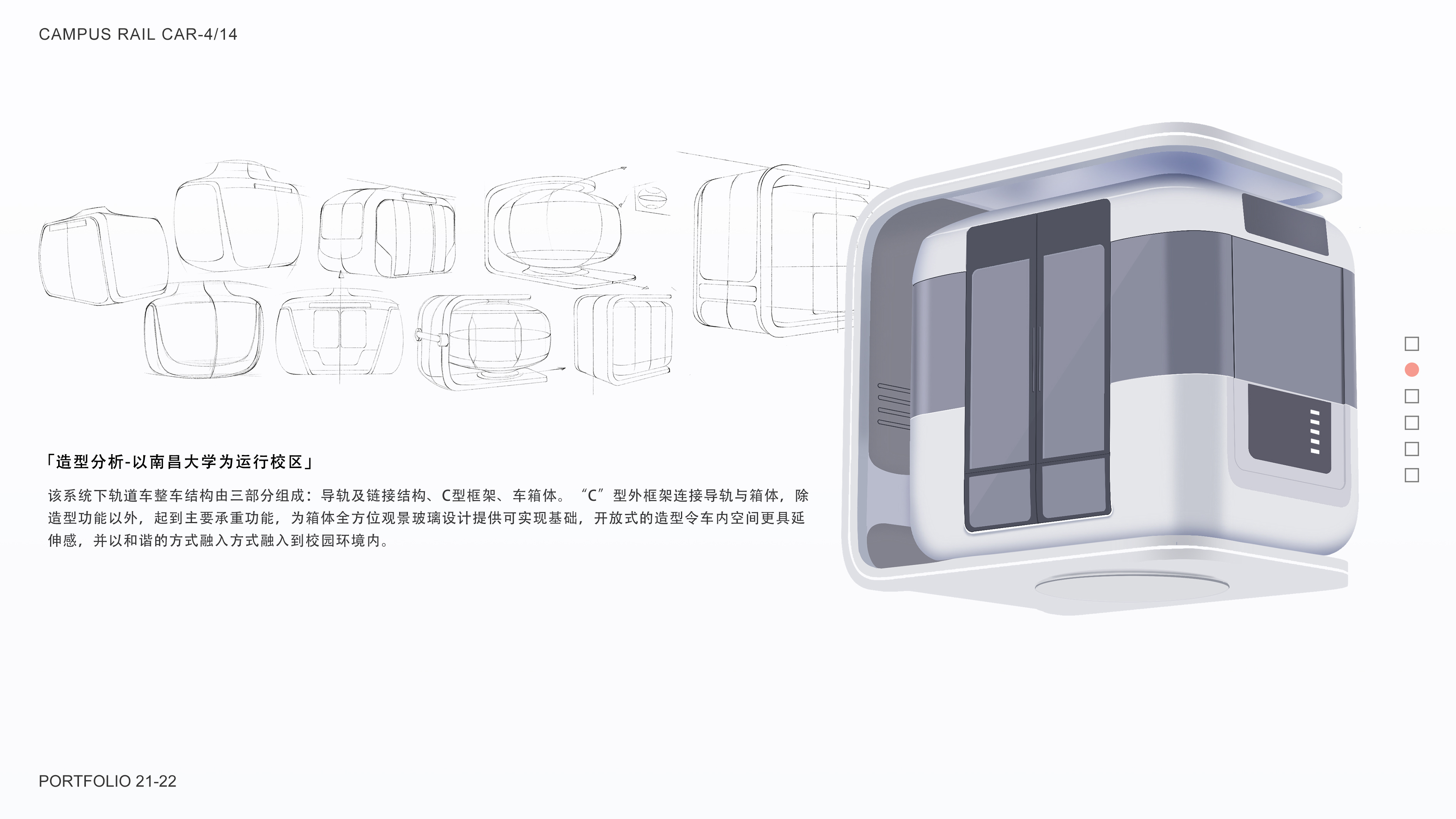

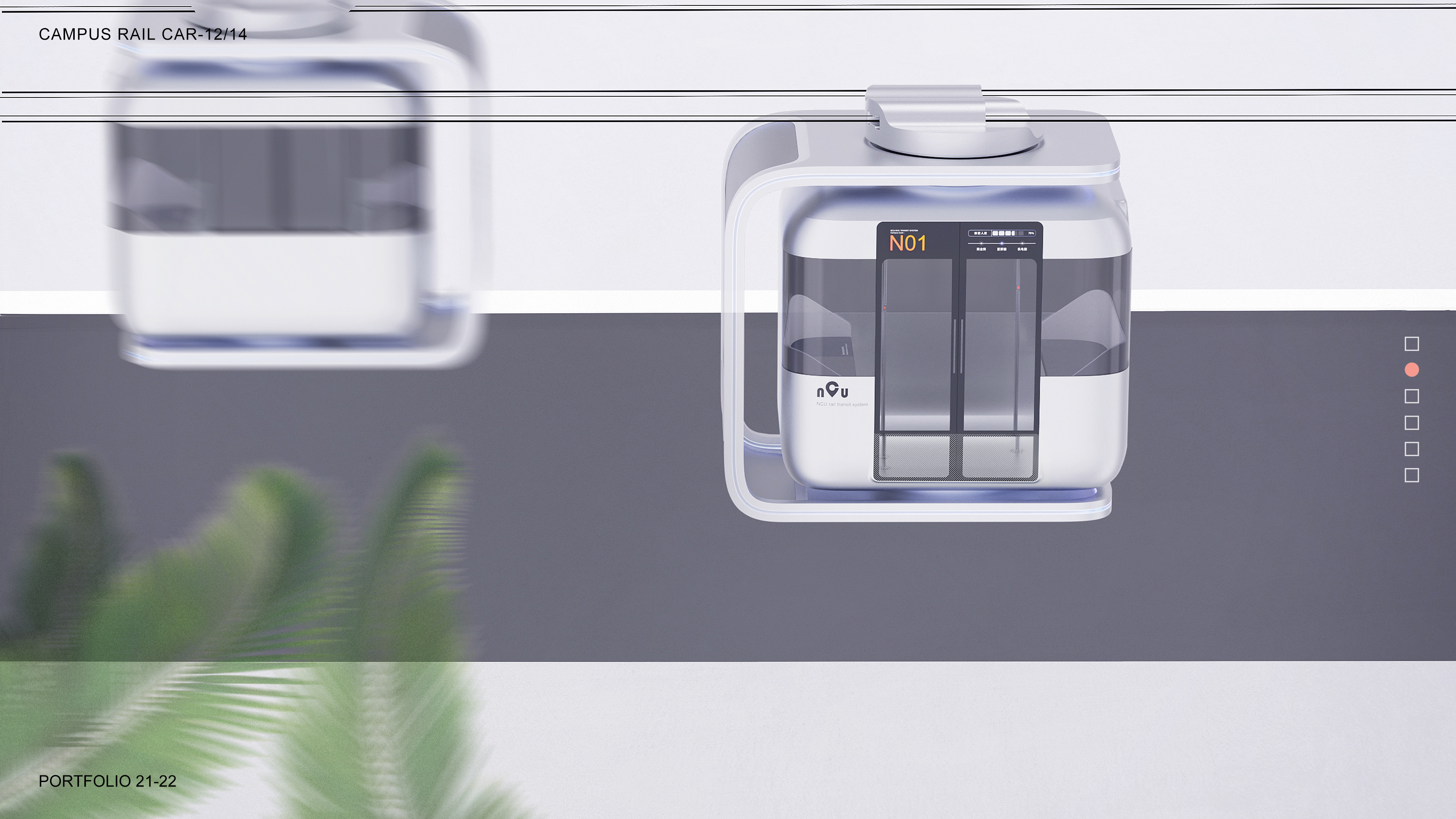

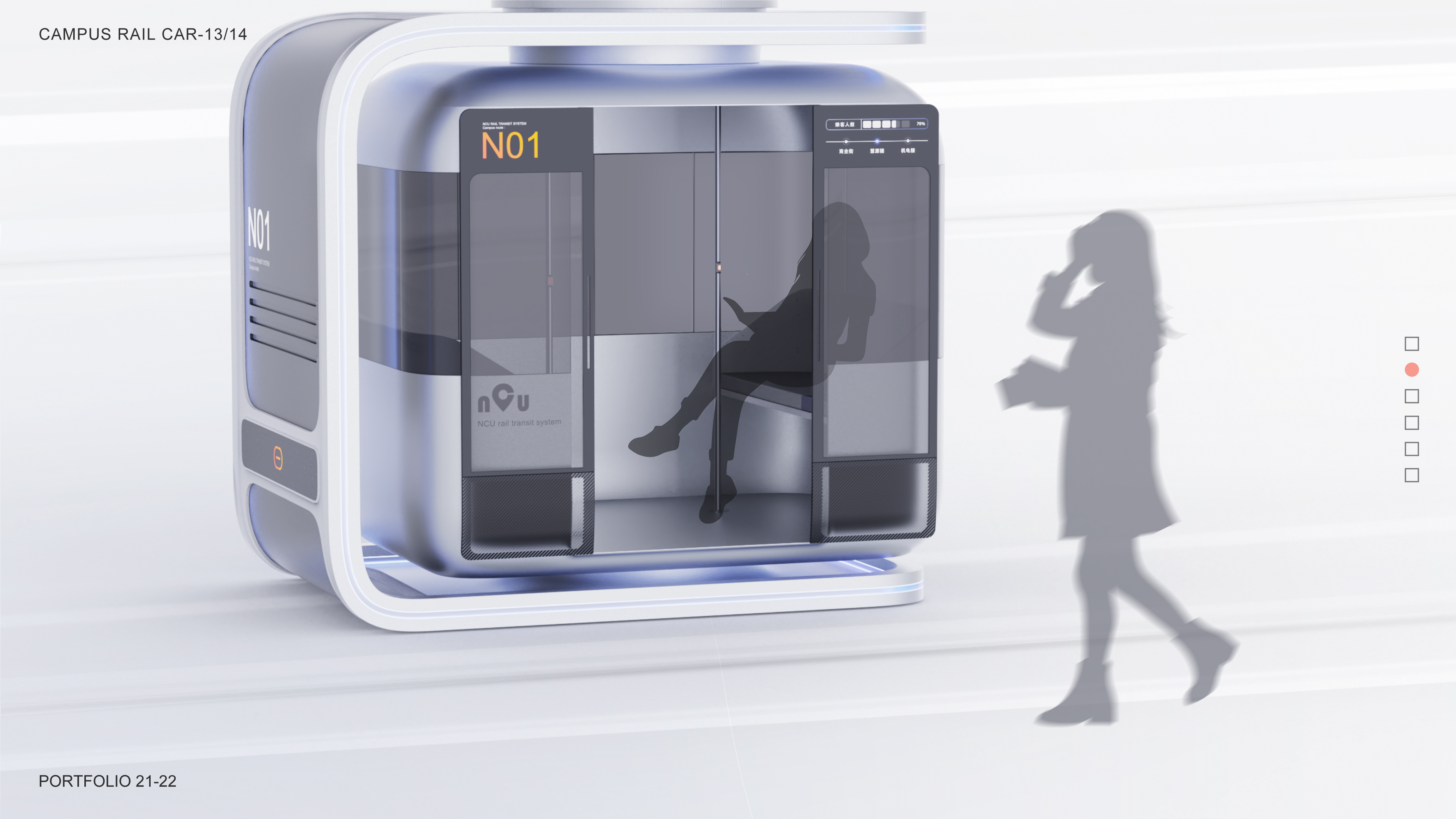

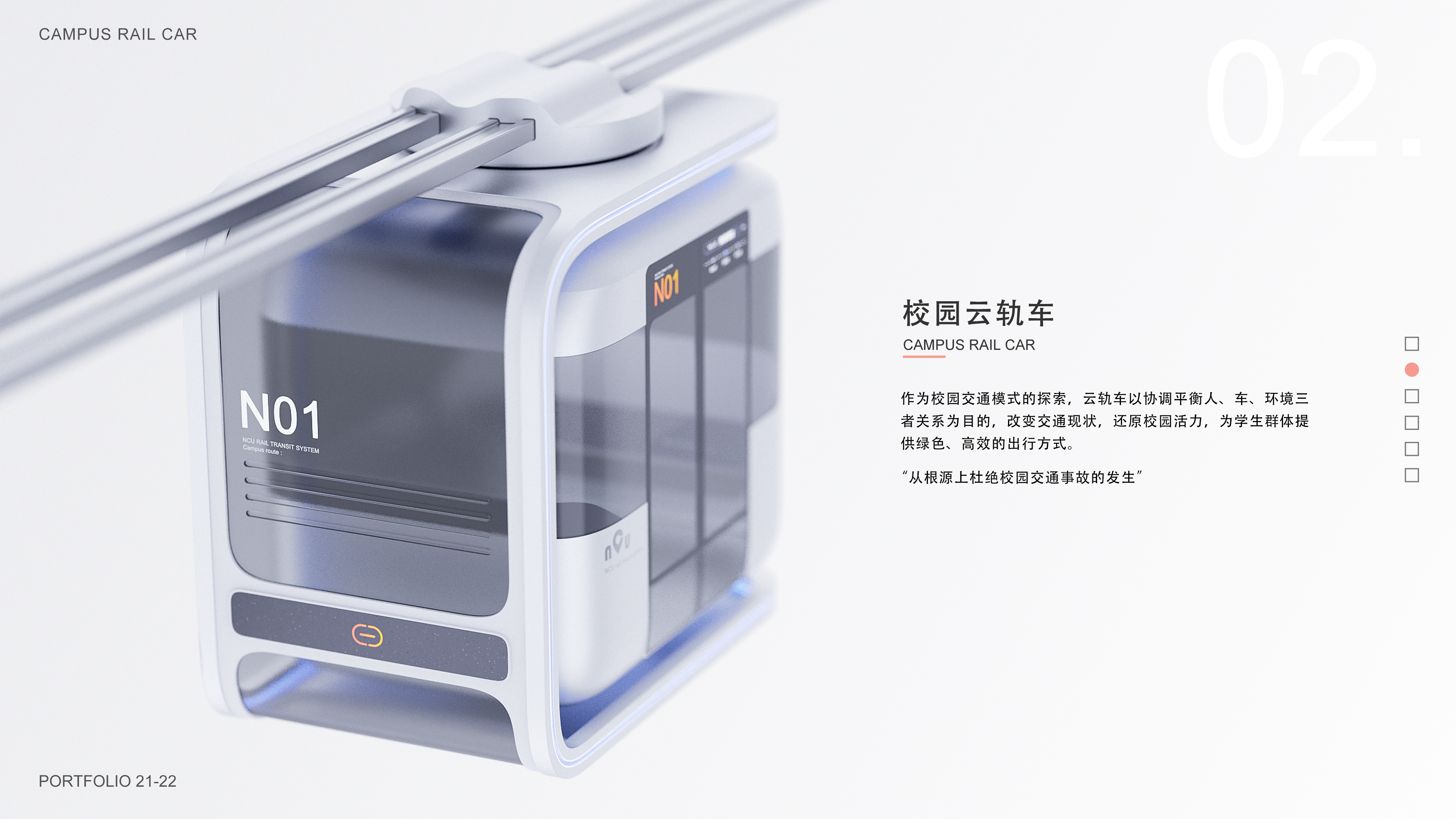

The campus cloud rail car is an undergraduate work, a conceptual vehicle design.

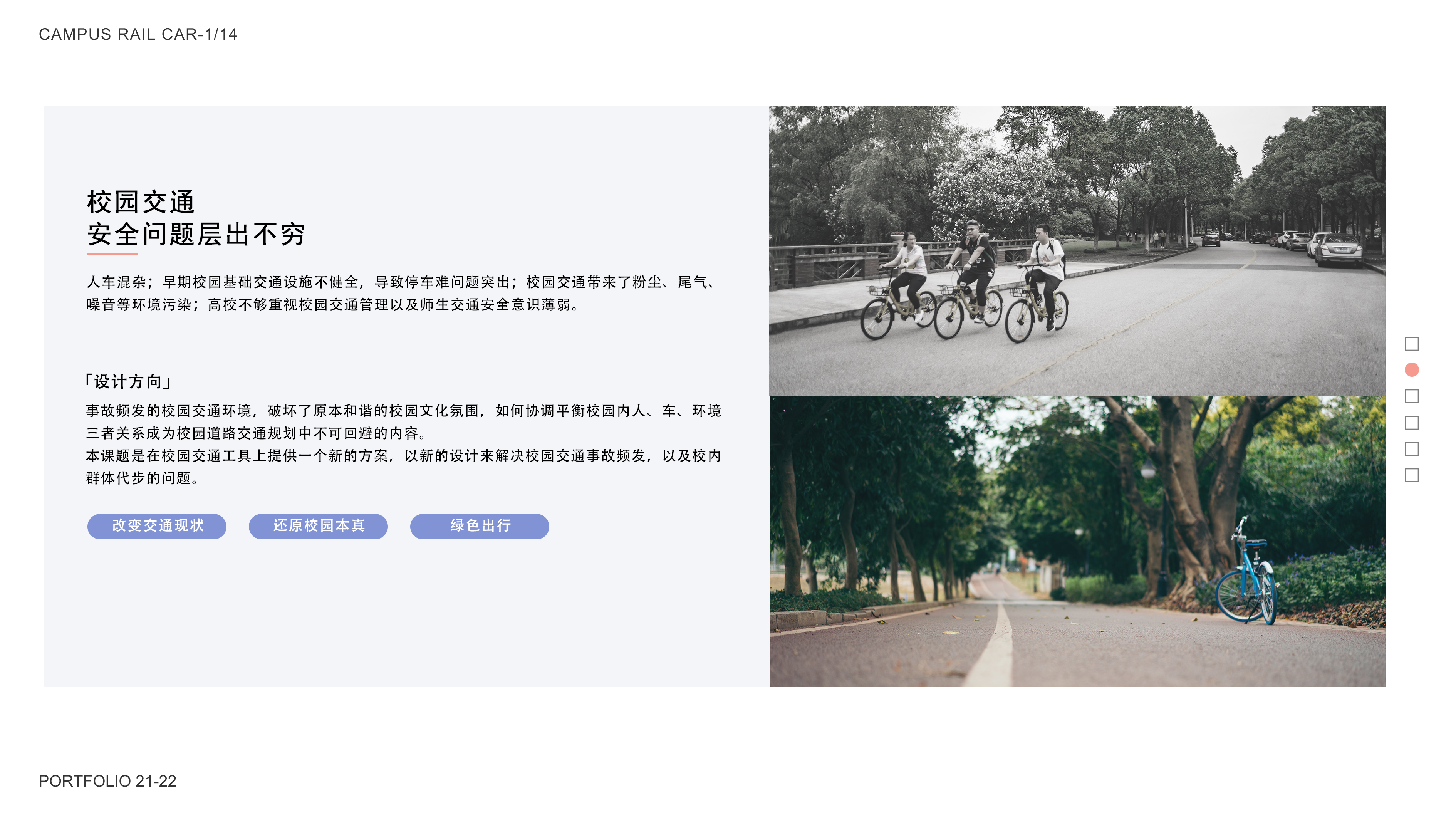

More and more traffic vehicles are pouring into our university campus, and people and vehicles are mixed, parked indiscriminately, and noisy. The campus traffic environment with frequent accidents has destroyed the original harmonious campus cultural atmosphere. How to coordinate and balance the relationship among people, cars and environment on campus has become an unavoidable content in campus road traffic planning.

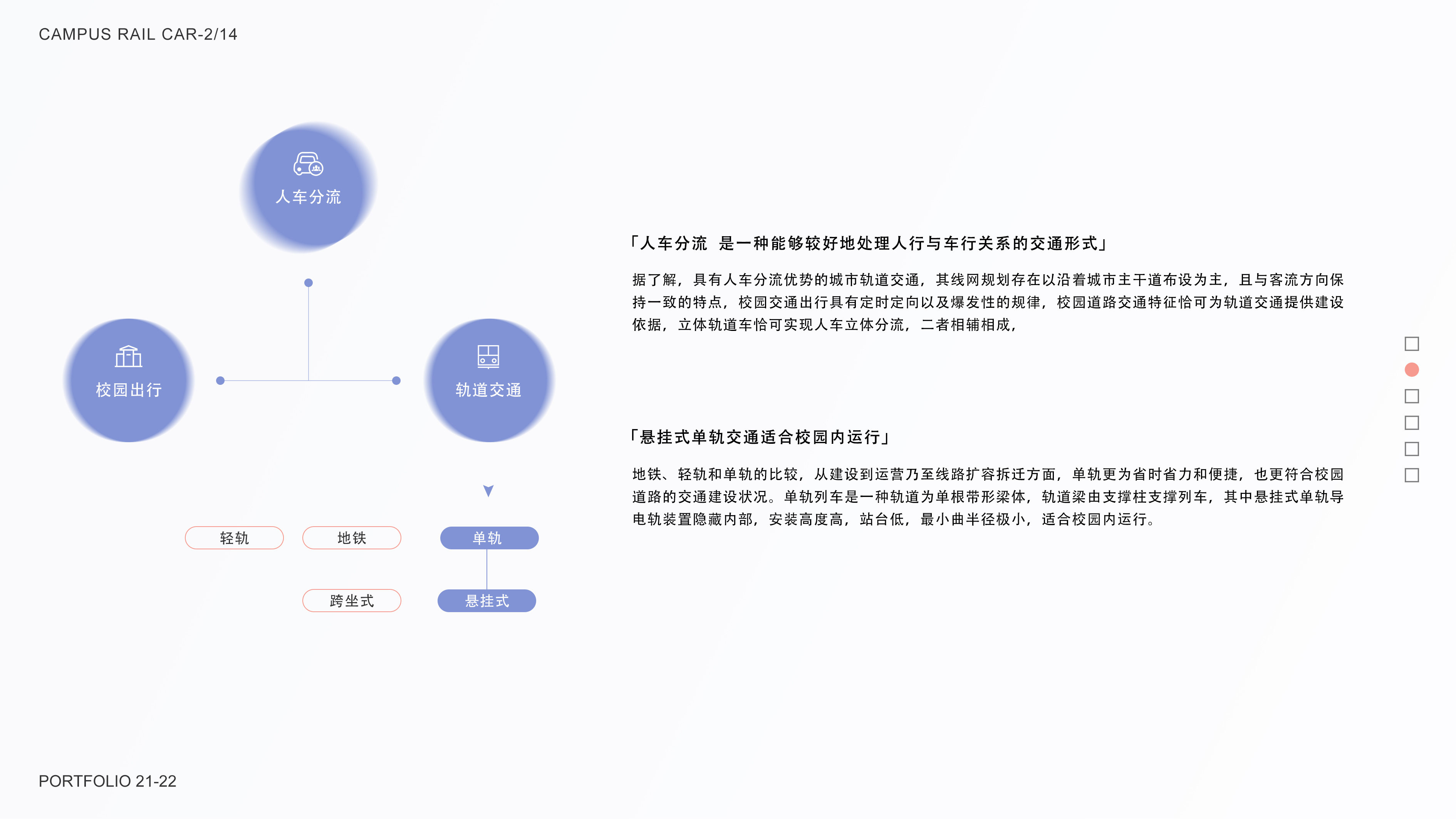

Cloud rail car is a new scheme provided on the means of transportation. The new design is used to solve the frequent traffic accidents on campus and the transportation problem of groups on campus. The suspended monorail train has the advantages of environment, transportation, economy, tourism, safety and friendliness. It is a potential travel mode and will open up a new situation in the construction of public transportation in the future.

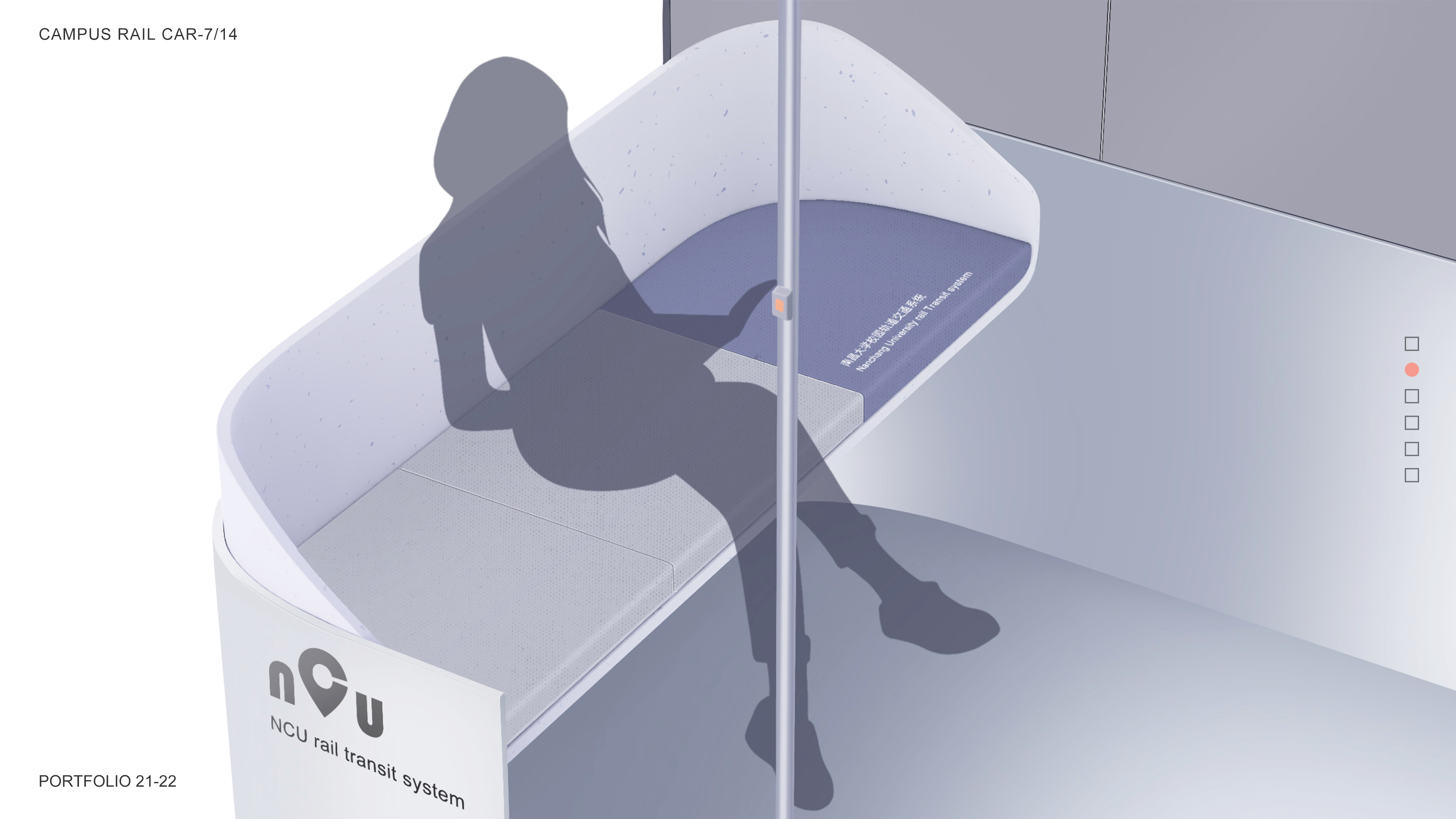

For teachers and students in the school, the roads in the school are not only the carriers of transportation, but also the places where they study and live. Different from most urban rail transit construction, teachers and students place more emphasis on the comfort, safety and artistry of campus rail transit. The design of cloud rail car is of positive significance to solve the vitality and atmosphere of the campus.

Diversion of people and vehicles，rail transit，Intellectualization，vehicle，Concept Car，campus，traffic，job wanted，

71 193

里脊 2024-05-07

This one can't move. Have you ever thought about how to put the link between the slide rail and the support column?

mmmmOwner 2024-05-27

Referring to the link mode of the suspended monorail system, the diagram does not show the specific structure mode in this aspect, which is indeed beyond the scope of my personal design ability.

Write a comment

李Ice帅 2022-11-03

I think the concept is quite good, but the safety issue must really be considered and stand up to scrutiny.

九橘 2022-10-15

At the stage of college class, the flow of people is carried out at the same time according to hundreds of thousands, even the capacity of campus buses may not be able to be ranked. it feels a bit suspended by this to realize the diversion of people and vehicles... if equipment is added, how can the strength of the track suspended in the air be guaranteed, whether the risk will be higher, and whether the site will occupy too much ground space feel are all problems

mmmmOwner 2022-10-15

I can see that you do have a serious understanding of this design, so I 'd like to add some minor problems. First of all, you mentioned that hundreds of thousands of people are active at the same time during the class stage. This is the biggest feature of campus travel. Its timing orientation and paroxysmal and explosive characteristics are one of the basis for putting forward track laying. The specific frequency can only be determined by trial operation according to the size of the campus and the number of students. However, at the root, the cloud rail car is not assigned to the students of the hundreds of thousands of activities like seats, but to the campus people who already need to travel by means of transportation. This is the biggest difference. The purpose of the design is to solve the traffic problems in the school by using people and vehicles that are not on the same plane. More importantly, it is to restore the stable and harmonious campus atmosphere. Therefore, the suspended monorail is selected on the type of rail vehicles. In recent years, my country's rail transit construction has achieved great success, and the suspended monorail has not yet been put into operation. As you said, we still need to introduce and develop relevant technologies to demonstrate the safety it carries, and even research and formulate relevant industry standards. However, the straddle monorail train network system that Chongqing has successfully trial operation can bring us a lot of practical experience. Similarly, the travel mode of suspended monorail transportation is also very potential. The campus is a cloud rail car. A new and challenging scene. Including this personal vehicle diversion transportation system, I don't think there will be only cloud rail cars, such as the freight demand of campus logistics, etc., which will naturally develop more intelligent transportation forms, and we also need to be more open. Look at it. Finally, you raised the problem of site occupation space. The site laying density must take into account the school space, road network structure and travel demand, as well as the problem of getting on and off the bus. The method here is that the track is U-shaped, so that the platform is on the ground, so the platform is actually just a positioning problem. It can be seen that you care more about the actual difficulties, and this design is indeed to be solved in the later stage, but it cannot be denied that this direction is wrong ~🌹🌹🌹

董振 2022-10-25

The author's thinking is very careful

北海 2022-10-11

Then you can't design a model alone. This is a very systematic problem. A model alone can be changed by anyone online.

mmmmOwner 2022-10-11

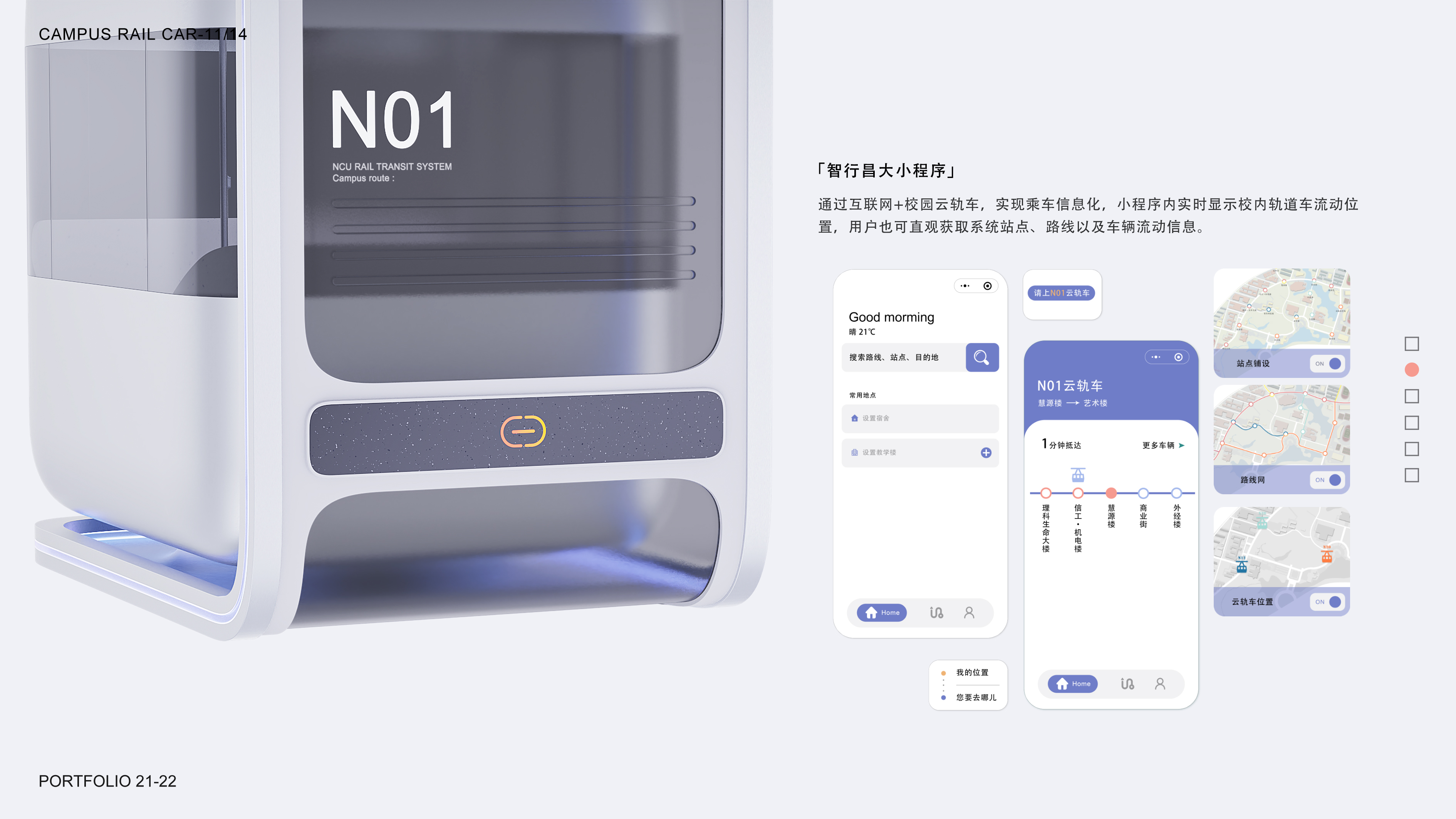

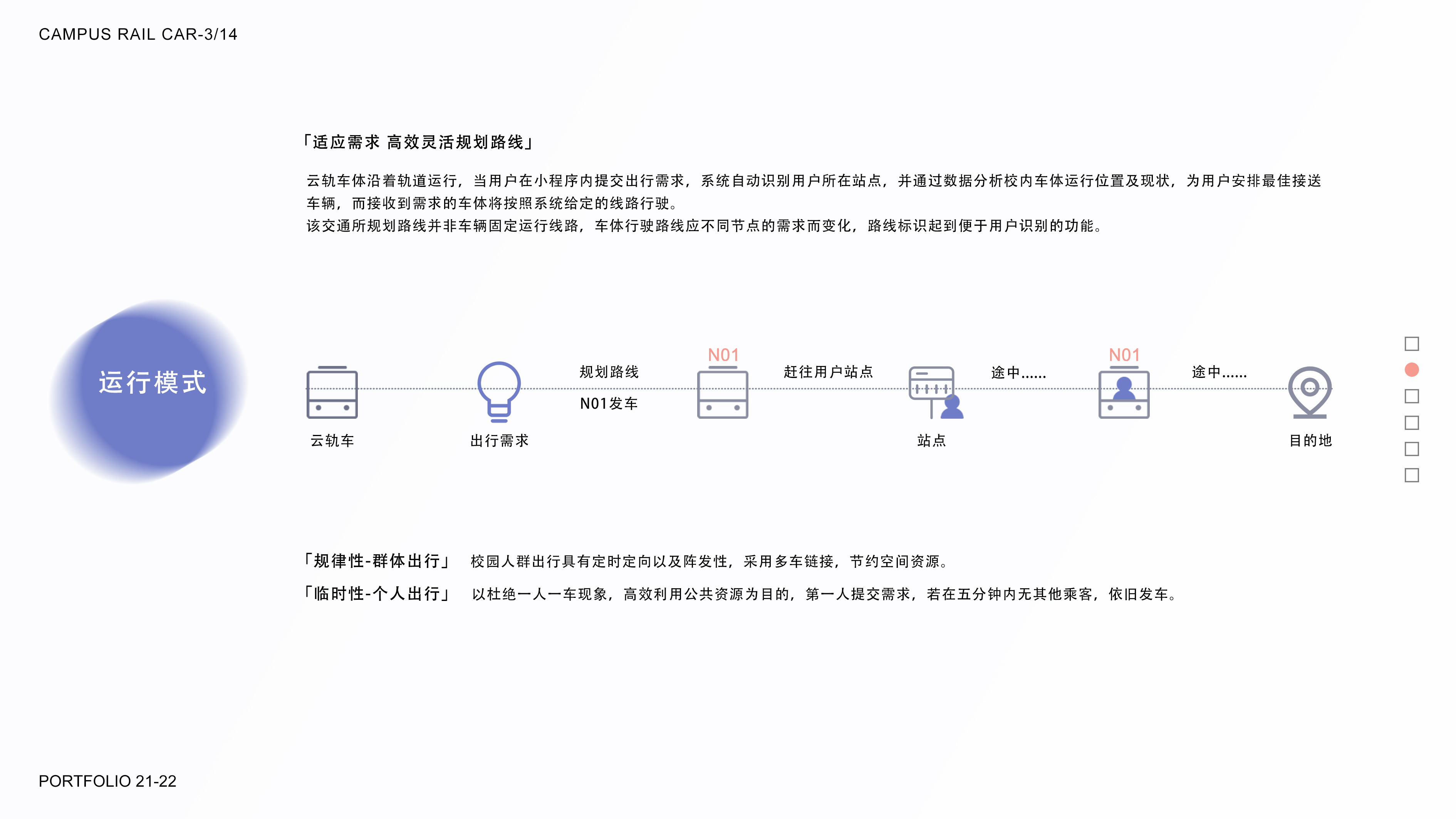

Yes, you are right. The complete project is based on the spatial layout of the school and the type of road network structure, and proposes optimization countermeasures to plan the site and route network. It also includes supporting infrastructure (platform) and software applet design. It is a complete set of intelligent rail transit system design. This only shows the design of cloud rail car in the traffic plan of the separation of people and vehicles, and emphasizes the concept of general direction ~

卢潇 2022-10-12

Can this be sprayed?

北海 2022-10-12

I wish you happiness.

mmmmOwner 2022-10-12

Thank you very much for speaking for the work.🌹🌹The suggestion put forward by this colleague is pertinent (I think this is a system design, not limited to the appearance). I also gave a positive explanation. I welcome all my friends to put forward their own opinions and opinions ~
