Appearance Design of Air Purifier

2021-01-13 Home Appliance 8797 42 51

CCM-CCM2

China · Other Industries

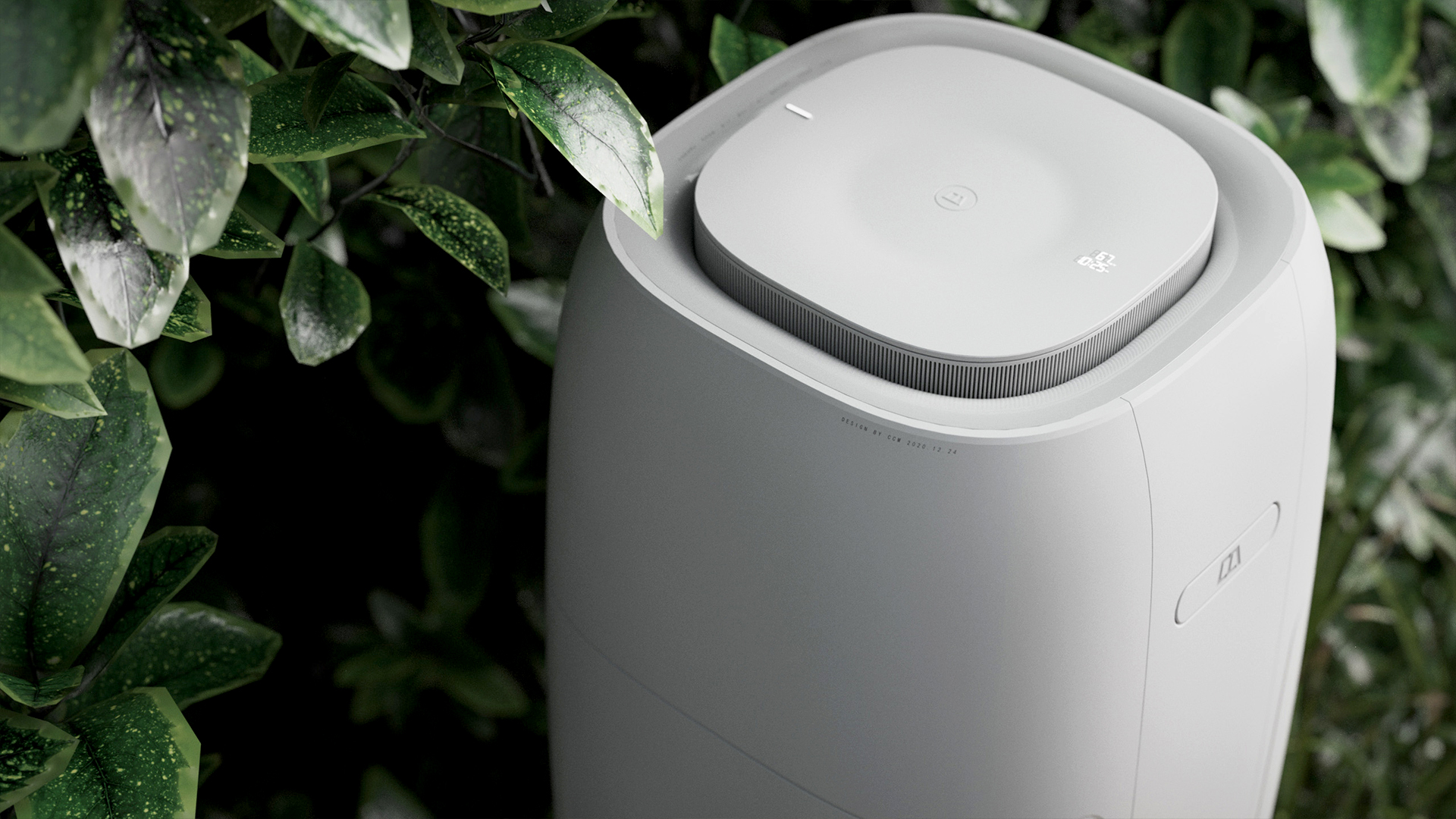

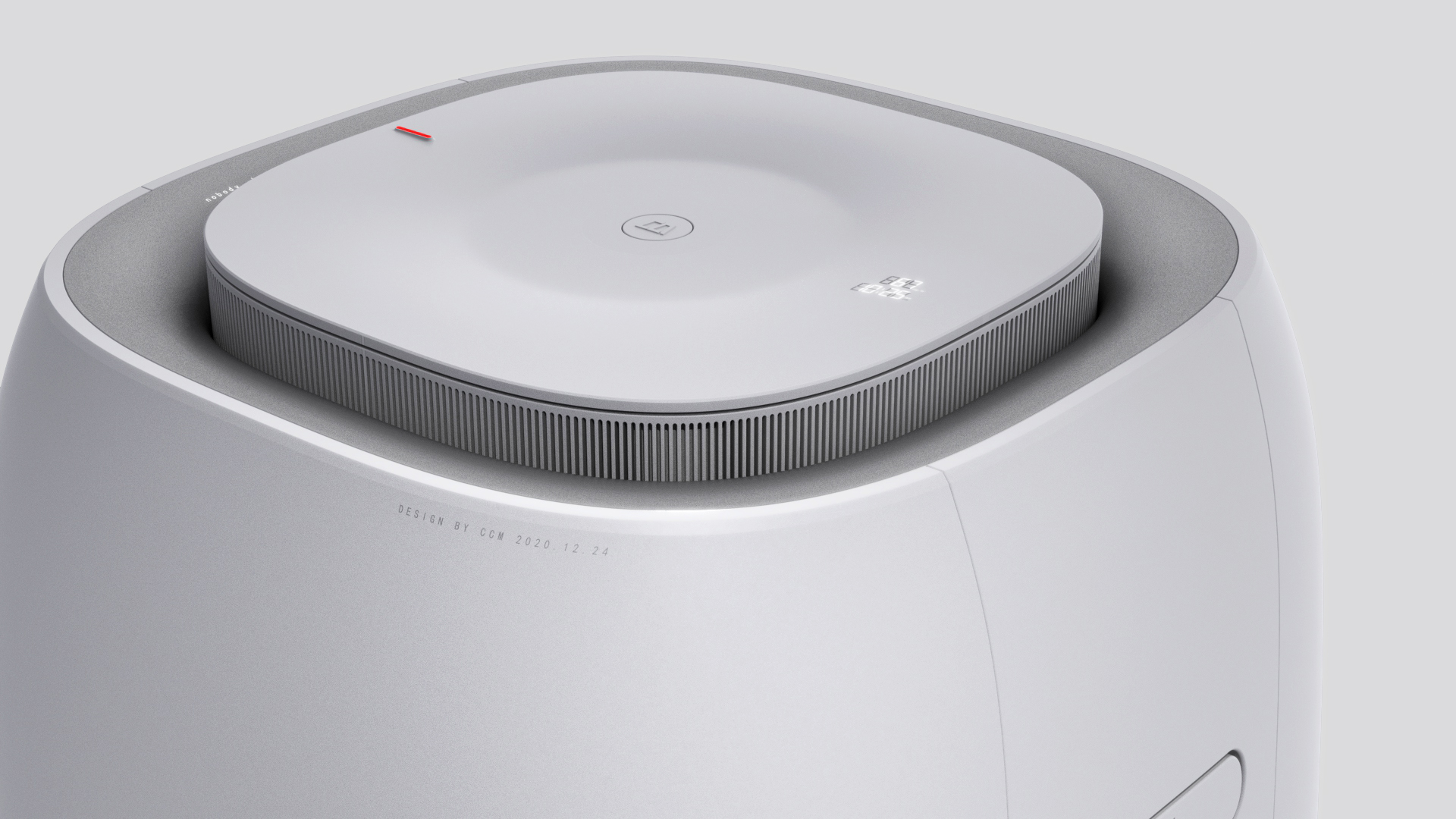

A little exercise (design modeling rendering) that I spent two days at home when I was sick.

51 175

Comment

Comment Board （42）

Korol 2022-01-10

Big Brother, is this sub-surface graininess a map of noise?

CCM-CCM2Owner 2022-01-11

Yes, the noise map in the keyshot

Write a comment

185****5105 2022-01-07

Rich in detail

百慕大 2021-08-12

That's great.

设计0011999 2021-06-04

Big Brother Sees Model

设计0011999 2021-06-04

As long as the plant will do

CCM-CCM2Owner 2021-06-08

There is something similar on the 3D skate net, that is, one cluster after another, and then you have to build it yourself.

Write a comment

sususu 2021-05-27

Is the plant shaded or p

CCM-CCM2Owner 2021-05-29

Shaded

Write a comment

如花 2021-03-29

Great

Letme 2021-01-22

Lying down can produce such good works, big brother.

Pluto. 2021-01-14

Look at other people. I have been ill for two days and have done the whole design praise

CCM-CCM2Owner 2021-01-14

It was really boring to lie at home for a month.

Write a comment

789_10 2021-01-14

Where did you find the model of this plant? Can you send a link?

CCM-CCM2Owner 2021-01-14

Baidu ah, a lot

Write a comment

blank-leaving 2021-01-14

The rendering is OK

CCM-CCM2Owner 2021-01-14

Thank you

Write a comment

纶羽风 2021-01-14

Teach children how to render this delicate and realistic operation,

CCM-CCM2Owner 2021-01-14

Find materials, maps, plant models, and then build your own scene and light it up.

纶羽风 2021-01-14

Is it C4D or keyshot?

CCM-CCM2Owner 2021-01-14

keyshot

Write a comment

鱼行老板 2021-01-13

There are too few air inlet holes

CCM-CCM2Owner 2021-01-13

This... How much should it be normal? Is there any production standard?

blank-leaving 2021-01-14

There are indeed fewer air inlets, and the actual air inlet area is twice as large as the current one.

鱼行老板 2021-01-14

You can see by looking at the area of the empty and clean air inlet holes on the market. You need to correspond to the area of the internal filter screen. Your design should be a straight plate filter screen with air inlet holes on both sides. If it is a cylindrical filter screen, you need air inlet on three sides or even four sides.

CCM-CCM2Owner 2021-01-14

Do cylindrical ones have to have three or four sides? Because I wanted to be cylindrical at the beginning, I want to ask

鱼行老板 2021-01-15

Yes, otherwise the air inlet area is not enough. For example, if there are only two sides of the air inlet, the cylindrical filter screen will only absorb dust in two directions, and the relative utilization rate of the other two sides without air inlet is not high.

CCM-CCM2Owner 2021-01-15

Okay, thank you

Write a comment

LyuZ 2021-01-13

Cool

正义不会迟到，键盘永不缺席😋 2021-01-13

Excuse me, big brother, did you build and render this air purifier design scene in two days? This efficiency is a bit too wide of the mark....

CCM-CCM2Owner 2021-01-13

No, it took three days altogether. I did it myself. I didn't have a director anyway. I wrote a draft.

正义不会迟到，键盘永不缺席😋 2021-01-13

This is a must for leeks, which can meet the requirements of only one designer for a design company.

CCM-CCM2Owner 2021-01-13

In order to earn a higher salary in the future, I must learn more. my salary is still on the line of food and clothing

正义不会迟到，键盘永不缺席😋 2021-01-13

I am a group friend ha ha ha, in fact, at first I questioned the efficiency of your set in two days. I thought it was fake. it seems that the bosses are real (dog head life-saving)

ZOOE.Venko 2021-01-13

I can't render this picture on my computer for two days. I worship the bosses.

Write a comment

樱桃mojito 2021-01-13

Is that piece not pasted properly and still shaded?

CCM-CCM2Owner 2021-01-13

No, I did it on purpose, because the actual production process should be reverse silk screen printing, and the surface itself is translucent.

海上生明月古 2021-01-13

It can be made all white directly, and the digital display part can be made thin, that is, the edges will be burnt.

CCM-CCM2Owner 2021-01-13

Oh, oh, but will it be easy to break if it is partially thin? It's purely curious, and I don't know much about structure and production.

blank-leaving 2021-01-14

Can be realized by laser engraving, not thin
