Because of laziness, no new works have appeared in the recent quarter, and there are a lot of ideas in my mind, so I just don't want to do it.
I think, Puxiang.com such a noble and elegant design website, should not only allow the existence of traditional industrial design, but also ignore some interesting "devices".
Then stir-fry the cold rice.
In fact, I uploaded this late-night killing device a few years ago, called Bit Worm, but only a few renderings were uploaded, and I did not mention the most core production process, structural design, leather goods production and programming design. It was a little regrettable. Therefore, I sorted out the previous graphic files all night (unfortunately some data were missing) and sent out a new copy of this killing device. In retrospect, it was a "device" created at the end of the month with three friends who spent four monthly living expenses during their sophomore year. It is also called a "device" that lost everything. Just on the laser cutting of wood, it cost a lot of money. The money consumed is not so painful. More importantly, the hair dropped is countless.

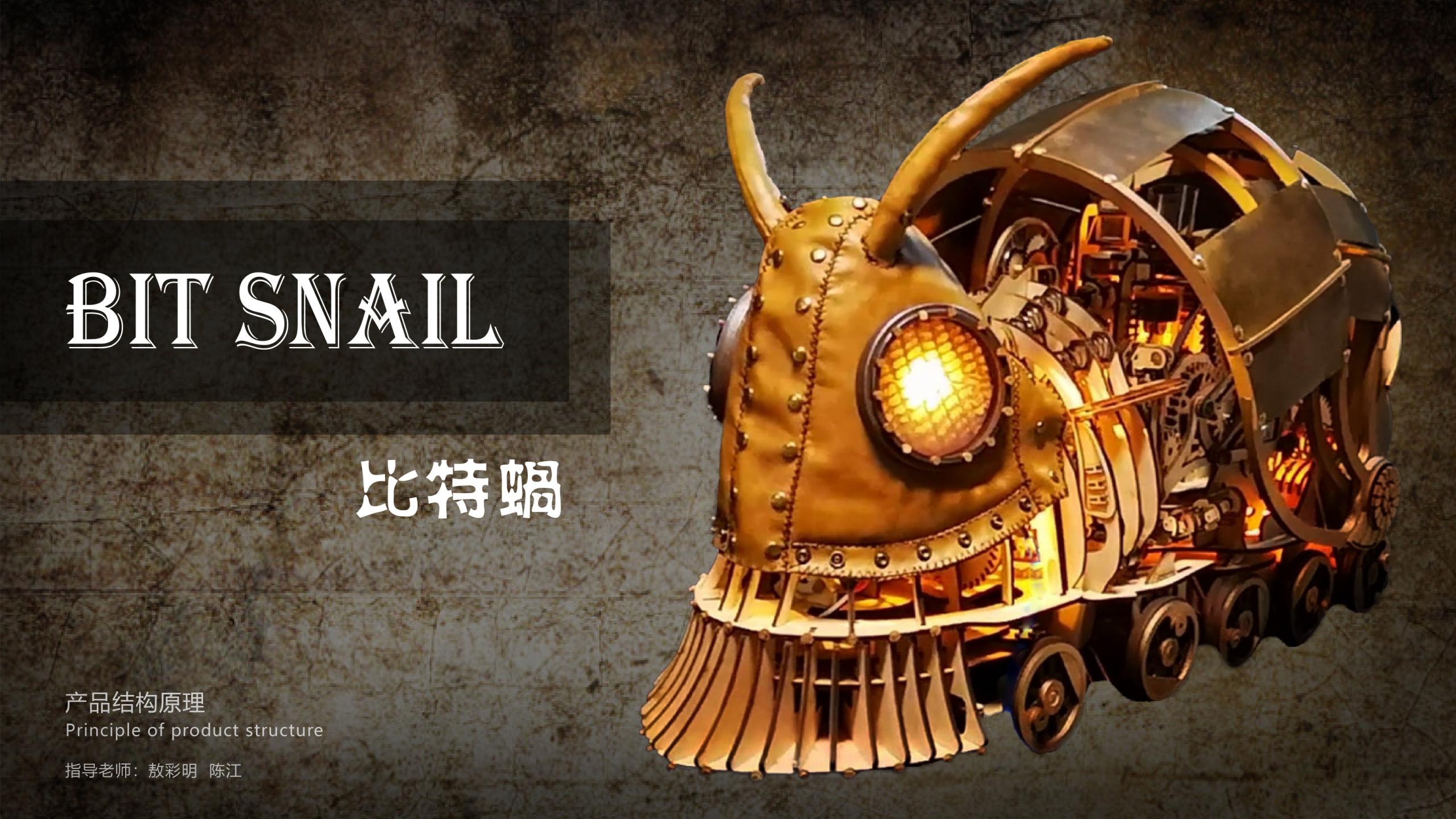

Bitpan: Steampunk is a creative point that will never go out of date. Trains and steam engines are typical objects of steampunk creation, while snails have a sensitive self-defense mechanism against the outside world. The organic collision of these three gave birth to the mysterious time train one bit worm. Retro masks, forward wheels, hollowed-out shells that can be opened and closed, sophisticated steam kingdom
Look, there are still small robots living here. Let's find out from the hollow shell (note that this passage was written by the female student bully in our group, not me)......

Little bit's domineering cover is still vivid.

Four people, four thick hair, began a cranky plan.

All punk steam elements are worth learning.

In the early days, there were a lot of references about the steam wheel transmission structure of the steam train and the power transmission mechanism of the transmission belt. However, as a small white, we can only understand one and do not know the other.

In addition to the traditional steampunk modeling, I also consulted the bionic punk modeling. In a word, I need to stand on the shoulders of giants and bring forth the new.

The texture of industrial punk is often irreplaceable and attractive. In the early stage, there was a worry: can the splicing forms such as wood and laser cutting present the punk texture we want??

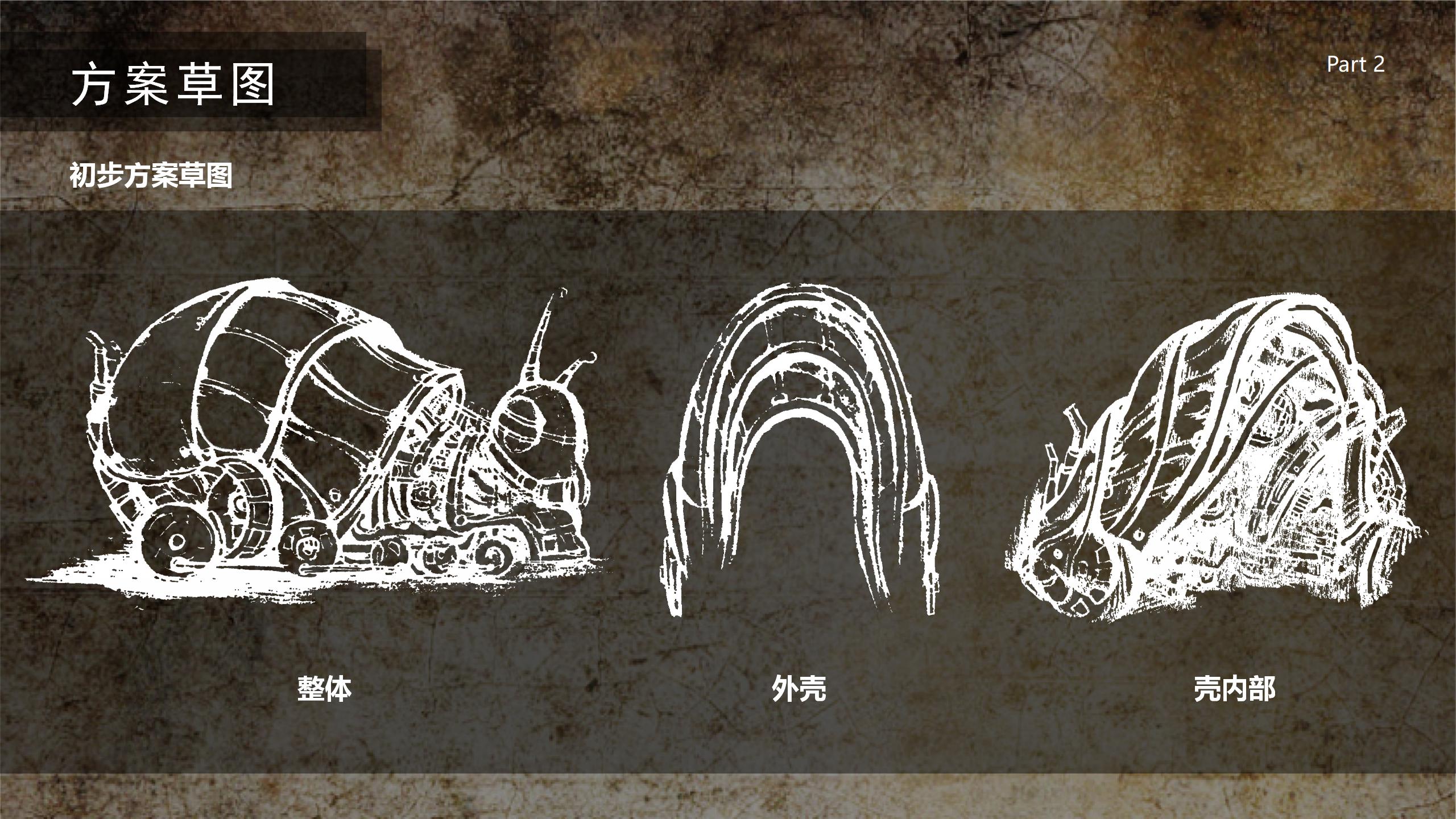

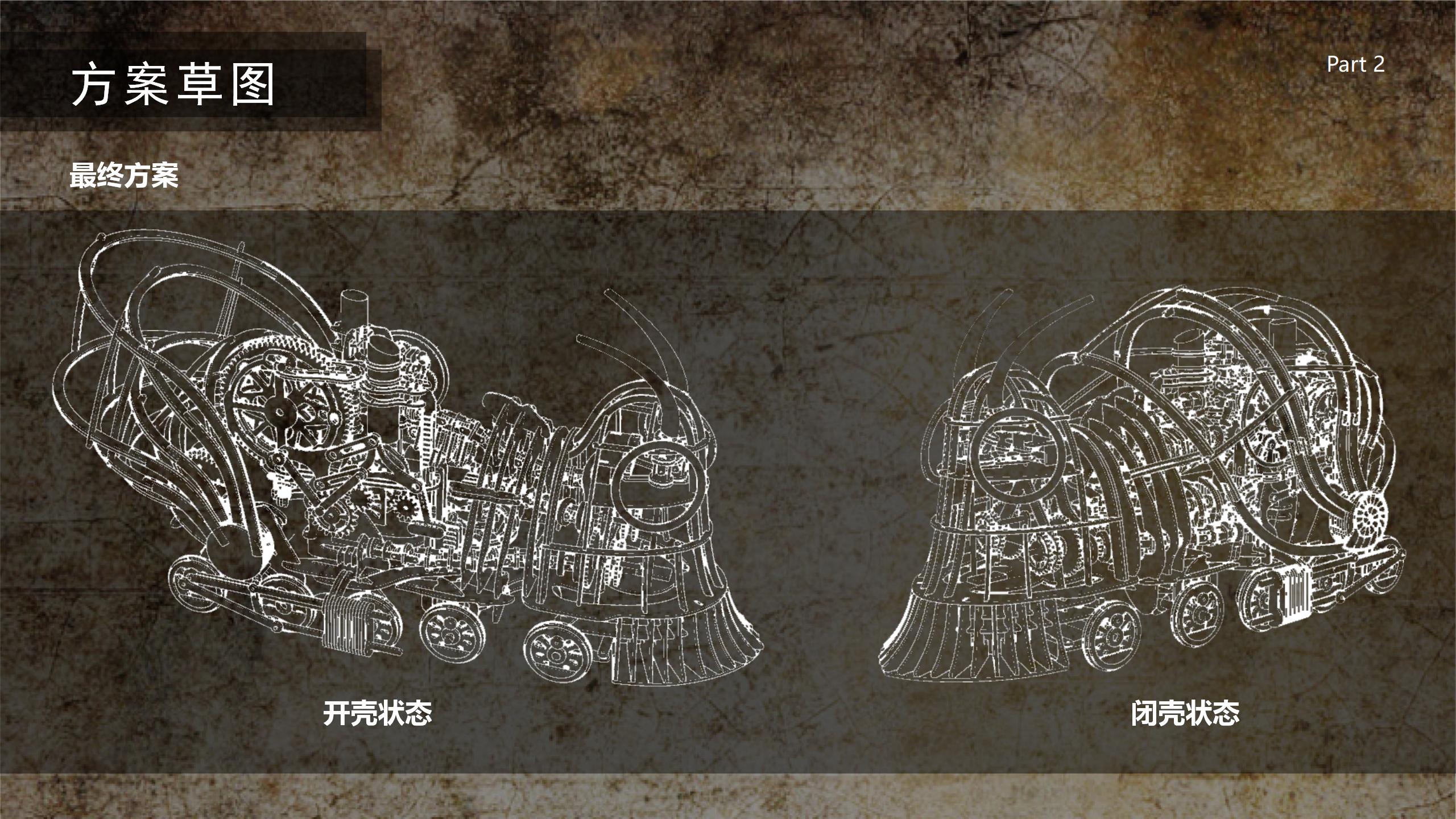

I started the first round of modeling ideas. The night I exported this picture, I grabbed about 100 hairs.

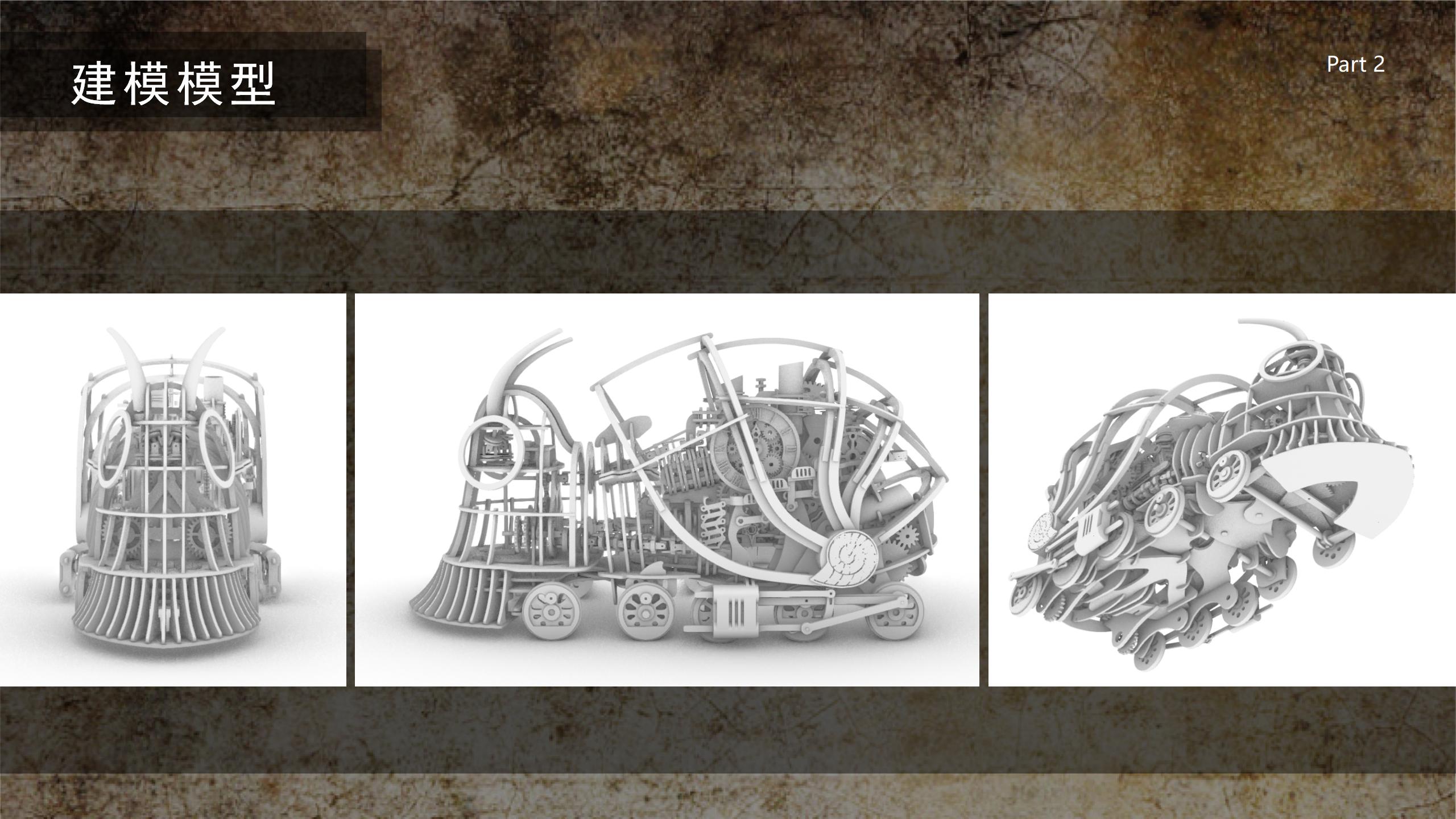

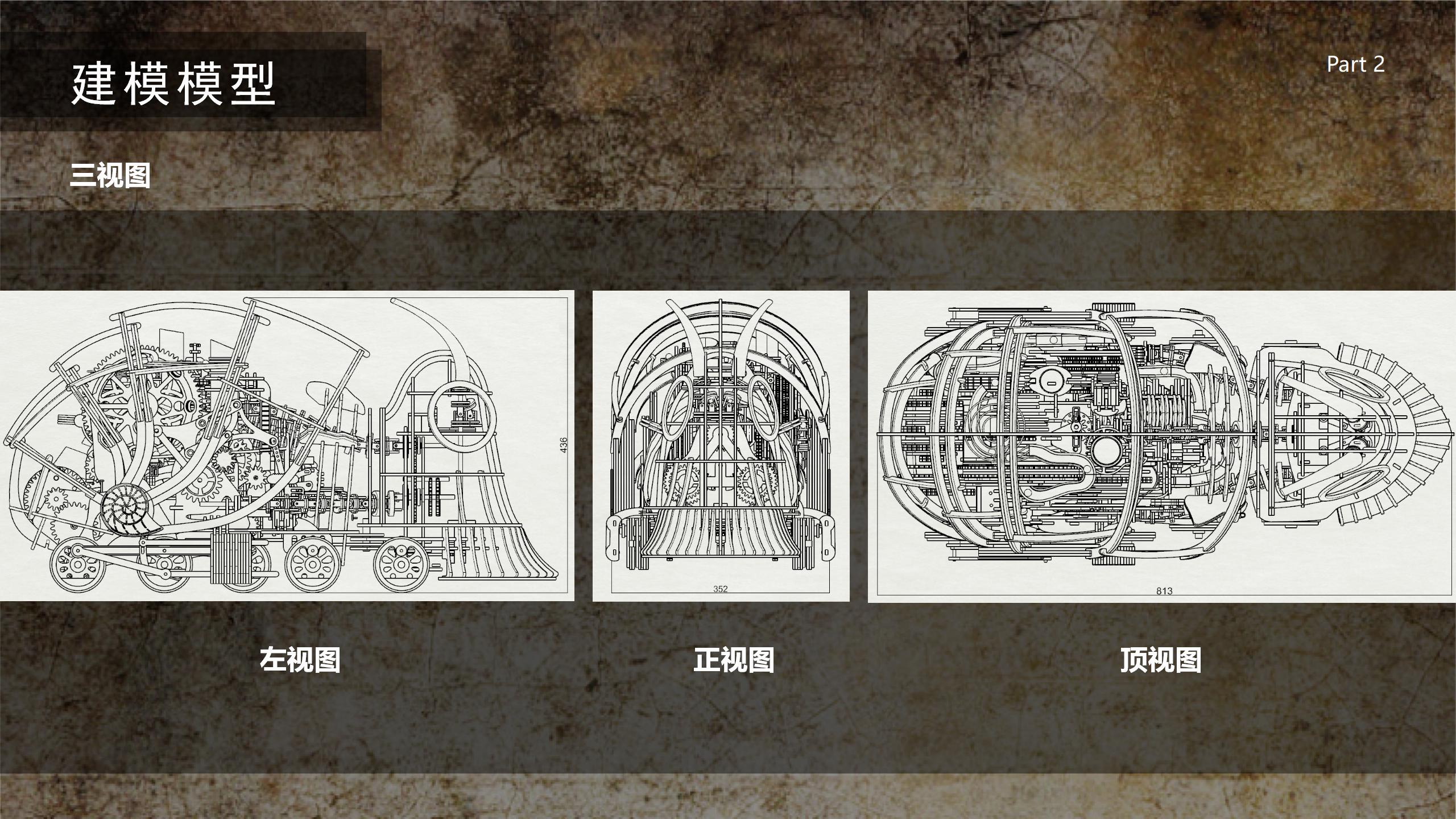

Next, it took more than half a month to carry out the 3-dimensional modeling of the device. The software used was Rhino. All the gear transmission mechanisms of the device were carried out on the computer and the overall external frame and shape were maintained under the condition of ensuring the operation of the gear structure. To be honest, at that time, the sawtooth ratio data between gears was difficult to grasp. If the two gears were close to each other, then both of them may not rotate. If the gap between the two gears is too wide, it may cause problems such as loss of transmission power. It is limited to online modeling and it is difficult to determine the most suitable distance. Next, there are one actual physical test after another.... Funds start to burn

At that time, the rhinoceros file of a complete model could occupy nearly 800M, which was enough to go to the toilet once when opening the rhinoceros. It was still the large size. When modeling, the frame of the picture card was serious, the basic mouse was moving, and the mouse arrow in the picture was moving in a freeze-frame manner (it is conceivable how important it is for the designer to have a high-configuration computer).

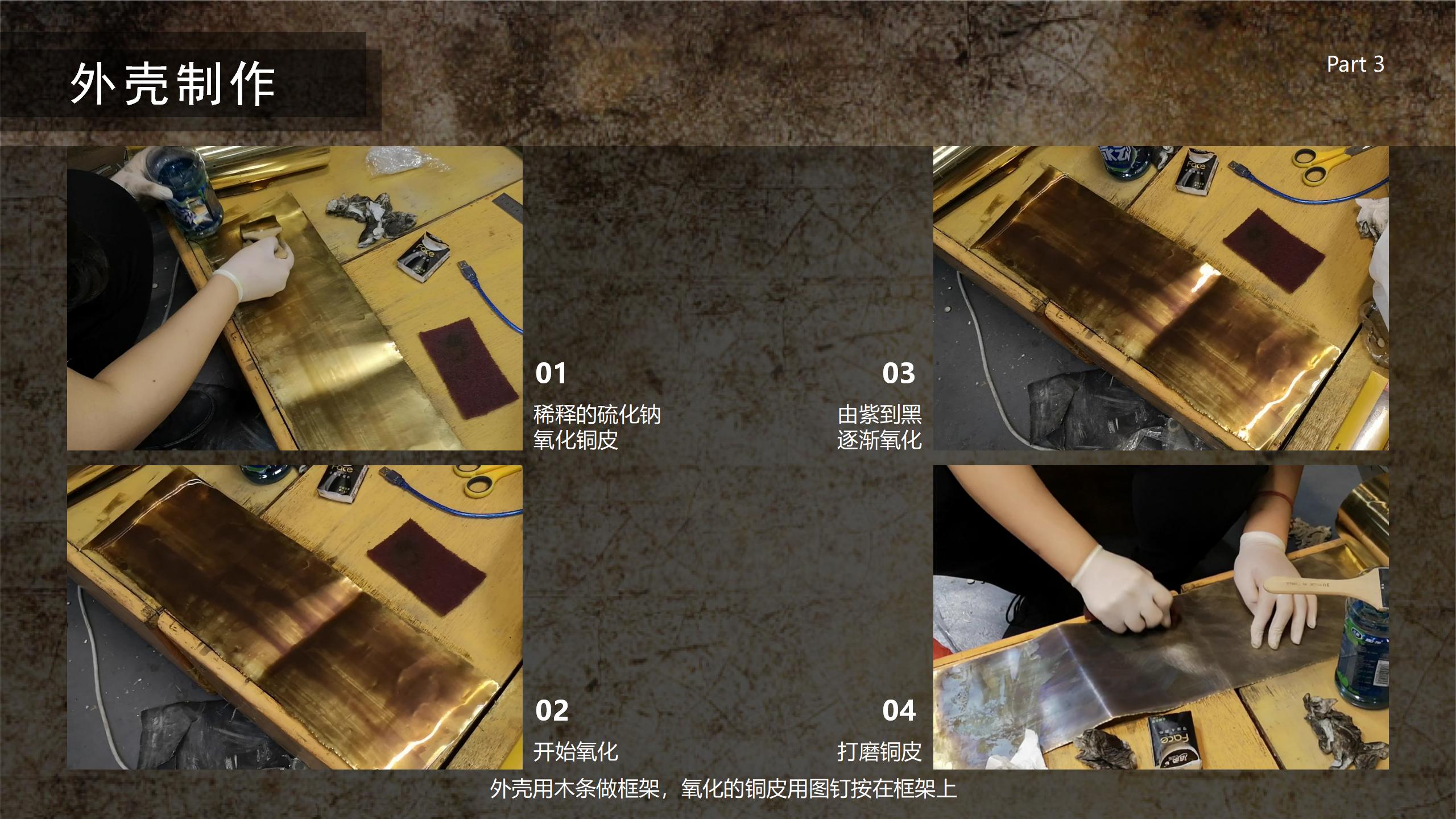

The metal copper sheet of the outer frame of the bit worm, explain why the copper sheet is selected here. First of all, the copper substance itself has a certain punk vision, and is easy to react with external substances. It is easy to make a real vision with industrial punk texture by hand (it is also cheap to buy). Then, through some special chemical solutions, the whole copper sheet is aged and wiped on the copper sheet with physical tools, form the corresponding punk texture.

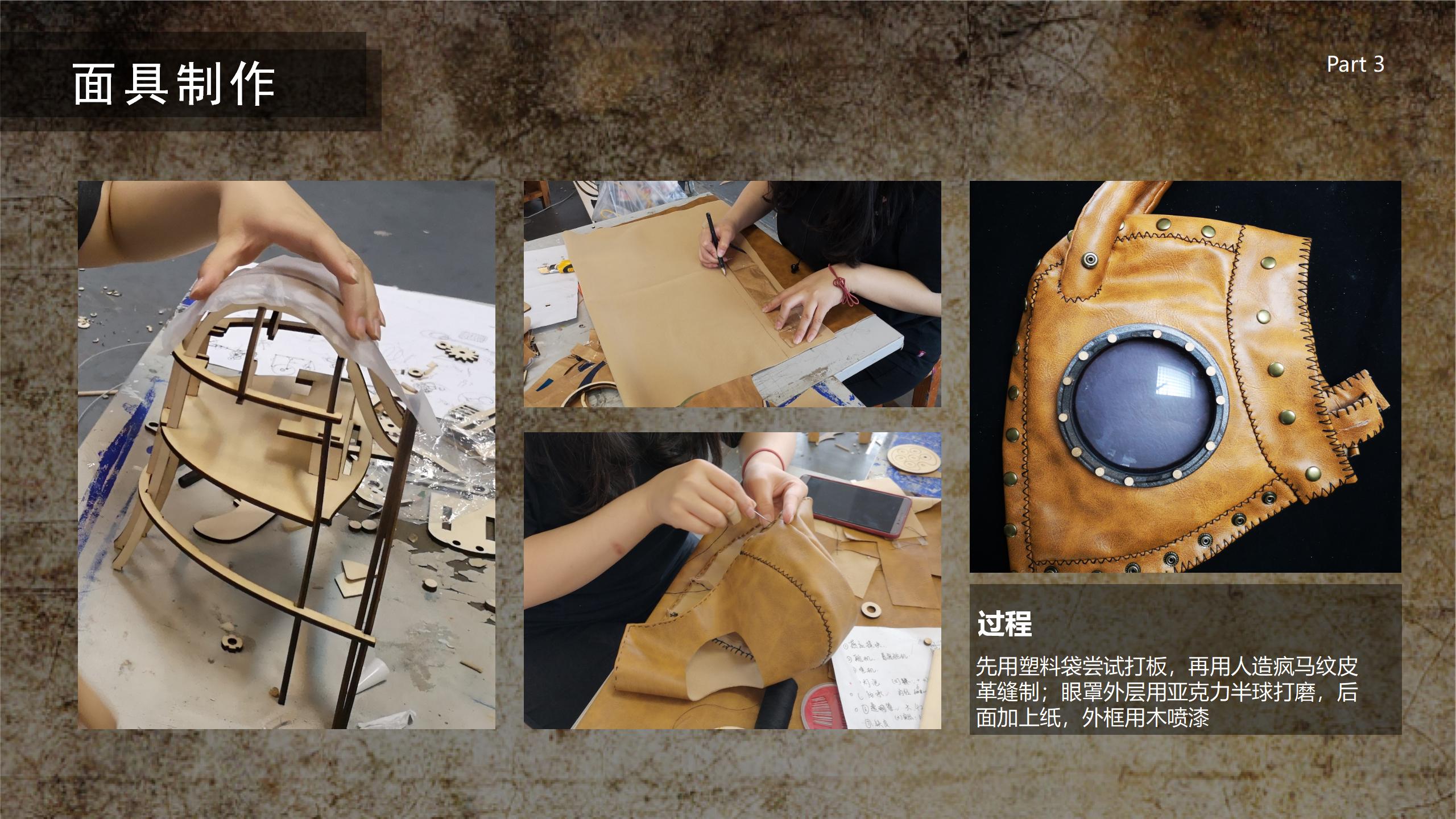

The following is a very meaningful headgear design. Is it somewhat like a Kamen Rider? The design and production of the headgear are completed by the female student bully in the team. The eye part is made of a round frame cut from wood as the eye socket, and concave and convex details are added to the frame to show a doomsday punk vision. The eyes are made of transparent arc plastic and cut by hand. Take a closer look, in fact, we have designed bionic compound eyes inside the eyes. Whenever the light is on, the texture of the compound eyes is gradually displayed. The manufacturing method here is to pad a pvc transparent paper with a transmittance of 65% on the inner layer of the transparent arc-shaped plastic shell, and then pad a heterogeneous paper with compound eye texture on the back of the transparent paper to form a compound eye effect and play a finishing role.

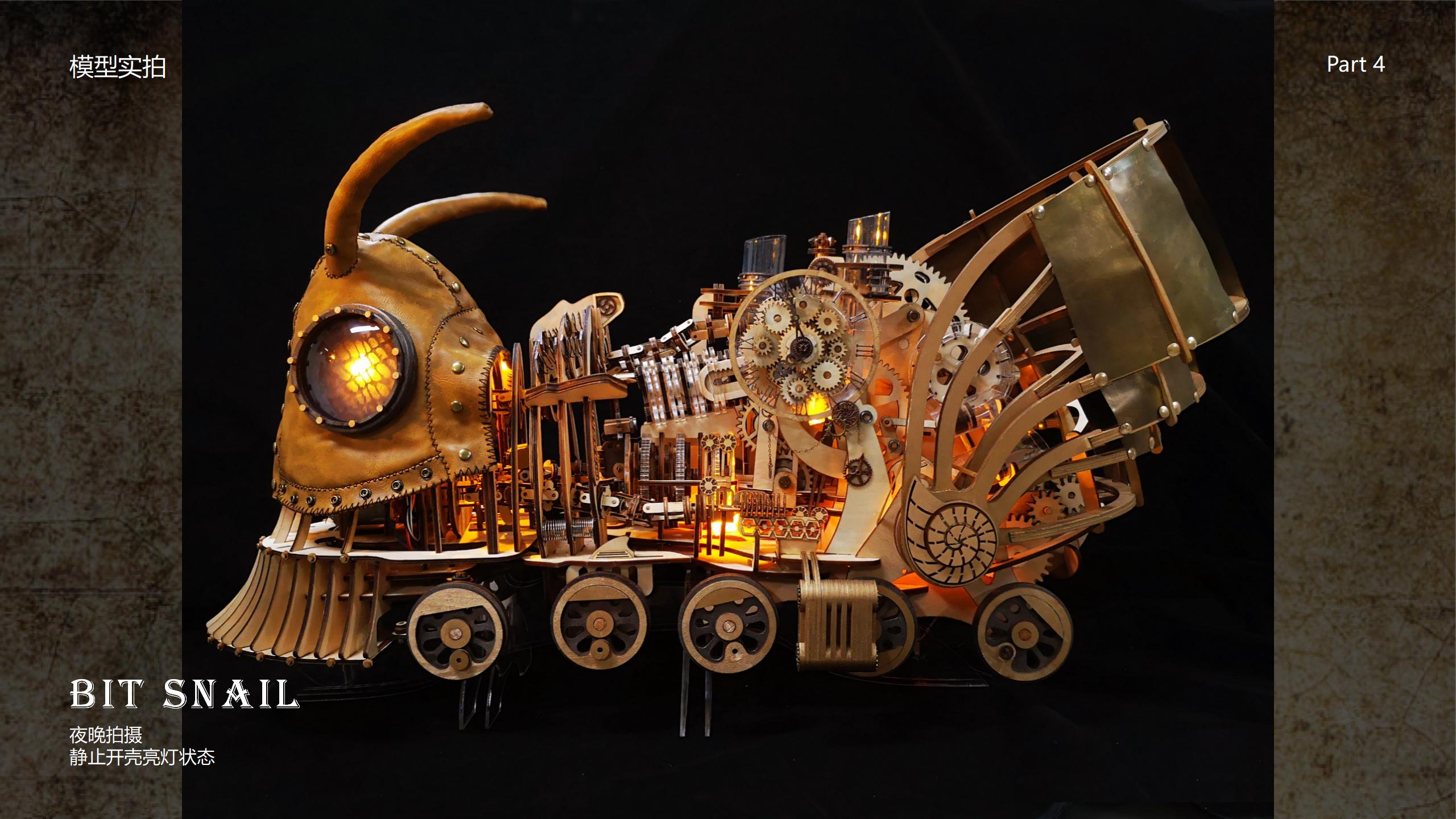

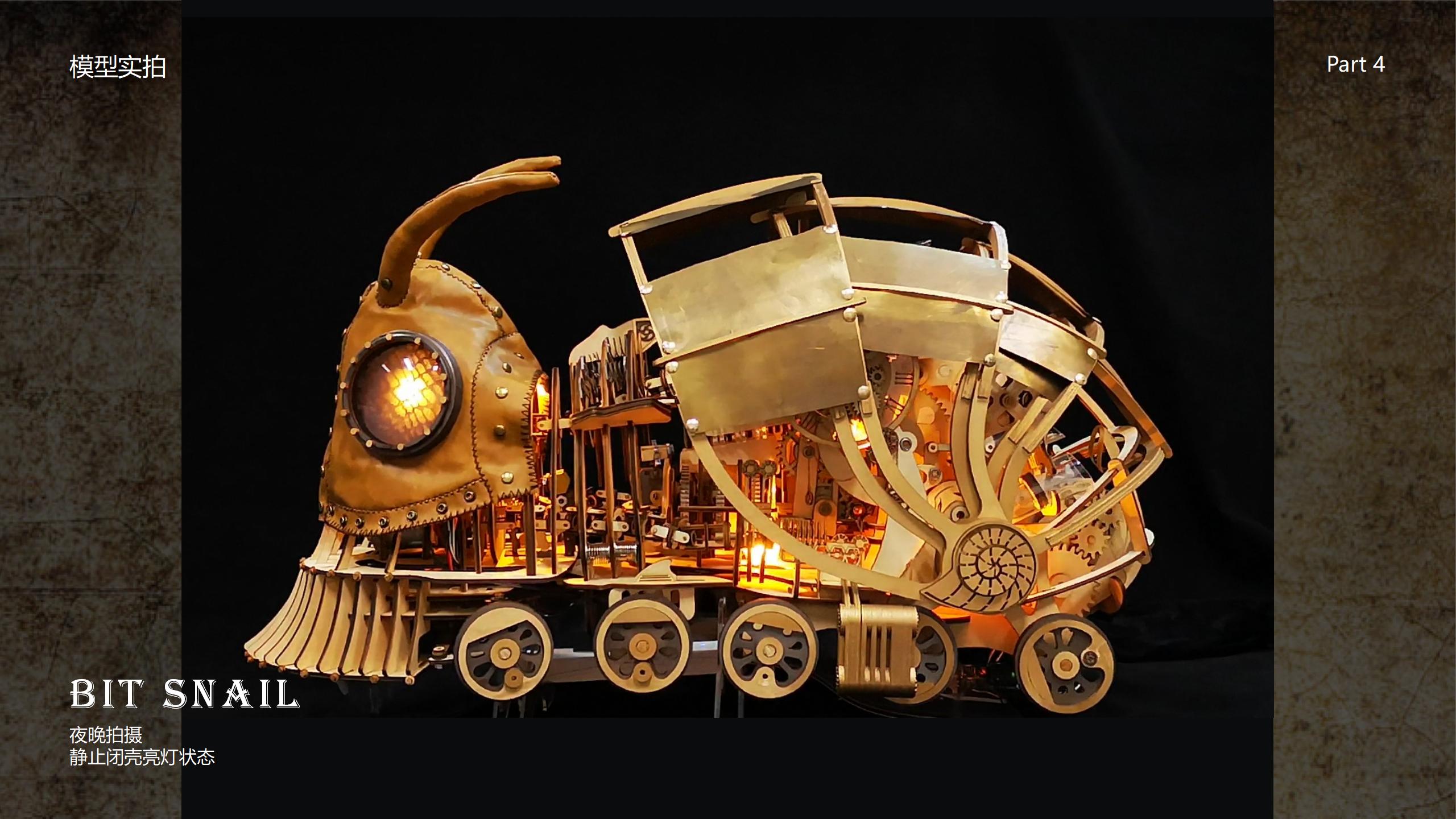

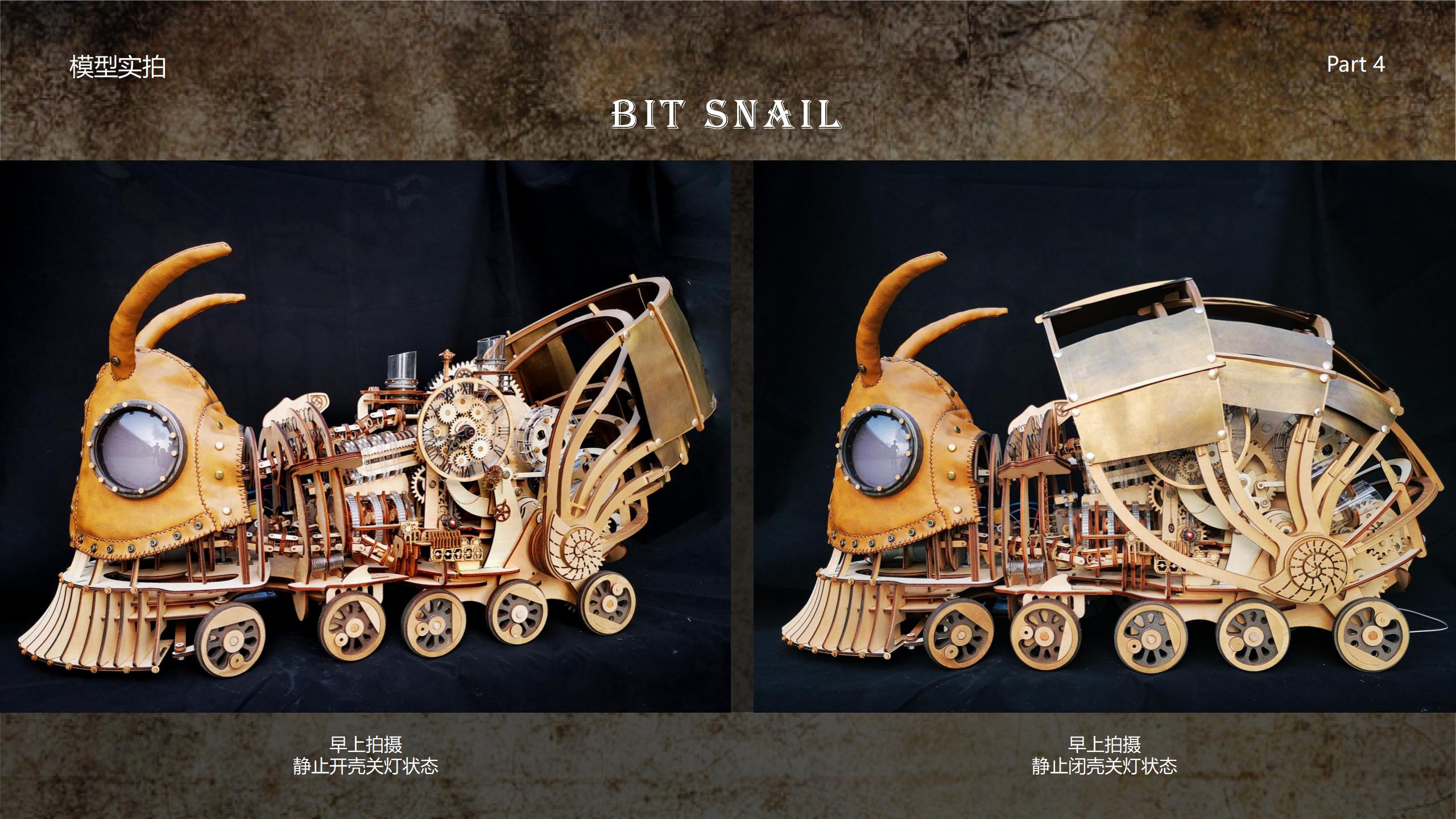

The following are several transformation forms of the bit worm. Here is a mouth. The snail's open and closed shell structure uses a layered splicing structure. The device used is a transmission motor and a programming chip. Through programming on the chip, The rotation power and rotation time of the motor are designed, and gears are matched. Through the transmission ratio of the gears, the torque of the motor is increased to complete a series of actions of opening and closing the shell.

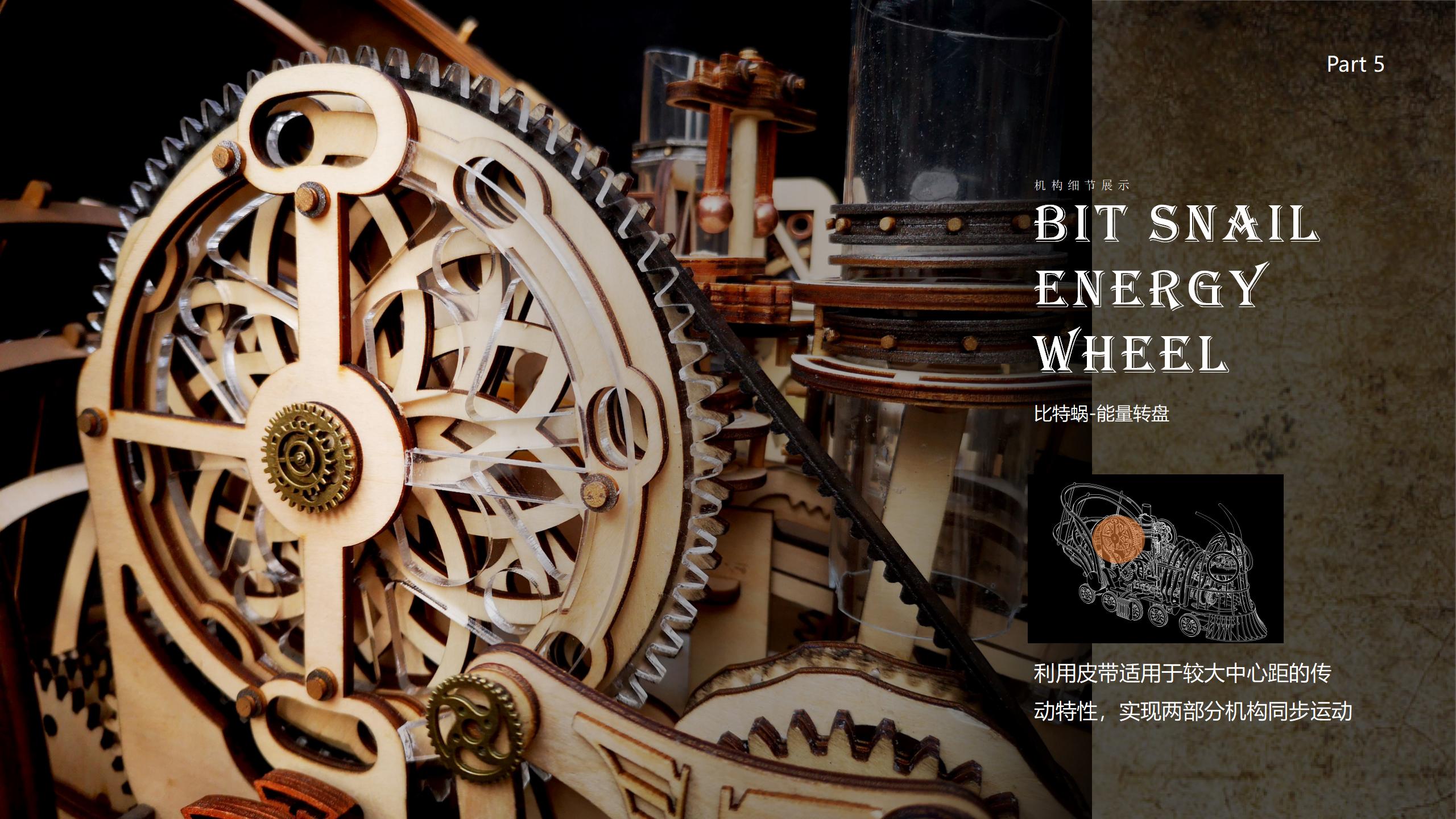

The transmission structure of the bit worm has a huge female gear, which transmits power to all mechanisms of the entire bit worm in the form of a belt drive to realize the simultaneous operation of the multi-part gear mechanism.

The above structure refers to the wind-moving beast leg structure, and the shape is optimized and upgraded. With the movement structure of the crank connecting rod, the vertical lifting effect of the arm is realized.

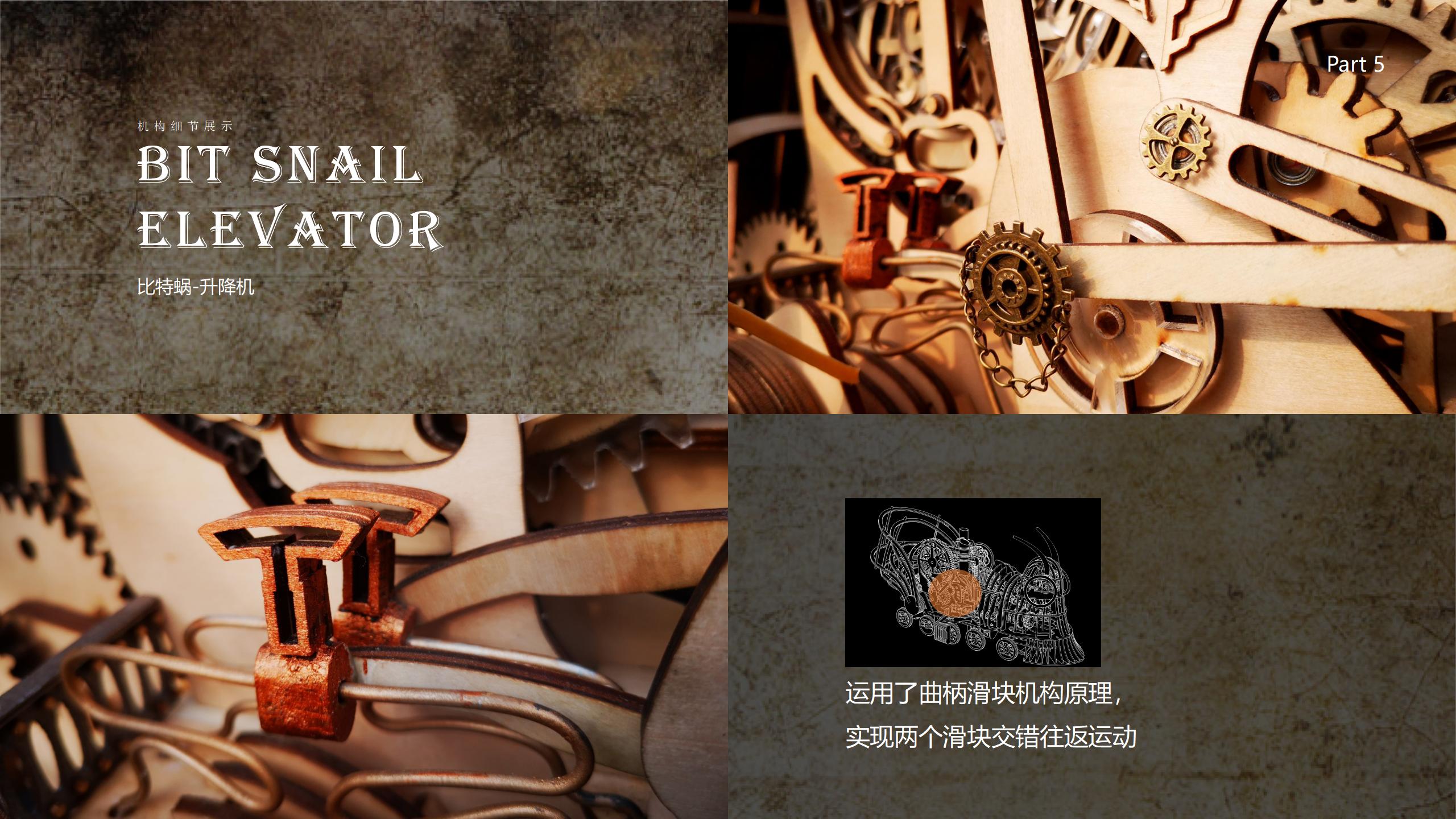

The transmission structure of the crank slider is also a very good transmission structure.

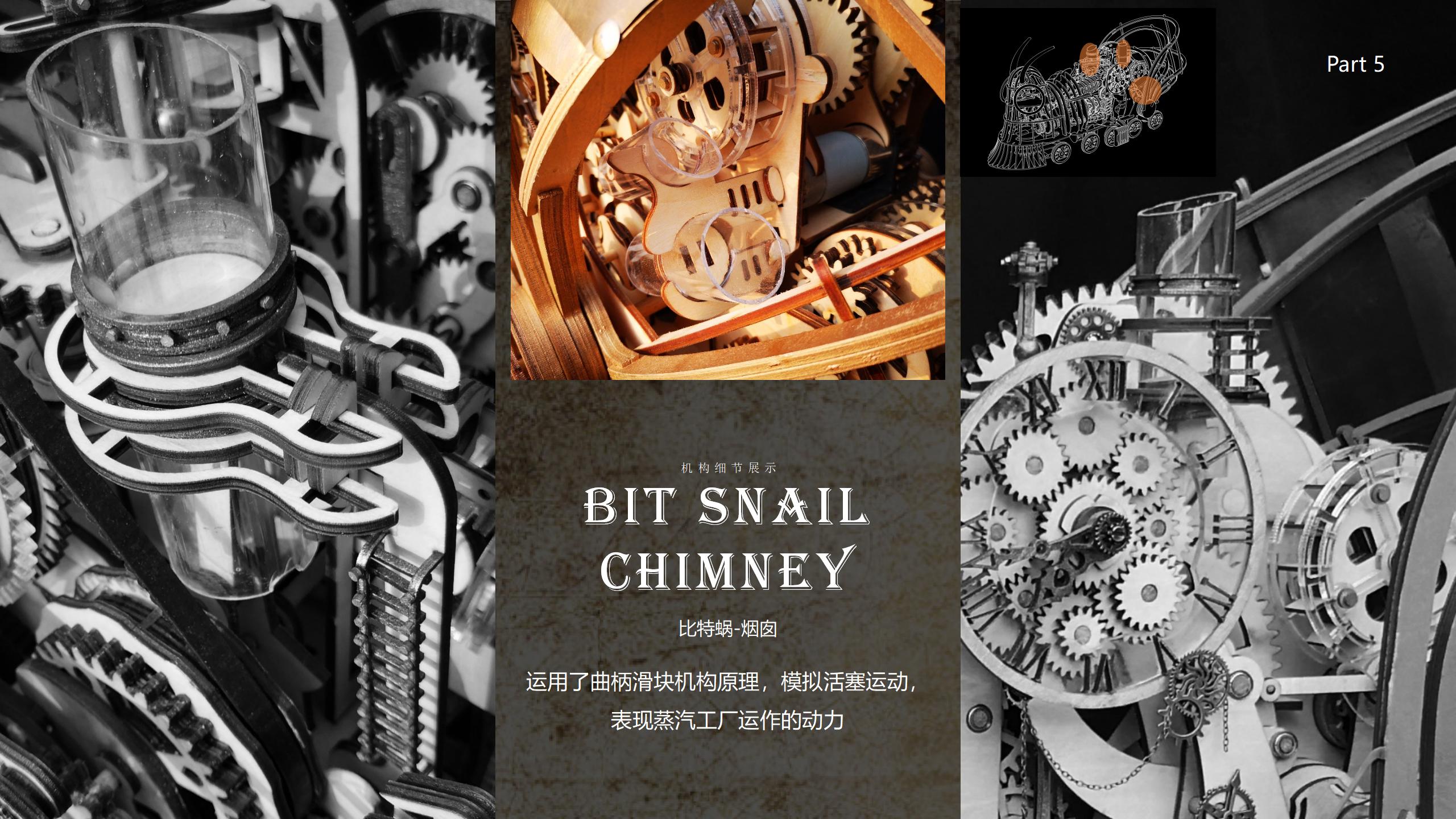

Through the evolution of the spark piston structure, the operating structure of the inner cylinder engine is added to the bit worm, and the visual effect of the inner cylinder engine providing continuous power for it is presented. The material here is an acrylic round tube as the piston movement The container can observe the actual piston transmission effect more intuitively and visually.

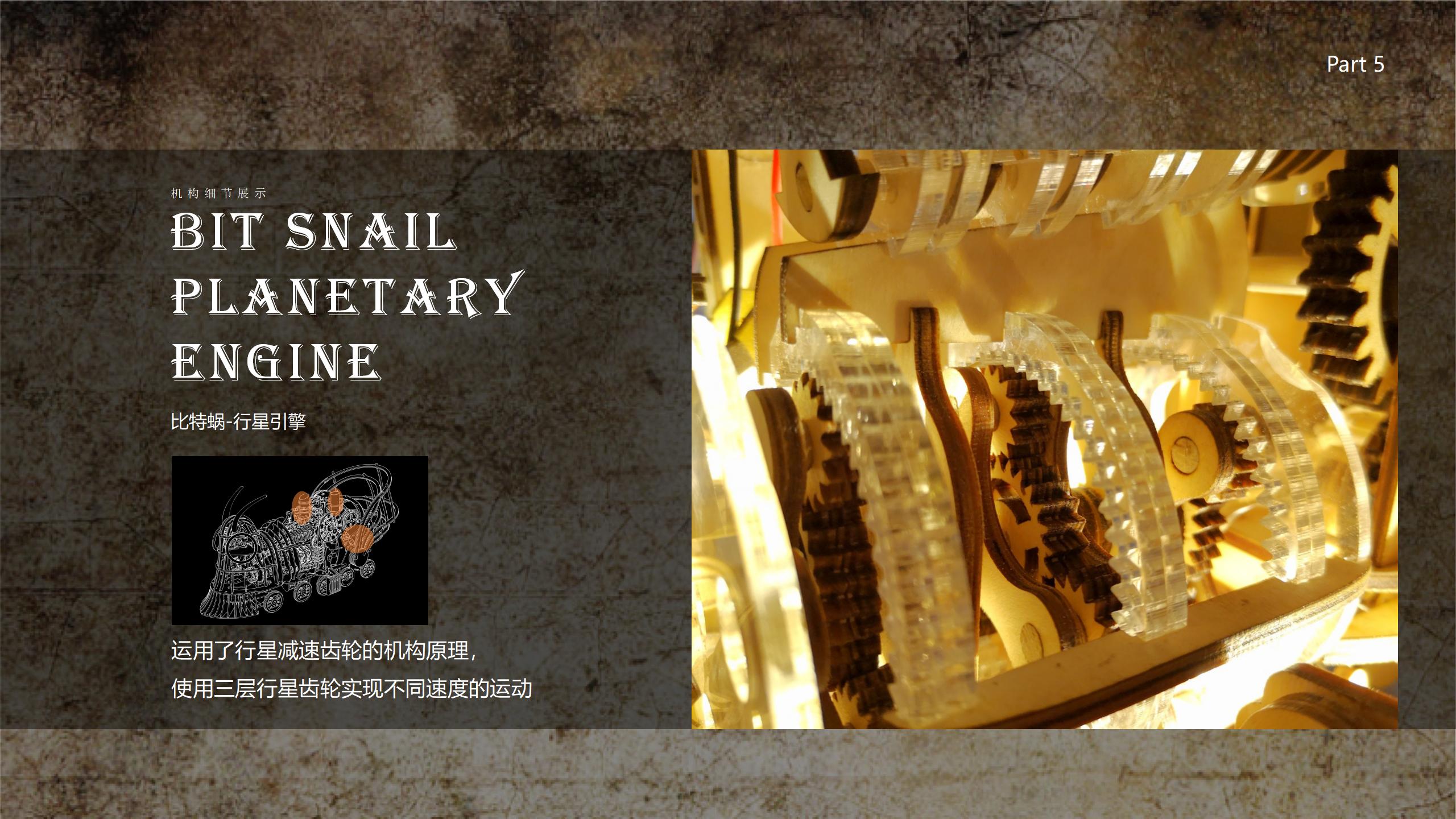

It is not difficult to find that we have also made a set of planetary gear mechanisms with different gear ratios. The outer frame is cut with acrylic to make the whole set of planetary gears visually more textured. Through the three-layer planetary gear transmission, the transmission rate between different gear layers is realized, the fast gear rotation is converted into a slower gear rotation, and then transmitted to some mechanisms that need to run slowly to realize the change of power.

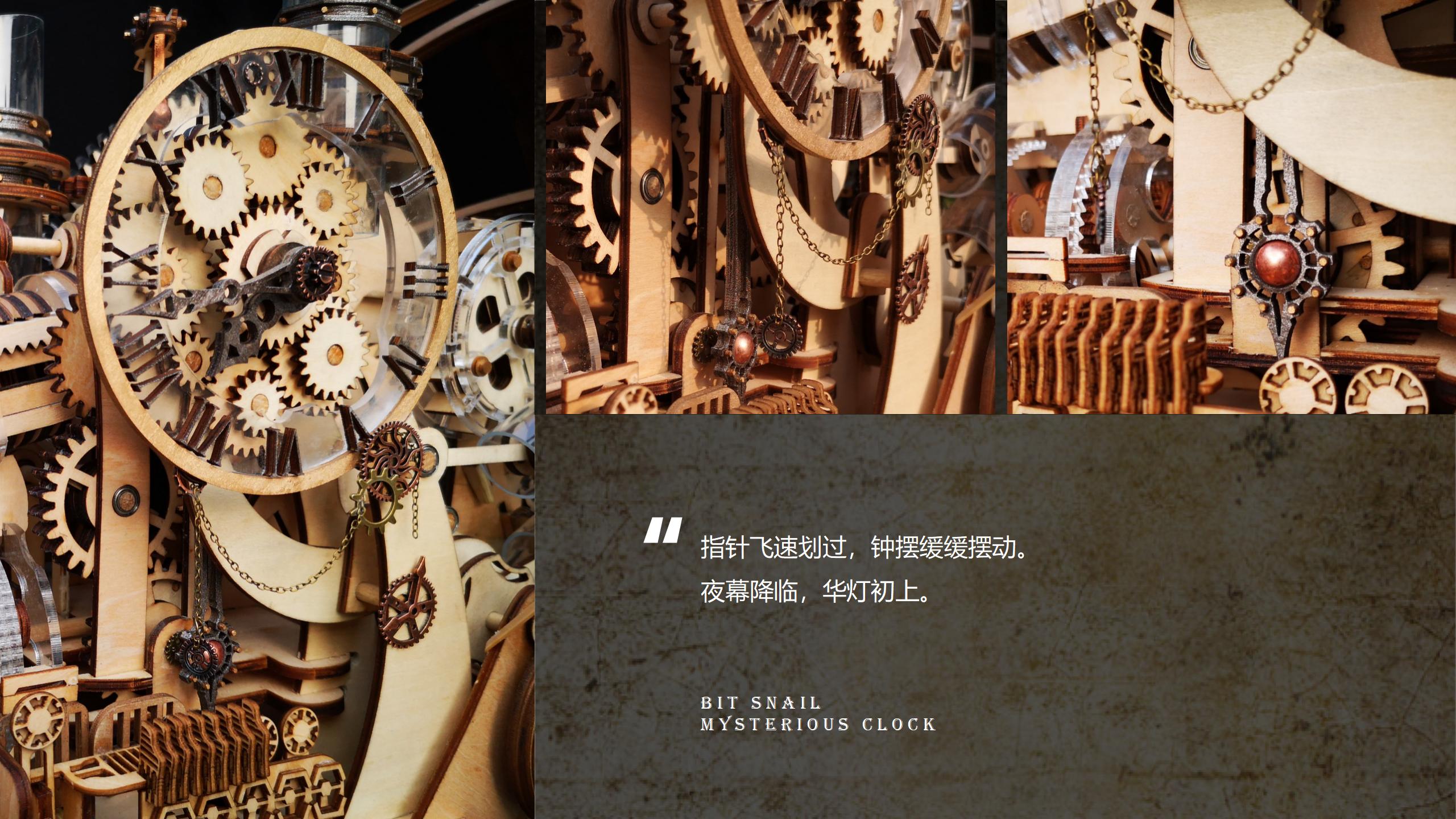

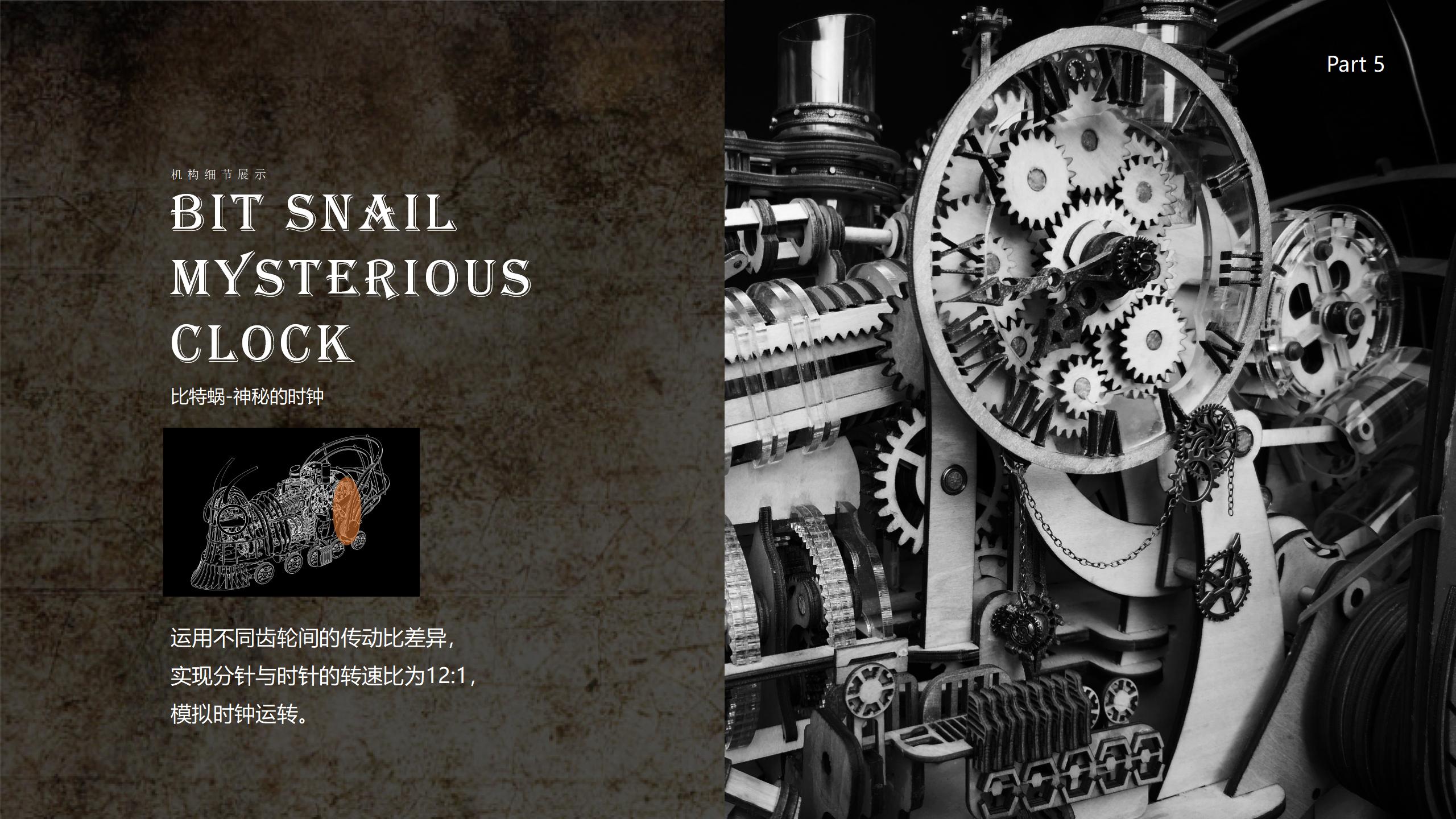

Punk technology with the theme of the future cannot be separated from the mechanism of time shuttle. Here, a mechanism called time pocket watch is applied. By using the transmission ratio difference between different gears, the speed ratio between the minute hand and the hour hand is 12:1, which simulates the running and flowing of the hour hand.

In order to realize the wheels at the bottom of the bit worm, which can rotate forward and turn, the simplified version of the structure of the differential is applied, and the characteristics of the reverse transmission between the gears are used to realize the coaxial reverse rotation of the axle, so that the wheels on both sides can have Independent speed to achieve differential forward and turning.

The two lovely small tentacles on the headgear use the steering gear as the transmission power and are matched with a universal rod, so that the 360 ° rotation of the tentacles can be realized. Secondly, the irregular transmission programming is input to the steering gear to make the tentacles The movement is obviously more natural and energetic, rather than boring and unified mechanical movement.

The wheel under the head uses the steering gear to drive the connecting rod connecting the wheels to realize the left and right swing of the connecting rod and the wheel steering effect.

Even in a huge machine, we need a core controller. As an embellishment of details, we have made some punk robots that can express their actions inside the organization. As the saying goes, a successful man will live in his heart. A sweetheart, a punk bit worm, also needs a robot familiar with it.

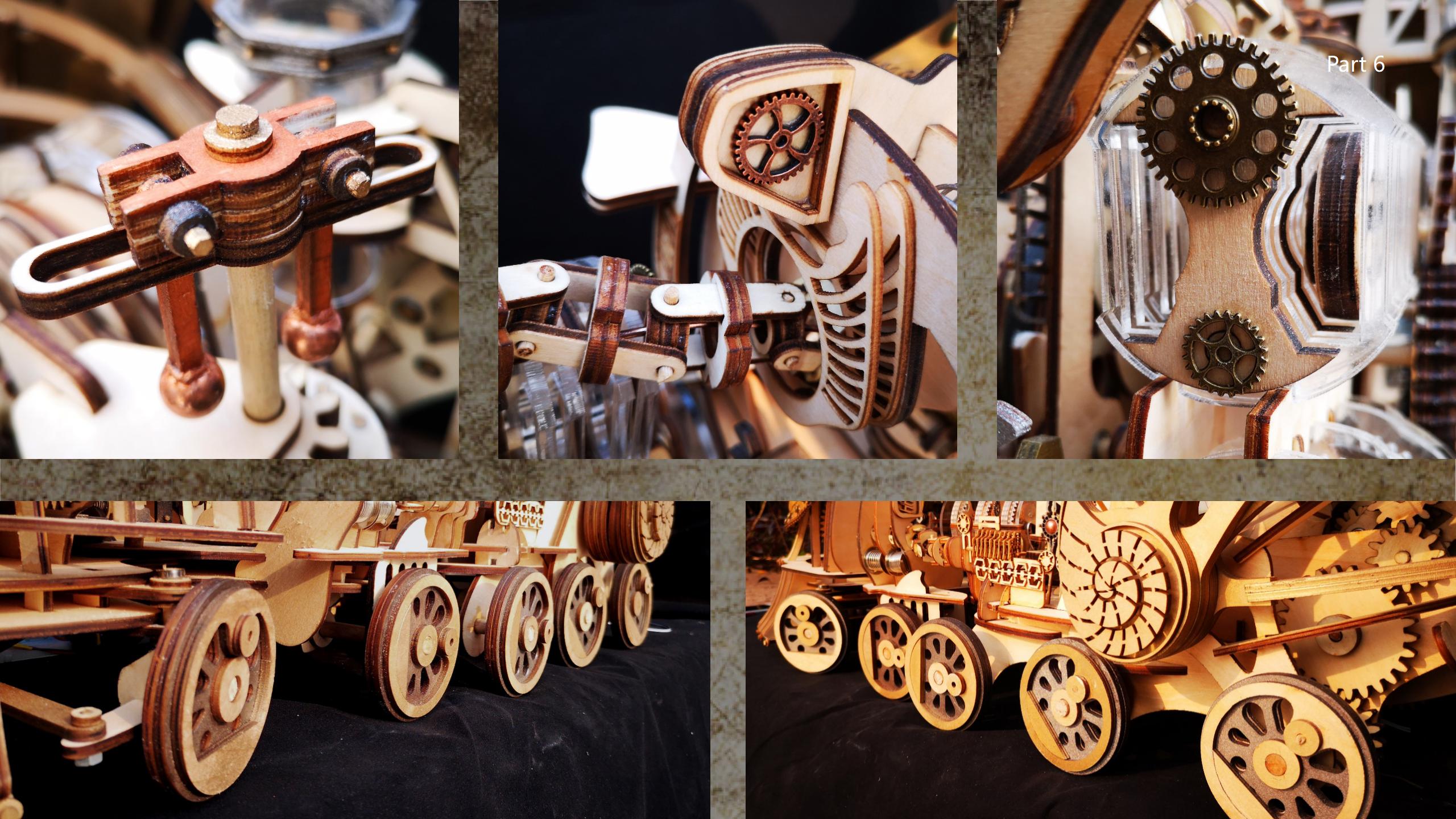

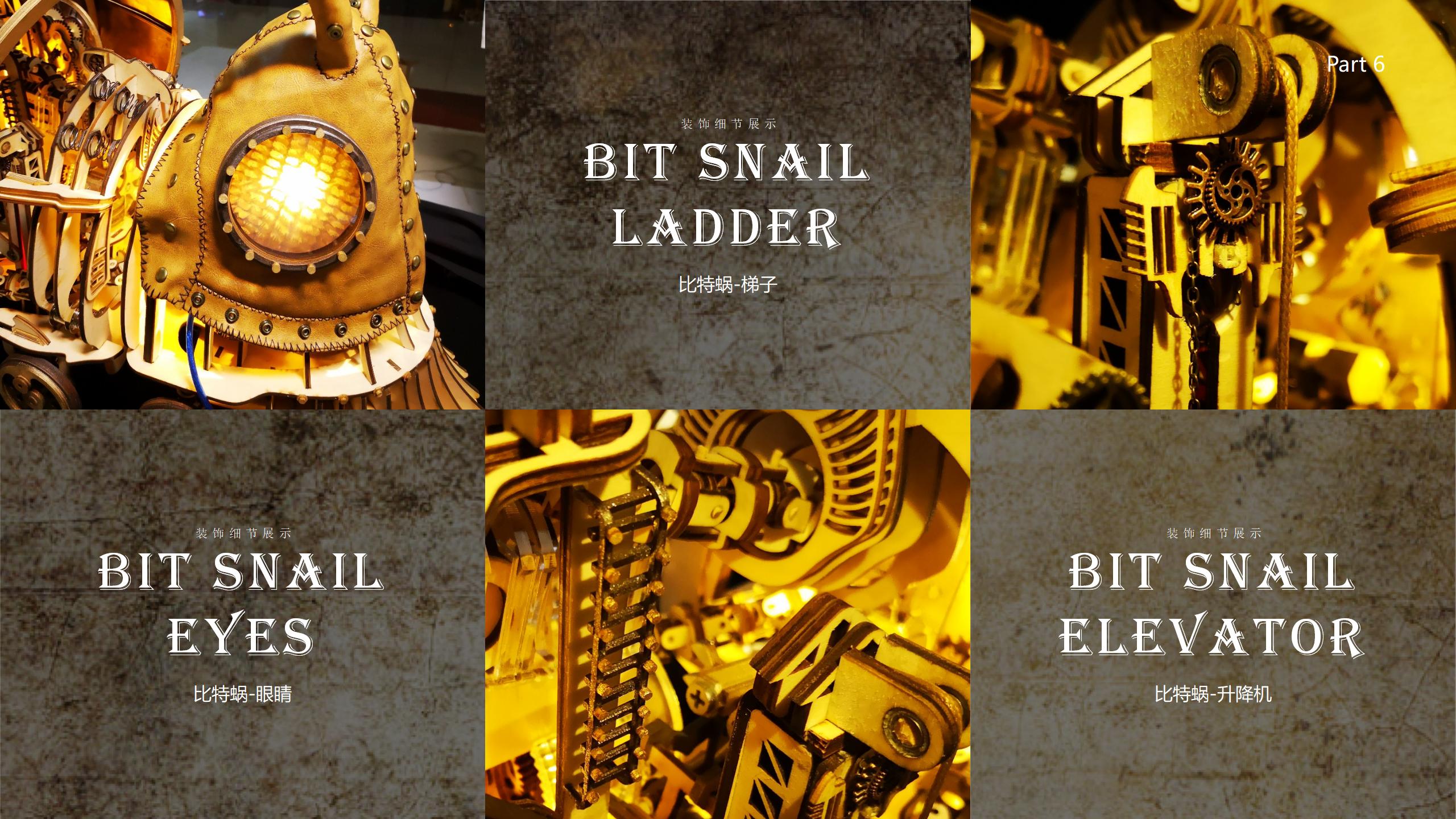

Billion points of detail display.....

Billion points of detail display.....

Finally, the poster of the whole exhibition is clear at a glance.

In the last sentence, Fu Di nagged about it. Personally, he understood that industrial design, as a combination of design beauty and manual structure, is not only limited to the exquisite renderings fed back by the computer screen. The design that can be completed by using a computer is incomplete. It can only be called a skilled worker and has the potential to be refuted. The designer's hands should be able to press the keyboard, click the mouse and do manual work, do verification, when coolie, designers shot, hair have to go.
