[Design Philosophy]
Breaking the limitation of "one-piece shaping" of traditional camp lights, we have built a high-order light system that can adapt to daily mobile lighting and outdoor harsh environment with the dual-component concept of "core light core" and "multi-functional skeleton. This "separation and combination" design makes every use of the product more accurate and non-cumbersome.

Analysis of two core components]

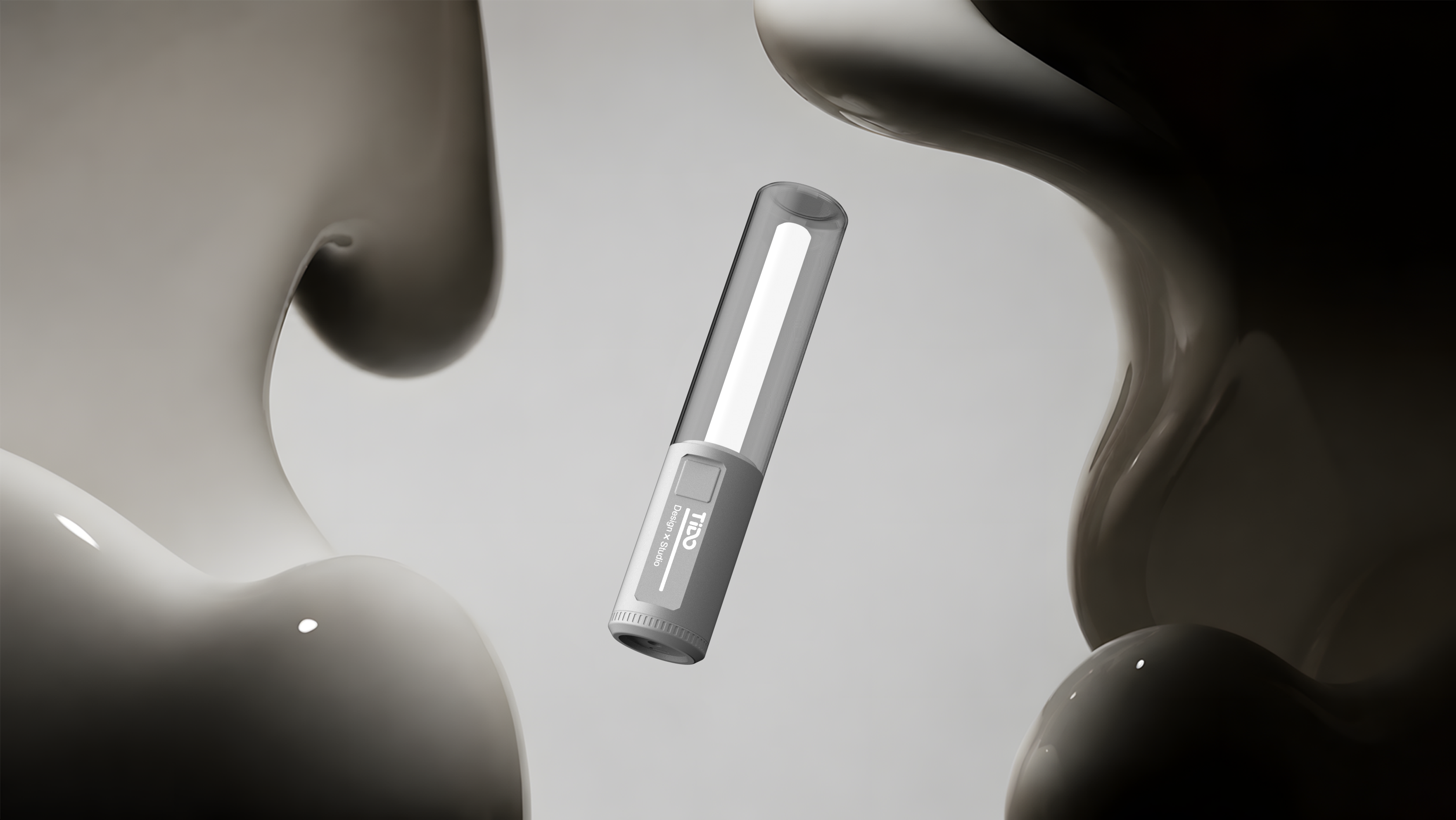

Component 1: Minimal Optical Nuclear Host (Independent Form)
It is a precision penholder cylinder with a matte gray non-slip surface treatment. Compact structure, with ergonomic buttons and handles that fit the knuckles. Disconnecting the bracket, it is a perfect independent light source in itself. It not only supports hand-held road exploration and desktop standing, but also can be adsorbed on the metal surface through the invisible magnetic attraction structure at the bottom to meet the daily emergency and portable lighting needs.

Component 2: Outdoor and Rainproof Skeleton (Combined Form)
This is a "high-foot multi-function bracket" designed for harsh environments ". It is composed of stepped anti-skid chassis, bimetal guide rod and top suspended rainproof cover. Its core function is to "hold up" the light core from the ground and suspend the light source in the air.

[Combination Synergy: Panoramic Light in Wind and Rain]]

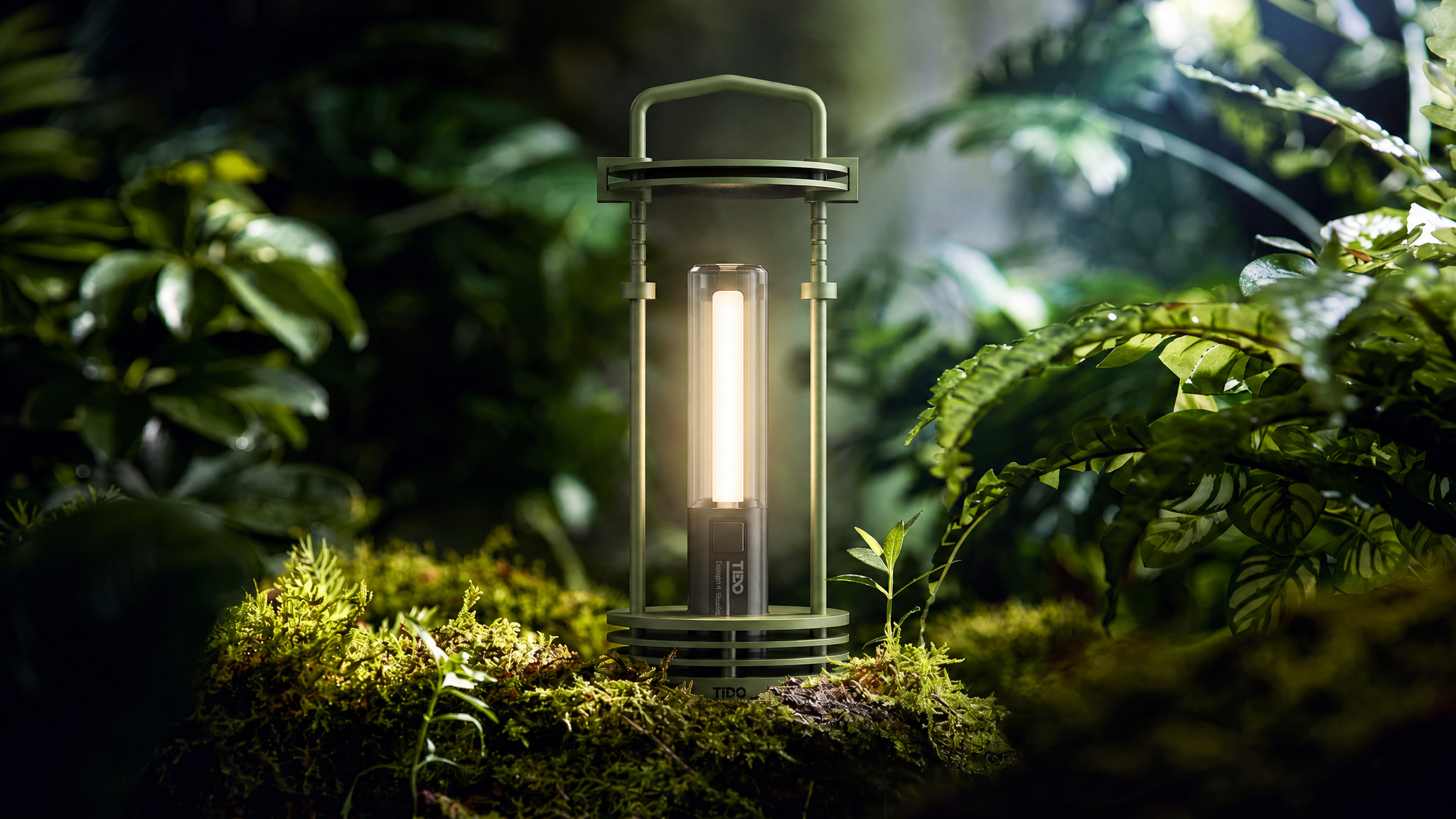

When the optical core host is inserted into the rainproof skeleton, the product completes the magnificent transformation from "mobile flashlight" to "professional camp lamp:

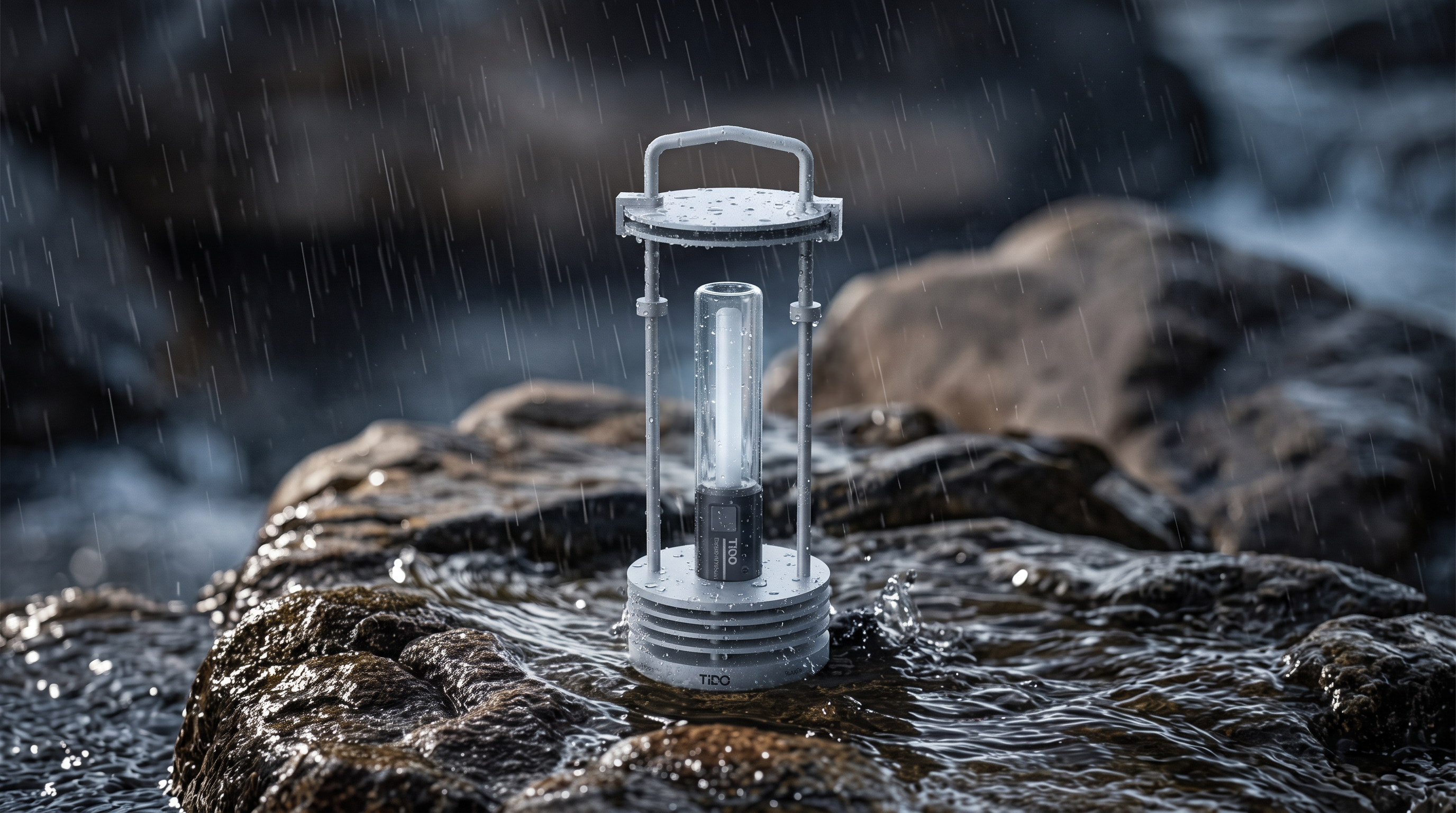

Physical water-repellent design: The suspended rainproof cover on the top is like a protective umbrella, which can not only prevent rainwater from pouring directly on the luminous panel, but also combine with the heightening design of the chassis. Even if it is placed in a stream beach in heavy rain, the core light source will never wade in water, thus completely eliminating the hidden danger of short circuit.

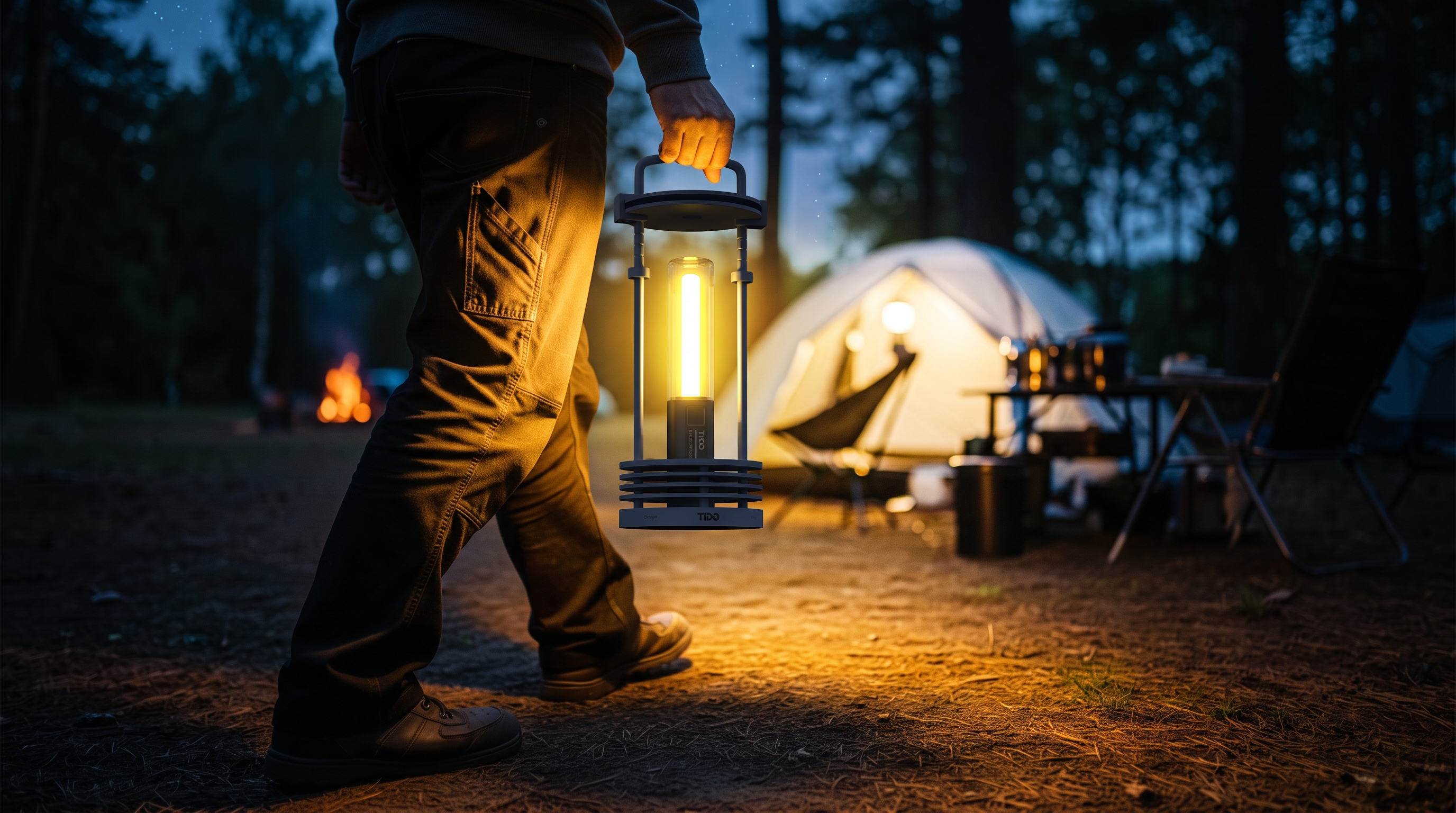

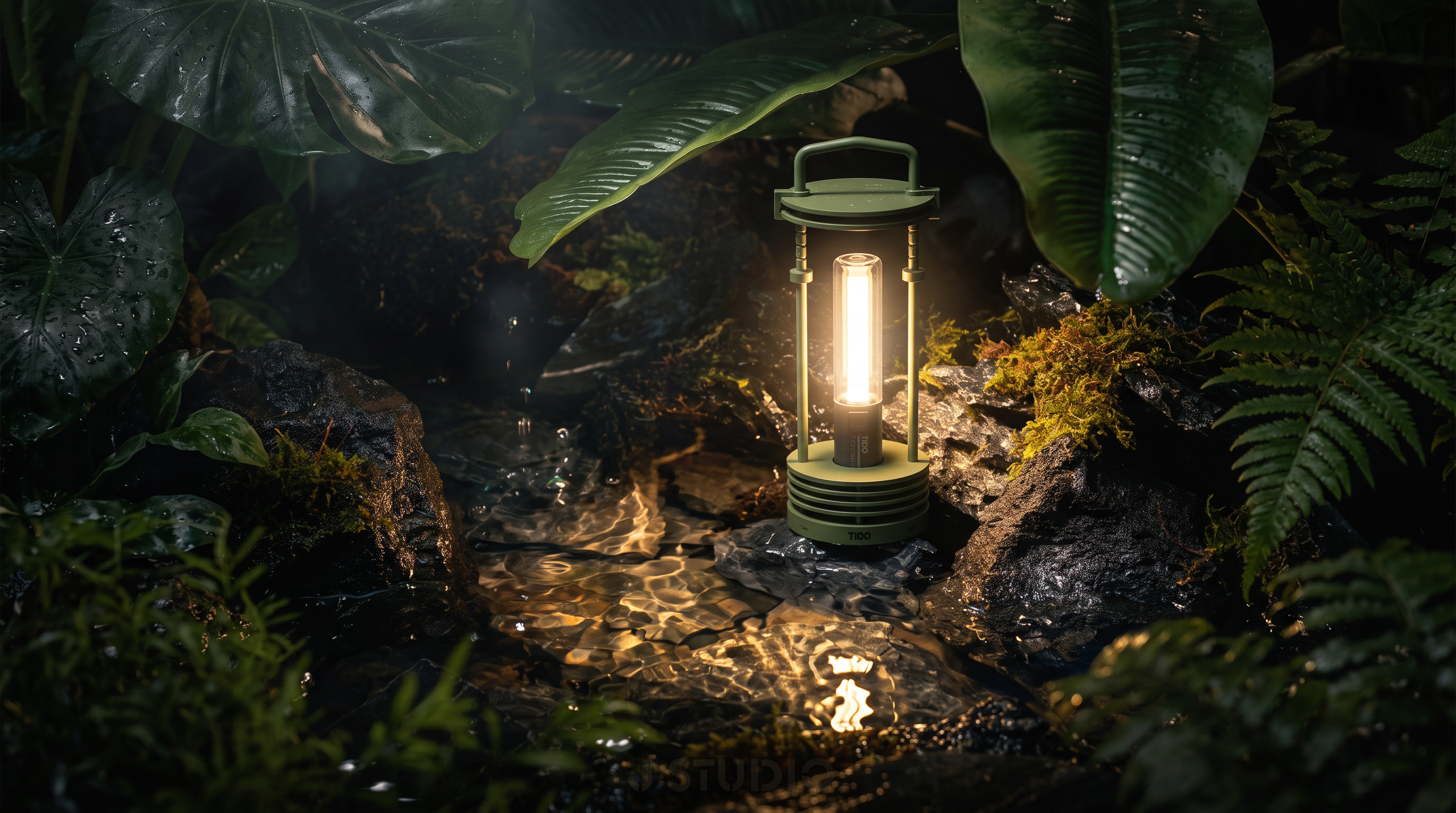

High-dimensional luminous experience: luminous body suspended in mid-air, to achieve a full range of no dead angle floodlight. In the camp on rainy nights, this high-level lighting can not only illuminate a larger area, but the light is also softer and more uniform, avoiding low-angle reflection glare.

[scene switching]]
Daily at home, only need to carry optical nuclear components, light access; Weekend outdoor camping, with rainproof skeleton, can be safely lit in the rain. Using the minimalist modular logic, the contradiction between "portable" and "anti-manufacturing" is cleverly resolved, so that the exploration of the bright boundary is no longer limited by the weather and terrain.
