This is an innovative design of cervical vertebra massager, designed for people who have been working at their desks for a long time. The product adopts a modular form and is divided into pulse massage function and hot compress function. It is controlled by mobile phone APP or massage instrument or module box, which solves people's demand for free control of intensity and heat. At the same time, the pulse film of the product And hot compress can be used alone, which solves the pain point of traditional massage instrument in a single local position, thereby achieving a better user experience. The combination of the module and the massager is a rotary buckle combination. At the same time, the main body of the electrode piece and the box containing the electrode piece are charged by magnetic suction, thus increasing the use efficiency. The main materials of this product are PP material and PET material, which are easy to produce and have little difficulty in mold opening. The overall shape conforms to ergonomics, is convenient and comfortable, is suitable for people who bow their heads at their desks for a long time, and reduces the occurrence of cervical vertebra discomfort.

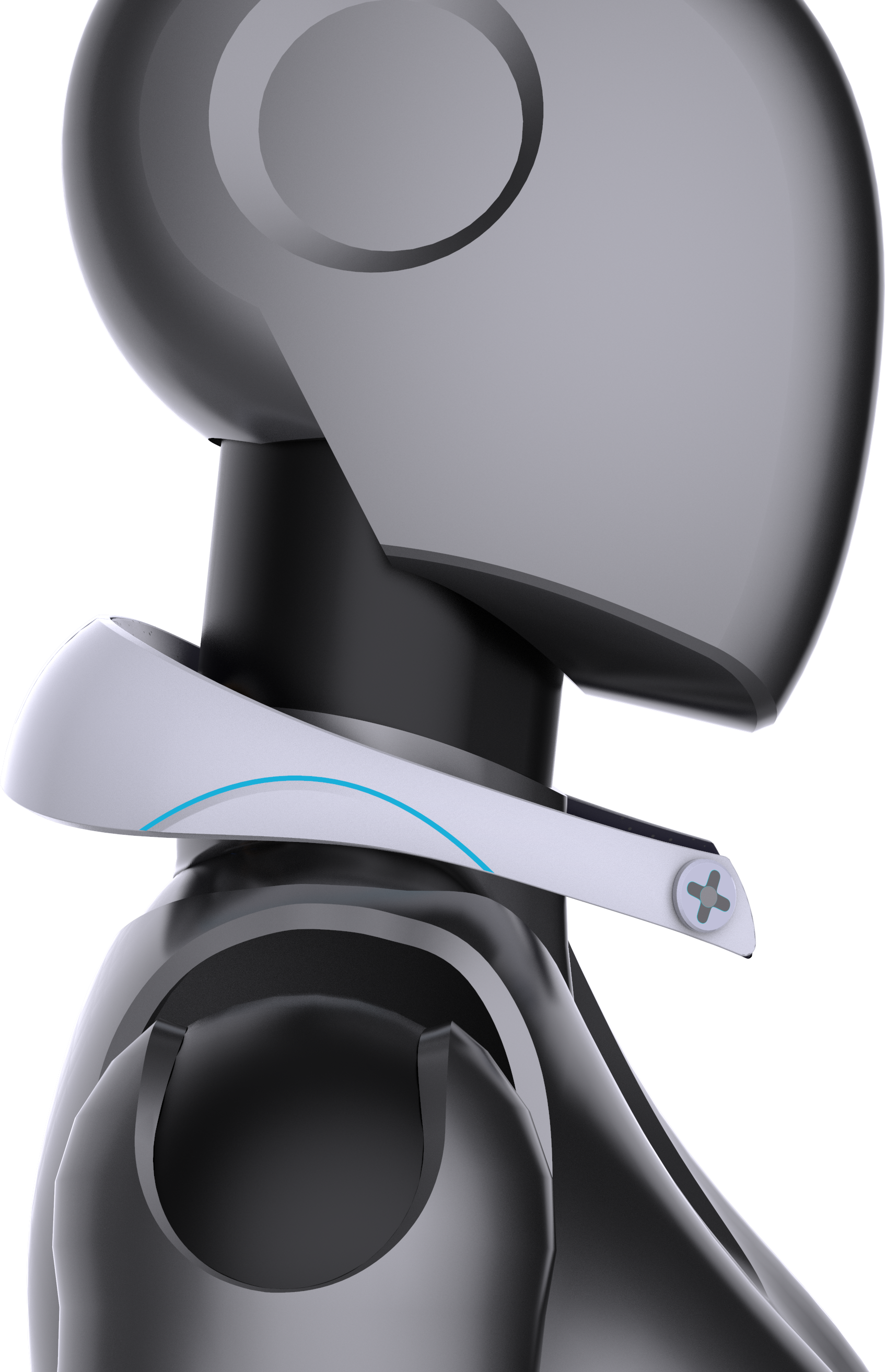

Man-machine effect diagram 01

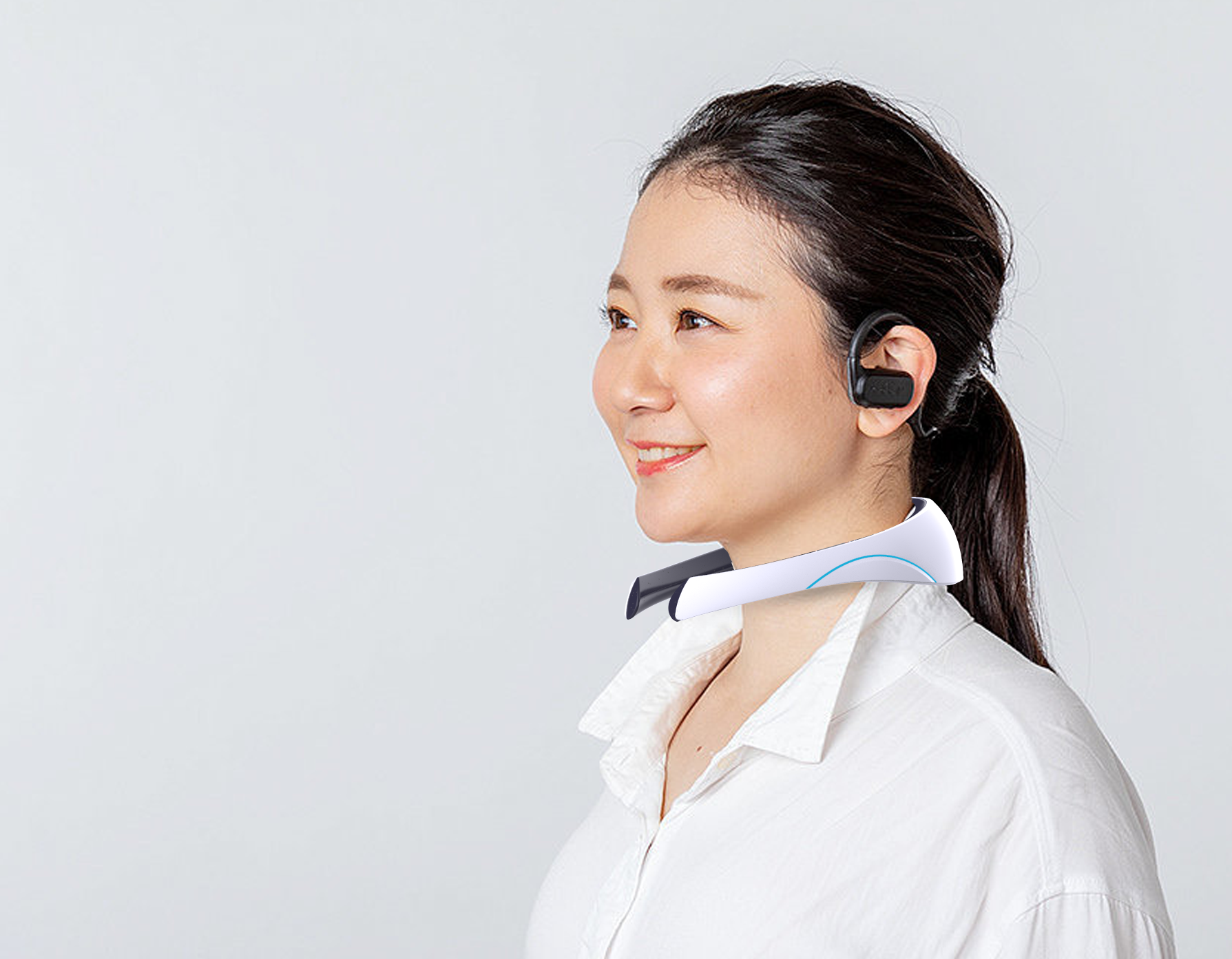

Man-machine effect diagram 02

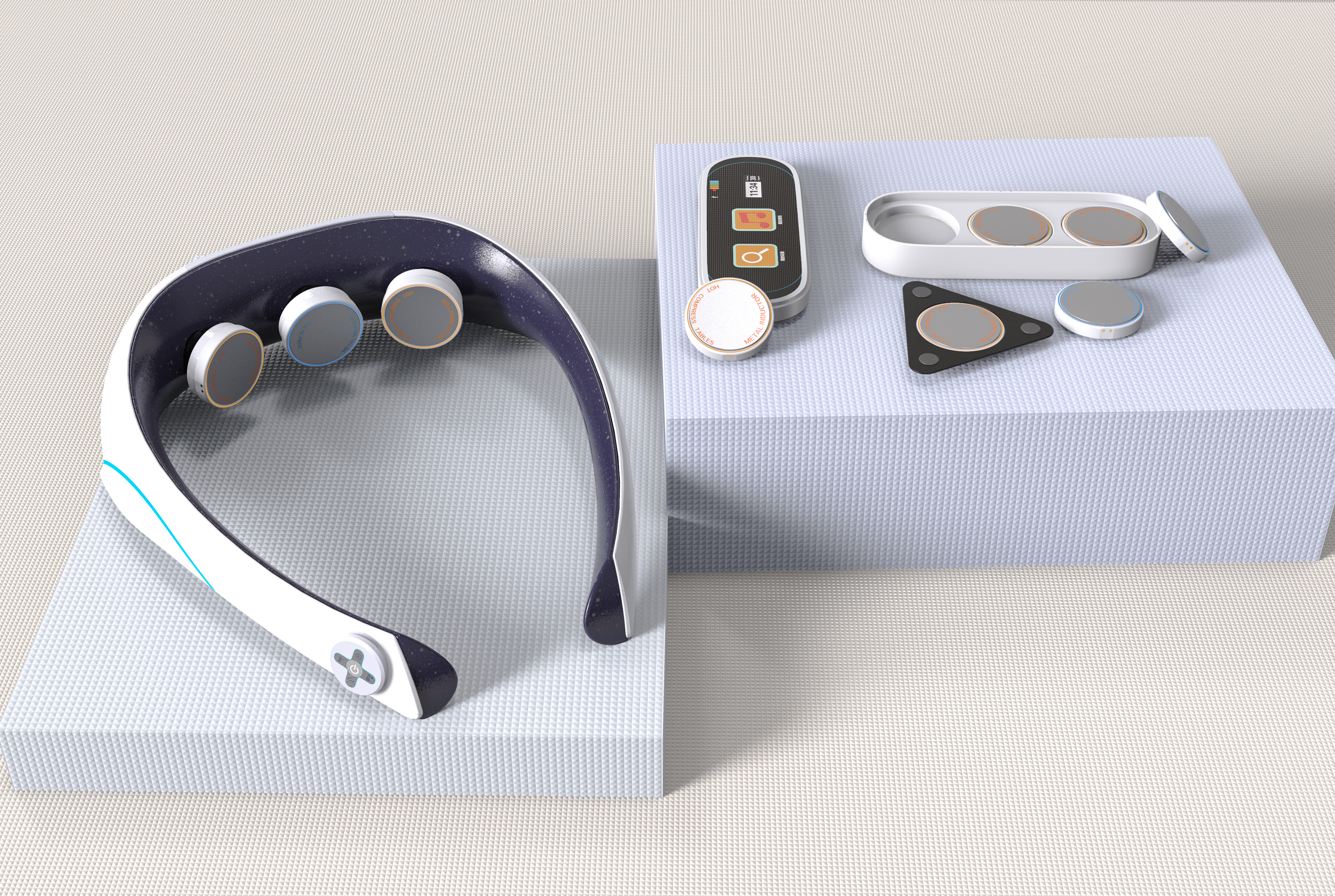

Modular cervical vertebra massager not installed

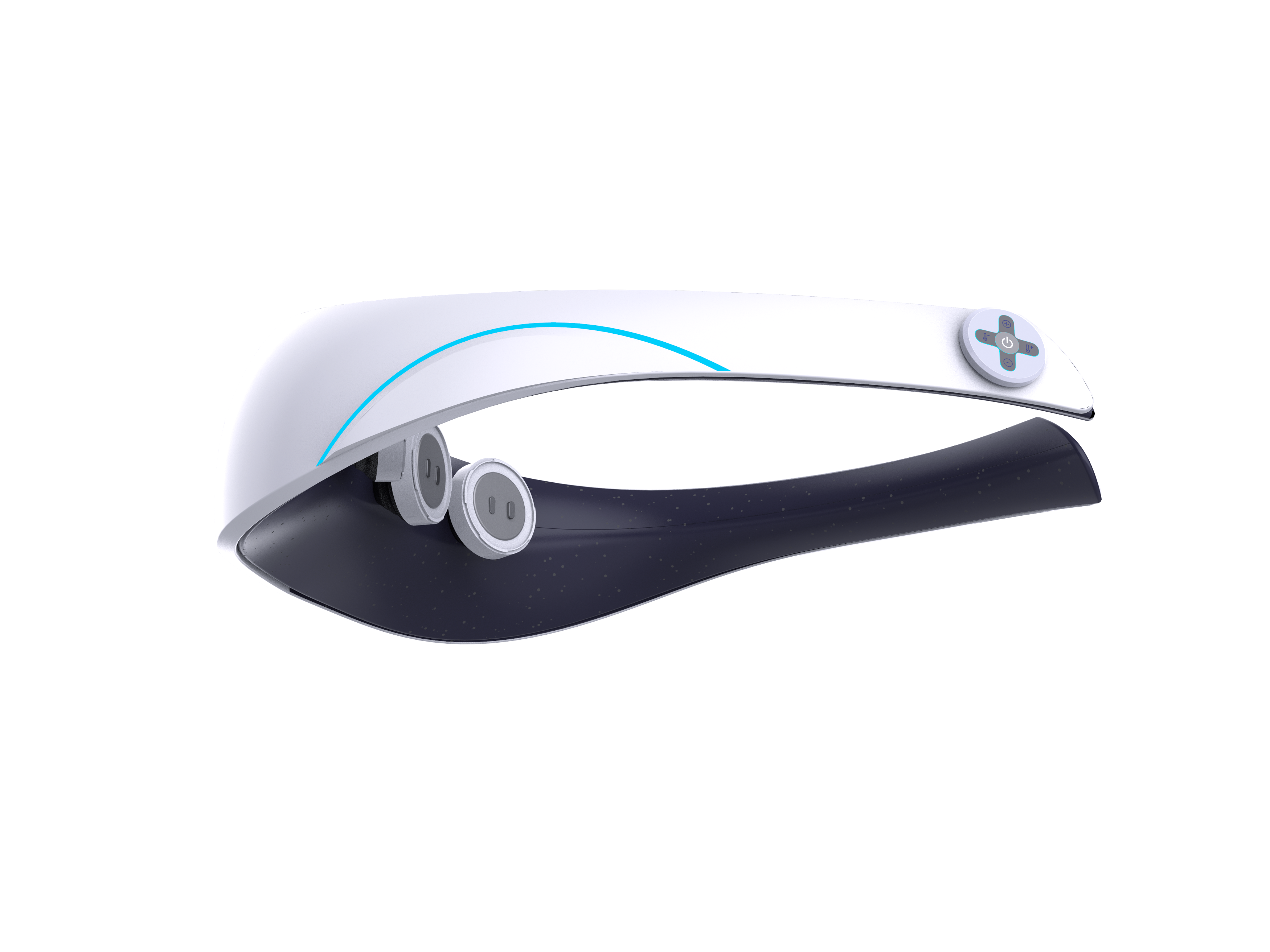

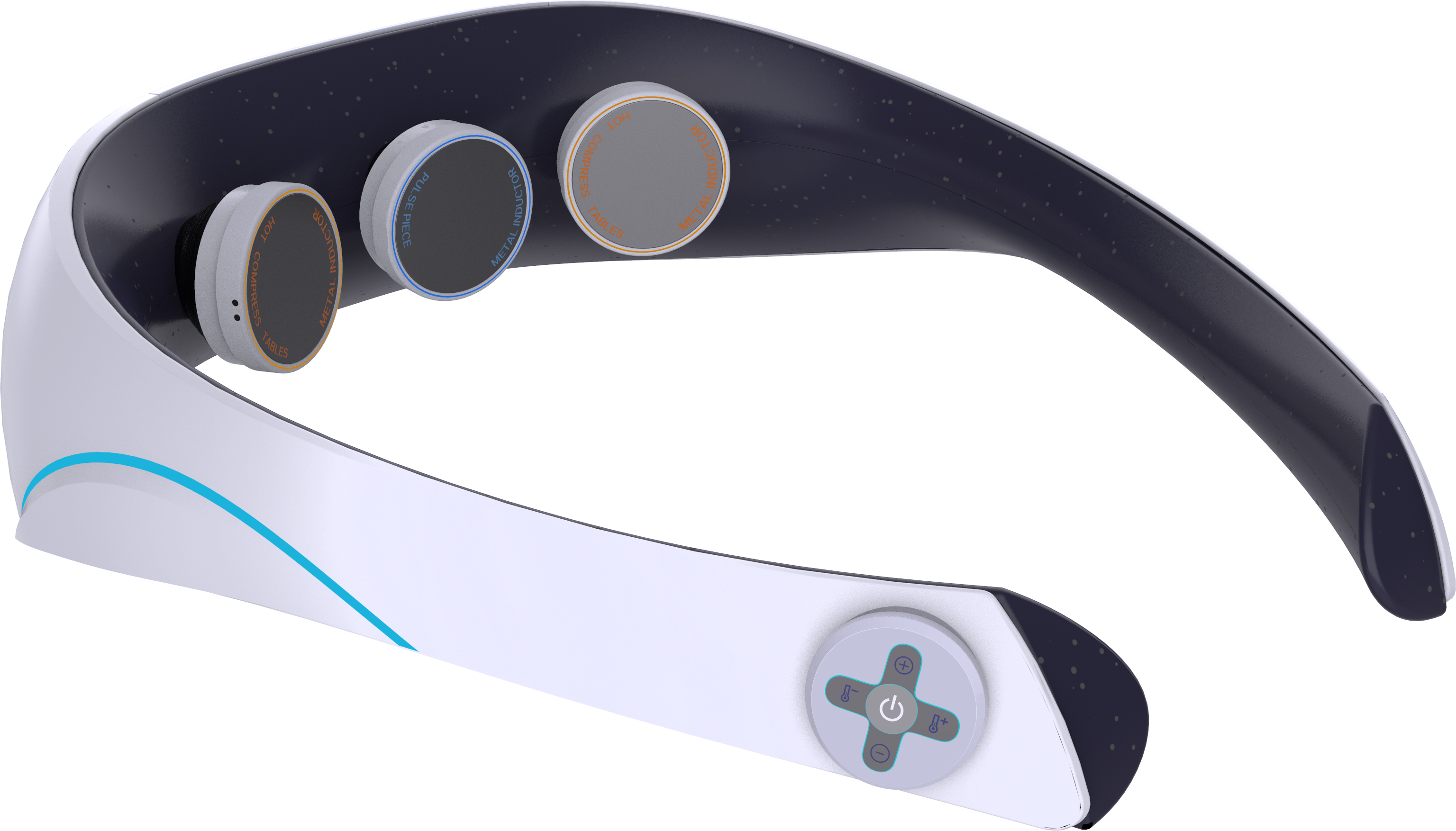

Module-installed cervical vertebra massager

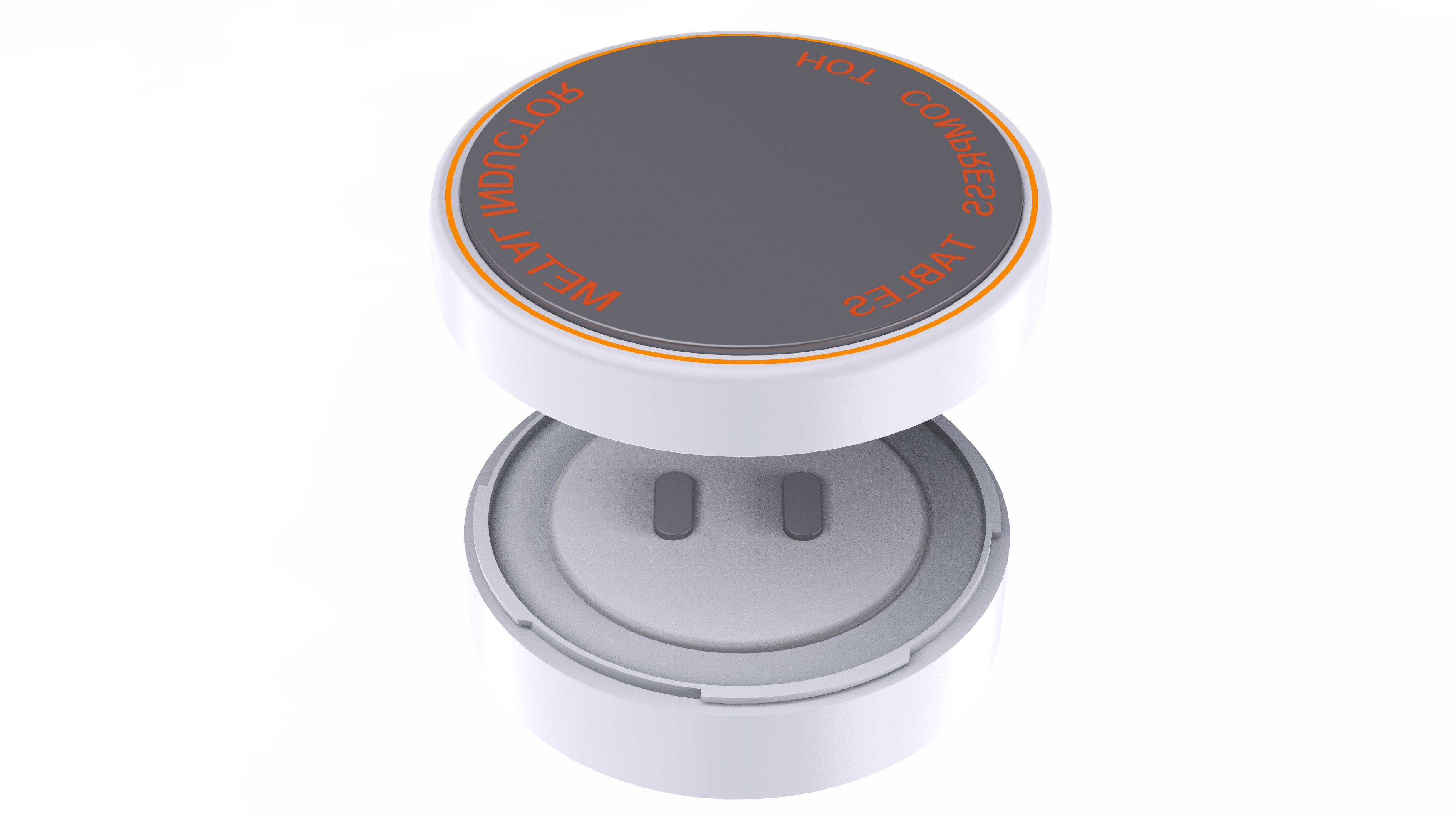

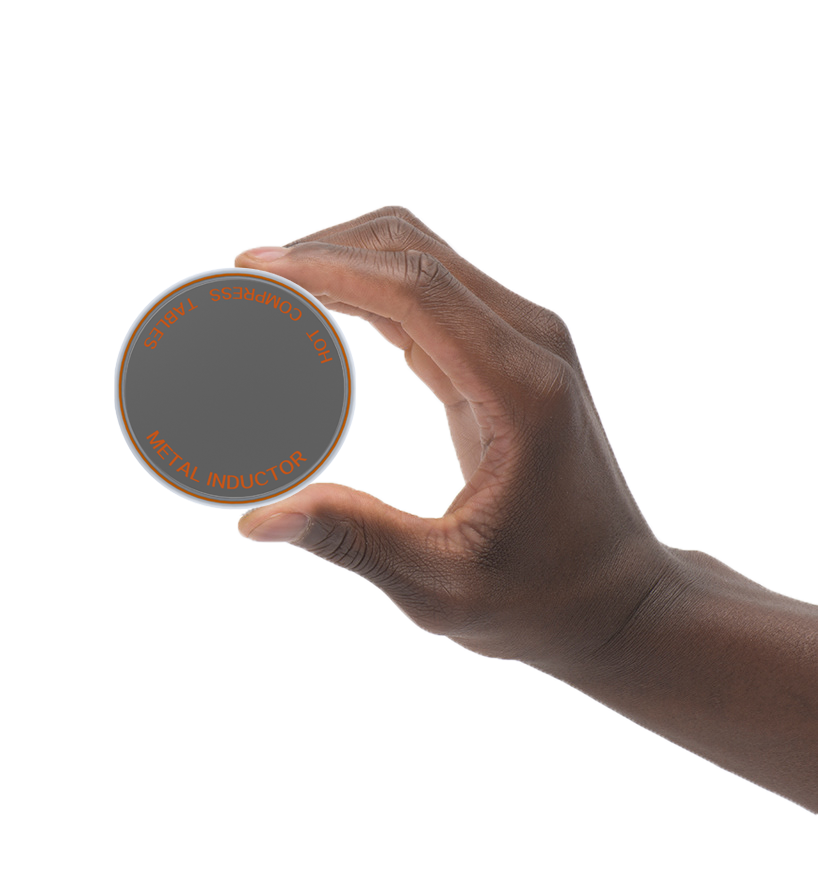

Yellow represents the module of hot compress function

Blue represents the module of pulse function

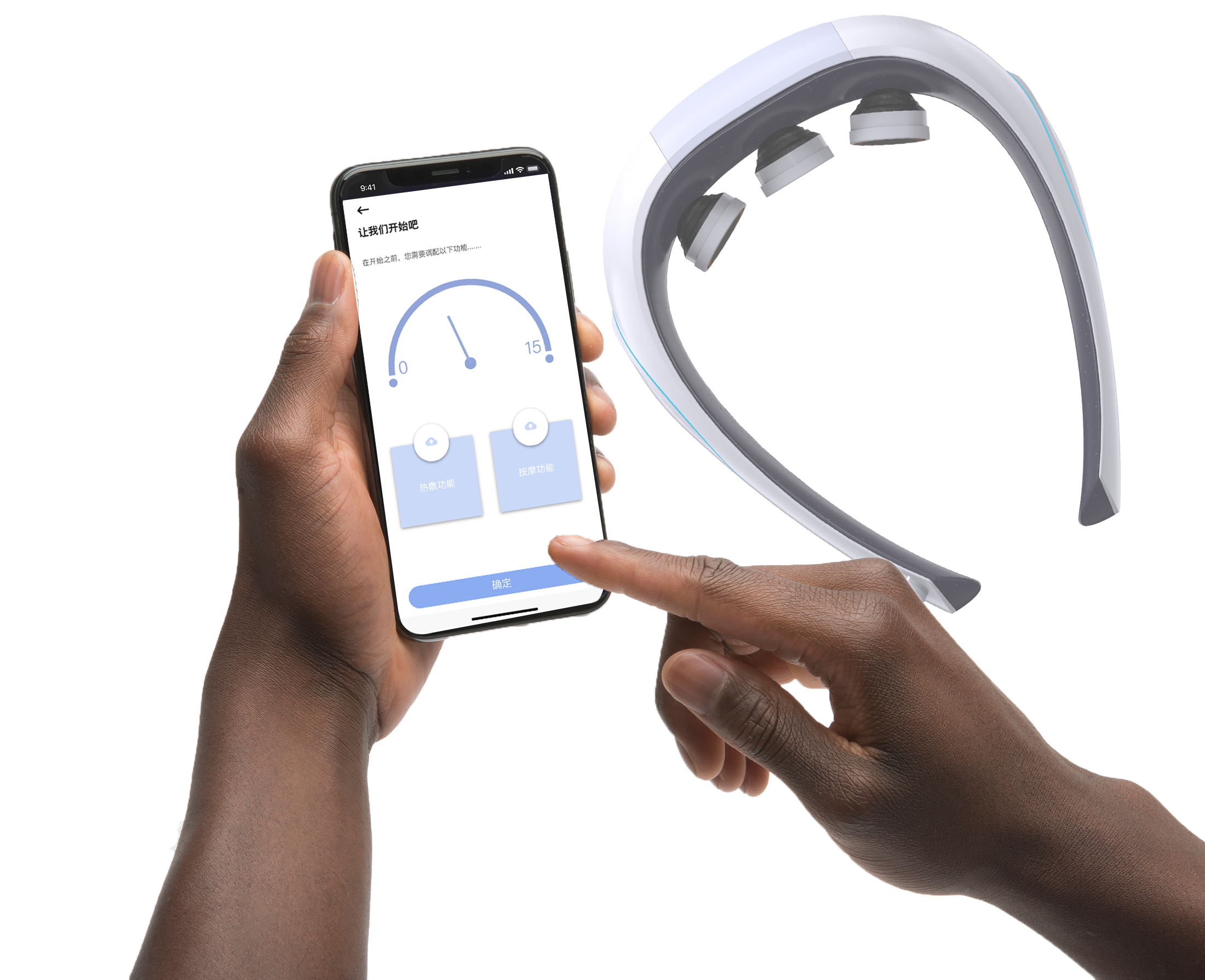

Users can use APP to control the cervical vertebra massager with installed modules.

Contact with user's skin through silicone material

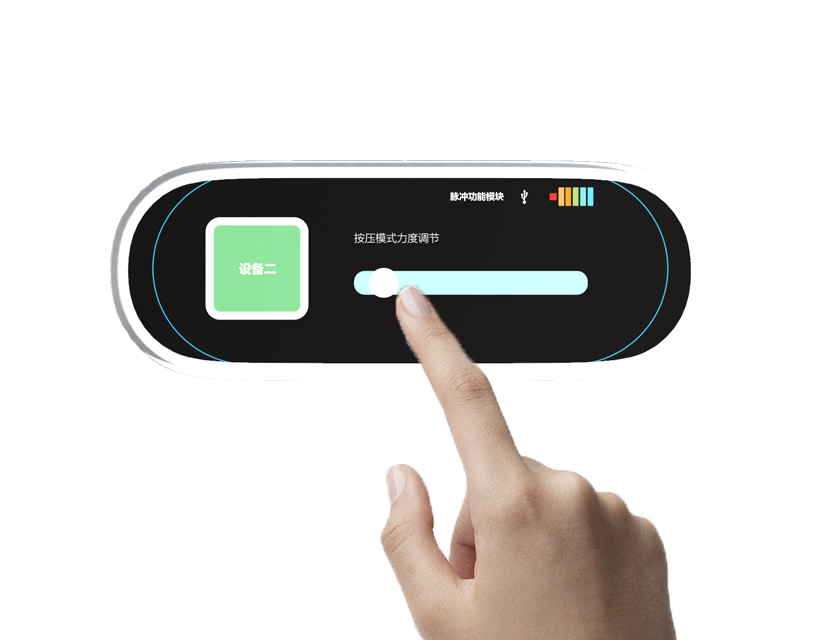

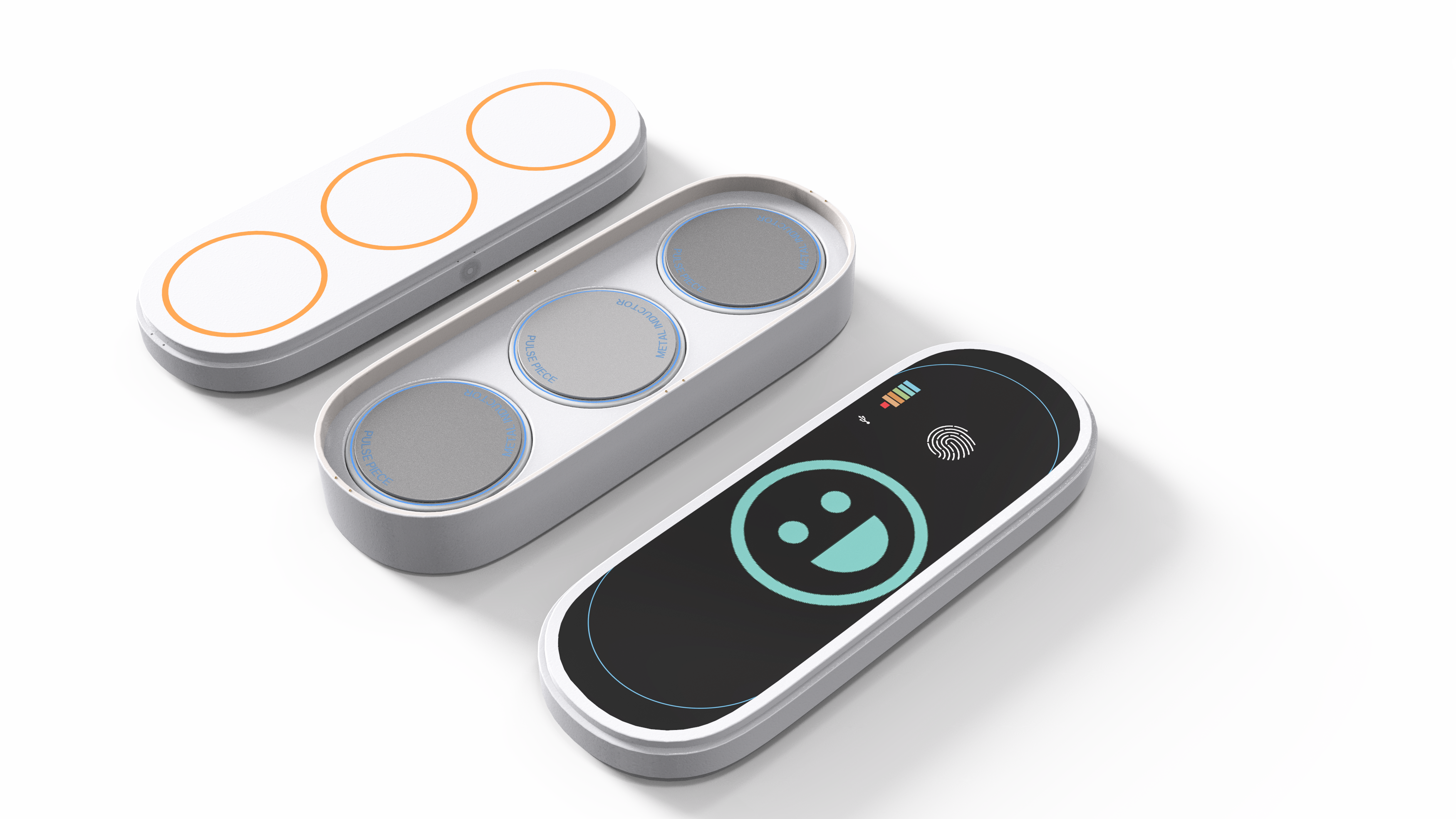

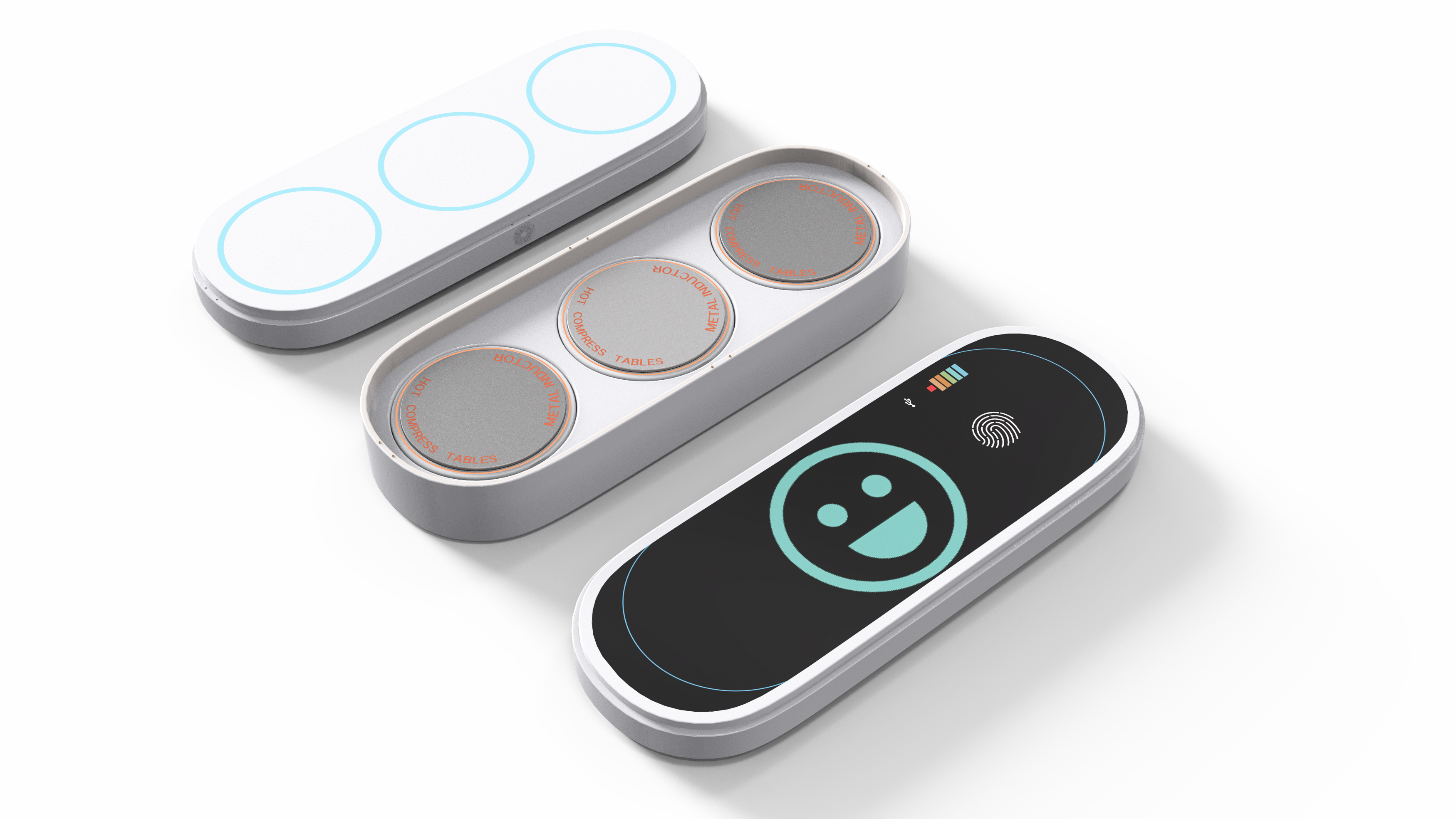

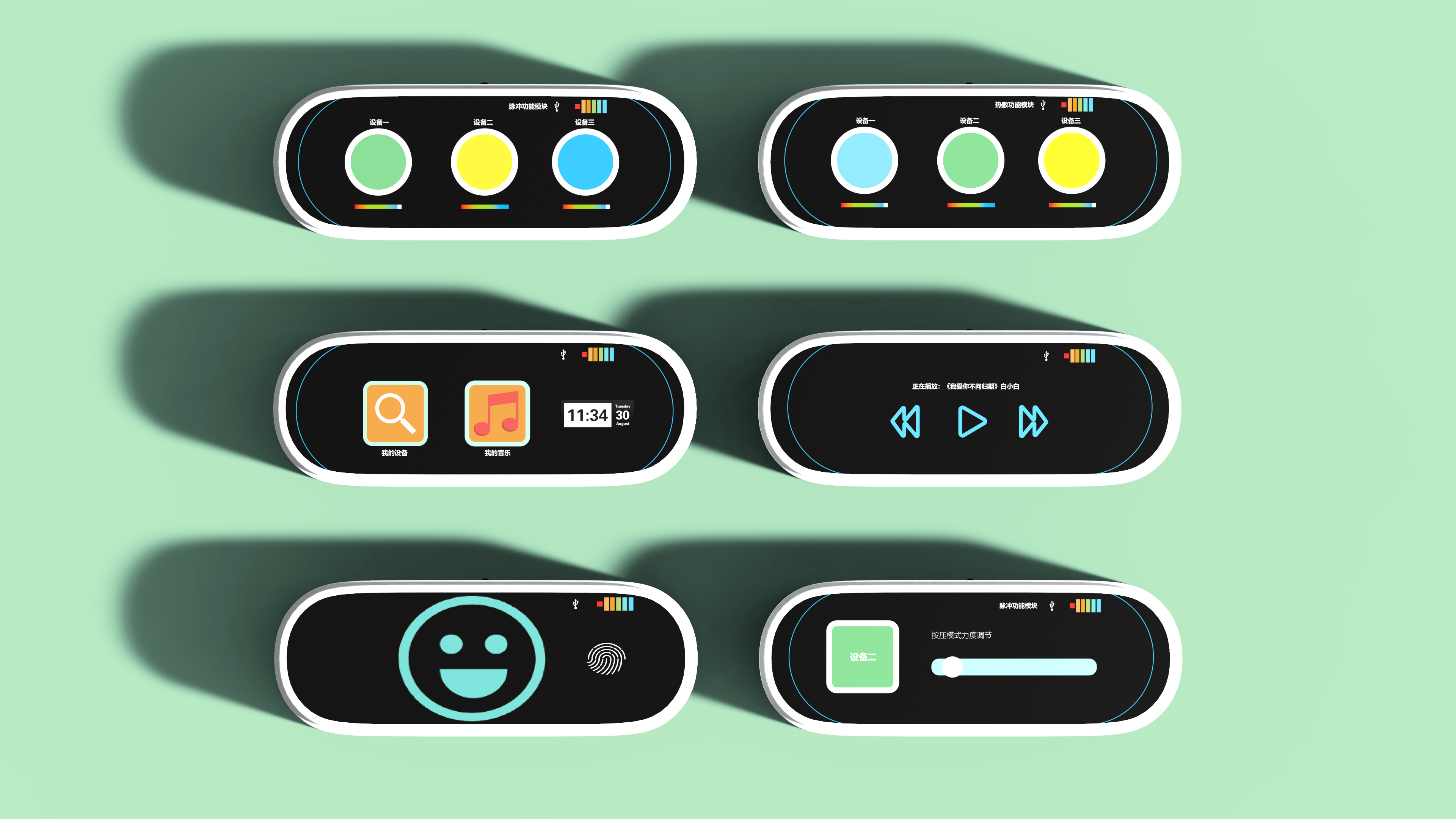

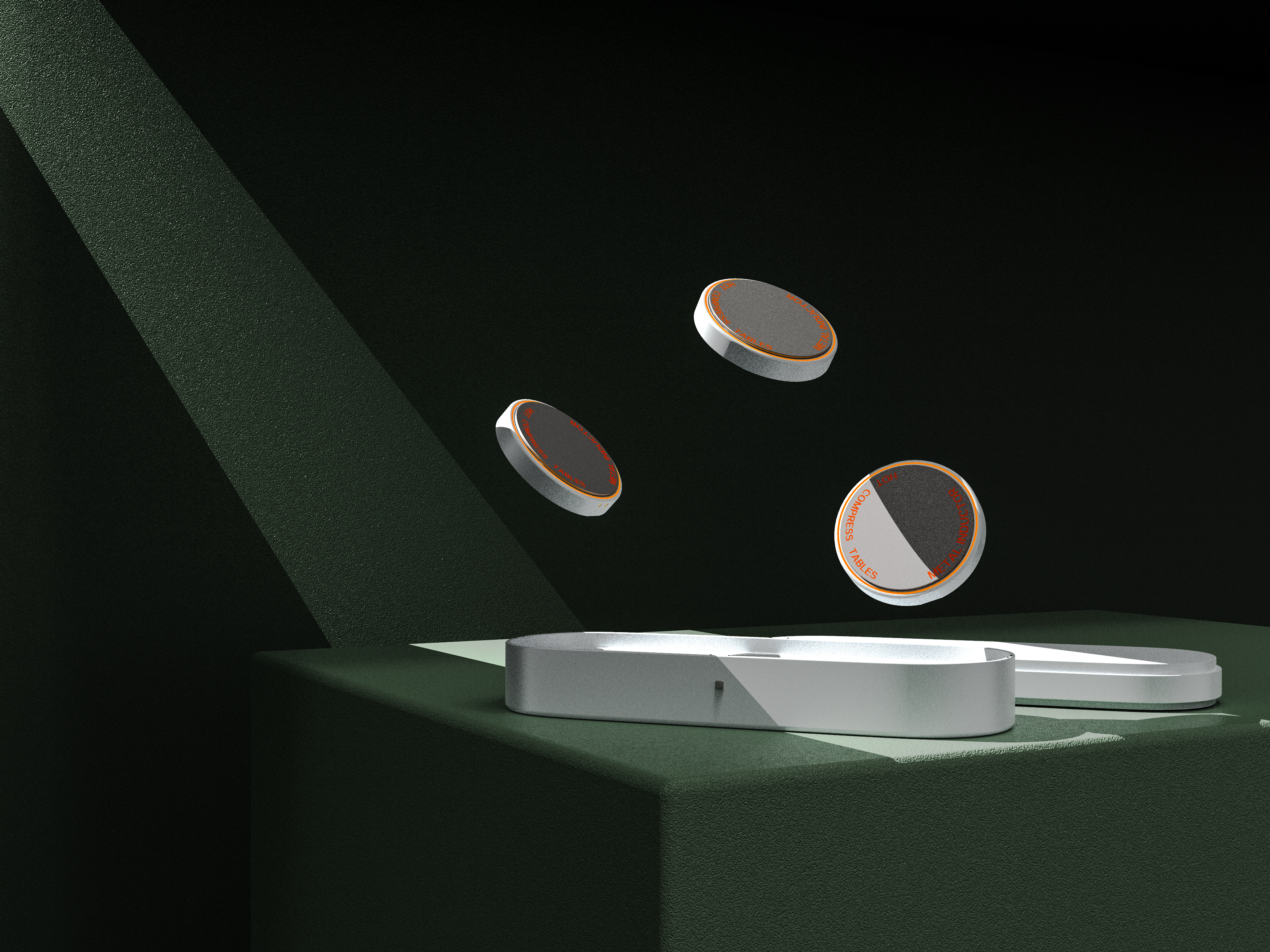

When using the module alone, it can be controlled through the control screen on the box

The massage instrument and the modular functional piece are fixed by rotating buckle.

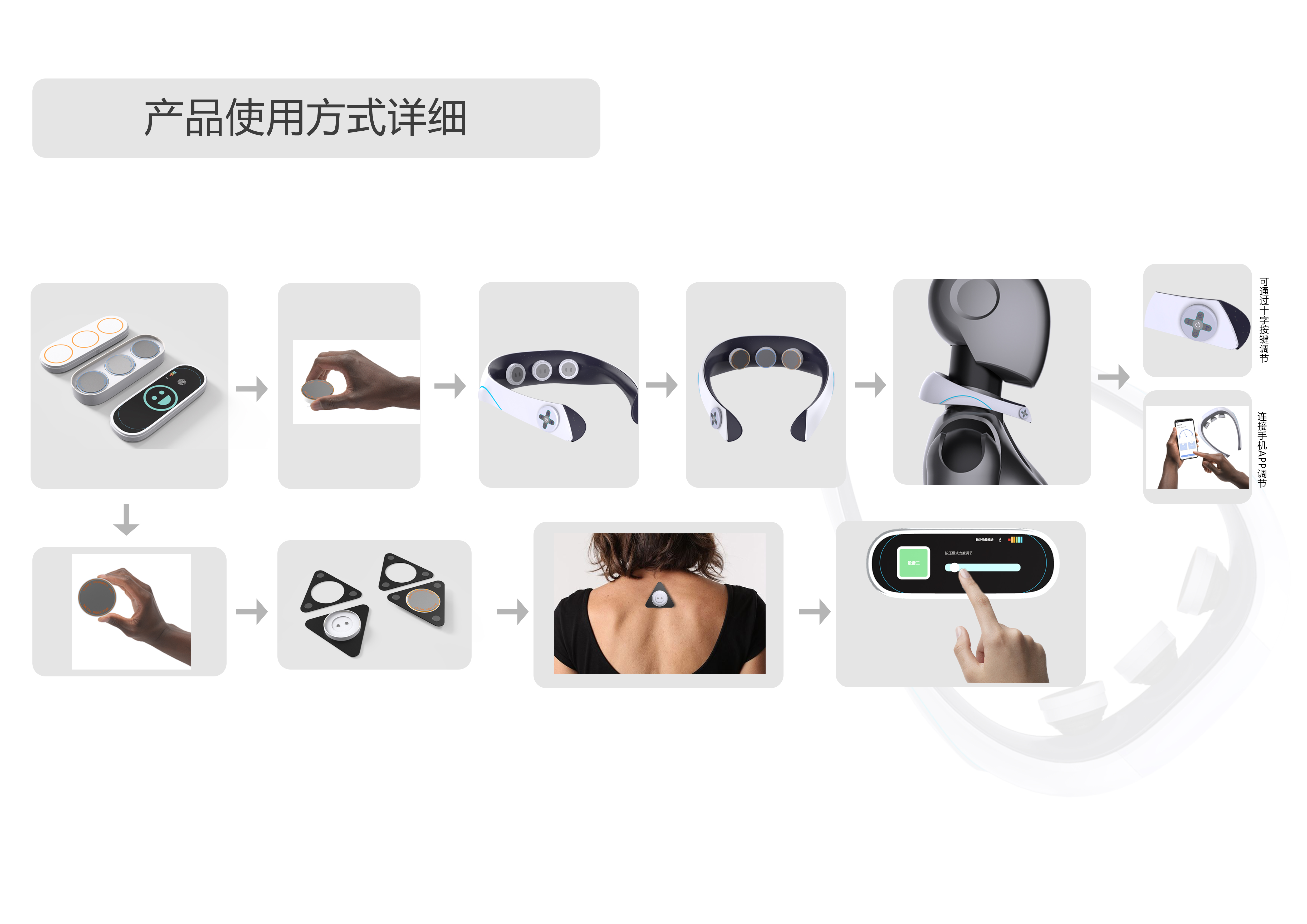

Detailed product usage.
The hot compress module or pulse module can be installed on the massage instrument for mixed use, and controlled by the buttons on the mobile phone APP or the massage instrument.

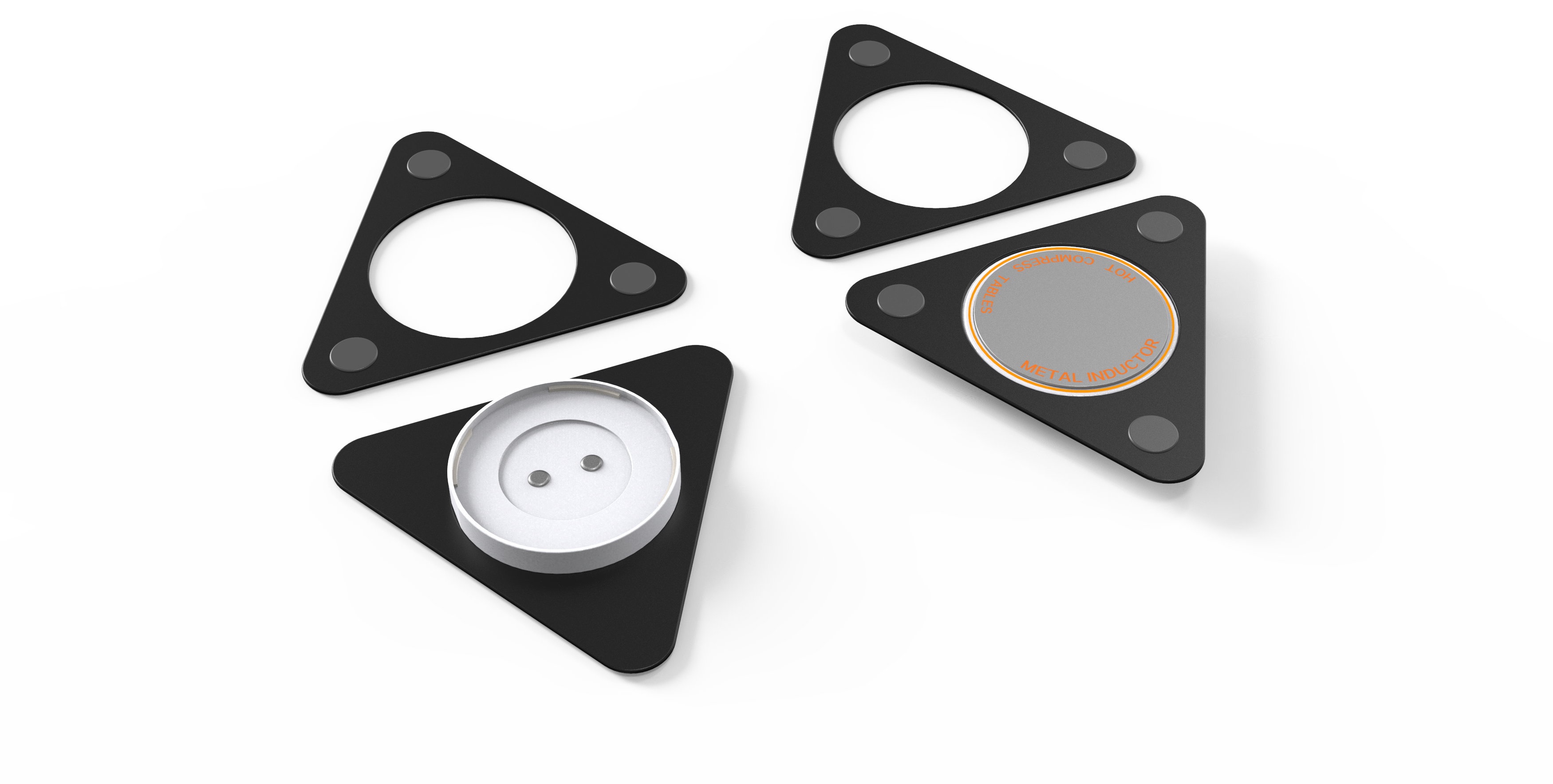

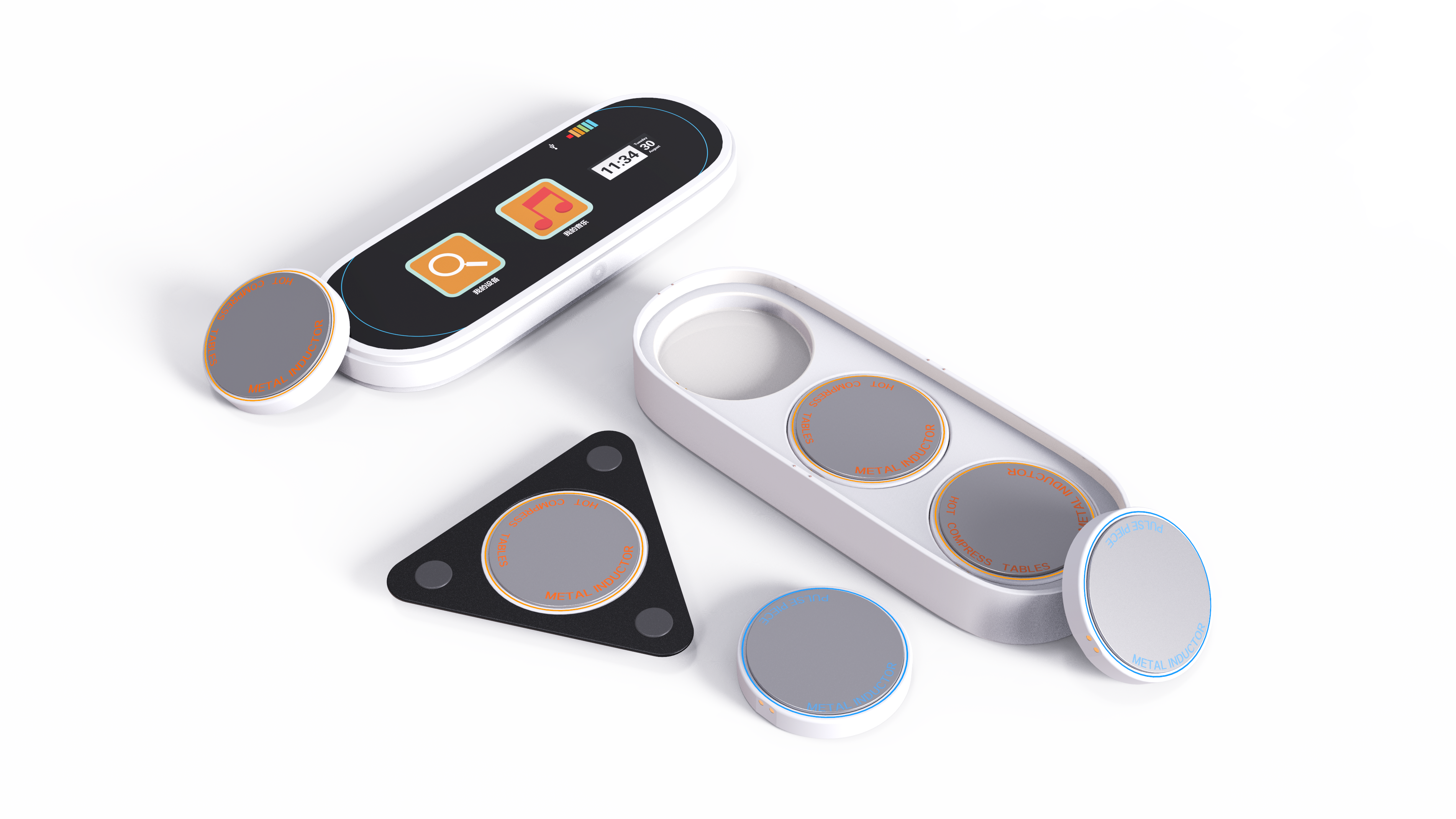

The hot compress module or pulse module can be used alone to adjust the force through the control screen on the box.

APP interaction design
