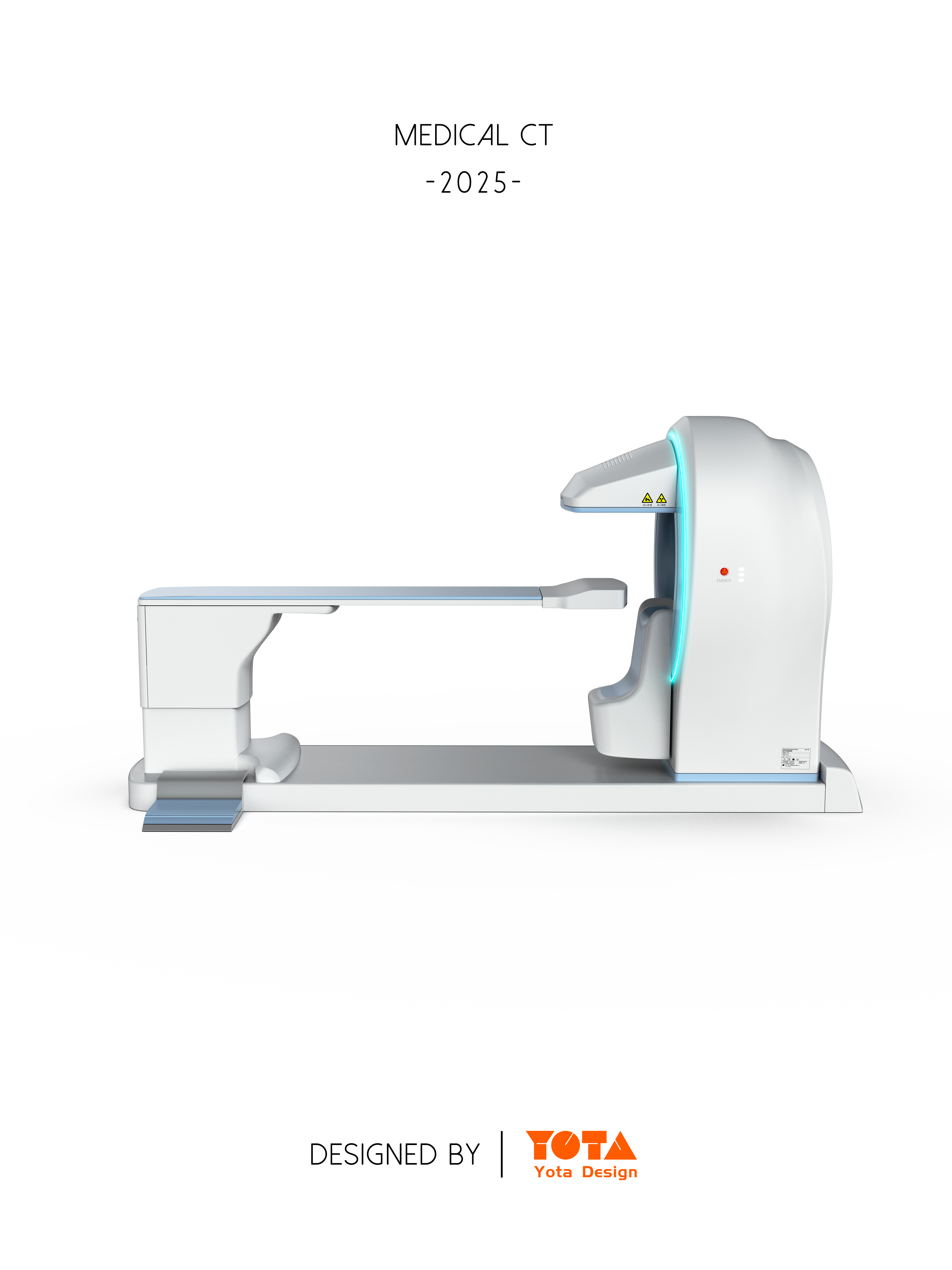

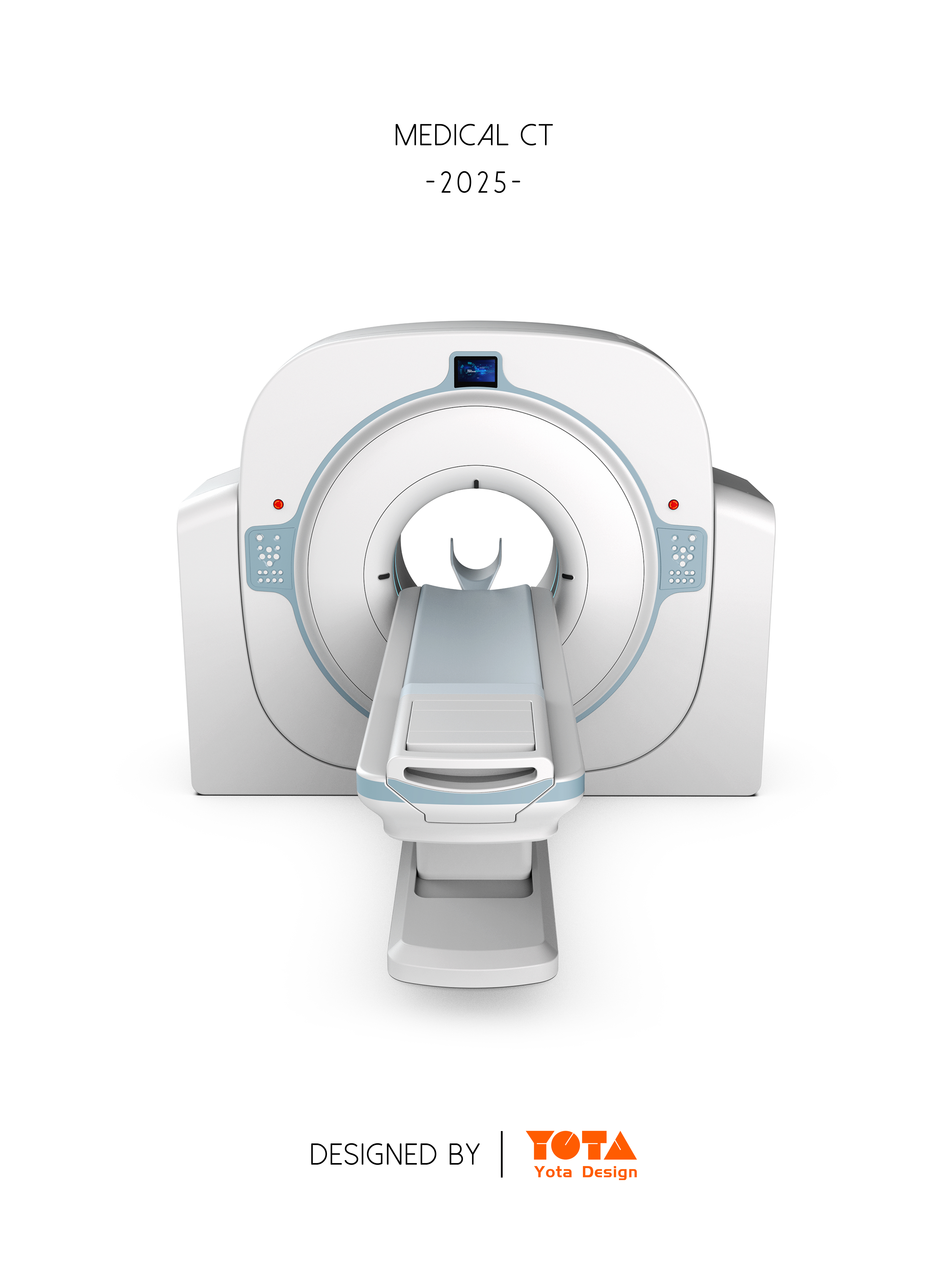

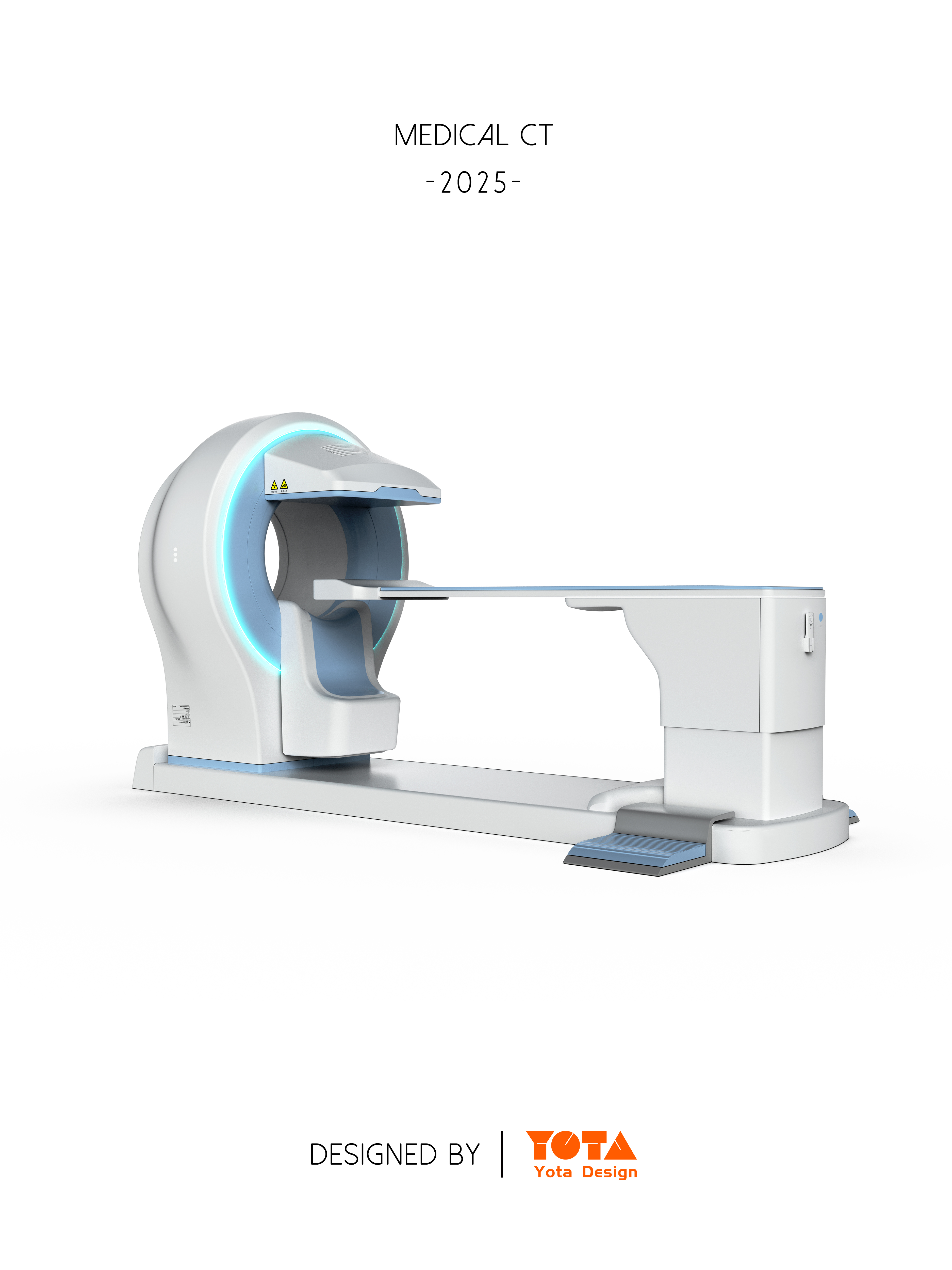

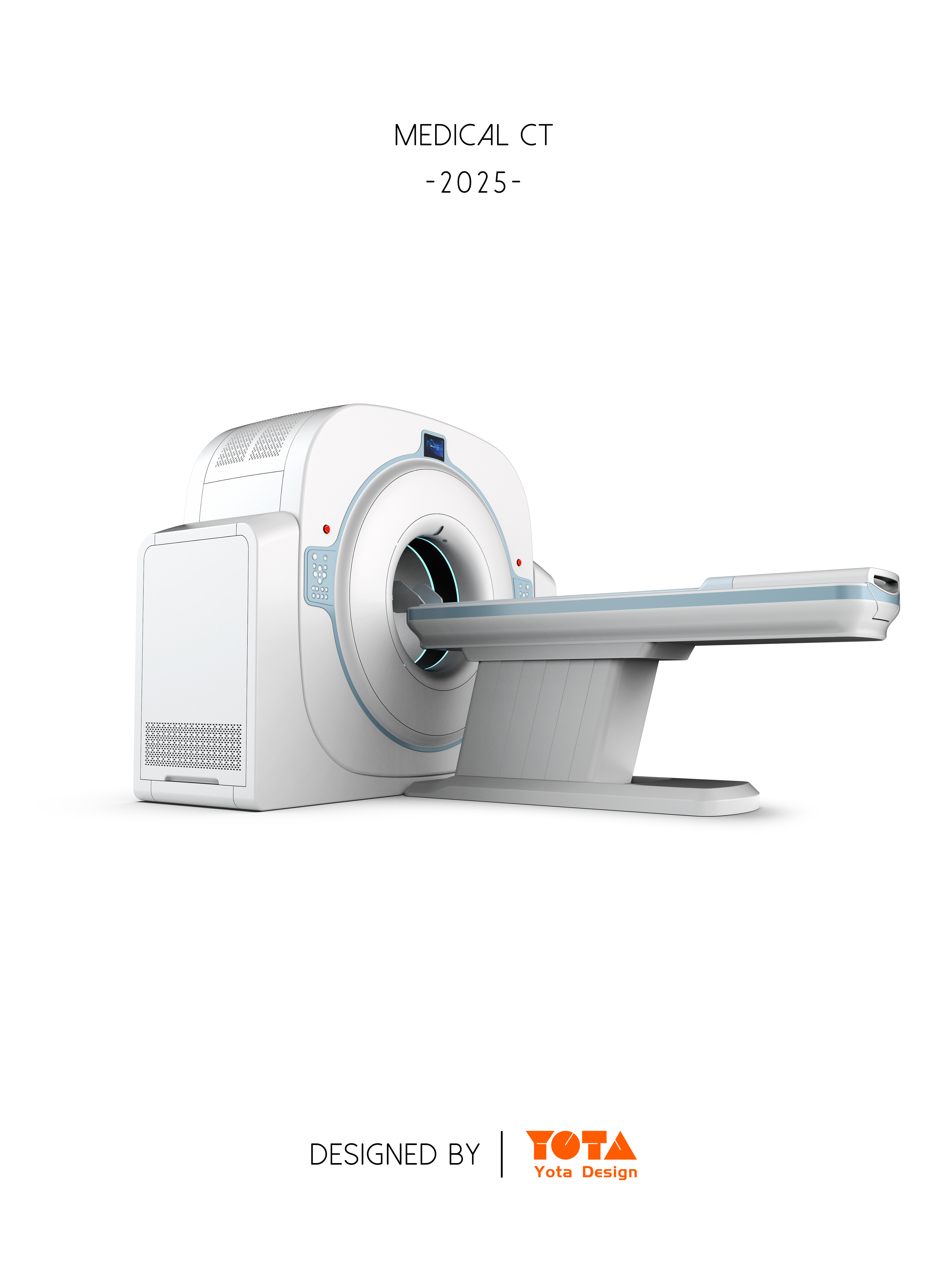

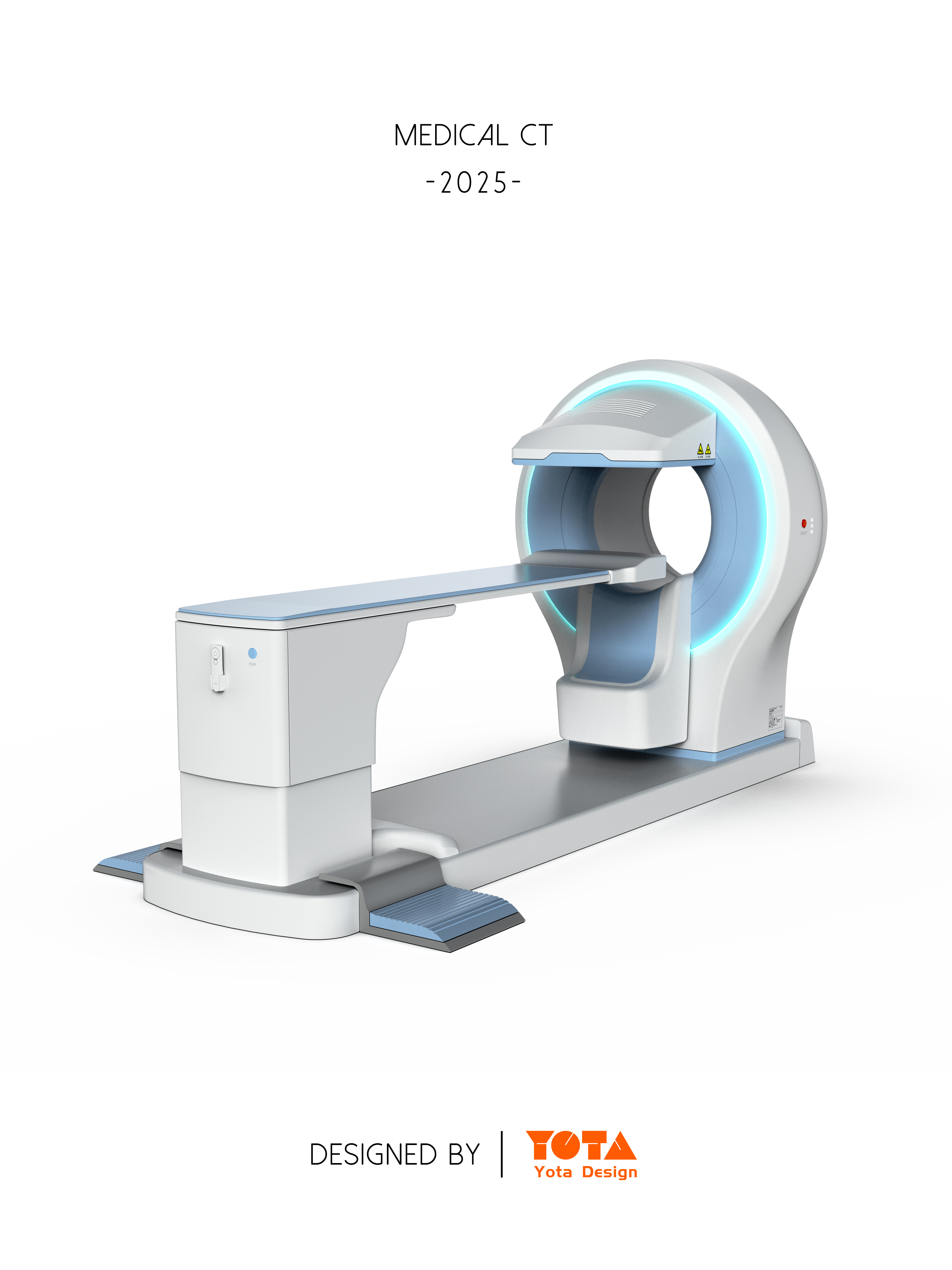

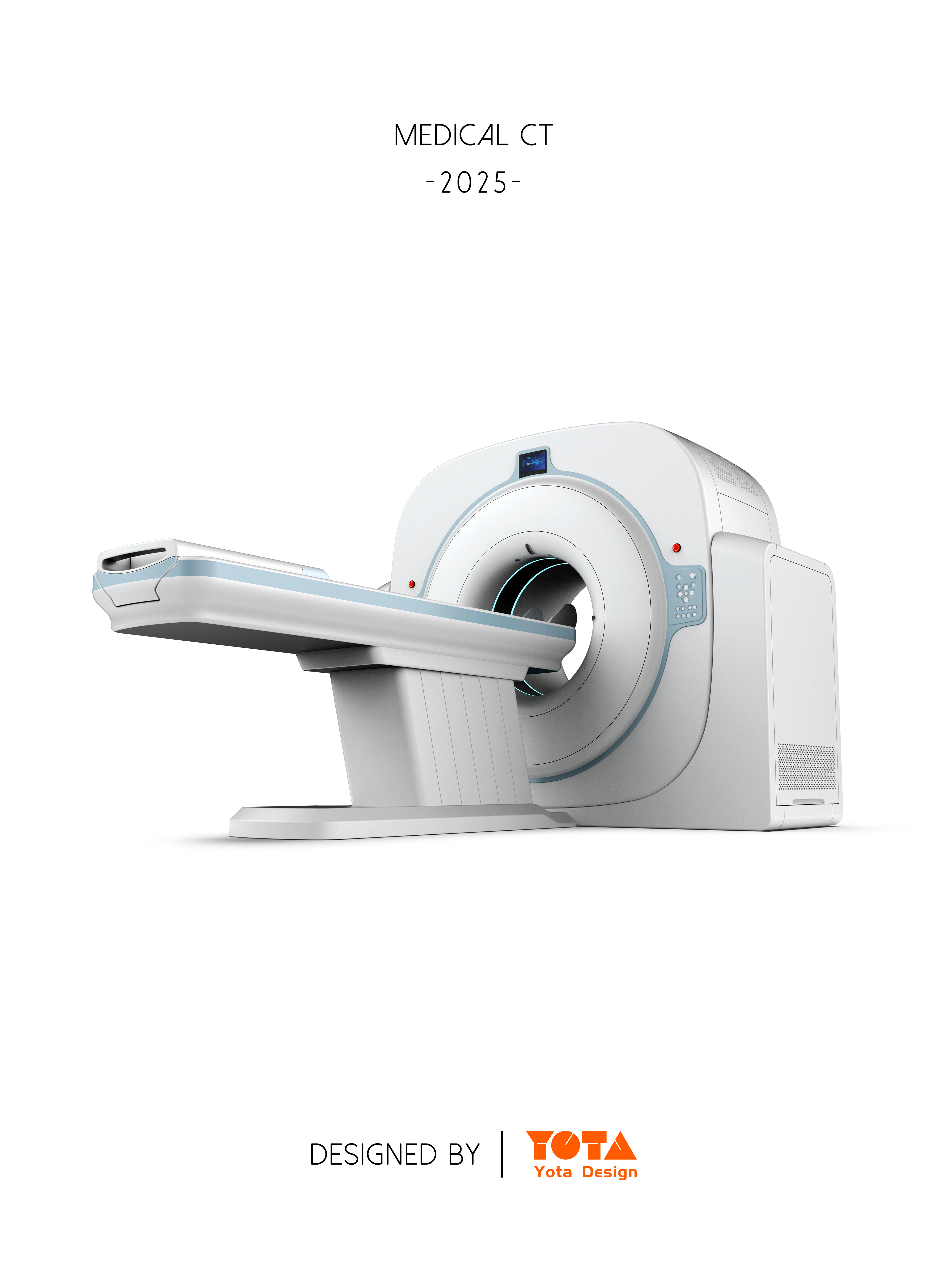

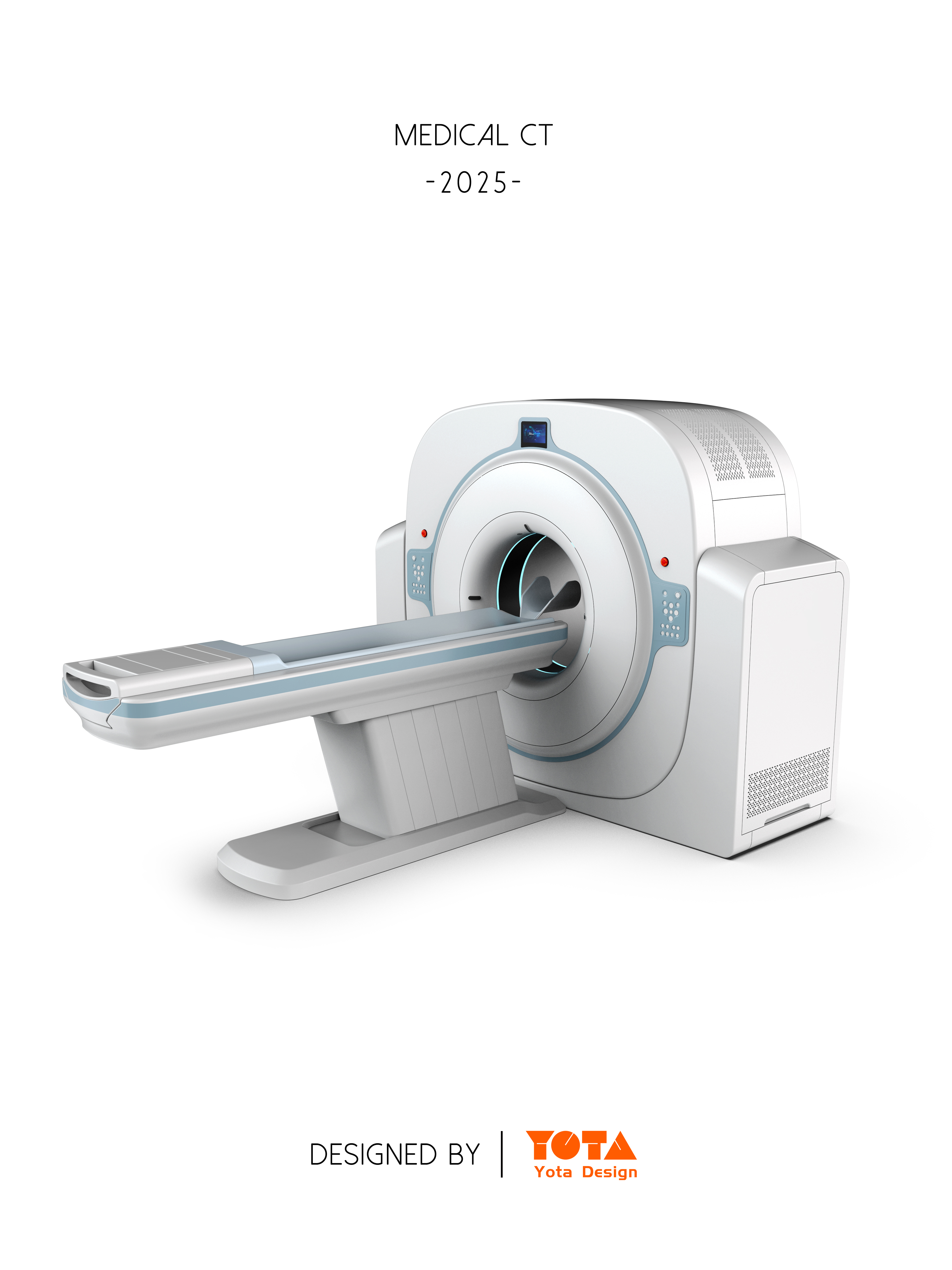

The appearance design of medical CT needs to take into account functionality, safety, ergonomics, environmental adaptability and psychological care of patients, and at the same time conform to the industry standards of medical equipment. Therefore, the design of the round tower should be considered comprehensively from various aspects when carrying out the appearance design of medical CT project. The following are some design points and ideas:
Medical operation interface
1. Console layout: the tilt angle of the main screen is 15 ° ~ 30 ° (to avoid reflection), and the height is flush with the line of sight of the medical staff sitting posture (about 110~120cm).
2. Common keys: Backlit physical keys are used, the emergency stop button is set independently, the surface is red and raised, and blind operation is supported.
3. Cable management: The connection line between the console and the host adopts a retractable drag chain or a hidden trunking to avoid the risk of tripping caused by the clutter of ground cables.
Patient Interaction Design
1. Psychological comfort: star ceiling projection or soft background light is set in the scanning aperture, and the light music playing function is matched to relieve the anxiety of patients. It is equipped with a voice guidance system, which can prompt breathing requirements and scanning duration through voice before examination to reduce patient tension.
2. Safety auxiliary device: handrails are set on both sides of the aperture (surface anti-slip treatment), and the examination bed is equipped with binding belt buckle (optional, for children or restless patients). The emergency call button is integrated in the position where the patient's hand can reach, and informs the medical staff in the operation room in real time after pressing it.
Brand Identity and Visual Unity
1.LOGO and color matching: embed the brand LOGO in a conspicuous position on the front of the equipment, and the color is coordinated with the VI system of the hospital (e.g. blue system commonly used in 3A hospitals).
2. Indicator light system: the use of ring breathing light, the position is higher than the patient's line of sight, to facilitate the medical staff to observe the state from a distance.
Through the above design, medical CT can not only meet the functional requirements, but also reduce the fear of patients through the appearance, improve the operation efficiency of medical staff, and meet the aesthetic standards of modern medical space.
