Fully automatic PCCP slurry spraying machine

2023-01-11 Other Industries 2182 13 10

The full-automatic PCCP slurry spraying machine is a node equipment for the production of prestressed steel barrel concrete pipes (PCCP),
The design idea of this design is to design the structure first, then carry out the shell design,
In the design, the main considerations are equipment protection and maintenance, the overall integrity of the product,
In terms of appearance, the materials used are mainly sheet metal spraying, silk screen LOGO and prompt words,
Pay attention to the angle between the operating height and the touch screen in the operation panel,
I 'd like to share this case with you. Please give your guidance on the deficiencies. Welcome to exchange.

Engineering, Machinery, Sheet Metal, Equipment, Intelligence，

10 20

Users’ other works View More

2022

Audio-visual integrated alarm

Civil air defense alarm intelligent management battery

Comment

Comment Board （13）

135****1212 2023-04-19

May I know what material is used for the next spray color rendering?

咏而归Owner 2023-04-20

Just use plastic, spray plastic for physical surface treatment, and plastic powder is plastic powder.

Write a comment

MOYU 2023-01-11

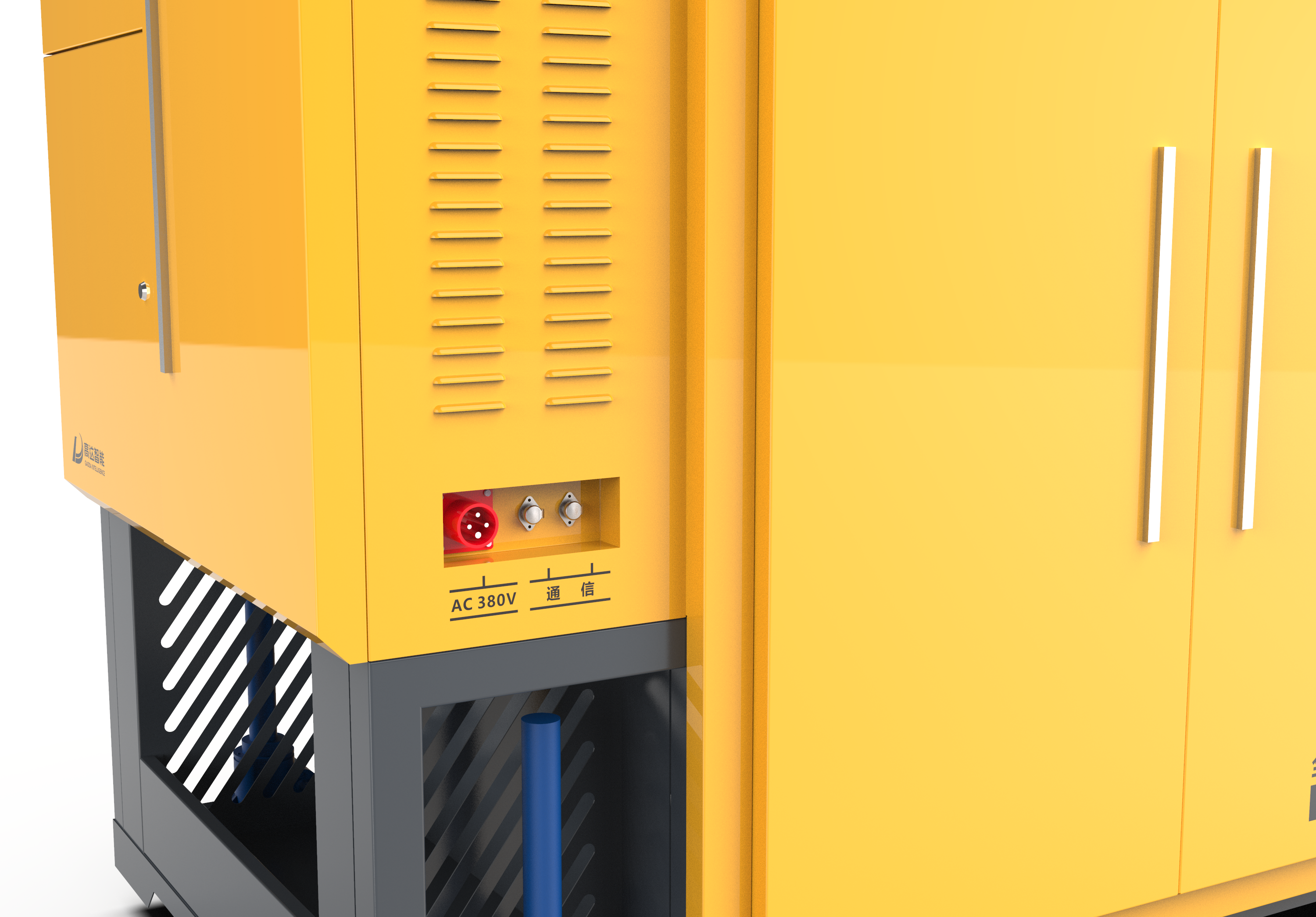

I feel very good, and I have some doubts. Why are the positions of the interfaces at the bottom so low? It can obviously go up a little bit. It is not convenient to insert them too low. They are all squeezed below.

咏而归Owner 2023-01-13

It has something to do with the internal pulp path. The higher the pulp outlet, the easier it is to block the interior. Other interfaces are balanced with functional modules at this position. The final form is based on the comprehensive results of function, material, cost and processing, which is more balanced.

MOYU 2023-01-13

So, be taught😂
