2020 Red Dot Works-HOME-G Fascia Gun

2020-03-19 Outdoor Sport 9399 85 23

CS.design

China · Outdoor Sport

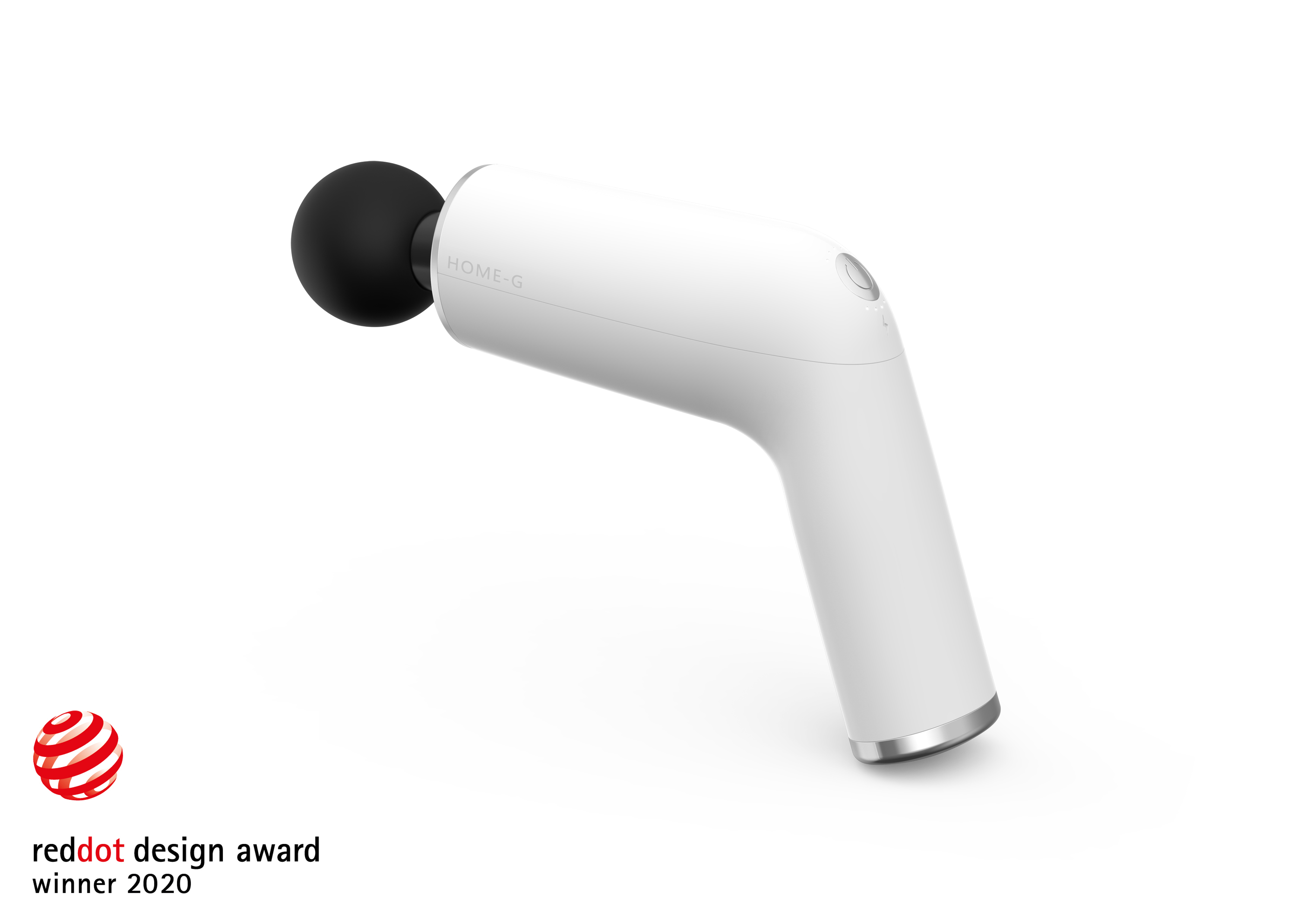

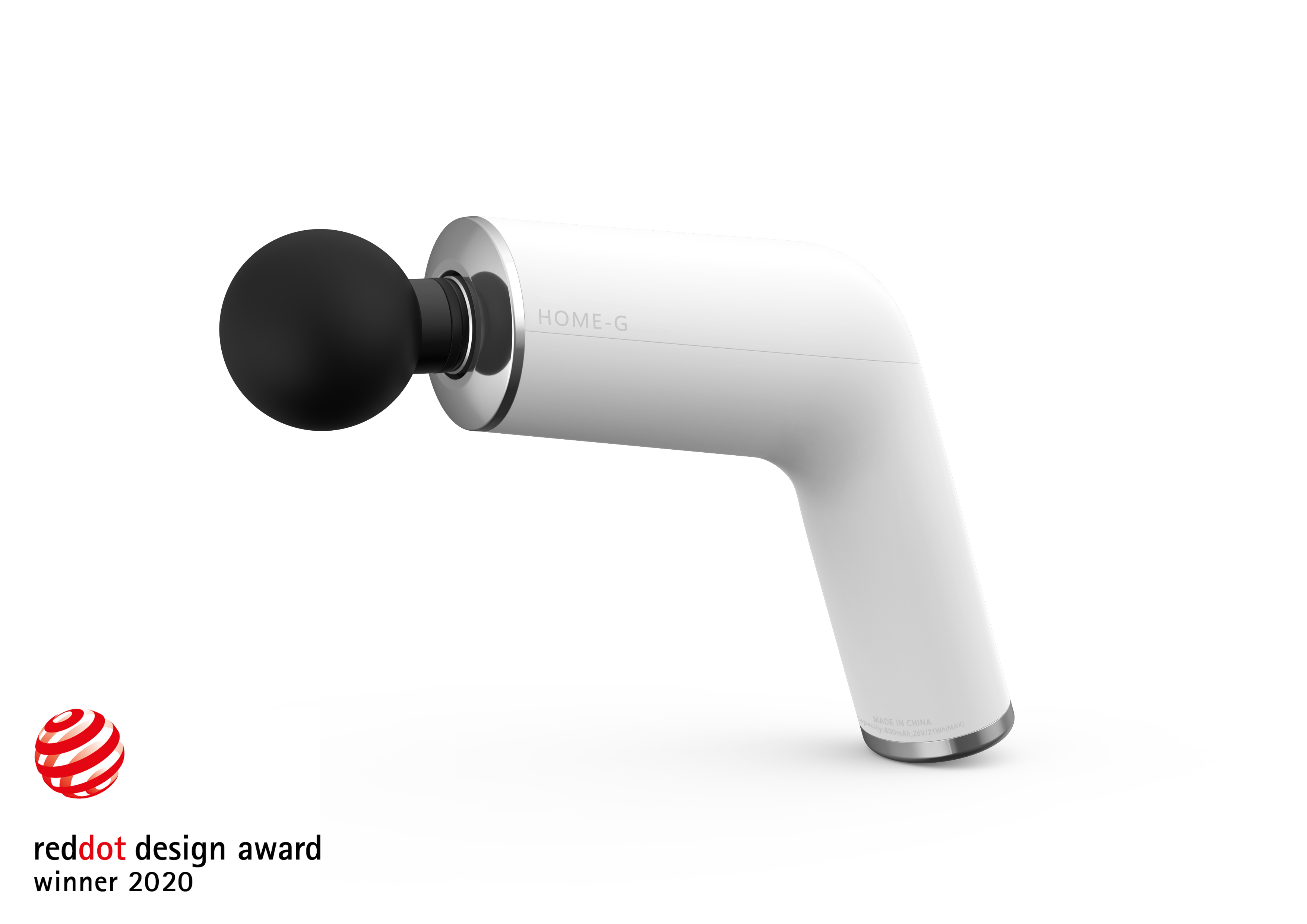

Xiamen renhe sports equipment co., ltd. design and manufacture. Subvert the traditional movement transmission mode and make the modeling full of more possibilities.

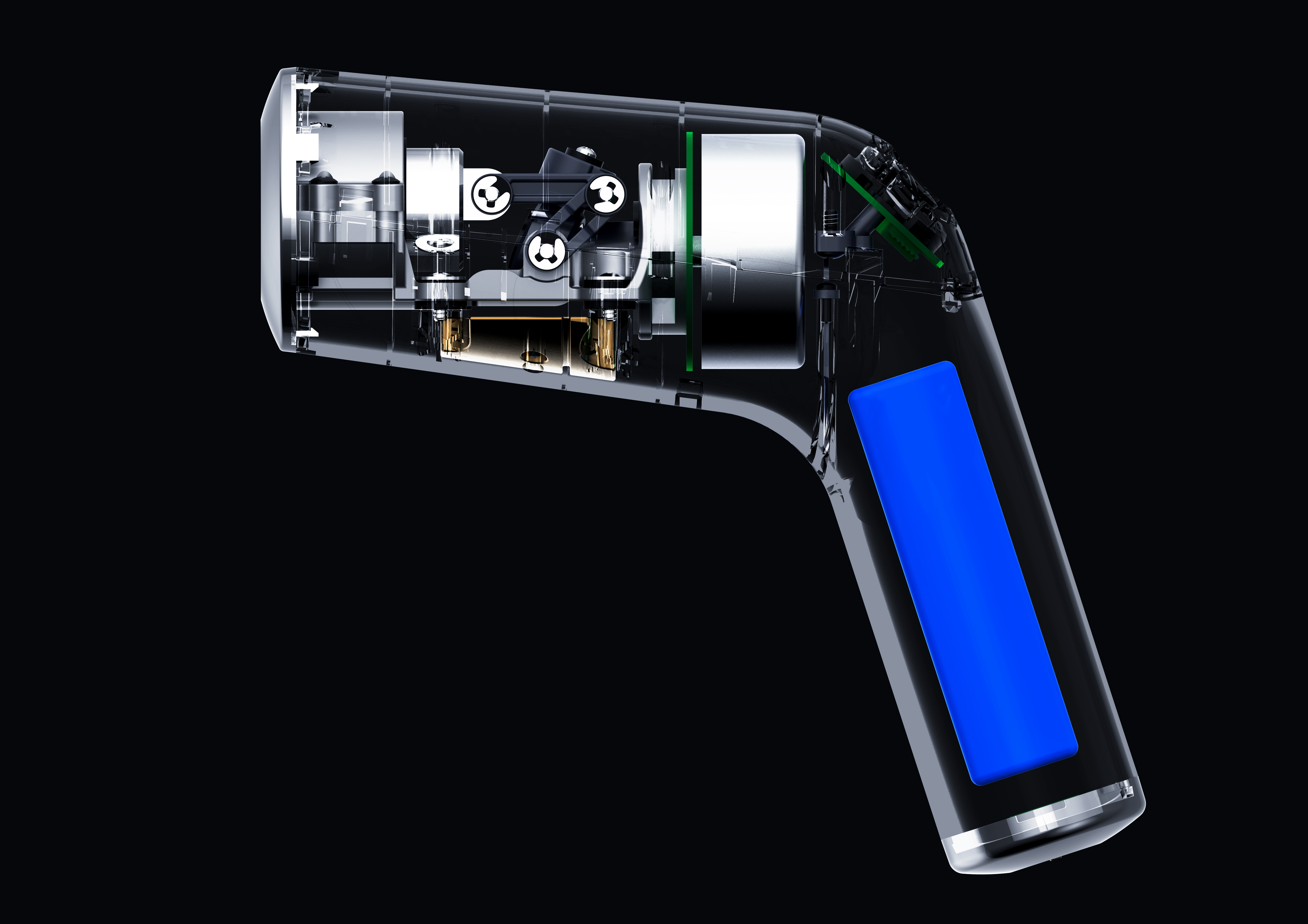

Fascia gun,
Fascia gun,
Fascia gun,
Fascia gun,
Fascia gun,
Fascia gun,
Fascia gun,
Fascia gun,
Fascia gun,
23 73
Users’ other works View More
Comment

Comment Board (85)

Bin 2021-01-20
Reply

Is the core pulling of the hollow part of the hand-held core two cores inclined up and down, I think the middle is a little concave

CS.designOwner 2021-01-24
Reply
Yes, professional
Write a comment
我把头换了 2020-11-23
Reply

How much does it cost to design a product like this? Appearance and structure together.

CS.designOwner 2022-10-10
Reply
Add v private chat ha
Write a comment
有点意思 2020-06-17
Reply

I wonder if I can change the grip, such as the straight type grip.

CS.designOwner 2020-09-06
Reply
The straight-tube prototype has been done, and the dynamic balance cannot be solved, and the vibration is greater than other methods.
Write a comment
抱歉我叫大力丸 2020-05-30
Reply

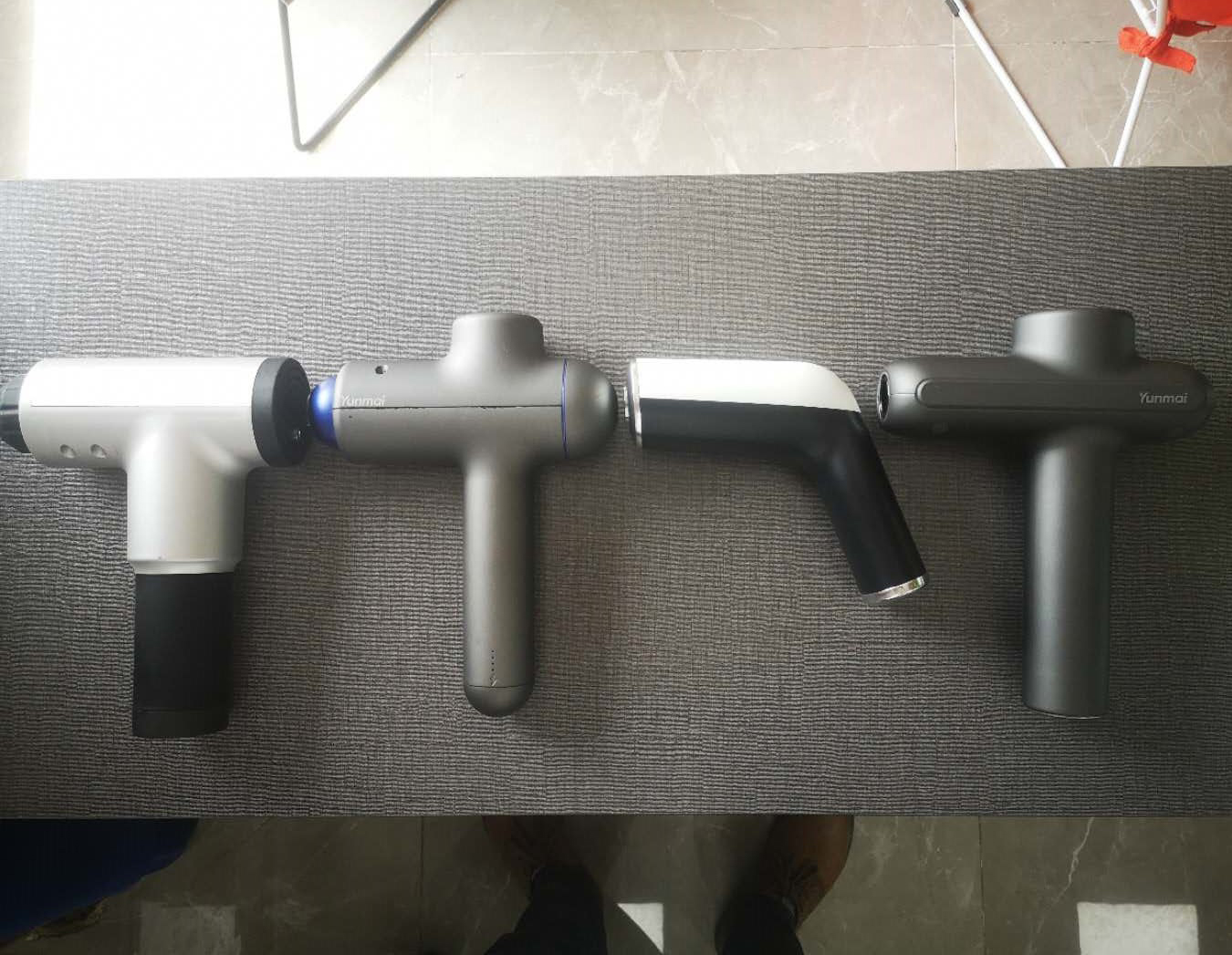

Rational discussion in the industry, the purchase of physical goods, do competition analysis. Let's talk about the shortcomings first and then the advantages. 1. The downward pressure angle is not suitable for hammering yourself. This angle is not good for downward pressure. 2. Oil out 3. The hammer head shakes left and right, breaking open all white balls inside, which is an interesting structure. It may be through this to reduce friction noise. Not as good as hyprice. 4. Chrome plating is easy to bruise. Advantages: The mold is well opened and the spraying color is well selected. Different people have different opinions on the shape. This product mainly eats channels. The price is weighed against the function and quality. There is no breakdown category. It is a little above the middle in fascia Q.

CS.designOwner 2020-09-06
Reply
Dismantling the machine, the analysis is more thorough. Most models of gun head oil are more or less available. The white ball POM material is wear-resistant and self-lubricating, which is to relieve noise. As for whether there is a breakdown category is not the focus of our research and development. We will not follow the public when we make products again. We will change the research and development from the inside out. The transmission structure of the movement has changed in no less than 10 ways. We even wanted to give up at one time. We were paranoid and insisted that we make the products.
Write a comment
日出 2020-05-08
Reply

Old Tie, I was thinking about the structure inside. Can I understand it for reference. I am
Amateur

抱歉我叫大力丸 2020-06-01
Reply

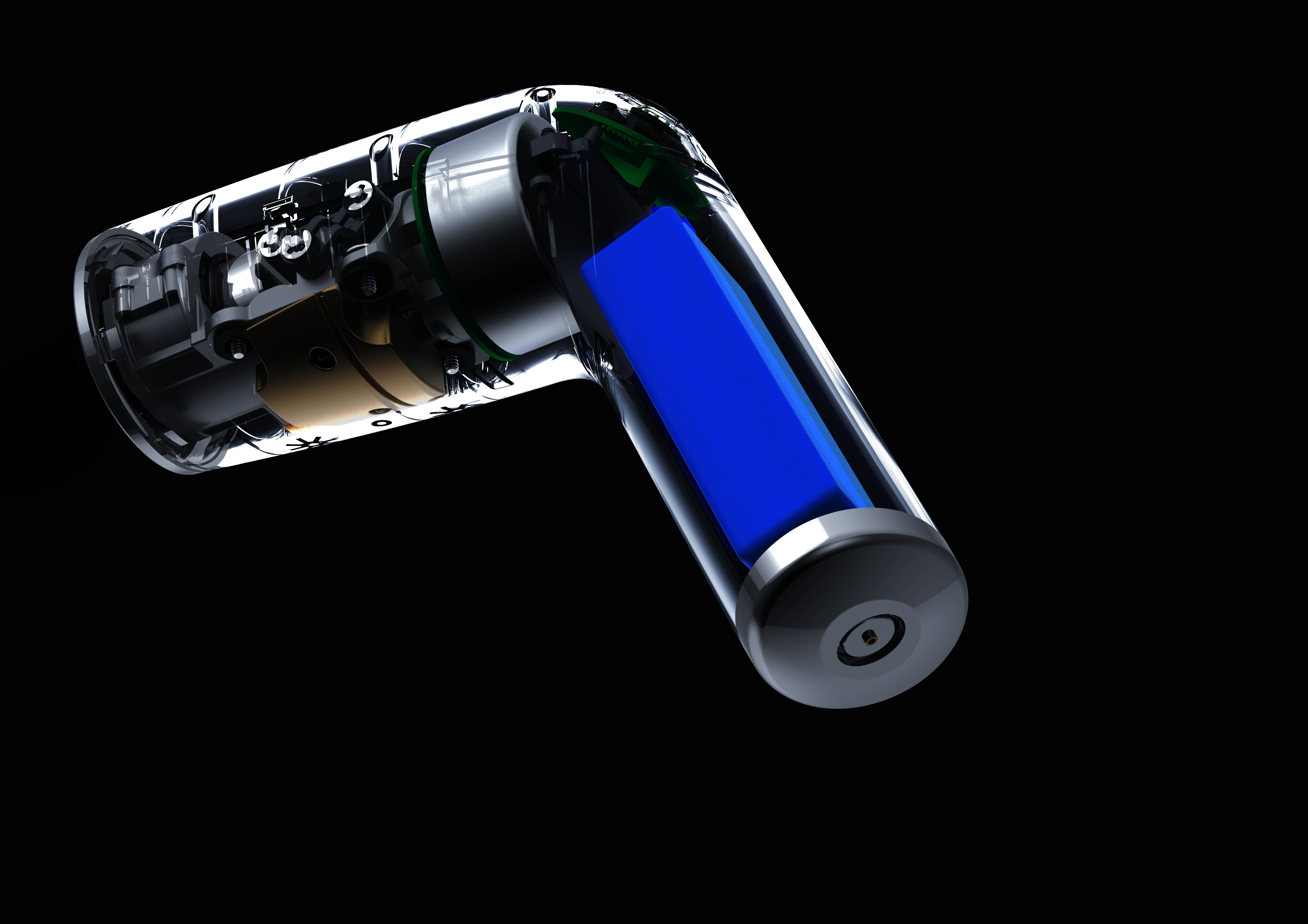

An innovative structure of a universal joint steering mechanism, which changes the rotation direction force of the motor into a force perpendicular to the axial direction of the motor. It is not the same as the crank connecting rod mechanism on the market. The motor and the entire mechanism lock are locked on a die-cast base. With silicone piston sleeve (contains a lot of balls, oiled. In this way, the massage head can swing.) High energy (pay attention to check the patents of other companies, learn from them, do not infringe)
Write a comment
日出 2020-05-08
Reply

Leave them alone. Individuals have their own views. I think it is good. Good support

CS.designOwner 2020-09-09
Reply
Thank you for your support
Write a comment
荔枝肉 2020-04-08
Reply

U1S1, everyone's impression of red dot IF is getting worse and worse, but getting the prize is also recognition of the product. even if the threshold of red dot IF is low, no one can guarantee that they will win the prize

CS.designOwner 2020-04-24
Reply
It's all the same, just better than the domestic awards.
Write a comment
Gu. Y .J 2020-03-26
Reply

This mind

会飞的胖头鱼 2020-03-24
Reply

I like this simple product, one structure is not good for two, ha ha

CS.designOwner 2020-03-24
Reply
This is not simple, the internal transmission restricts the appearance. The core is mainly a transmission movement with reliable, low noise and satisfactory strike force.
听风吹 2020-04-07
Reply
How did he drive this motor?
日出 2020-04-08
Reply
I know one. Recently, those who have studied this aspect can only use clicks.
CS.designOwner 2020-04-24
Reply
There is a link below. Netease strictly selects crowdfunding, and there are moving pictures.
CS.designOwner 2020-04-24
Reply
There is a link below. Netease strictly selects crowdfunding, and there are moving pictures.
Write a comment
wei! 2020-03-24
Reply

In order to make such an appearance, it is hard to make a structure, and the cost has been given to open the mold, which is also severe.

CS.designOwner 2020-03-24
Reply
This kind of difficulty is hard on the structure, which is too small for the structural designer. The cost can be balanced by the amount. Small cost
Write a comment
Eason。 2020-03-23
Reply

66手里2两糖 2020-03-22
Reply

The shape is quite simple and beautiful, but it is hard to make a structure. this structure can lose hair

CS.designOwner 2020-03-23
Reply
It is more difficult to handle the part of the mold. If you find a good mold, you will have the best plan.
Write a comment
意可工业设计 2020-03-22
Reply

How did it come out? I didn't understand it. I hope the great god will explain it.

CS.designOwner 2020-03-23
Reply

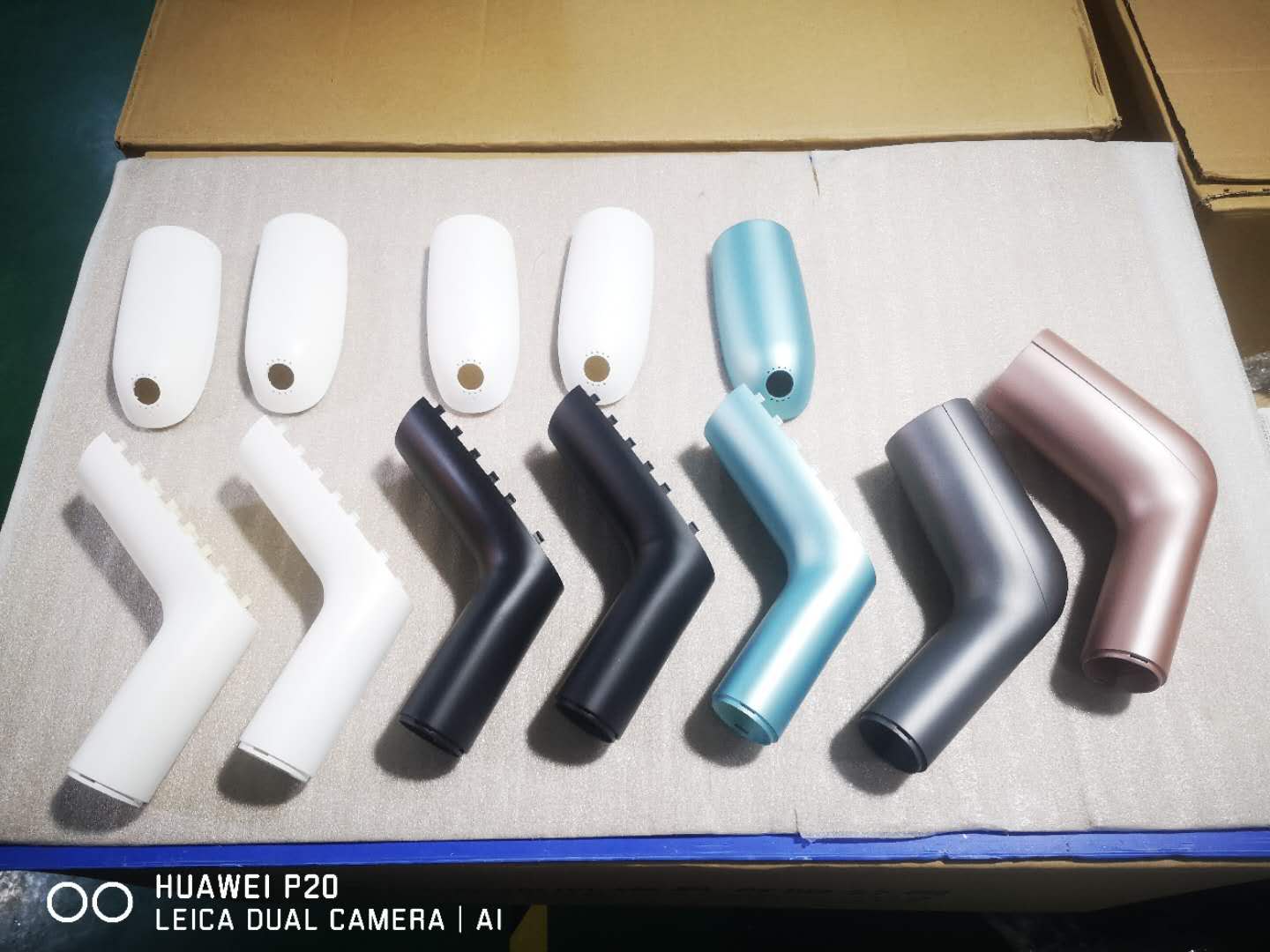

Hold part of the shell by hand, close the mold left and right, and pull the core of the hollow part.
意可工业设计 2020-03-23
Reply
It is difficult to control the actual quality. It is estimated that it will take a little consideration.
CS.designOwner 2020-03-23
Reply
Therefore, I found a relatively powerful mold factory and made several rounds of careful evaluation before opening the mold before confirming the mold. The problem of mold closing line requires late mold finishing, painting and covering, and controlling the defect rate as much as possible.
Write a comment
用户本人 2020-03-22
Reply

The red dot threshold is indeed a little lower.

CS.designOwner 2020-03-23
Reply
I don't know if it's low. Innovation is not just that the surface of the picture is not enough to show
Write a comment
致造 · 极致创造 2020-03-21
Reply

Seeing the parting line, I praised ~ I really want to touch the real thing ~

CS.designOwner 2020-03-21
Reply
Online in mid-April, online easy to be strictly selected and put on shelves
Write a comment
