Project Name: Prostate Ablator (Conceptual Design Scheme C)
Collaboration Scope: Design Analysis | Industrial Design | Structural Design | Prototype Fabrication | Ongoing Support and Assistance
1. Design Analysis: Functional Reconstruction in Clinical Scenarios

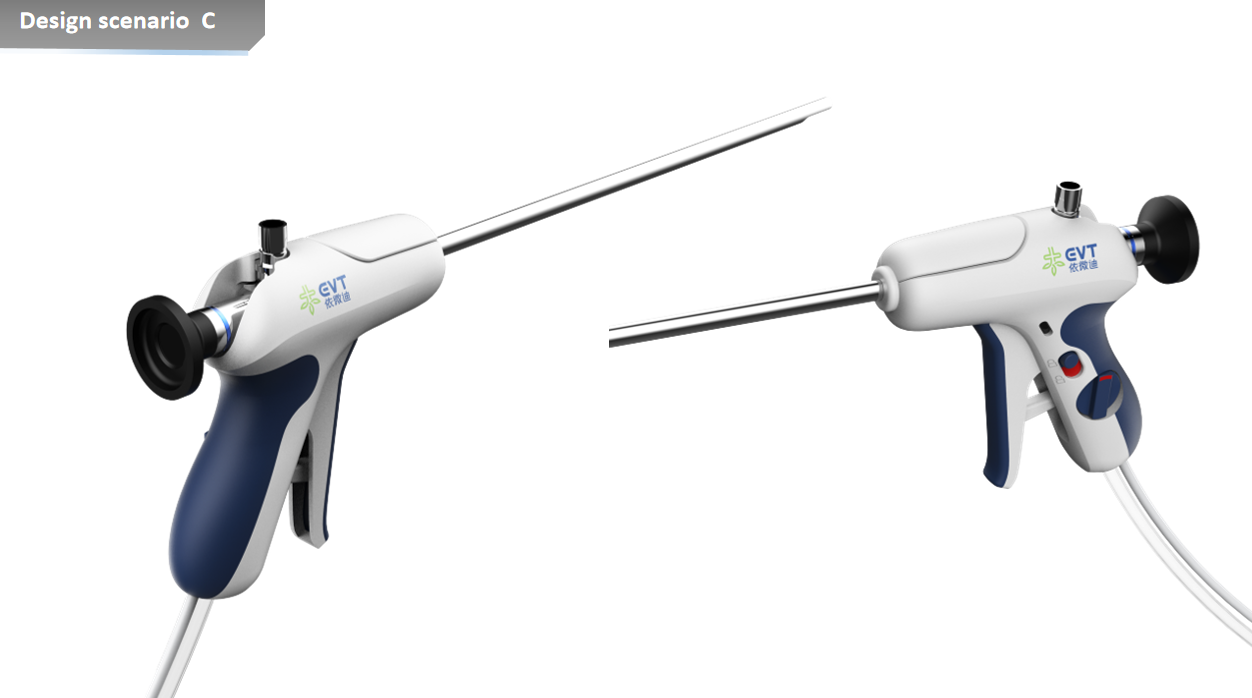

Prostate ablation instrument as the core equipment of minimally invasive interventional therapy, scheme C to **" accurate, efficient, safe "** as the design core, deep fit urology clinical operation scene. Compared with traditional equipment, the scheme highly integrates the endoscope interface with the ablation tube, realizes the integrated operation of "visual guidance-precise ablation", avoids the operation loss caused by multi-device switching, and effectively improves the operation efficiency.

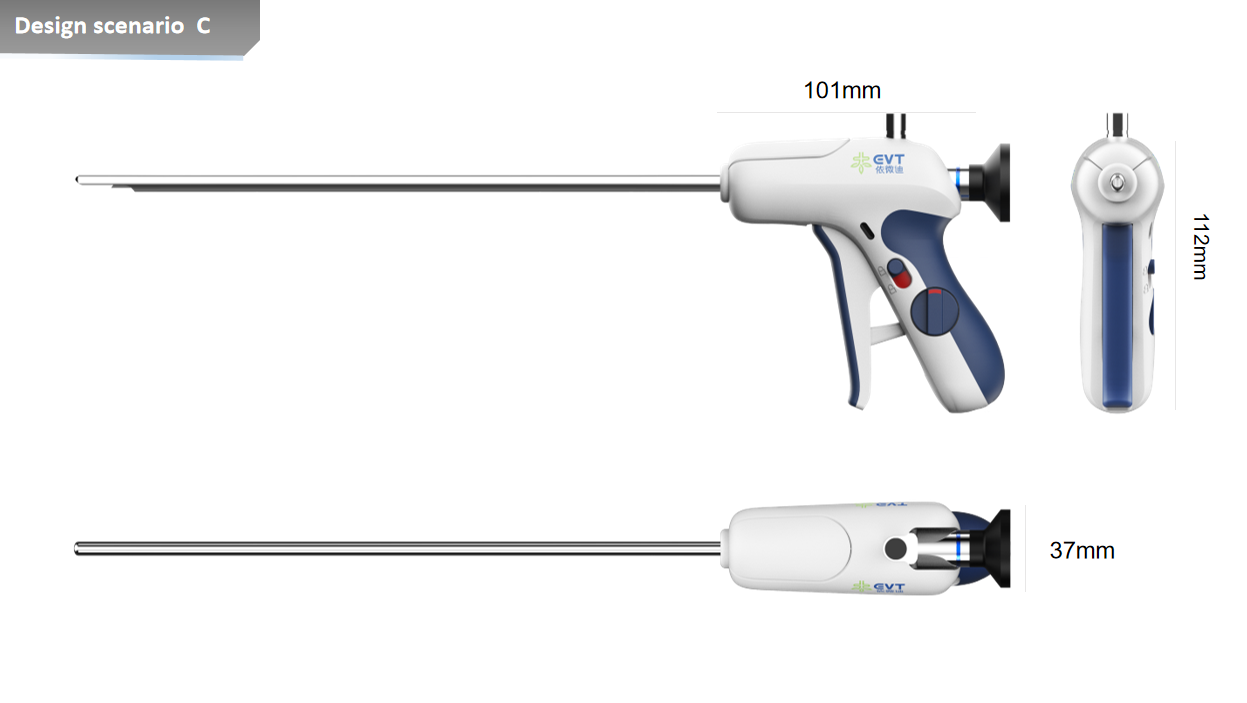

Based on clinical requirements, Scheme C focuses on optimizing the miniaturization and portability of the equipment: compact body size (101mm long, 112mm high and 37mm thick) not only reduces the blocking of the surgical field of view, but also adapts to the narrow operation space of laparoscopic surgery; The detachable safety window and modular structure design meet the industry standards for high-temperature disinfection and reuse of medical equipment and reduce the operating cost of hospitals. The overall design logic always revolves around "taking the doctor's operation efficiency as the core and patient safety as the bottom line" to provide more reliable tool support for minimally invasive prostate treatment.
2. Design Language: Simple and Professional Medical Aesthetic Expression
Scheme C adopts the minimalist medical design language, and conveys the product temperament of "clean, reliable and professional" through the restraint expression of color and form. The visual core is white and blue: the main body of the white body weakens the cold feeling of medical equipment, and at the same time it is convenient to find stains and damages; The dark blue soft rubber holding area defines the functional operation area and holding area through color division, reduces the cognitive load of doctors, and strengthens the operation identification degree.

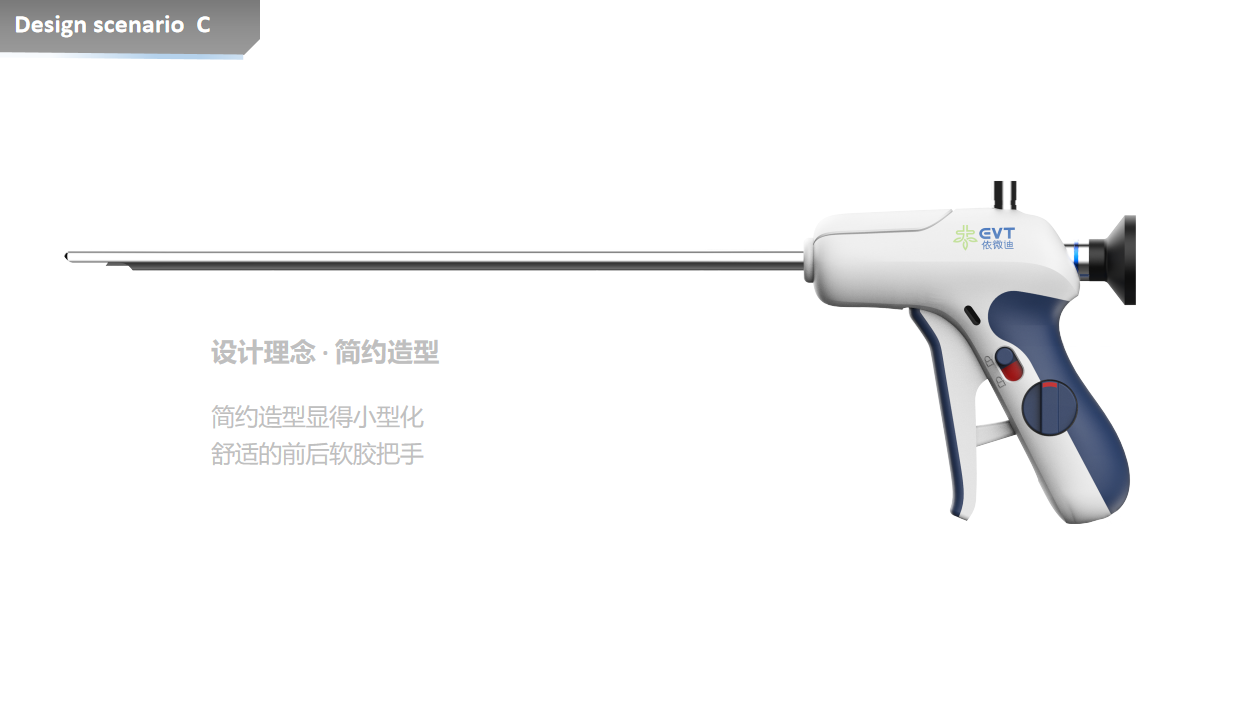

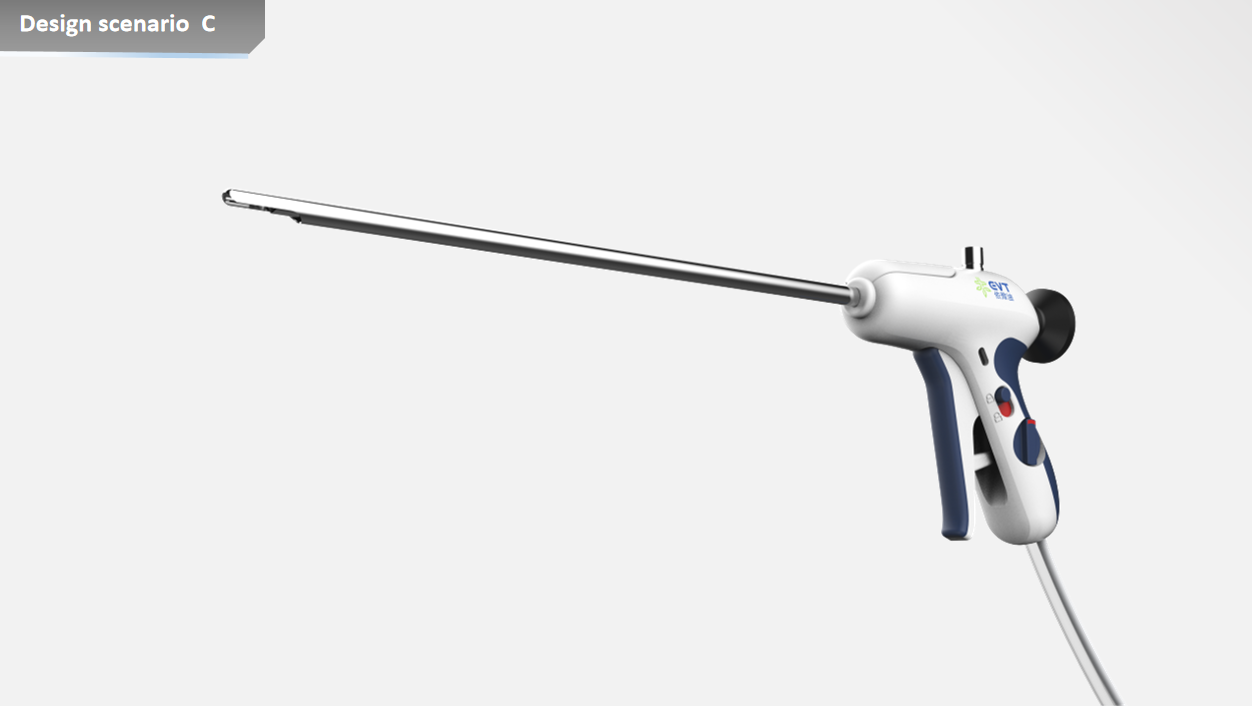

In terms of modeling, the product is combined with smooth curve and geometric section, abandoning redundant decoration: the gun body adopts round transition to avoid collision risk caused by sharp corners; The front-end metal ablation needle tube maintains a straight shape, which not only meets the requirements of mechanical stability, but also strengthens the functional image of "precise intervention". The curved surface shape at the handle naturally fits with the radian of the human palm, conveying the design hint of "comfortable operation. The overall vision presents the characteristics of "function is aesthetics", and every line serves the clinical practicality, which is in line with the design ethics of "practicality first and safety first" of medical products.
3. Design Details: Micro-landing of Safety and Efficiency
The detailed design of scheme C reflects the in-depth insight into clinical needs everywhere, and constructs a closed-loop system of "observation-regulation-operation-safety:

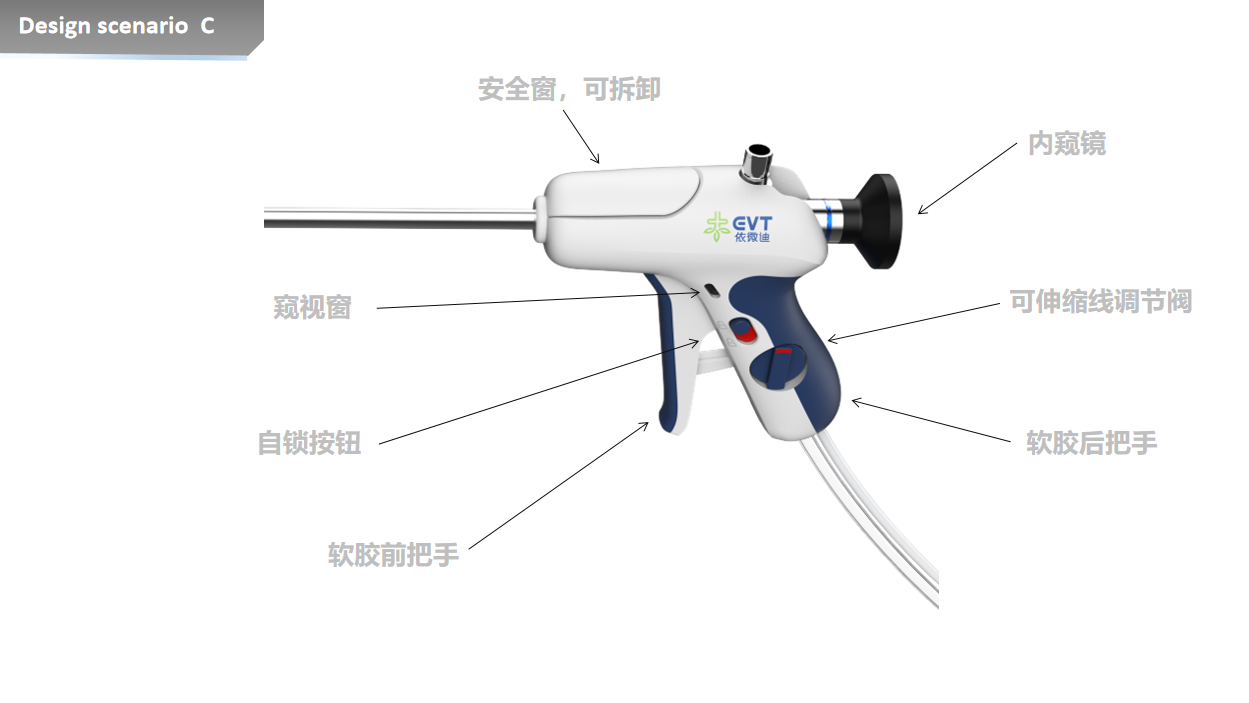

Removable safety window: located at the top of the gun body, it is convenient to observe the internal pipeline status in real time, and can be quickly disassembled for high-temperature disinfection, so as to solve the industry problem of cleaning dead corners of minimally invasive equipment;
Peep window and self-locking button: the side peep window can visually monitor the working state of the ablation line, and the red self-locking button can prevent accidental triggering and avoid tissue damage caused by accidental operation during the operation;
Retractable line regulating valve: the tail knob type design can accurately adjust the extension length of the ablation line, adapt to the anatomical structure differences of different patients, and improve the treatment accuracy;
Standardized interface: The endoscope interface adopts general specifications, which can be compatible with mainstream medical endoscope systems, reduce the cost of hospital equipment replacement, and enhance the adaptability of product scenarios.
These details do not exist in isolation, but cooperate with each other, so that doctors can efficiently and stably complete operations in complex operations, while maximizing patient safety.
4. Ergonomics: Doctor-Centered Operational Experience Optimization
Ergonomic design is the outstanding advantage of Scheme C, which comprehensively improves the operating comfort from the three dimensions of grip, force and vision:
Holding comfort: front and rear double soft rubber handles are designed, the front handle fits the palm of the palm, and the rear handle covers the palm and fingers, effectively dispersing the pressure brought by long-term holding; The soft rubber material has both slip resistance and skin-friendly feeling, and can be held stably even if wearing sterile gloves to avoid slipping during surgery;
Rationality of force: The structure of the gun trigger simulates daily operation habits. After repeated debugging of the trigger stroke and force, the ablation function can be triggered by a light press, avoiding wrist fatigue caused by traditional knob operation;
Visual friendliness: The endoscope interface is located on the right side of the gun body, which is consistent with the direction of the doctor's main eye to reduce the discomfort caused by neck torsion. The buttons and regulating valves are all designed with convex shape, which can be accurately positioned by touch without lowering their heads to confirm, thus ensuring the continuity and concentration of surgical operations.
This "doctor-centered" ergonomic design not only improves the efficiency of operation, but also reduces the risk of occupational strain caused by long-term surgery, reflecting the humanistic care of medical design.
5. Summary: Balancing the Value of Medical Design
Prostate Ablator Conceptual Design Scheme C achieves a subtle balance between functional practicality, visual professionalism and operational safety: simple design language conveys the professional sense of medical products, detailed design accurately meets clinical requirements, and ergonomics ensures long-term operation comfort and efficiency. It is not only a fully functional medical equipment, but also a concrete expression of the design concept of "patient-centered and doctor-centered", which provides a reference model for the design of minimally invasive interventional medical products. Sogo Design: www.soogot.com
