Under Capital Series 3-Q2

2022-06-25 Automotive Design 16821 38 158

徐大稳

China · Automotive Design

Under Capital Series 3-Q2

2022-06-25 Automotive Design 16821 38 158

徐大稳

China · Automotive Design

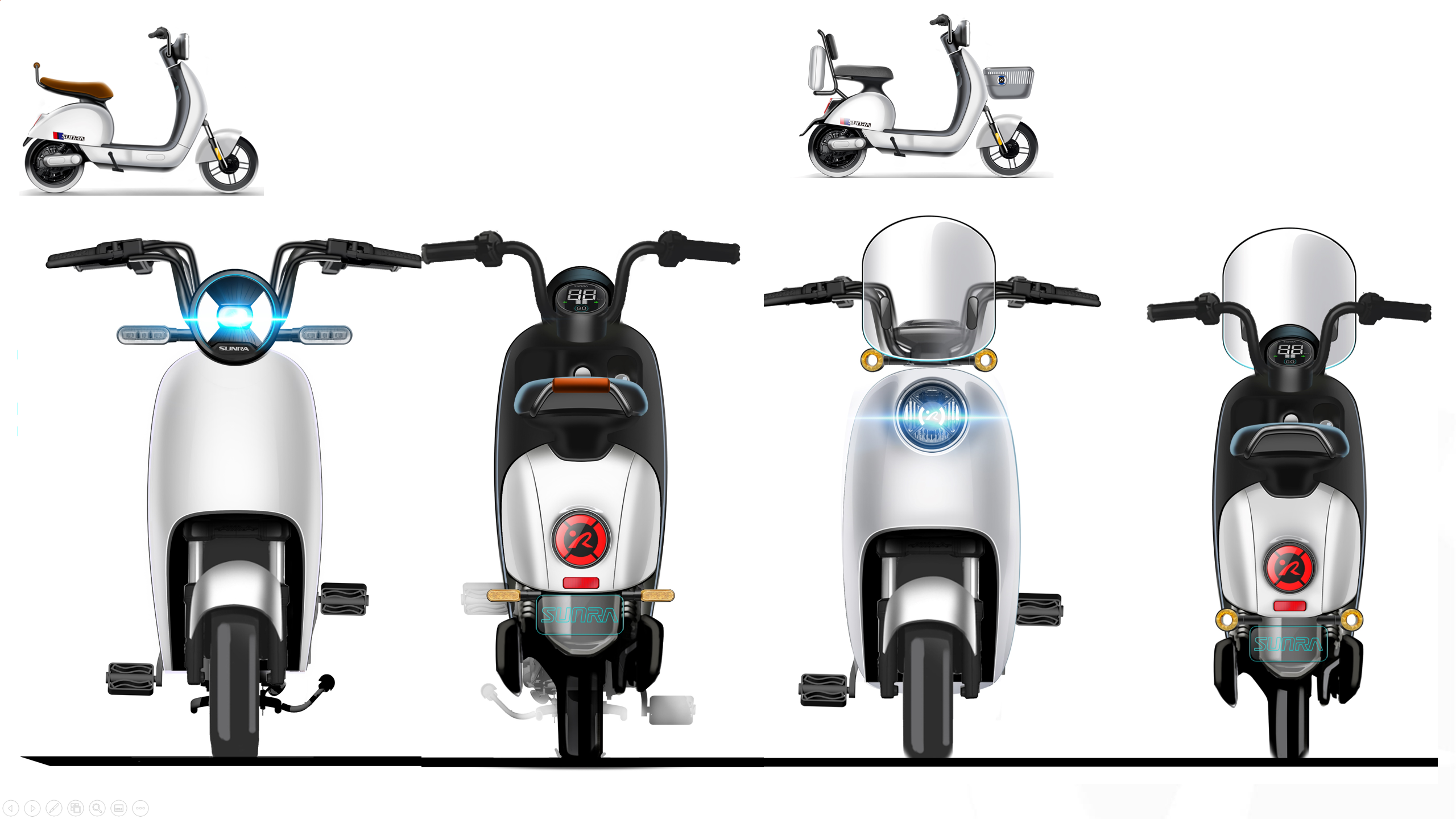

New Day,Electric vehicle,

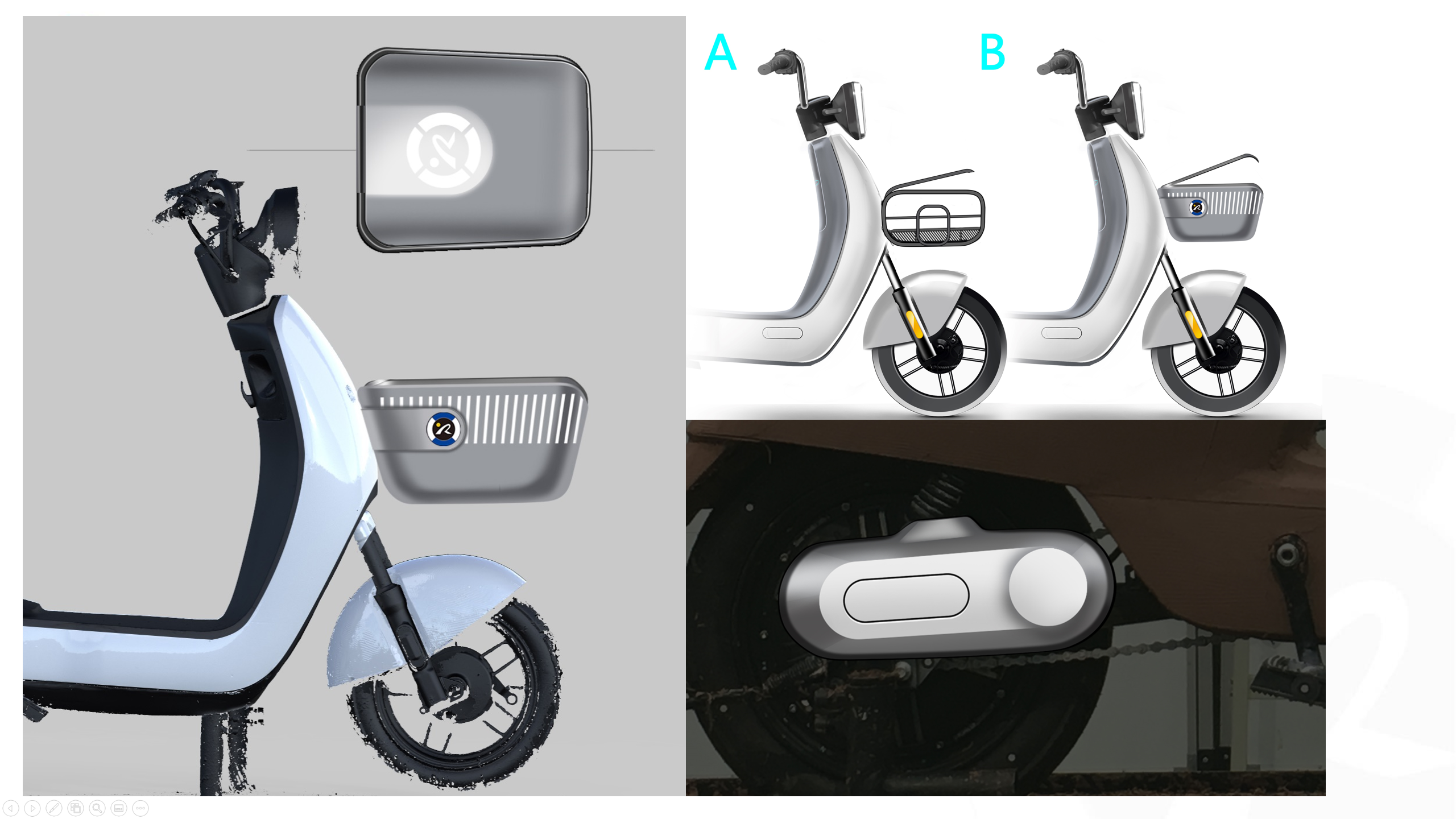

New Day,Electric vehicle,

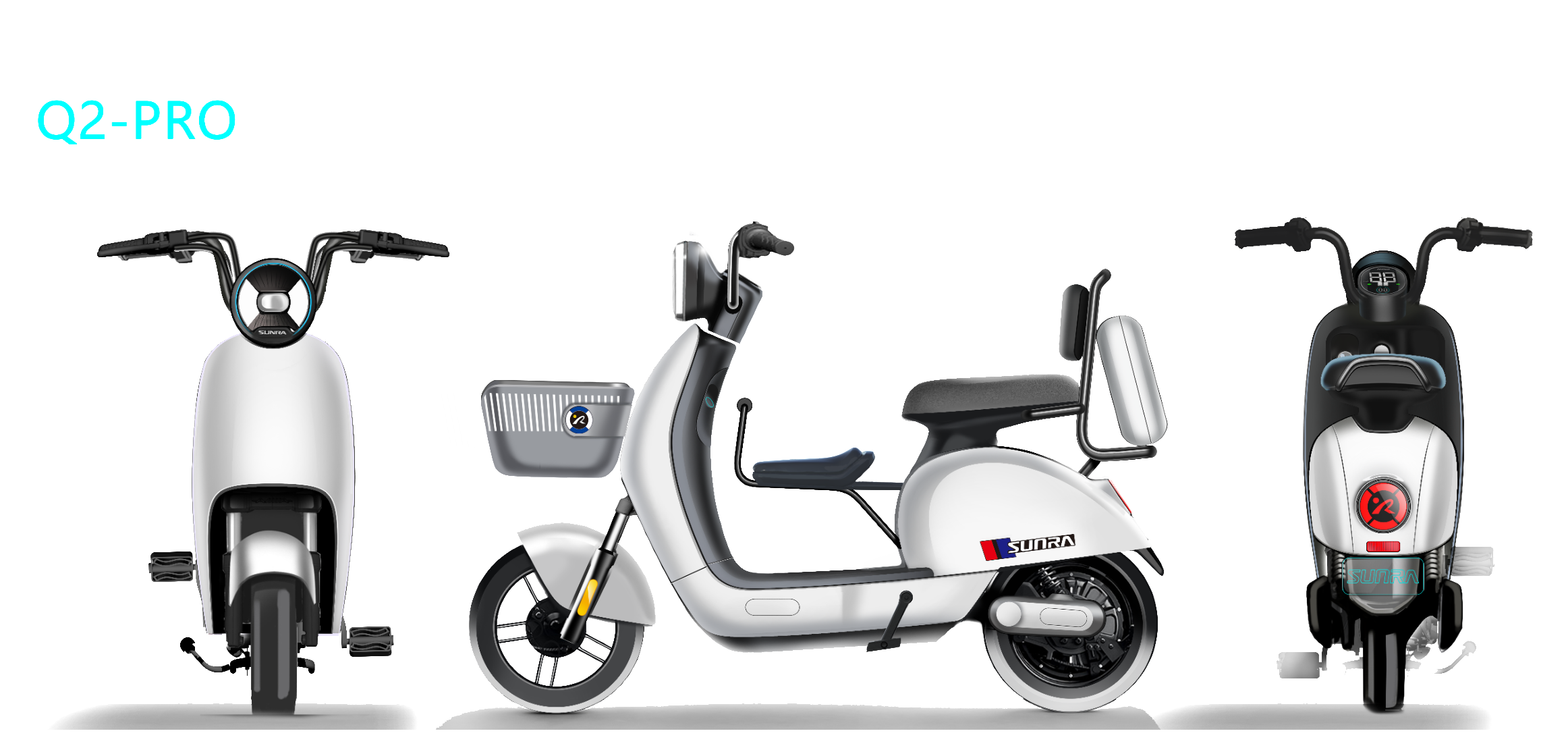

New Day,Electric vehicle,

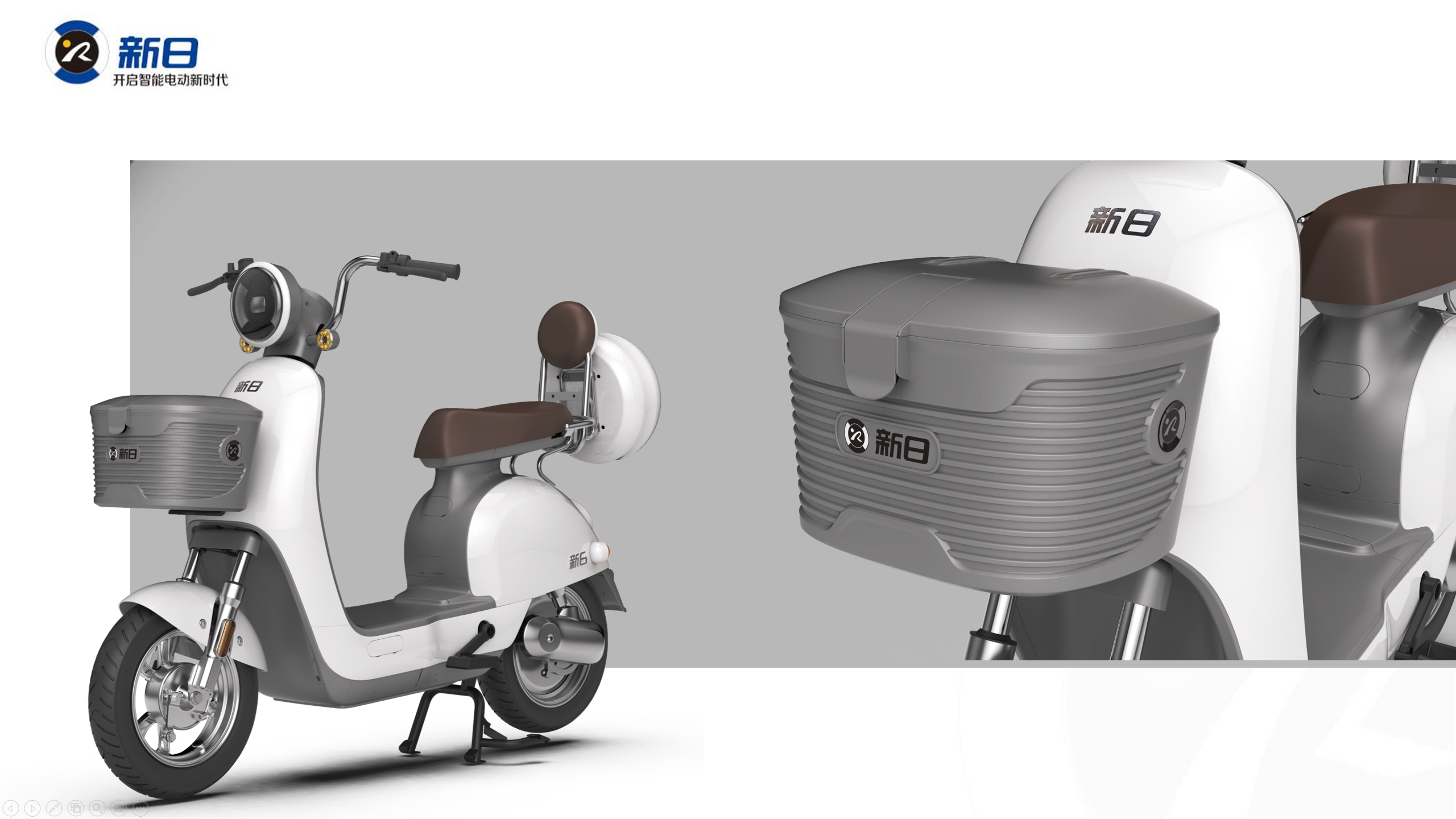

New Day,Electric vehicle,

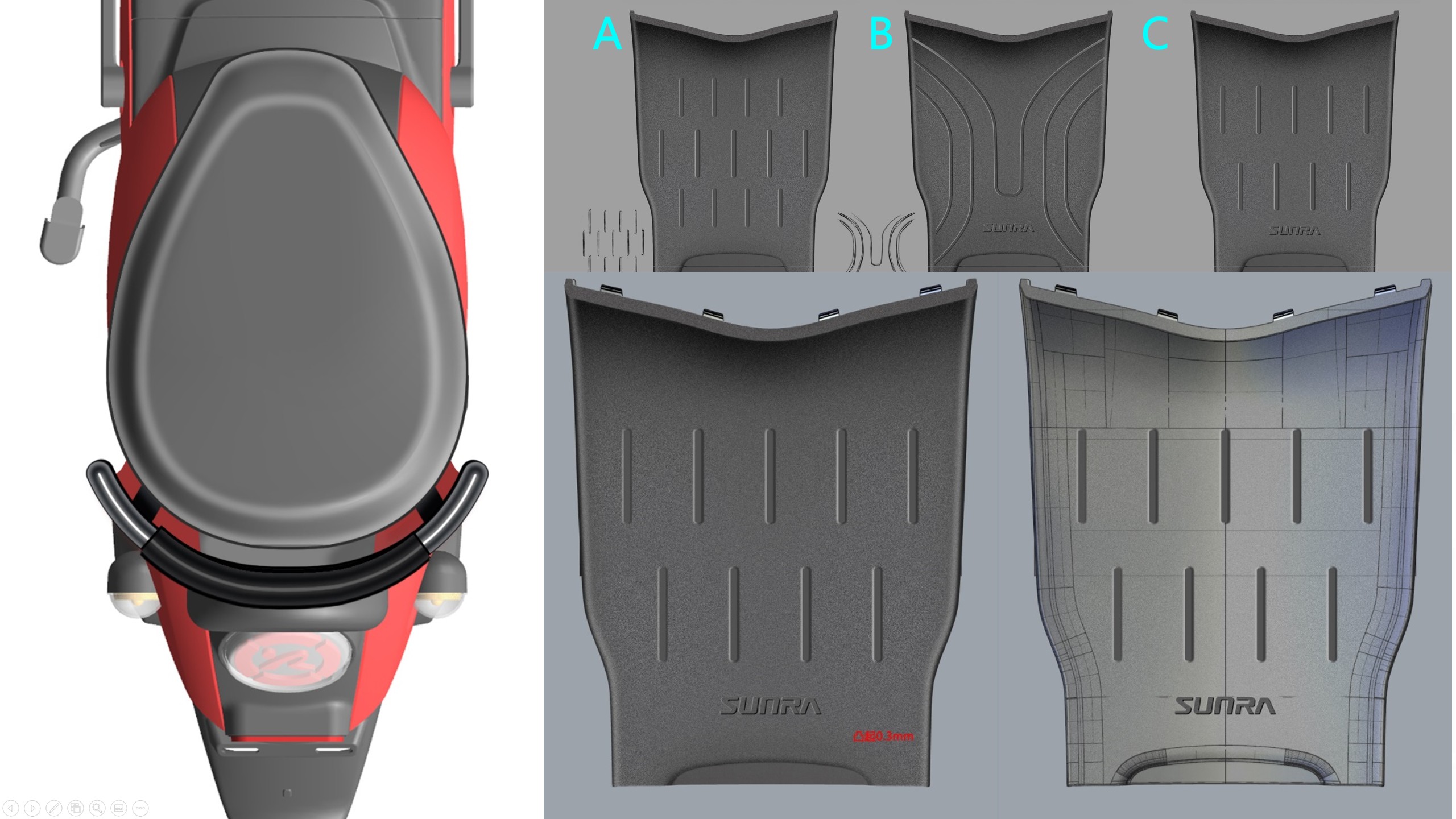

New Day,Electric vehicle,
New Day,Electric vehicle,
New Day,Electric vehicle,
New Day,Electric vehicle,
New Day,Electric vehicle,
New Day,Electric vehicle,
New Day,Electric vehicle,
158 114
Users’ other works View More
Comment

Comment Board (38)

wnot 2023-11-18
Reply

Are all the cars of Xinri designed by their own company?

🆔傻仔👺🤏 2023-11-17
Reply

DBD 2023-07-24
Reply

Like the Vespa xDior joint one.

葩葩 2022-12-14
Reply

Niu Niu Niu,

个一 2022-07-12
Reply

The bottom is the feeling of an old-fashioned fuel pedal, which is quite simple and retro.

秃头披风侠 2022-07-09
Reply

Such a beautiful electric car

徐大稳 Owner 2022-07-09
Reply

Thank you for your appreciated brother,

兼职奶爸 2022-07-06
Reply

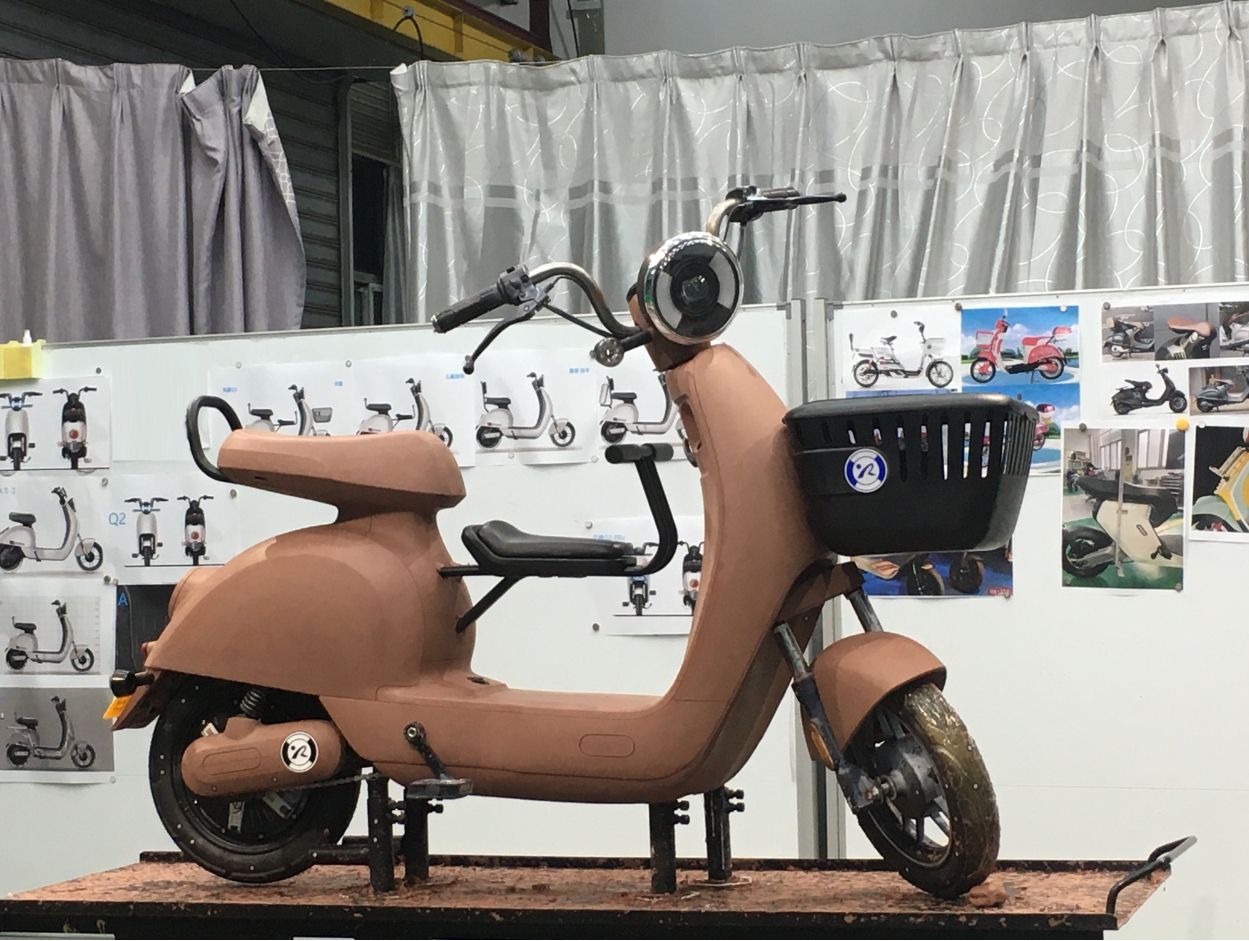

The front is equipped with a child seat. Can you design an anti-collision head pad under the handle? The electric car belt baby is careful every time.

徐大稳Owner 2022-07-06
Reply
Children should also bring a small helmet
Write a comment
新手村 2022-07-06
Reply

Steady, big and stable

德国的梵蒂冈 2022-07-06
Reply

Attention, brother

Owen 2022-07-05
Reply

Like your job

困鲲 2022-07-05
Reply

It smells like Roman holidays.

橘子 2022-07-05
Reply

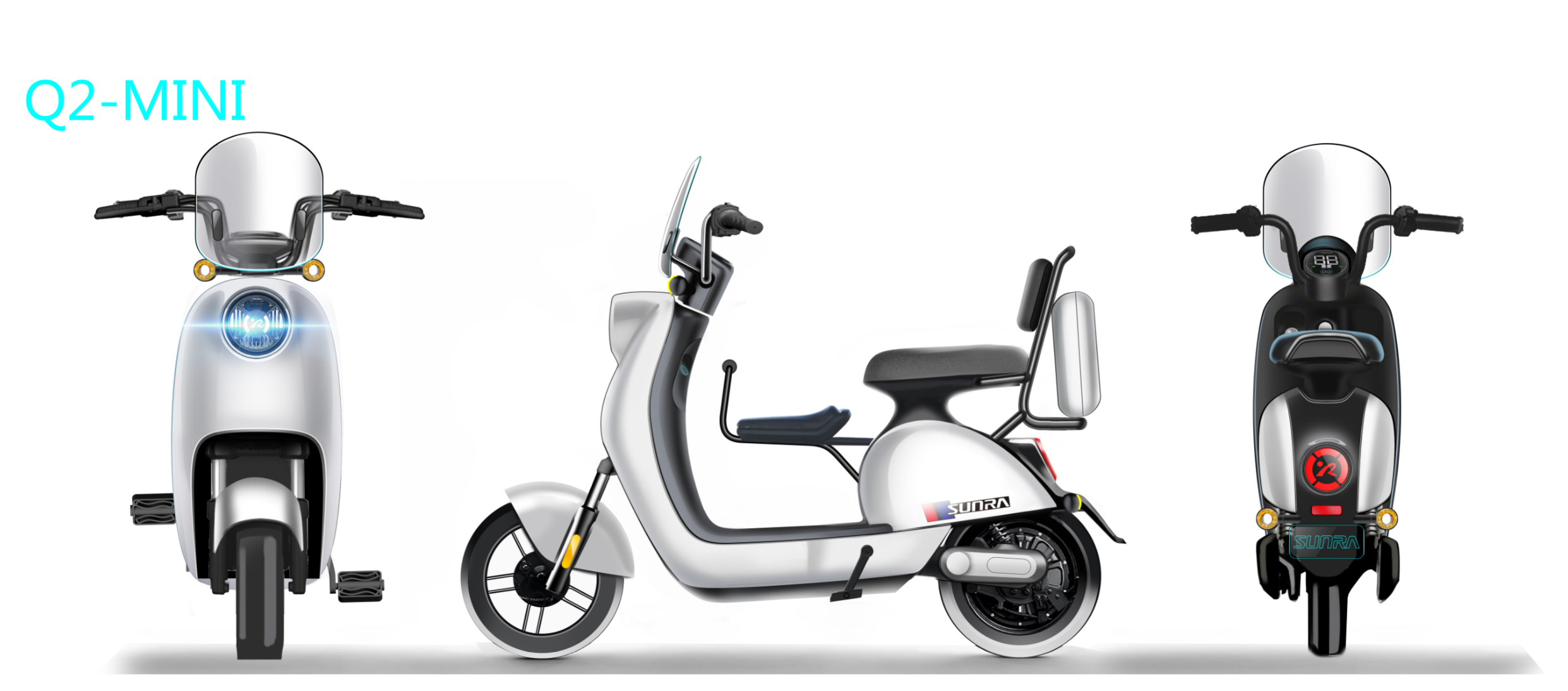

Do you use ai or ps to draw the three views?

徐大稳Owner 2022-07-05
Reply
ps
橘子 2022-07-05
Reply
Oh, oh, ps, is it not enough to control the size?
徐大稳Owner 2022-07-05
Reply
Ps also has a scale, but when choosing printing paper, you can choose A3 or print 1: 1 size drawings.
橘子 2022-07-05
Reply
Oh, oh, okay, it can still be like this, ha ha, thank you for your reply!
徐大稳Owner 2022-07-05
Reply

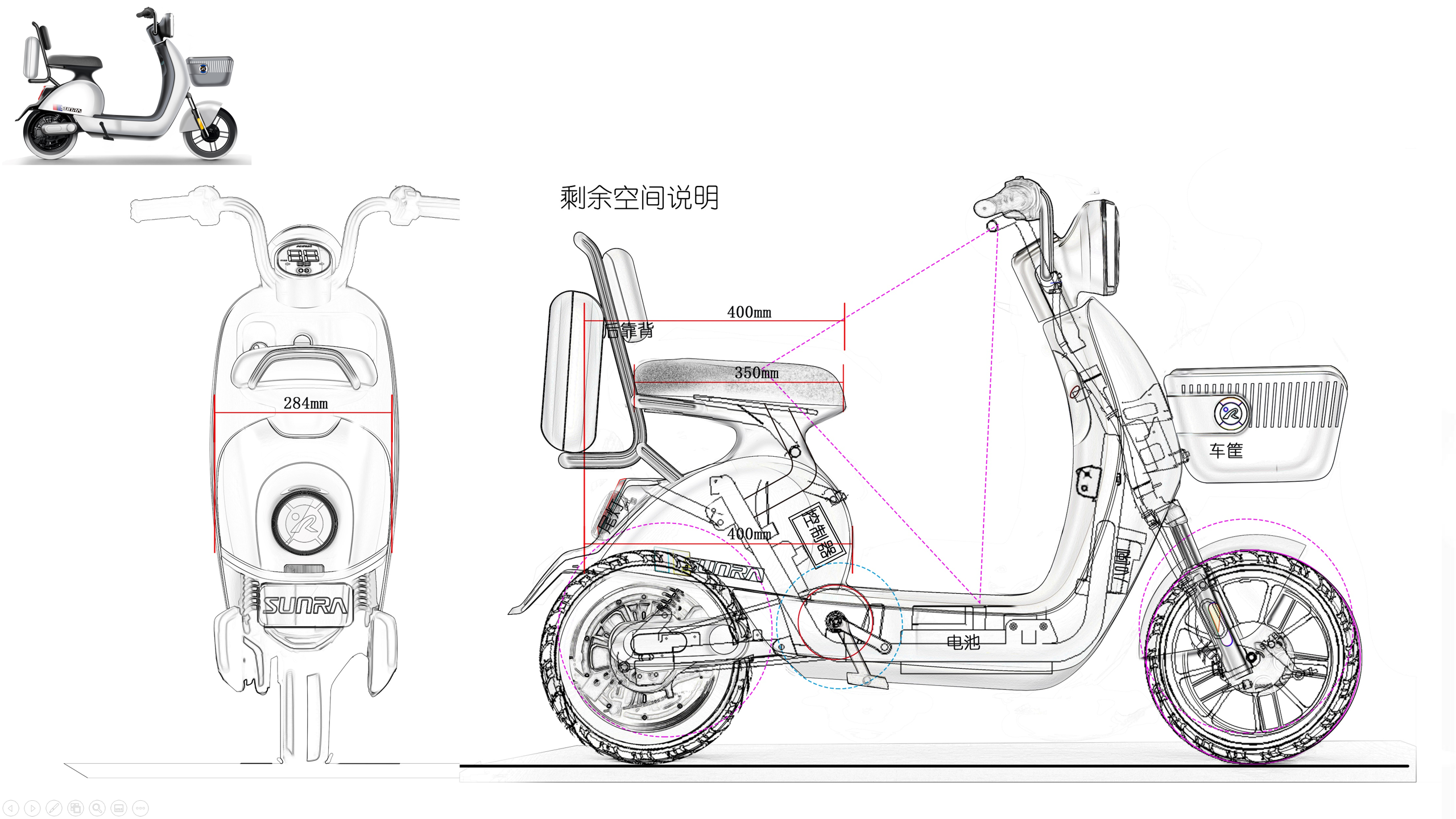

When drawing, the frame engineering drawing will be placed first. The component error on the drawing effect drawing is guaranteed to be within ± 2-3mm, and the 1: 1 frame engineering lattice drawing is not uploaded.
hjy2008 2022-07-18
Reply
The three-view picture is so accurate and beautiful, why do you need 3d modeling later?
徐大稳Owner 2022-07-18
Reply

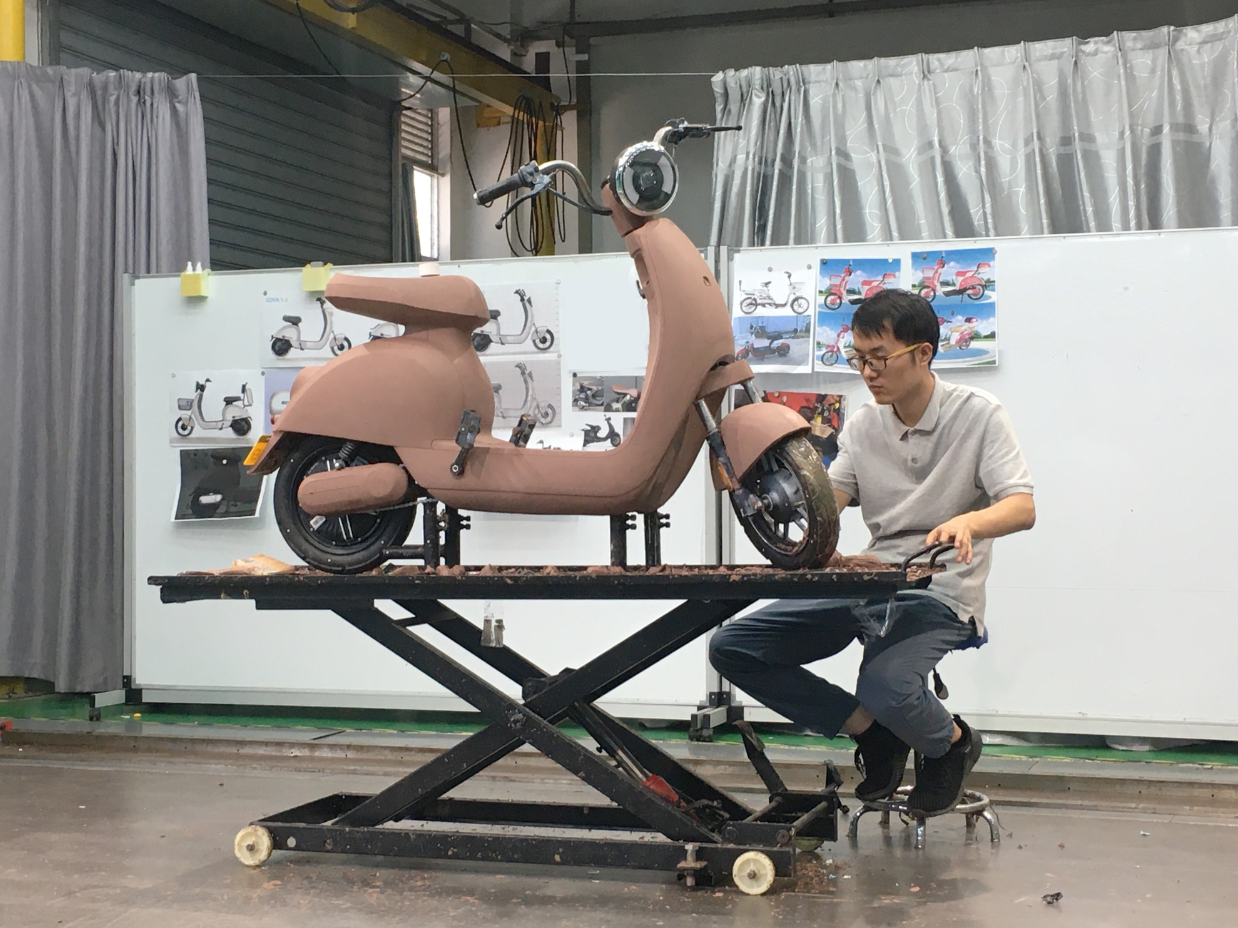

The process of vehicle design: 1 fixed platform (frame),2 effect maps, 3 sludge models, 4A data, 5B data (structural data), 6 hand plate prototypes, 7 abrasive data, 8CMF abrasive parts small batch review, 9 production lines, 50 mass production small batches, 10 market orders, 11 mass production
徐大稳Owner 2022-07-18
Reply
Don't be misled by all kinds of exquisite pictures on the Internet. No matter how beautiful the pictures are, they need to be transformed into ground grinding tools and market tests. Beautiful pictures can't bring profits to the company. (This car has a general drawing and general grinding tools.)
弎歌 2022-07-19
Reply
I would like to ask, can I replace this step of sludge model with 3D hand board?
徐大稳Owner 2022-07-19
Reply
Do you look at the effect diagram as side a? It can't be replaced.
徐大稳Owner 2022-07-20
Reply
From the renderings directly to the-plane data?
1 time is not enough, 2 is more difficult, 3 the design of vehicles needs to be deliberated on curves and curved surfaces (a few millimeters and dozens of filaments). unlike 3C products, they are all straight lines and r angles. the curved surfaces and curves you see on the internet are all directly modeled and can be displayed on the website, but they cannot be produced.
But now that VR equipment is constantly updated and iterated, some design companies will model simple modeling vehicles without using sludge as a reference, and then repeatedly use VR equipment to check. After finishing the-plane, make the B- plane structure, then the 3D prototype car, and then adjust the local curved surface on the 3D prototype car for sludge adjustment. Back to side a
The conclusion is still that the sludge model is sacred and irreplaceable. Since 1955, the Japanese first used industrial sludge for the design and development of automobile models.
弎歌 2022-07-20
Reply
I am a product manufacturer and have never experienced the process of sludge model. one is interesting to look at and the other is curious about the timeliness of this step. As you said, the first point is deeply touched. In the work, the customer directly gave a very good-looking reference map (non-linear R-angle modeling) with a curve. Without any physical reference, the reference picture was directly made into A- side. As a result, it took a lot of time to adjust the curvature and modeling of the curve, which was much more time than designing 3C products.
Please ask me again, which is more efficient to directly model rendering renderings or PS hand-painted? For example, for the electric car you drew, each of the three views plus other angles of renderings is to be drawn, which should also take some time. If I directly model it, the three views and other angles of direct rendering, if you need to change the color or change one of them in the later period, will it improve some work efficiency?
徐大稳Owner 2022-07-20
Reply
You can compare my speed. The picture 1 of the three pictures of the whole car was finished in the evening.

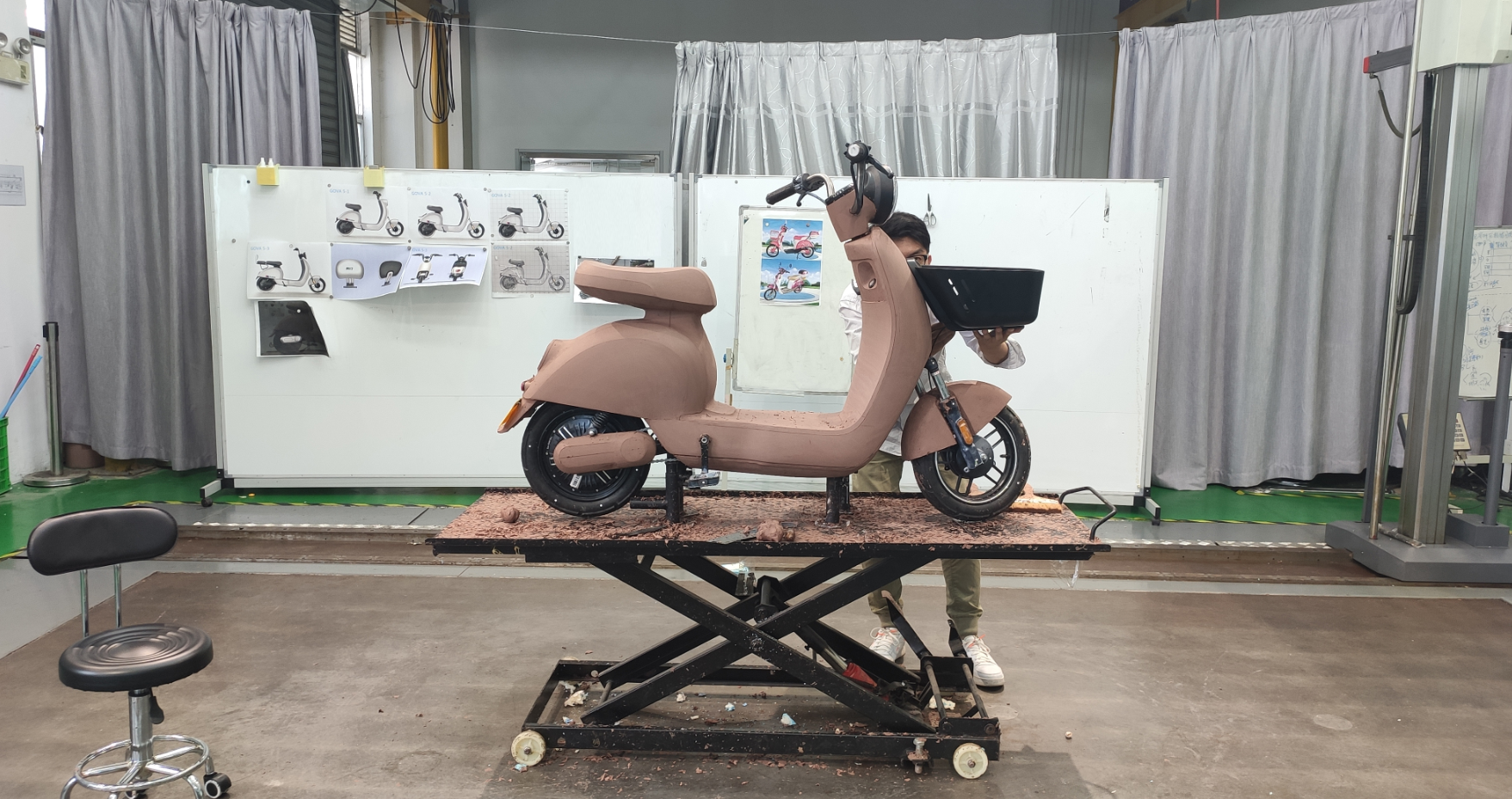

The sludge master began to make large-scale sludge. The effect drawing is the direction. The sludge is to verify and examine the details (3mm high or not high)
It didn't take long to add one piece to the back part renderings. And there are still two or three directions that did not win the bid on the way.

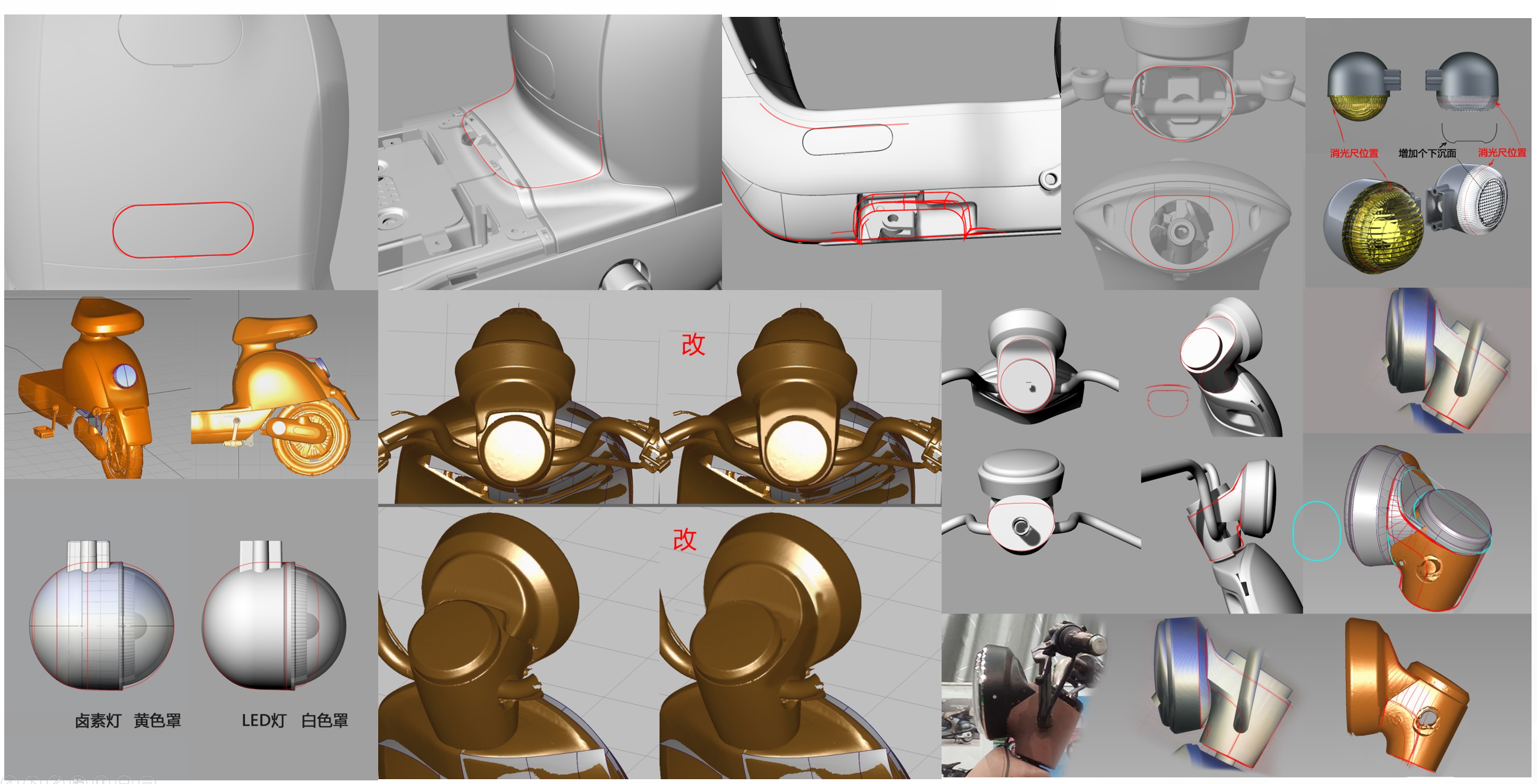

The figure marked with red line at the end is the modification point connecting with the engineer of plane a. Even the understanding and communication are not in place, is my own Lamian Noodles, A- side engineer optimization
