Relying on Mirror as Display Screen-Design of Medical Injection Pump

2022-03-03 Medical Instruments 5281 19 41

思维二象性

China · Digital Intelligence

Relying on Mirror as Display Screen-Design of Medical Injection Pump

2022-03-03 Medical Instruments 5281 19 41

思维二象性

China · Digital Intelligence

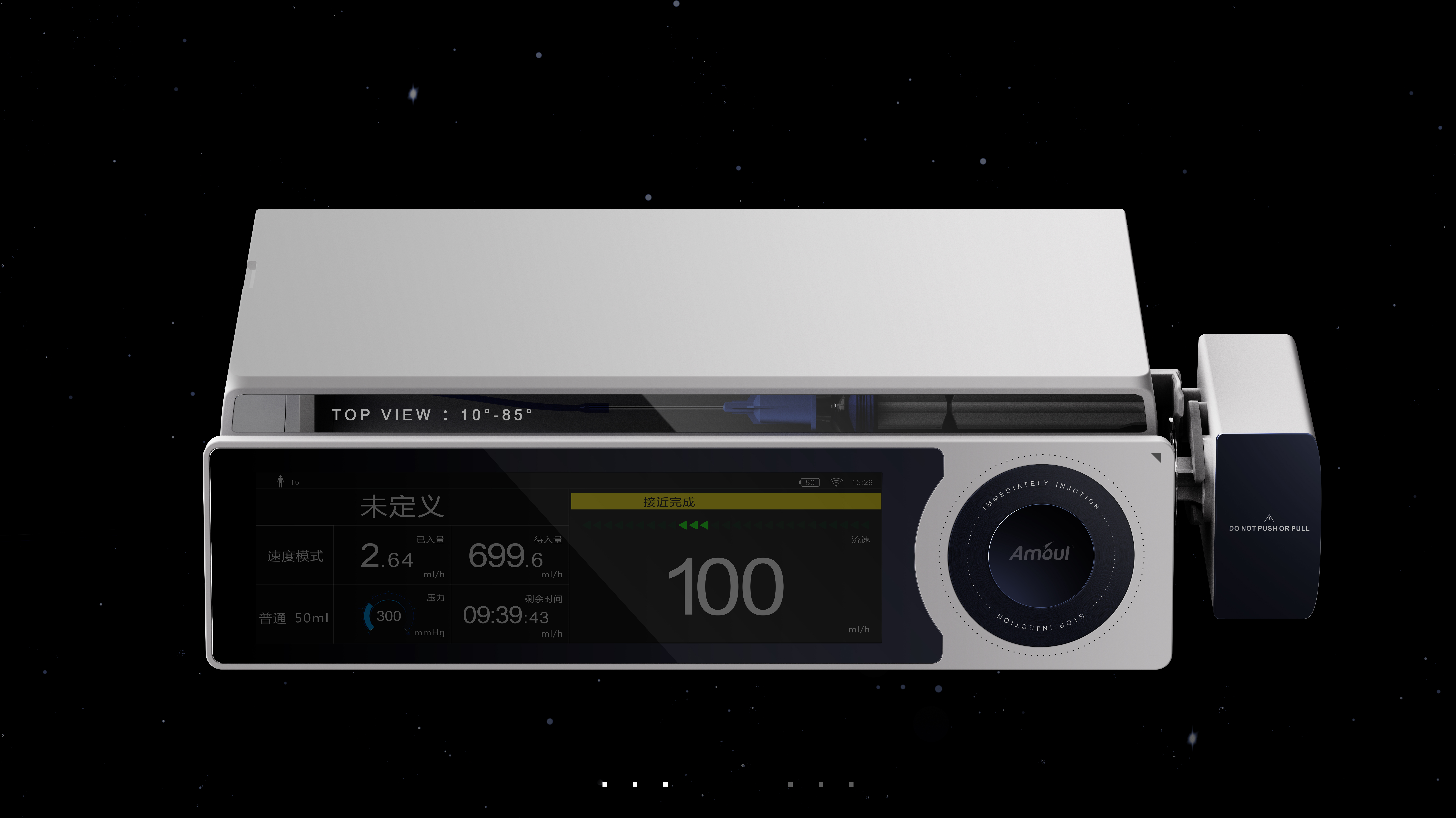

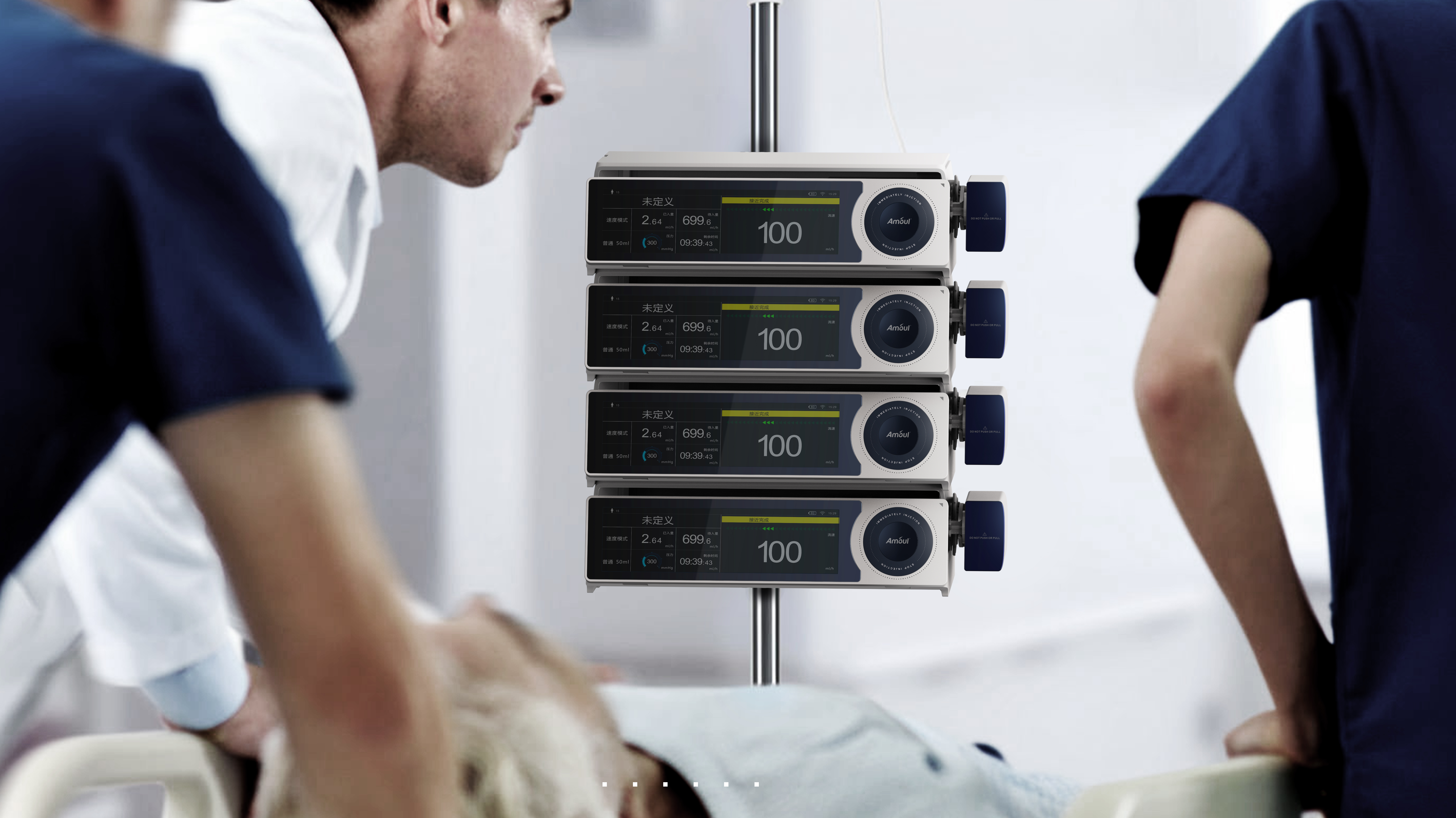

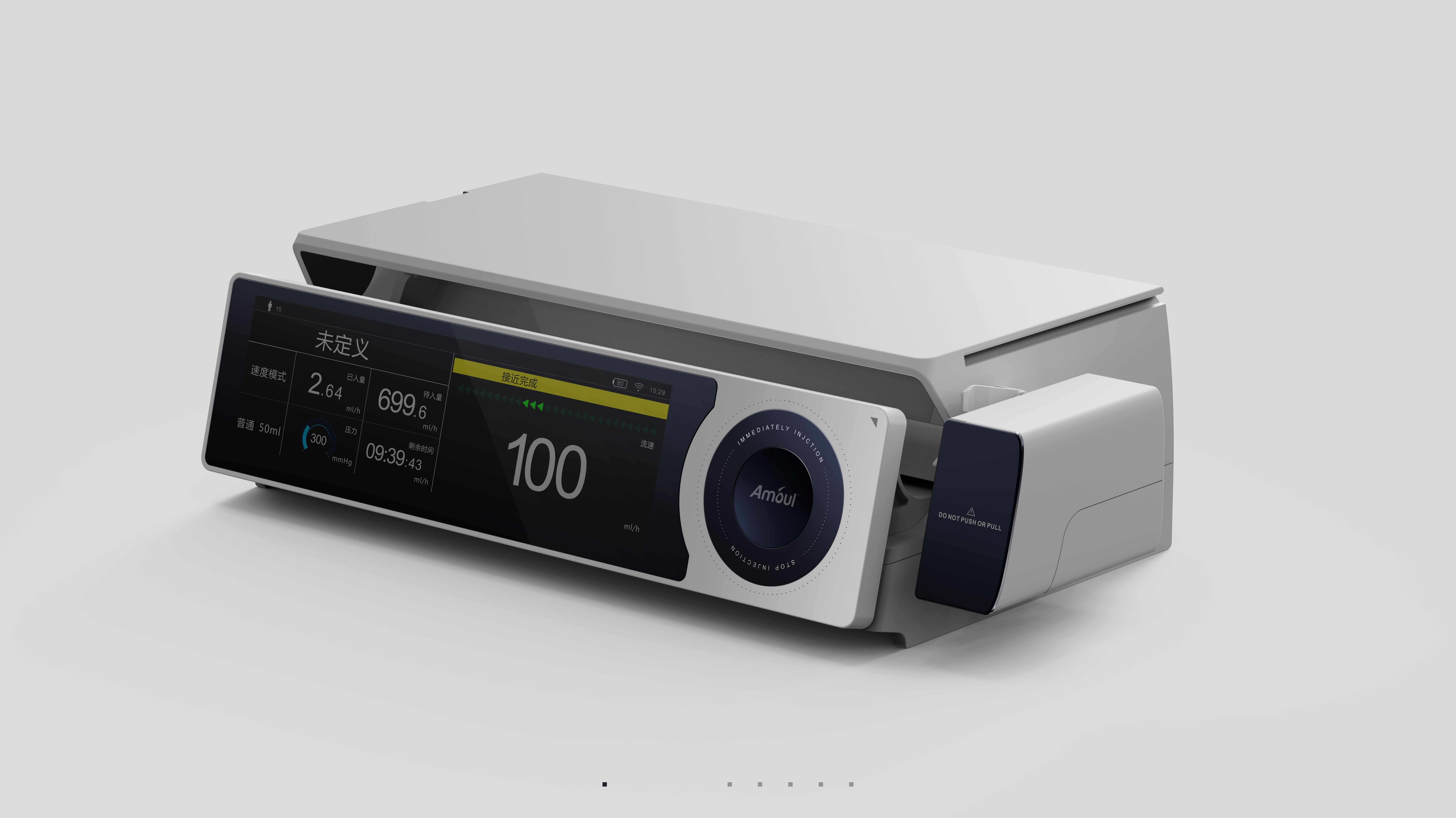

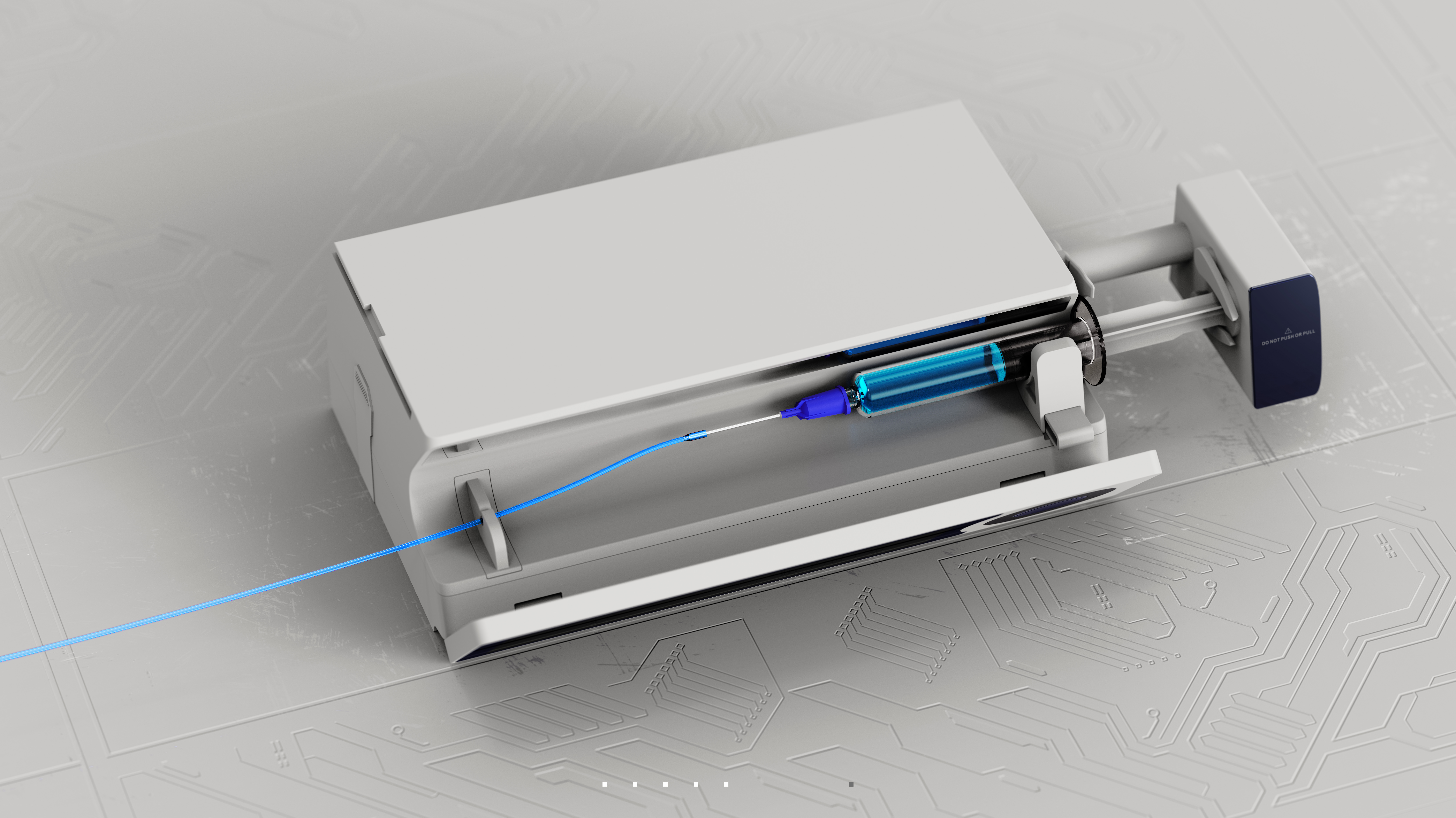

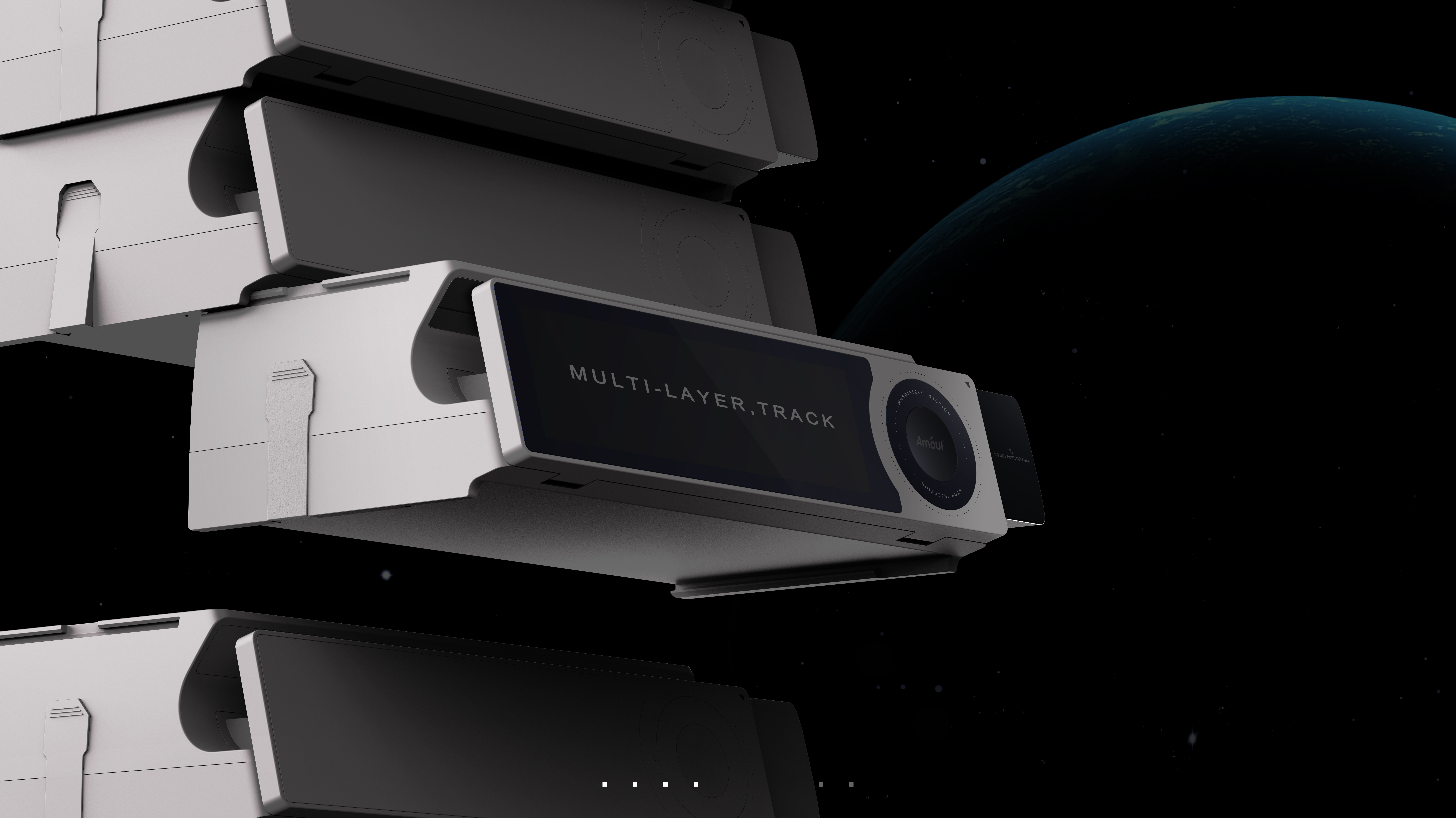

In general, the highlight is to check the situation of the injection syringe through mirror reflection. It is a hard requirement for the injection syringe to be observed by the injection pump. Previously, it was designed with a small screen. Therefore, the large opening observation window is directly opened. Now it is intelligent. The display screen has also become a large screen. The hardware conflicts with the large opening observation window. Unless the product height is increased, it conflicts with the superimposed use function, meirui Medical's approach is to directly super-flat and customize the display screen, so that the saved display screen height can be given to the observation window, while Braun directly rolls over technology, relying on the displacement sensor or something, and directly displaying the injection syringe on the display screen (the technology is not difficult to operate alone, but the technical requirements for safety are high, so it is necessary to consider what to do if there is a problem, etc, will it cause harm to patients) our company can't do the above, so I use mirror reflection to increase the visual range of the window. the mirror itself can be made of metal polishing or other materials. there is definitely no problem in safety inspection ~ the modeling is to design the feeling of a spaceship ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ but in the end it was not selected, so I simply put the modeling a little more wave and put it in the portfolio ~

Syringe pump,medical care,Infusion pump,injection,infusion,Injection syringe,Mirror,image,
Syringe pump,medical care,Infusion pump,injection,infusion,Injection syringe,Mirror,image,

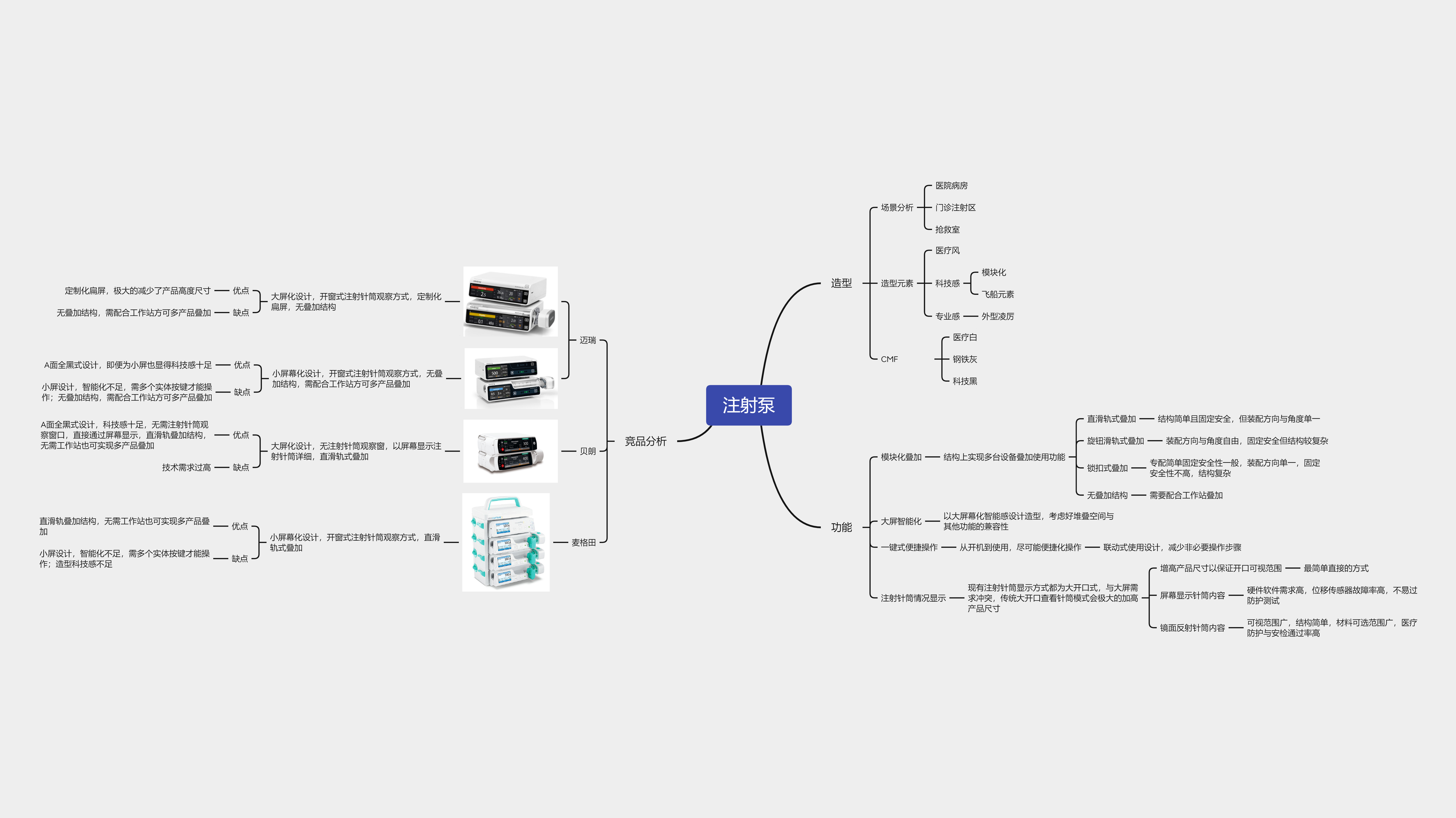

Mind map, also simple expression under the timing of the idea, not perfect, also show yourself ~
