Simple Bluetooth Music Table Lamp Design

China · Other Industries

China · Other Industries

I like a desk lamp scheme I made before. Recently, I just had some time to think about making a prototype myself. The shell of the whole machine is printed in 3D, and then painted by itself (the first time I learned painting, the technology is not very good, and the paint is thick in some places). Touch light control is adopted (no desk lamp circuit is used in the house). Since the lamps on other desk lamps are removed, the lamp panels are not very matched. I hope everyone can understand this. The speaker part adopts the Bluetooth module of TWS headset, which can realize Bluetooth connection (you need to purchase an audio amplifier separately, otherwise the sound is too low). The final effect of the whole machine is shown in the video effect. Since the circuits inside are pieced together and the circuits are very messy, photos will not be put. -Frog Cattle Design--

Music desk lamp，Desk lamp，Simple table lamp，Frog cow design，Bluetooth desk lamp，Bluetooth Speaker ，

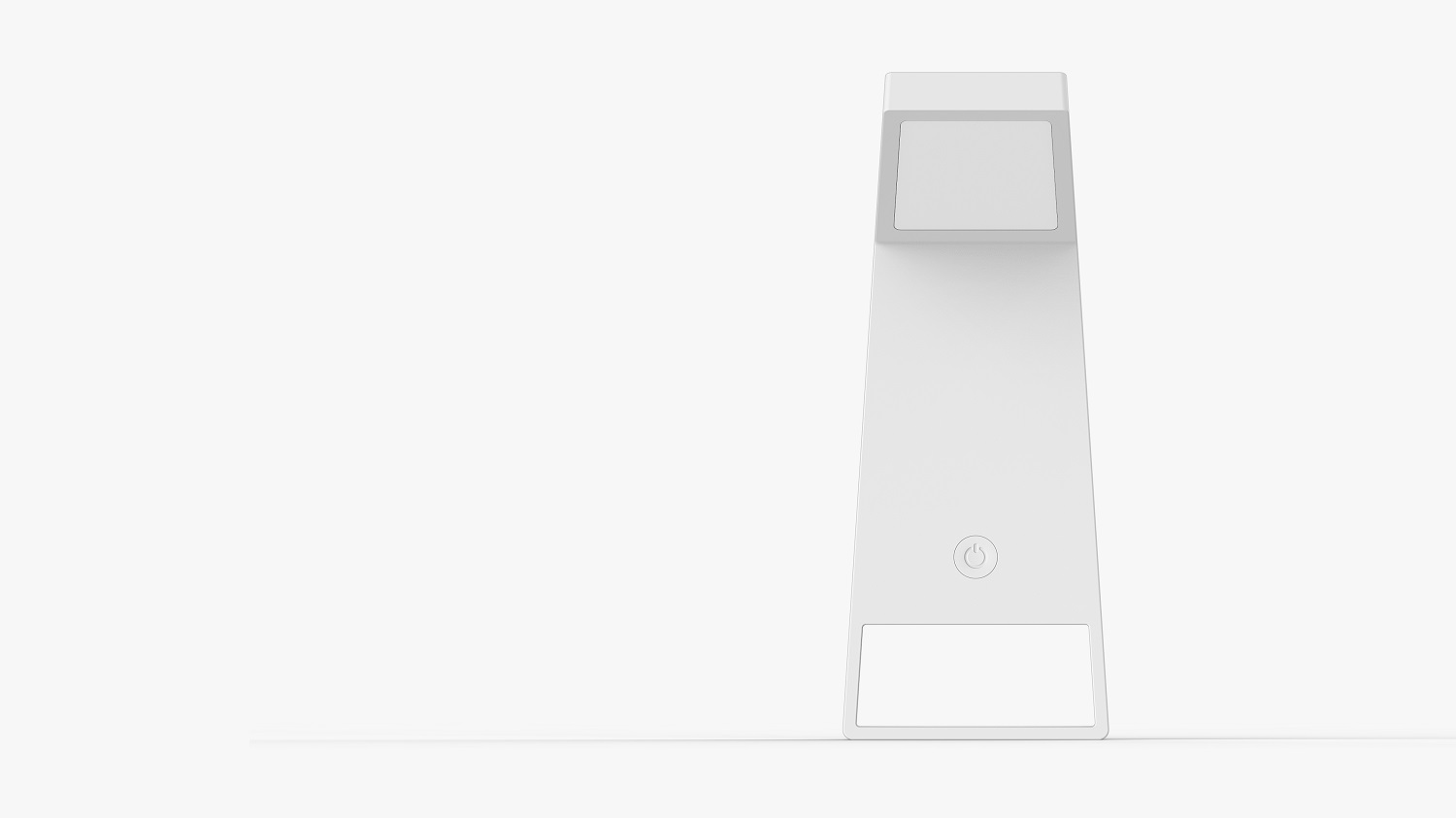

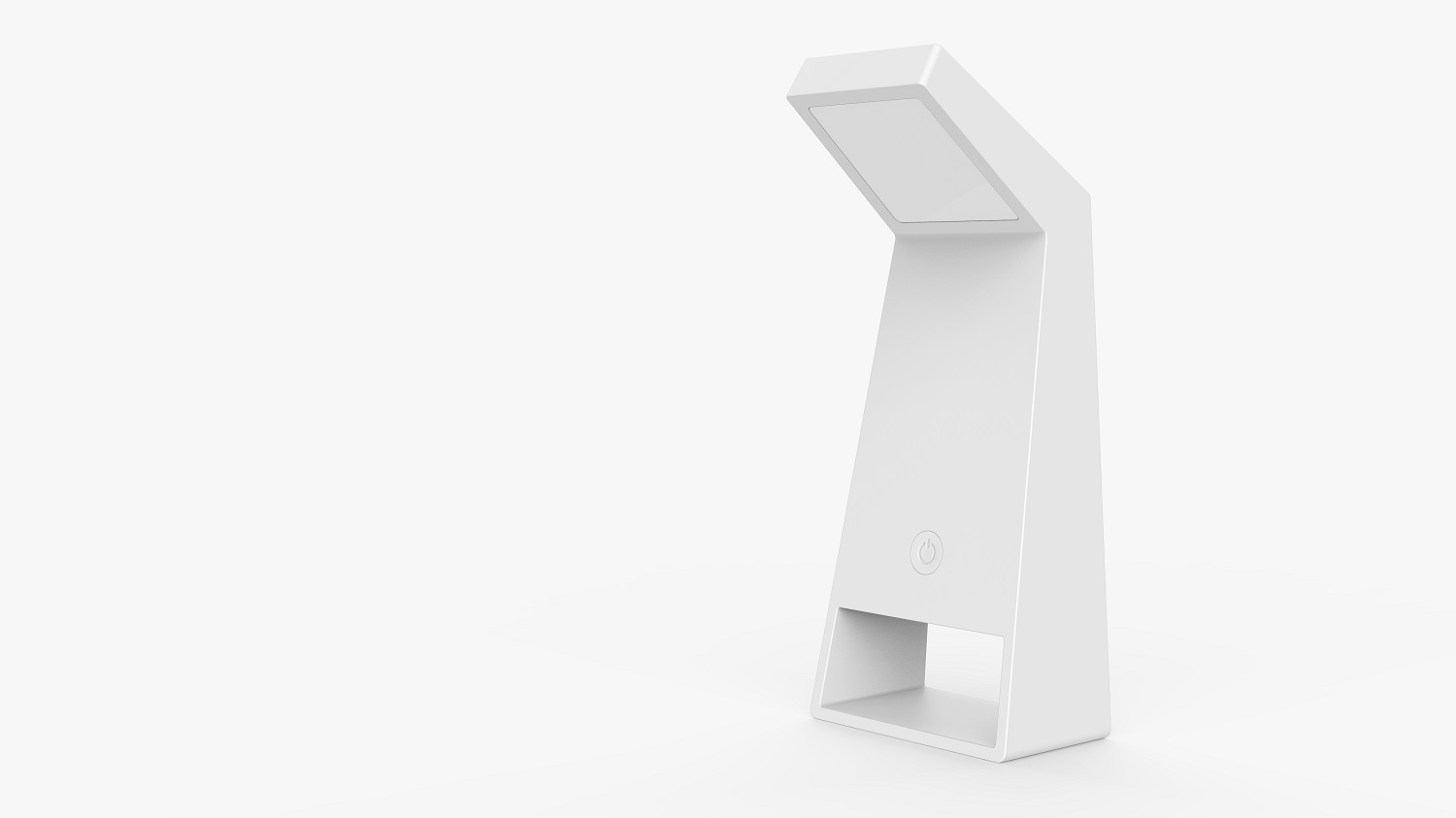

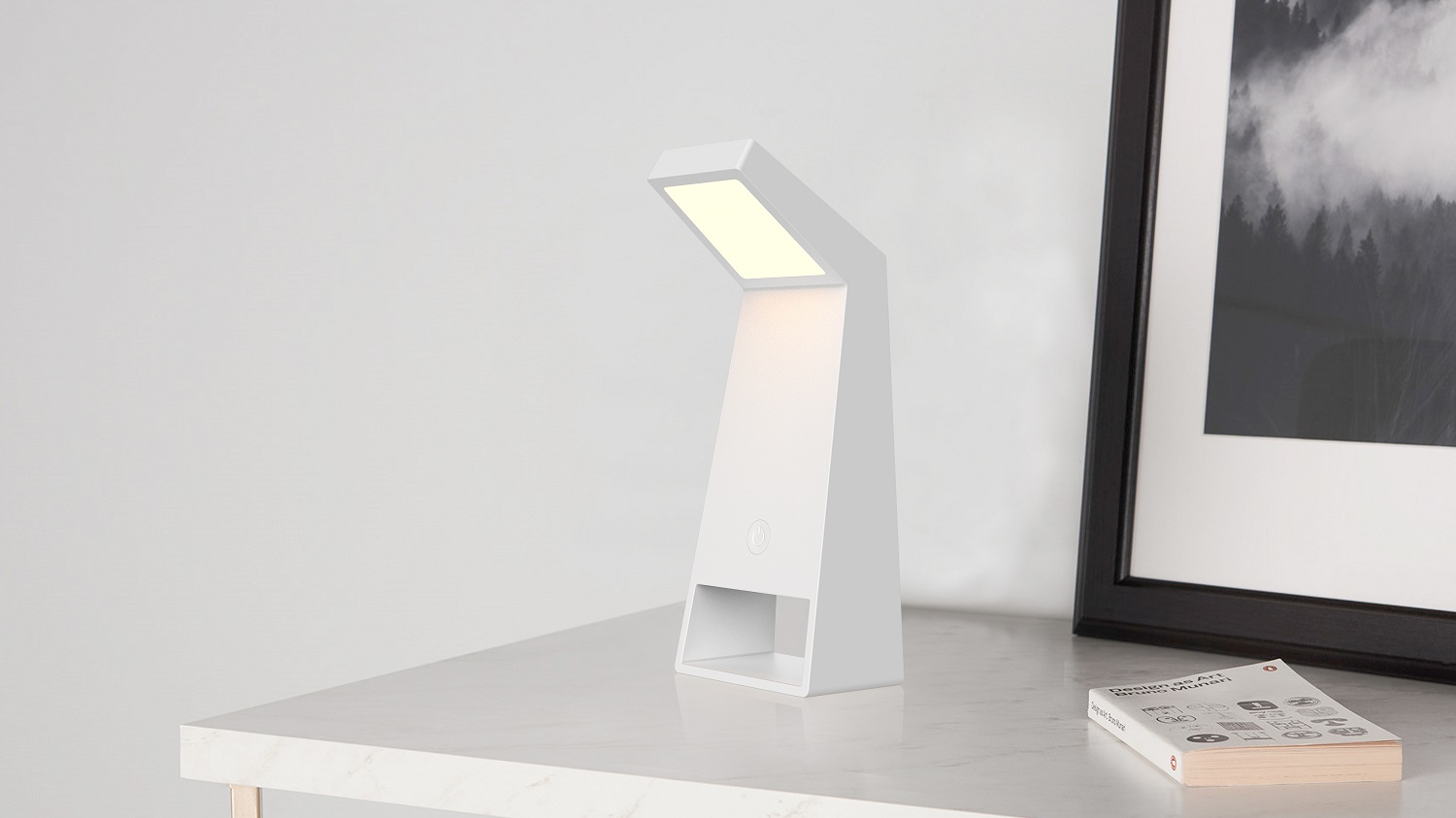

Scene renderings

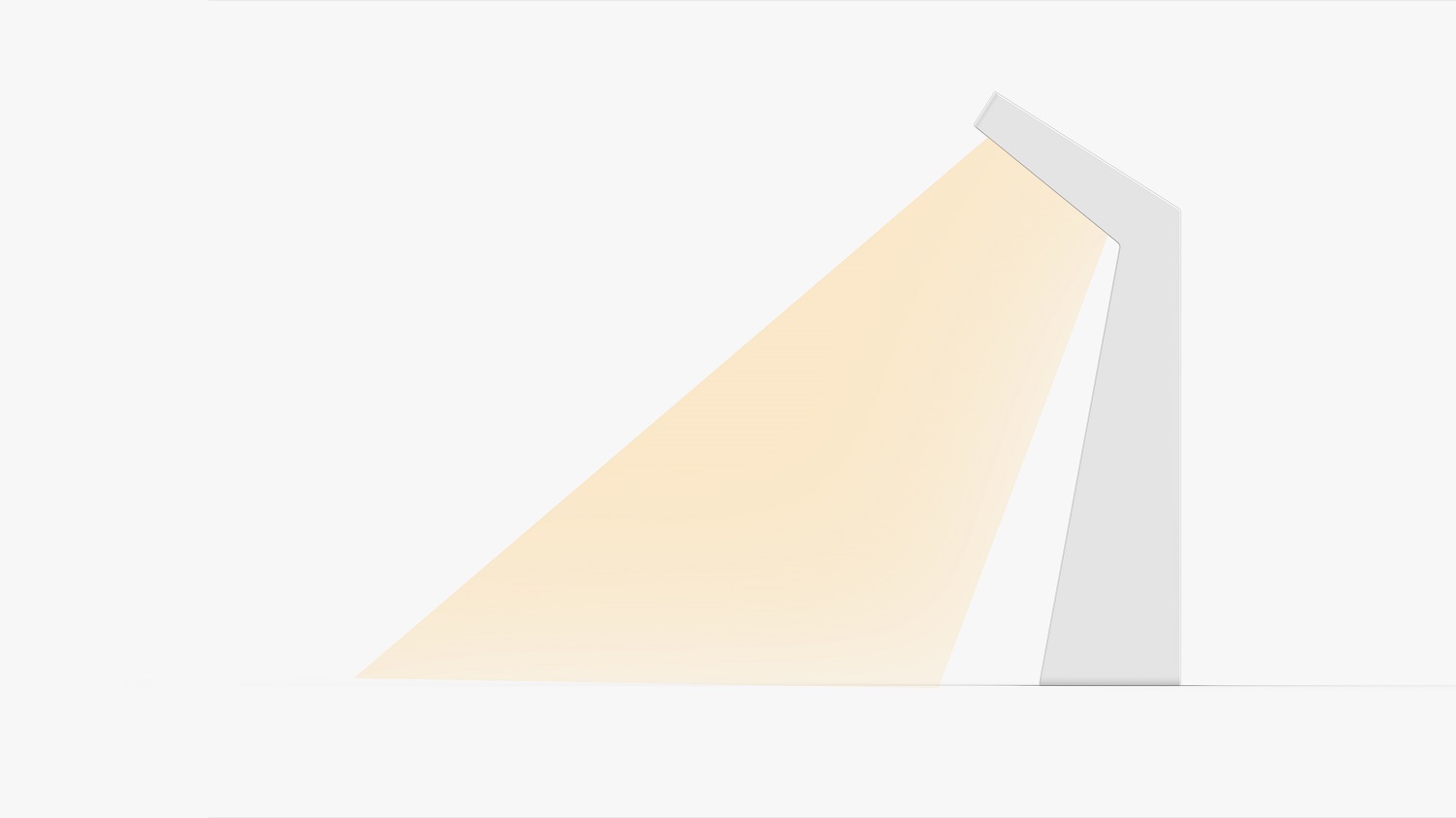

Effect diagram

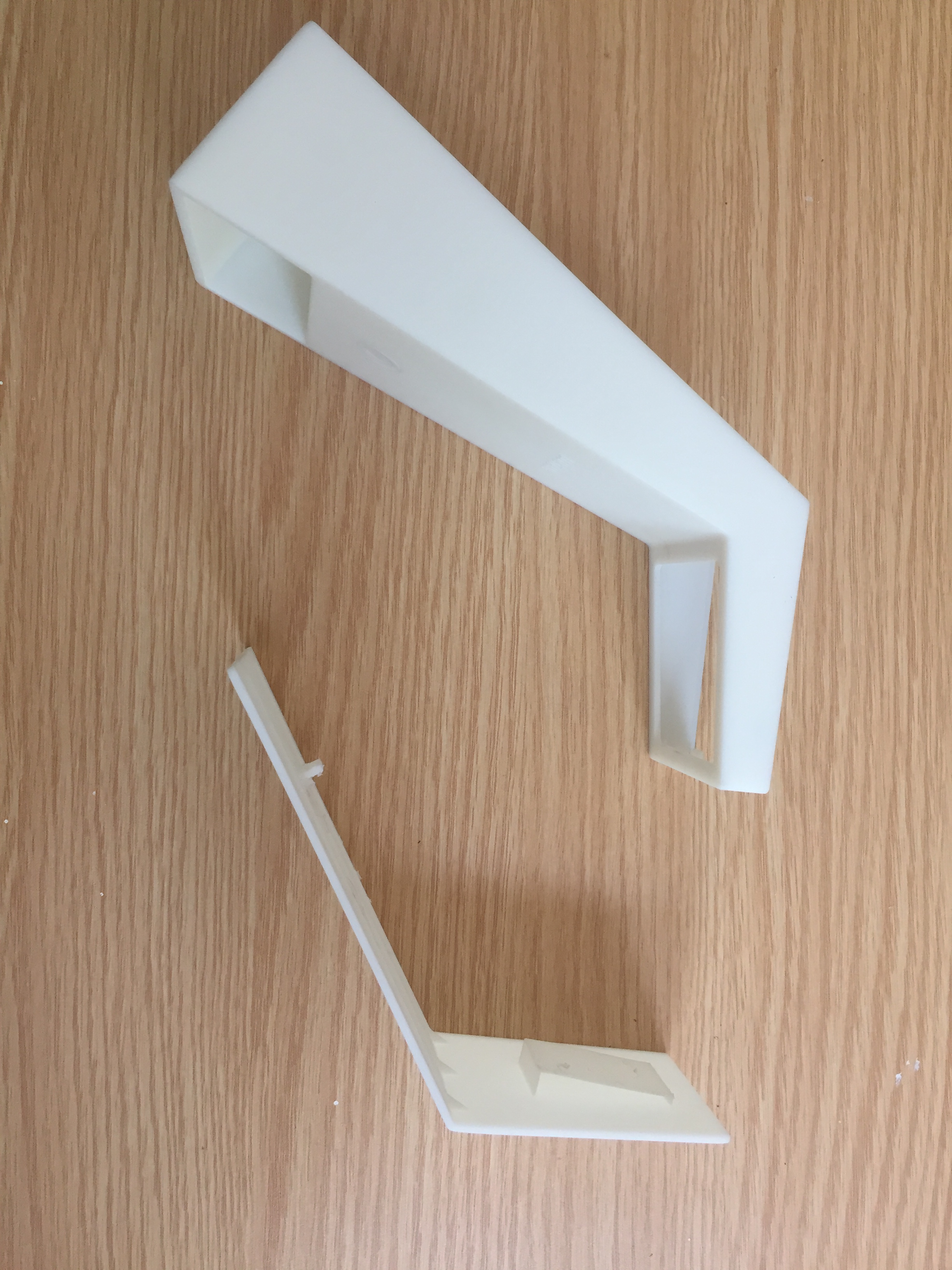

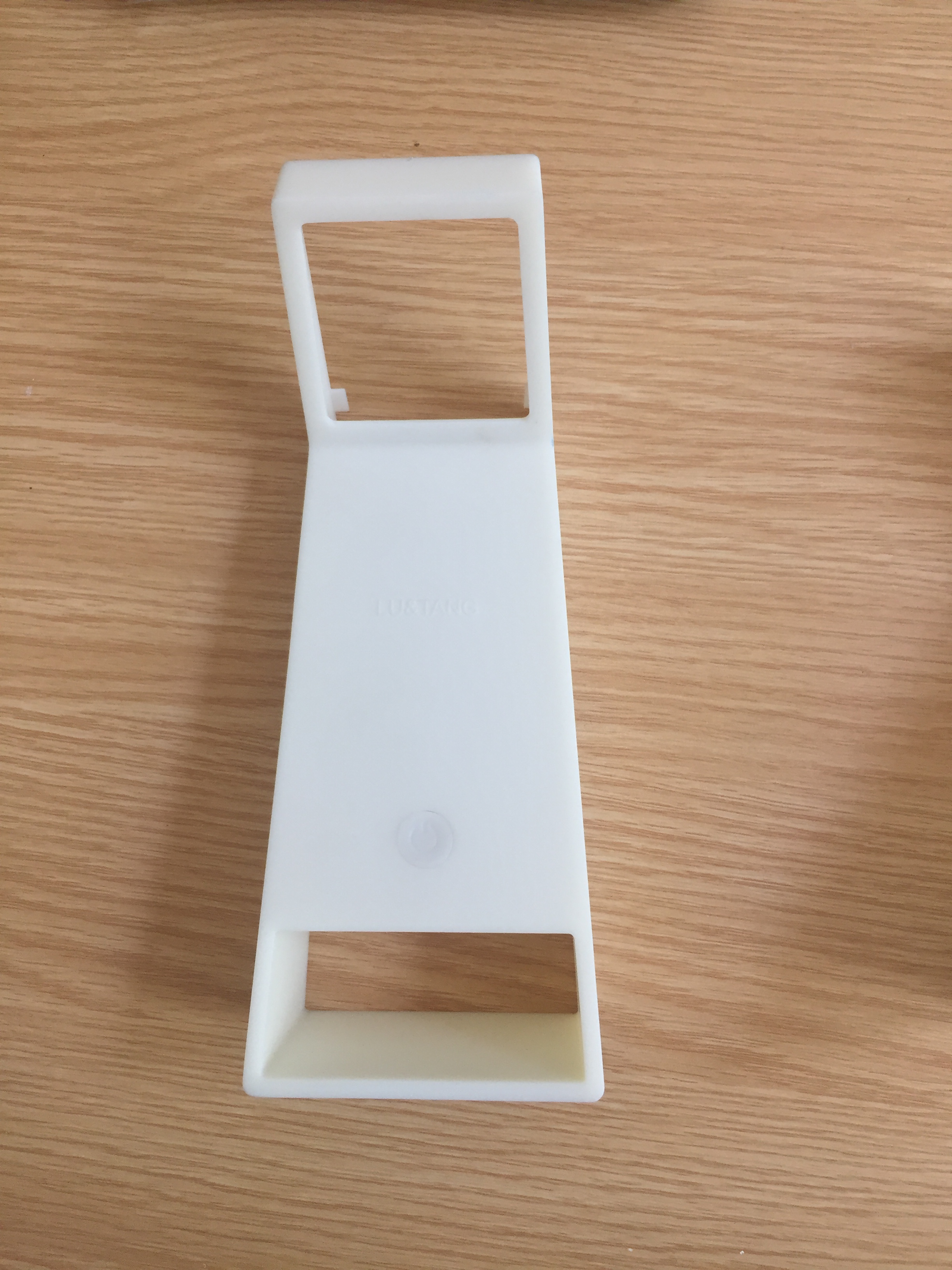

3D proofing

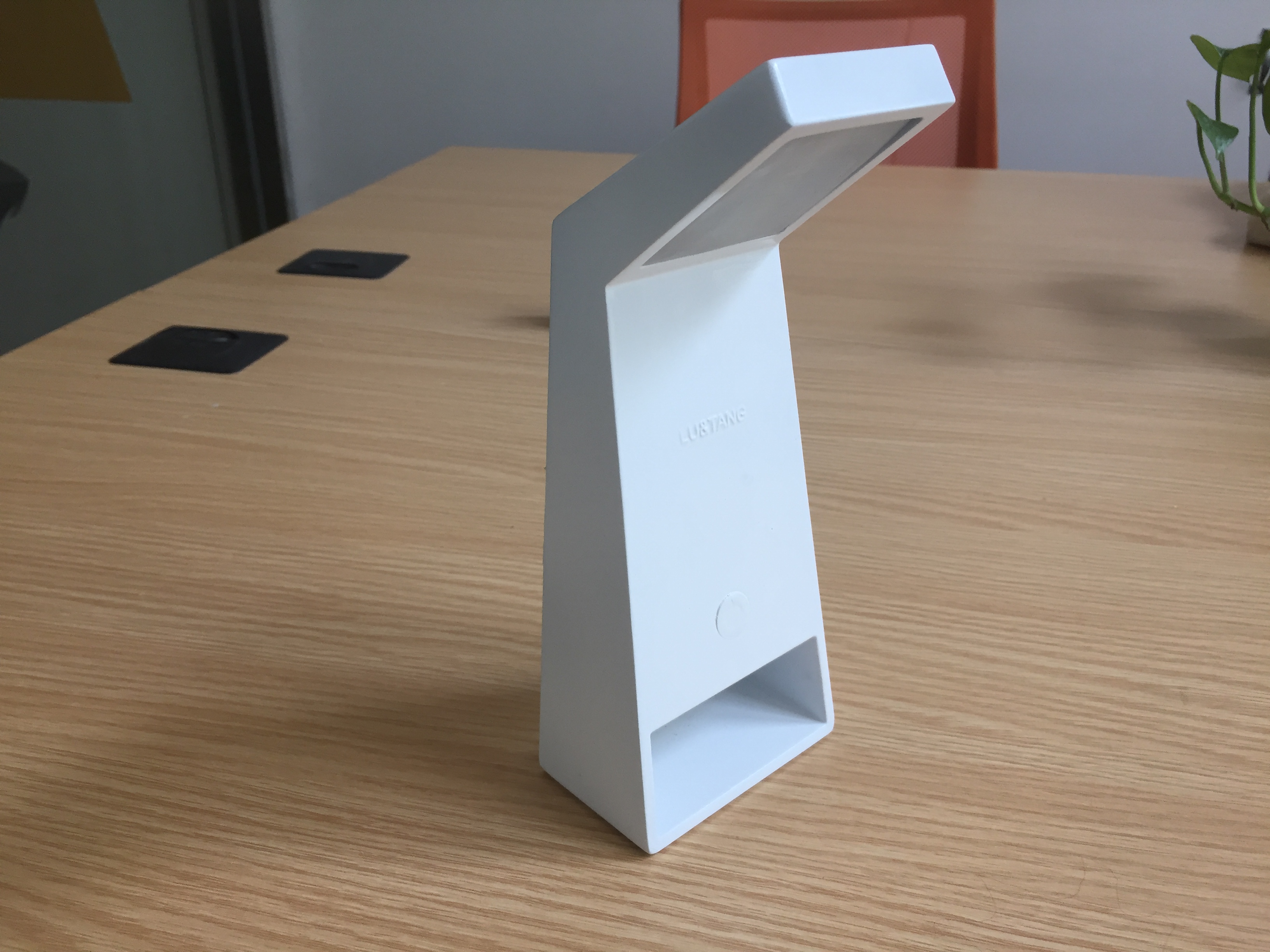

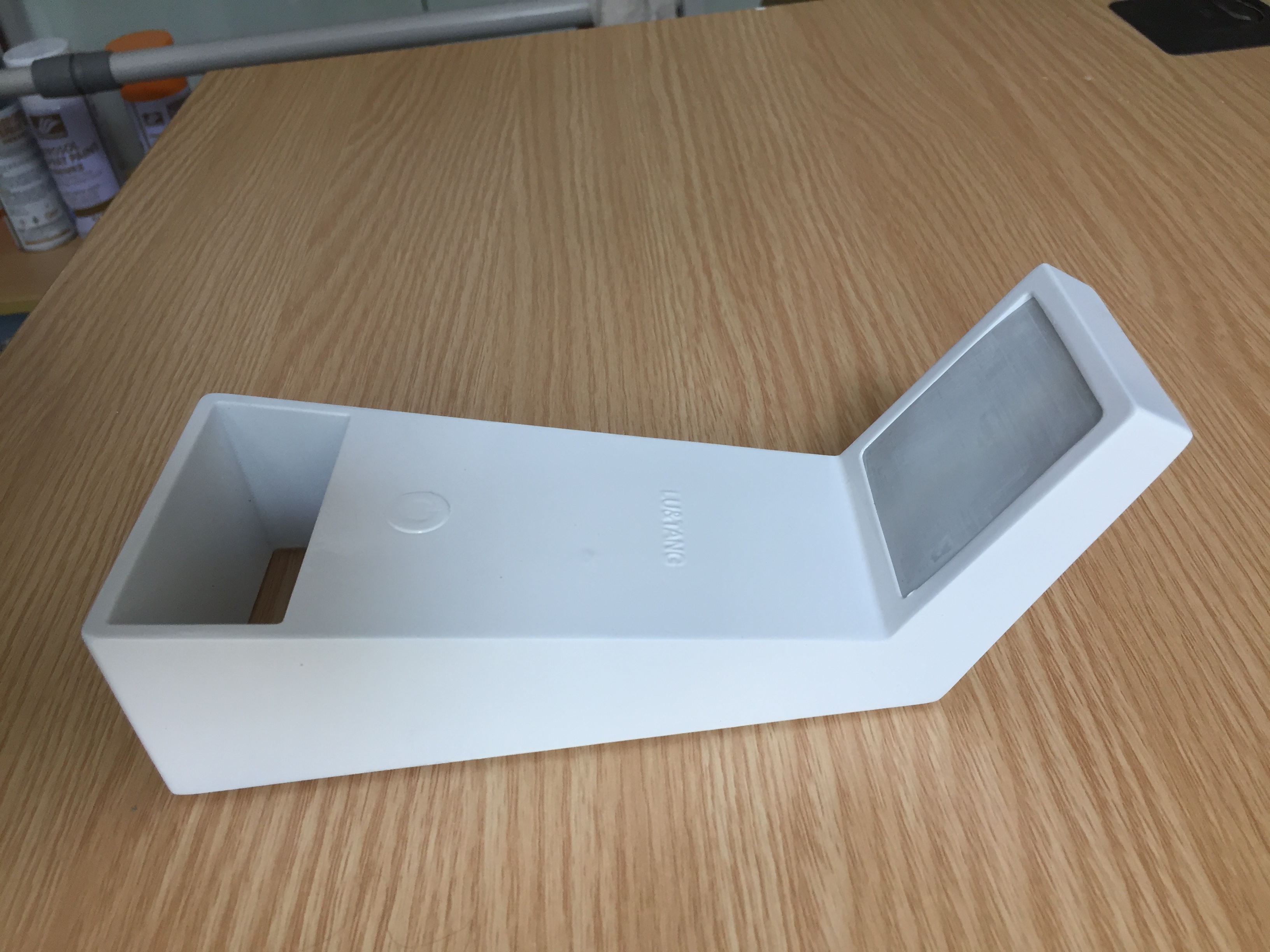

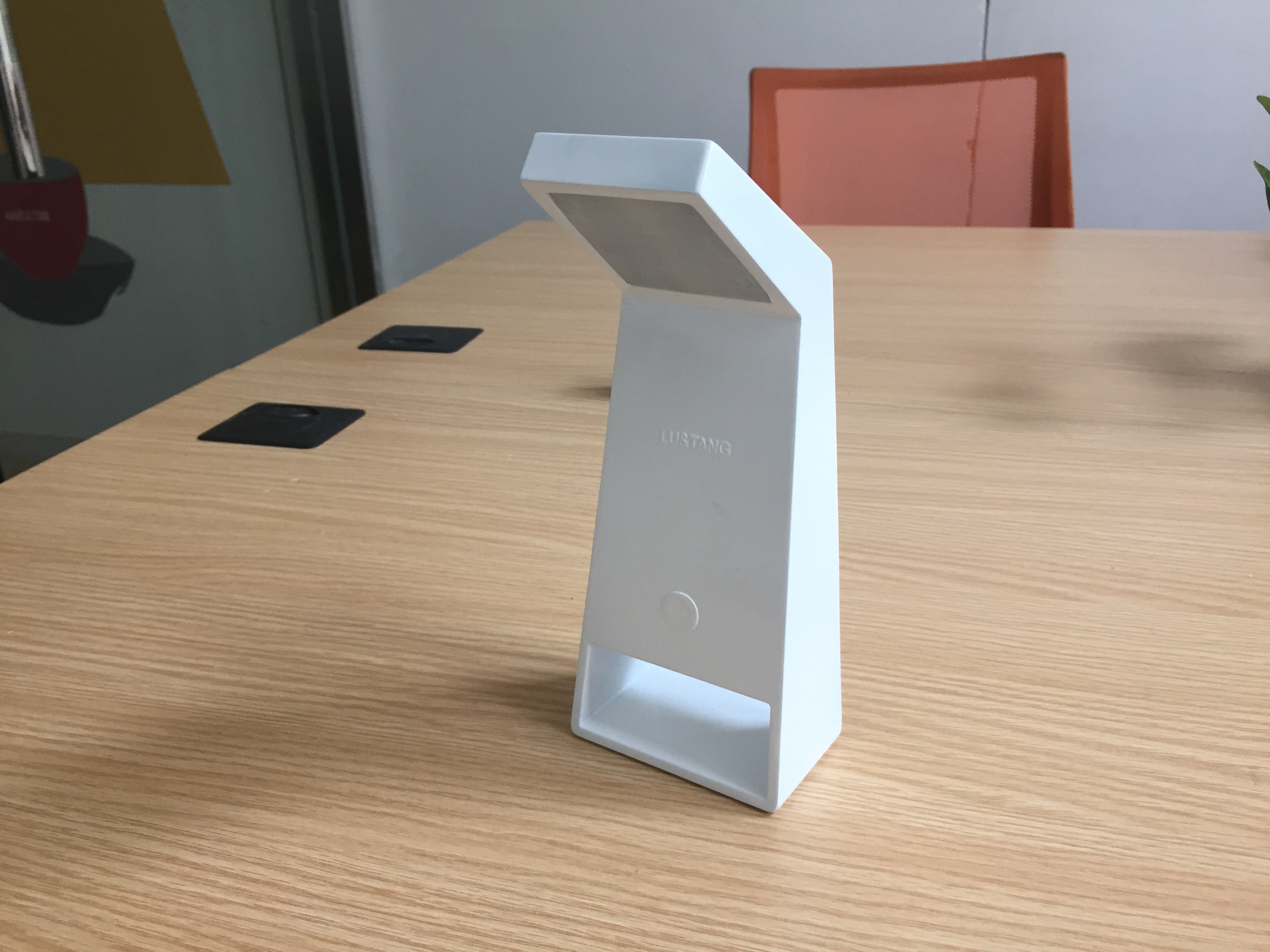

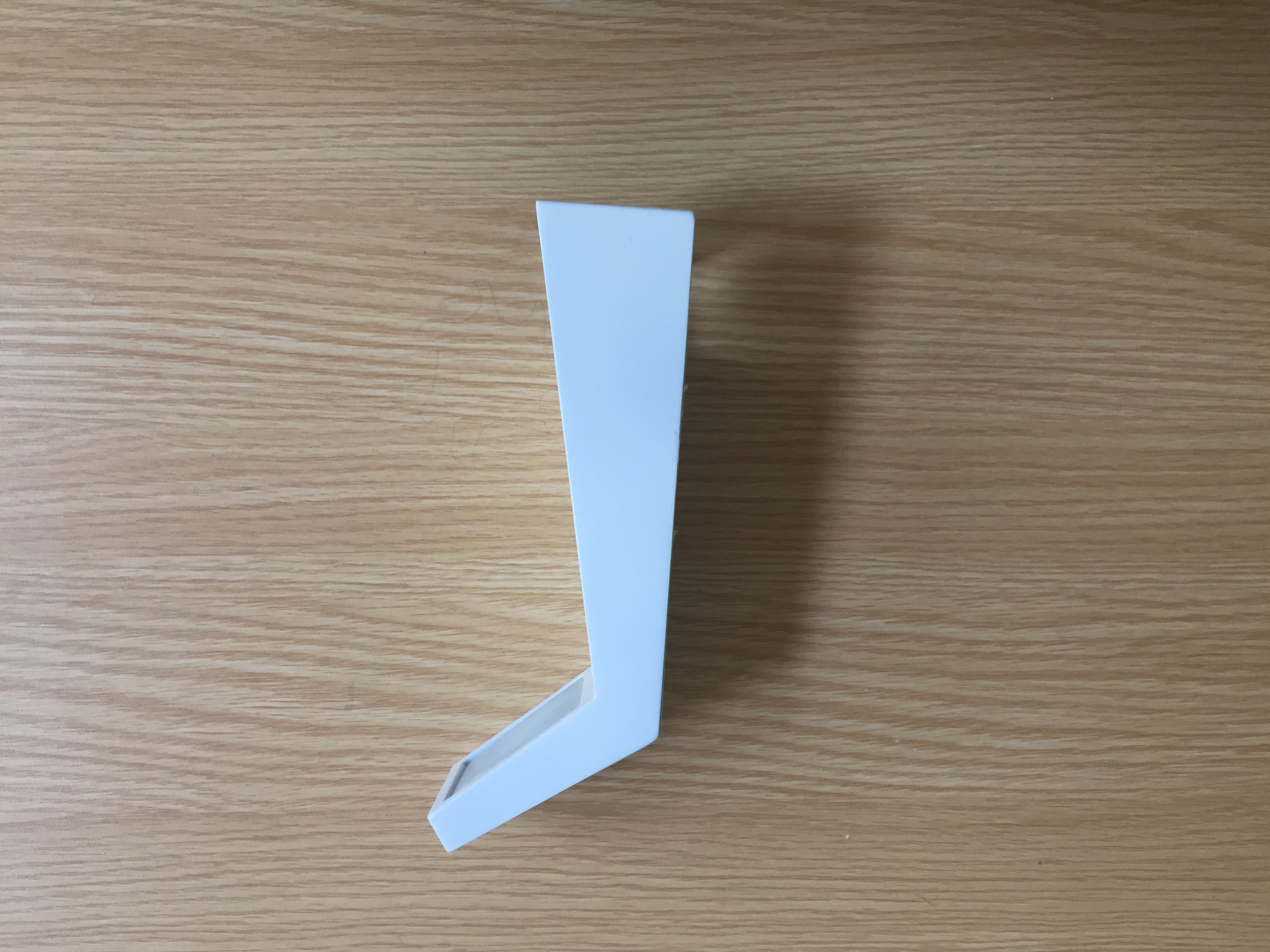

Painting effect

14 25

一个设计师 2021-04-14

Is there another lamp removed from the light?

Owner 2021-04-14

There are circuit boards, audio amplifiers, Bluetooth, etc. There is no audio amplifier and the horn cannot be brought up. The lamp is put on by disassembling the broken desk lamp.

Write a comment

纸短情长 2020-05-06

I think it's great

Owner 2020-05-07

Thank you for your affirmation

登山者 2020-05-06

The brightness of the lamp is not large, and the practicality is not good.

Owner 2020-05-06

The brightness at night is very strong. Take a picture of the night another day to make up for it. The light board inside is removed from other desk lamps and does not match very well. Forgive me.
