When I was a designer, I made a product. It was a pity that the price was set too high at that time. Later, I went to Shan Mu Supermarket. Also share the process of doing step by step at that time.

Butterfly chair design project: user and scene insight from outdoor camping furniture indoor home direction.
Several core selling points of the product:
① Comfortable: comfortable armrest design with wide wrapping feeling brought by butterfly chair version
② Convenient: Fast unfolding & storage gathered storage structure quick release design cloth cover
③ Ultra-light: large furniture, small weight; the lightest version of the whole chair weighs no more than 1.9kg
④ High performance: fabric waterproof, anti-fouling, tear-resistant but still comfortable and soft; bracket 7 series aluminum alloy, light weight and high load-bearing.
⑤ Applicable to multiple scenes: soft rubber design for foot rest, non-scratched floor for indoor use.

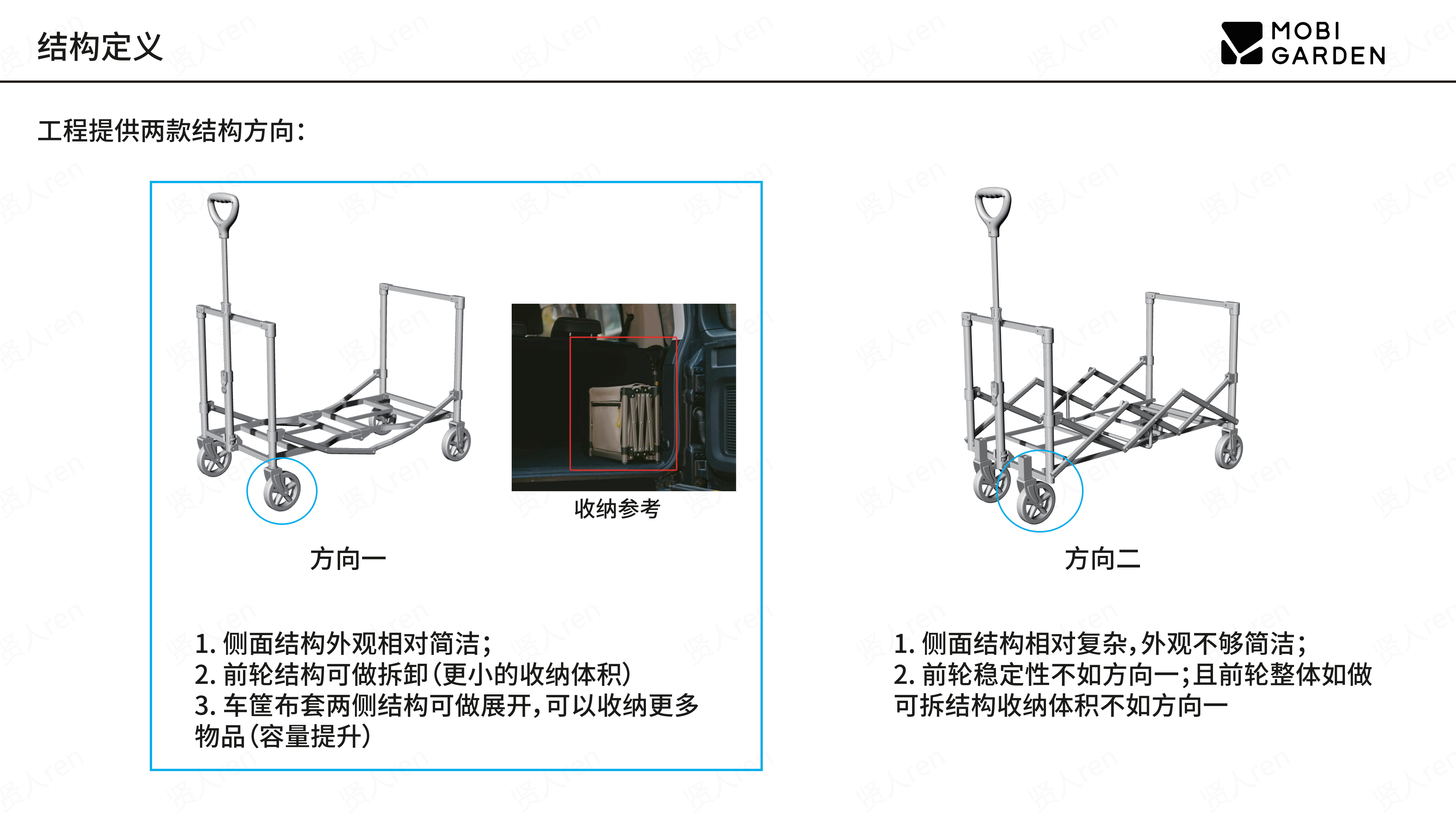

Select the most appropriate solution in the two existing structures

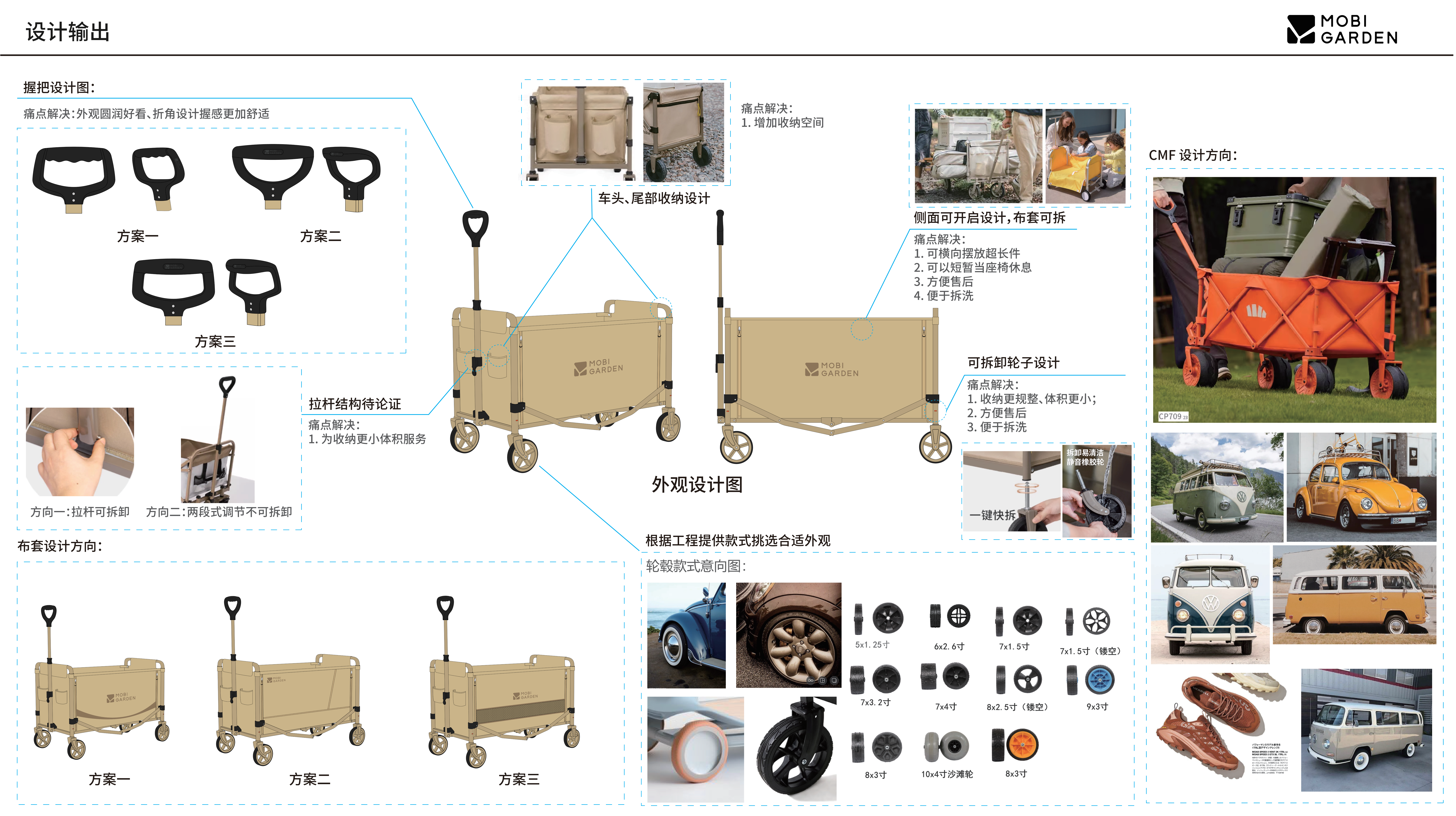

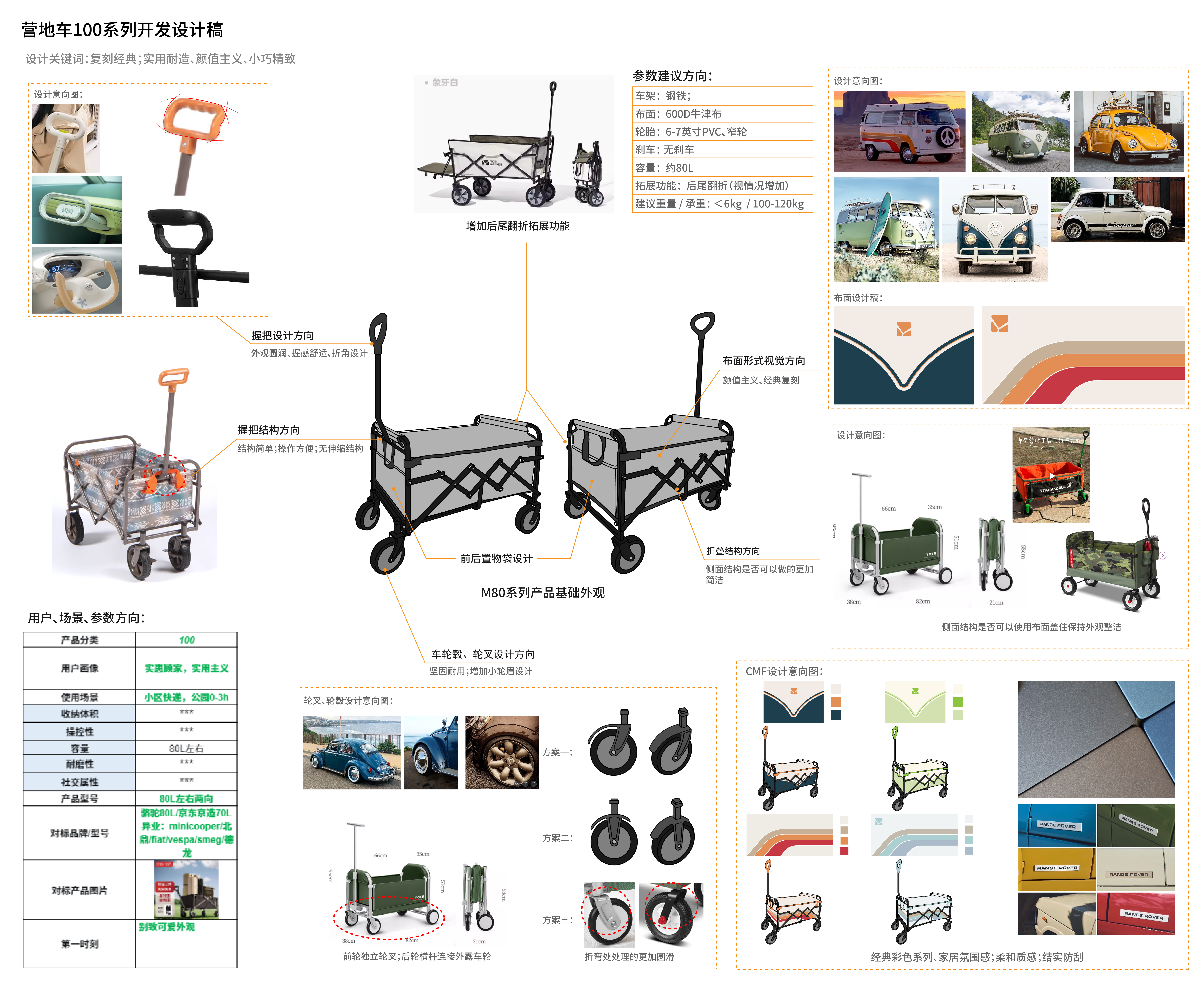

A design explosion diagram used in the meeting

Design Explosion Chart for the Second Meeting

At the third meeting, the model was already built.

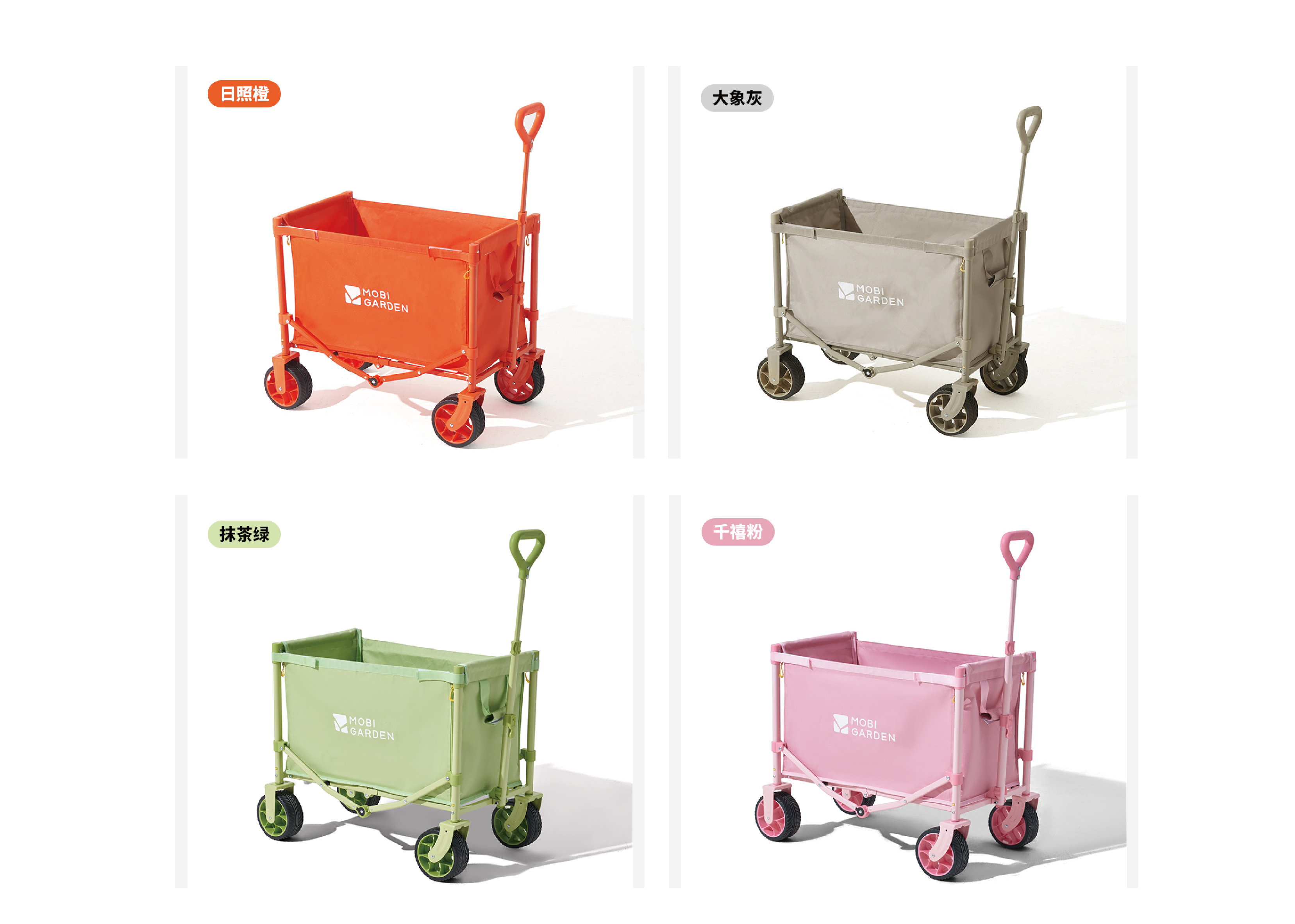

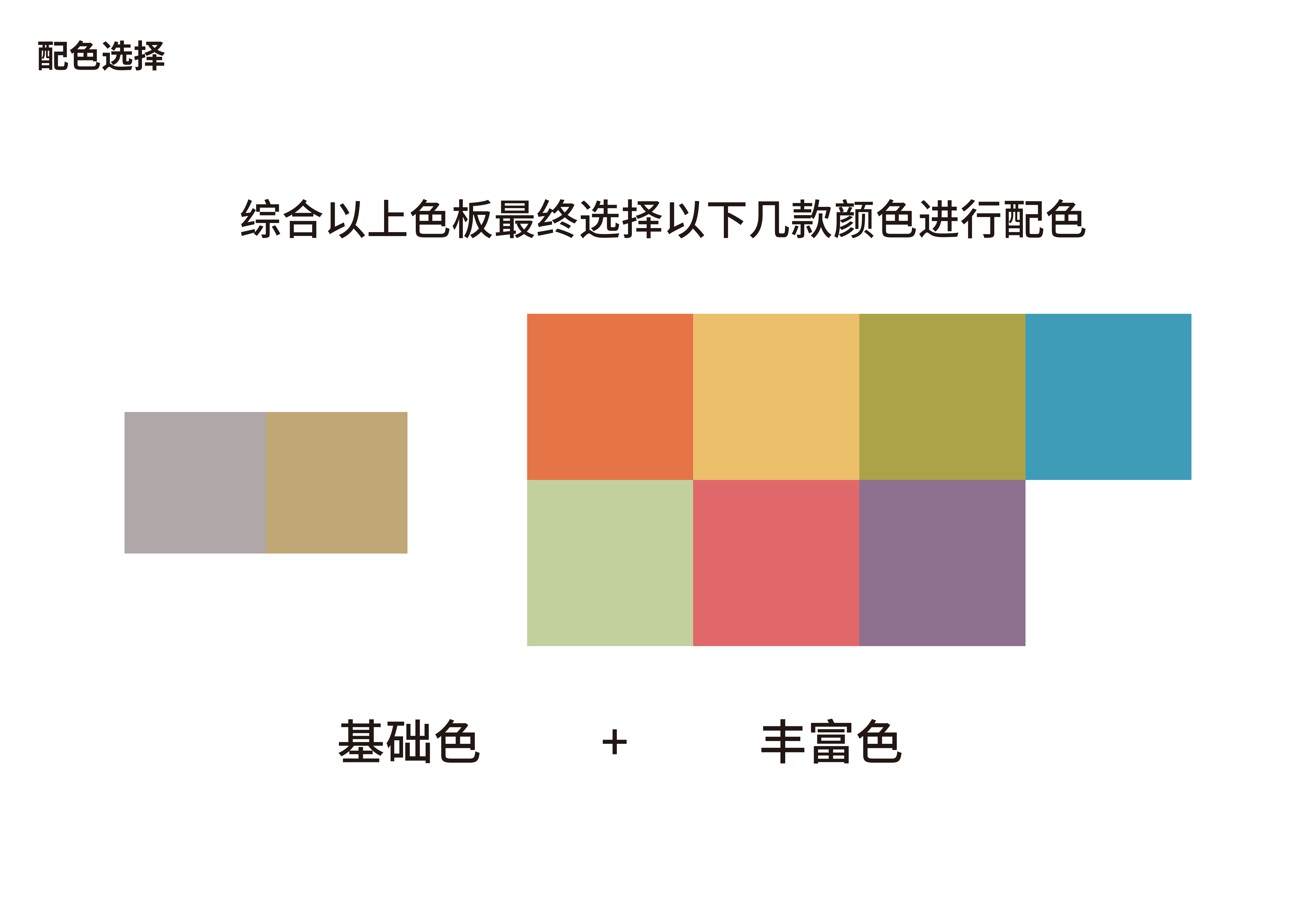

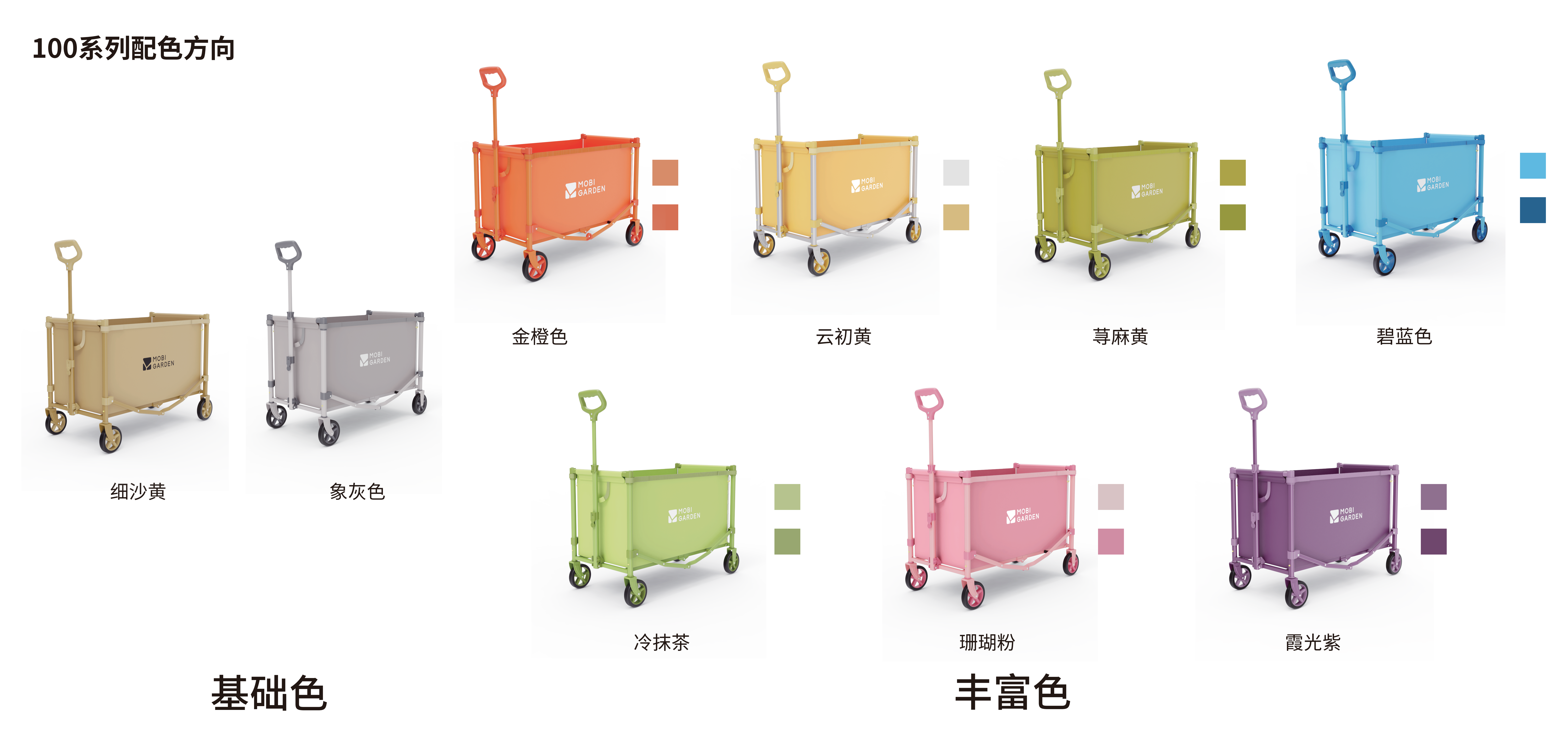

Framed several color directions

Take over from above

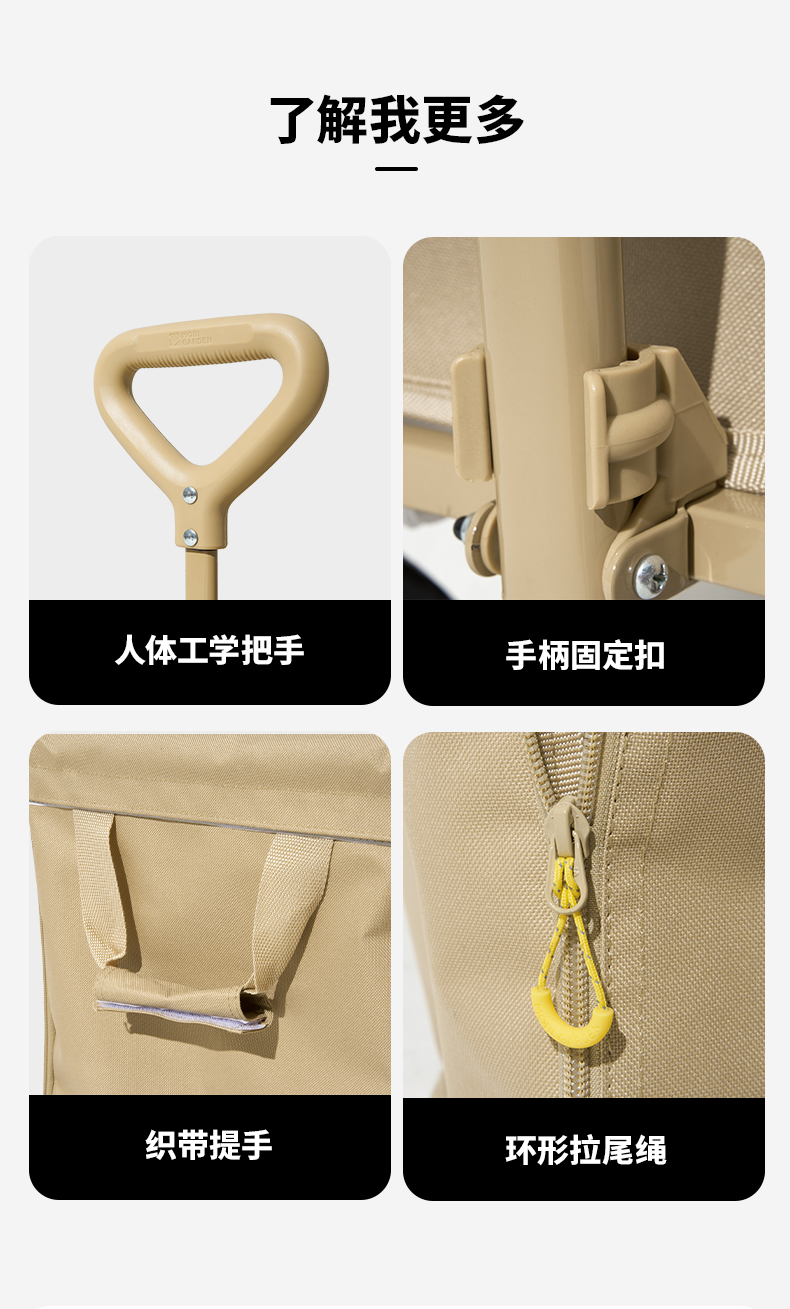

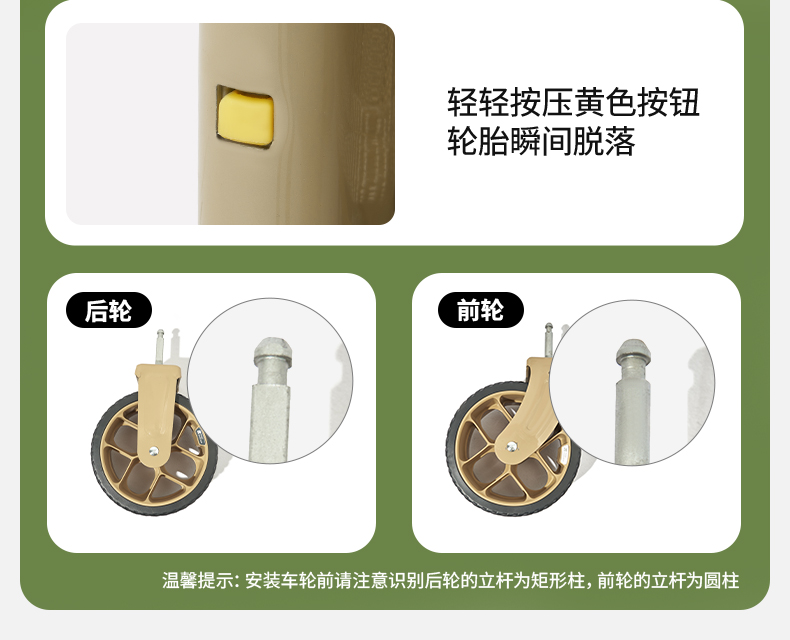

I made an effect demonstration of the waterfall chart on the detail page.

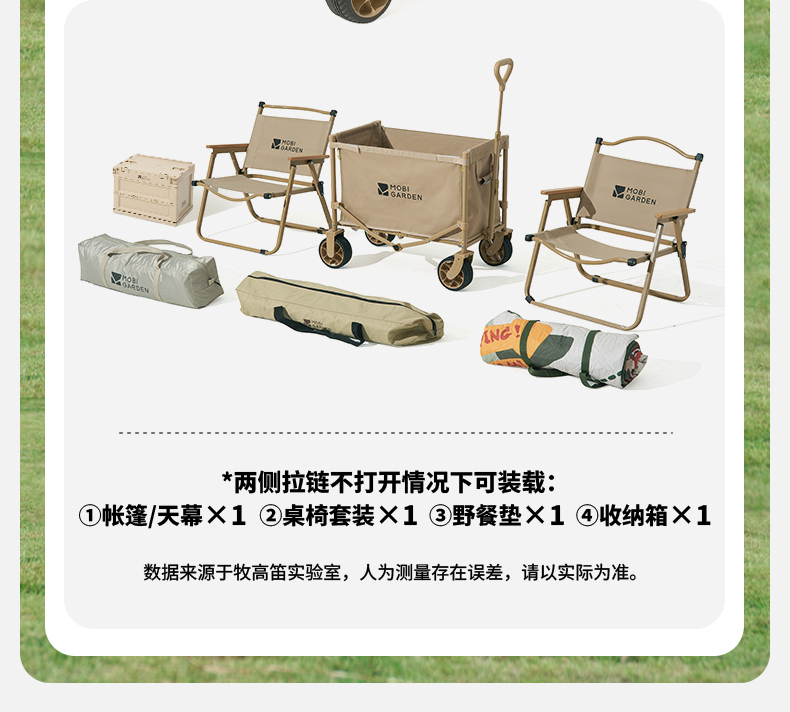

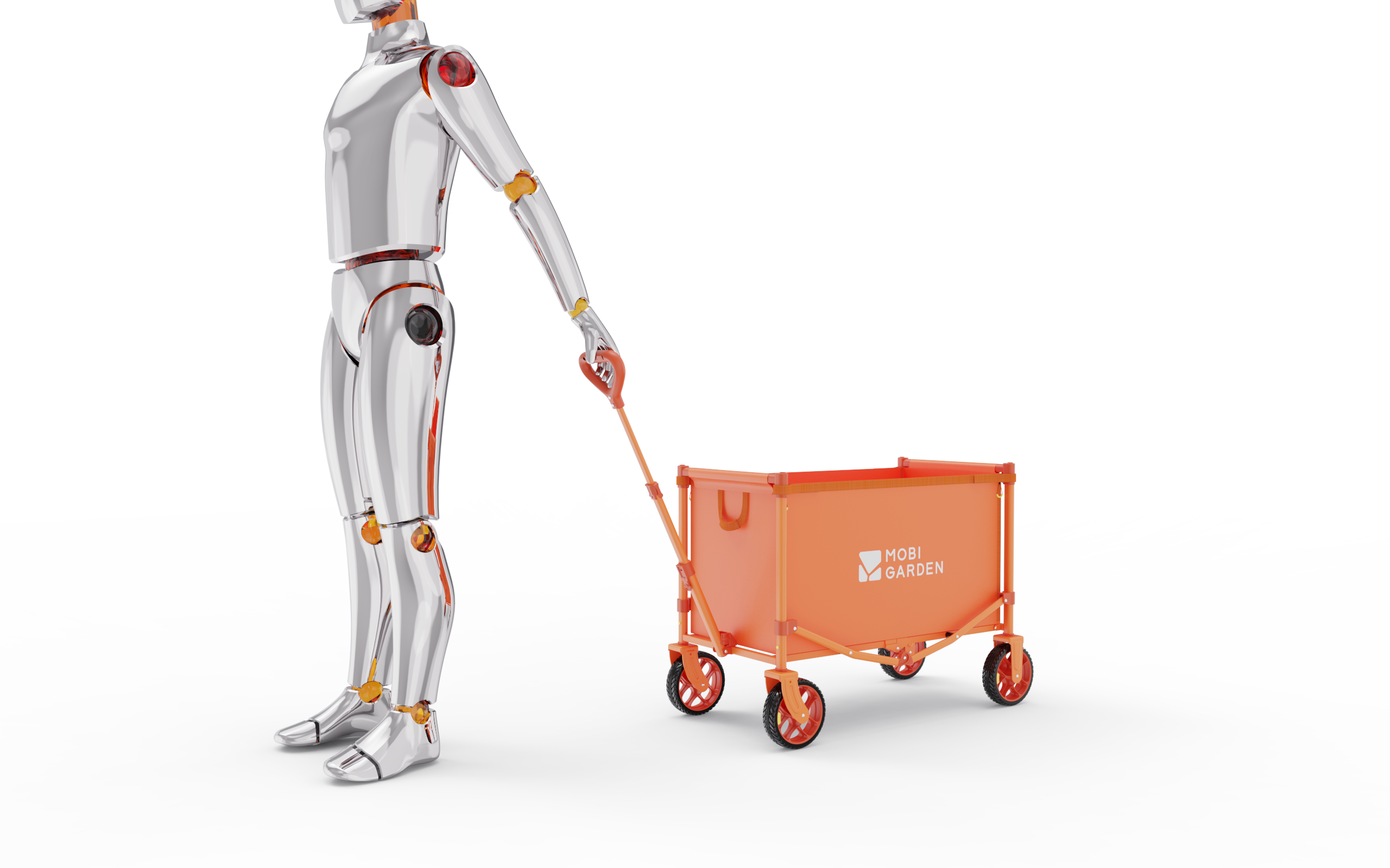

Finally, the reference scale is rendered.

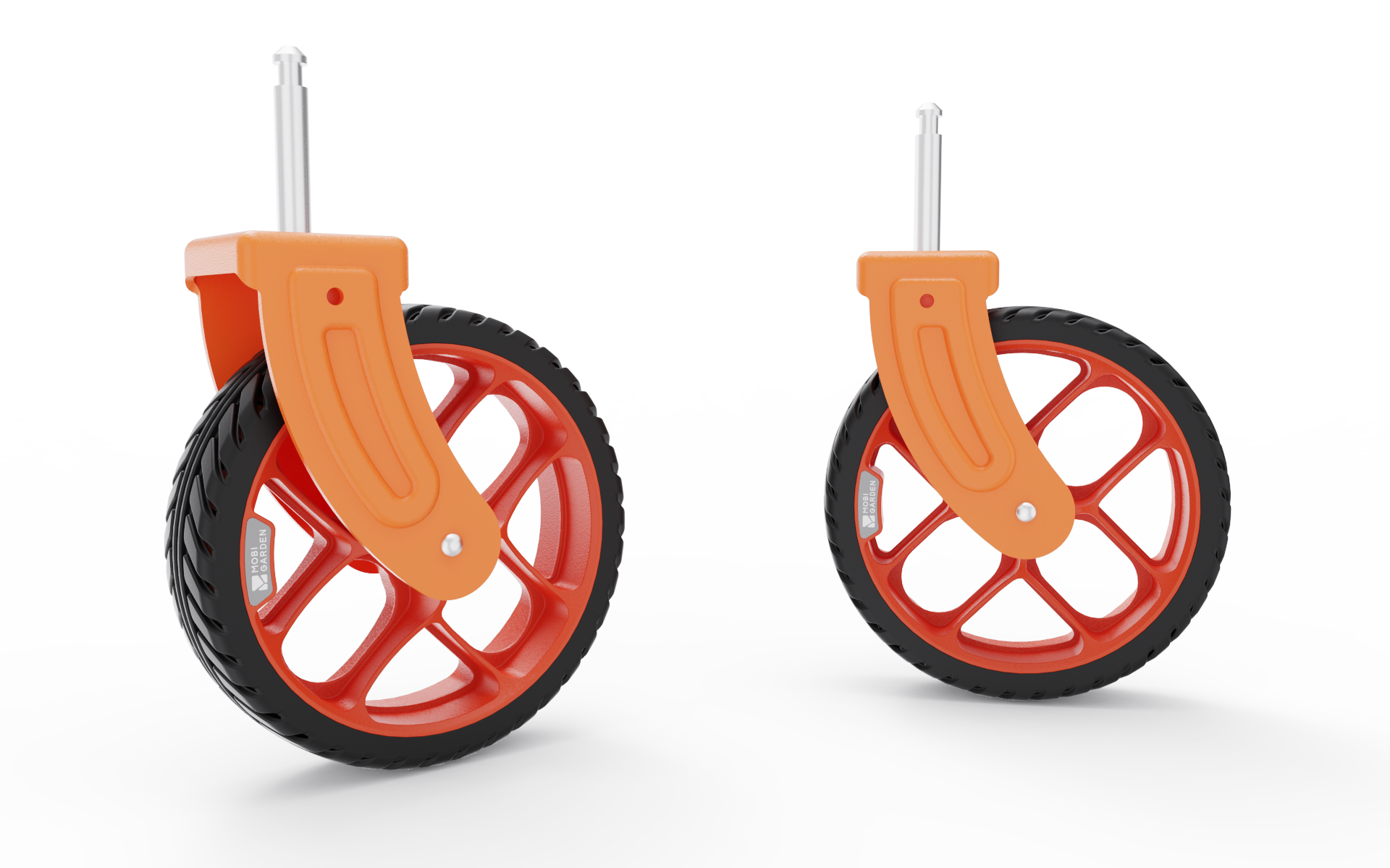

This wheel is a bit expensive

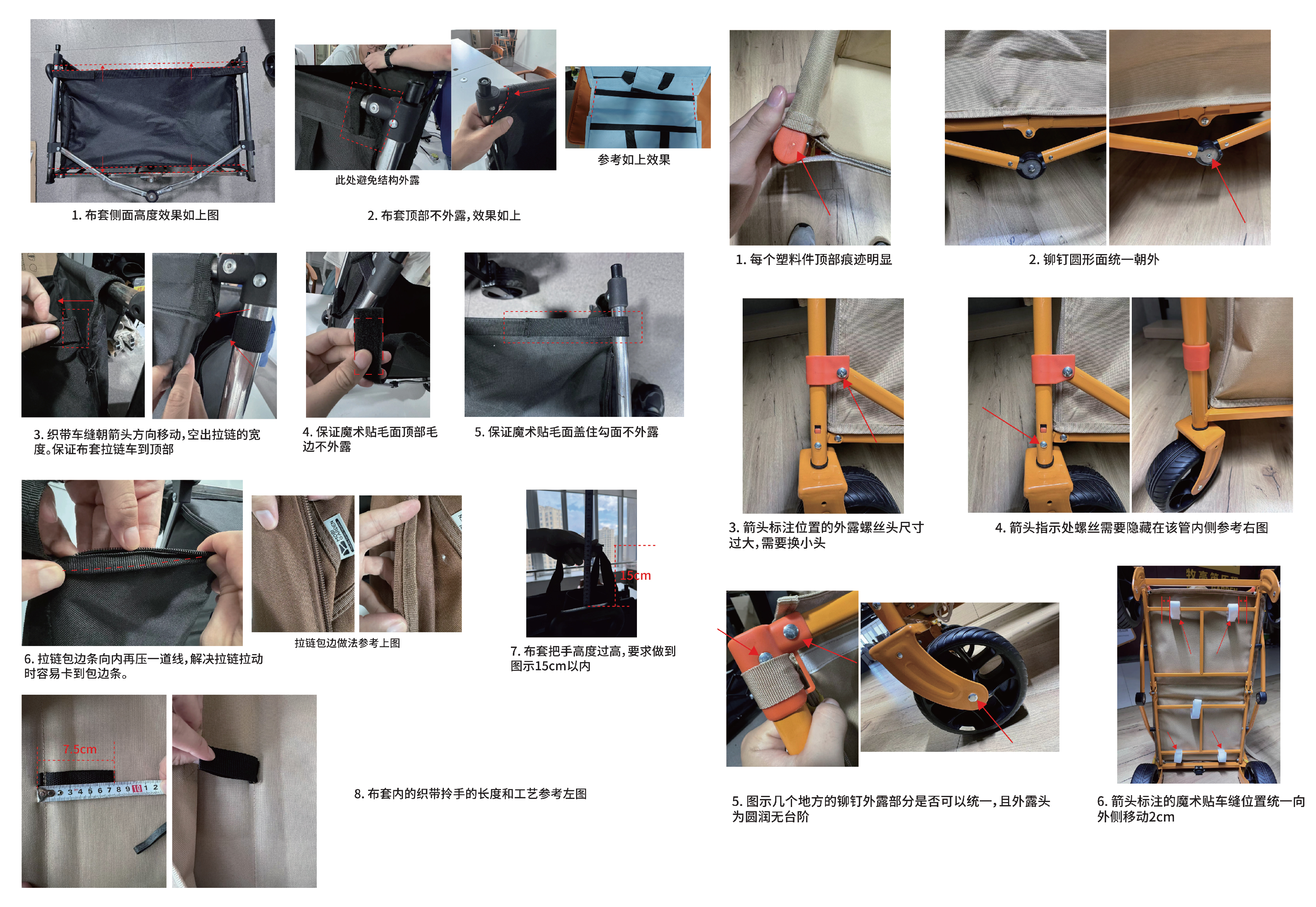

Proofing process, a little look at the tattered rusty tube into a good-looking product
