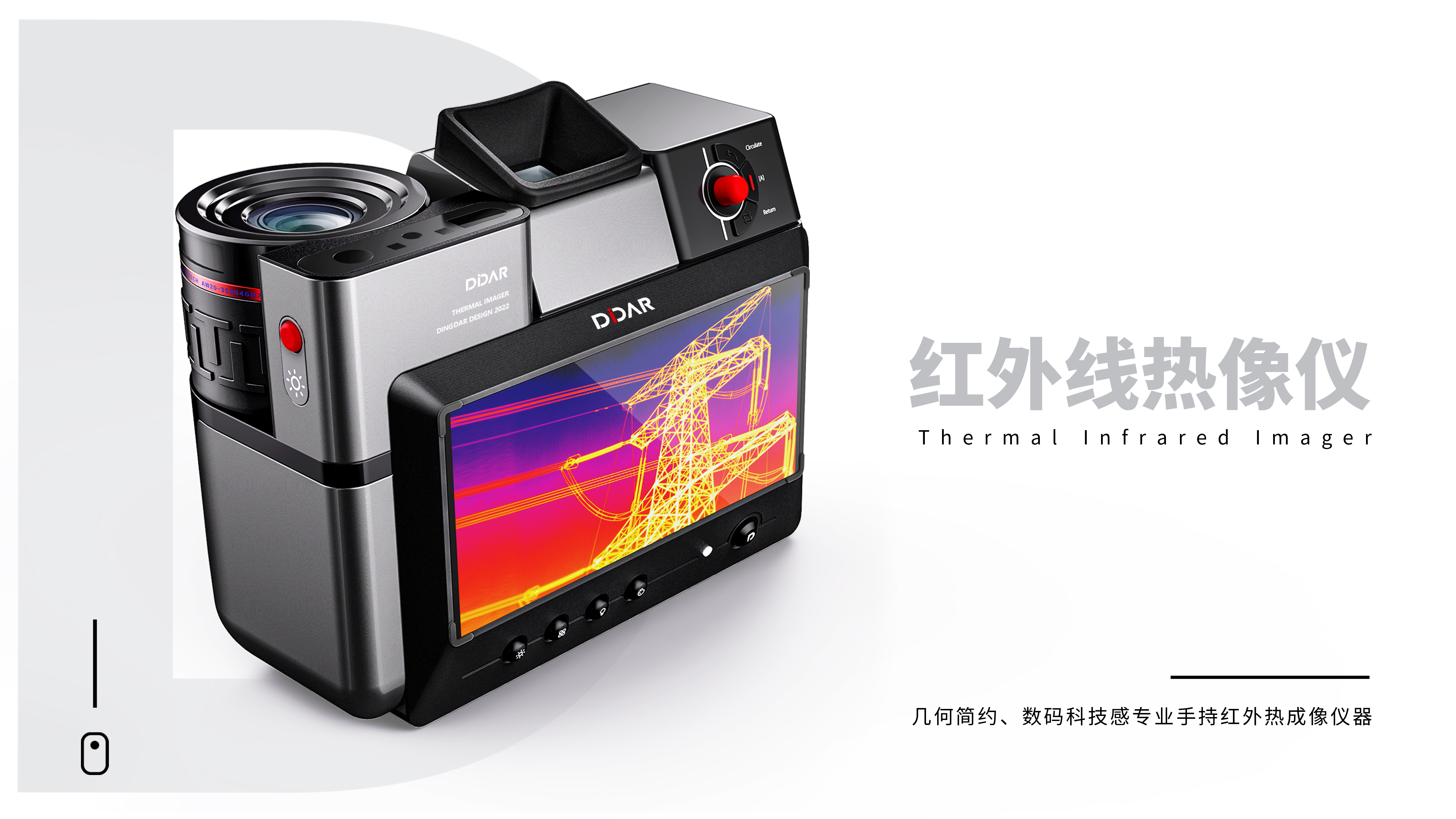

An industrial equipment with a relatively simple geometry and a sense of digital technology-infrared thermal imager
The design in January 2022 is also the first time to make this kind of equipment that looks more precise. At that time, it was intended to make it look less industrial. The design focused on dividing the general muscular interaction area into geometric small blocks according to the functional areas.

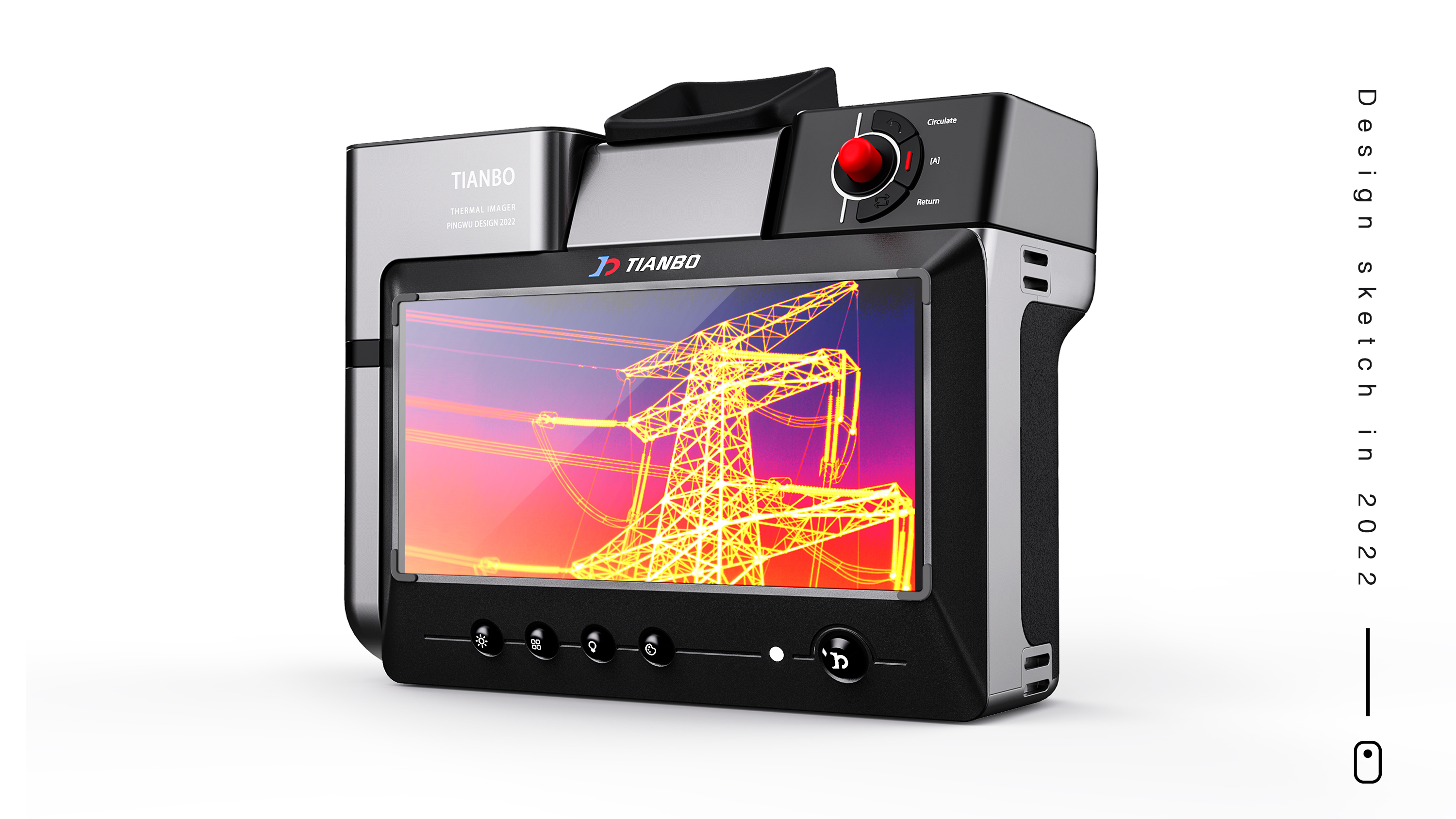

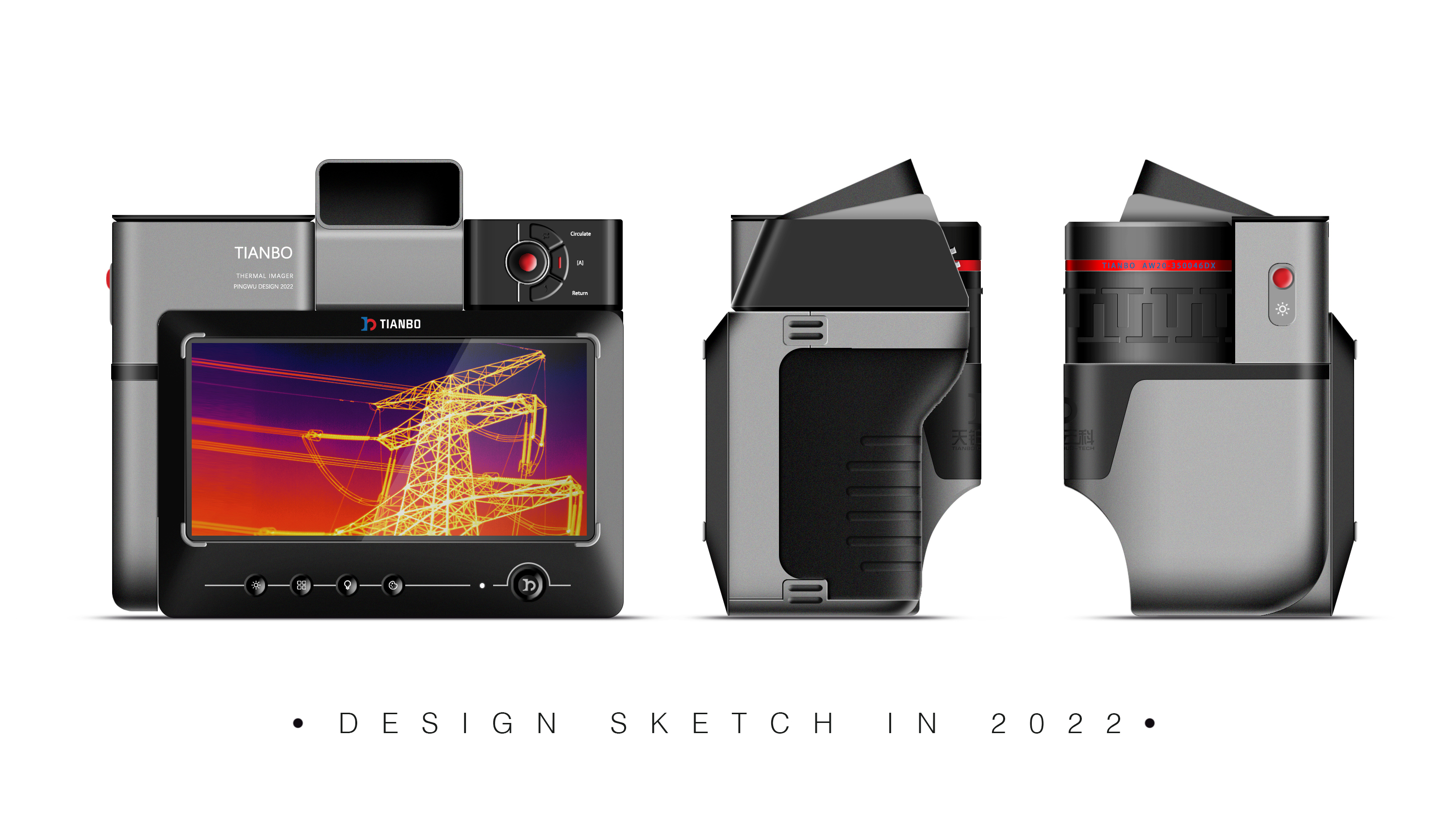

The modeling is relatively simple. It didn't take much time to model, but the sketch took a long time to refine (Figure 1 is a sketch)

Simplicity，Sense of science and technology，Geometry，Thermal imager，Digital，
