An indoor microenvironment integrated circulation system that cleverly combines the three elements of air purifier, humidifier and green plant.

After nearly 200 days, Agee finally had time to release his new design works. In recent half a year, personal time has been almost squeezed clean due to work reasons. So this time I seize the rare opportunity to update, I hope you can like it!
At present, the air pollution problem is becoming more and more serious. I believe many people will use air purifiers in their homes or offices. In addition to filtering pollutants in the air directly through the filter screen, the air purifier generally also has the function of humidifier. Studies have shown that water molecules in the air have a certain ability to adsorb suspended particles, so increasing air humidity can improve air quality to a certain extent. In addition, some friends are used to planting green plants at home or in the office to adjust the atmosphere, and they also have some air purification effects.
One day in the past, I suddenly had an idea. Is it possible to combine the three elements of purifier, humidifier and green plant into a product while solving some of their problems? So I summarized the pain points of these items. Green plants: frequent watering is required, and poor indoor light affects growth; Humidifier/air purifier: frequent water addition is required, and some models cannot control the air supply direction. Finally, after a period of thinking, this circulatory system was born.

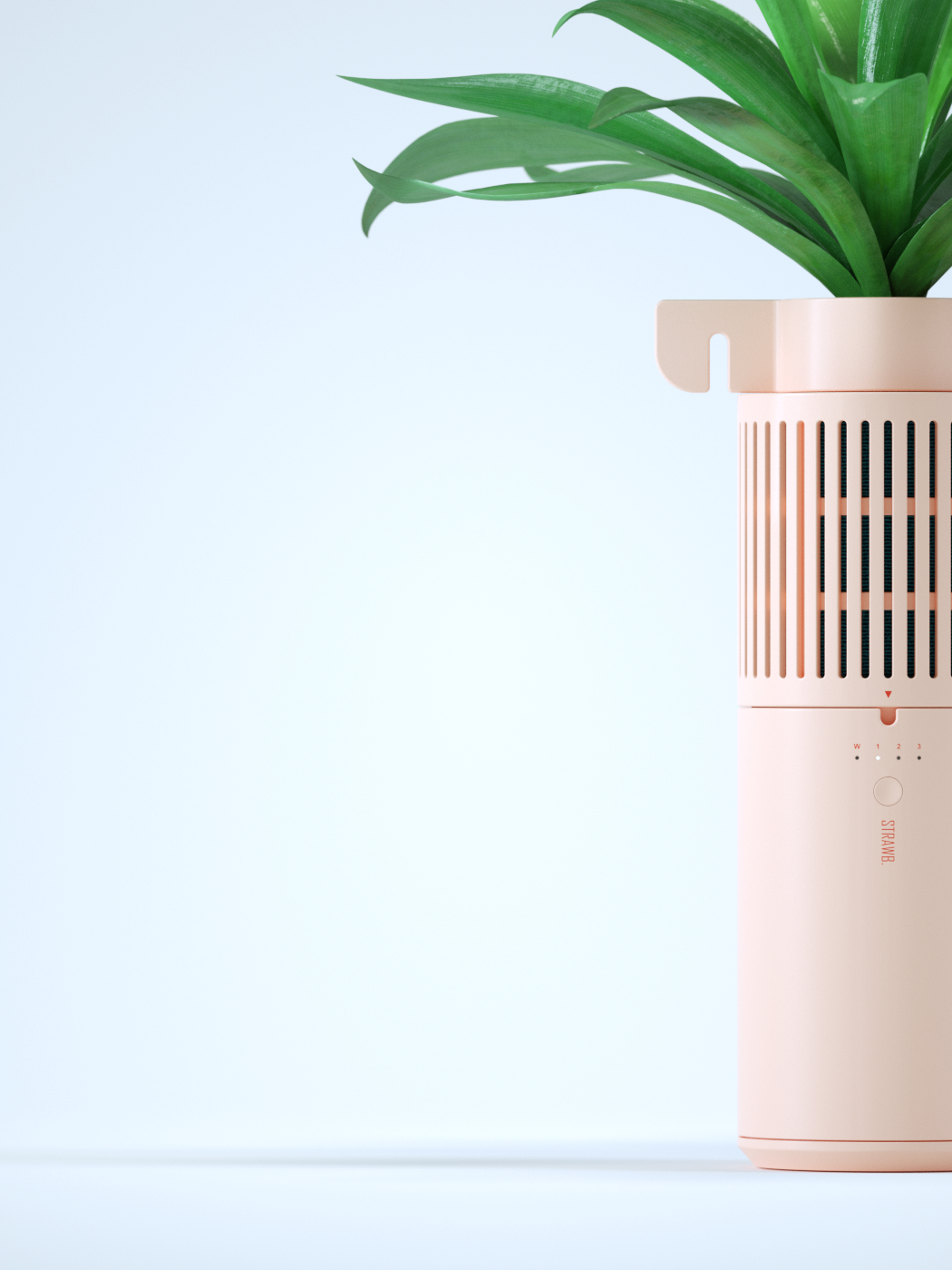

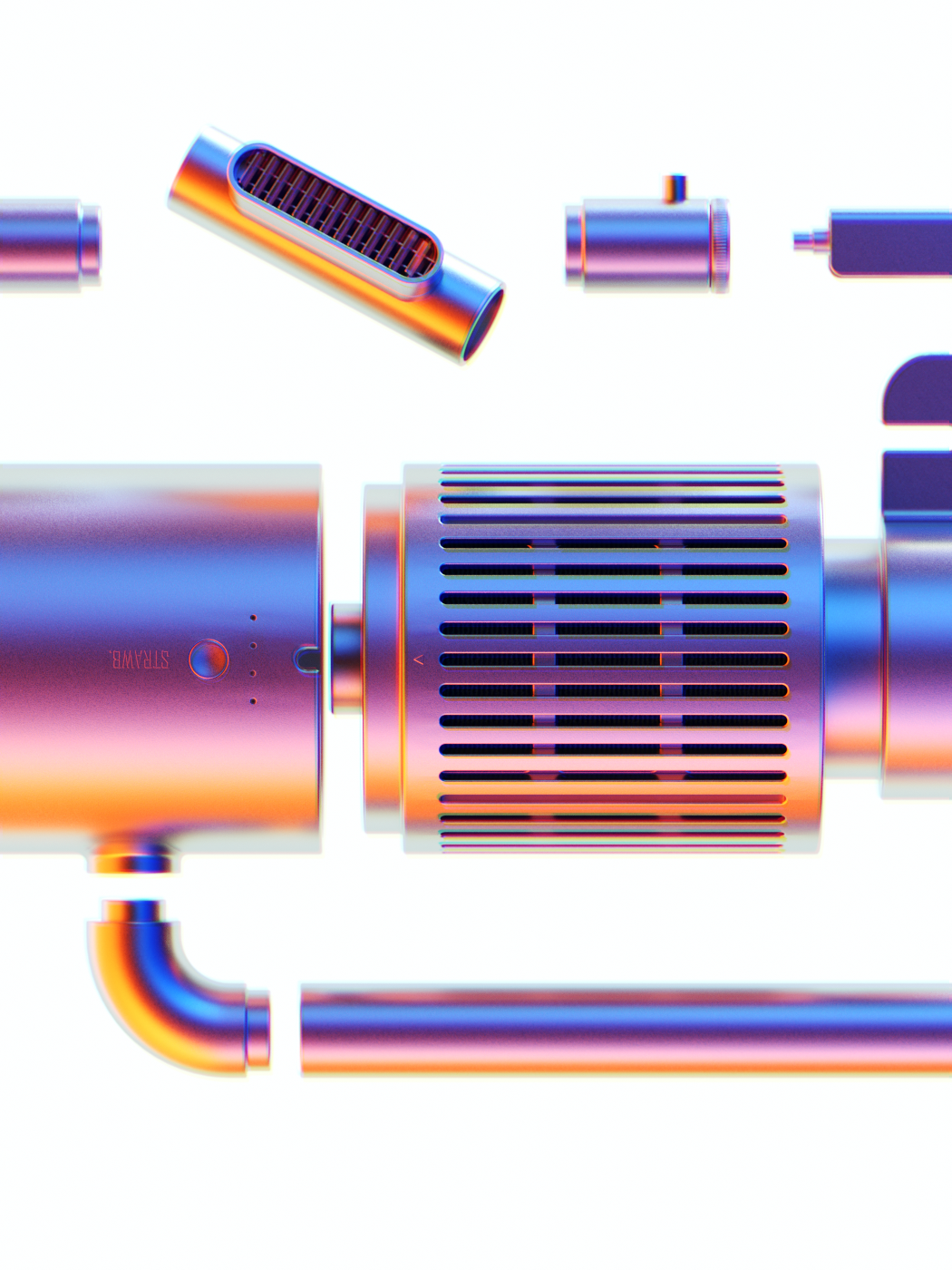

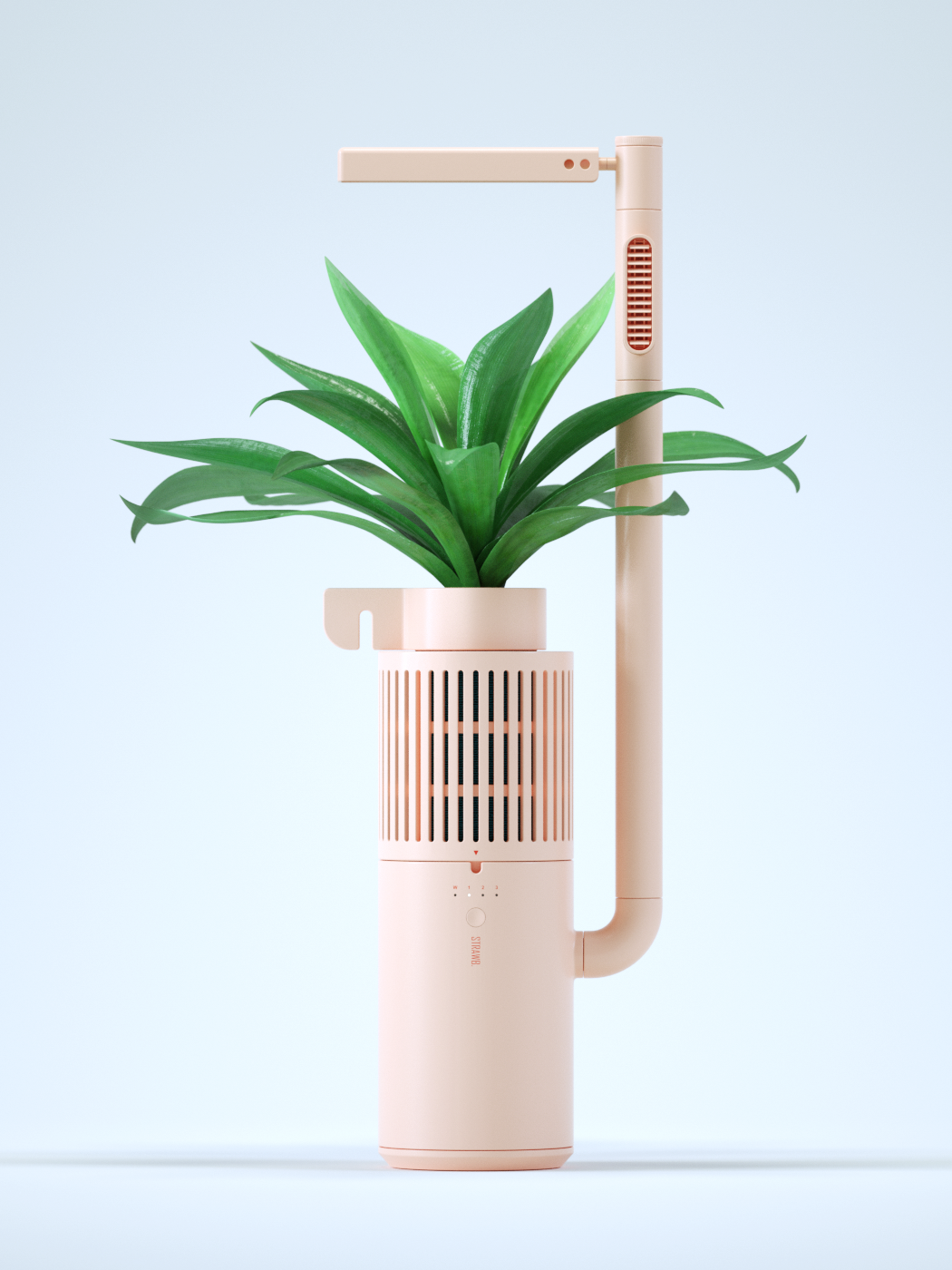

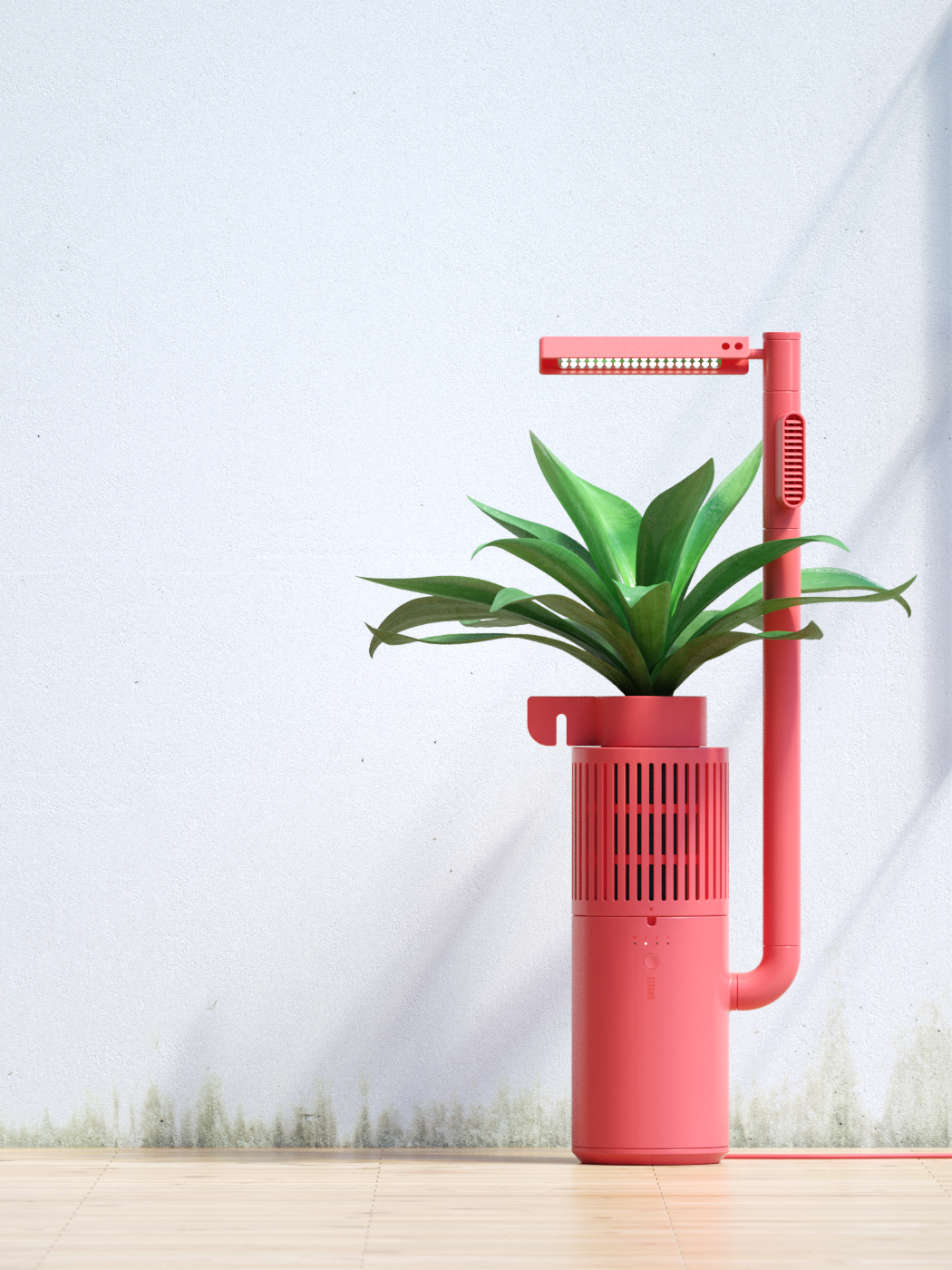

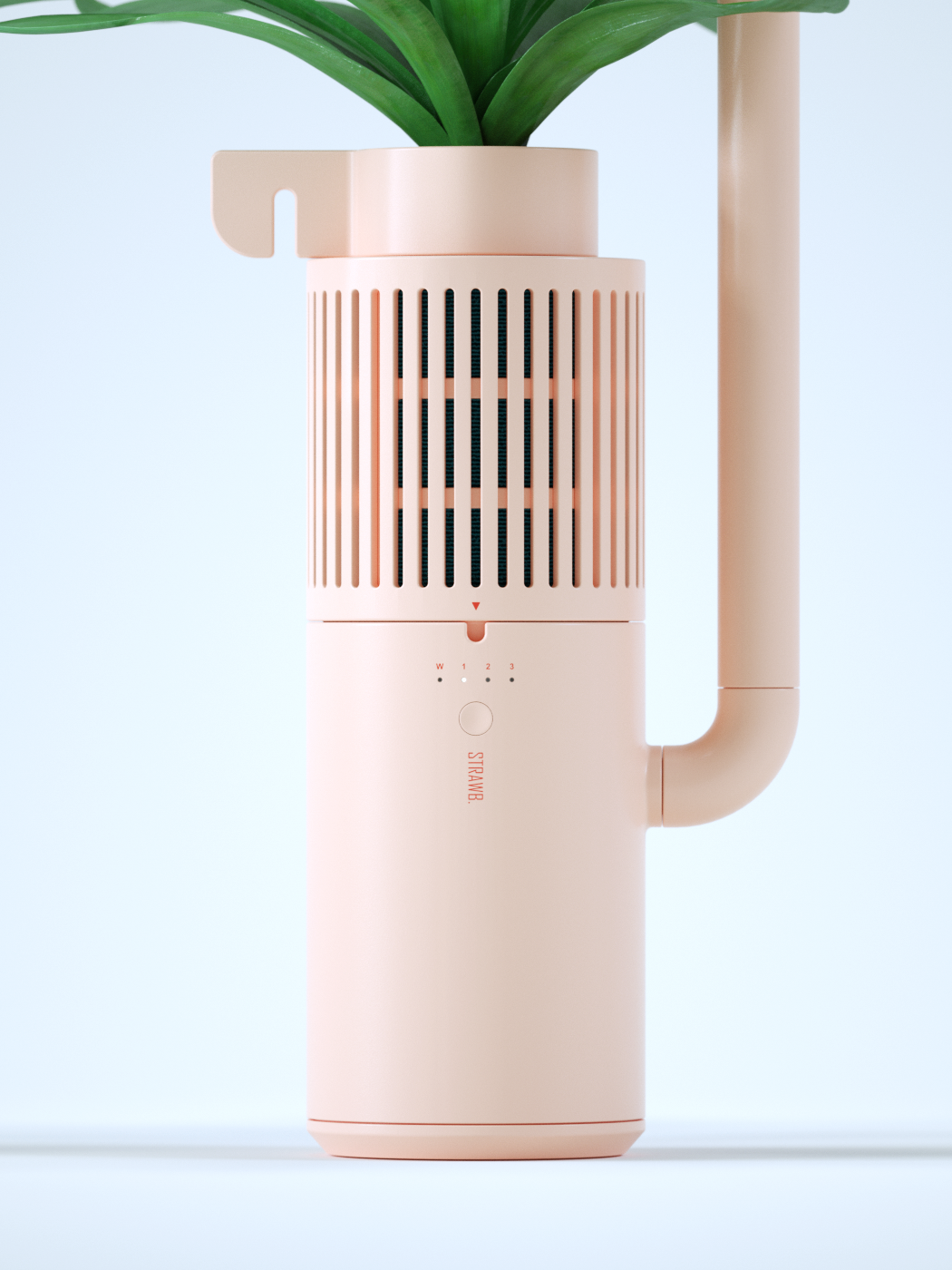

The product structure is divided into upper, middle and lower layers, and the top layer is lighting and green planting layer (users can take down the green planting basin at the top and place it on a specially designed iron frame for appreciation according to their own needs); The middle layer is the filter layer; The bottom layer is the water tank and the mechanical layer.

When users water green plants, they can not only meet their growth needs, but also the excess water will seep down the soil. Through the link pipe between the upper layer and the middle layer, it is finally accumulated in the water tank at the bottom of the system to achieve the purpose of reducing the number of times users actively add water to the water tank.

After turning on the humidification function, the water in the water tank will be atomized by the atomizer like a conventional humidifier, and finally discharged from the exhaust port from the upper end together with the clean air filtered by the middle filter.

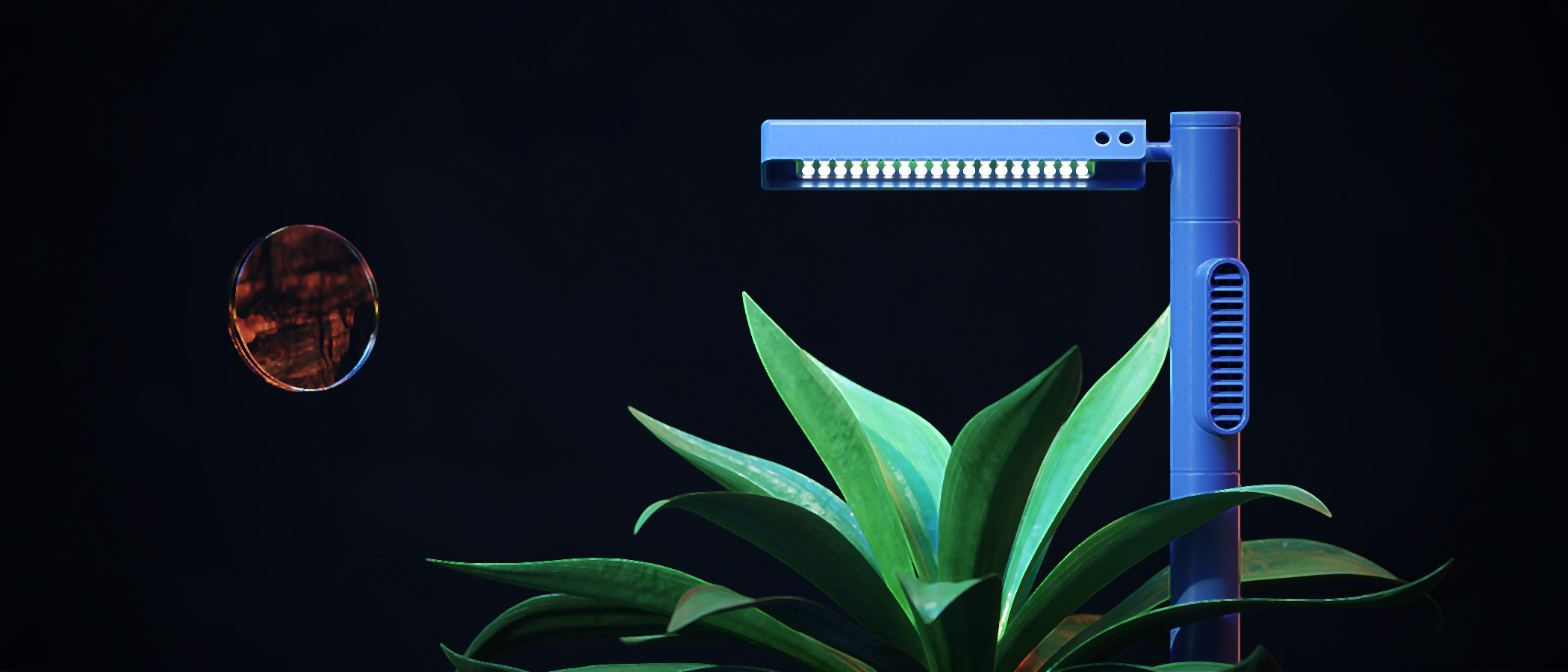

The lighting on the top of the system can also provide plants with necessary light in a relatively dim room to help them carry out photosynthesis and increase indoor oxygen content.

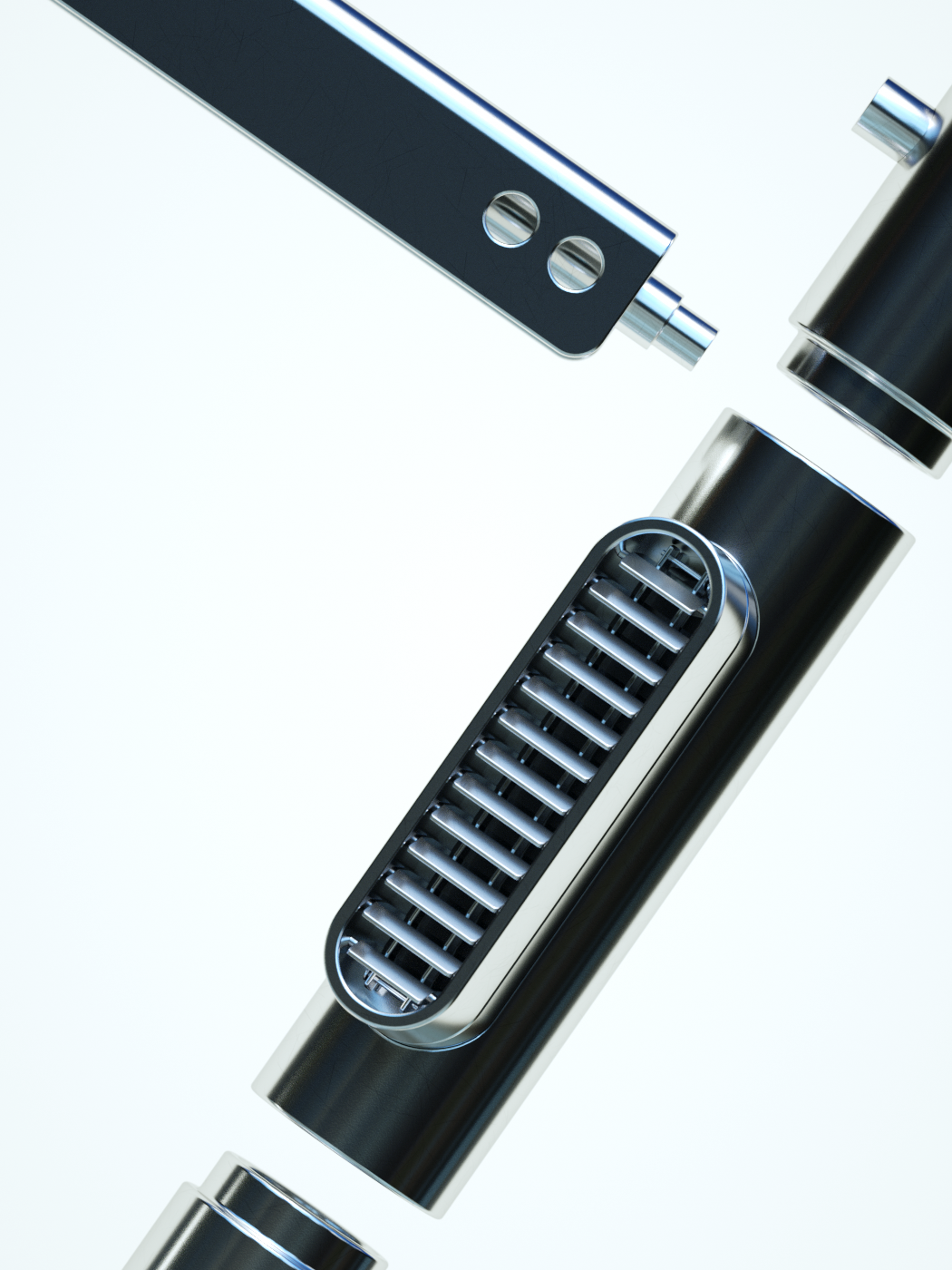

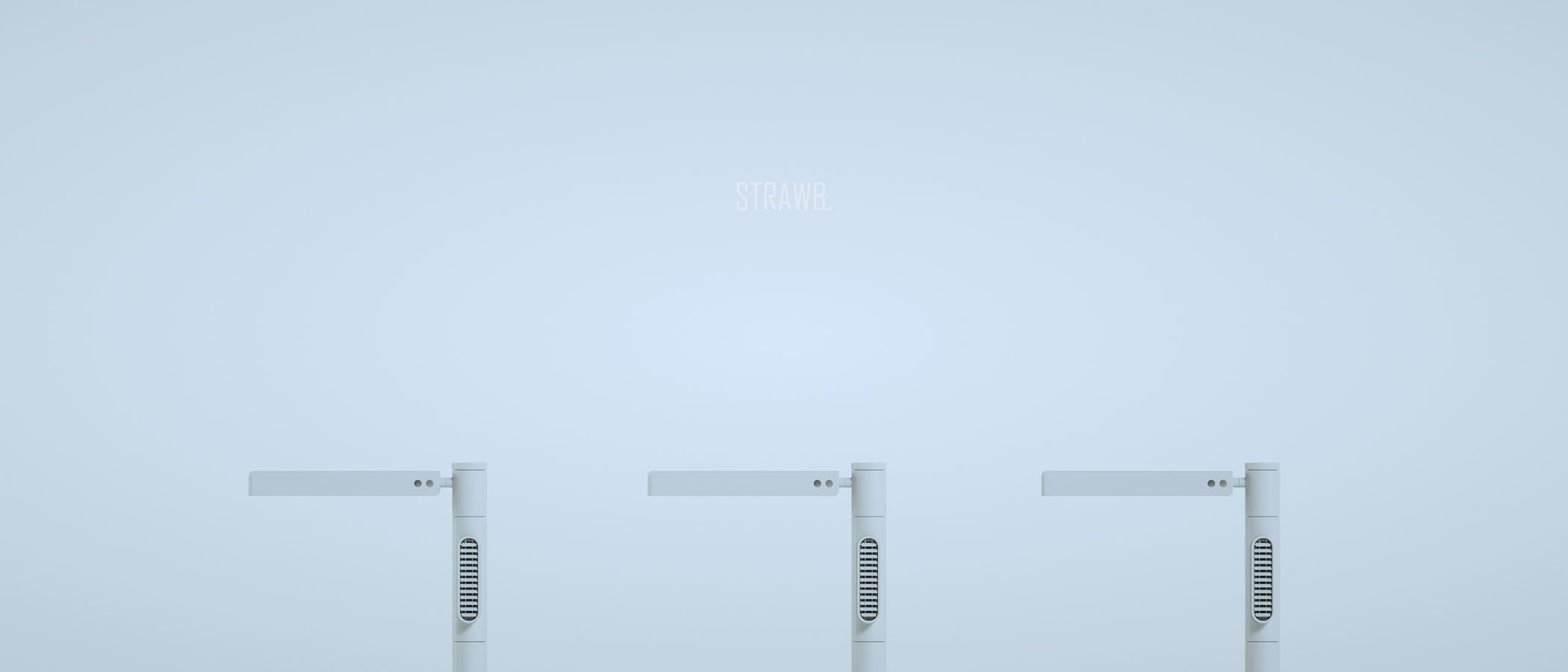

In addition to the above problems, I also optimized some problems existing in similar products during the design process. For example, the air outlet can be left and right 360 degrees, and can be adjusted freely up and down 150 degrees to prevent discomfort caused by direct blowing. The top lighting can also freely adjust the direction and brightness to avoid light pollution.

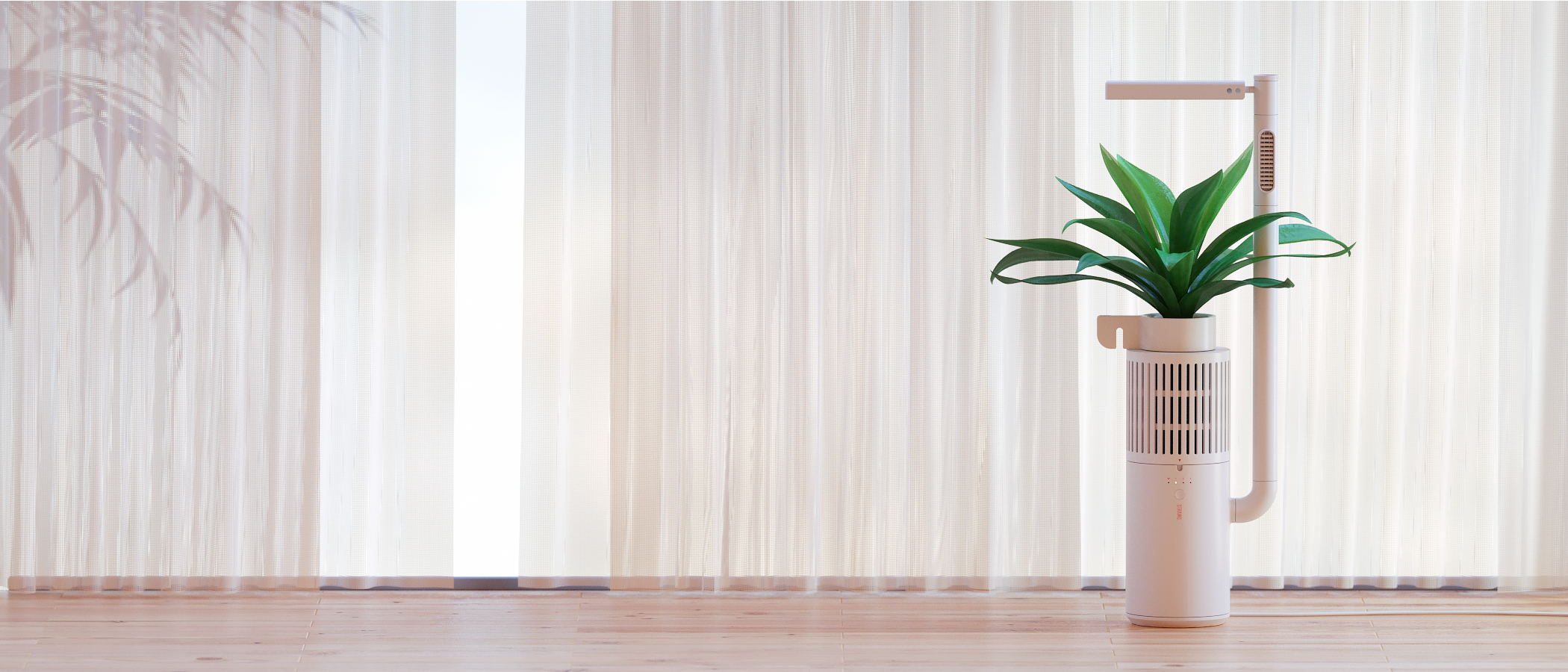

I tried the Japanese "MUJI" sex cold wind.

Noise addition and dispersion treatment were carried out with PS.

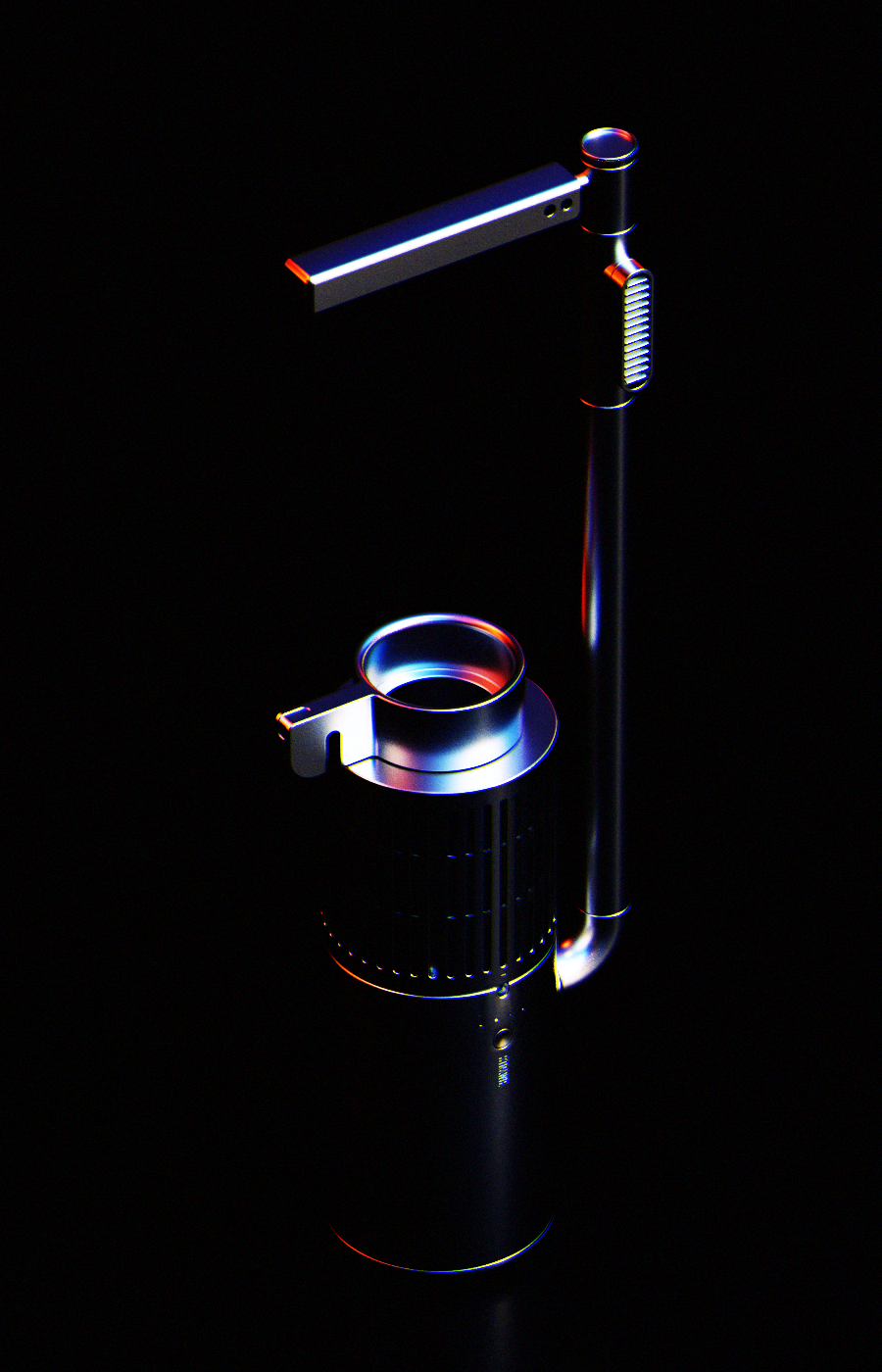

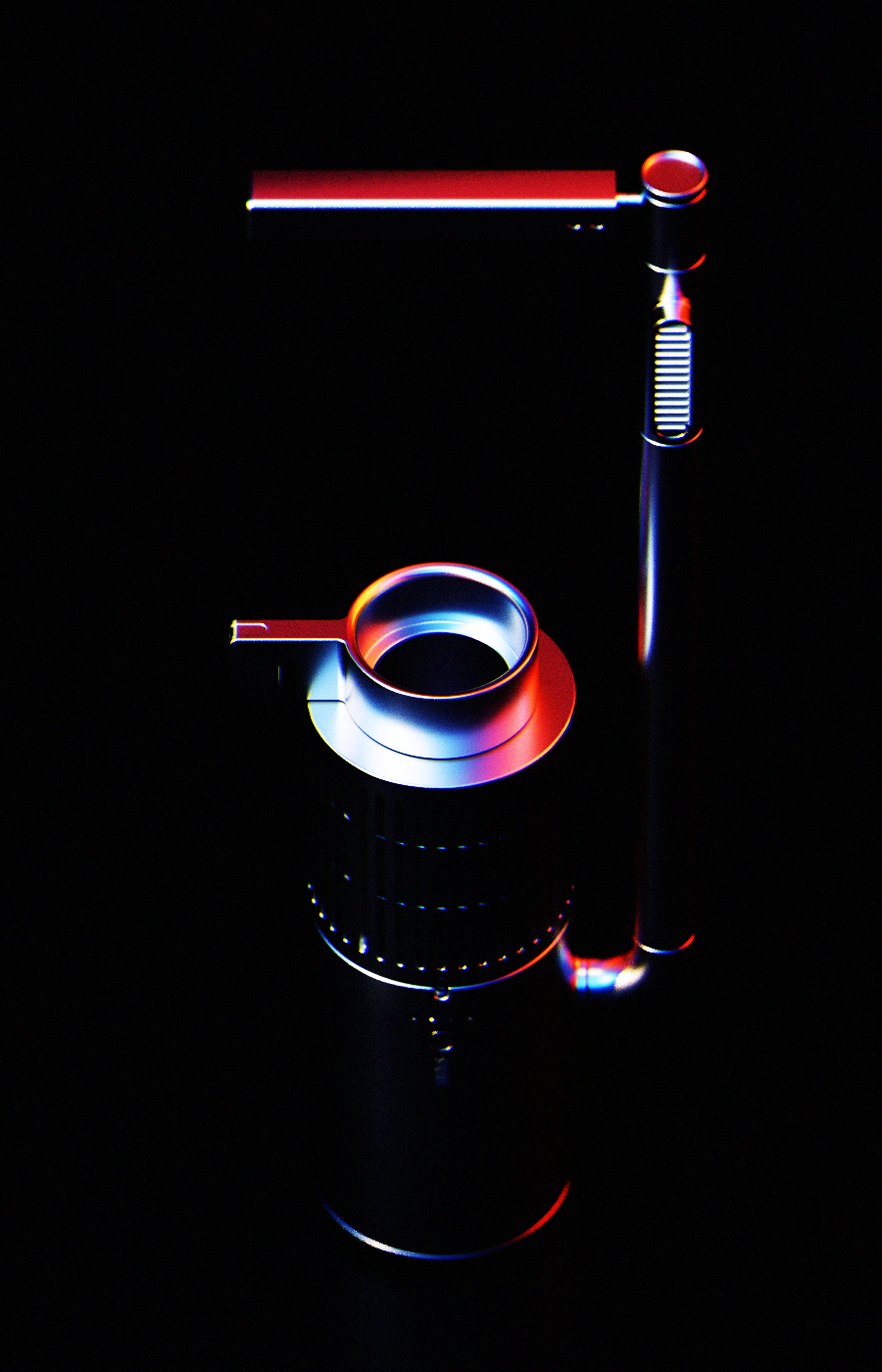

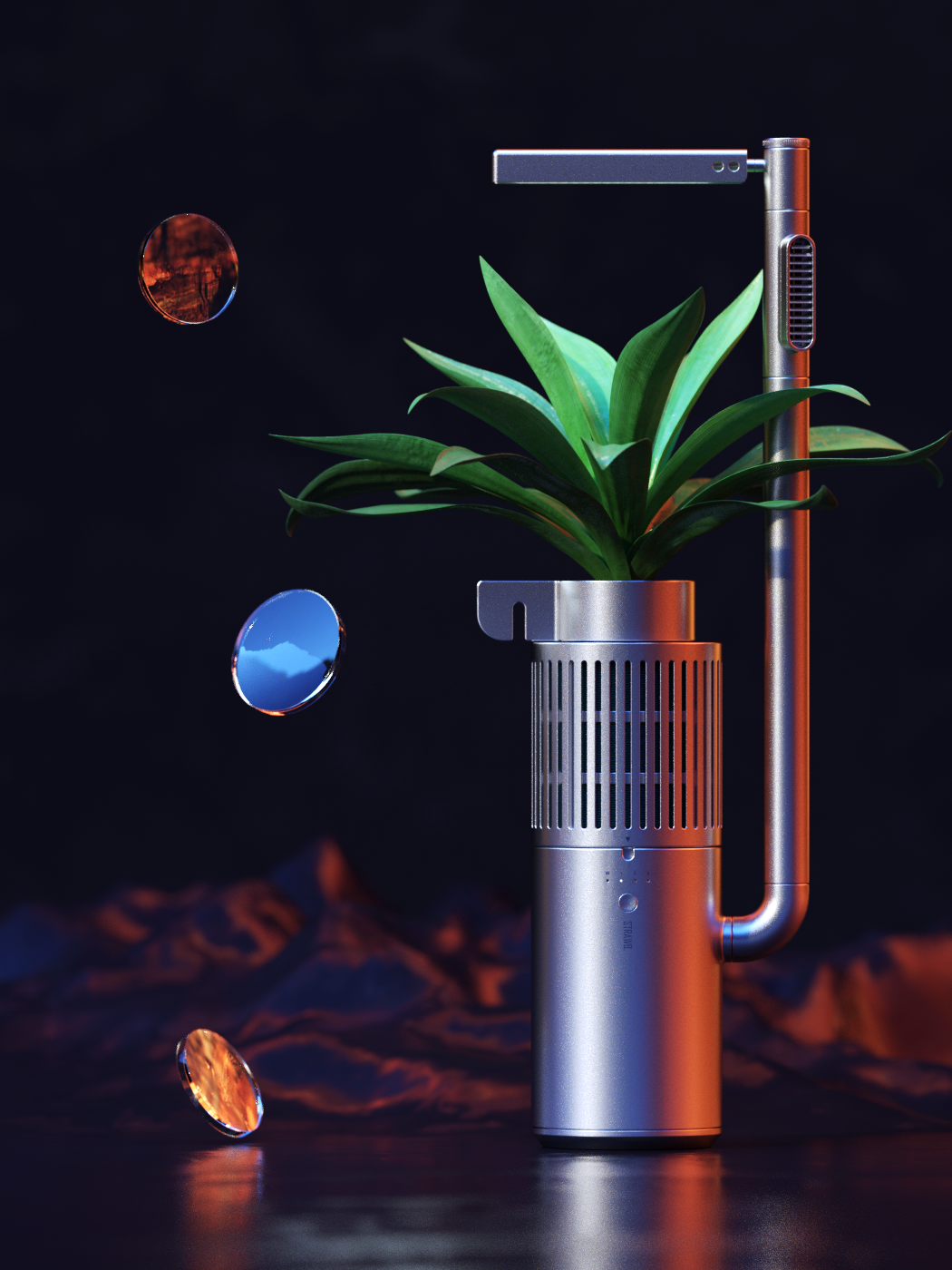

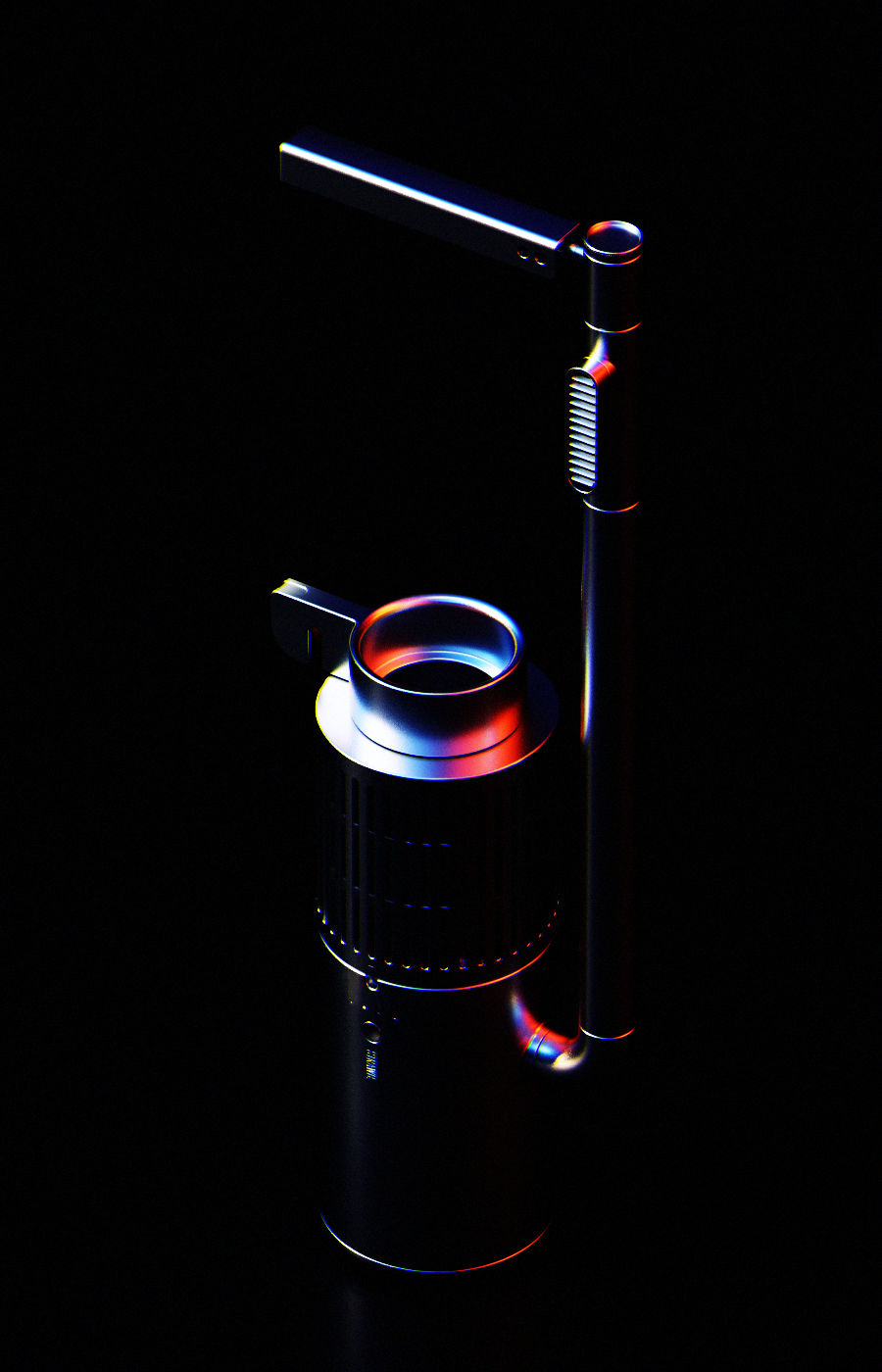

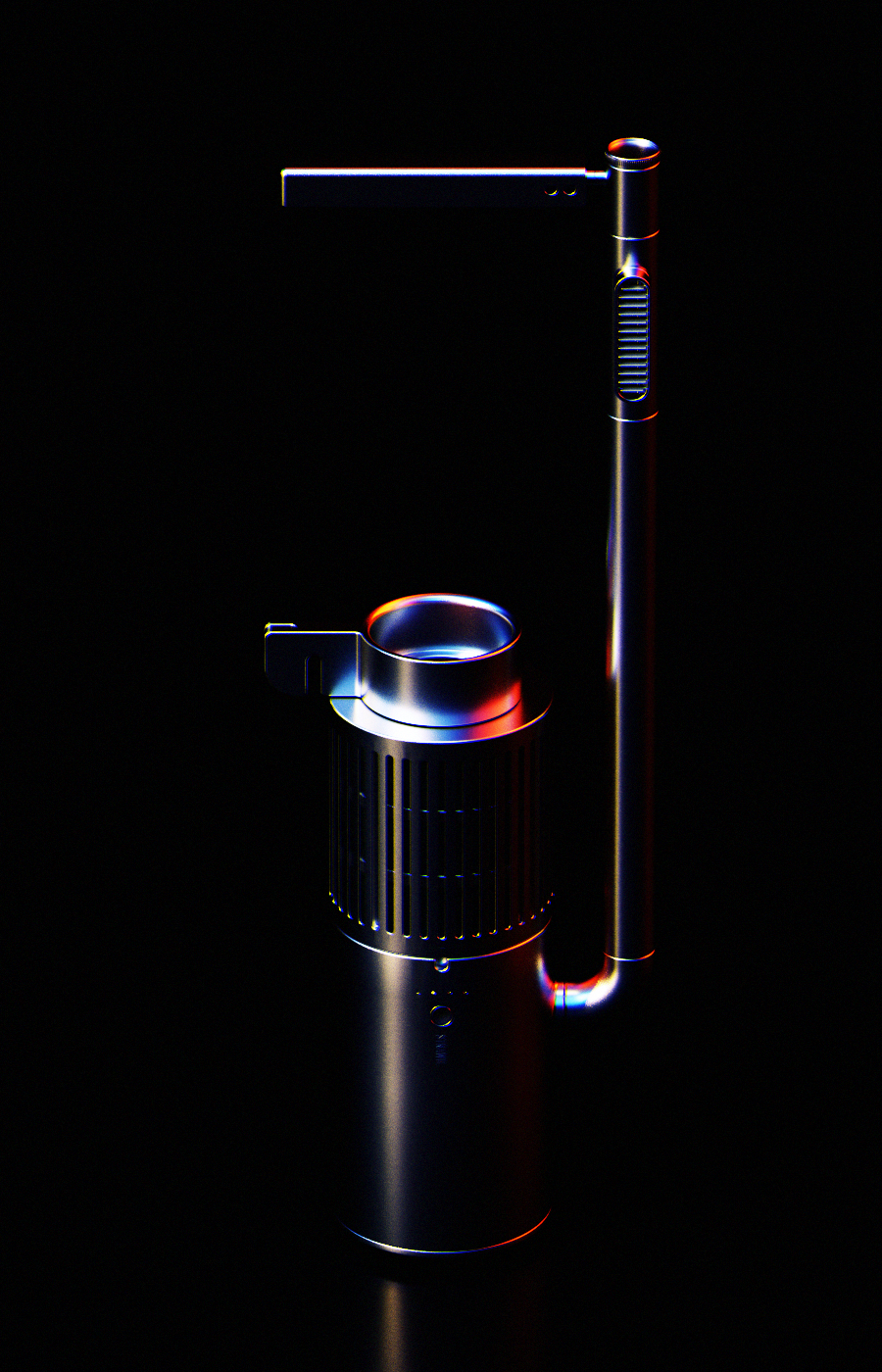

High contrast rendering was tried.
