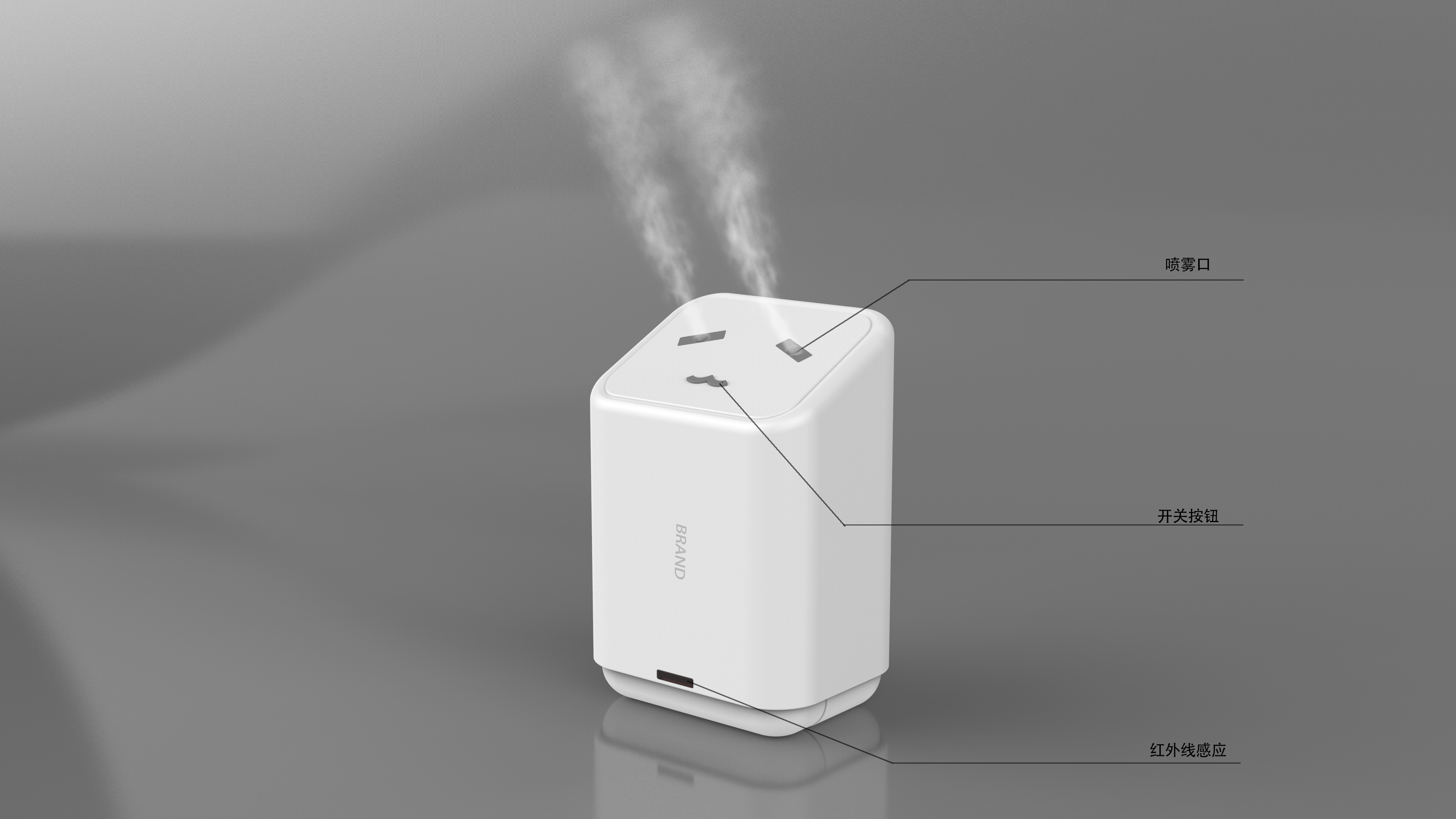

At present, the disinfection equipment basically relies on manual spraying, so I thought for a moment, try infrared sensing, combined with automatic spraying of humidifier, and alcohol is used for liquid, so that disinfection can be carried out without contact. Usage scenario: community gate

Alternative design,infrared,Sprayer,

Originally wanted to do infrared sensing, automatic spray alcohol sterilizer. The results showed that this was not very good, but it was a pity to lose it, so I made do with rendering some pictures and published them.

Alternative design,infrared,Sprayer,

When designing, consider the battery compartment, so this is portable (not liquid). If charging, there is a charging interface at the back.

Alternative design,infrared,Sprayer,

By the way, spoof the icon of the small broken station
