The 1-4-year-old babies are just out of breast milk and trying to eat by themselves, but the problem of how to make the naturally active babies eat well and eat well has made countless parents scratch their heads. The children's special constant temperature tableware set designed in this work will be able to solve the above problems well. The specific functional characteristics are as follows:

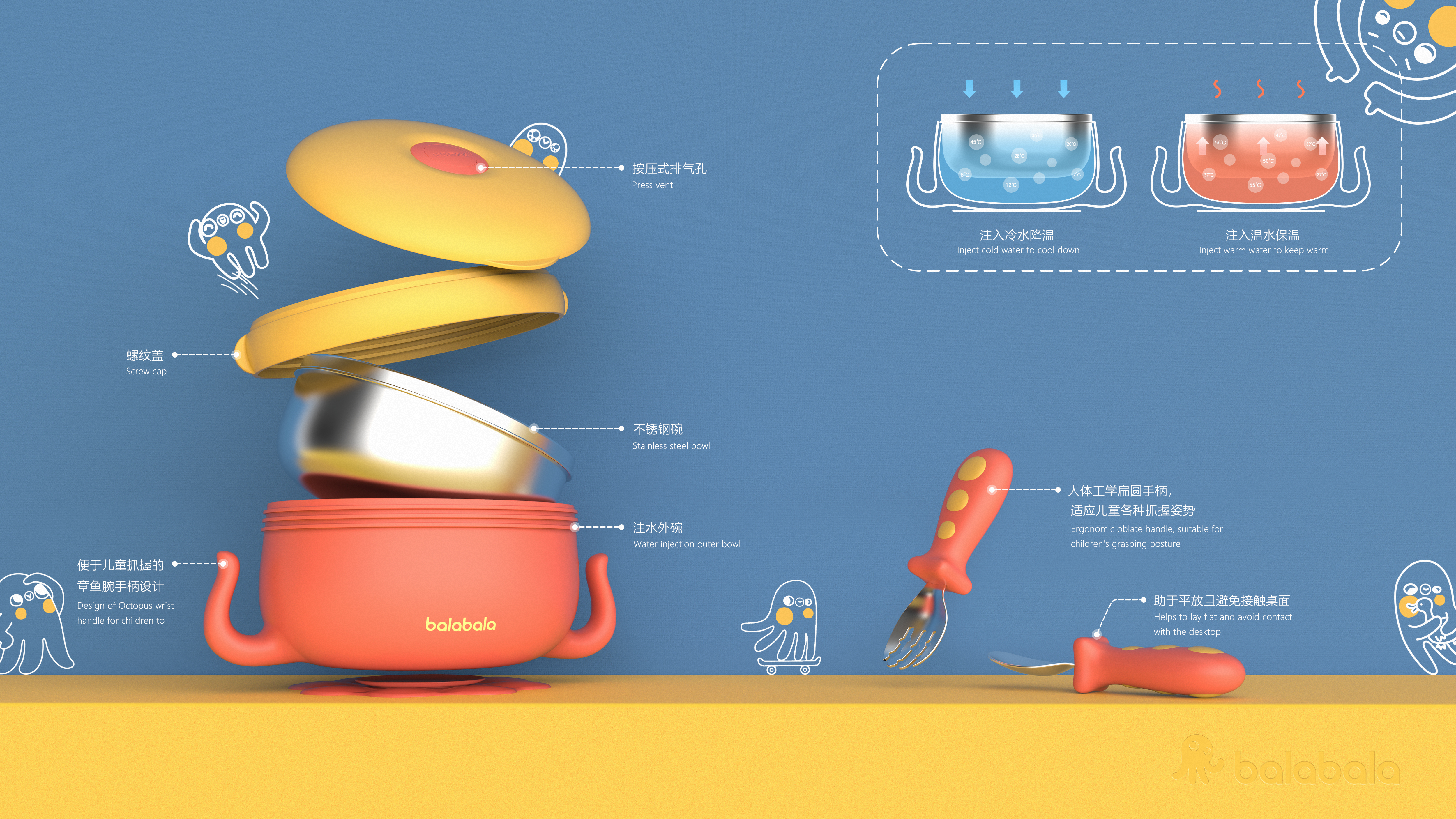

1. This work is mainly composed of water injection/grinding outer bowl, suction cup bottom pad, stainless steel inner bowl, thread cover, upper cover, extended dinner plate, spoon and fork to meet the basic food and expansion functions of children.
2. The shape of the water injection/grinding outer bowl is like a small octopus, and the two tentacles are bent upward as a bowl to facilitate the baby's small hands to hold vertically. The inside of the outer bowl is designed with half-sided floating stripes, which is convenient for mothers to grind supplementary food. When the outer bowl is used as a water injection bowl, water of different temperatures is added, and the stainless steel inner bowl and screw cover can be used, at the same time, the threaded cover locks the stainless steel inner bowl to seal and prevent overflow.

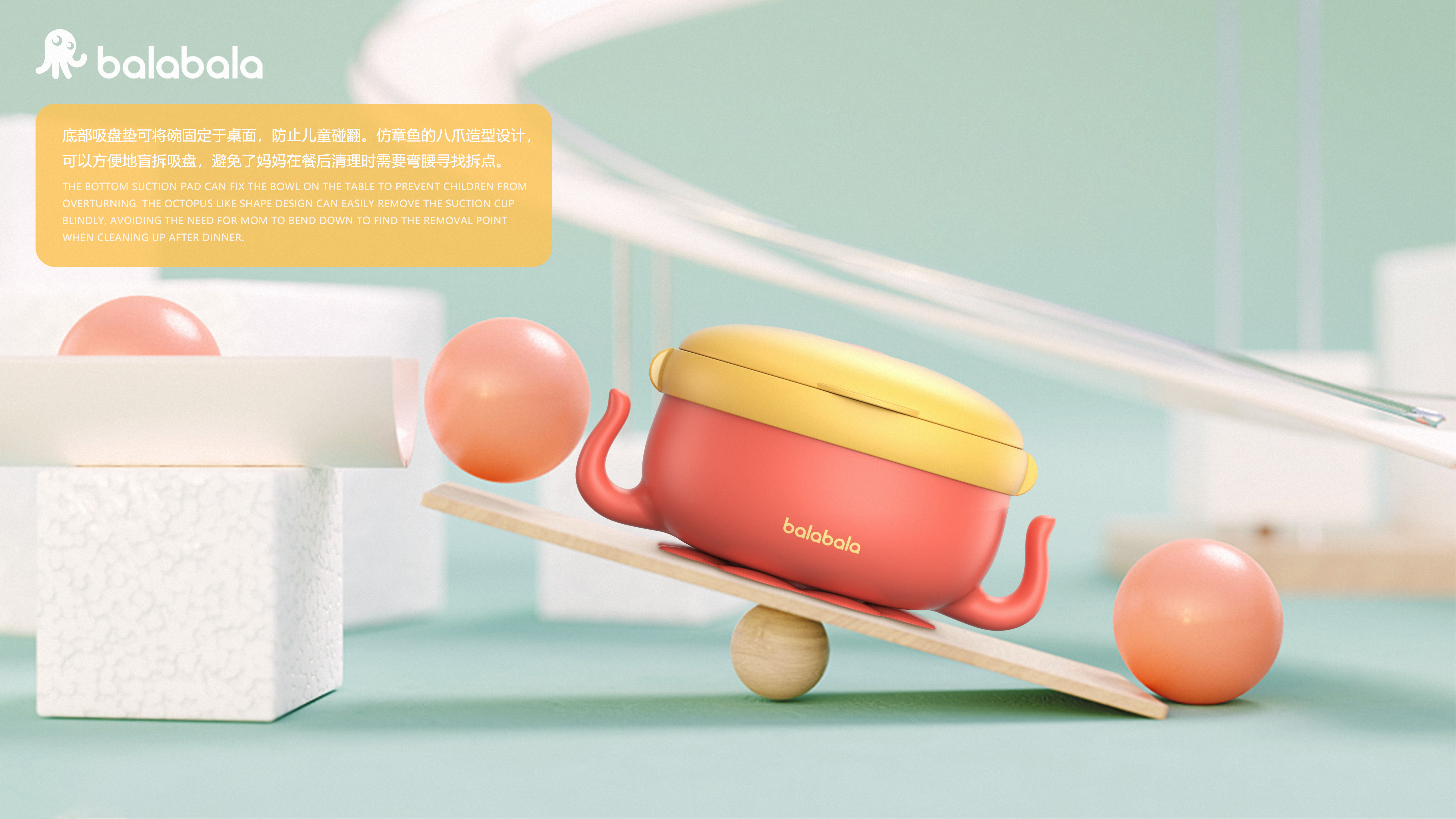

3. The shape of the suction cup bottom pad adopts octopus eight-claw tentacles as the design element. Both sides of the bottom pad are suction cup structures. The bottom pad sucks at the bottom of the outer bowl. When in use, the outer bowl can be fixed on the desktop to prevent the babies from touching over. The shape design imitates octopus tentacles, which can easily remove the suction cup blindly, thus eliminating the inconvenience that the mother needs.
4. The upper cover can play a role in sealing and preserving food; when sealing, an air pressure difference will occur inside and outside the bowl, which will cause the cover to be not opened well. The designed push-type exhaust hole can exhaust and relieve pressure with one key, which is convenient to open the upper cover.

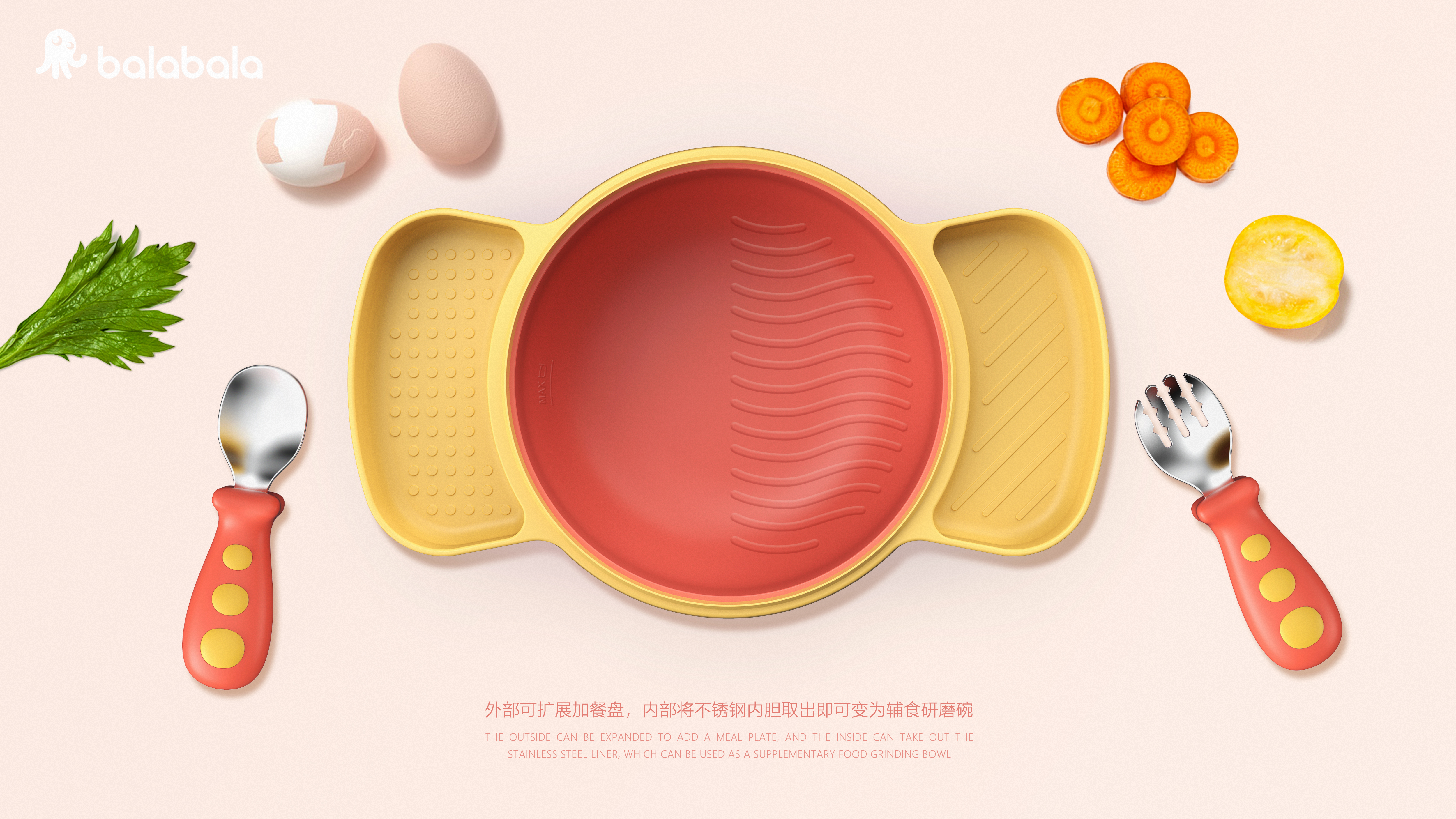

5. The extended dinner plate can replace the threaded cover and screw on the outer bowl to separate the staple food, supplementary food, fruit and other foods in different dinner plates.
6. The handles of spoon and fork integrate the design elements of octopus tentacles. The oblate handle conforms to ergonomic design and adapts to various grasping postures of children. The front end of the handle is designed to avoid the hygiene problem of the fork spoon contacting the desktop when the desktop is laid flat. The fork adopts serrated structure design and uses rounded corner transition treatment to ensure safety and prevent food from slipping off.
