Desktop fan

First of all, the square will increase the area of wind inlet and outlet, and large wind can be achieved with universal motor fan blades (the standard is the 3.2-3.9 wind fan on the market.) Under 5.7*5.5*2.6 volume, the wind resistance of 3 can reach up to 3.8-4.5.
At the same time, because of the square shape, the front cover should be disassembled and cannot be directly rotated by the buckle, so a screw is locked at the bottom to ensure stability without abnormal noise and convenient cleaning.
The 1-2 gear is 20 decibels with low noise, and then the angle of 360 can be adjusted with the help of accessory hooks.

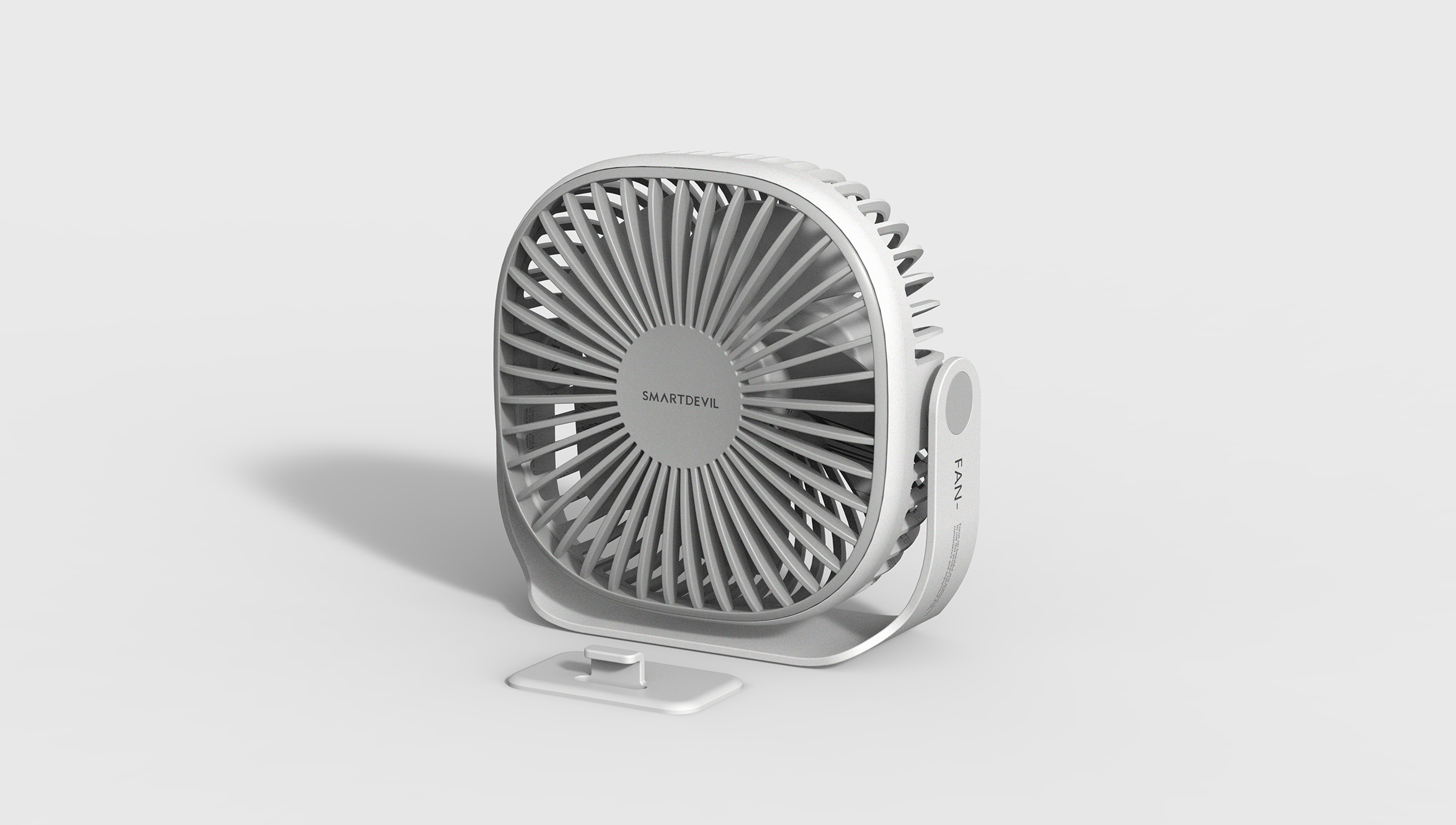

There is a small hook accessory and main body, and a type-c data cable.

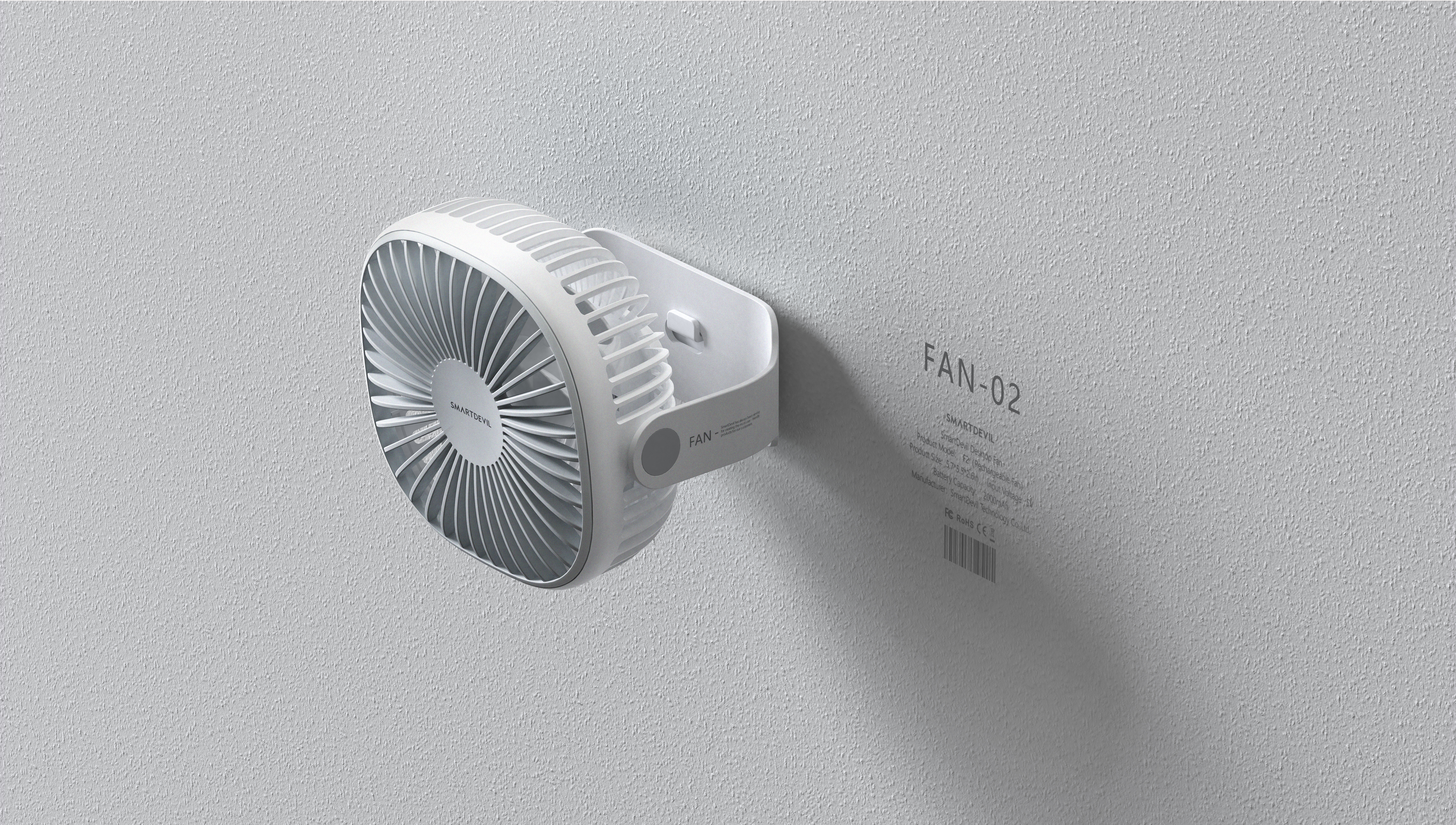

The angle of 360 can be adjusted with the help of accessory hooks.

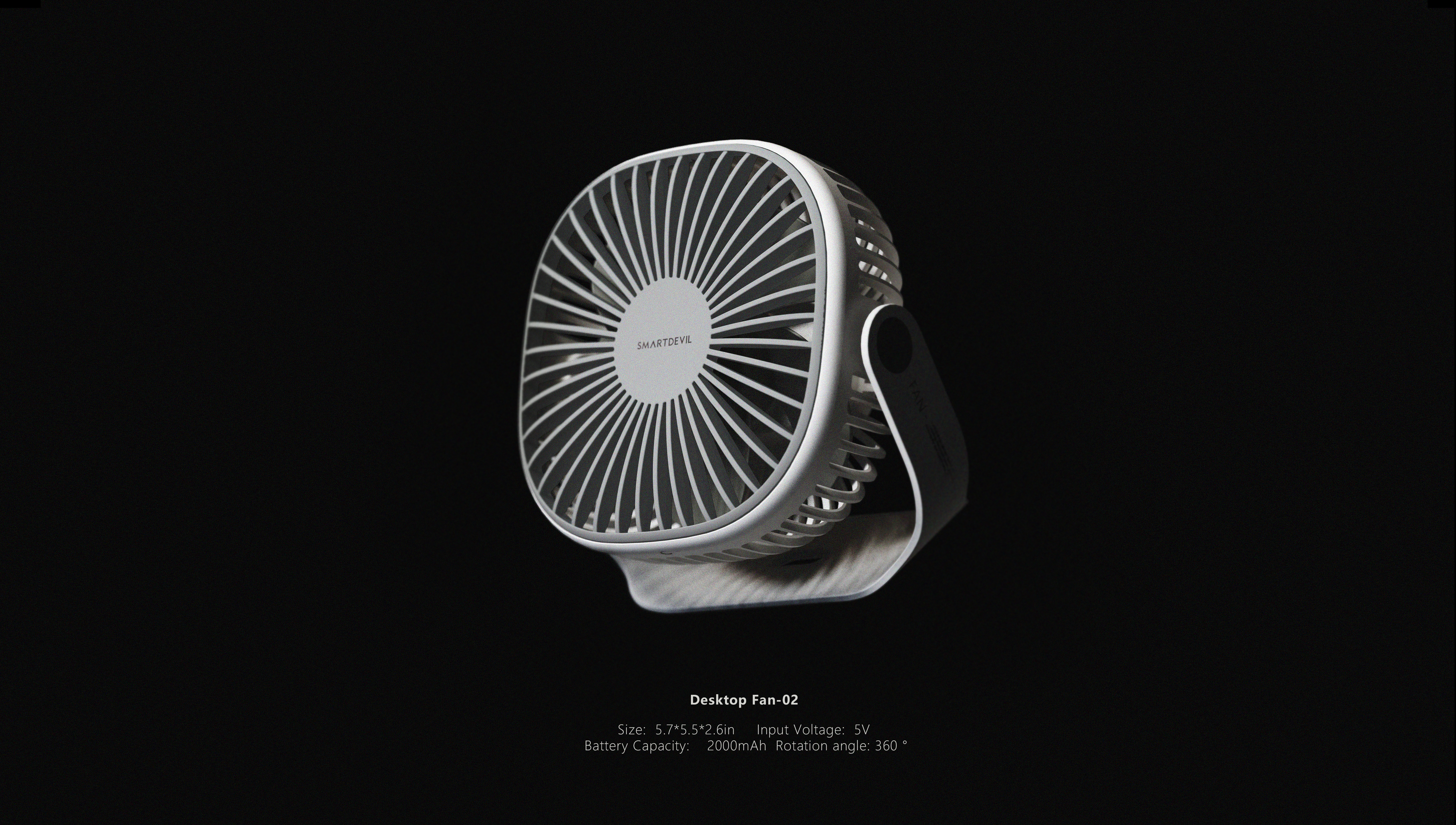

1. 2000mAh power to maintain battery life, with TYPE-C.

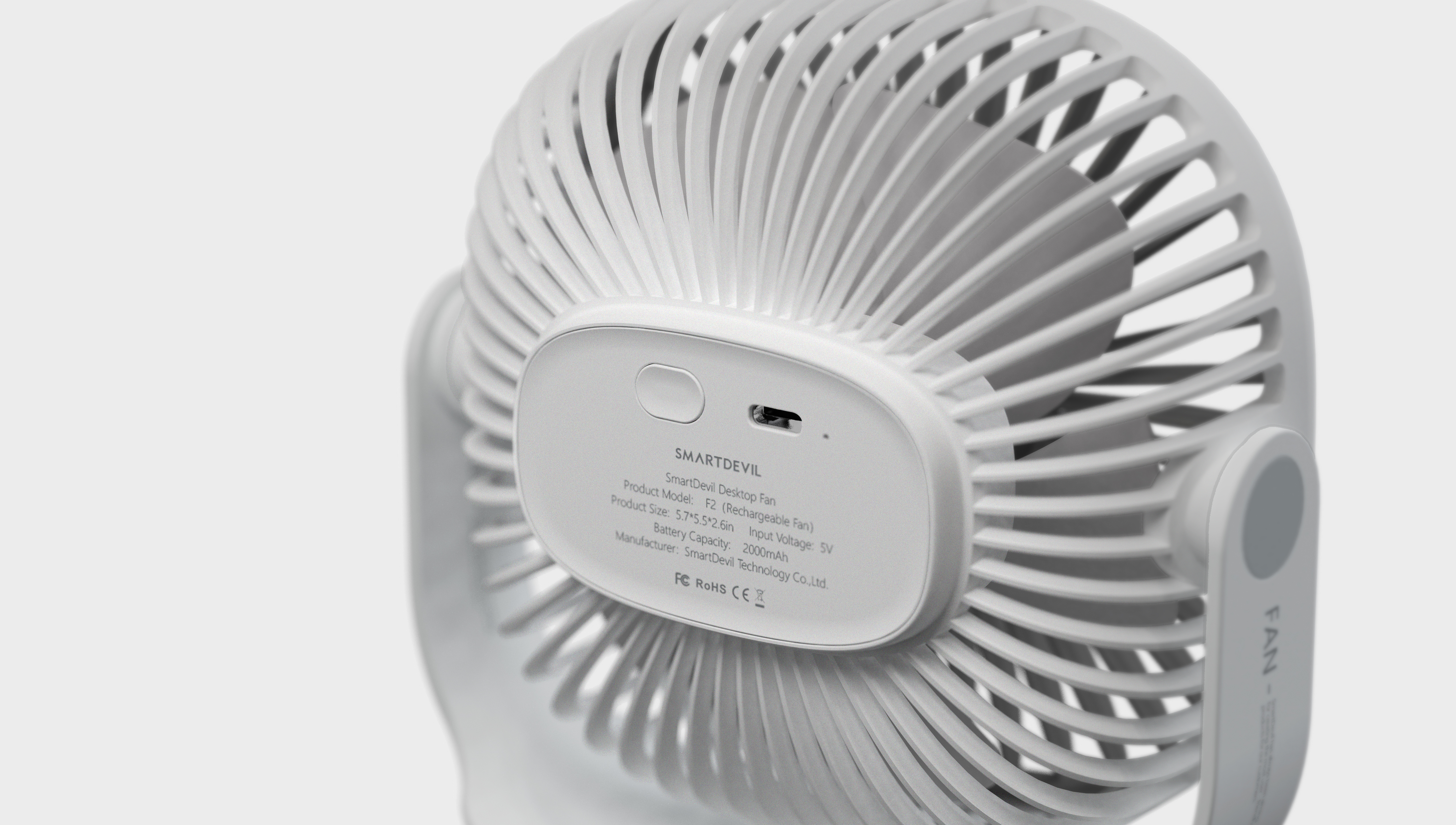

2. The key design is on the left side of the rear and recessed. It is for blind operation. The switch can be touched at the touch.

Because the square cannot rotate the buckle, there is a screw position at the bottom to ensure stability and no abnormal noise, and at the same time it can be disassembled and cleaned.

Good luck to you all.

80 103

菊花哥 2024-08-26

Add a V to design the fan

135****1094 2021-06-22

Worship

185****7650 2021-05-25

Can you tell me how the third picture is stuck?

LEESEEOwner 2021-05-25

Pay attention to the second picture. The small hook shown in front of the fan. The back of the small hook is attached to the wall, which can be hooked through the hole of the fan bracket.
