Another TWS Wireless Bluetooth Headset Design

2020-12-28 Digital Intelligence 6999 29 74

Pluto.

China · Digital Intelligence

The aircraft draft is rendered again and the 2020 is placed.

Days


This design was quite short of time at that time. I remember it seemed to be within a week. I put down the previous design. In fact, the process of ID production is very smooth, without any struggle or suffering.

Because of the limited time, I didn't want to make too much change in the shape of the block, and the topic was also a design imitating the Pro head of the AirPods. The products on the market didn't change much either. I just wanted to make a little change in the shape of the cross section.

Then I drew a picture, suddenly!
One of the hands of God!
The shape is settled.
Ha, ha, ha, it's really easy.

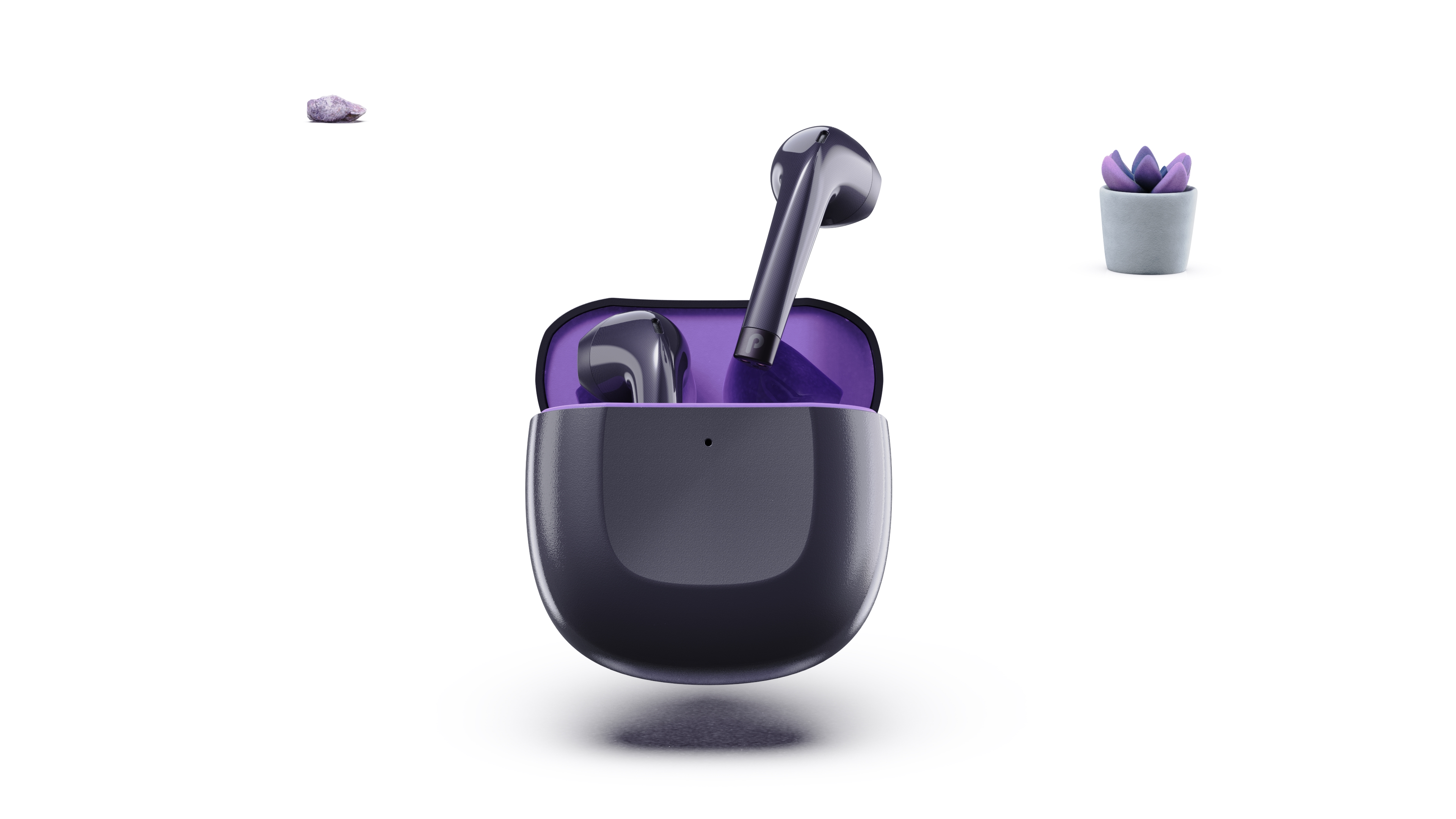

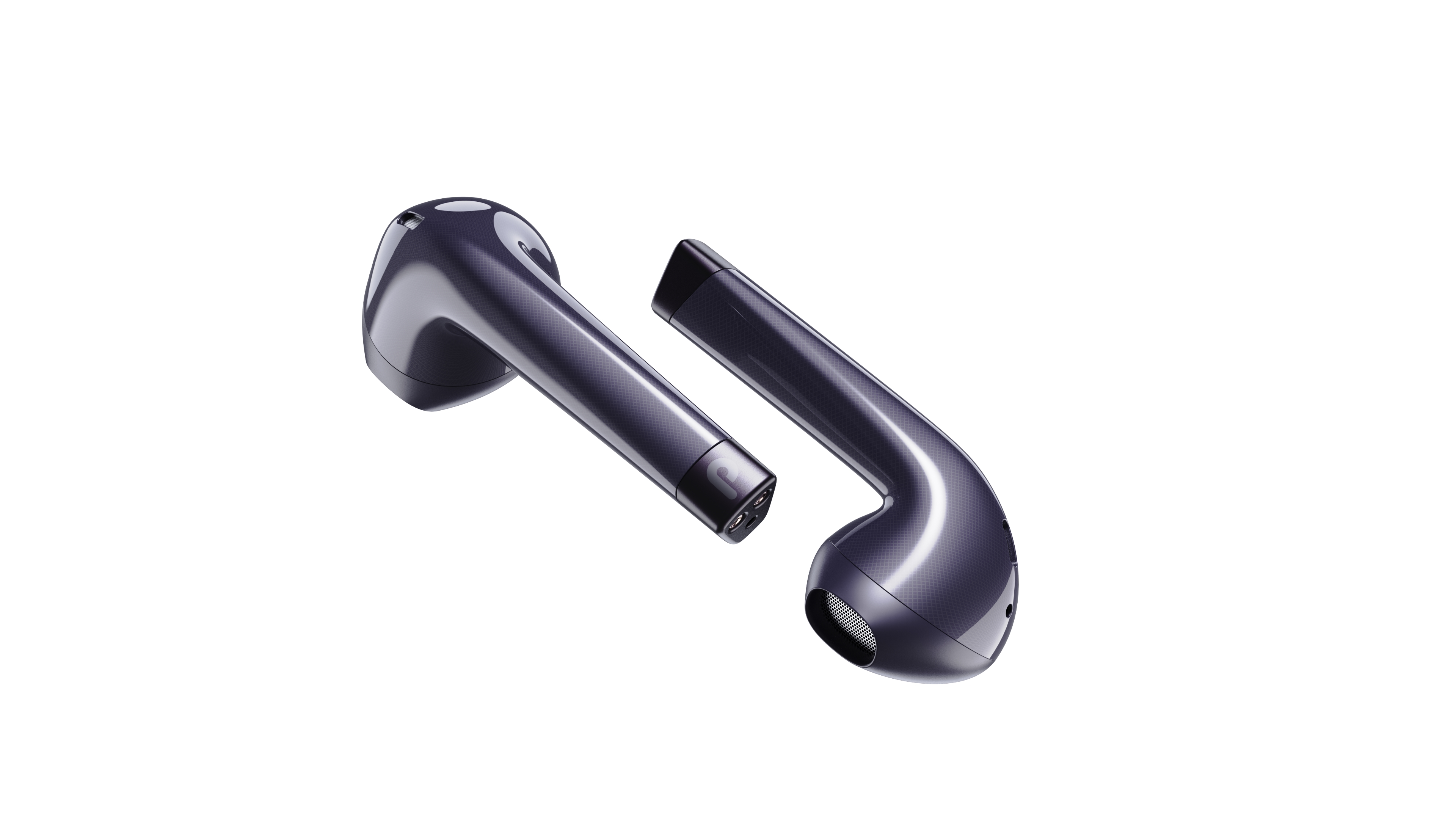

Of course, this picture is not the normal color matching at the time of the proposal, with a little noble purple (tut tut tut tut), originally wanted to make a cyberpunk color matching... purplish red

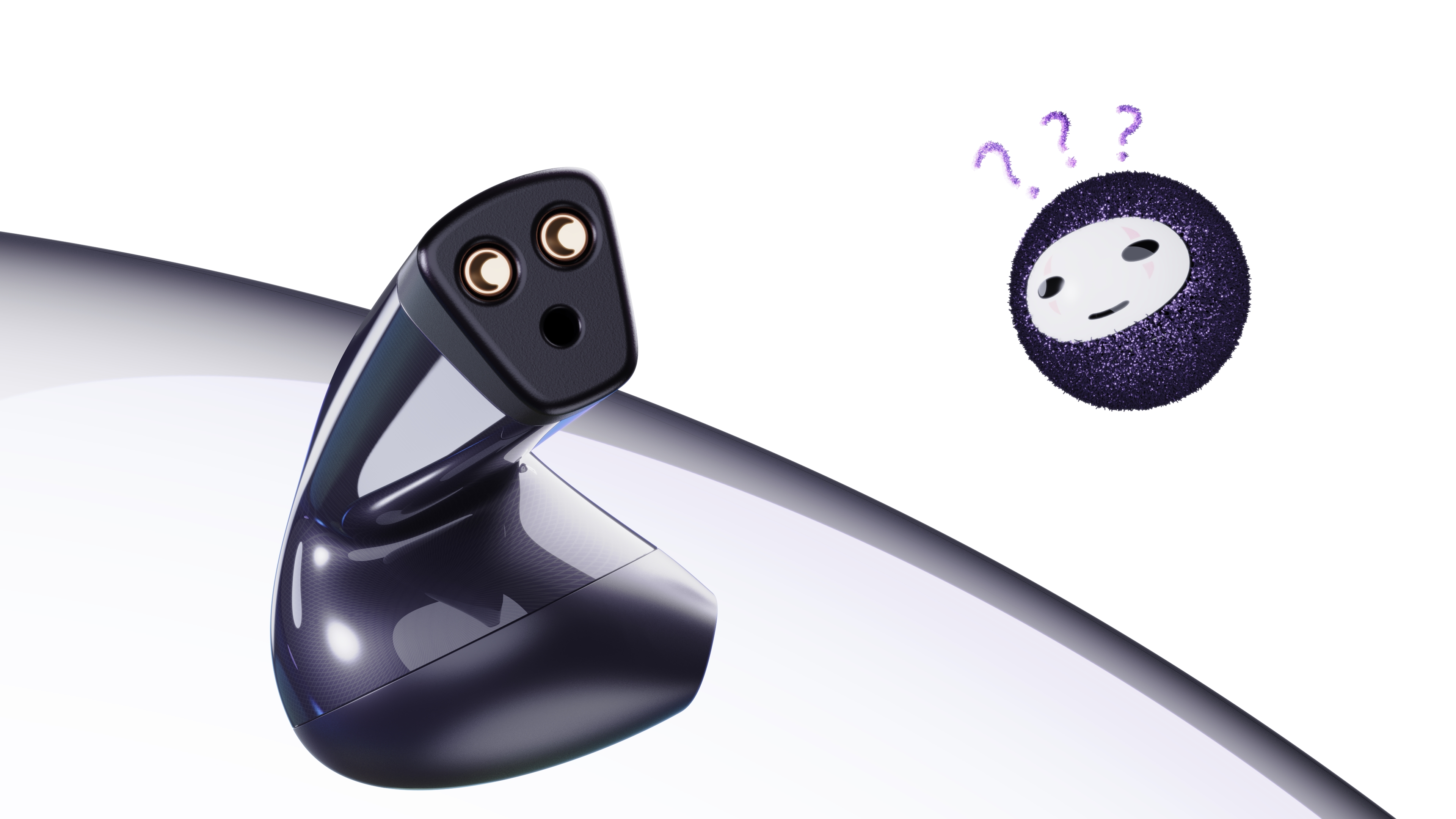

▲ LOGO was changed by myself and used the resources of www.worldvectorlogo.com. This is a good website!

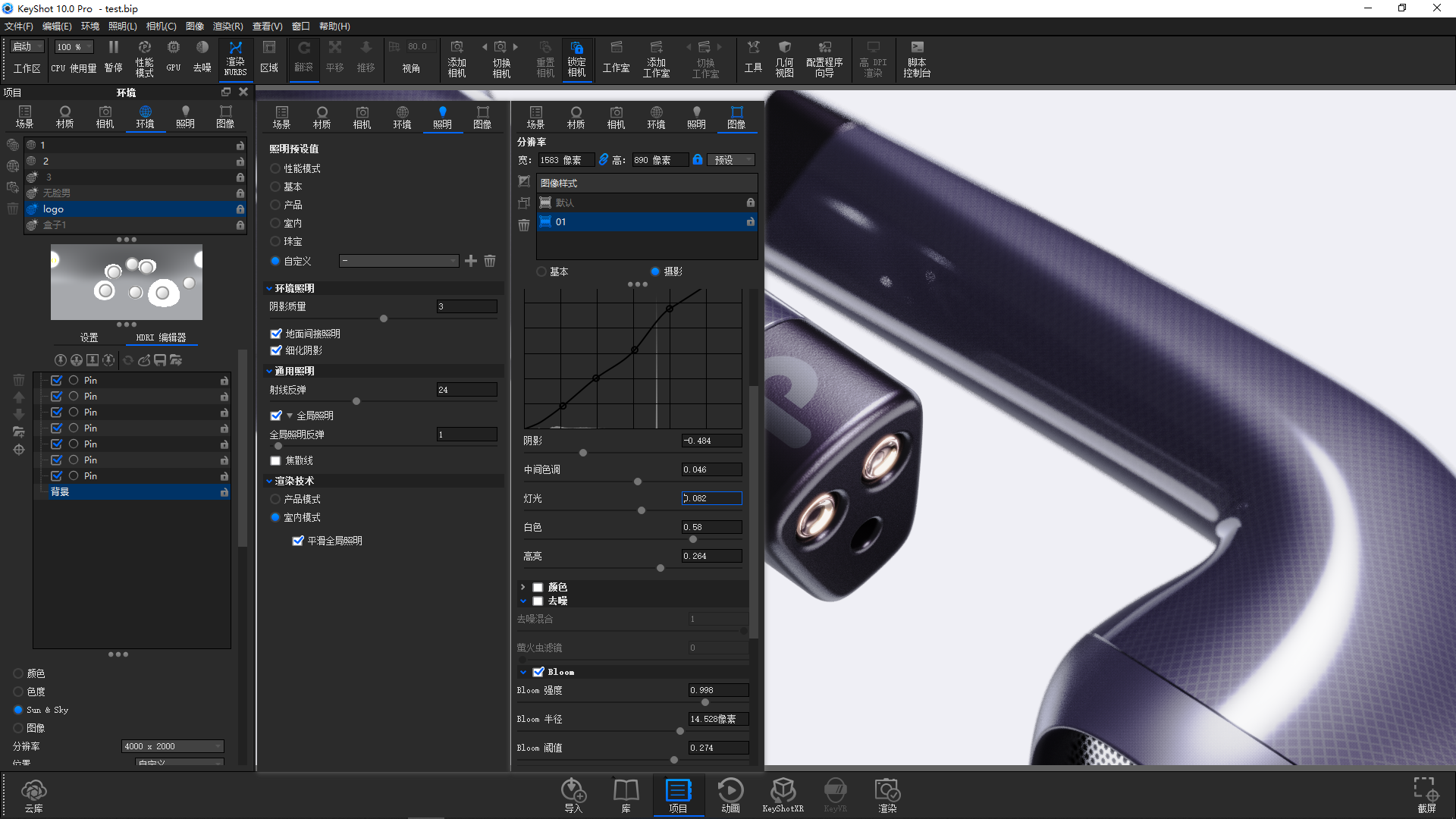

In the past, I was afraid of lighting up the earphones at the beginning. I thought it was very difficult, troublesome, complicated and difficult to adjust. However, I slowly practiced and found that my heart could not sink down. In the same way, I started with three points of face light and side light contour light, distinguishing a little weight from left and right. Of course, I was patient with this level.

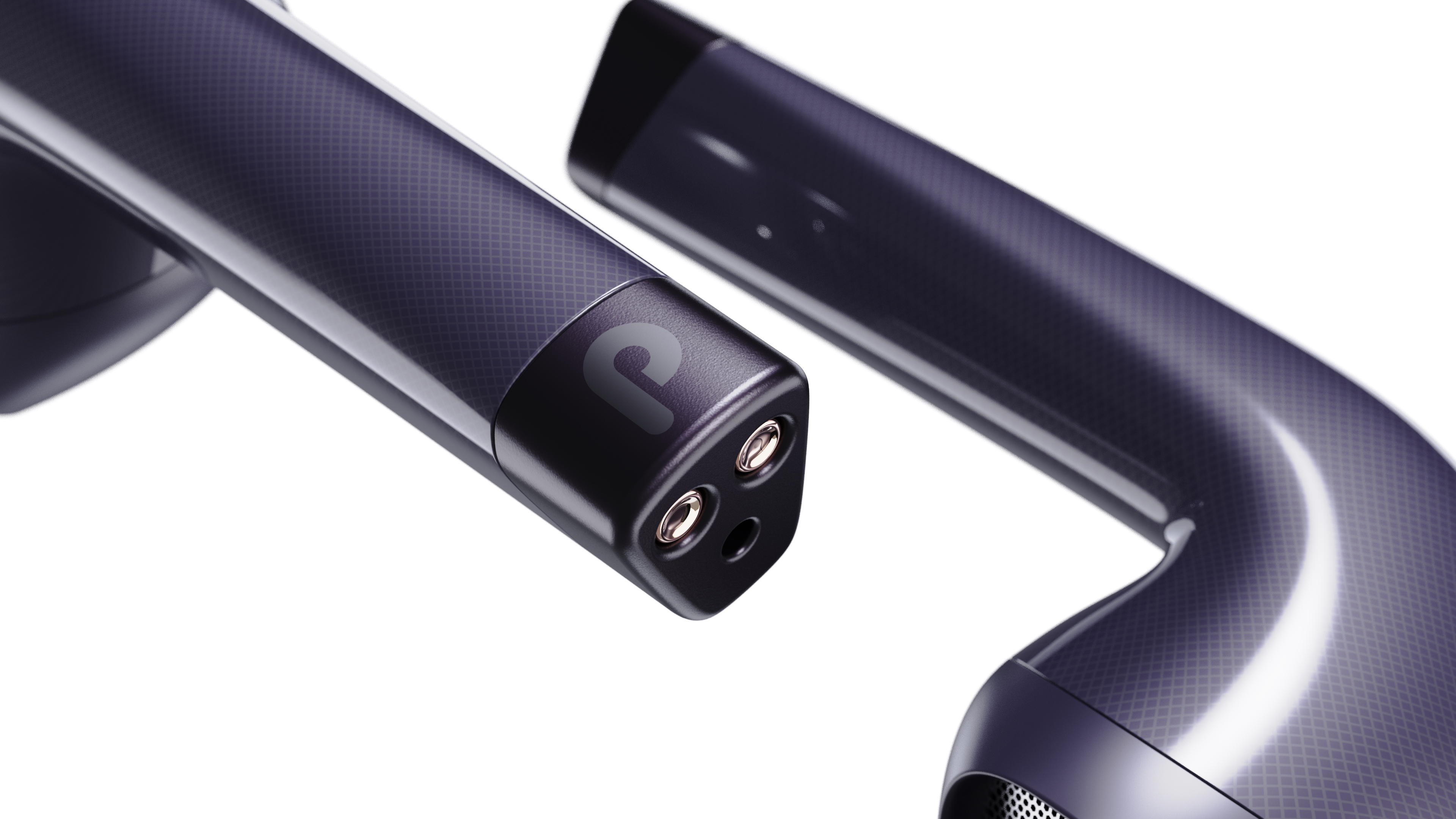

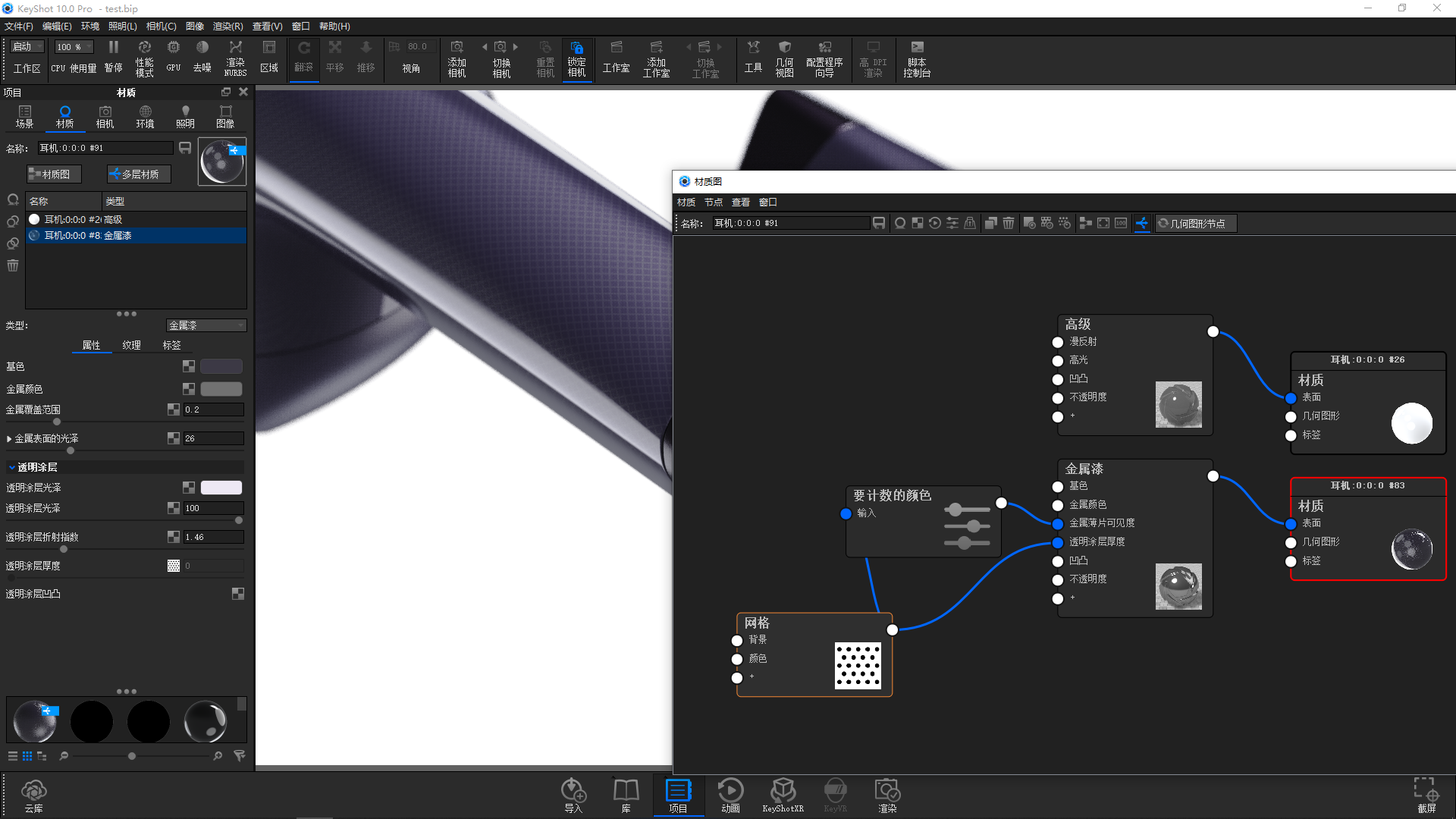

▲ Mesh texture is a temporary idea. At first, no texture was made. During the waiting process of real-time rendering, there are fine lattice texture on the screen, which looks good, so it is added. The implementation methods are also very simple and varied. It is enough to change roughness or reflection or color contrast. What I'm trying here is two nodes that I don't touch at ordinary times. The effect is actually the same. The literal meaning can actually be understood. They are all proportion problems, so it is good to change the proportion with maps!

▲ It is also very important to have a good computer, and the mood will be cheerful soon.

Ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha, ha



Days


2020 finally add a few pictures, hope to 2021 a new start, goodbye!
