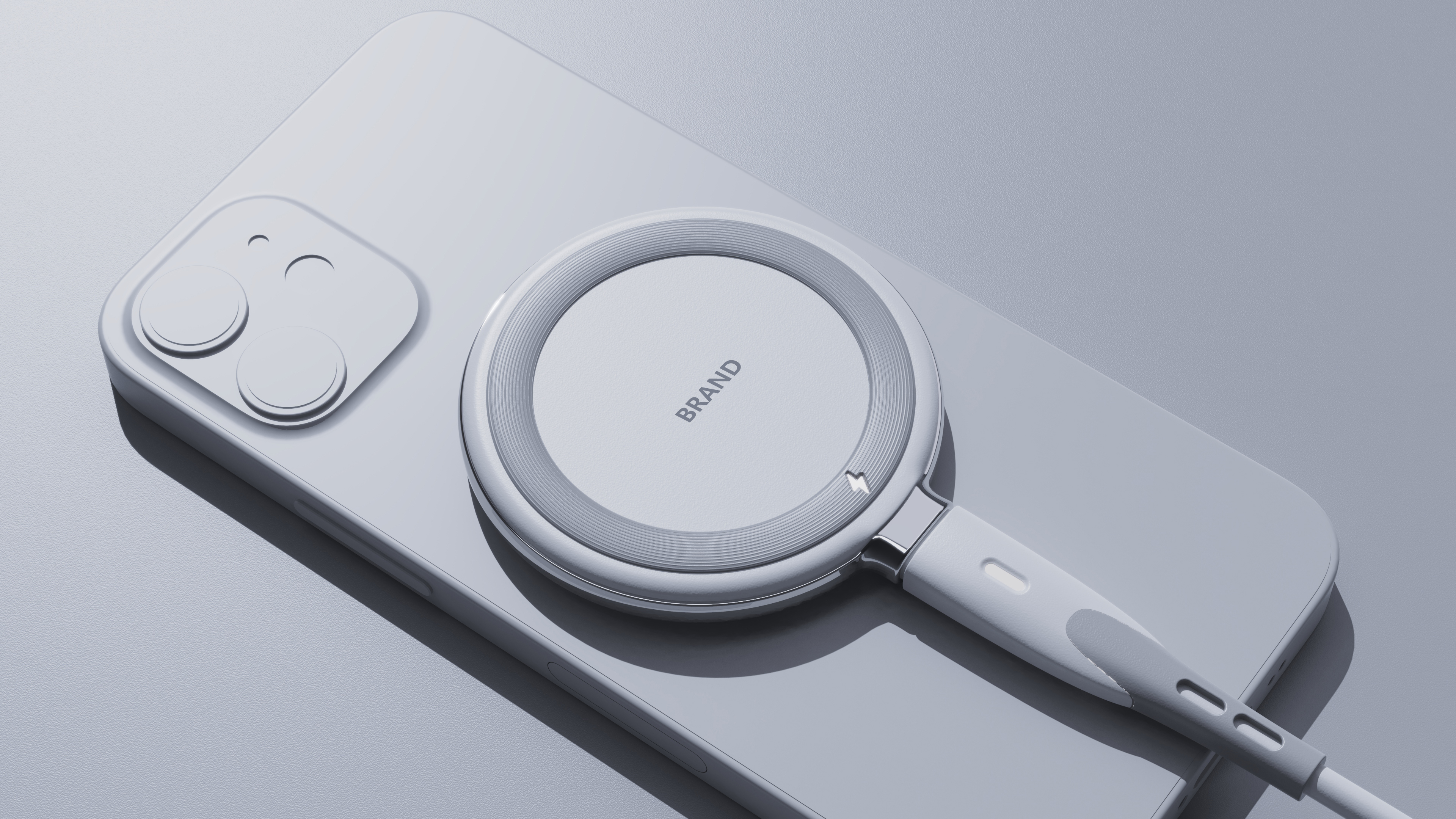

Three iPhone wireless back-suction charging disc designs.
At the beginning of the research, no online products were found on the Internet (none of them were seen abroad). There are too many versions of domestic data that are easy to jump into the pit (ah). Even APPLE official data are finally hard to get (you know).

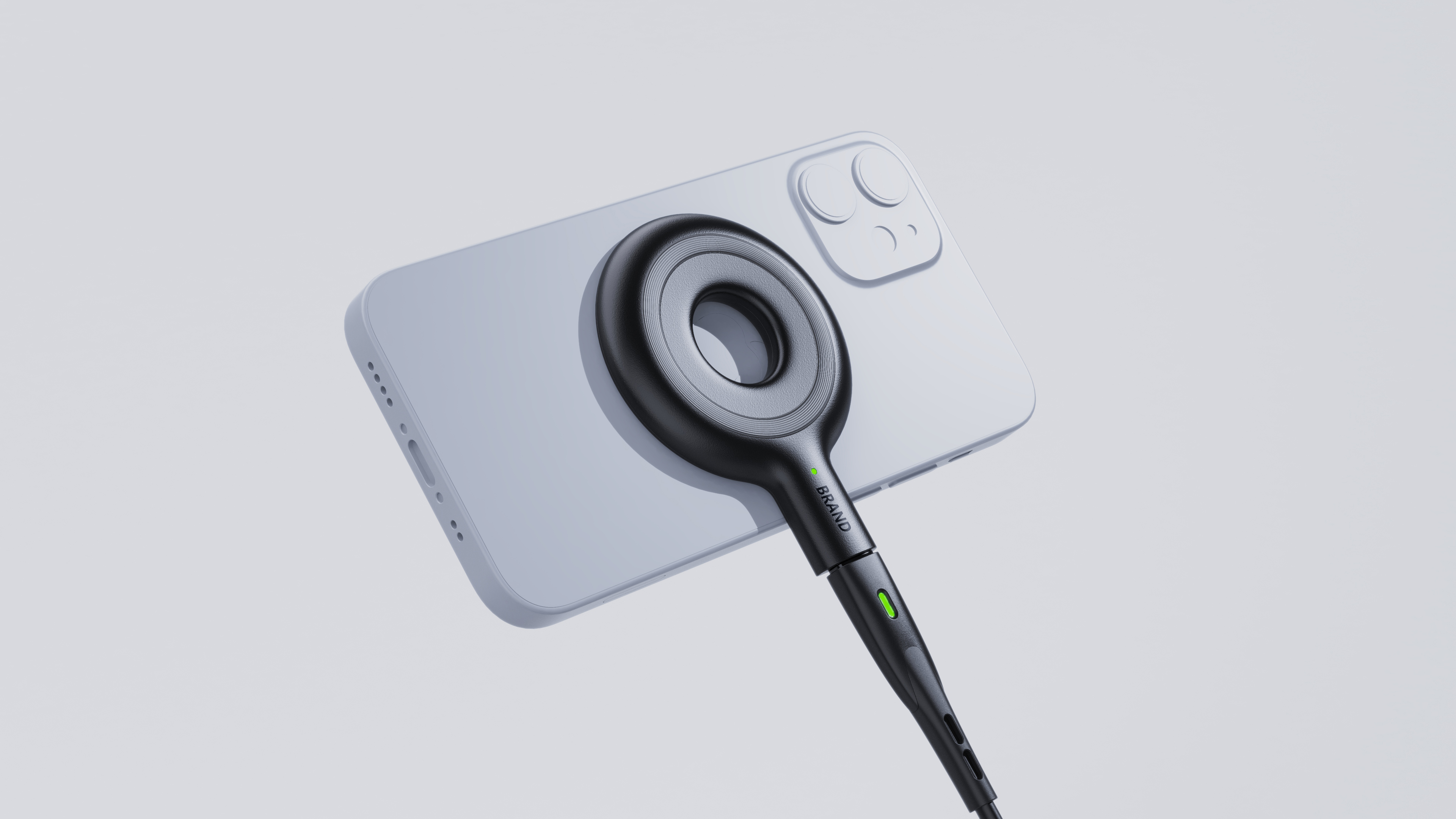

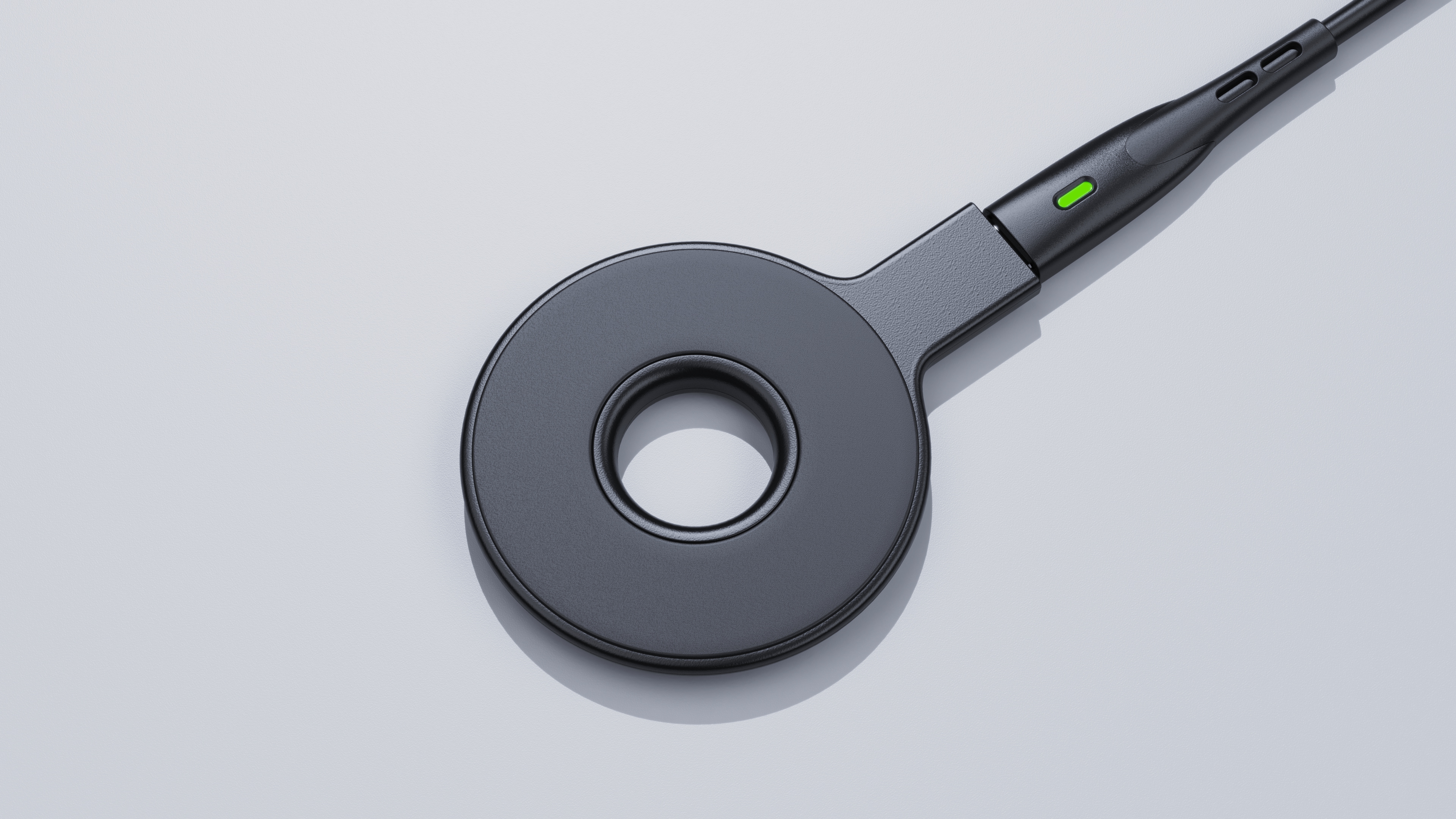

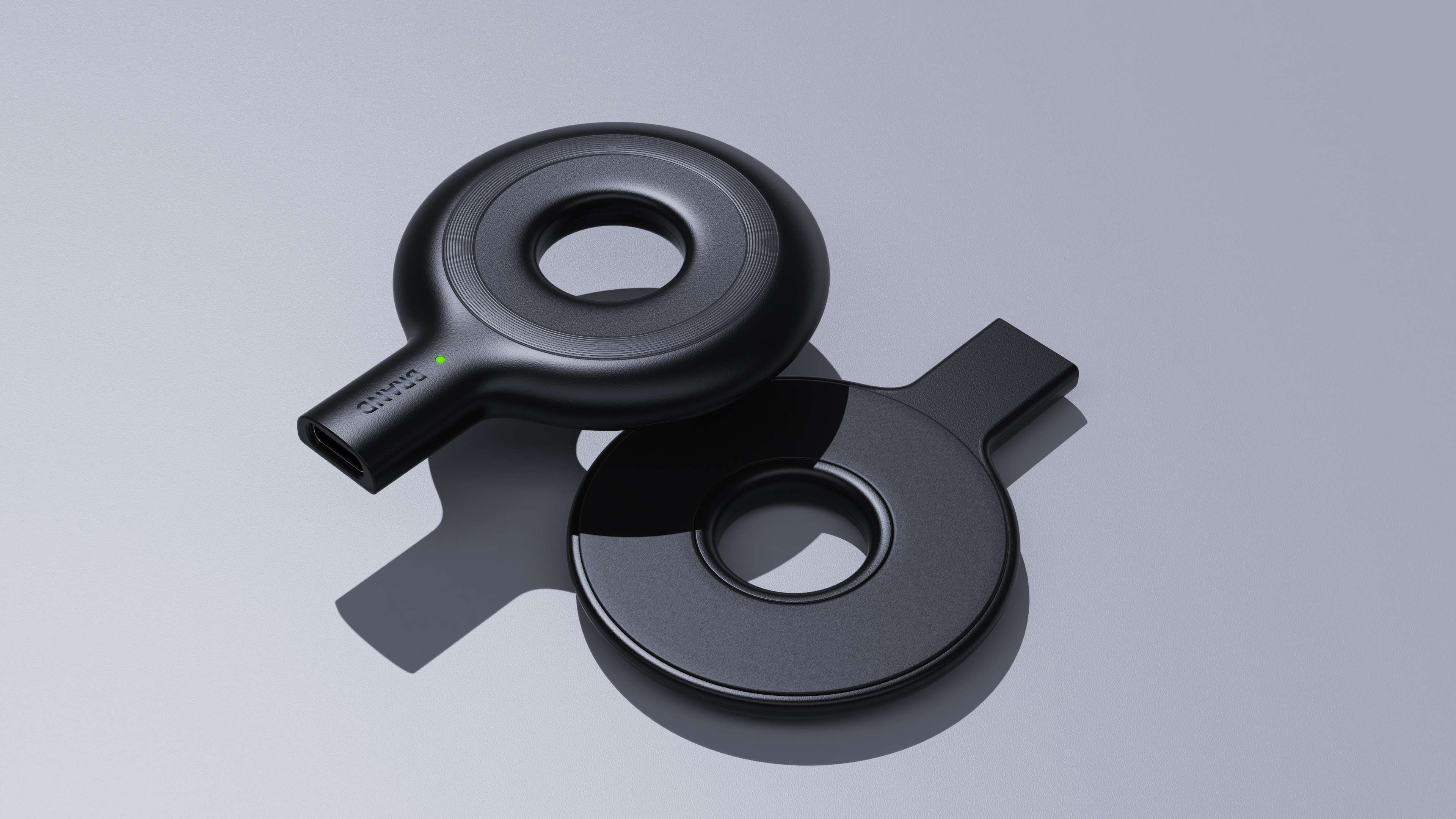

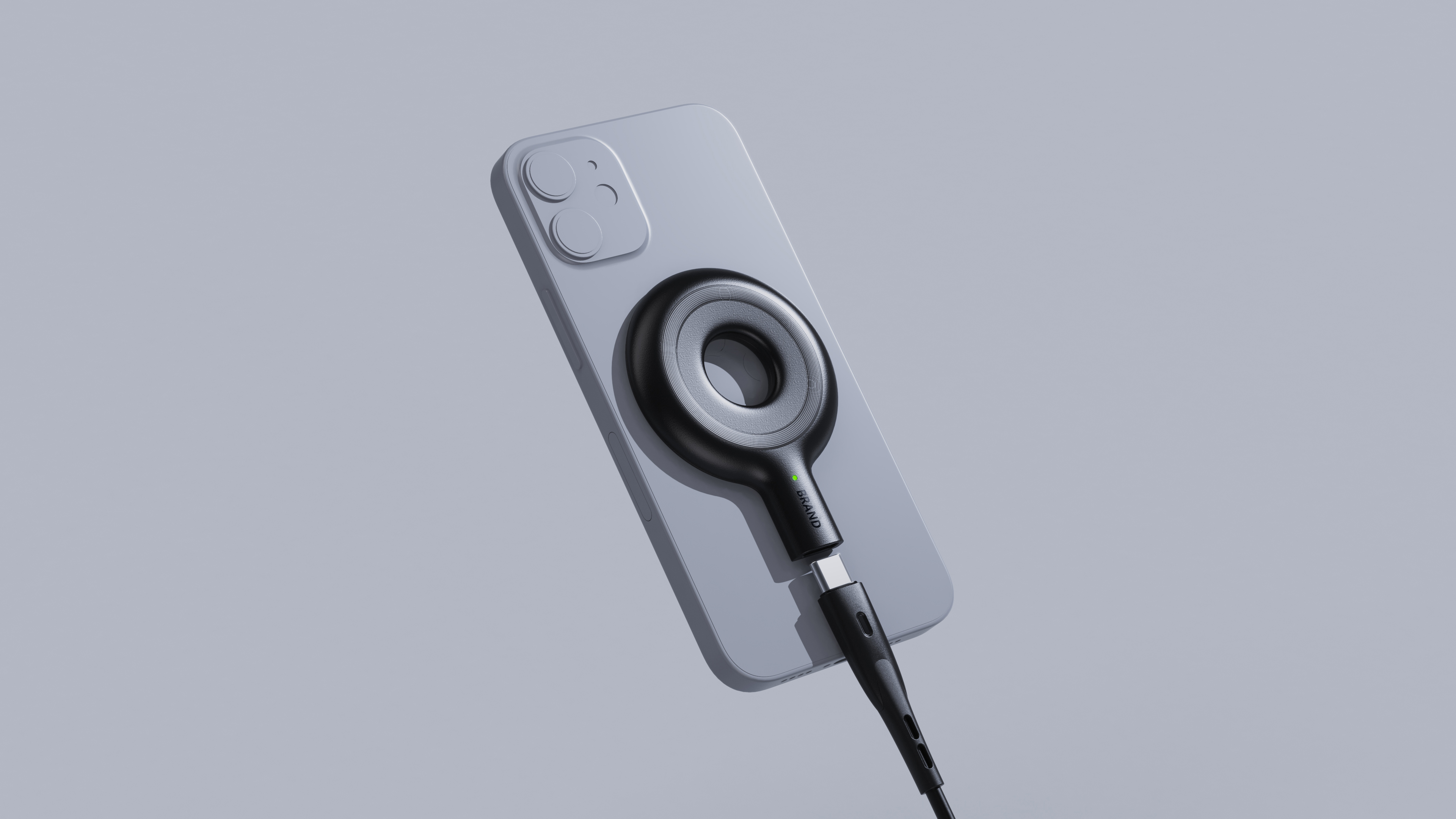

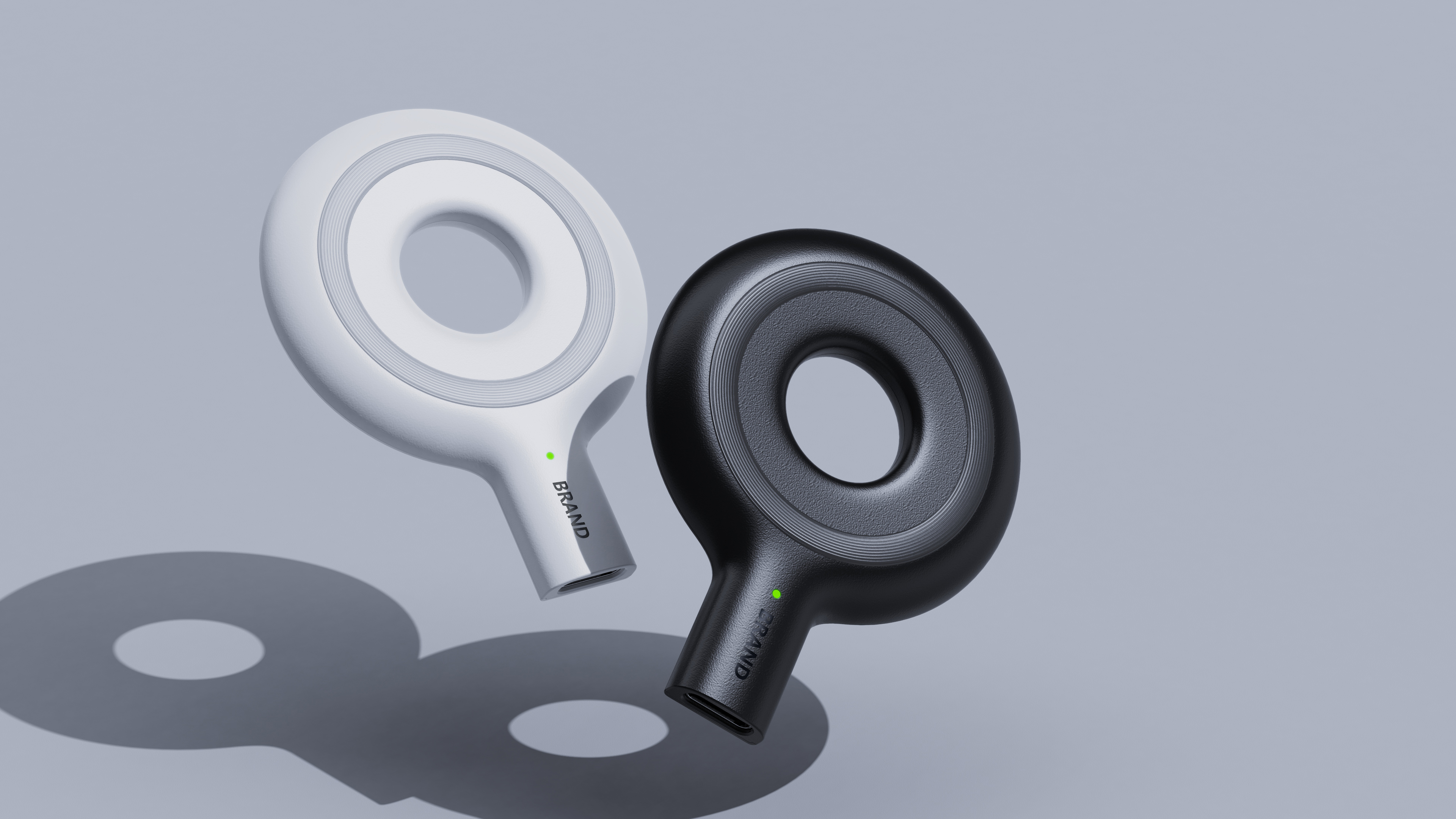

At that time, the Apple accessories file was not found. I found some laboratory versions during the search process, and then compared the 1688 wireless charging coil resources, I initially designed the first hollow loop wireless charging, which can put the wireless charging coil in the control range. Although it looks good in the senses, it is also an initial conflict. I also know that it will be changed later.
Sure enough, I was told that it needed to be closed, and then the change was the third paragraph.

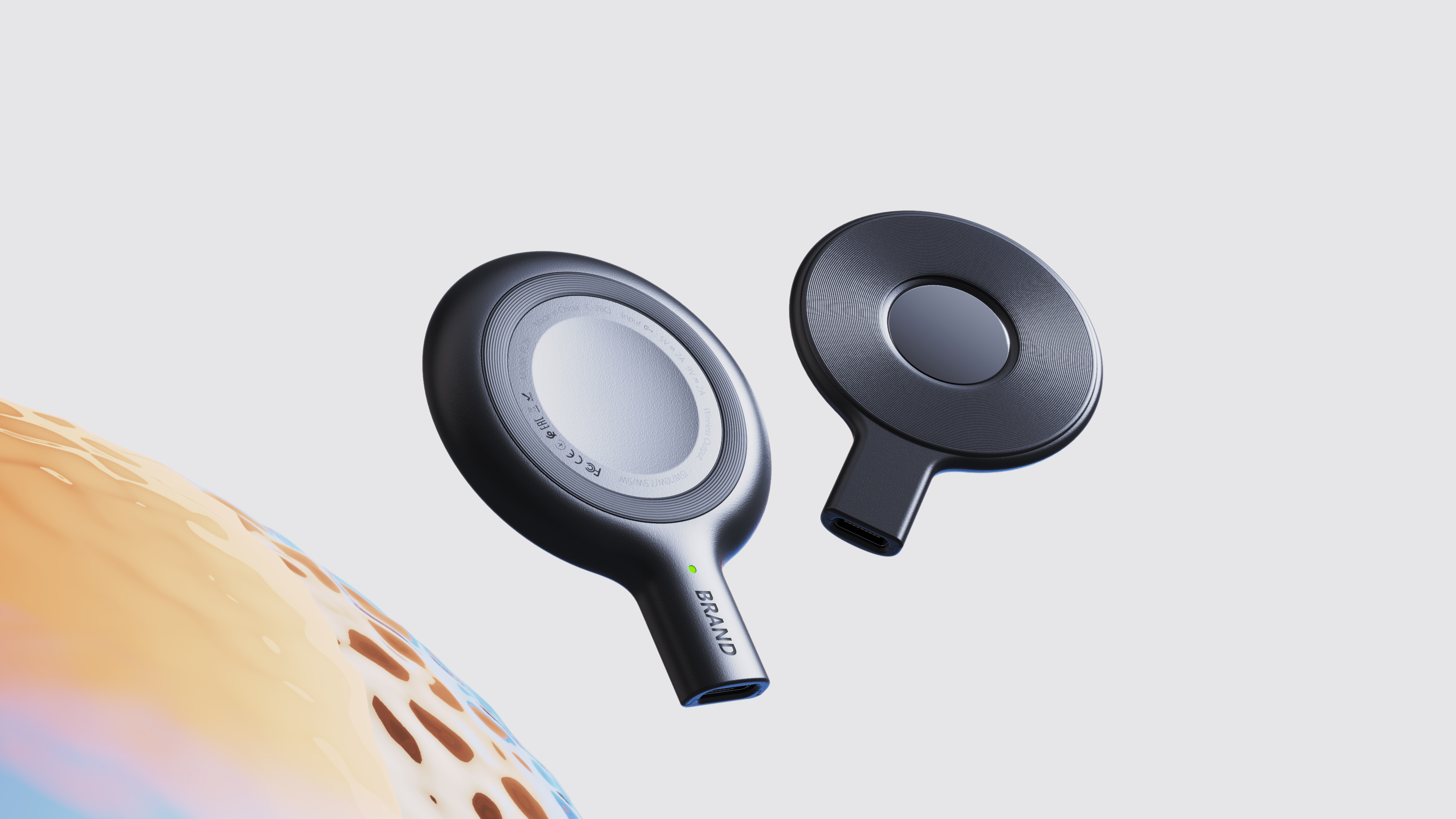

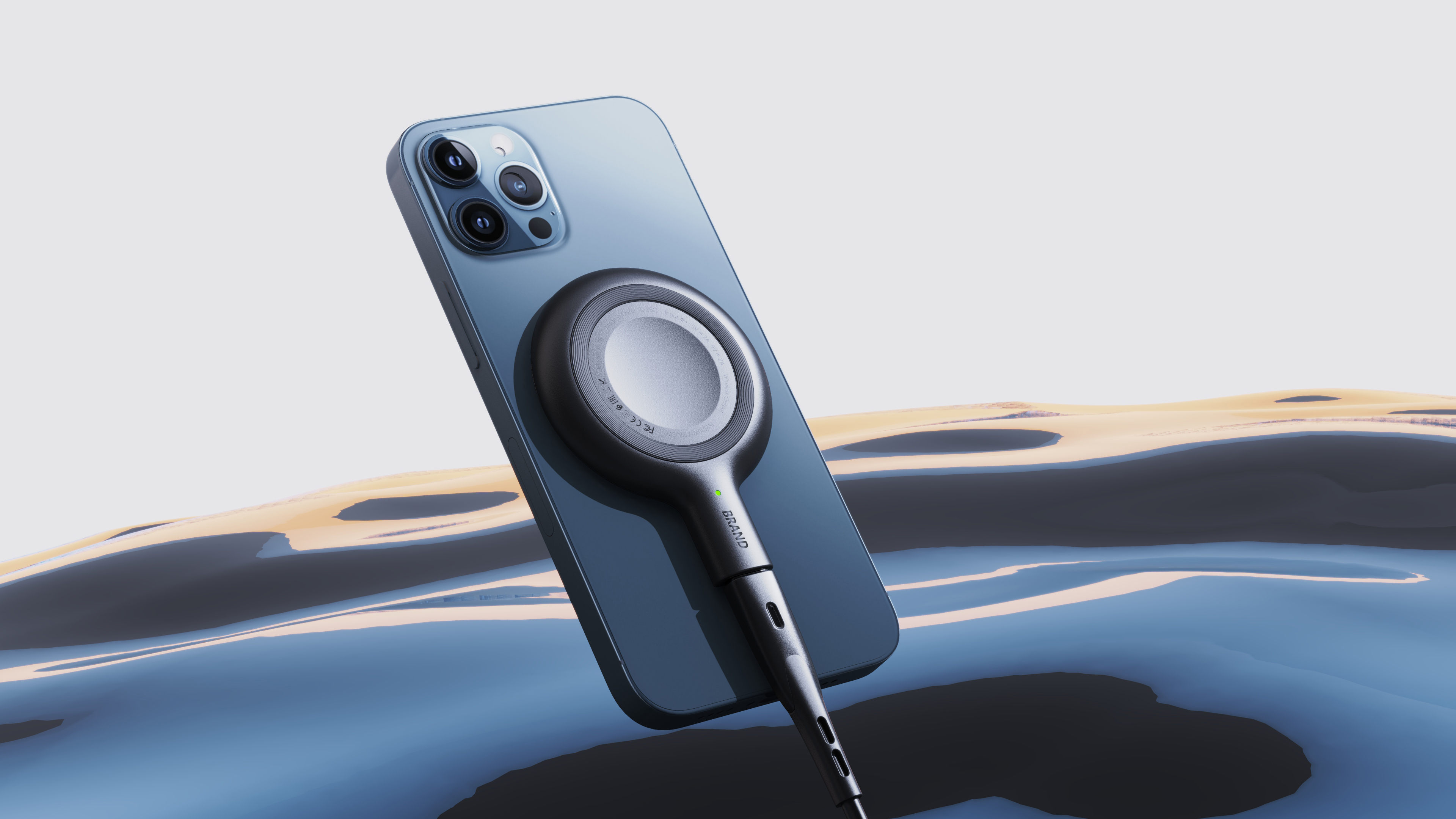

At the same time, the second paragraph was made, the back-to-positive magnetic attraction point located below was shortened, and the electroplating ring was used.

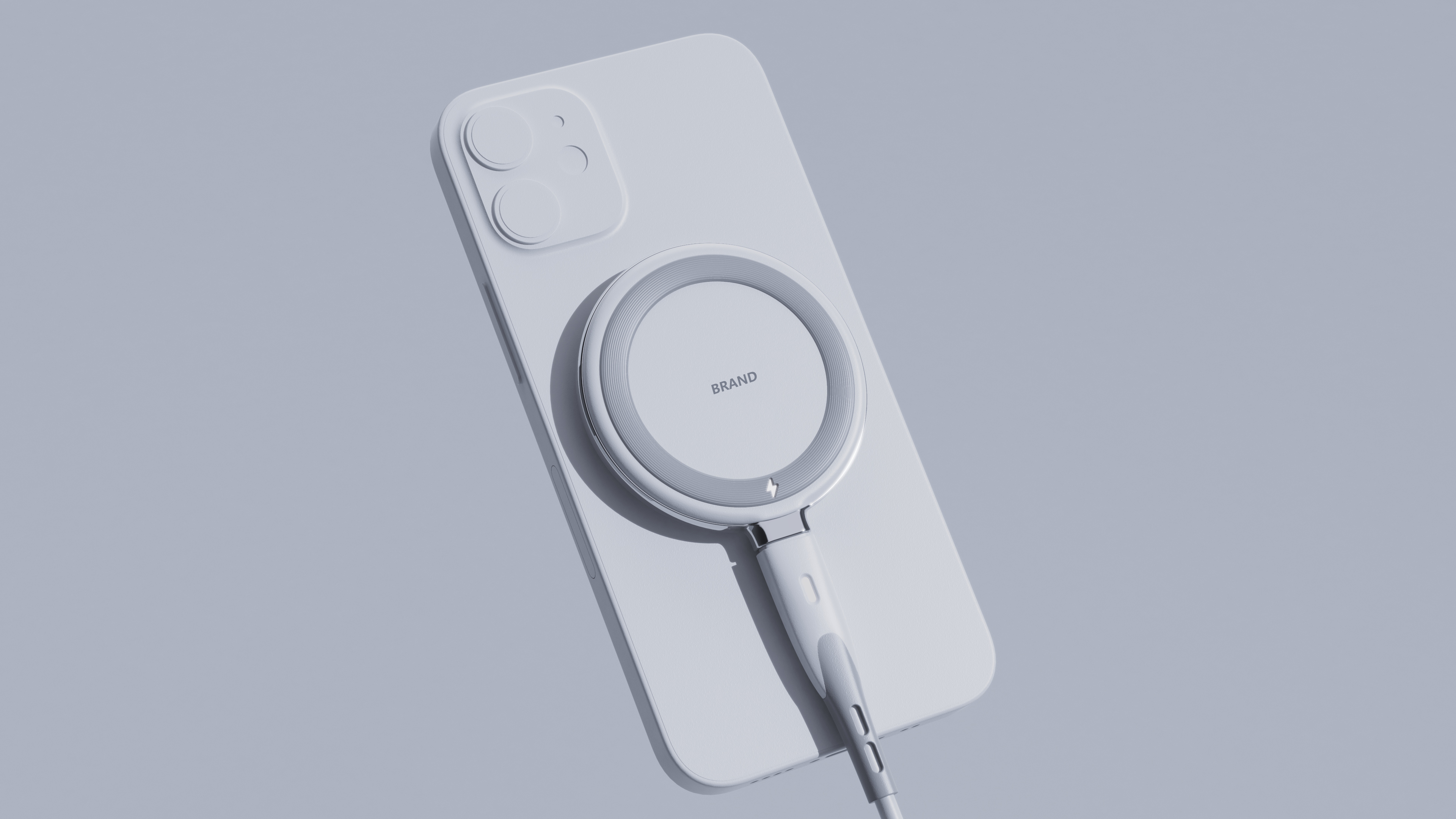

Seemingly ordinary, as a single function, the feeling is still the best Magsafe to return to the simplest design.
Why can't developer.apple.com open now.
There is no end to learning!
Moo!
