IES heating electric water heater

NeoInno创意概念点子

China · Digital Intelligence

☞Phase 7: The SmartHeat adopts IES electromagnetic induction heating technology to directly heat the metal tube through the eddy current effect of high-frequency magnetic field, realizing the separation of physical-grade water and electricity, with a thermal efficiency of 95.7, which is 38% energy-saving compared with traditional electric heating. The three-dimensional spiral pipe and the dynamic temperature control chip work together to ensure uniform heating in the whole area, with a temperature deviation of ≤ ± 0.5 ℃, and fast heating to the set temperature in 3 minutes. The AI system deeply integrates the TensorFlow Lite framework, learns users' water usage habits (time period, temperature and season), predicts demand through LSTM algorithm, dynamically matches peak and valley electricity prices, and reduces invalid heating by 72%. The five-fold safety protection covers IPX6 waterproof and 12 kinds of fault self-inspection, and supports OTA upgrade.

There are more than a dozen different water heater ideas. Those who are interested are welcome to exchange and discuss.

heater，Electric water heater，product design，industrial design，originality，conceptual design，

Generating for Love, from Creativity to Visualization: A Review of the Several Conceptual Designs of My Decade. Time is a little tight, the update is slower, there are many people watching mobile phones, and the conceptual design of some smart phones will be updated in the near future.

18 0

NeoInno创意概念点子 Owner 2025-04-09

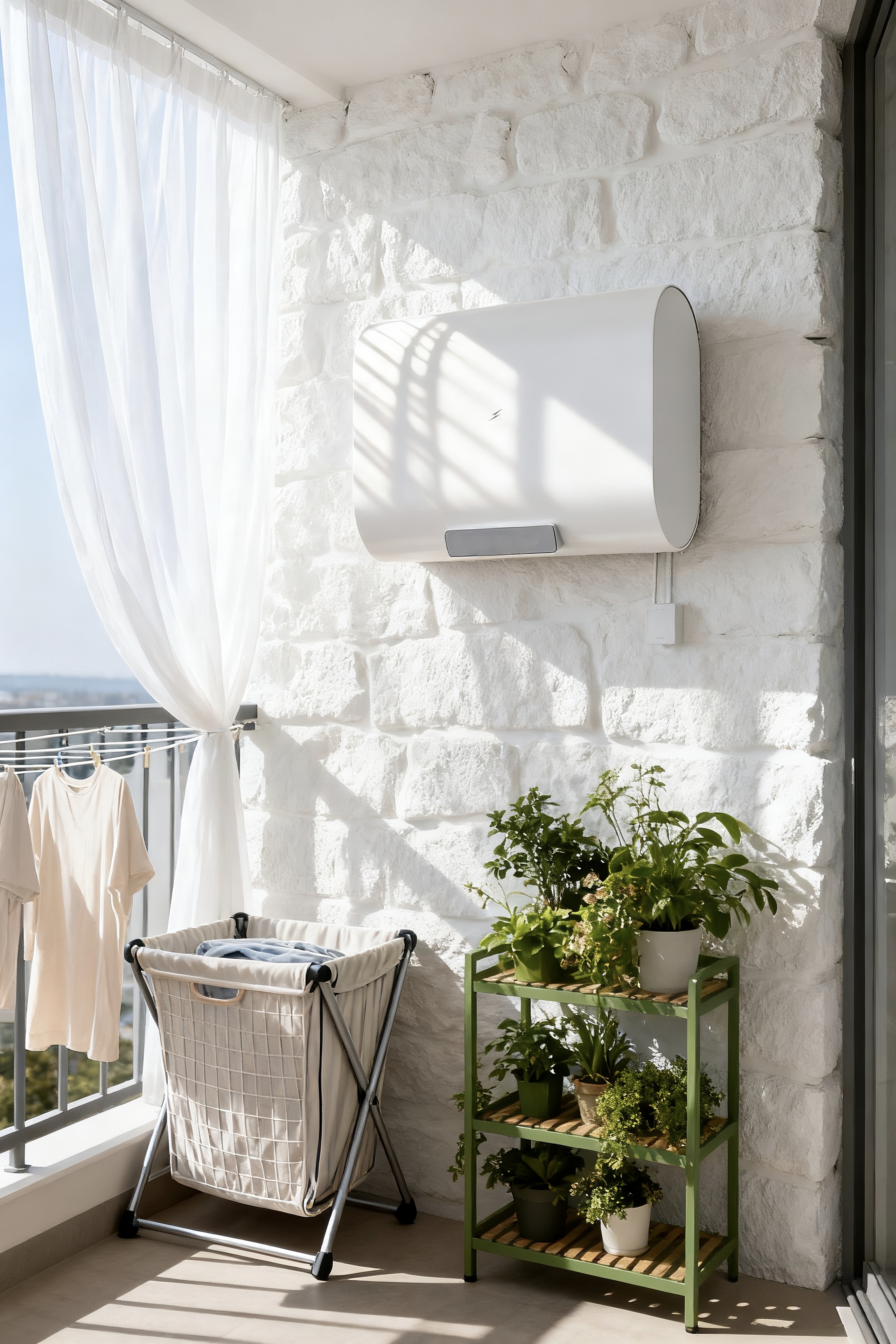

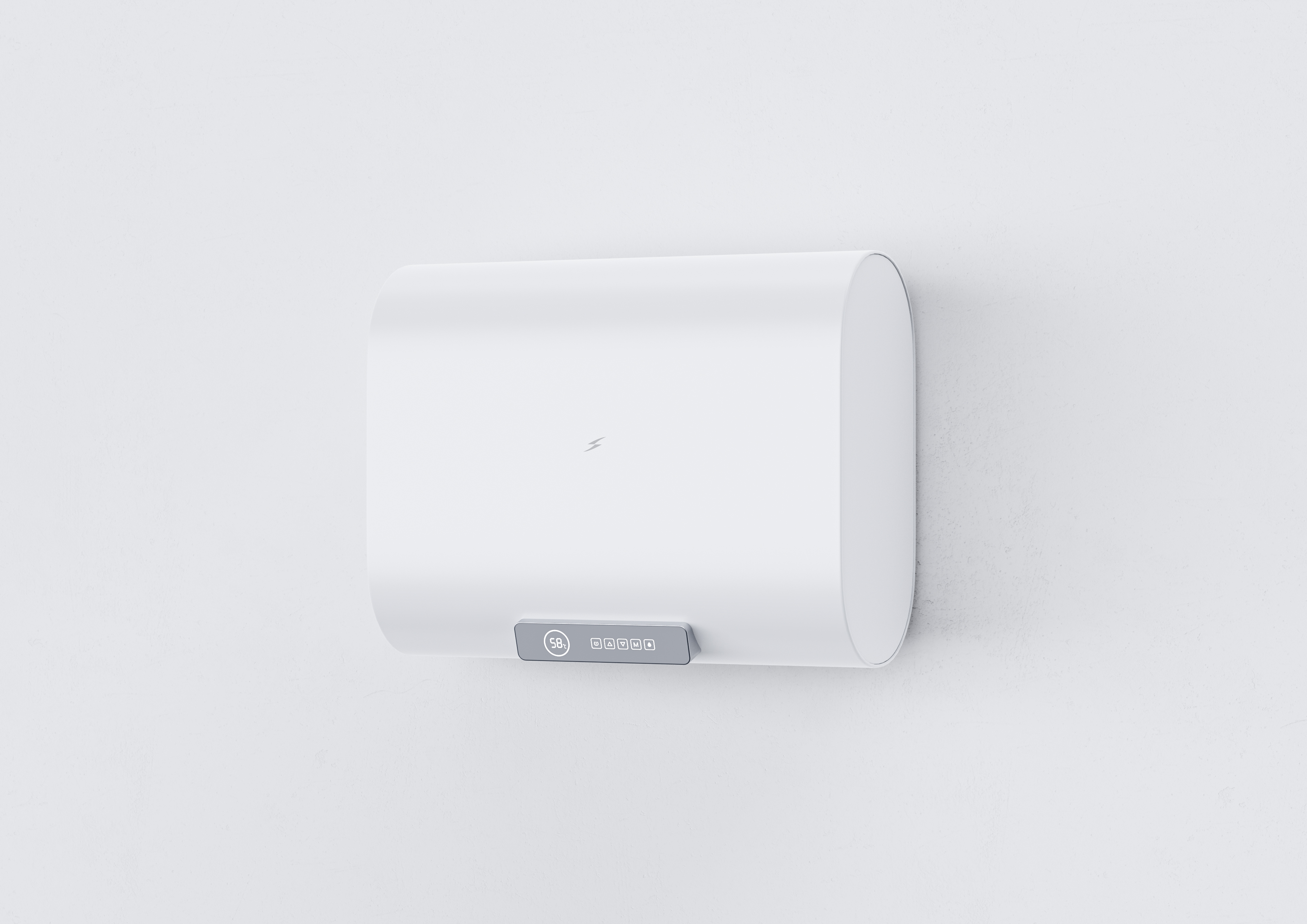

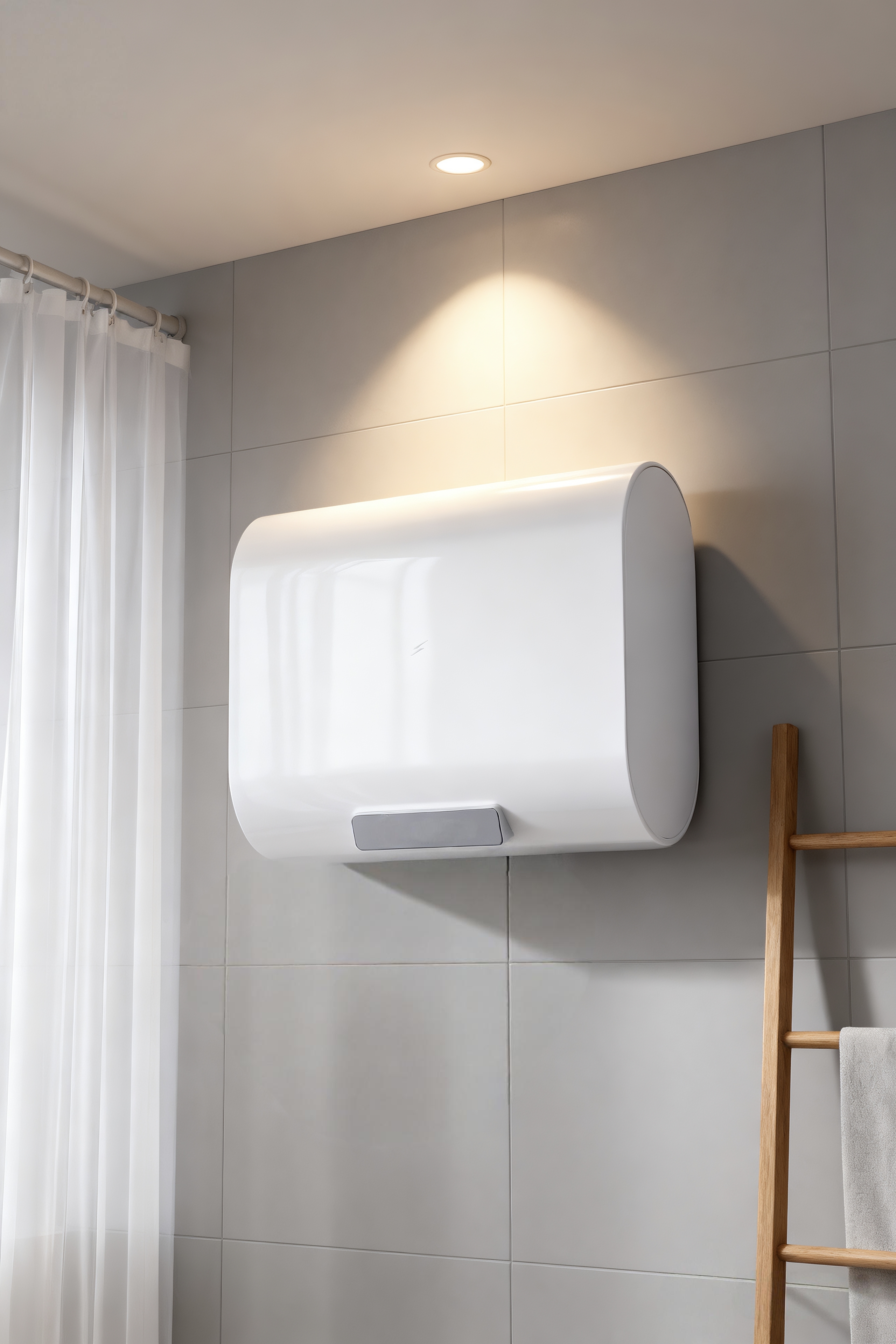

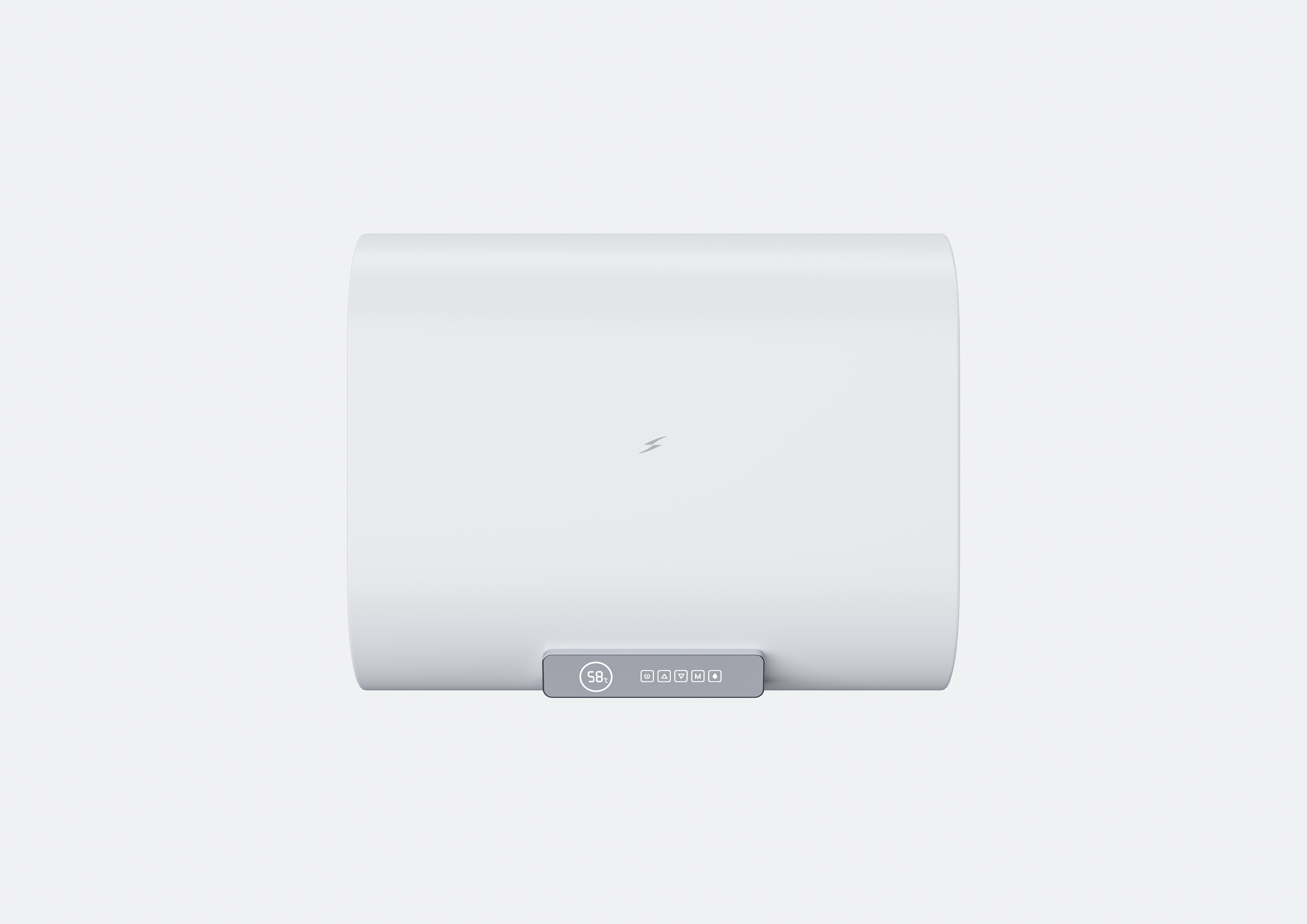

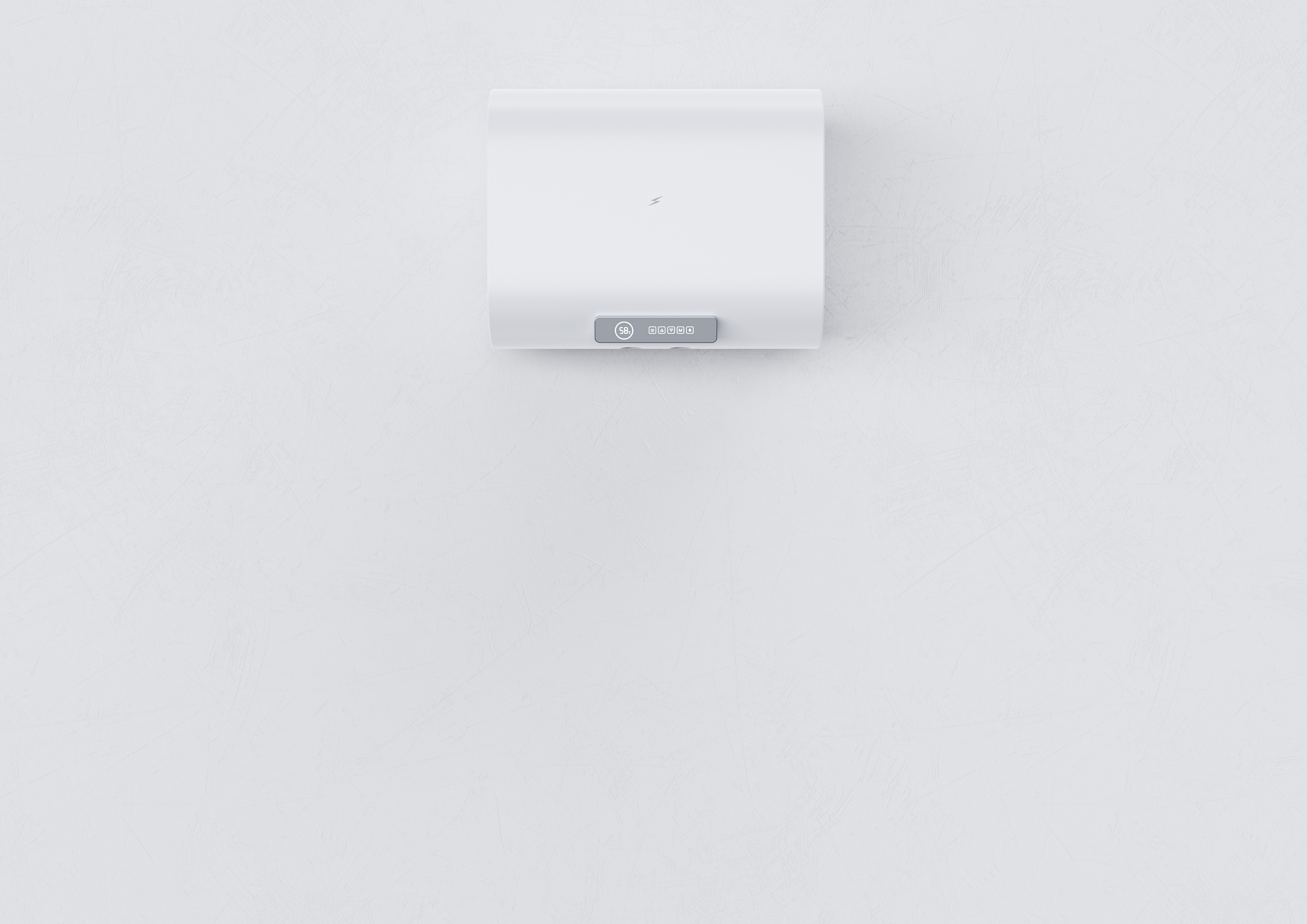

It's not a double-tank design, nor is it a tankless water heater. The main purpose of these cases is to have a visual appearance of the solution. The appearance of the water heater is also the appearance of a flat barrel for the physical-grade water and electricity separation solution of the electromagnetic induction heating water heater. The main purpose is to express the solution. For various reasons, the appearance of each case is very rough. This water heater has side end caps. Probably for some reason inconspicuous.

PHDesign 2025-03-05

It should be that I have not touched the design of water heater, which is not in line with the market.

NeoInno创意概念点子Owner 2025-03-05

Conceptual design, this is only one of the oldest of more than a dozen water heater conceptual designs, in case it will be a selling point sometime.

火乐-DESIGN 2025-03-07

Similar production has long been in production.

NeoInno创意概念点子Owner 2025-03-07

It's normal. What kind of heating methods are there?

This is the basic configuration of ultra-thin double single electric water heater

The right appearance modeling is convenient and takes minutes. Now the time to bring the baby is tight. The remaining ten or so other configurations of the water heater concept design will also be released in the next round. In fact, several other aspects have been modeled. It is a long story not to render the current rendering. It is not so much energy and time to bring the baby up. The first round of hair is not very creative either. We can make do with it. Eva will update it when it takes more time. Now it is mainly a record of the previous concept! I didn't think much about visualization before, but now I don't have time for modeling and rendering. However, I will take the time to update the conceptual design of some smart phones. This seems to be a lot of people.

火乐-DESIGN 2025-03-11

PHDesign 2025-04-09

What kind of double-bladder model are you talking about? The display part and the side end cover part have no design at all, which is not the mainstream in the current market. In addition, the hot water storage type itself is contradictory. The advantage of the hot water storage type itself is that it does not need a water tank.

火乐-DESIGN 2025-04-11

This kind of water heater was very mature ten years ago, and now there are a lot of them in the market. We can't draw such simple designs and sketches.

NeoInno创意概念点子Owner 2025-04-11

In order to struggle with the appearance, the appearance of these cases I sent is very rough. I now want to start with a concept for each category and provide more than a dozen or dozens of different solutions for each category. Although this is also a concept that I designed more than ten years ago to realize the separation of water and electricity by induction heating. The concept of sharing should also be gradual, from age to recent years.

火乐-DESIGN 2025-04-12

I'm not entangled. I'll simply discuss it. Since you have posted it on the Internet, it is inevitable that other people will see it, have their own opinions, and will comment, right.

NeoInno创意概念点子Owner 2025-04-12

That's right.

Write a comment

追逐我 2025-03-05

beautiful

Thank you

青春向上 2025-03-05

This saves space.

Flat barrel is to save space

苦尽甘来 2025-03-05

This shape is rare

IES heating storage type electric water heater should be less, later also don't know will become the mainstream, more than ten years ago to the old concept design.
