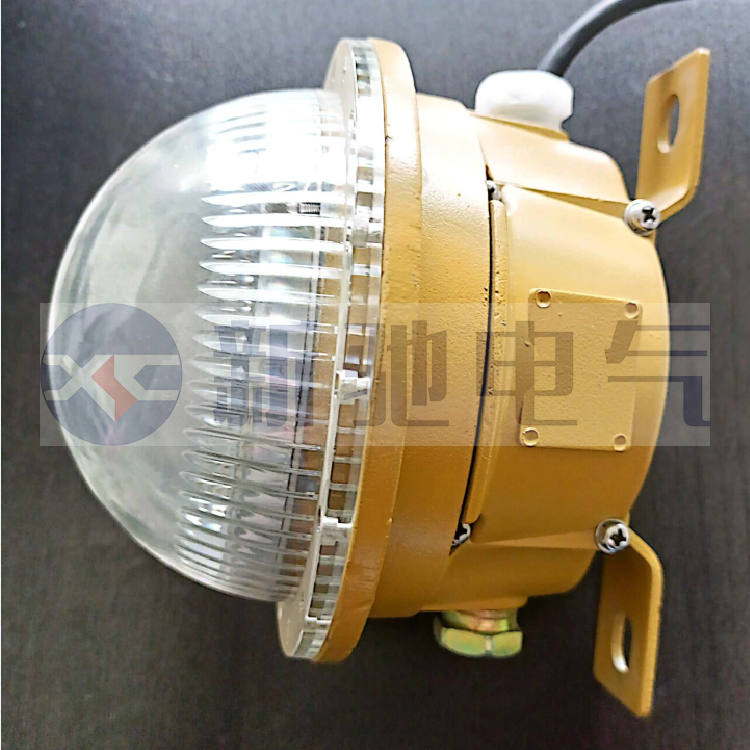

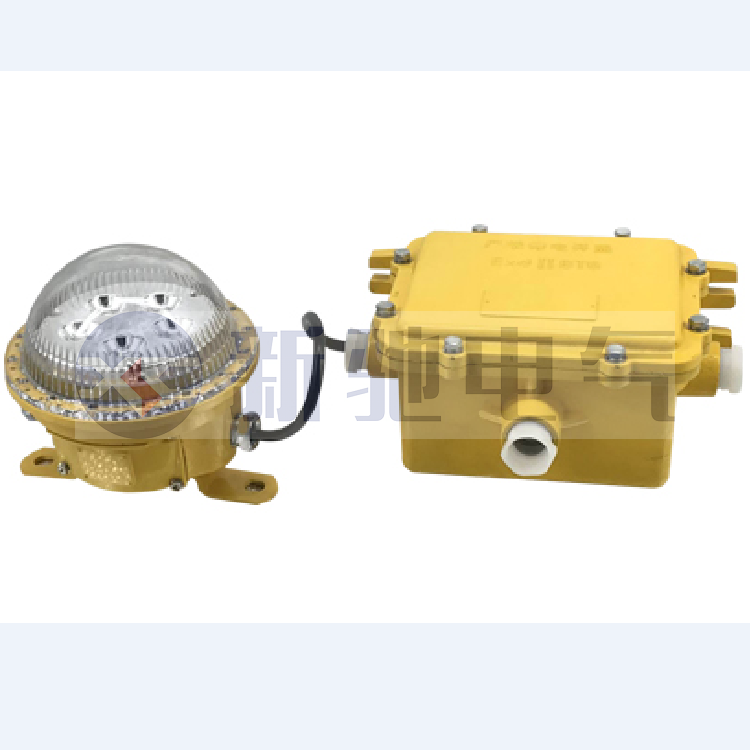

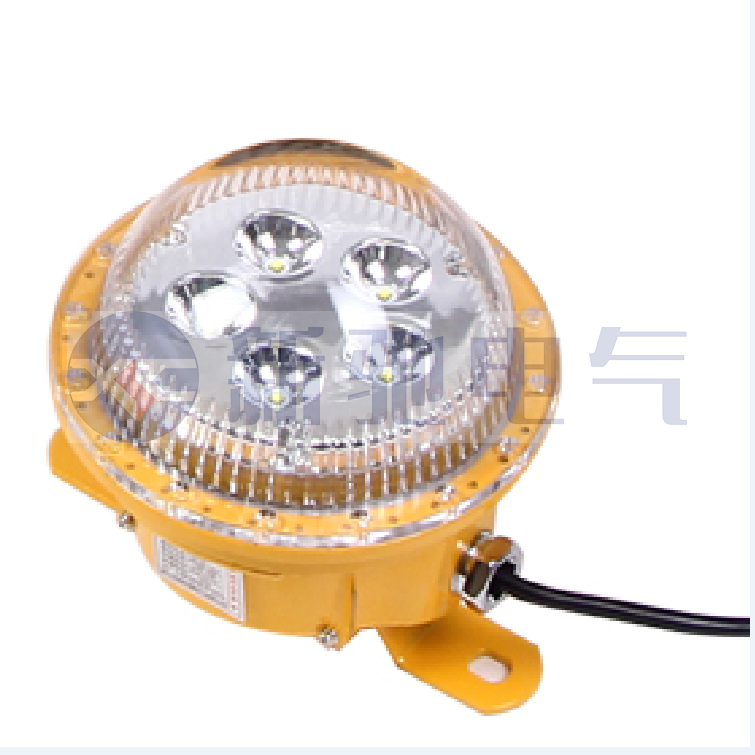

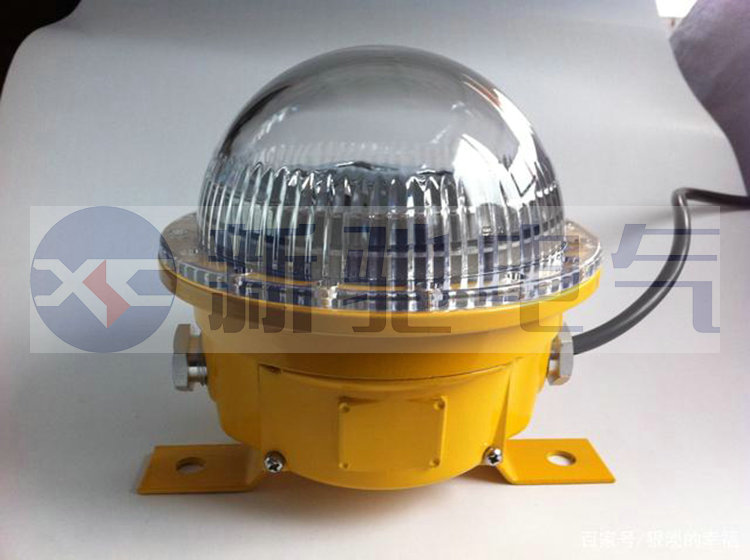

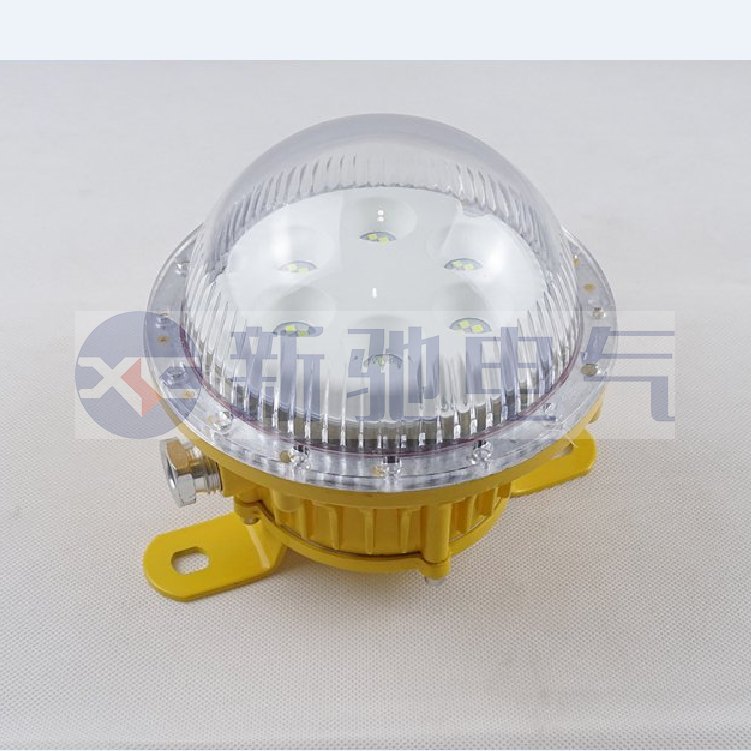

supply BED8183 explosion-proof floodlights-BED8183 explosion-proof lamp;
structure performance: all-in-one design, explosion-proof explosion-proof grade, good heat dissipation, explosion-proof. with aluminum alloy die-casting molding, the outer surface of the high-tech figure spray processing, anti-shock and anti-corrosion performance is strong, in the long-term use of outdoor. the selection of high brightness, long life LED solid-state light source, high luminous efficiency, long life, long-term maintenance-free, soft and uniform light, no glare, power consumption is only light incandescent lamps 20%, economy and environmental protection. the transparent member through the optimized design, selection of imported bulletproof gluematerial, high light transmittance, good impact resistance, can make the lamp in a variety of harsh environment under normal operation. full appliance imported known power factor up to 0.9 or more. power consumption and low temperature rise, work. by ribbon cable is introduced into the device, the sealing performance is good, can be directly steel pipe or cable wiring. can be used to block-type, wall, ceiling and so on many kinds of installation, installation is simple and convenient.

supply BED8183 explosion-proof floodlights-BED8183 explosion-proof lamp;
performance features 1. adopts the high brightness explosion-proof LED energy-saving lamps, with *** constant current drive power, than the gas discharge lamp energy saving up to 60%, china; 2. LED components are all sealing, waterproof and dustproof, without internal cleaning and maintenance; 3. the circuit board low thermal resistance, the design of the module circuit, each unit failure does not affect the rest of the components of the normal work. led explosion-proof lamp use site 1. petroleum chemical lamp, a gas station with lights, brewery with the lamp 2. it is suitable for zone 1, zone 2 hazardous areas; 4. it is suitable for learners at IIA, IIB, IIC class group of explosive gas environment

technical parameters;
1. the luminous flux: 100lm/W
2. the service life: 100,000 hours
3. rated voltage: 220V
4. the explosion-proof mark: Exd Ⅱ CT6
5. the cable outer diameter: Φ10~14 (mm)
6. the inlet thread: G3/4 (G ")
7. the protection level: IP65

product characteristics of aluminum alloy die-cast housing, with high-pressure electrostatic plastic-sprayed surface; with high anti-corrosion performance of stainless steel fasteners exposed; borosilicate physical toughened glass transparent cover, edges product anti-glare design anti-4J energy impact, high light transmittance, heat fusion; pure flameproof structure threaded flameproof and mouth flameproof form explosion-proof; the optical software design of the secondary optical system, optical lens, the light distribution is reasonable, illumination uniformity; the light source, power supply chamber, wiring cavity three-cavity separation structure indirect introduction methods with separate wiring cavity; special of the constant-current constant-voltage power supply, wide voltage input, constant power output with constant current, open circuit protection, short circuit protection function; high power factor cos Ф ≥ 0.98; available upon request fitted emergency device, when the power supply the power lamp automatic switching to emergency lighting state
