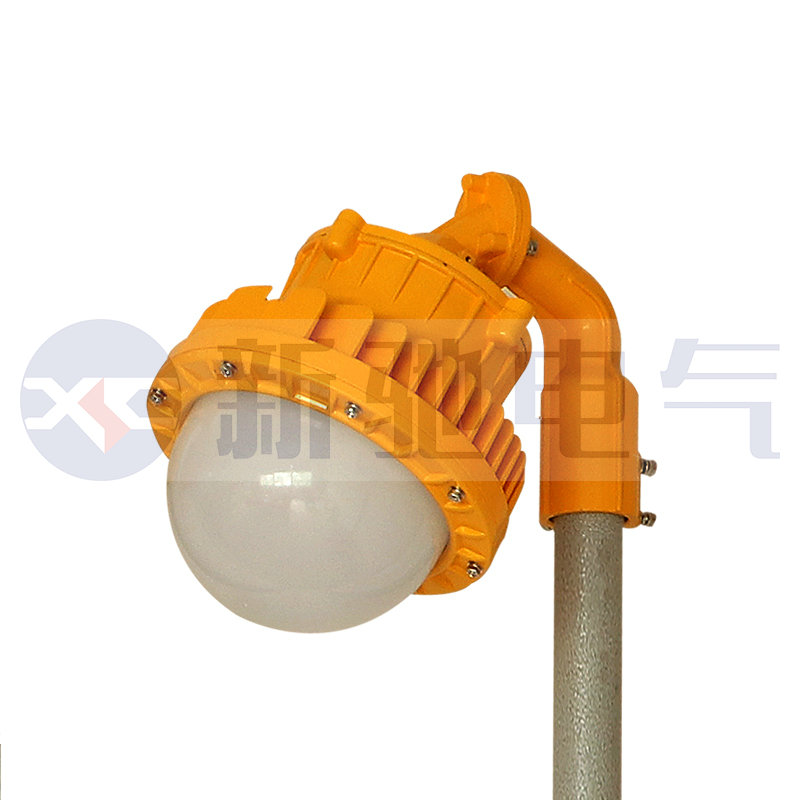

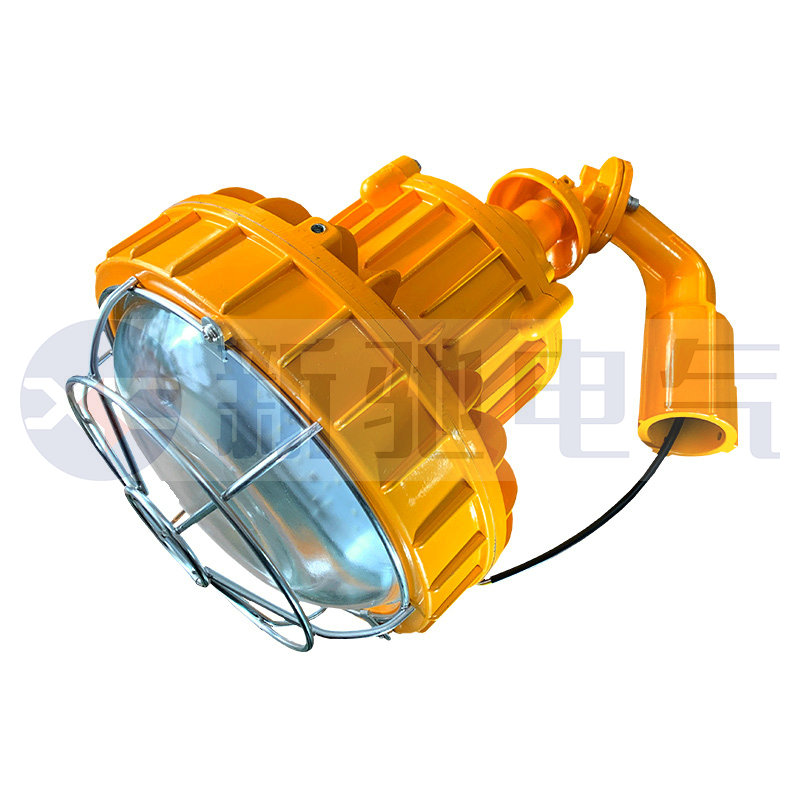

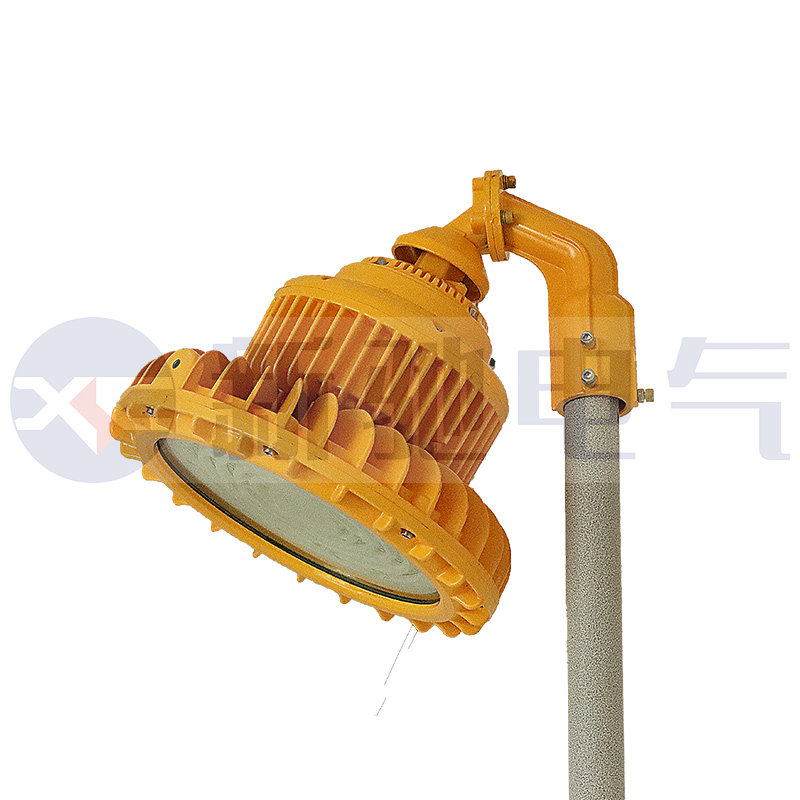

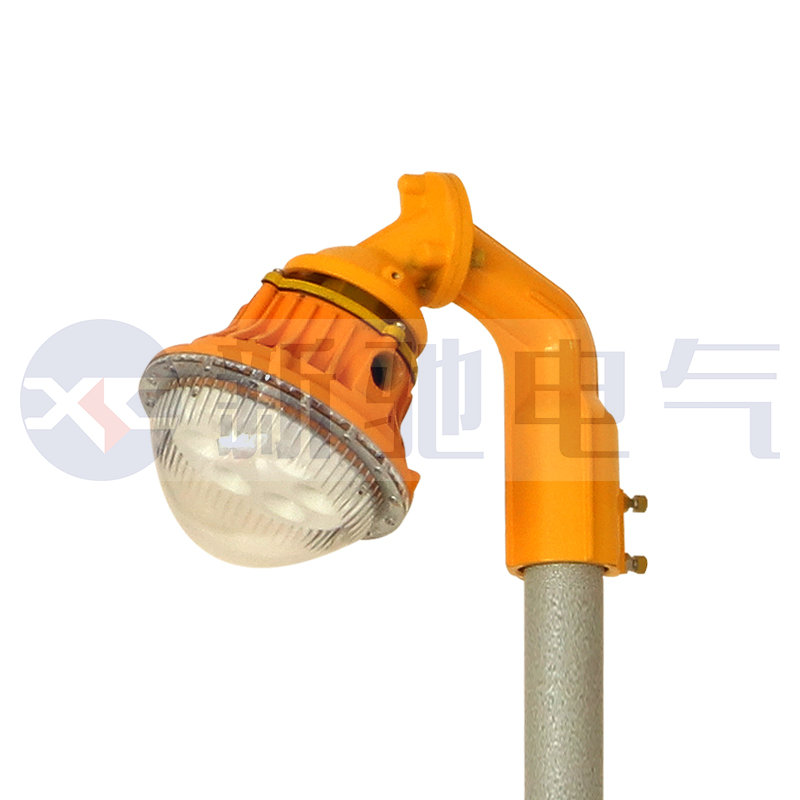

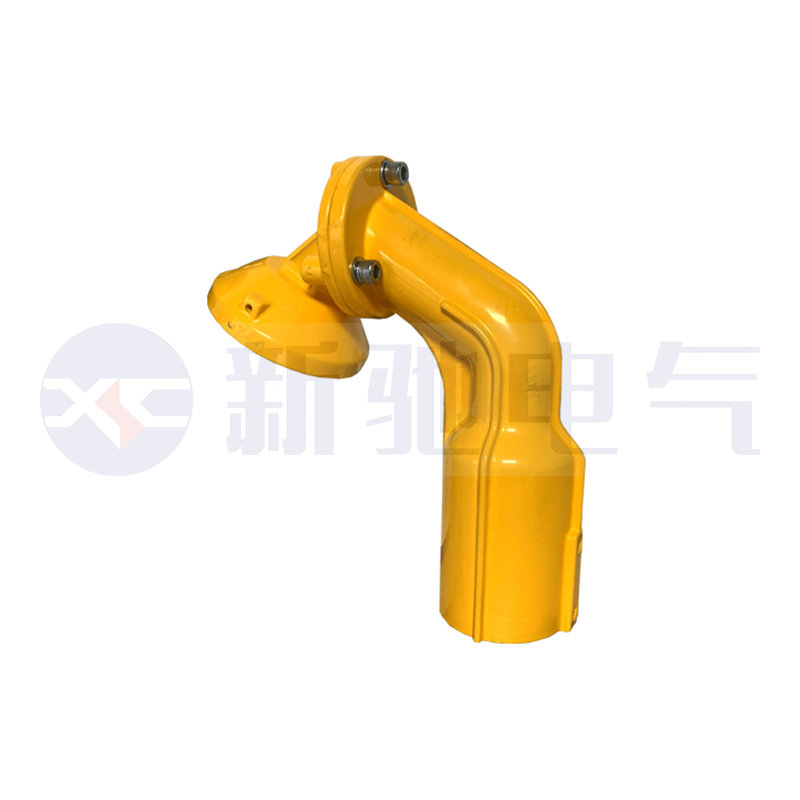

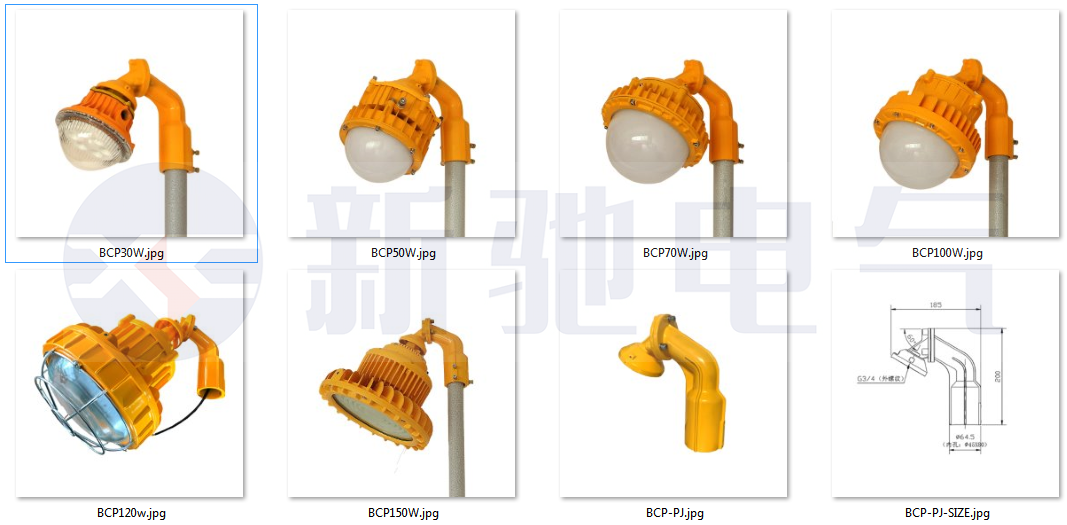

BCP-30W/200W LED explosion-proof guardrail lamp platform lamp elbow guardrail elbow fittings;
Scope of application;
Suitable for dangerous places in explosive environment zone 1 and zone 2;
Used in areas 20, 21 and 22 of combustible dust environment;
Suitable for class ⅡA and ⅡB explosive gas environment;
Suitable for places with high protection requirements and humidity;
Suitable for T1 ~ T6 temperature group;
Widely used in oil exploitation, oil refining, chemical industry, and other dangerous environments and offshore oil platform ambient temperature -25 ℃ ~ 55 ℃;
BCP-30W/200W LED explosion-proof guardrail lamp platform lamp elbow guardrail elbow fittings;
Technical parameters:
Explosion-proof mark: ExdⅡ CT6 Gb/ExtⅢ BT85 ℃ Db
Rated voltage: AC/DC 220V ± 20% 50Hz
Light source power: LED-10W/15W/20W/25W/30W
Power factor: 0.98
Protection grade: IP66
Anticorrosion grade: WF2
Introduction device: G3/4 "introduction port specification, suitable for diameter φ10 ~ φ14mm
Terminal: ≤ 2.5mm square wire reliable link
Installation method: ceiling type x, bracket type z (ceiling type, wall hanging, angle adjustable) wall type b135, wall type b290, boom type g,
Implementation standards: GB3836.1,GB3836.2,GB12476.1,IEC60079-0,IEC60079-1,
EN60079-0,EN60079-1,GB7000.1,IEC60079-31.
Warranty scheme: LED warranty for 3 years, lamps for 7 years.
Maintenance-free energy-saving LED explosion-proof lamp
Power selection: 30W/200W
Product features:
1, with special lighting, uniform lighting range, irradiation angle of 220 degrees, light is effectively utilized. Soft light, no glare, will not cause eye fatigue and improve work efficiency.
2. It uses the brightest LED in the world and only consumes 40% energy.
3. All key components of power supply are selected and stable.
4. Adopt special heat dissipation structure, adopt heat transfer and heat conduction, accelerate heat transfer, effectively ensure effective heat dissipation of LED, and make LED life reach 100,000 hours.
5. It can be used in various flammable and explosive places.
6. In parallel connection, the terminal box and installation cost are eliminated.
7. The shell adopts high-tech surface spraying technology, which is wear-resistant, corrosion-resistant, waterproof and dustproof, and is suitable for various harsh environments.
8. When using the LED explosion-proof lamp, add a photomask on the surface of the light source to increase the exposure rate of the lighting tube.
9. LED explosion-proof lamp shall be used as explosion-proof lamp in winery: it shall be designed with district road seal; Explosion-proof intrinsically safe type; Protection grade IP65, anti-corrosion grade WF1, waterproof, dustproof and explosion-proof.
