Wearable camera recorder

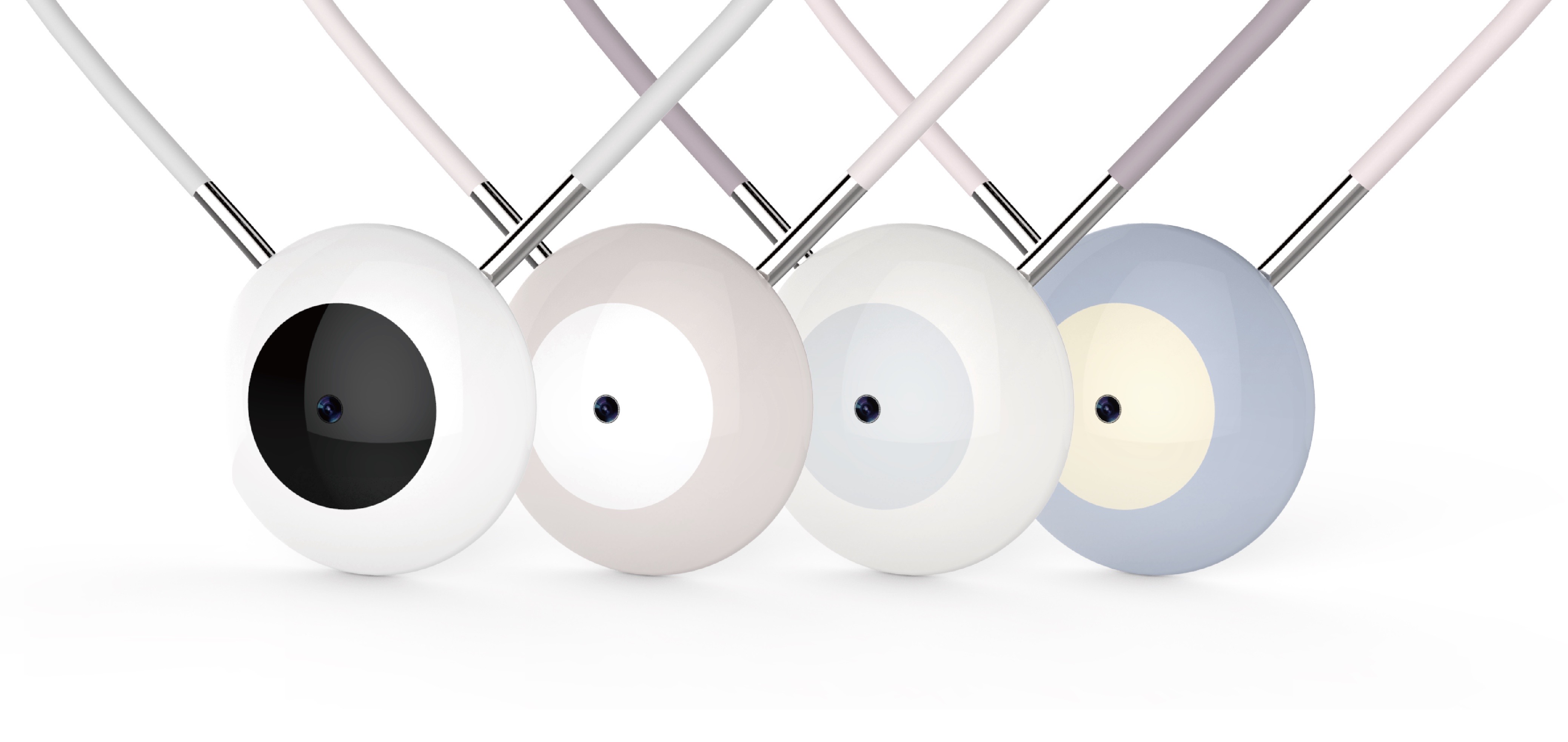

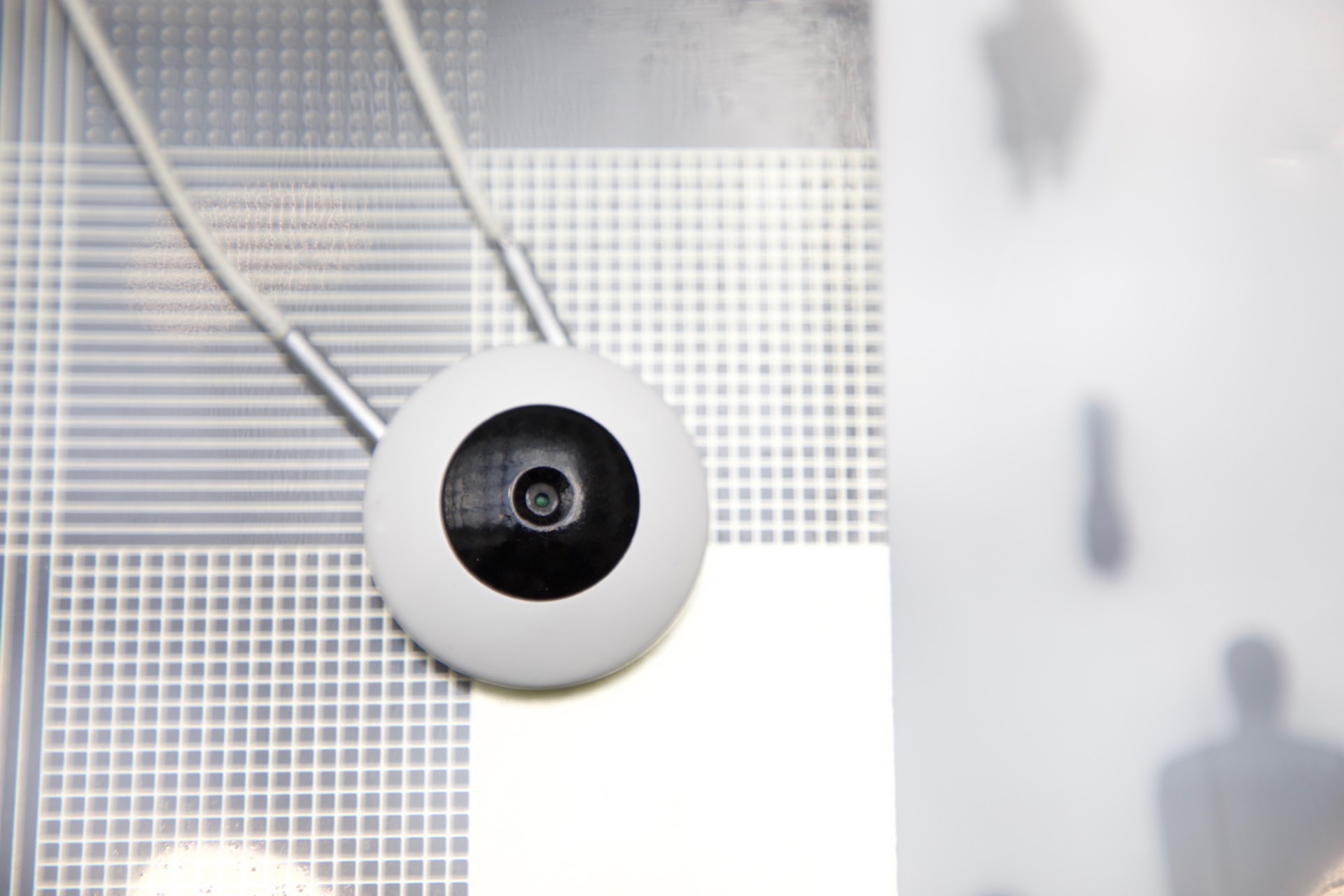

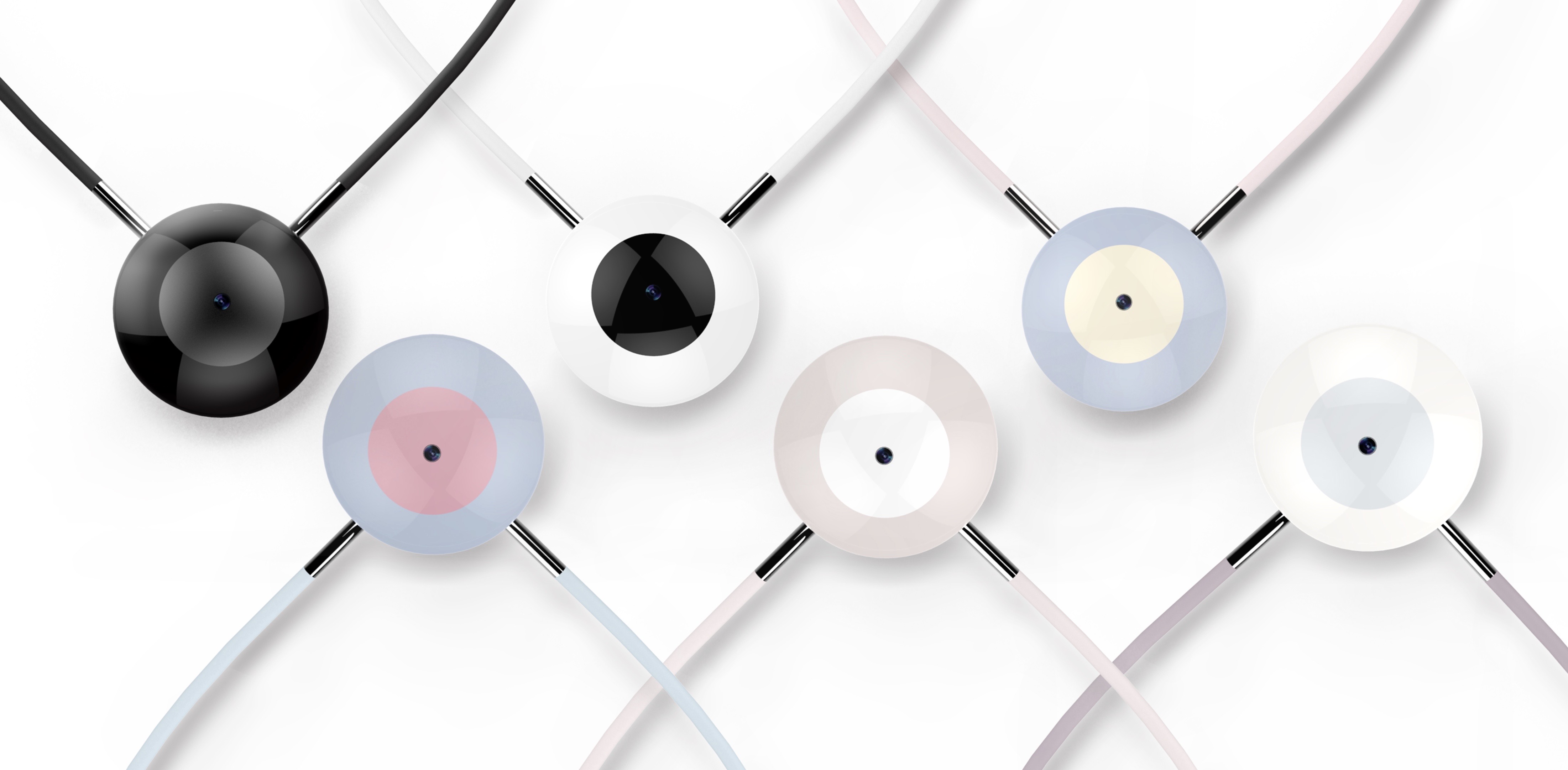

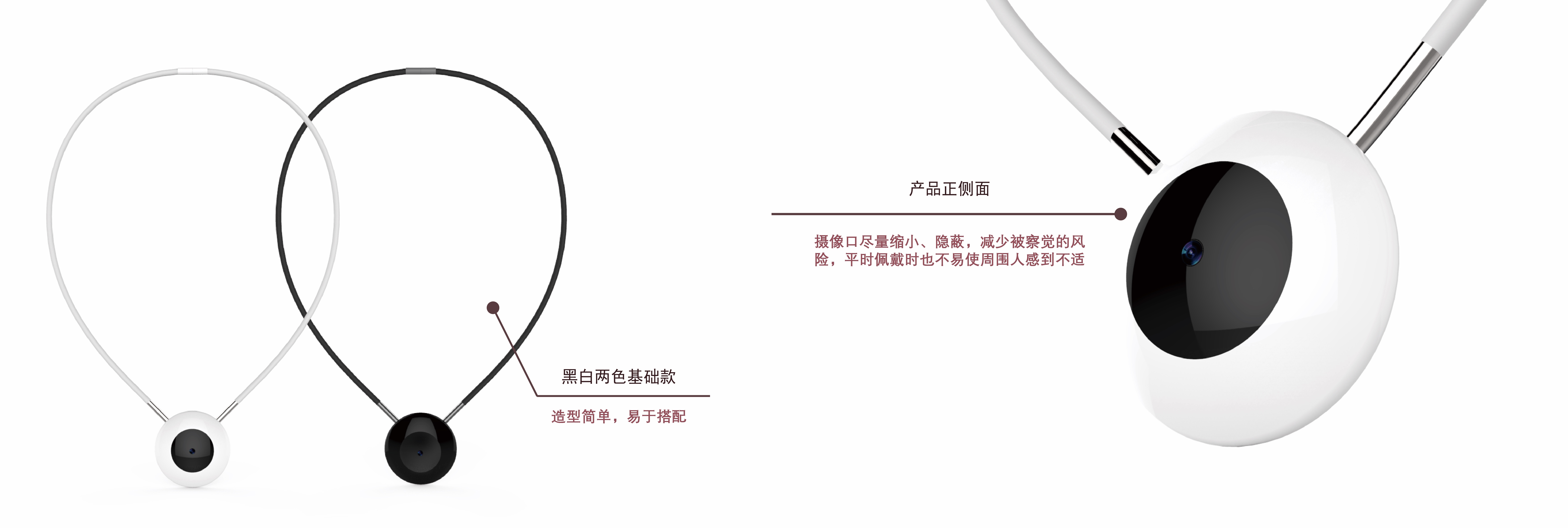

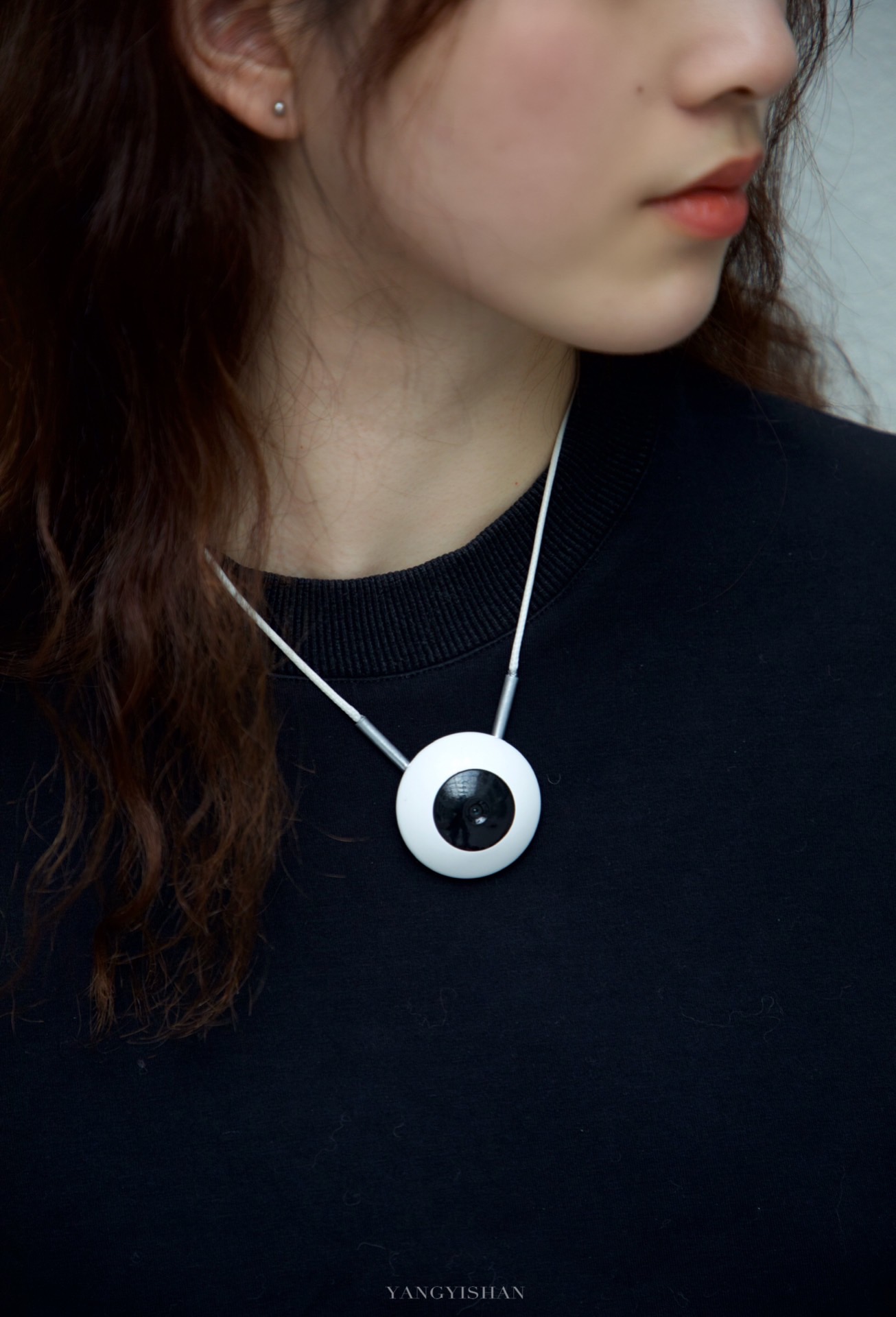

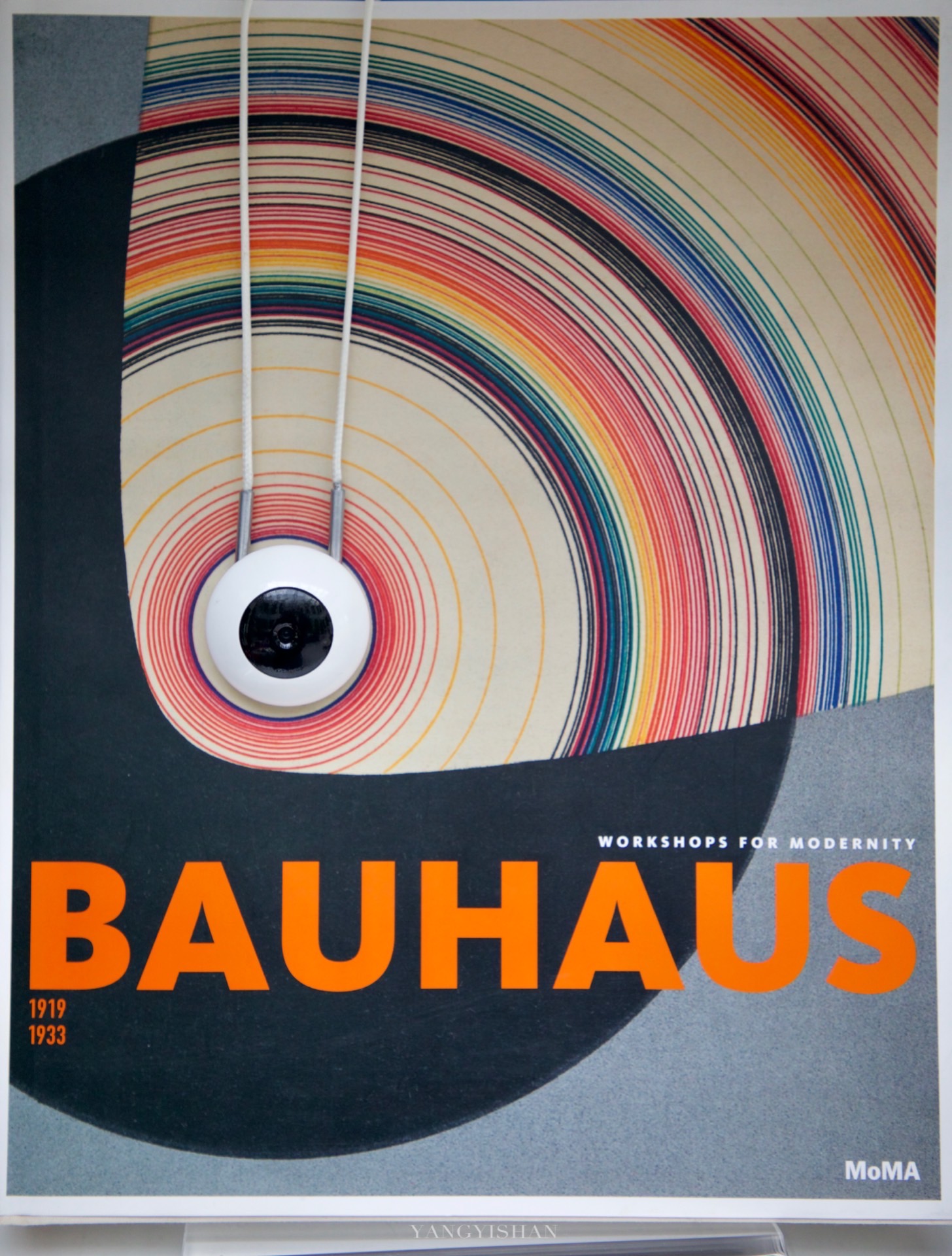

The product is designed to help users quickly and easily open the video recording equipment and leave evidence when they encounter sexual harassment or assault. Since the target group is adult women, the appearance of the product is the shape of a simple necklace. The round shape is designed as the basic shape, which looks softer and conforms to the female characteristics. The main color matching is divided into black and white, which is convenient to match and not easy to attract others' attention. The front of the product is arc-shaped, and the main components are the camera and the housing. The designer will minimize the exposed part of the camera hole during the design to avoid causing discomfort to the people around (such as people who are more sensitive to the lens). Different from the circular arc design on the front of the product,

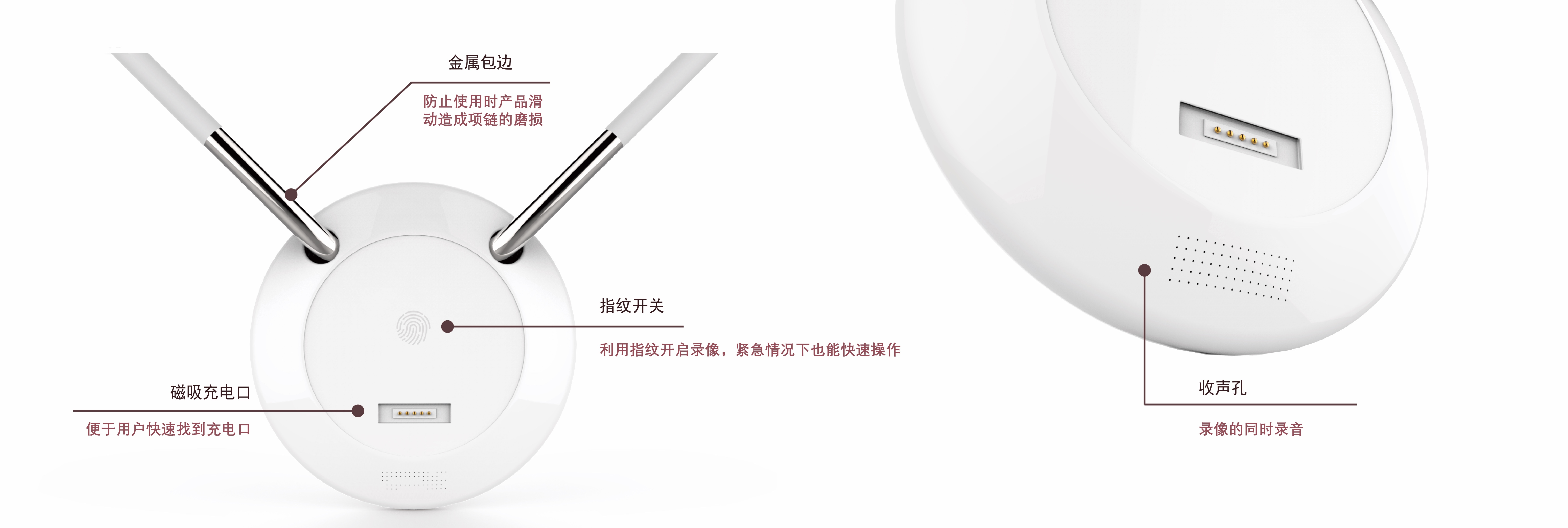

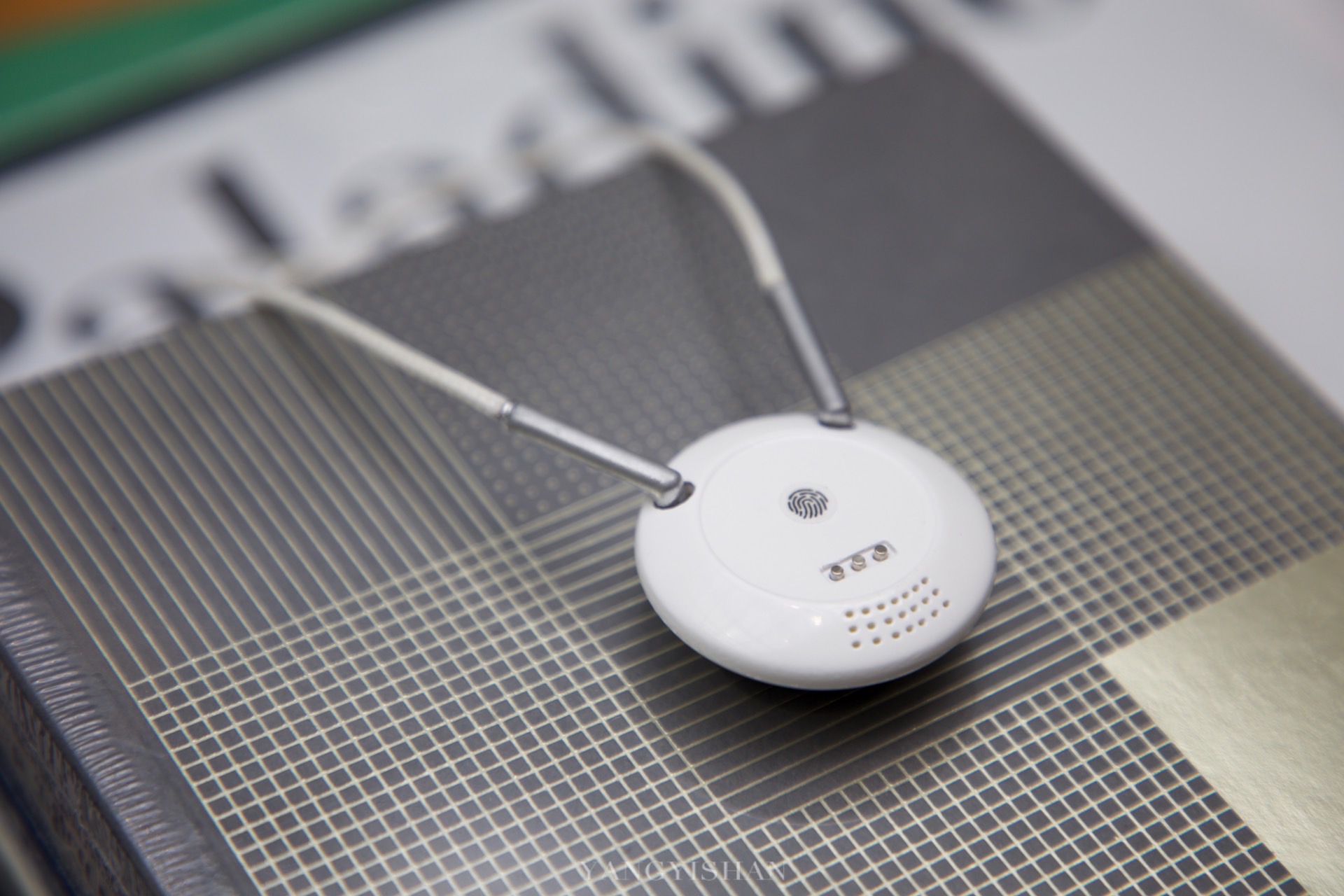

The back of the product is a slightly curved plane, which can fit the user's skin and prevent the camera from turning over when moving and cannot accurately record. The back is provided with fingerprint contact, magnetic charging port and sound receiving hole, in which fingerprint contact is to enable users to quickly turn on the camera recorder when encountering sexual harassment (such as frequent contact on public transportation) or sexual assault. The product has a built-in battery, which can ensure the endurance/standby time after starting up to 2-5 hours and realize a complete video recording of criminal acts, the function of the magnetic charging port is to facilitate the user to quickly find the charging port and charge after the built-in battery is used up. As the name implies, the sound receiving hole exists to collect the sound during the video recording. At the same time, the position of the sound receiving hole is different from the fingerprint contact and magnetic charging hole. It is arranged on the curved surface and will not directly contact the skin to prevent the effect of sound receiving.

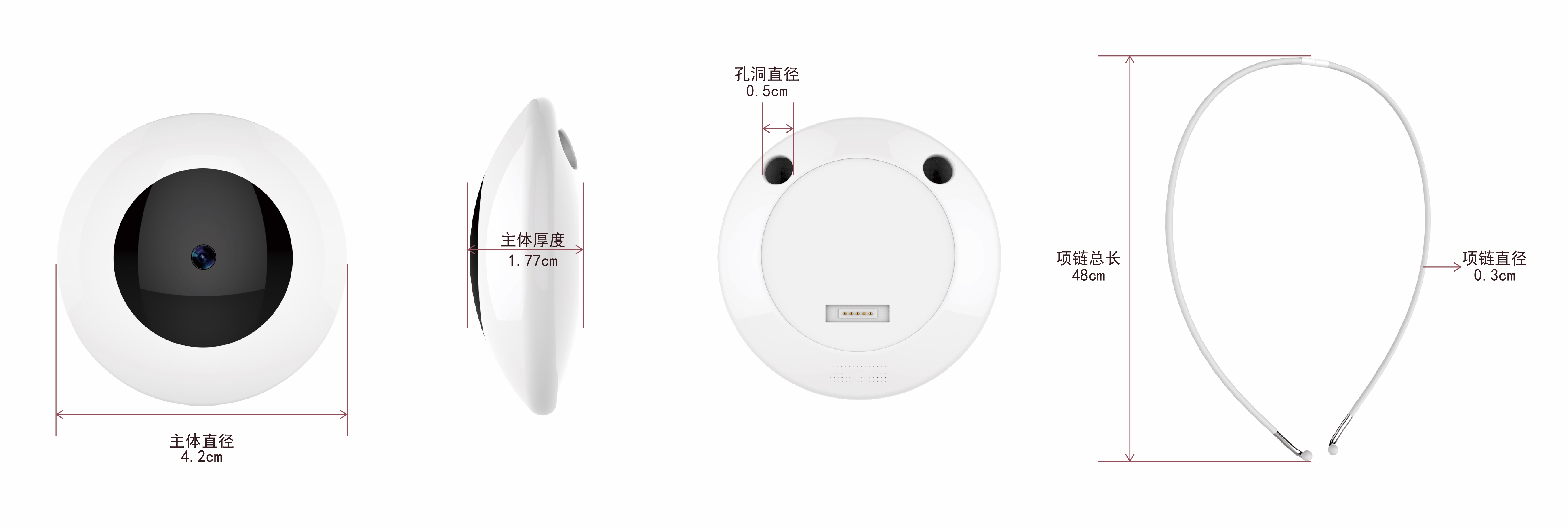

The wearing method adopts the wearing method of rotating buckle, which allows the user to quickly take off the wearing, and can also avoid the product falling due to weight problems. The part of the necklace and the product is wrapped in a metal shell to prevent the necklace from being worn when the product slides. The necklace does not penetrate through the product, and is connected to the holes on both sides of the back of the product respectively. The built-in ball is slightly larger than the hole. Even if the user wears it, the product will not slide to the side or back even if the movement range is large. In case of dangerous situations, such as sexual harassment or sexual assault, being violently pulled, etc., the basic level of video recording can be maintained.
In view of the overall size problem, the camera recorder does not have a storage card, and all videos are transmitted back to the mobile phone in real time by the built-in 2.4G network. When the camera function is unlocked and turned on by fingerprint, the video will be automatically stored to the mobile phone APP every five minutes. The reason why it is defined to send back once every five minutes is to prevent the suspect from violently dislodging the recorder and causing the product to be damaged when. Each returned video will retain the geographical location of the video recording due to the positioning system of the recorder, which can be consulted in the APP.

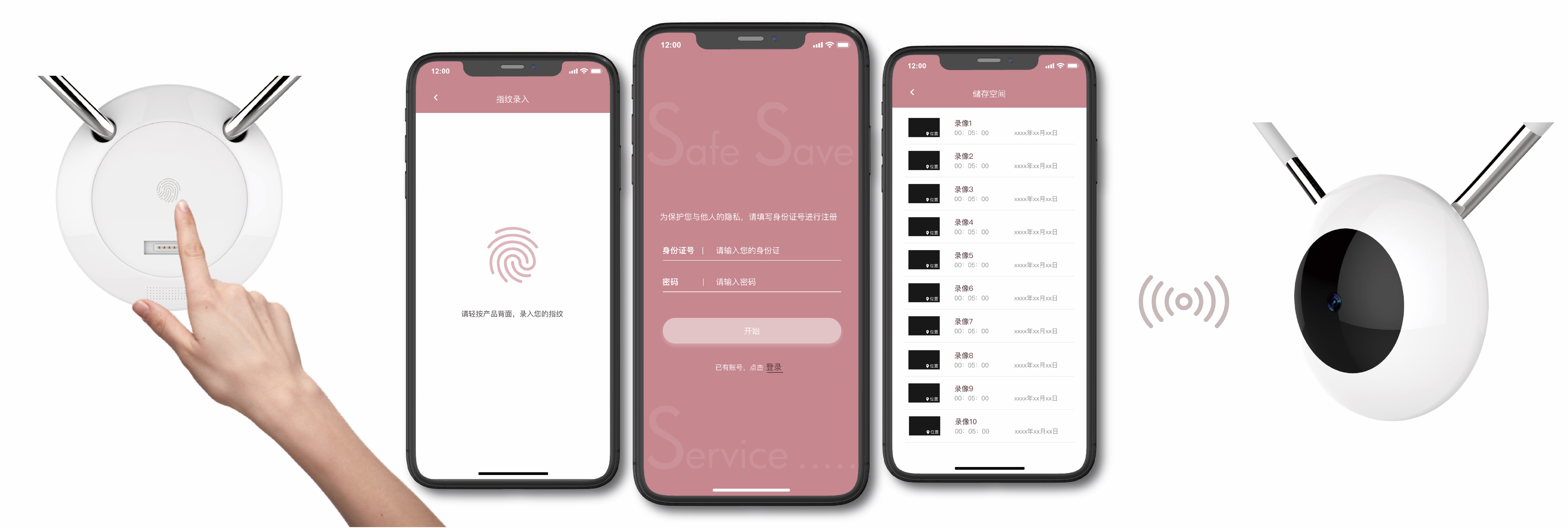

The first login of APP needs to be registered with ID card to prevent the product from being used as illegal camera by some buyers. Such registration method can also make the product completely separate from the mobile phone for use alone. Even if the mobile phone is lost or the mobile phone number is maliciously embezzled, the user can log in with the real name of ID card through another mobile phone and retrieve the video in the cloud stored in APP. After the APP is successfully registered, the system will prompt to enter the fingerprint on the product, which is similar to the fingerprint entry function of the mobile phone, so the product can only be used by the user.
