I shared my experience with the pictures I made a few days ago and made common progress.
The old rule is to first put on the finished product map, and the rendering mode is indoor.

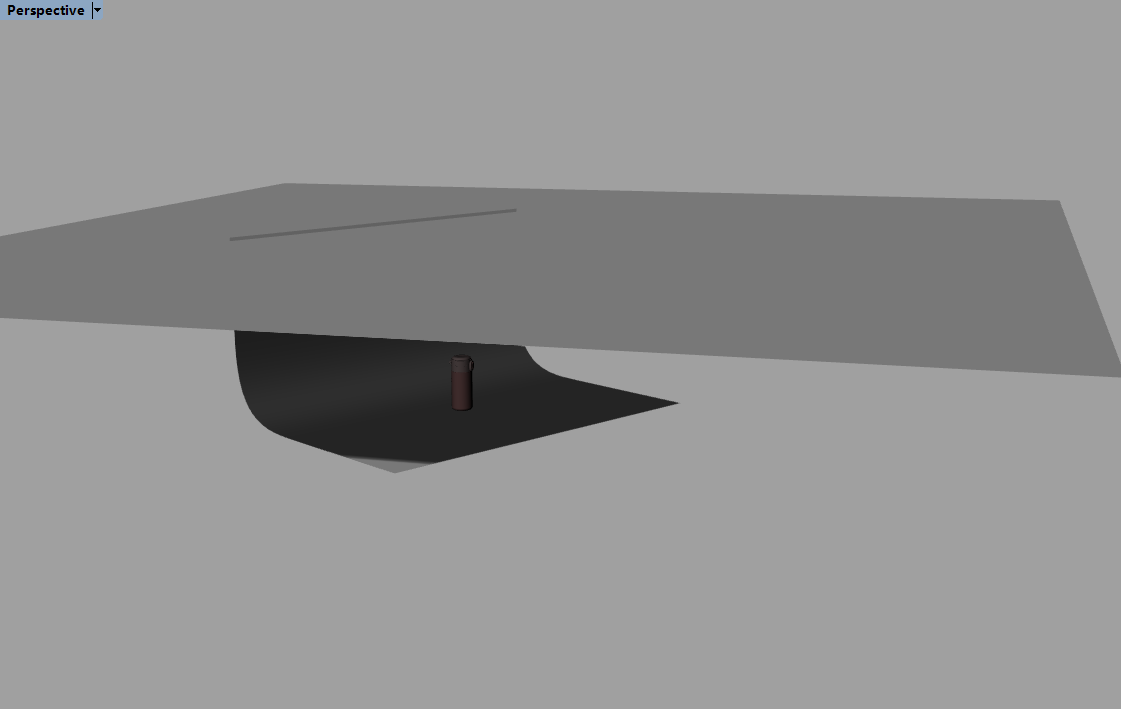

First set up a scene in the rhinoceros

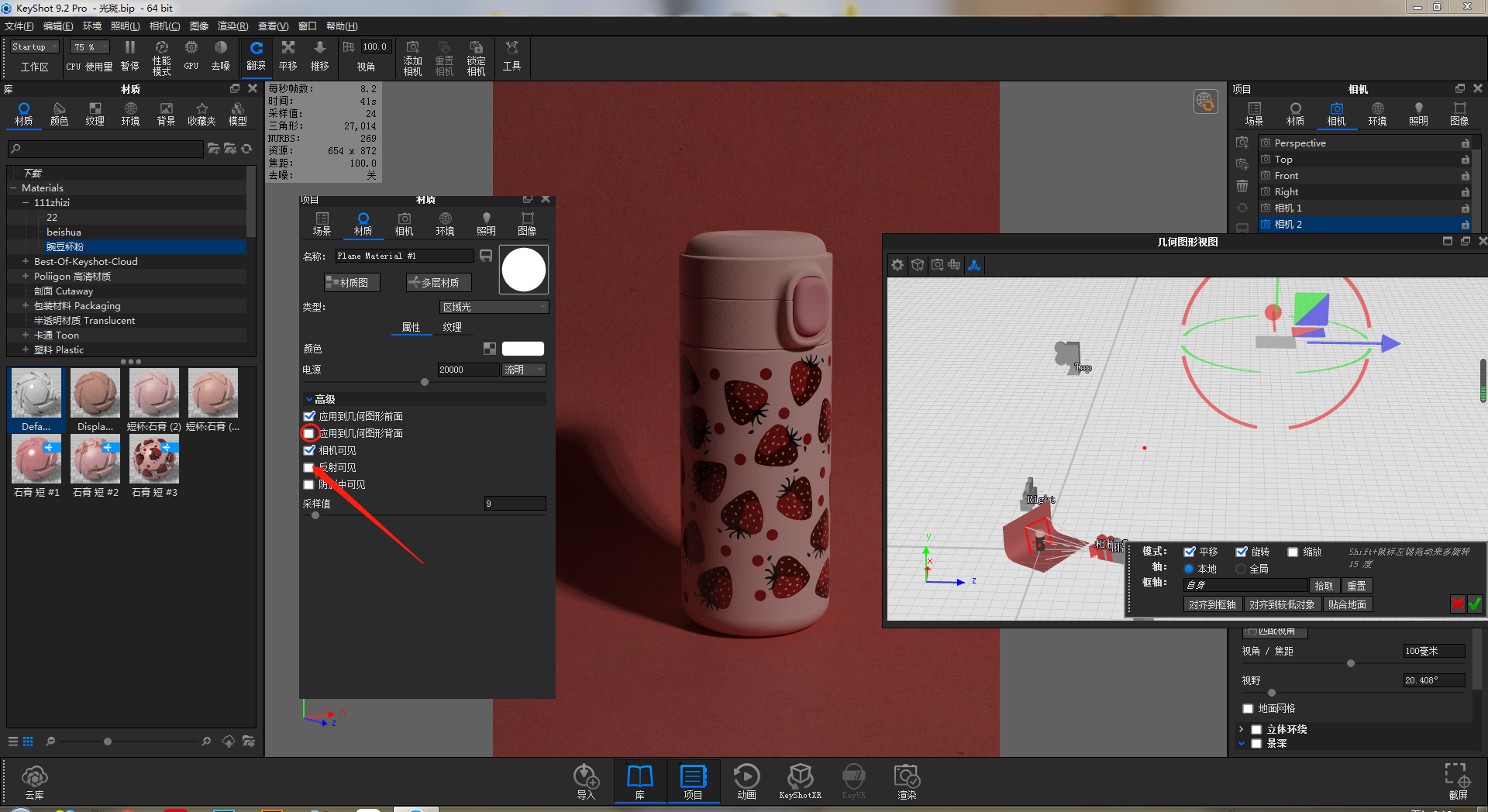

2. The plane above the shadow. Determine the camera position, add the area light material given by the plane, and remove the visible reflection to avoid the generation of highlighted highlights. Apply to the back of the geometry to cancel the reduction in computation. Switch the light of the environment hdr to black, and move the light surface of the area to confirm the light and shadow position.

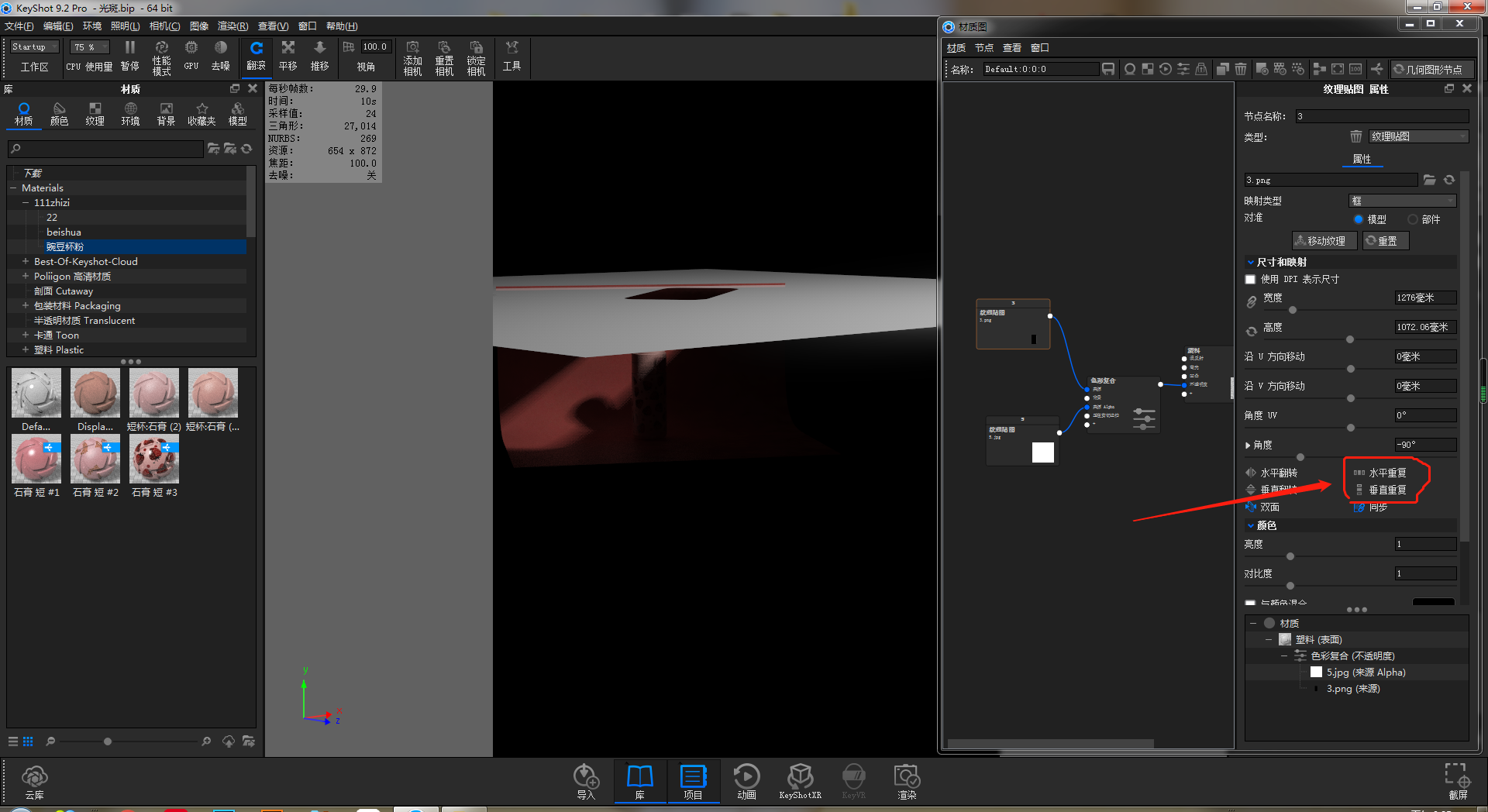

3. Display the upper face, connect the material diagram according to the right link mode, and remove horizontal and vertical repetitions. The position of the hole is png. The picture is only black but not white!! Focus
4. Remove the locking aspect ratio, which is convenient for us to adjust the light size. Moving the texture can move and rotate the position of the texture.

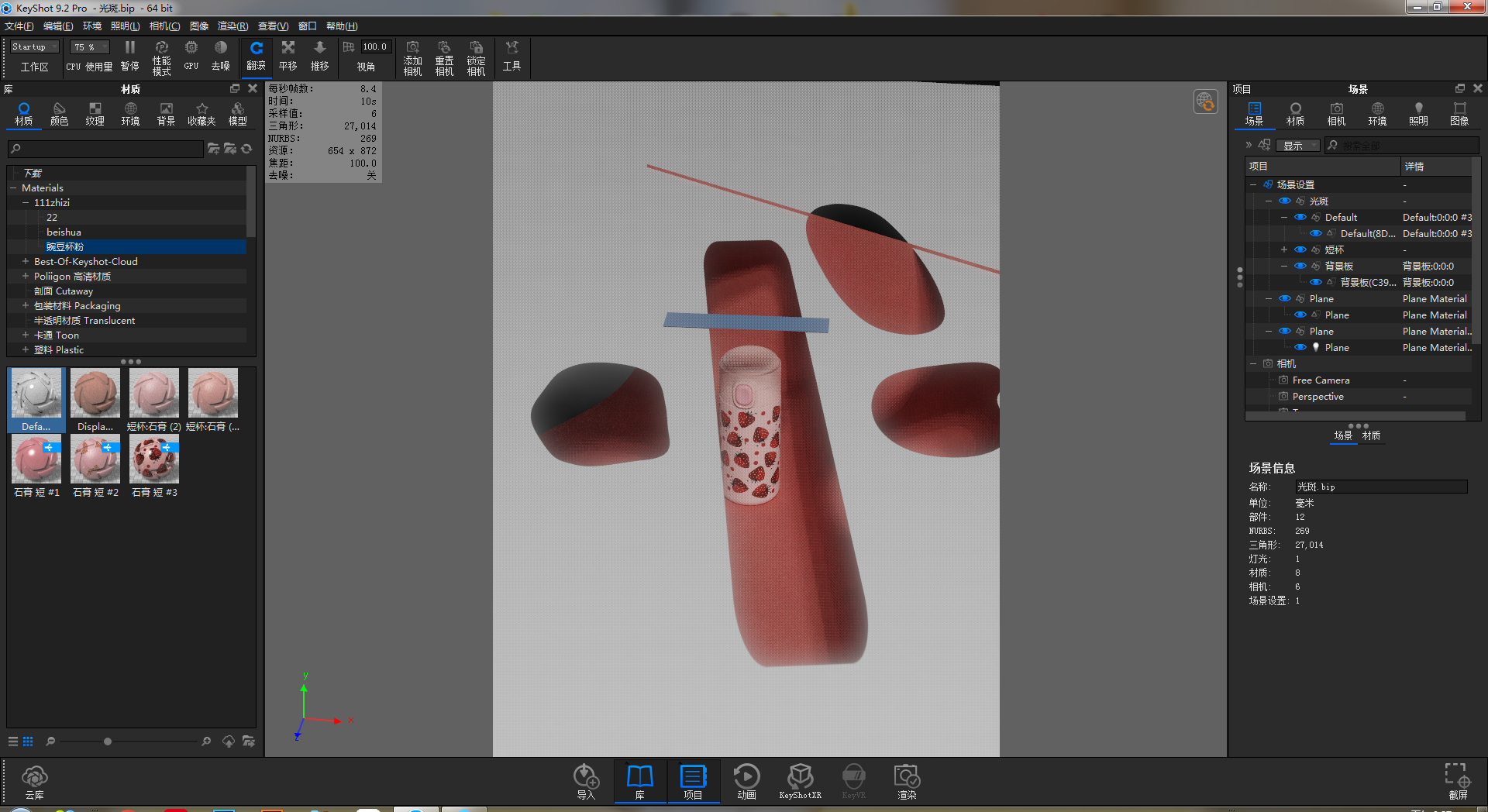

5. Add a second hole and pay attention to the connection sequence of the material drawing. Similarly, horizontal and vertical repetitions are removed, and the locking aspect ratio is removed. Move the texture and adjust the aspect ratio to achieve the ideal position.

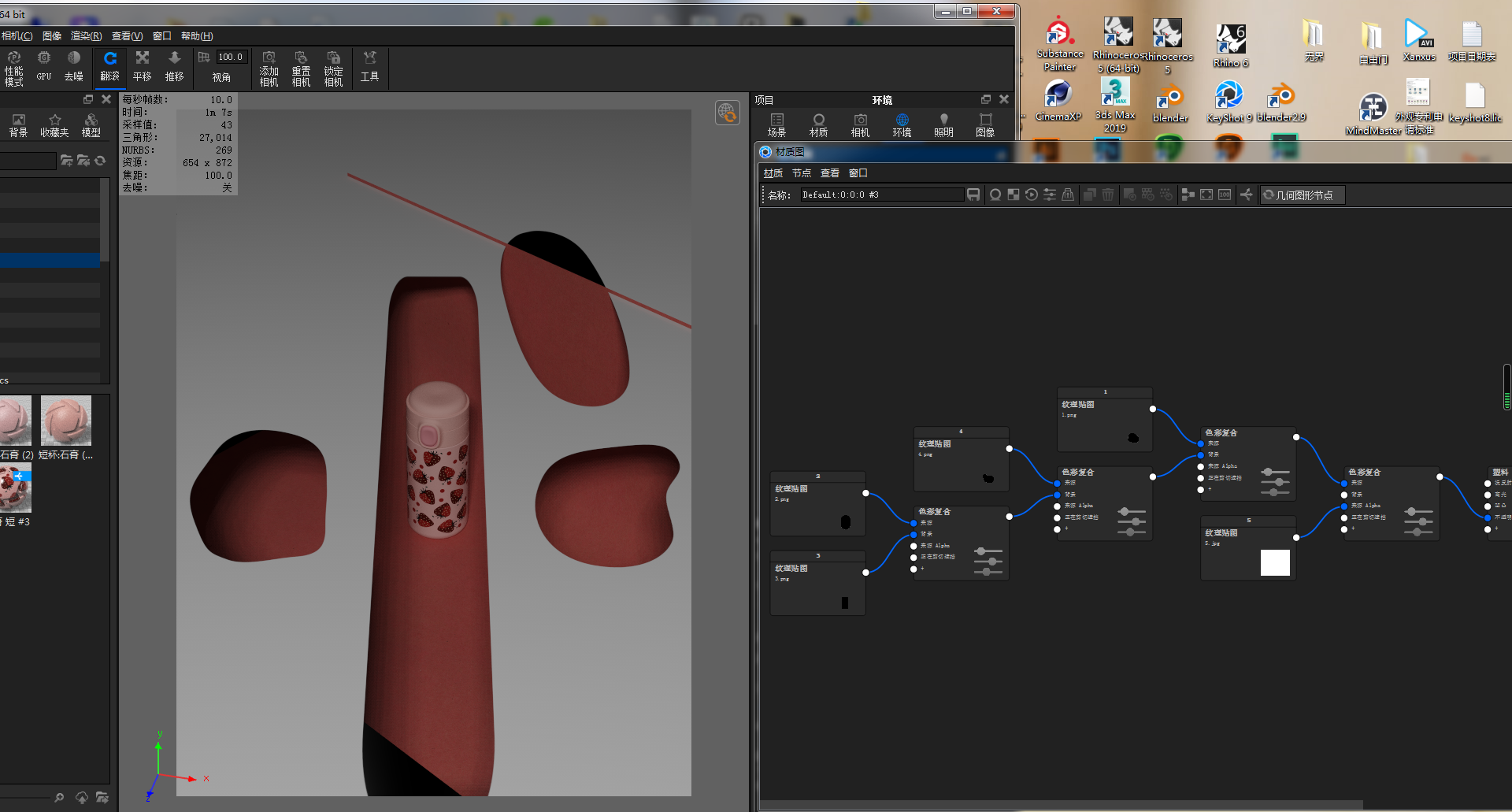

6. Same as above, you can superimpose countless holes and pay attention to the connection sequence of the material diagram.

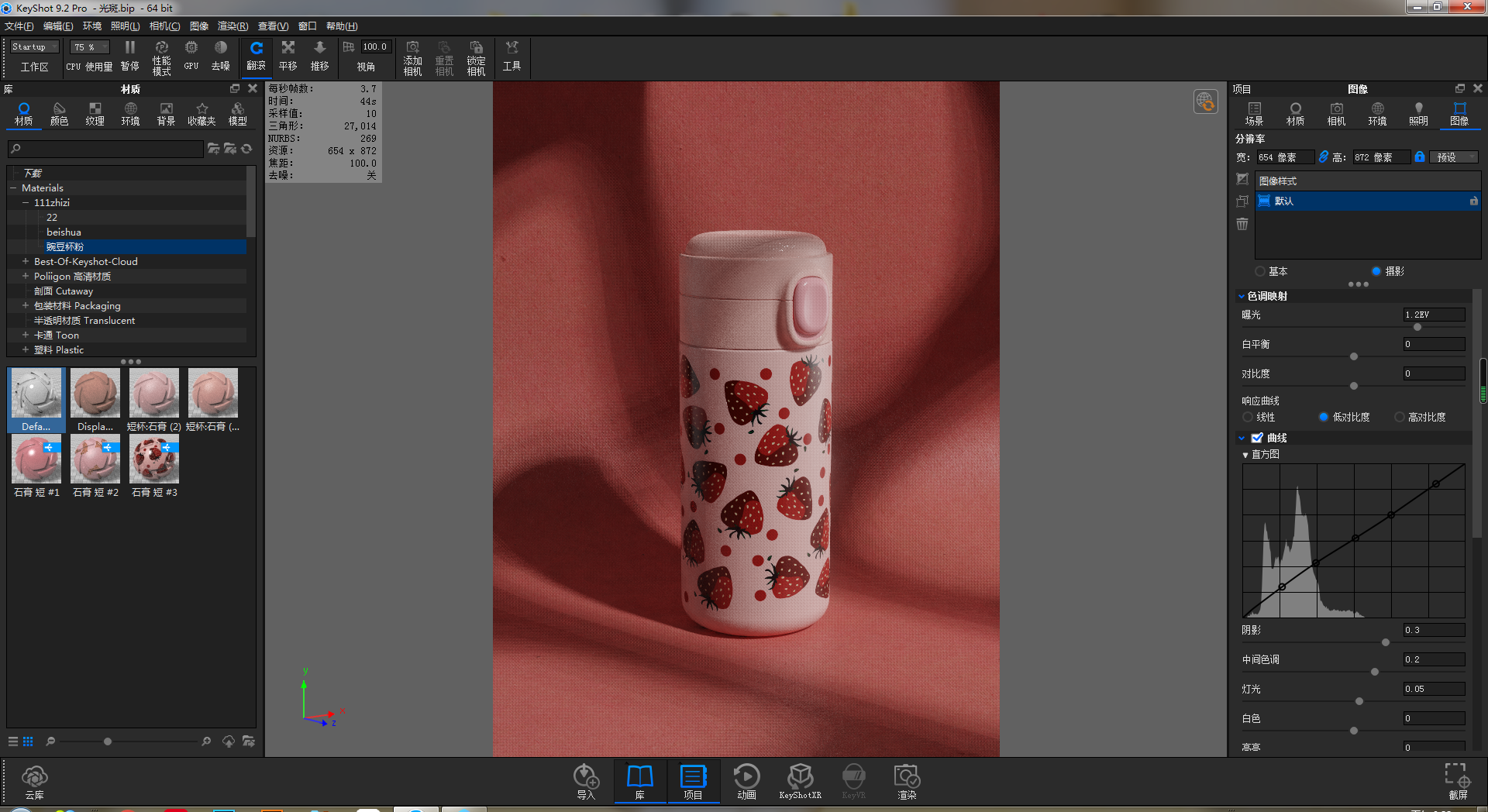

7. Back to the camera angle of view, you can continue to adjust the position of any light you are not satisfied. Highlight the product now.
8. Highlight in hdr
9. Add a shadow to the top of the lid.

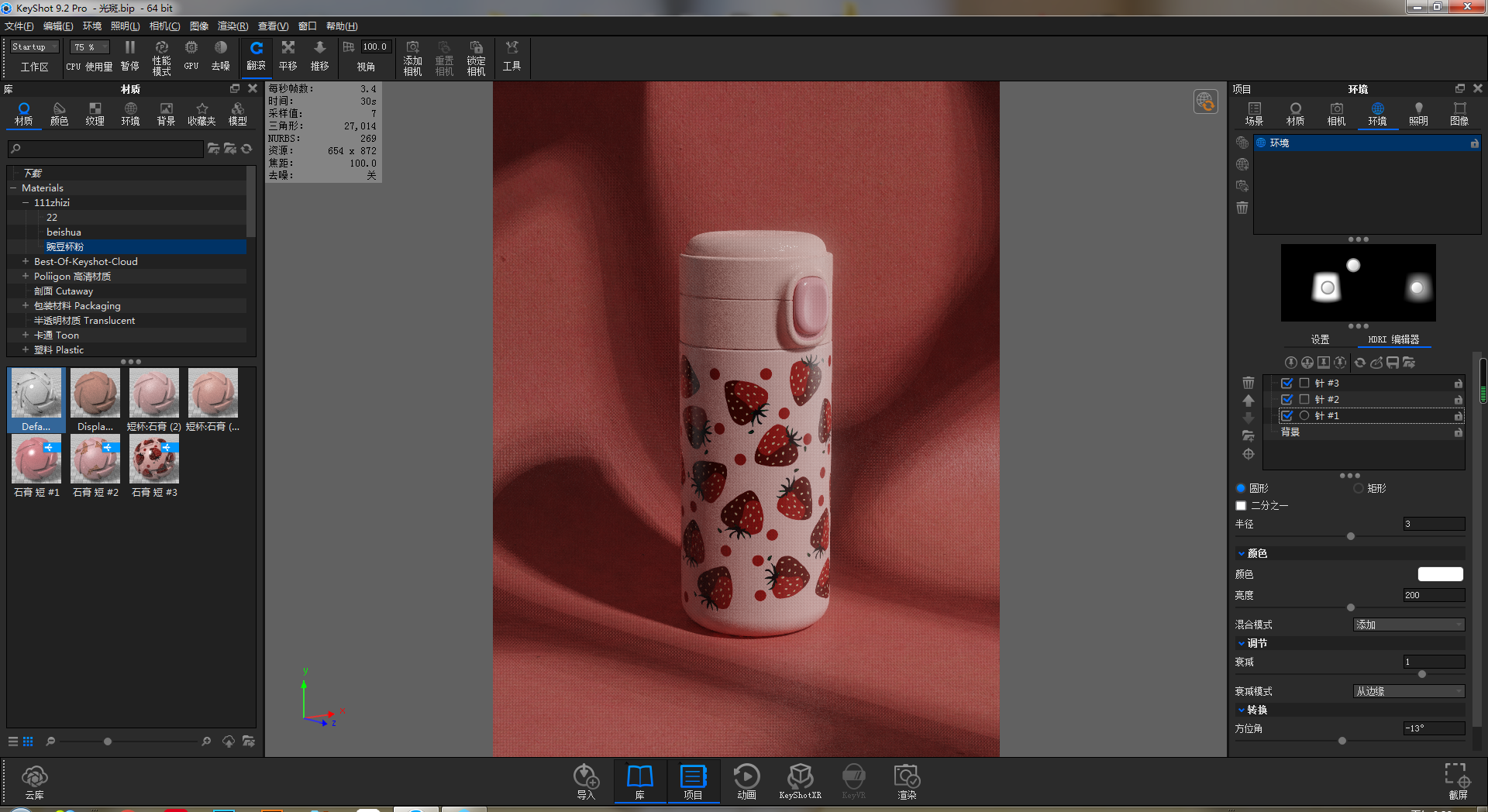

10. Rendering the plot

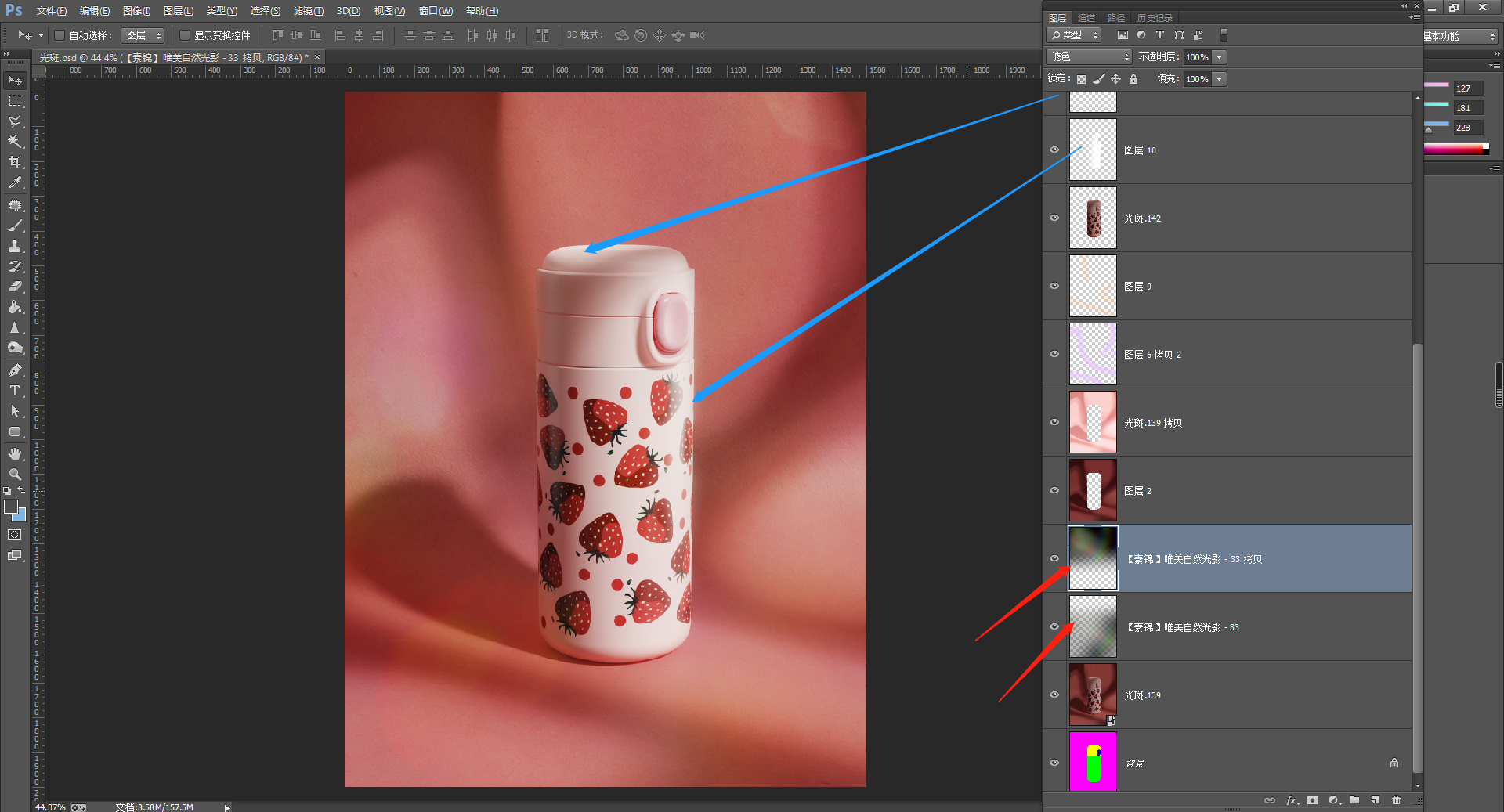

11. The last step is to adjust the contrast of the picture, increase the light spot, and add white soft light to the bright part of the cup height.
