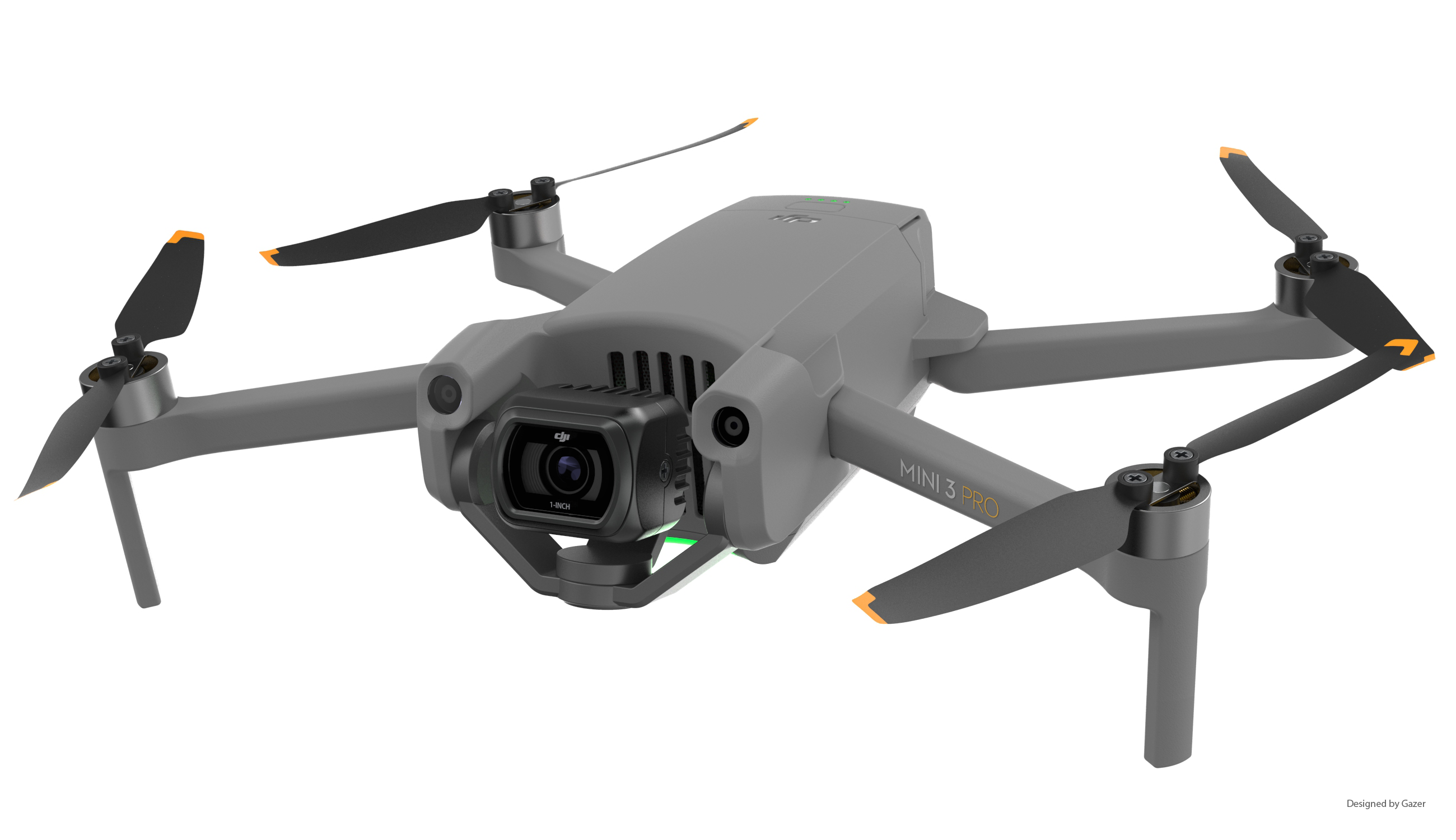

A New mini pro UAV Based on the Positioning Design of DJI Series Products

With a one-inch sensor, it can support vertical row and back beat.

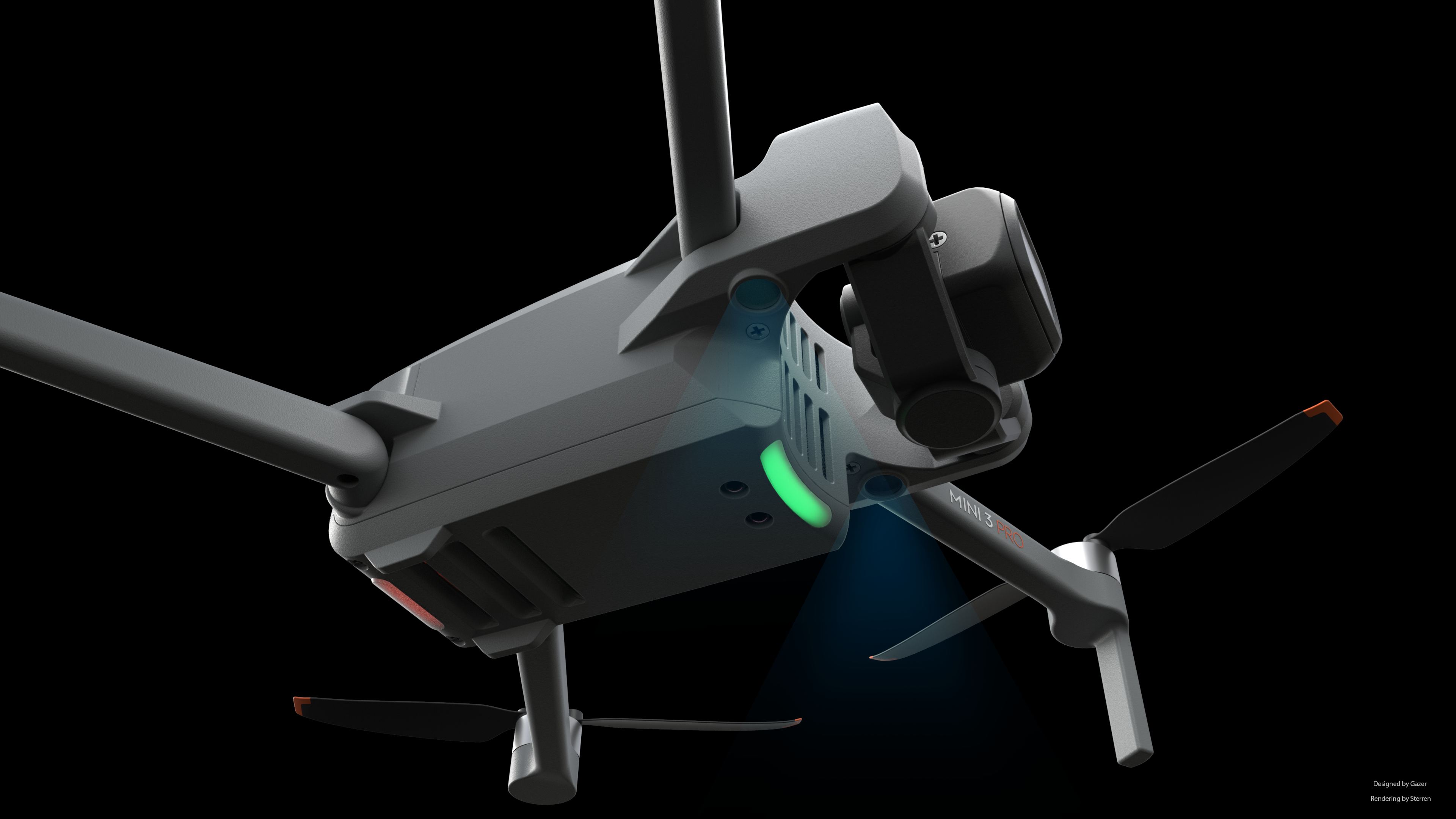

Have front, bottom and back three-way binocular vision to avoid obstacles

The language processing based on the Dajiang Mavic series is more square.

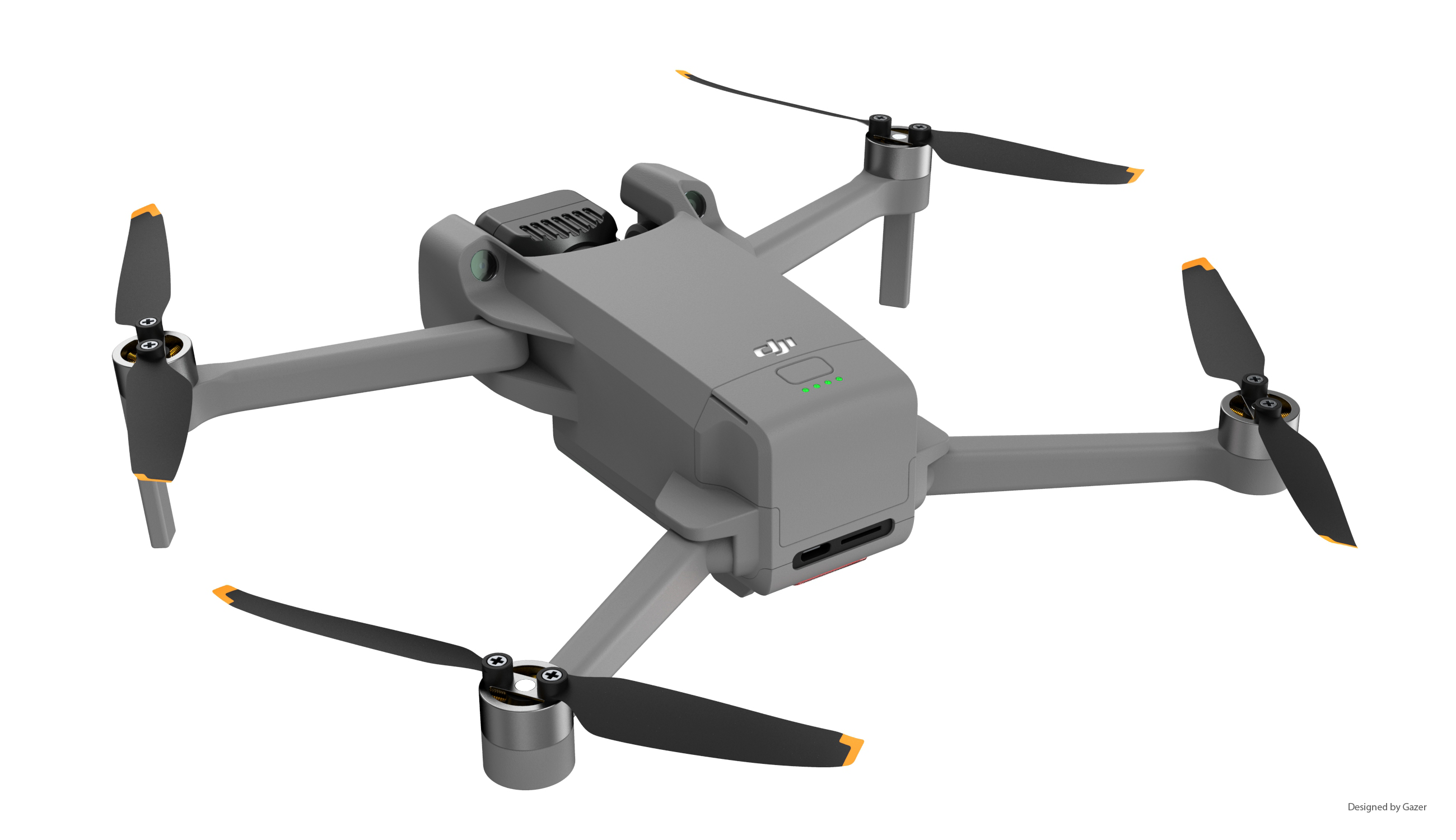

The main reason is that the front and rear visual obstacle avoidance cameras should be as close as possible to shorten the wiring harness, and the rear view cameras need to be as high as possible than the fuselage, which makes it difficult to streamline the outline of this part like Air2.

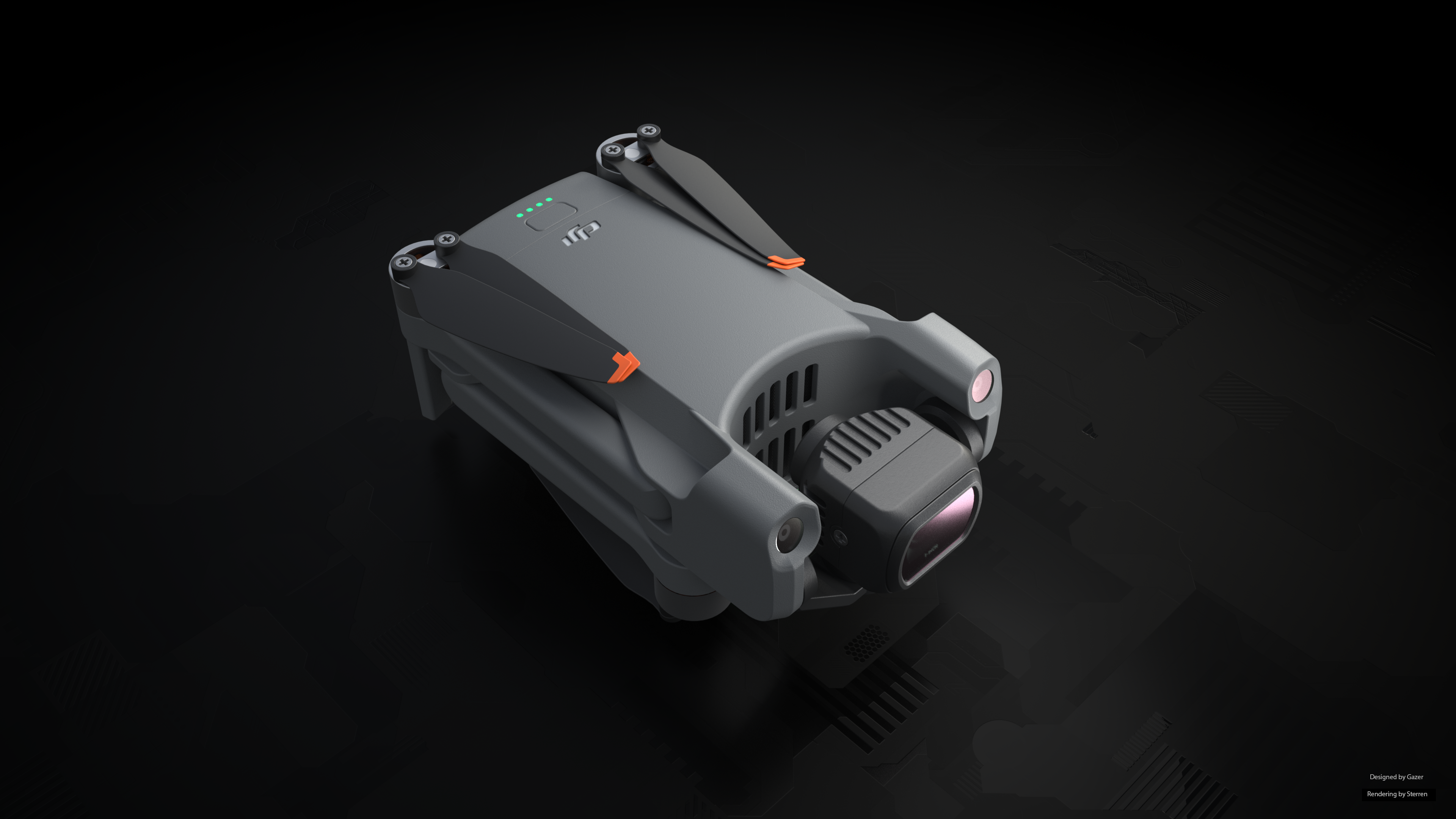

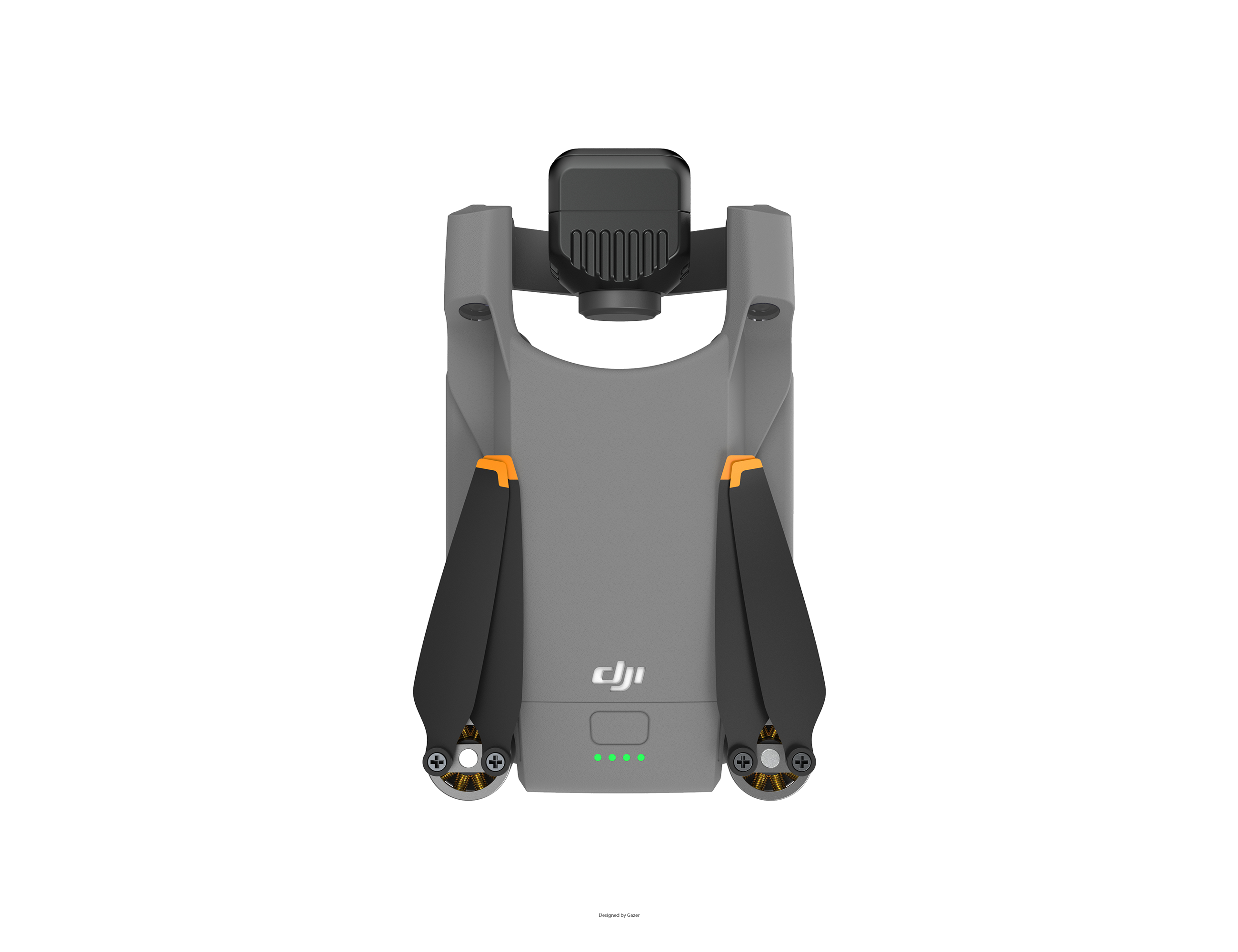

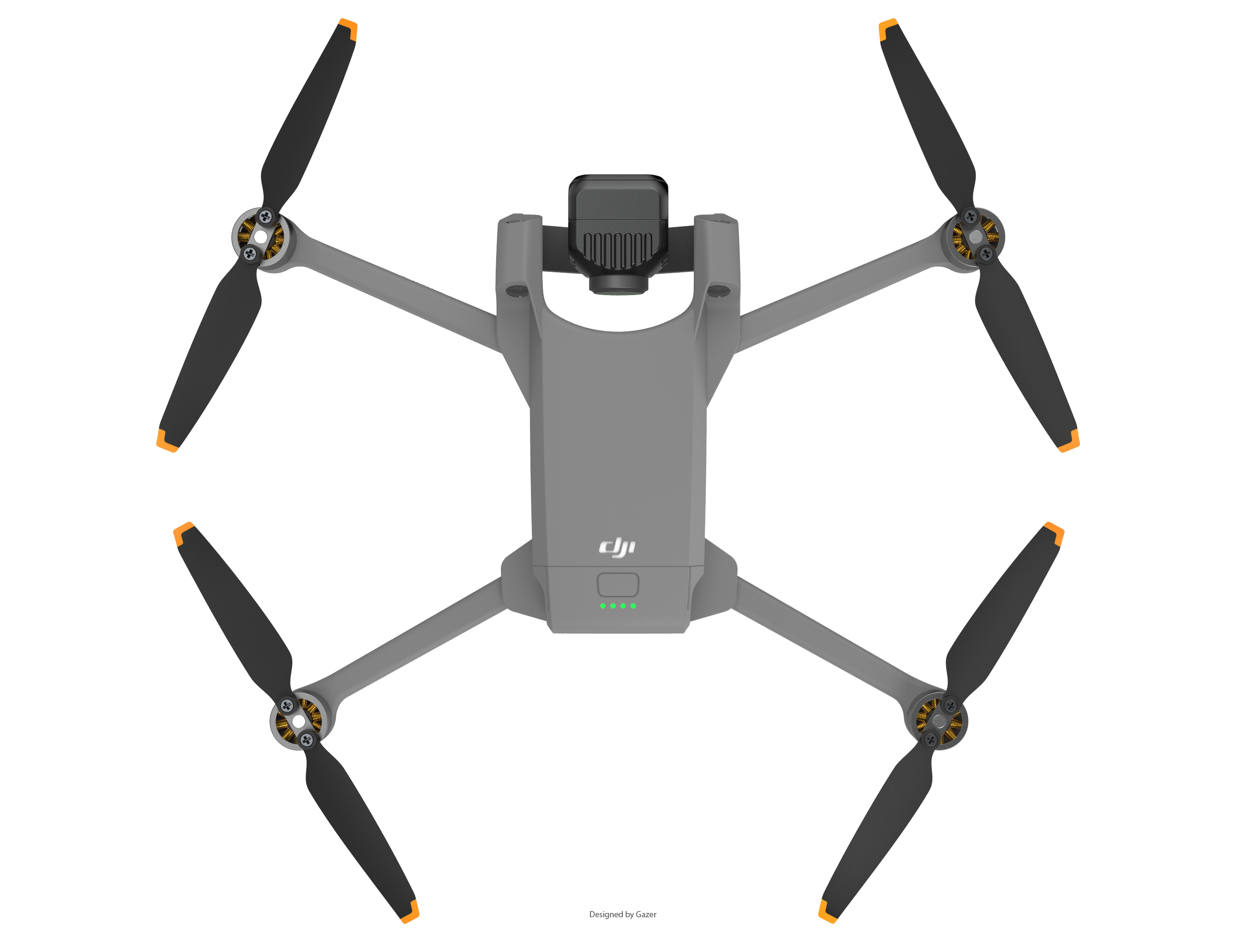

So simply make the overall outline more square. The newly designed MINI PRO storage size is the same as MINI2, but the wheelbase is longer after deployment.
The size of the camera module refers to the one-inch camera module of Air2s.
The gimbal structure was redesigned to support 90 ° vertical row and 90 ° topup.
