Under the background of global resource conservation and green economy development, new energy vehicles are developing rapidly. Charging piles, as the power guarantee of new energy vehicles, are highly concerned by the government and the industry. With the gradual maturity of the entire new energy vehicle industry chain and the gradual release of market demand, the industry will erupt in 2021, but the problem of insufficient structural supply of charging infrastructure and lagging overall scale has become increasingly prominent, making up for shortcomings, charging piles and other supporting infrastructure construction to speed up has become an urgent need.

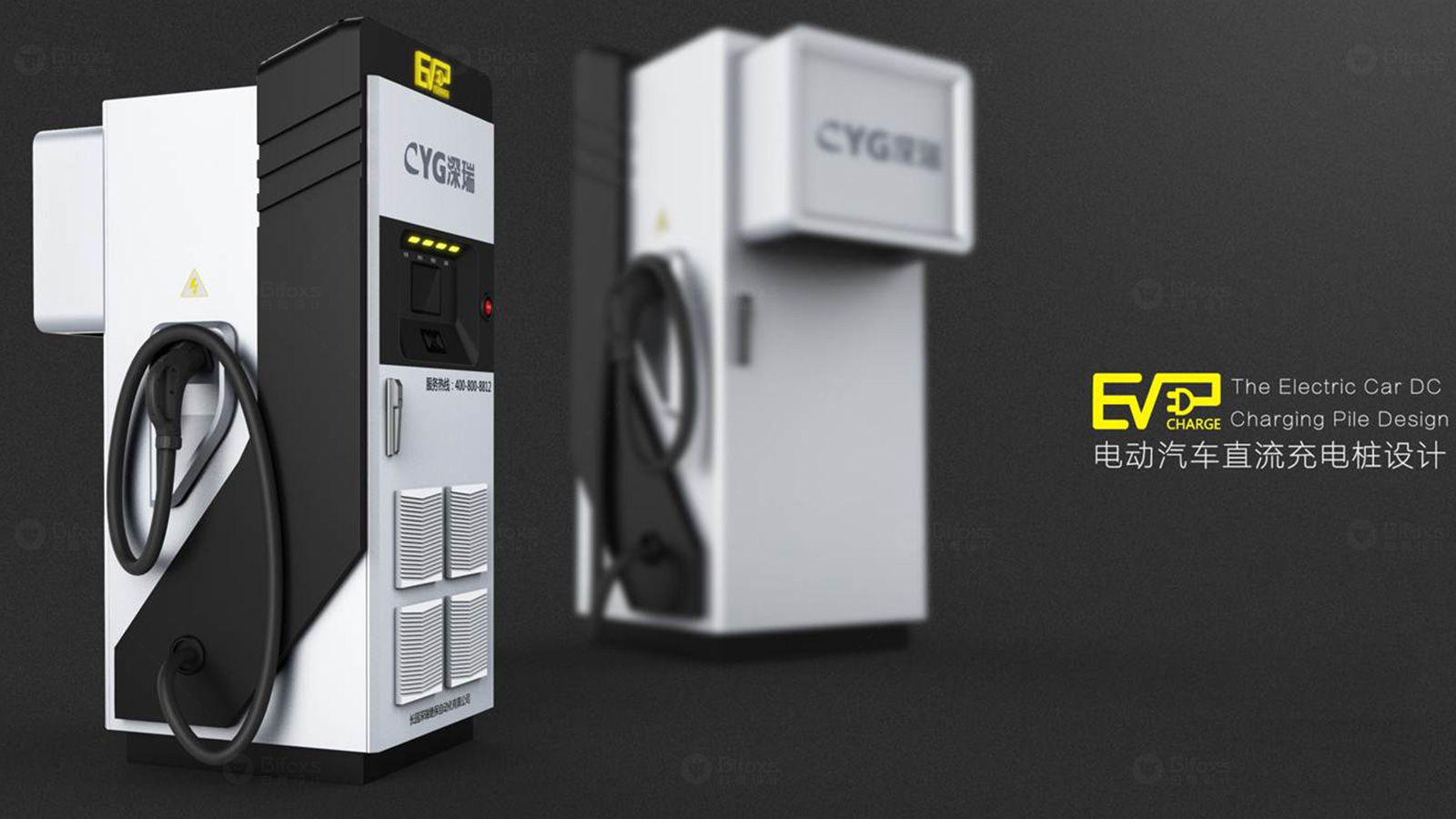

Driven by the rapid development of new energy vehicles and the strong support of national policies, the domestic charging pile industry has developed rapidly, charging piles and other infrastructure have been rapidly popularized, and the charging pile market has shown unprecedented prosperity. The strong demand in the charging pile market also provides a good development opportunity for industrial design companies. In this context, more and more industrial design companies enter the charging pile industry to provide high-quality charging pile design services for charging pile companies, and help companies to create products that are more in line with the market and user needs from the level of industrial design. Improve the market competitiveness of enterprises and win market opportunities. More and more excellent charging pile products have emerged in the market. Let's share with you some successful charging pile design cases from professional industrial design companies. Design of Pillar DC Charging Pile
Pillar type DC charging pile integrates power conversion and charging control, and realizes the integration and intelligence of charging and controlling electric vehicle charging. It adopts an integrated whole machine structure, simple lines, beautiful modeling technology; high-quality aluminum alloy material is selected, IP grade conforms to national industry standards, corrosion resistance, rain resistance, sun protection, sturdy and durable, to meet the needs of outdoor installation; the design conforms to ergonomics, the height of the whole machine is moderate (1.2~1.5m), the human-computer interaction interface design is novel, the LCD touch screen is controlled, and the charging is simple and, diversified design of charging methods to meet the charging needs of different vehicles.

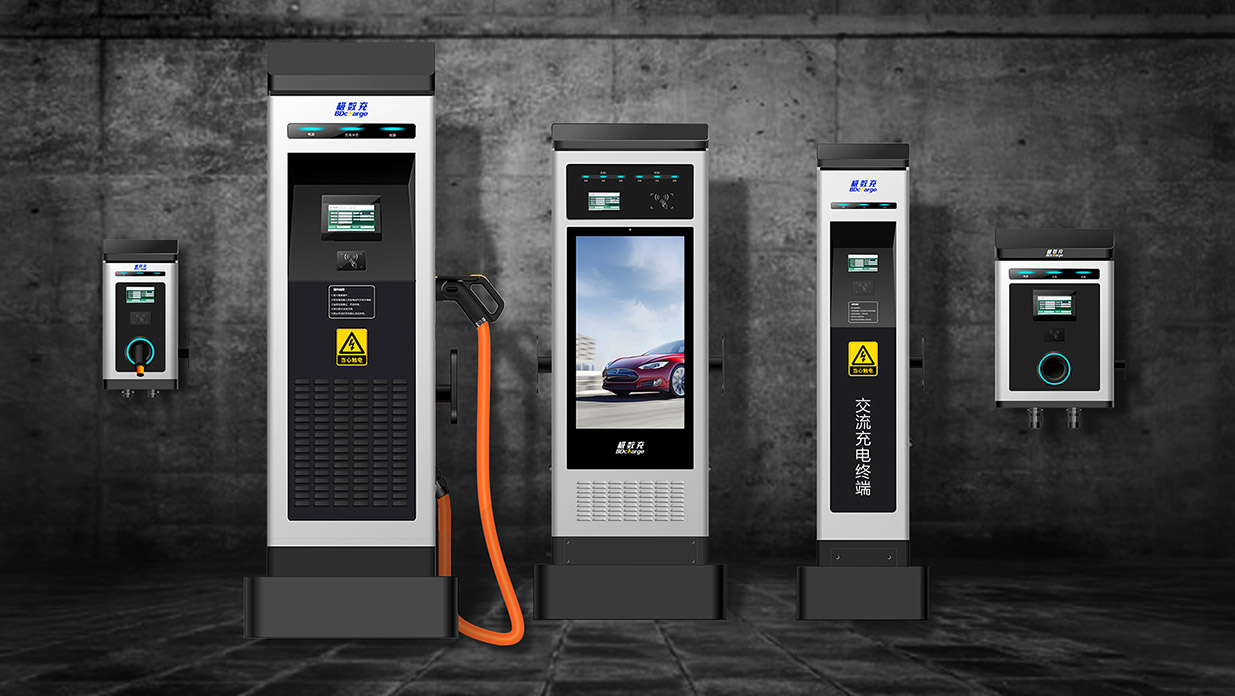

Design serialization of DC and AC charging piles
The charging pile series includes 60KW single/double gun landing DC charging pile, 80KW double gun landing AC charging pile, 30KW single gun wall hanging DC charging pile, 40KW single gun AC gun, 14KW landing double gun advertising machine and other products. They take simple technology as the starting point, with beautiful style and technology, neat and unified, and have strong visual recognition and brand identity. The overall design conforms to ergonomics and is safe and convenient to operate. Sheet metal shell, sturdy and durable; The protection grade IP54 can adapt to various harsh environmental conditions. Intelligent detection of the temperature of the whole machine, automatic start and stop of the fan, to ensure safety; Support a variety of payment methods, convenient and flexible networking.

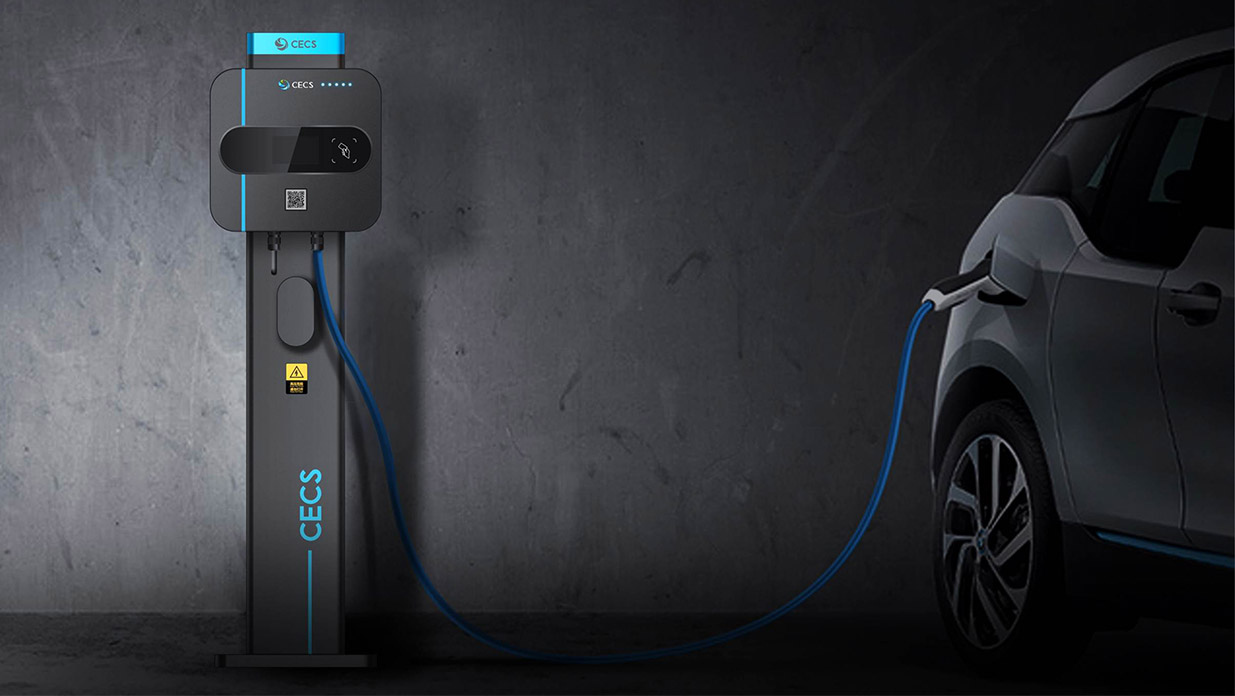

Design of Floor Type AC Charging Pile
In the design process, the designer makes full use of new technology to provide conceptual support for new energy charging piles. The simple and technological appearance design perfectly presents the abstract new technology, and the humanized operation interface design and lighting design provide users with Safe, comfortable and convenient charging experience.

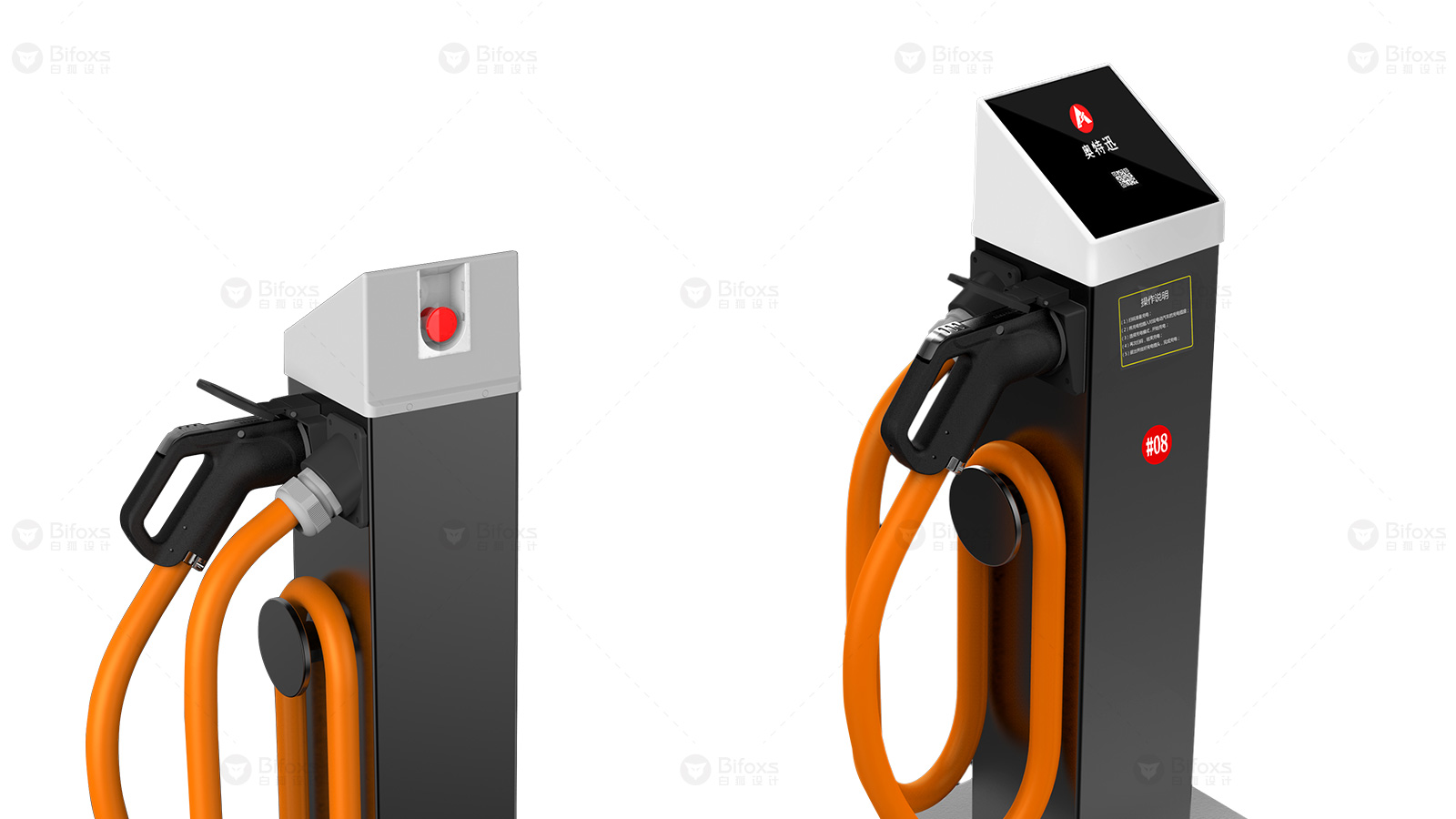

Design of Floor Type DC Charging Pile
Under the premise of fully studying the series of national standards such as GBT 20234-2011, the designer fully considers the height of the installation position and the stress point in the man-machine according to the customer's needs. The design of the handle conforms to ergonomics, making the product more convenient and easy to operate. In the waterproof level, the safety of outdoor electricity is fully considered, and the design is strictly in accordance with the national standard protection level. In the selection of materials, it will not fade after 10 years of outdoor use. The overall design is neat and beautiful, sturdy and durable, and the user is comfortable.

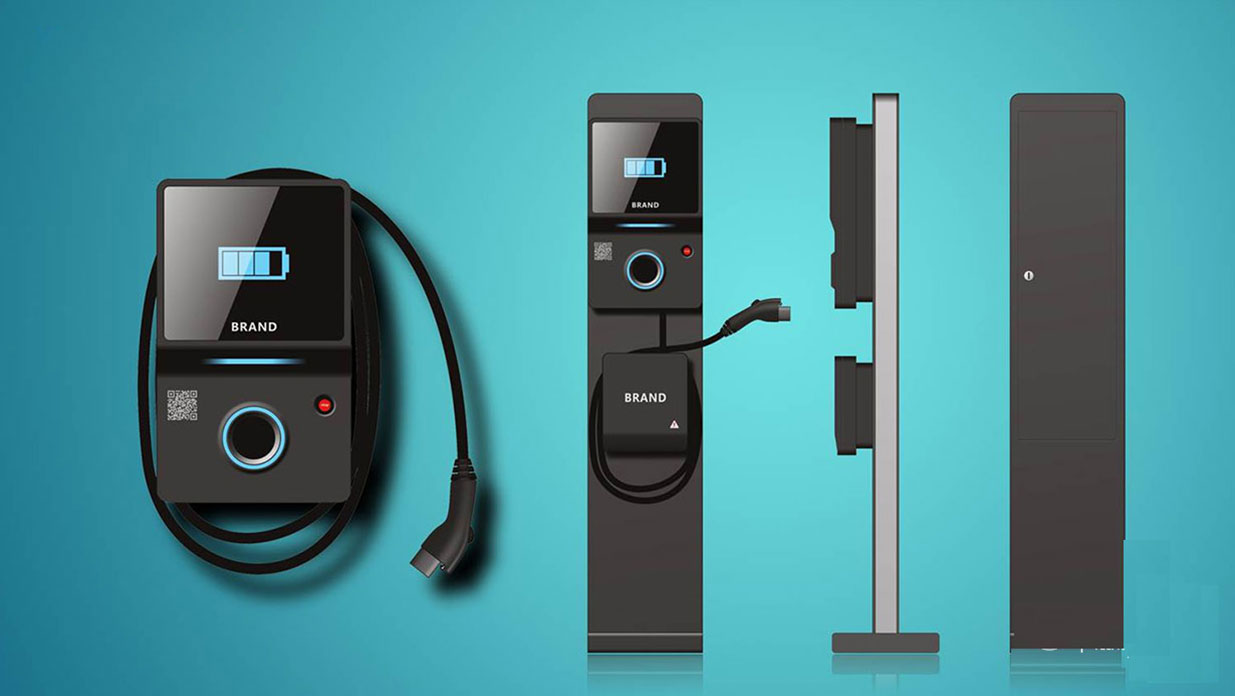

Design of Wall-mounted Charging Pile
This wall-mounted charging pile is designed to be light and stylish, with exquisite surface texture, giving people a natural and comfortable aesthetic feeling; the design conforms to ergonomics, the height of the human-computer interaction interface is reasonable, and it is easy to operate; it can support various installation methods such as wall-mounted and column-type, Easy to install; equipped with emergency stop switch, emergency stop, design with protection functions such as overvoltage, undervoltage, abnormal charging, overload; IP54 protection level, sturdy and durable, can adapt to outdoor environment.
