This project is a fire-fighting robot designed by White Fox for Tuxun Technology. It is used for fire fighting and rescue at the scene of large-scale fire accidents, hazardous chemicals, toxic and harmful gas leakage, combustion, collapse accidents, fire fighting and rescue, and large-span The reconnaissance of the plant collapse accident and other sites replaces firefighters to enter the high-risk fire scene.

Design of fire extinguishing robot,Three prevention design,Appearance design,Structural design,

Project Background and Project background

This project is a fire-fighting robot designed by White Fox for Tuxun Technology. It is used for fire fighting and rescue at the scene of large-scale fire accidents, hazardous chemicals, toxic and harmful gas leakage, combustion, collapse accidents, fire fighting and rescue, and large-span The reconnaissance of the plant collapse accident and other sites replaces firefighters to enter the high-risk fire scene.

Design of fire extinguishing robot,Three prevention design,Appearance design,Structural design,

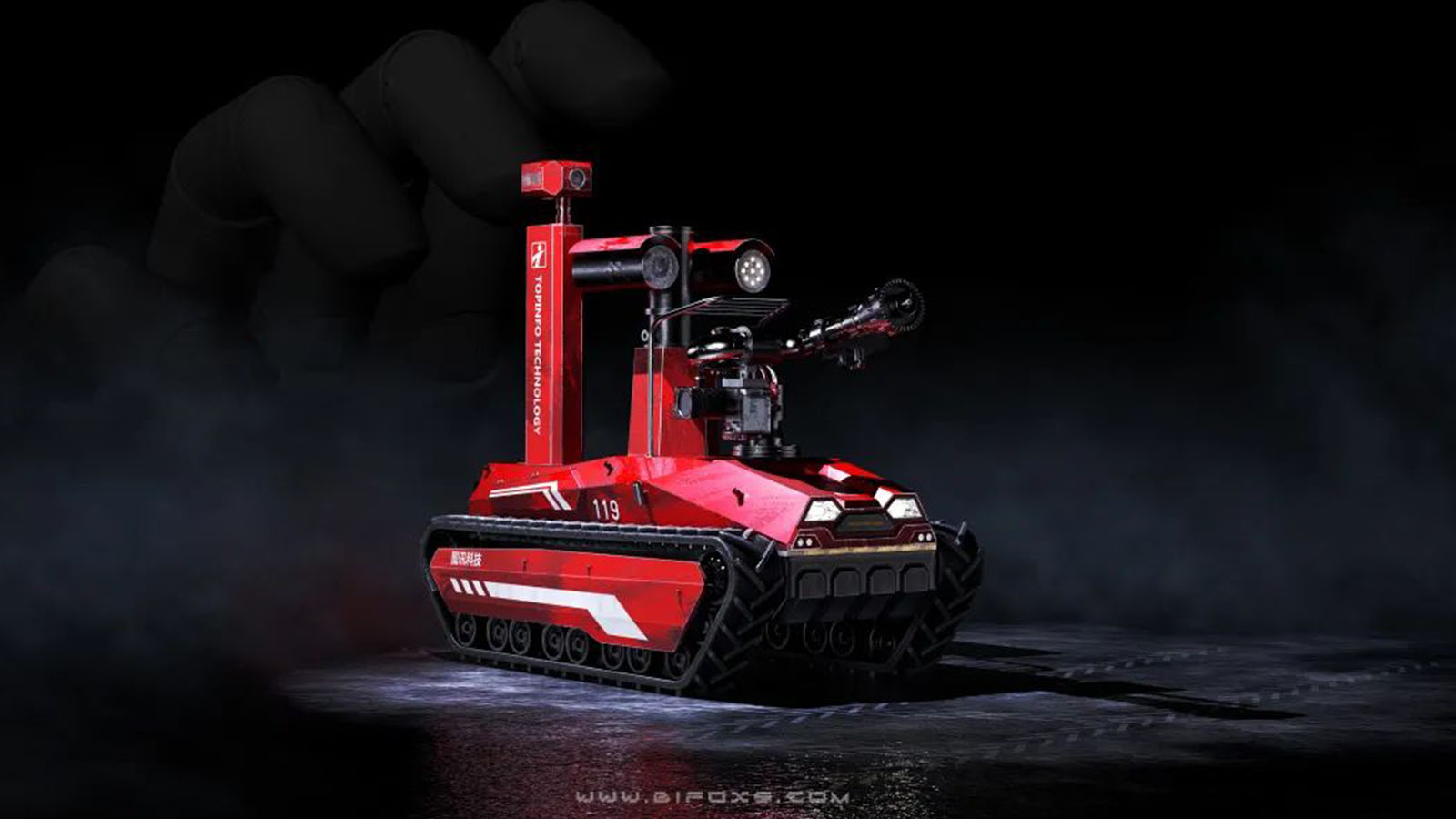

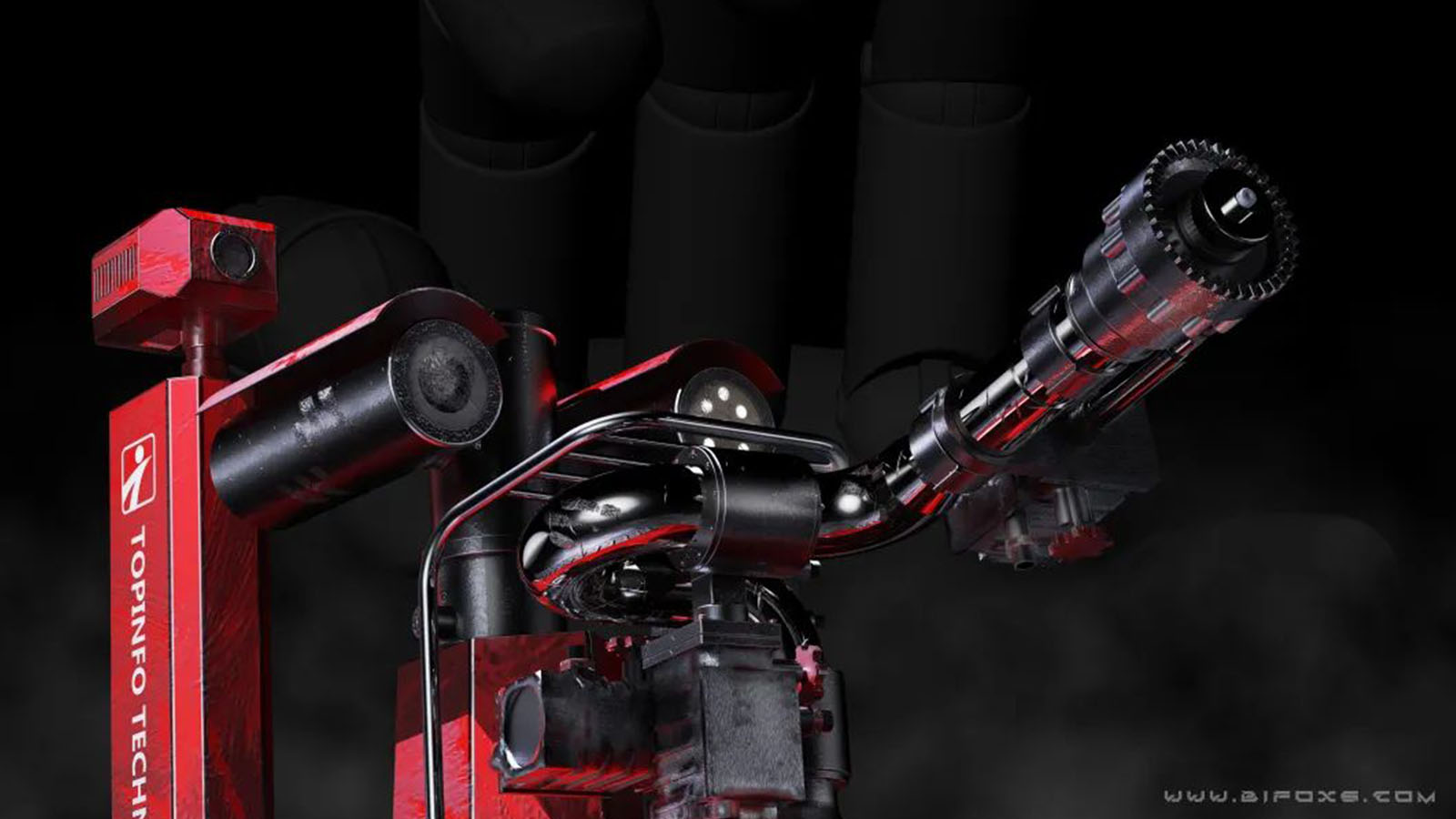

This universal crawler-type explosion-proof fire-fighting and fire-fighting detection robot is mainly composed of a control box (remote control), a robot explosion-proof chassis, a vehicle-mounted large-flow multifunctional water cannon, vehicle-mounted gas detection, and vehicle-mounted video acquisition equipment.

Design of fire extinguishing robot,Three prevention design,Appearance design,Structural design,

Creative Expression, Creative ex-pression

For a long time, many things that have plunged the world into chaos, those seemingly unrelated disasters, at first people would think that those disasters were accidental tragedies, but in the darkness that no one can see, there is an invisible big hand that is manipulating everything., Gradually sober people in order to survive and confront, began to create a machine......

Design of fire extinguishing robot,Three prevention design,Appearance design,Structural design,

Function Definition, Function definition

The fire-fighting robot is suitable for fire control, decontamination, cooling and environmental information collection at some fire sites. The fire-fighting robot has the characteristics of explosion-proof, strong obstacle-crossing ability and strong dragging ability.

Design of fire extinguishing robot,Three prevention design,Appearance design,Structural design,

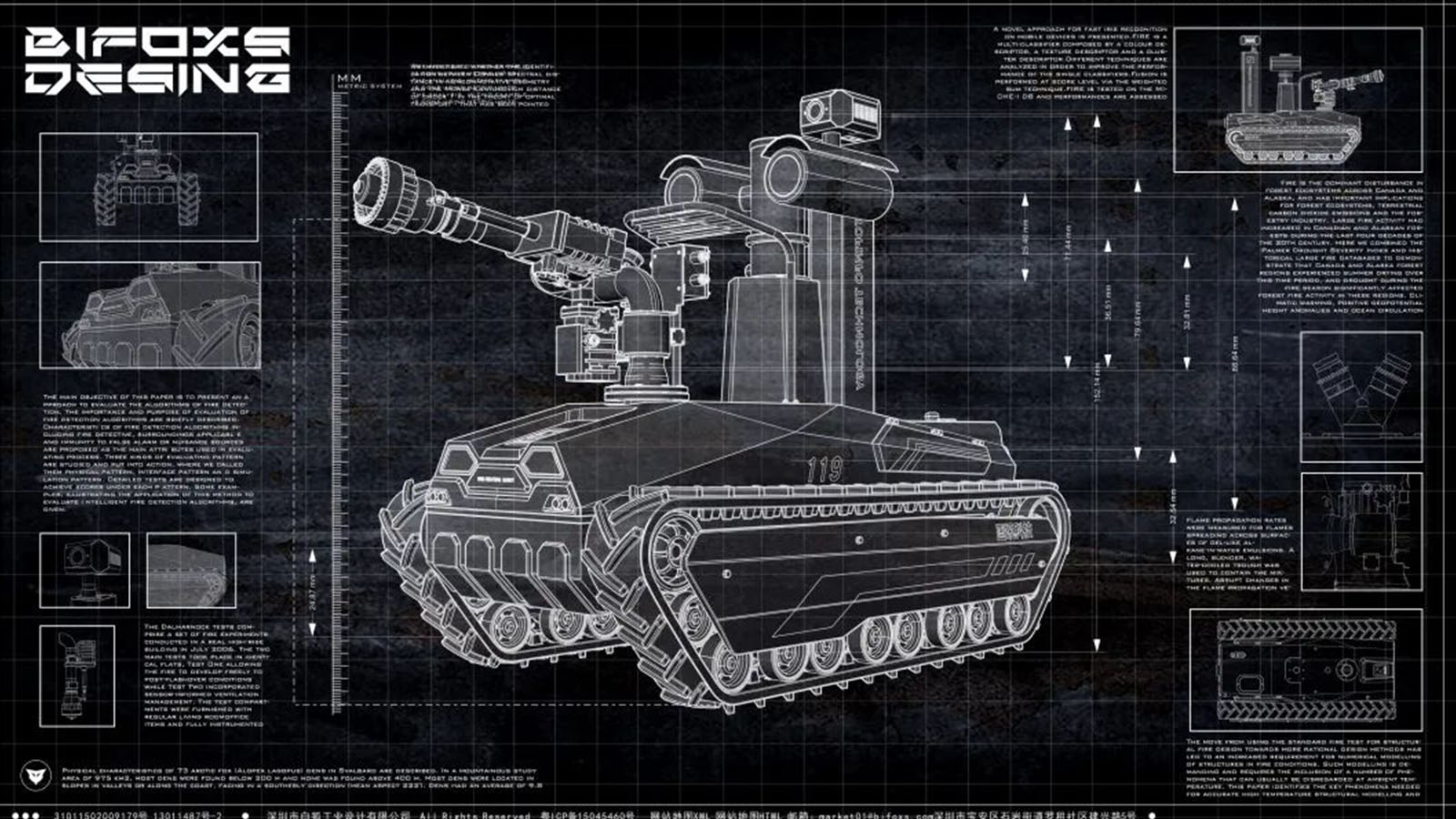

The overall appearance of the product is hale and hearty. The body shape of the ZBL-8 × 8-wheeled infantry fighting vehicle is extracted. The integral welded plate structure is adopted to realize a large number of linear cutting surface designs.

Design of fire extinguishing robot,Three prevention design,Appearance design,Structural design,

The front face is similar to the trapezoidal raised guard plate and matrix headlights, which further strengthens the product's sense of toughness, protection and quality; the internal three-compartment distributed layout and the external tooth-type guard plate bring high-strength anti-collision and explosion-proof effect And rapid heat dissipation capacity; special herringbone engineering rubber crawler, equipped with high-efficiency planetary reducer, 6 sets of suspension shock-absorbing crawler system, bring strong terrain adaptability.
