One square meter water quality monitoring station (boring conventional sheet metal cabinet design)
One square meter water station means that the projected area of this equipment shall not be greater than one square. This is a rule in the industry, for example, there are 2 square meters of water stations, 4 square meters of water stations and so on. This water station is usually equipped with a cement base below it. The installation of this one requires a construction team. It is usually arranged in rivers, rivers, lakes, wetlands and other places. It is generally remote and will not have a direct relationship with our ordinary consumers.
This is not a high-rise design project, but we routinely encounter the most common sheet metal chassis design in the enterprise, and it is basically a horizontal, flat and vertical design scheme with sheet metal bending as the main design scheme. Such projects often appear in our daily design work, which is very different from the design schemes of various scientific and technological equipment in our station.
Generally speaking, this design scheme has made great progress in the traditional square square square outdoor cabinet, and of course there is a certain gap with our other more advanced water station designs. There is a certain gap between this and the positioning of the project itself, and it is also affected by factors such as the use environment and manufacturing process.
Outdoor stations generally have strong waterproof requirements, and have relatively strong requirements for the design of the door opening structure. There are basically light colors (dark colors absorb heat in summer, and the internal temperature is too high to be suitable)

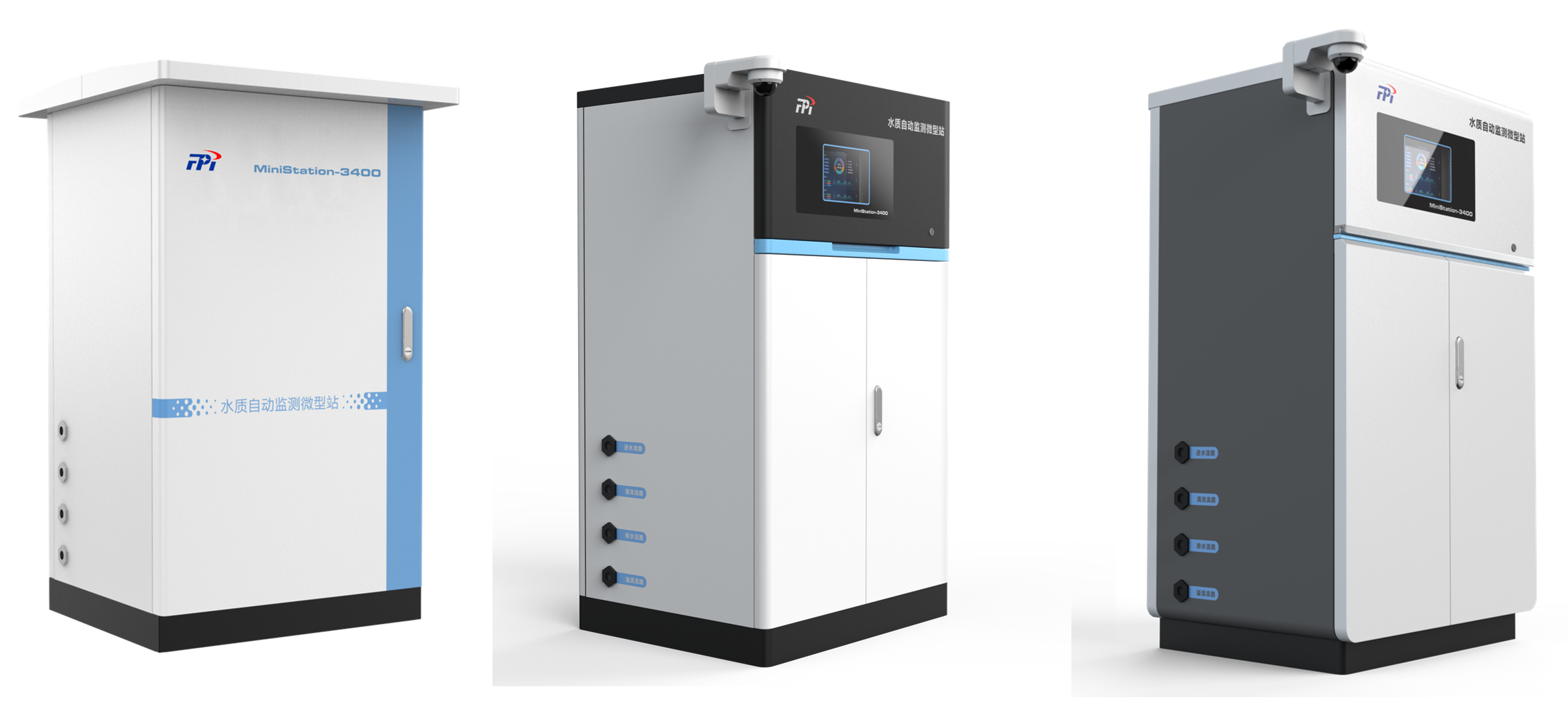

Sheet metal outdoor cabinet design is boring, are constantly exploring new possibilities.
Also thanks to the structural brothers with the design.

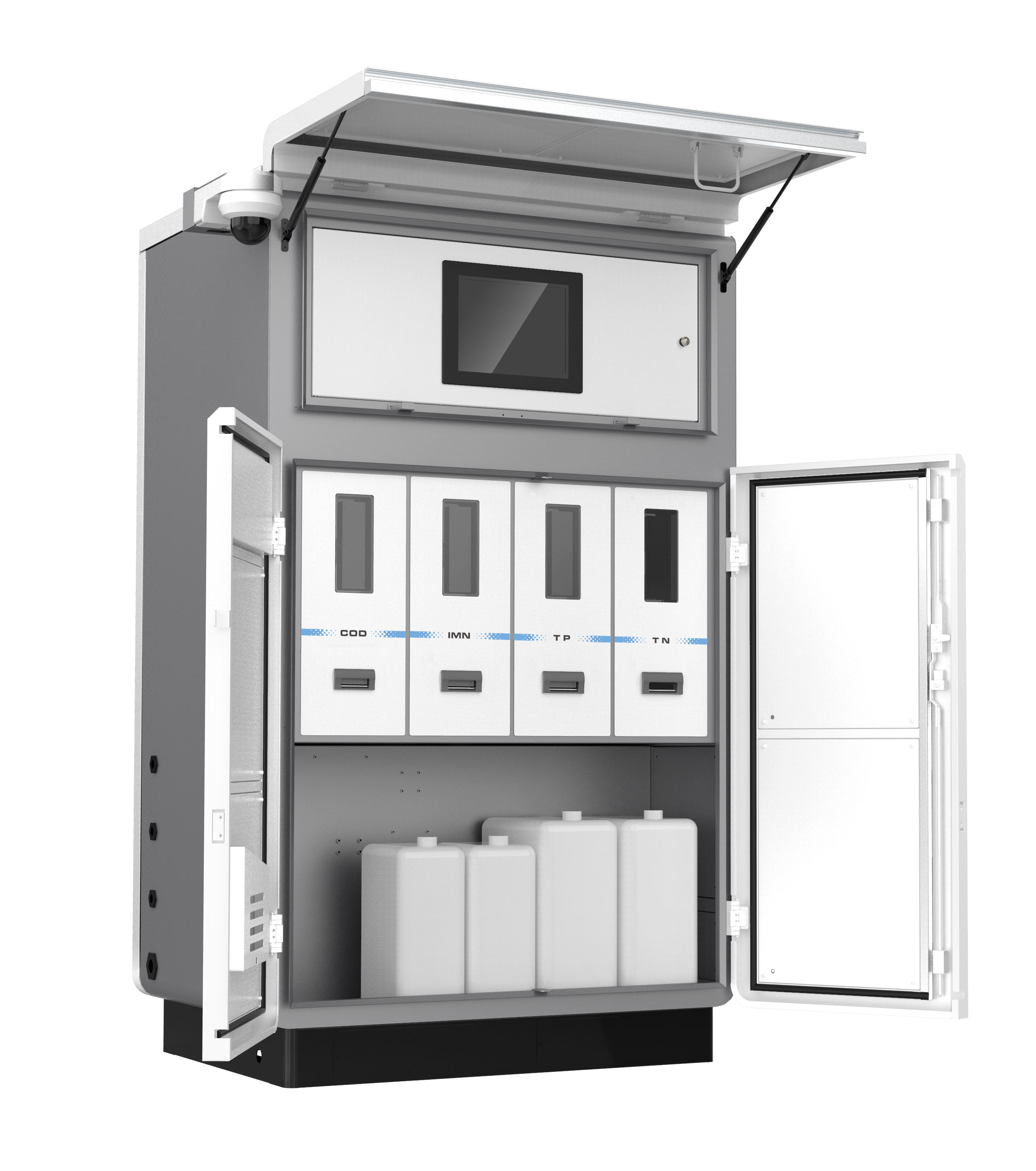

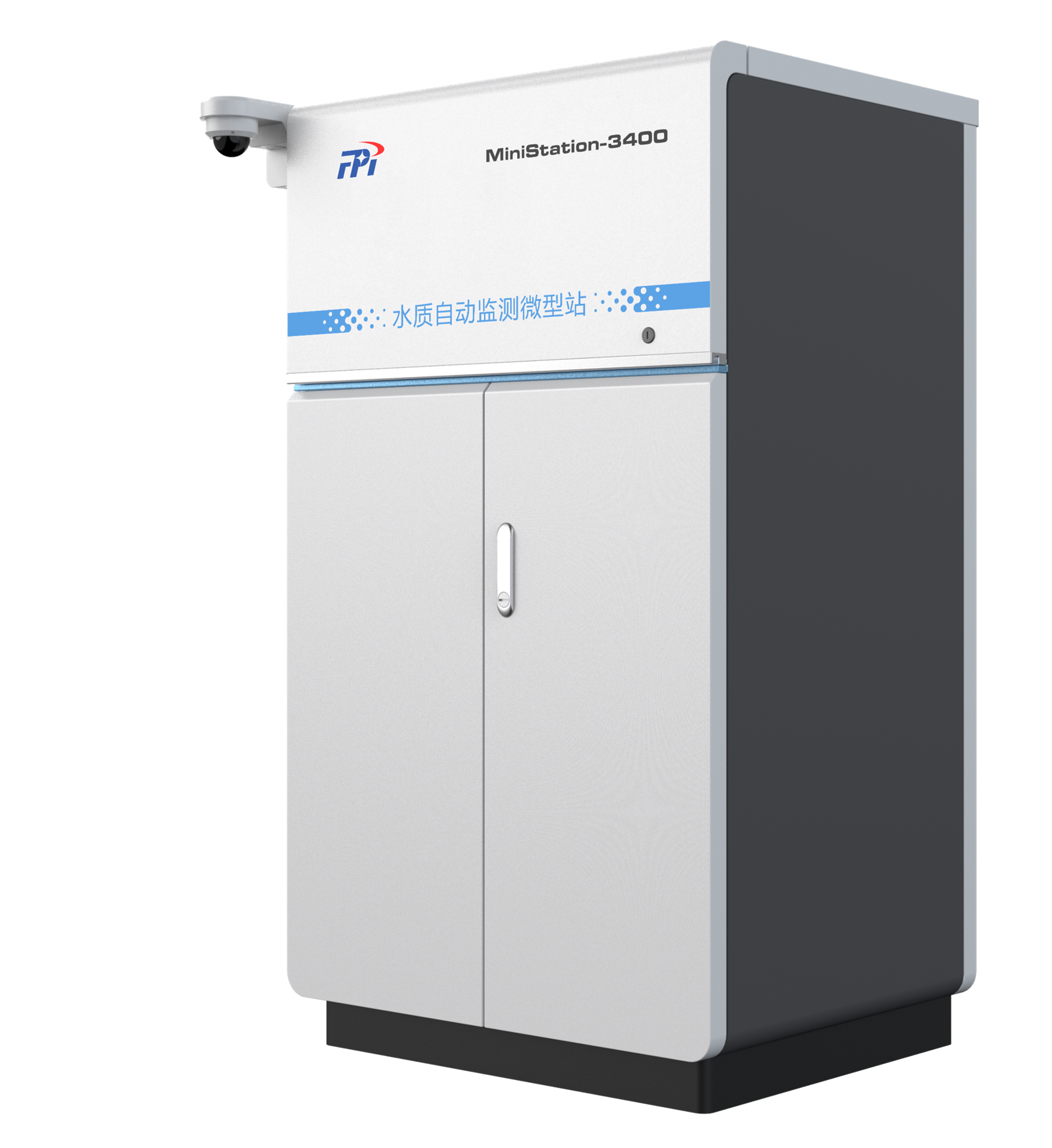

Final Selection Design.
The upper part is open horizontally, the side is gray, and the front and back are matched with light colors.
Top and bottom sides R50 rounded design.

No support rods were drawn during the draft. The detailed design is supplemented.

Generally, the design atmosphere is basic/regular, upgraded/cross-over, etc;
Among them, the original window leakage can increase the color value for the design. But then I thought it was better to put it directly inside.
The reason is 1: I have to make a window and waterproof when I put it outside, which increases the difficulty and cost. Secondly, it is basically maintained when it is used, that is, it is open, and it is not good to put it outside, for example, it is not good to attract mosquitoes when it is lit in the middle of the night in the wilderness (I feel it is running, and the screen should be standby); Based on other factors, it is not necessary.
In addition, the cameras are all necessary, who is maintaining them, and whether anyone is damaged, etc., all need to be monitored, although the height of the whole machine is about 1.8M.
The camera base needs to be designed by itself, including routing and fixed forms.

Cabinet internal conditions
The upper part of the analyzer, the lower part of the waste liquid or other reagents;
The top operation function area, the display panel can be opened and maintained behind.
In addition, the whole night road pipeline and motor module are all rear-mounted, that is, we require that the door be opened and still in a clean and refreshing state.

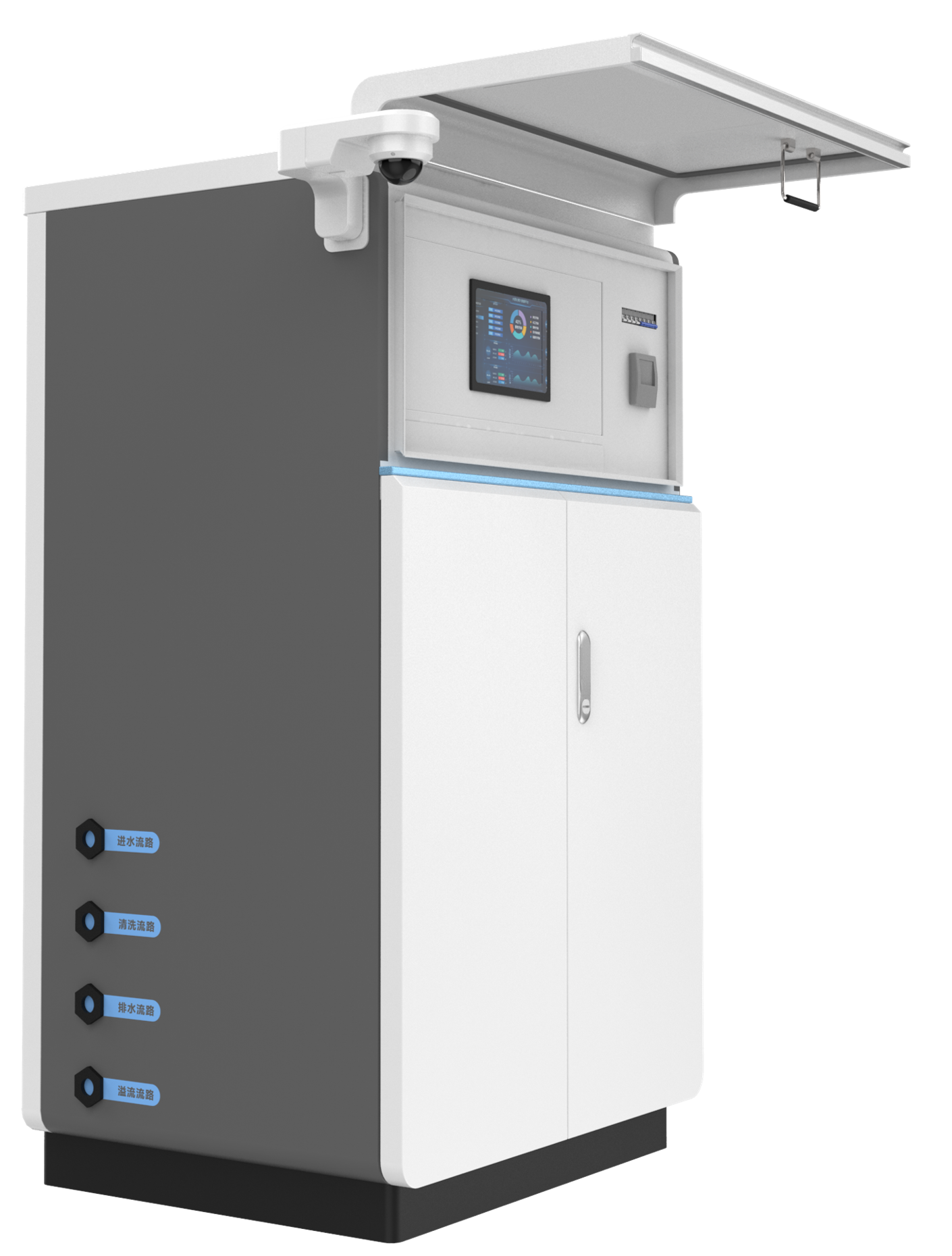

The reason why the upper part is opened like this is to protect it from rain when it rains. (Some manufacturers have made a canopy. But it feels very abrupt.)
The height at the time of opening is controlled. At the beginning, ergonomics was based on the height of the male (raised hand) in the statistical table.

Trial prototype. The scene looks better.
