Metis -- nano hydrating instrument (this product is a beauty hydrating instrument designed for Guangdong qiangli company when he was the creative director of new bron design company)
The horizontal and vertical analysis of existing products shows that there are many hand-held hydrating instruments in the market at present. If we make innovations, we need to start with other structural methods and finally adopt the structural principle of flip mobile phones. Design is not only the pursuit of subversion and innovation, but also a kind of innovation.

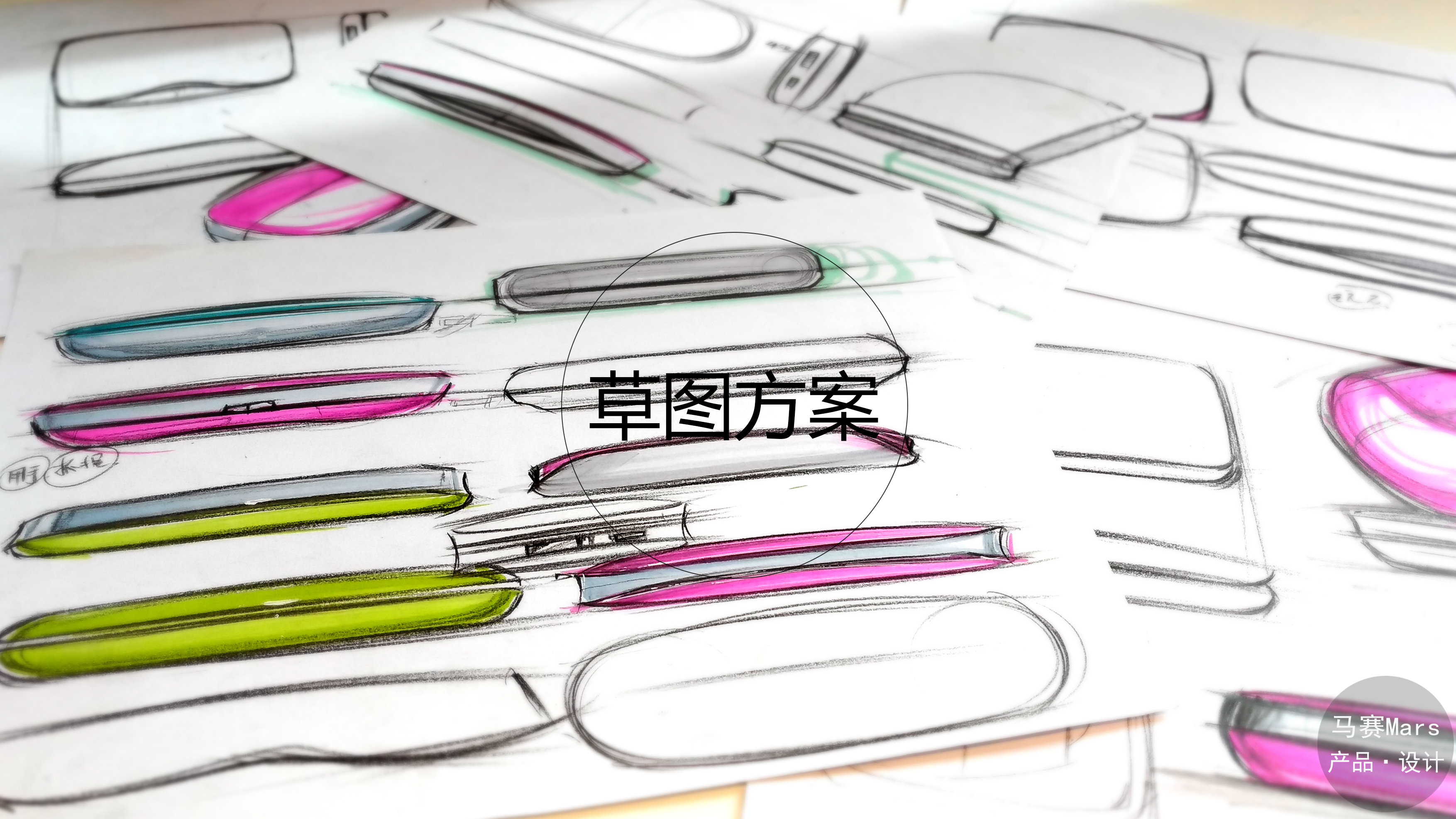

The sketch scheme starts with the side shape and deduce the best combination of the parting line and the whole. (Need to consider man-machine, structural form, disassembly method, material, etc., with the in-depth gradual thinking of the plan.)

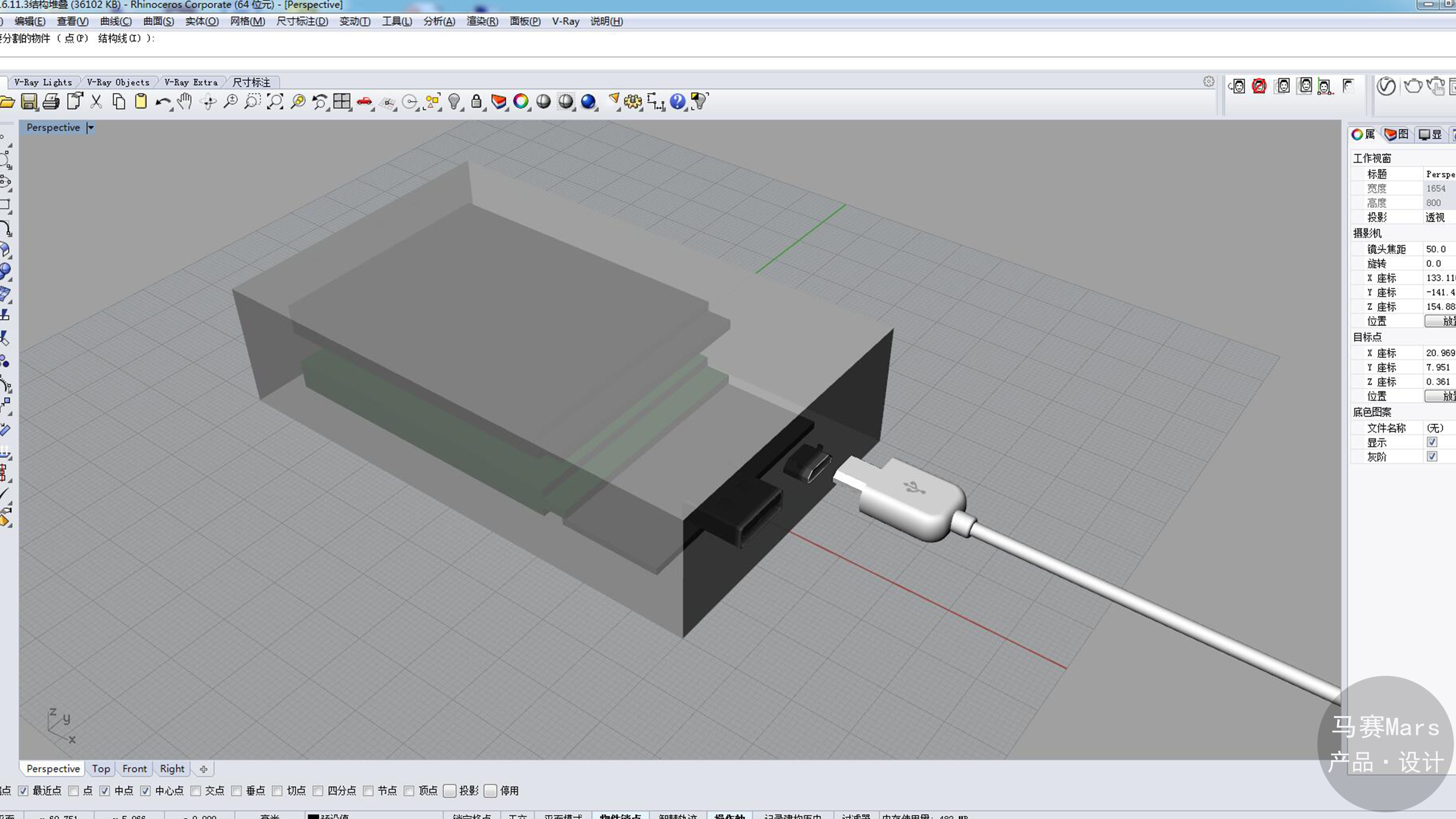

Appearance modeling, quickly build the internal stack and the approximate size given by the customer, and understand the approximate size ratio (if necessary, use the form of paper mold to make it more intuitive)

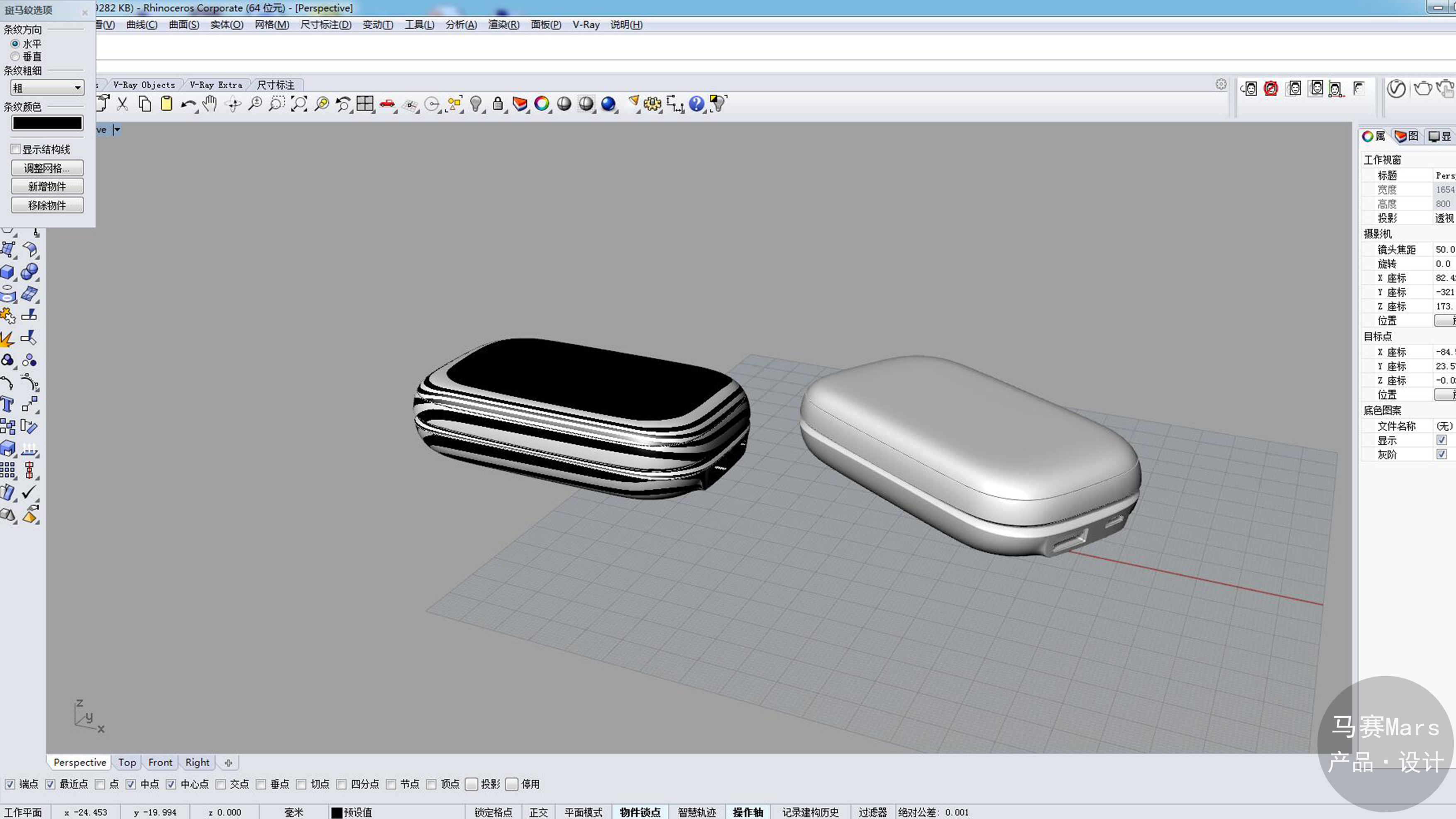

The minimalist surface modeling starts from the curvature of the surface of the appearance, starts with the large whole, and then depicts the details. (Use zebra analysis command to check whether the curvature of the surface is smooth)

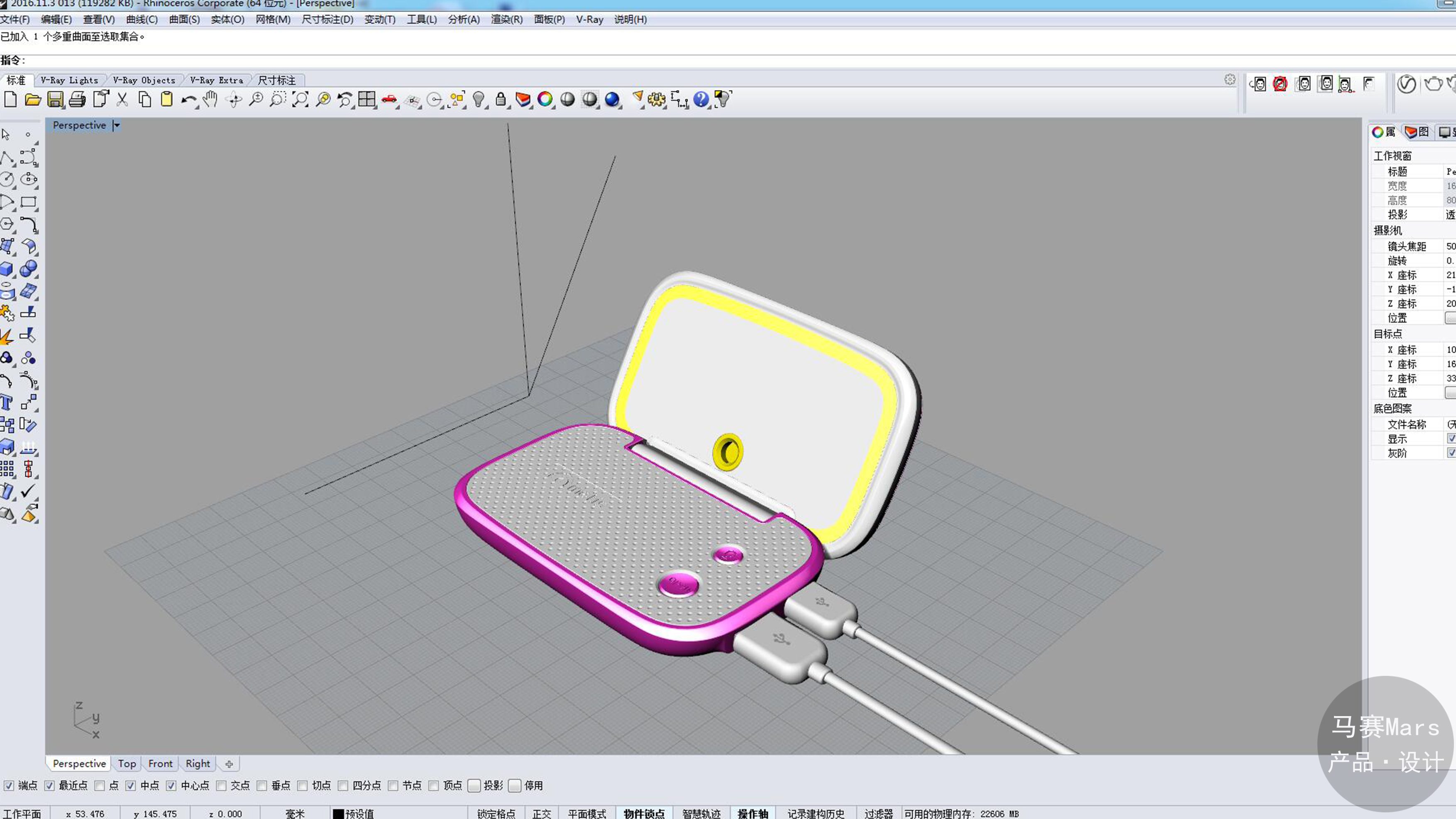

Final 3D model

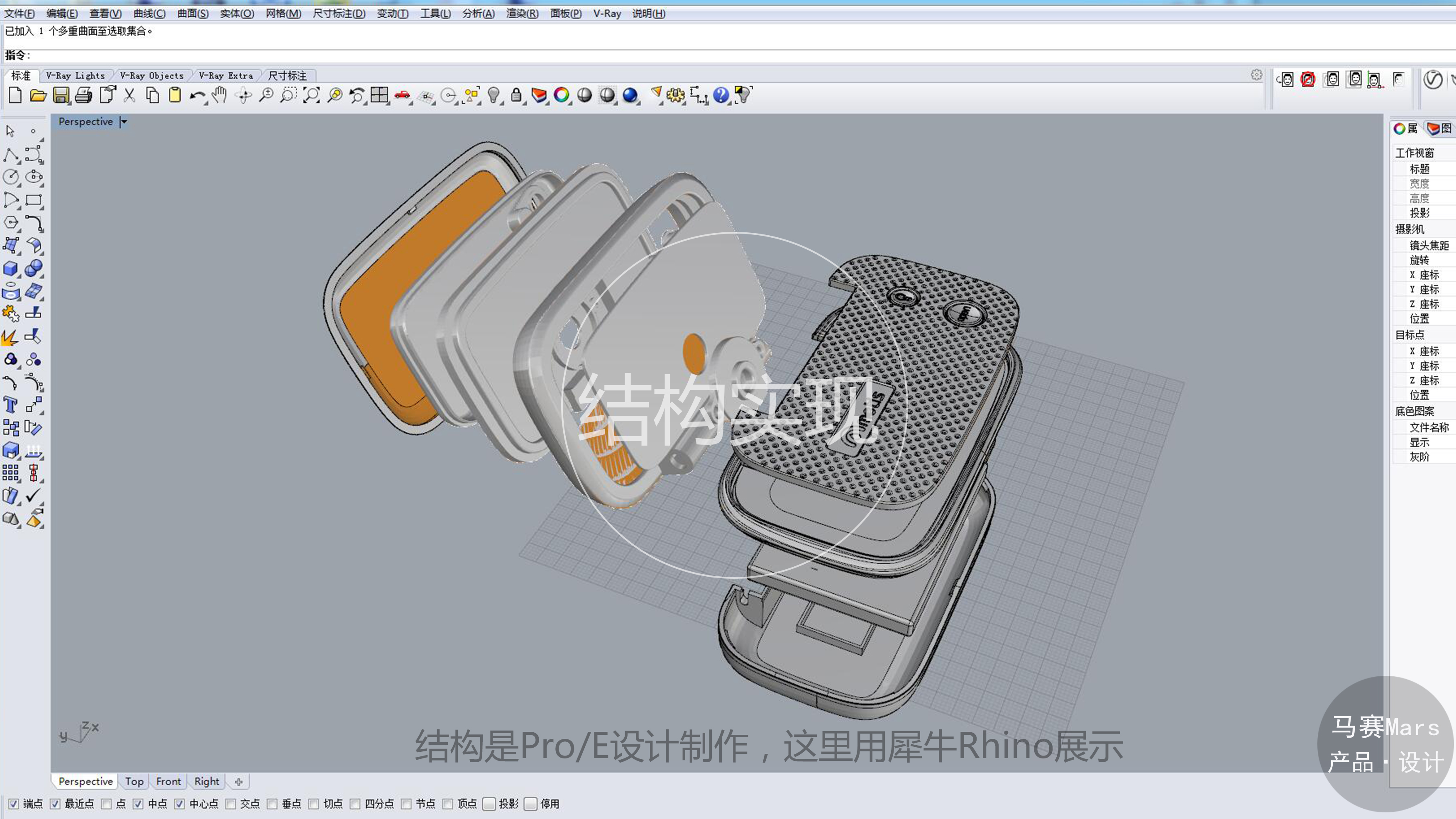

The structure is designed and made by Pro/E, which is displayed here with rhinoceros Rhino.
Effect diagram, different angles, different color matching display (personal favorite black and gold)

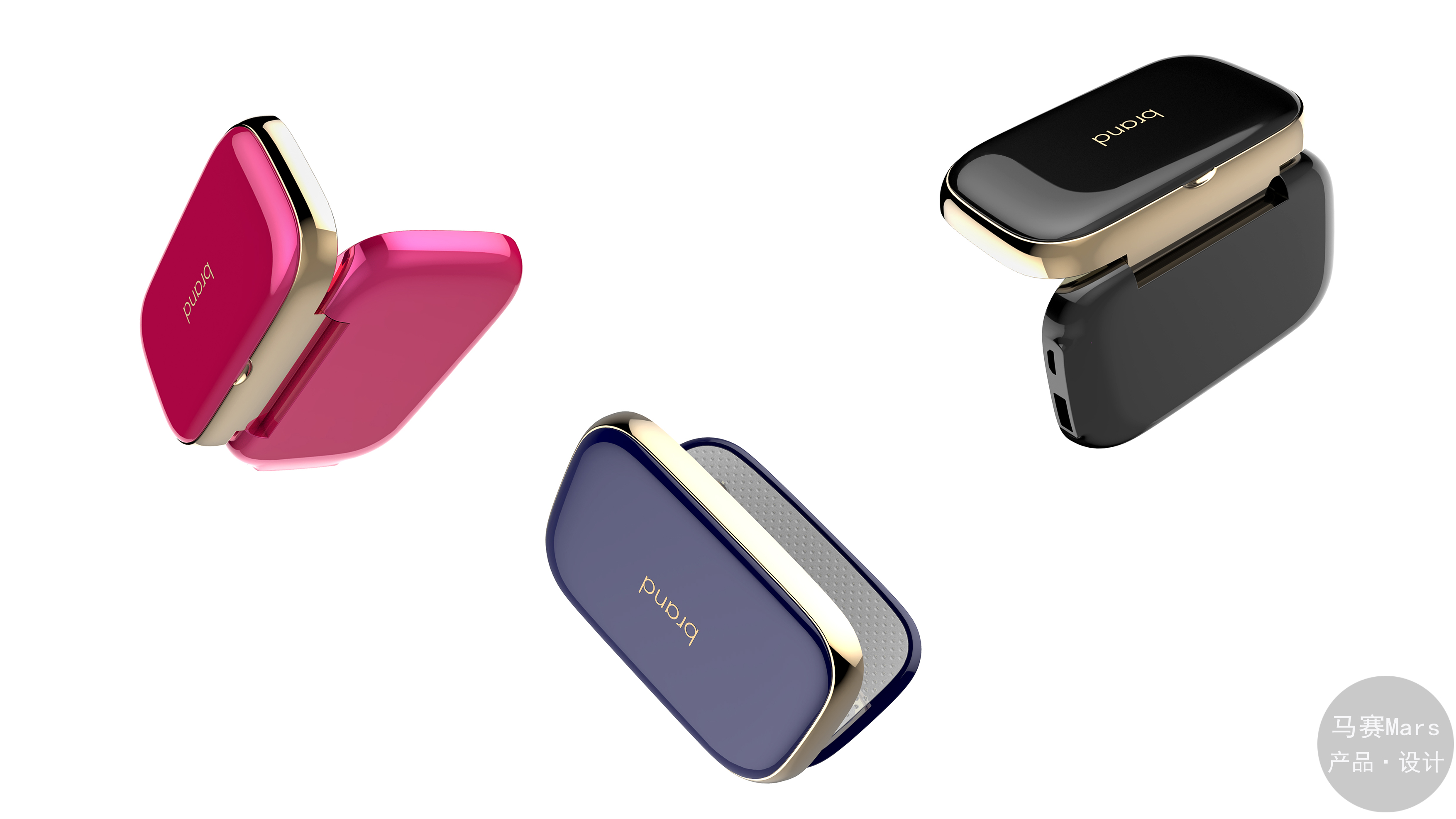

Open state, multi-angle display

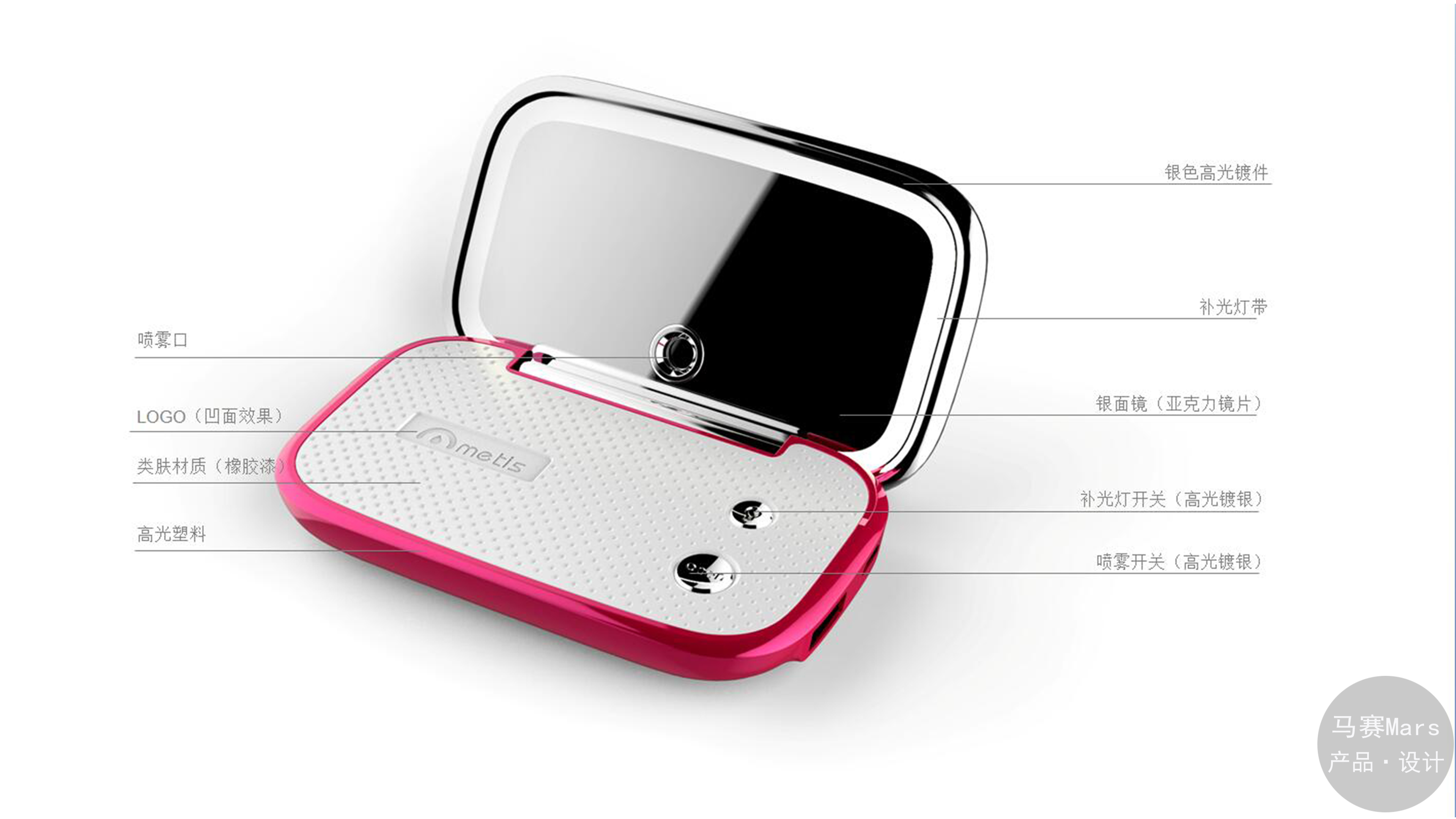

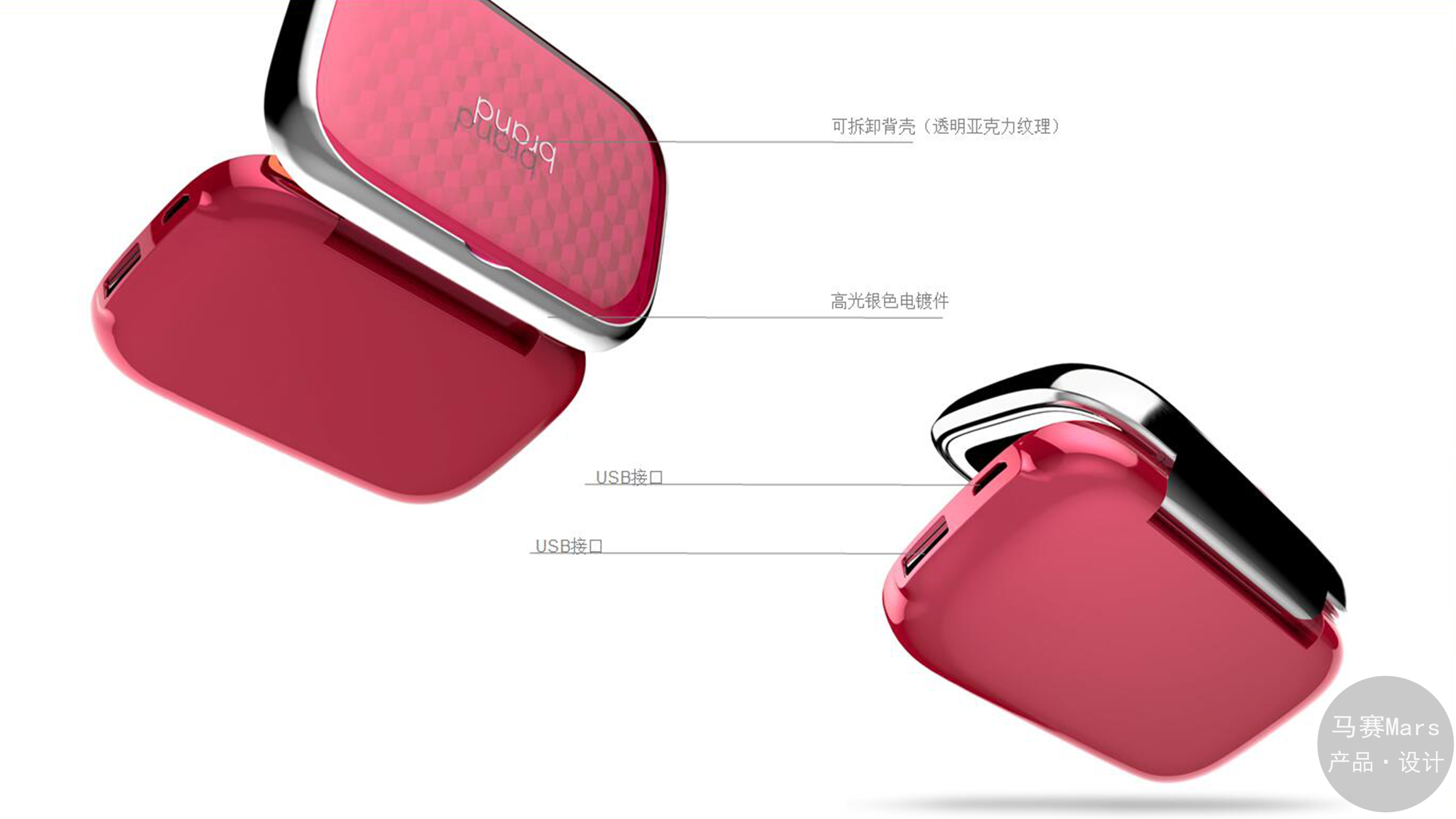

Mark key points such as part name, material, process, color, etc.
Be as comprehensive as possible

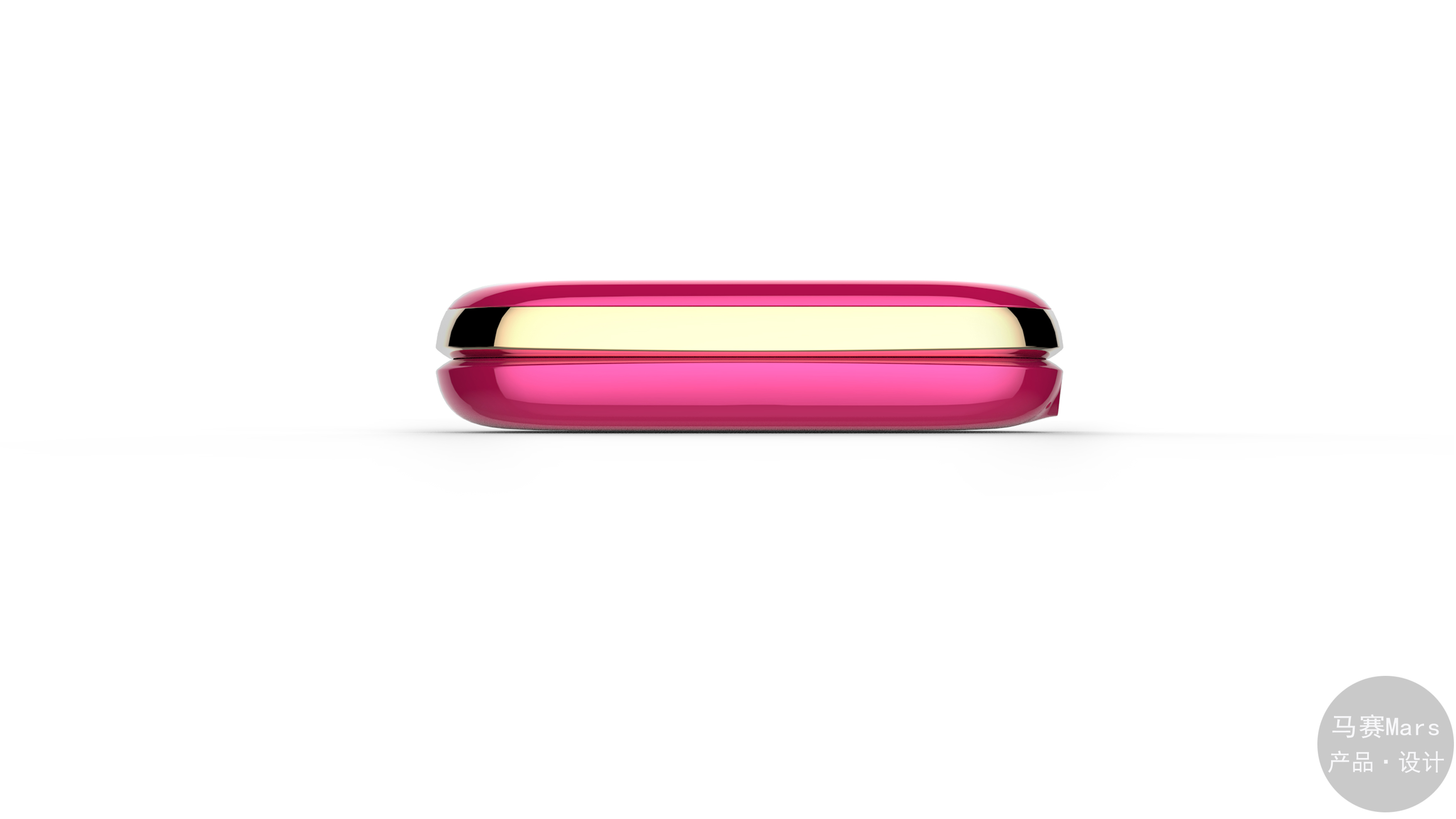

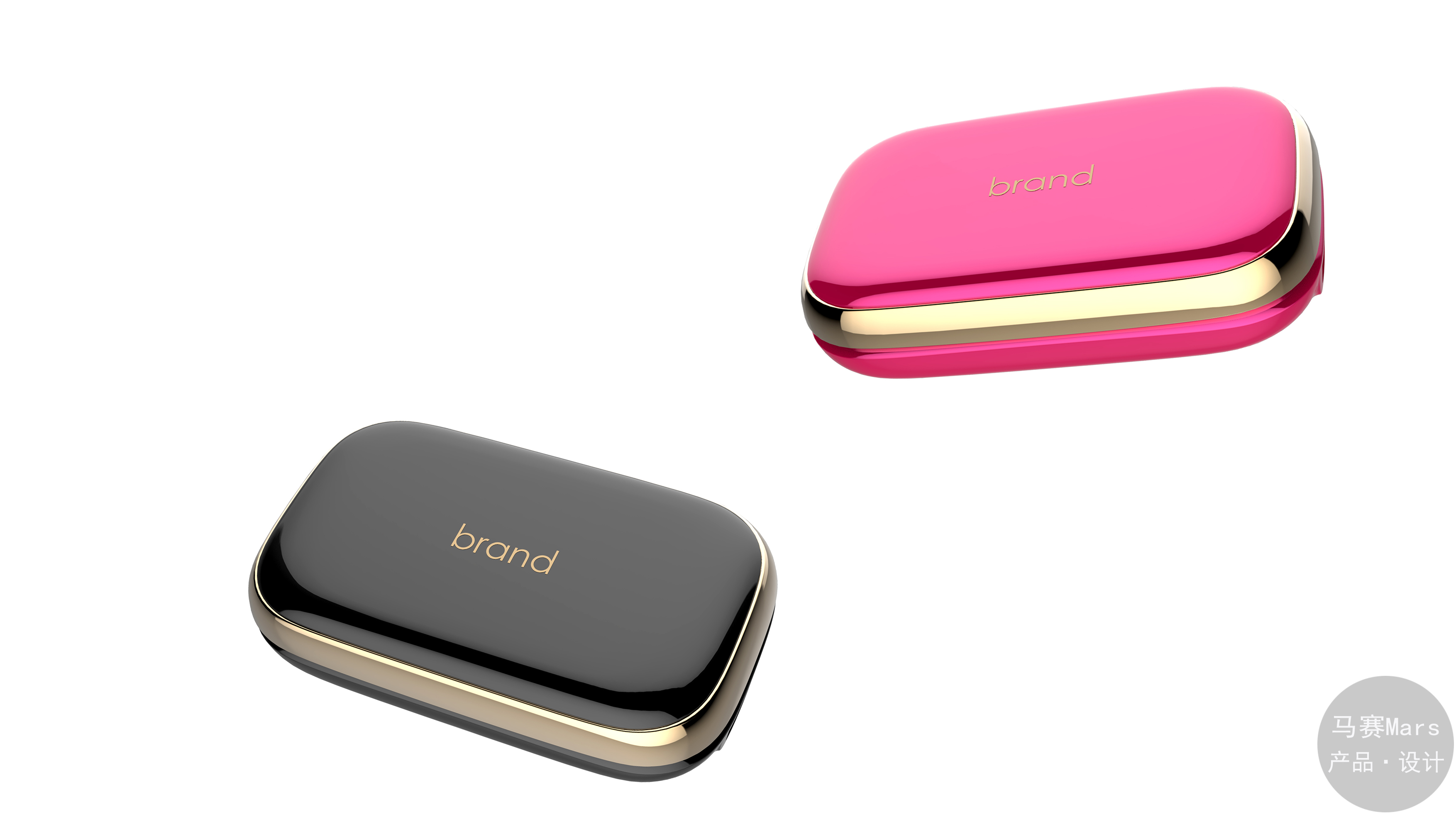

In the merged state, multi-angle display

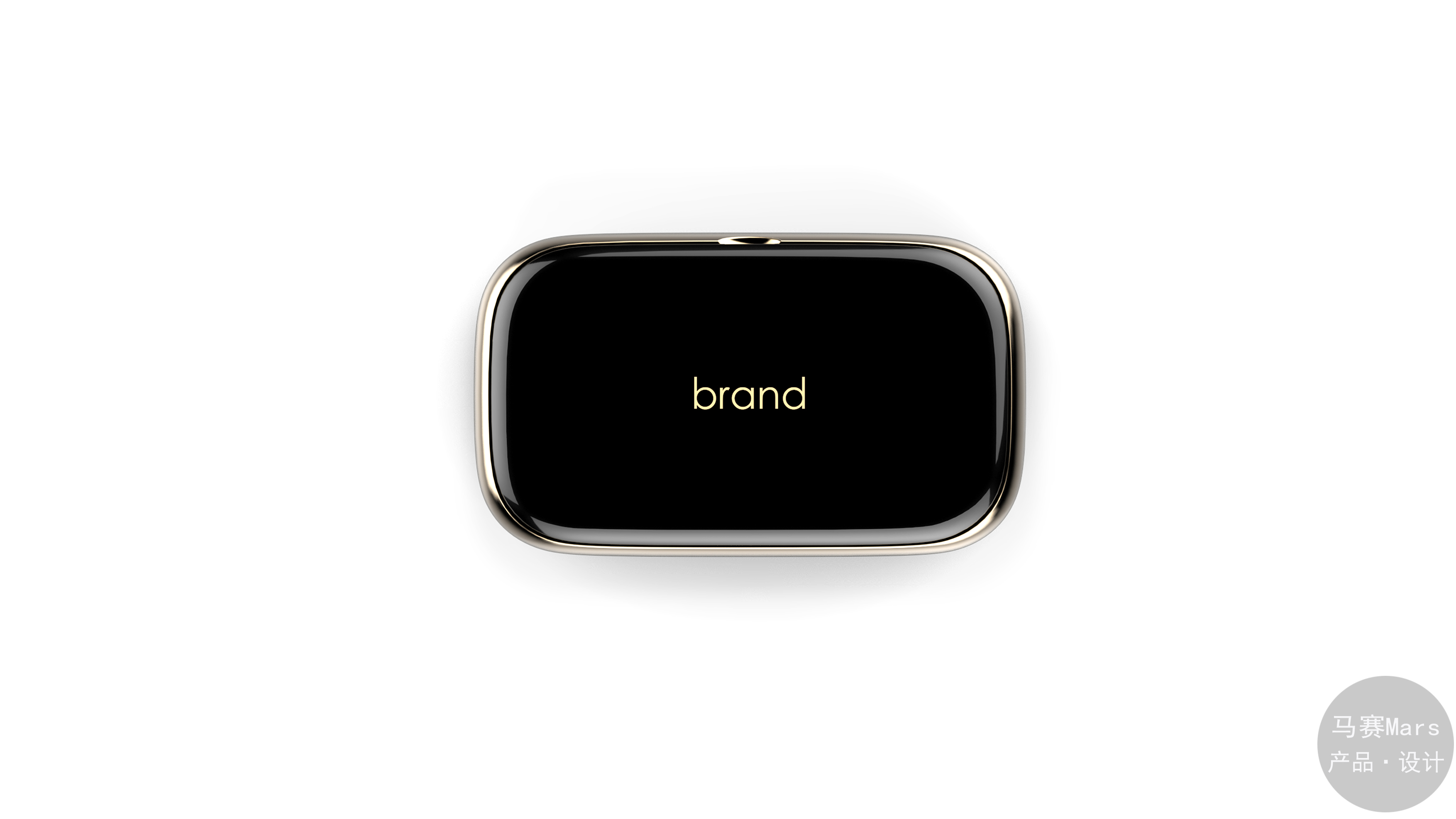

Front display

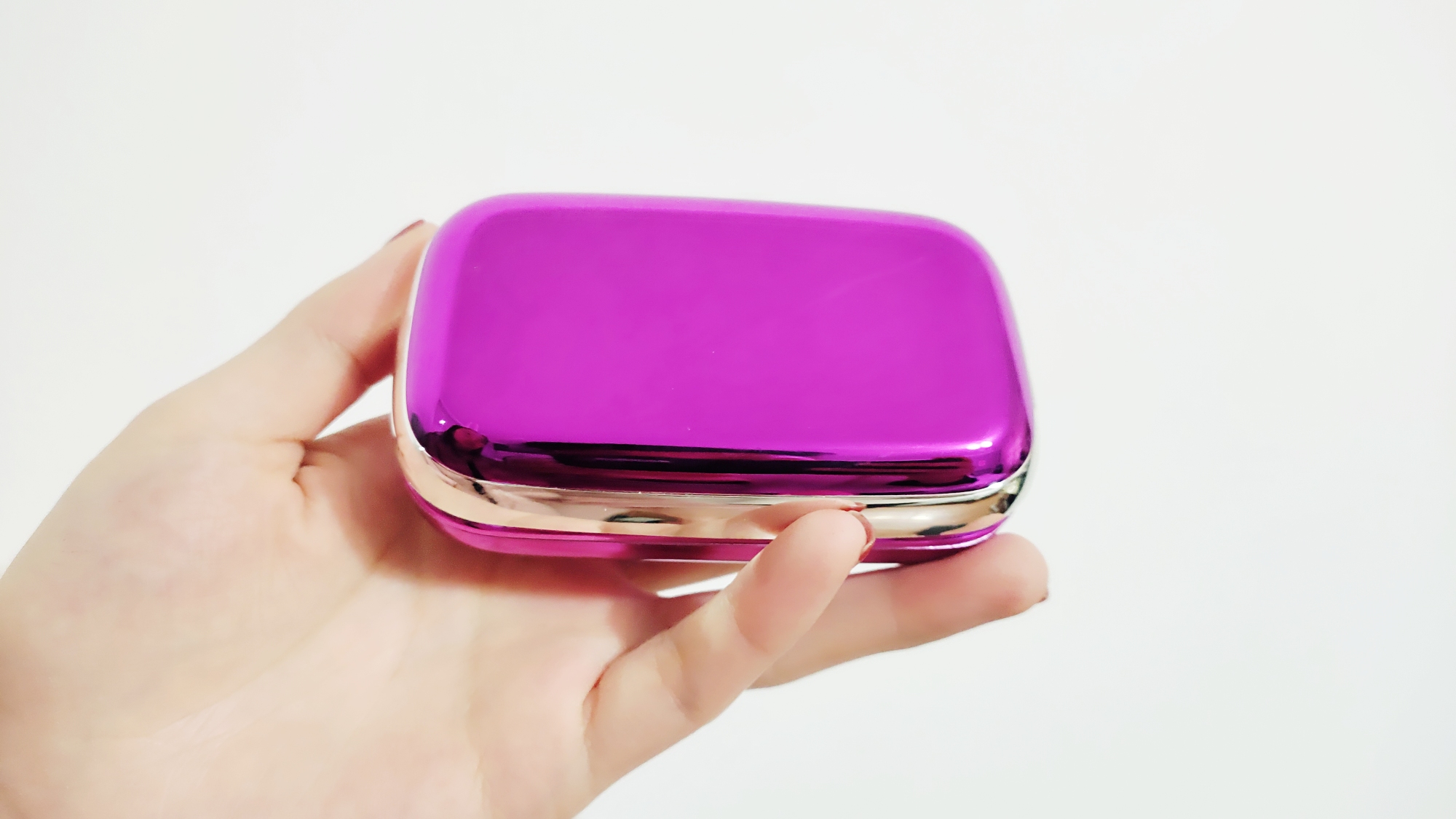

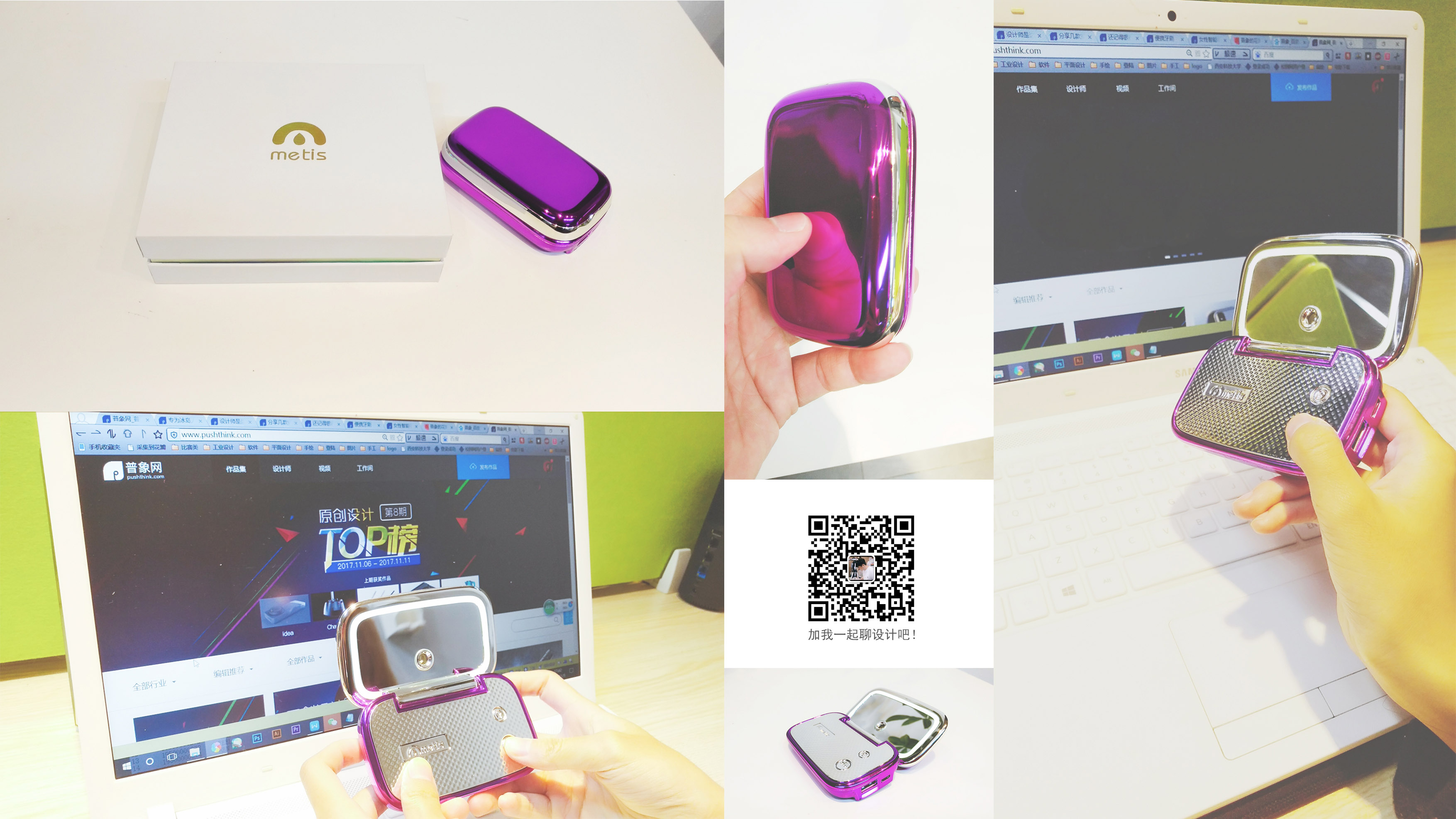

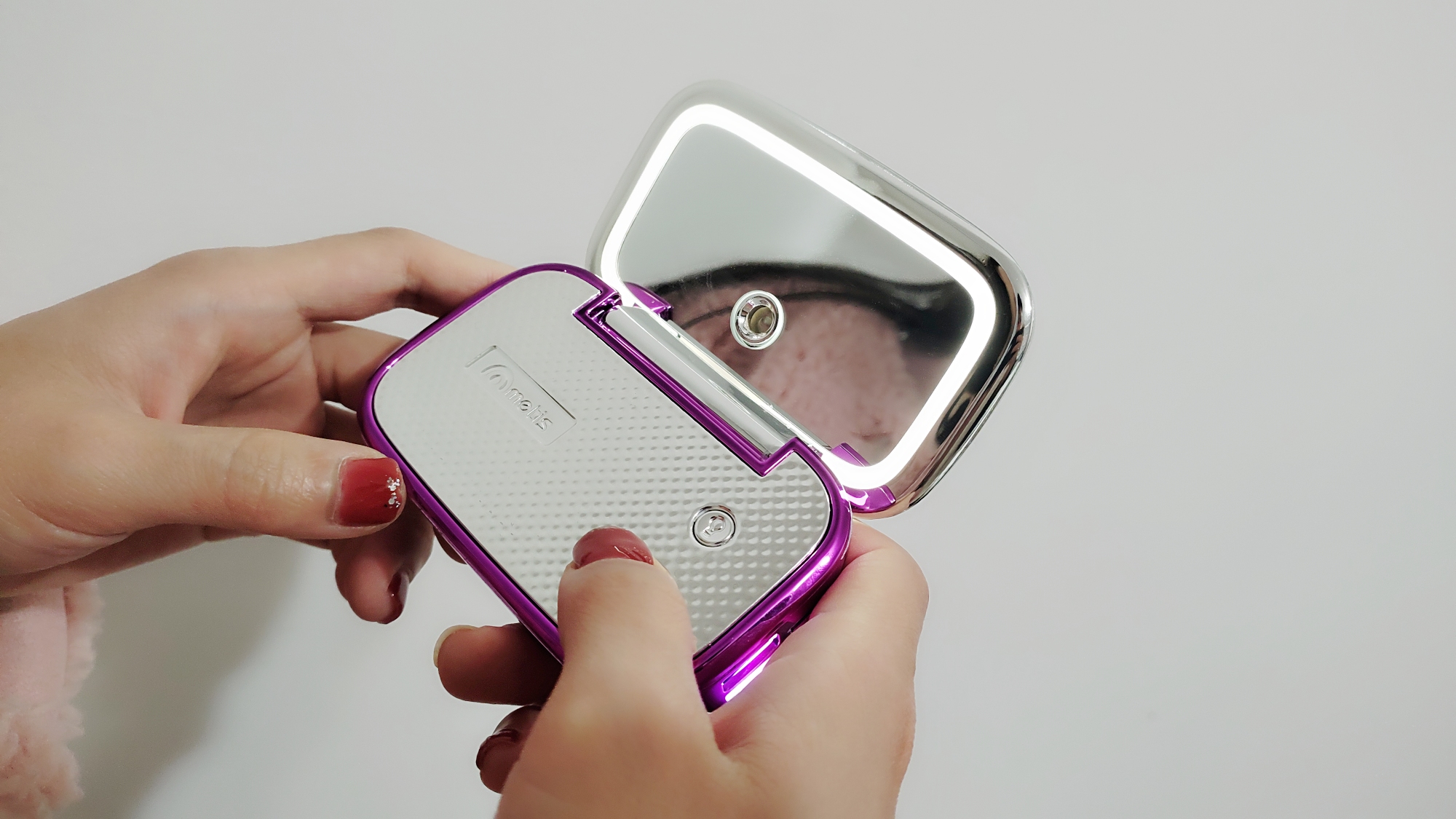

The mass production material has changed slightly, and the overall reduction degree is acceptable.
The mass production material has changed slightly, and the overall reduction degree is acceptable.
