Project profile:
Date: 2018-05
Customer: Xiaomi
Design Description: For game lovers, the fever of mobile phones has become a topic of distress for everyone. Customers find us to design a product that specifically solves the heat dissipation of mobile phones. After investigation and analysis, as well as many times of communication with customers, we finally designed this simple and elegant product, making it suitable for all kinds of people and occasions, and becoming a "versatile" heat dissipation magic.

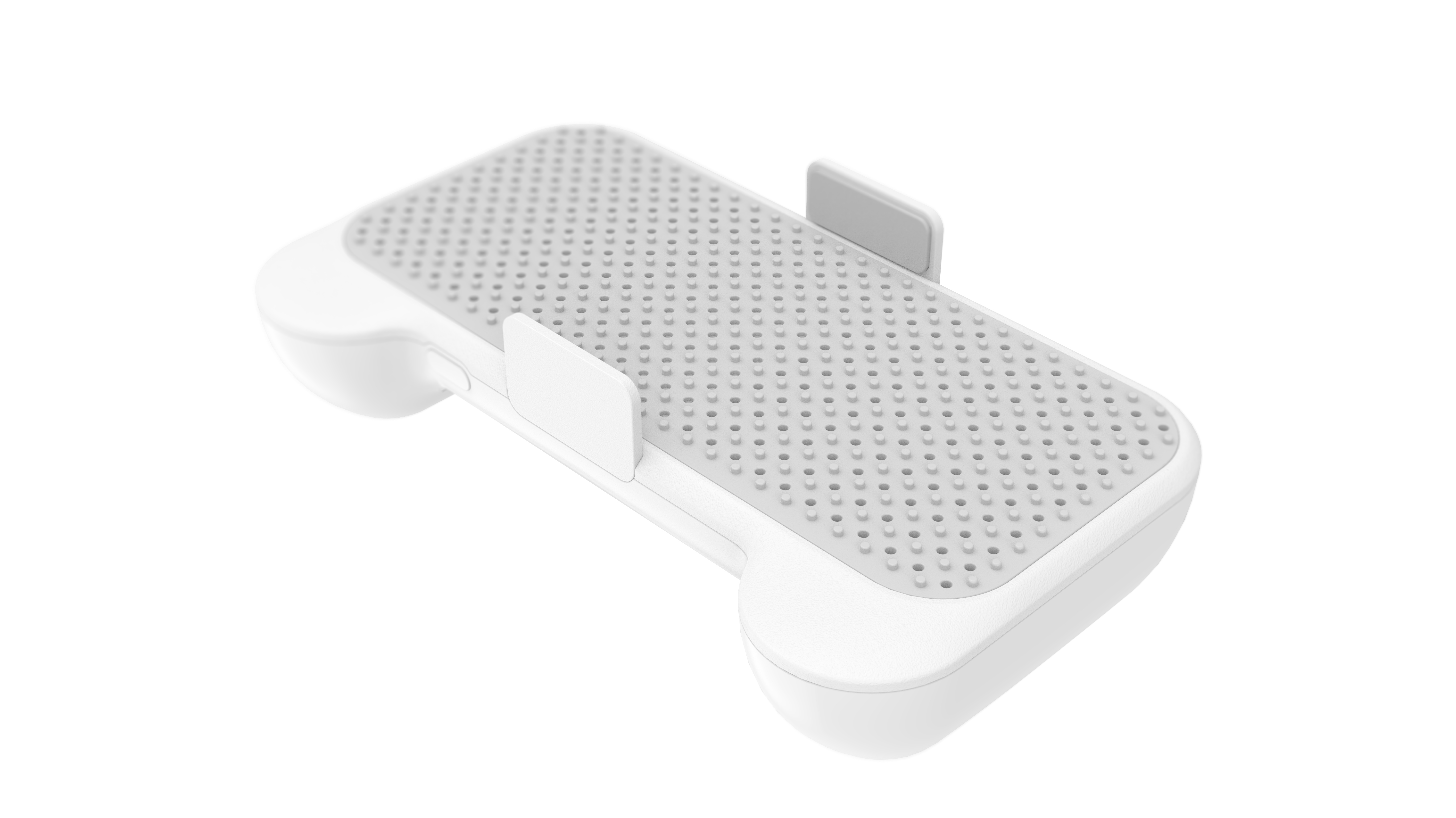

The air outlet adopts a regular dot matrix design, one high and one low are staggered from each other, which can effectively dissipate heat. Because this idea cannot achieve the best heat dissipation effect, it has been modified in the later stage!

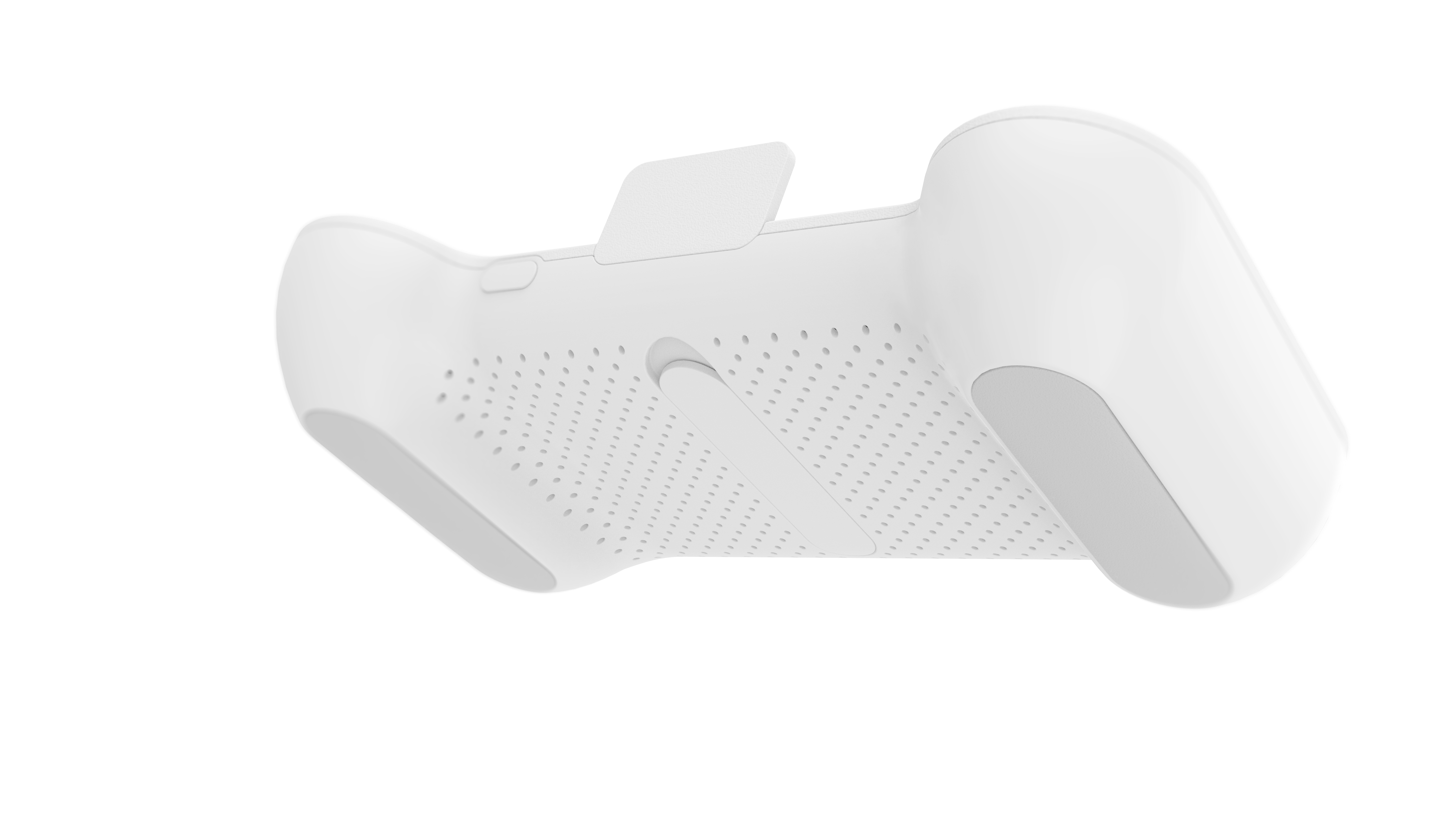

The back is composed of three classic runway types, making it more integrated and unique in aesthetic feeling. The air inlet part echoes with the air outlet. Of course, such air inlet cannot achieve the best air inlet effect, and it has been modified in the later period!

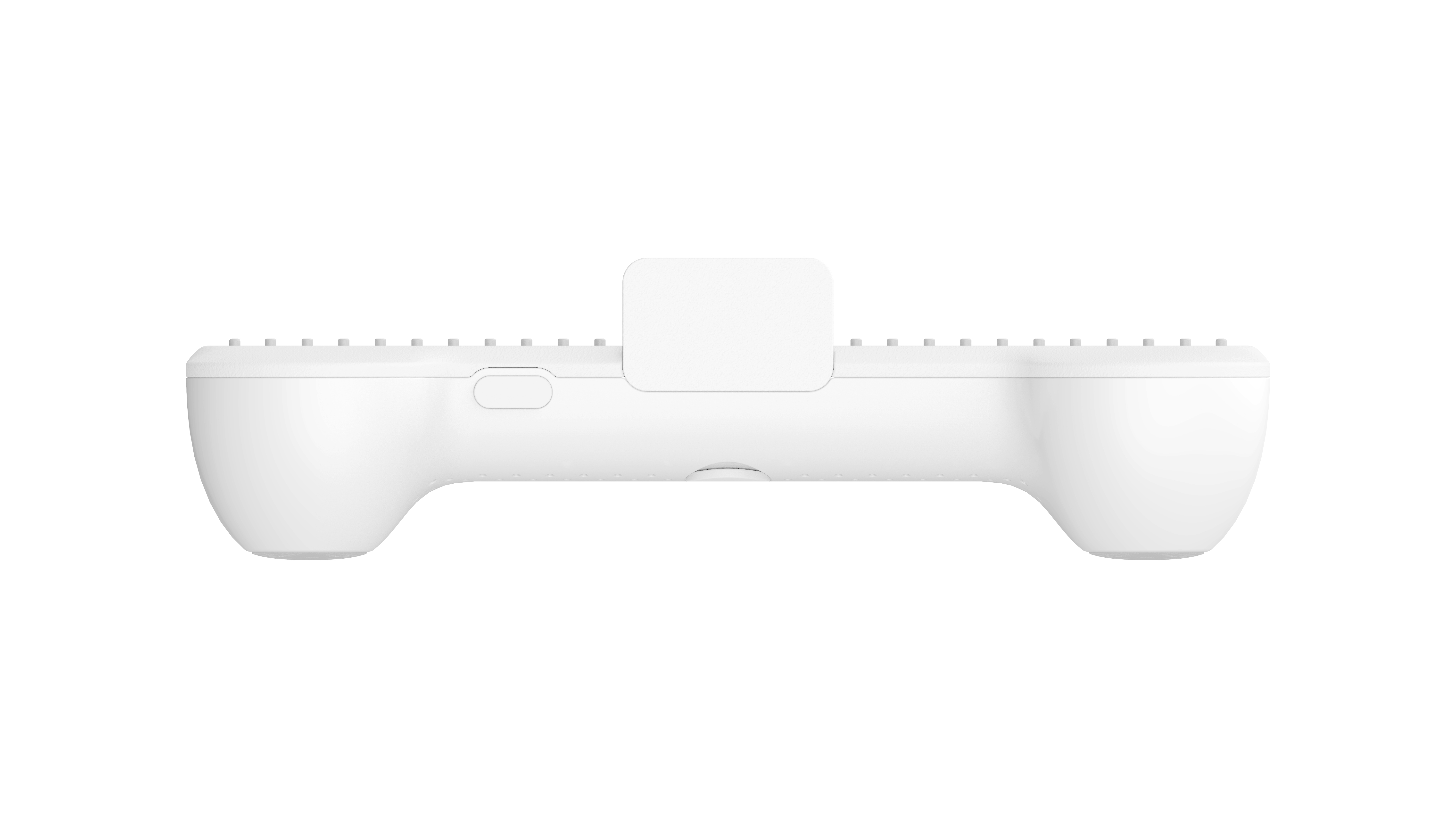

The runway bracket has a disadvantage that it is not easy to make bearings, but under the condition of resolutely not changing the ID, our structural engineers still think of ways to solve this problem. The buckle part, with built-in spring, can stretch and match various types of mobile phone products!

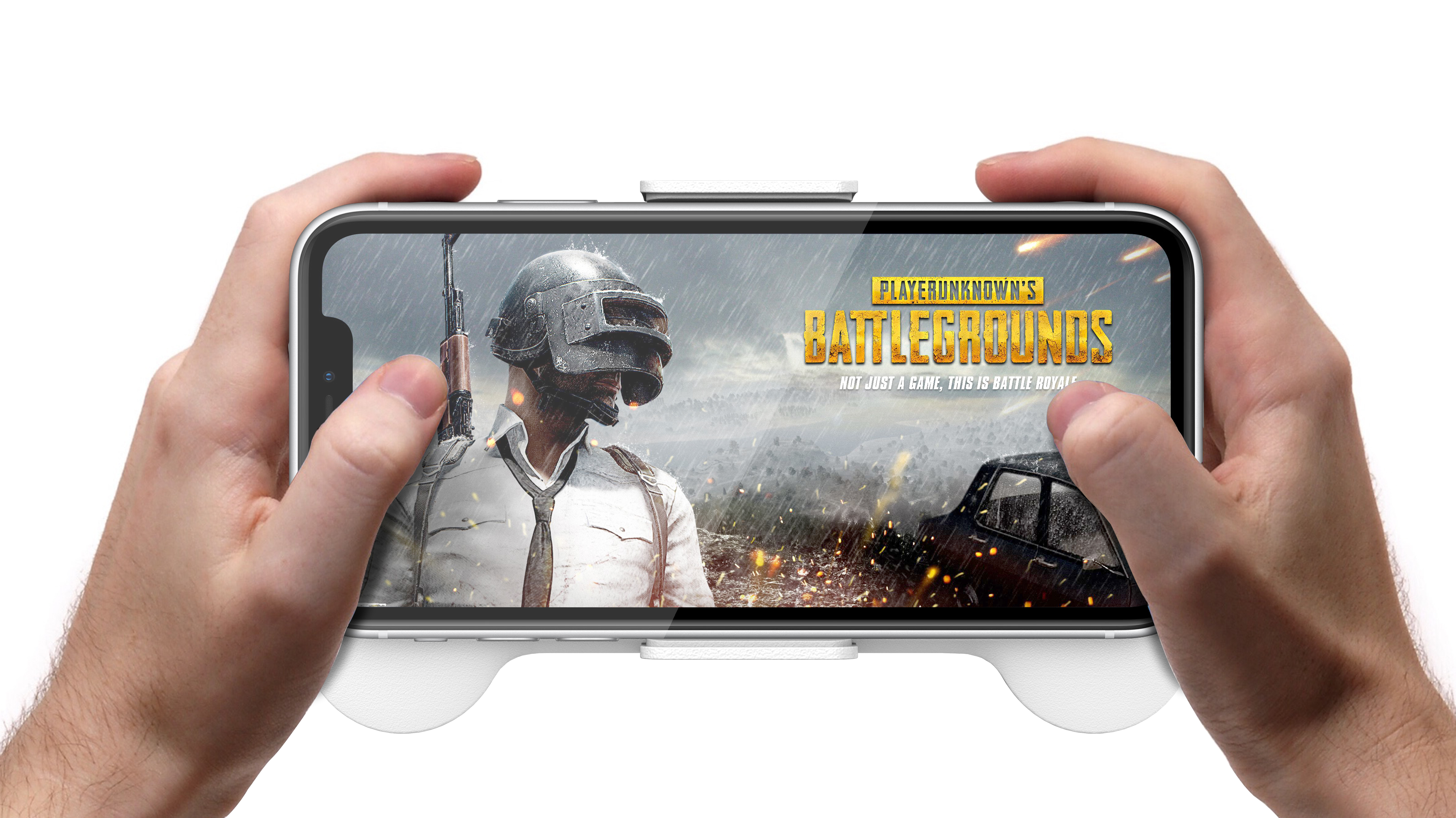

If you fix your mobile phone on it, you can put a beautiful play. my mother doesn't have to worry about the fever of my mobile phone, ha ha ha ~
All right, chicken tonight, good luck!
I wish all design colleagues good body, design bar ~
The copyright of this work belongs to 林伟滨*工业设计师. No use is allowed without explicit permission from owner.
New user?Create an account
Log In Reset your password.
Account existed？Log In
Read and agree to the User Agreement Terms of Use.
Please enter your email to reset your password
Very good work, is it on the market?
Thank you for sharing in such detail. It's great.
It's quite good. The whole work looks clean and elegant. After reading the discussion on design downstairs, I think the author is willing to share his work with you and listen to your suggestions modestly, which shows that the author is a modest and studious excellent young man. In the future, I just hope that some keyboard players can guarantee at least respect when commenting, so as to create a better communication atmosphere, after all, design itself requires constant communication to make progress.
The cook who does not play games is not a good designer
It's really great, both the feeling of the overall line and the grasp of the number of heat dissipation holes are very comfortable. It's a pity that I can't buy
There are indeed many sprays now, and it is not easy to send out original designs. Under the traditional heat dissipation structure, from the perspective of heat dissipation alone, the design of round holes does affect the heat dissipation rate. However, judging from the aesthetic feeling of the whole design, I think you can definitely make high-quality goods in the future.
This work may not be perfect in some people's eyes, but its inner artistic atmosphere and craftsman spirit really moved me. This is the best handle design I have ever seen in China. Its lines, its openings and its color matching are absolutely natural. I really don't know what a pair of skillful hands created such a natural object. This work is not like a handle, but has become a work of art. It's a pity......
The release of works is purely a small personal creative sharing. Based on the idea of learning from each other, each work can find its shortcomings. I am very happy to make suggestions and comments from various gods, but please individual "internationally renowned design masters" Don't be too excited, don't swear! As a man, I may choose to do it, but don't scold like a shrew.
I drew it in school 4 years ago
As for heat dissipation, the chip position is the hottest. You need a complete temperature test scheme. Instead of punching a few holes, he will finish the heat dissipation. The following dogs give you some praise. Your heat is too loose.
Eldest brother, you don't like it, you can point out the shortcomings, we correct it, the design is not achieved overnight; Don't scold the street, just do it.
You said to adapt to all kinds of people, know that the big screen mobile phone with a handle, small hands of the girl what to do? Play king thumb distance is not enough
To adapt to various occasions, have you ever been on the subway? Have you seen how many people on the subway play hand games with handles?
And how do you use this with the physical keys to eat chicken?
The structure of this bracket, according to your appearance, can't be made, and there is no place to put the rotating shaft.
Add two more fans to design the air duct better and the effect is better.
You can have a link
