Fuselage modeling design concept
1: hale and hearty modular fuselage box

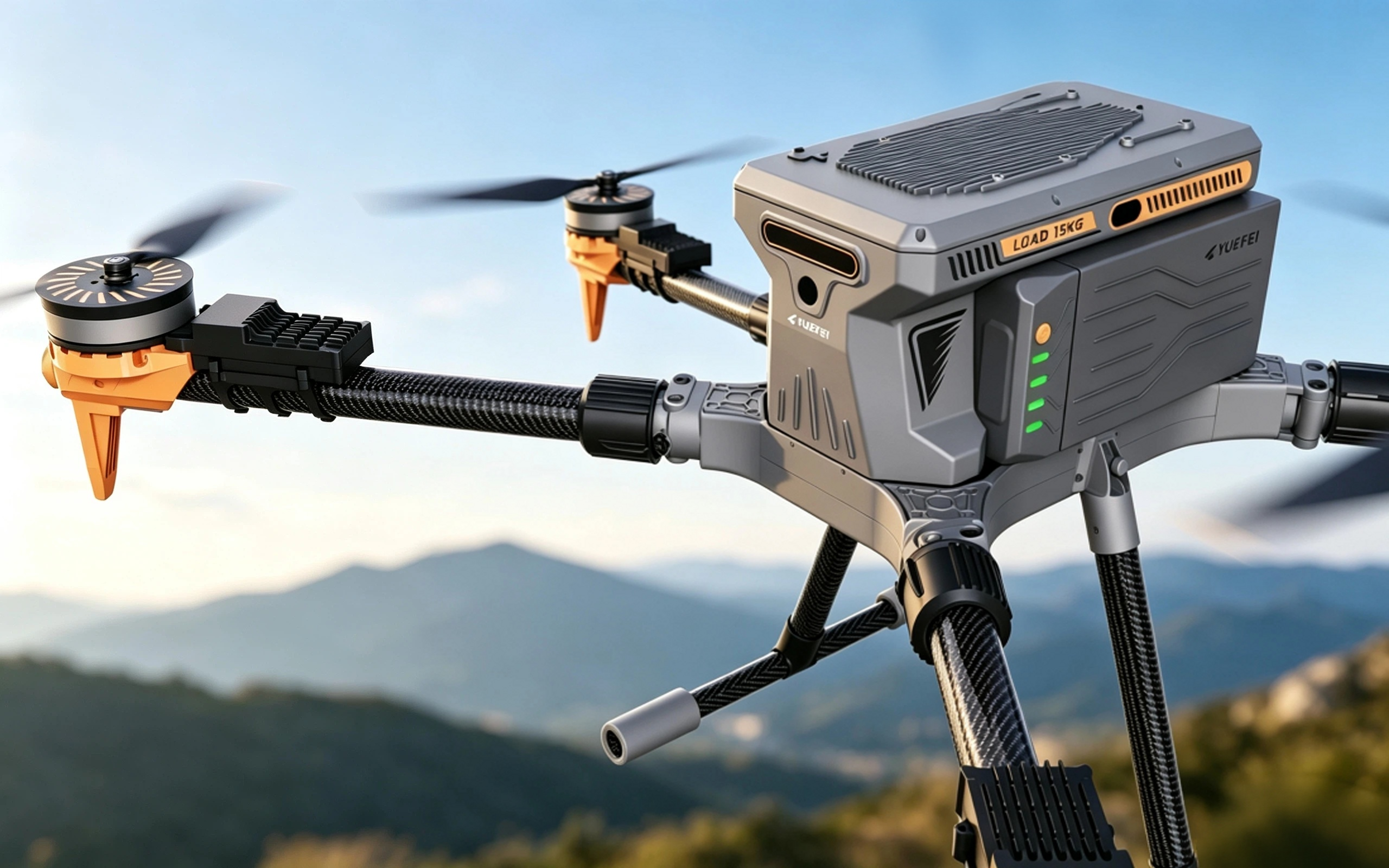

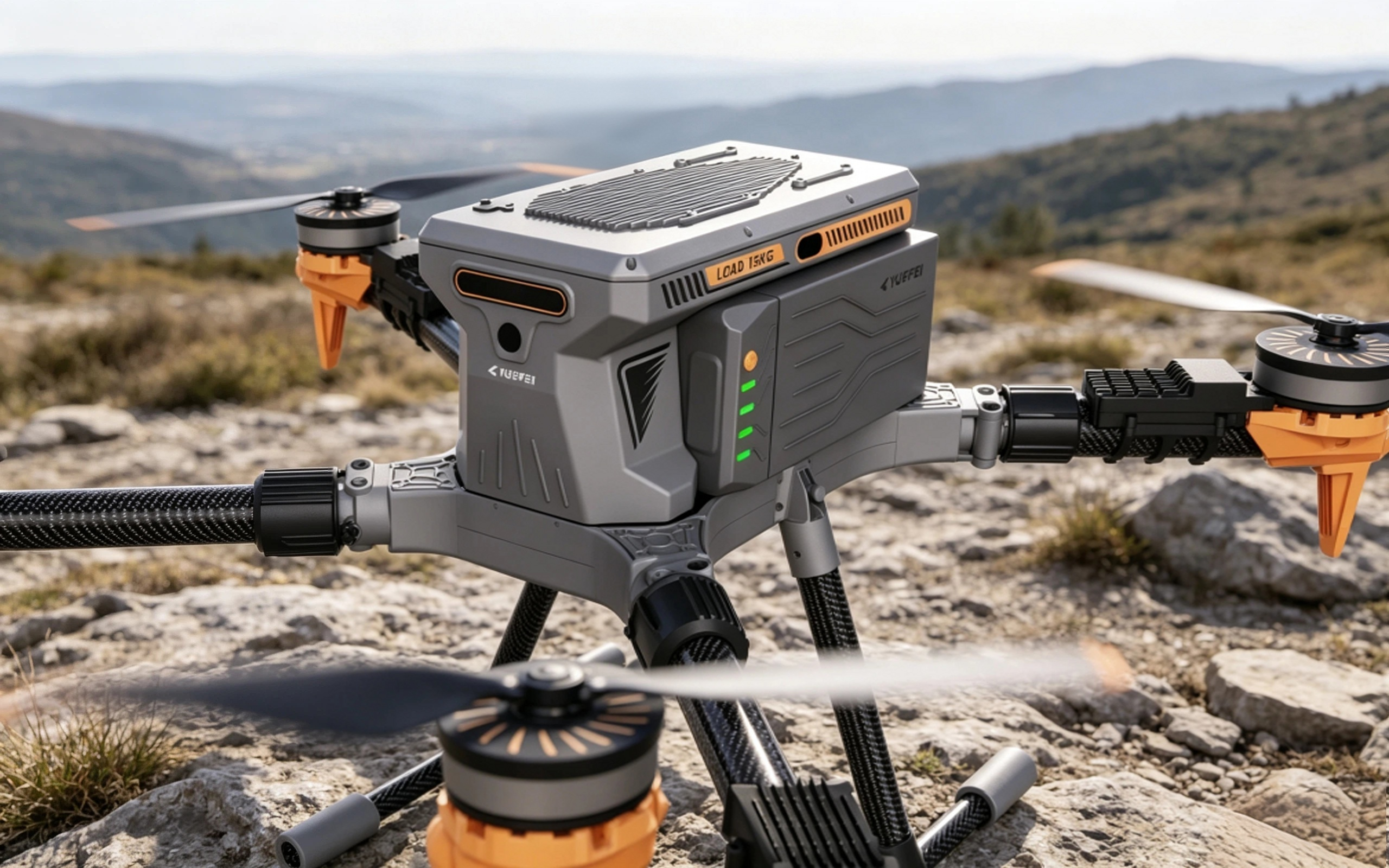

The main body adopts an integrated angular cutting box structure, abandoning the round consumer unmanned aerial vehicle shape and strengthening the sense of strength of heavy industrial equipment. The fuselage is a layered sheet metal shell with reserved heat dissipation grille, power indicator and mounting interface, and the functional partition is clear and intuitive. The side of the fuselage is marked with LOAD 15KG load mark, which directly transmits the core performance of the product and facilitates customers to quickly identify and locate the model.
2: carbon fiber folding machine arm structure
The boom is made of high-strength carbon fiber, and the surface weave texture is exposed, giving consideration to light weight and torsion and bending resistance. Folding joint design greatly reduces the storage volume and facilitates transportation and transition. The end of the arm is equipped with an orange motor base to form a warning color collision with the gray and black fuselage, so that the dangerous area of the rotor can be identified at a long distance and the safety identification degree of field operations can be improved.
3: minimalist functional line language
There is no redundant decorative curved surface on the whole, and all modeling serves the requirements of heat dissipation, installation, protection and mounting. The concave-convex ribs on the surface of the fuselage strengthen the structural strength of the shell, while shaping the three-dimensional industrial texture, getting rid of the rough and cheap impression of traditional engineering equipment, and realizing the balance between hard core industrial style and exquisite details.
