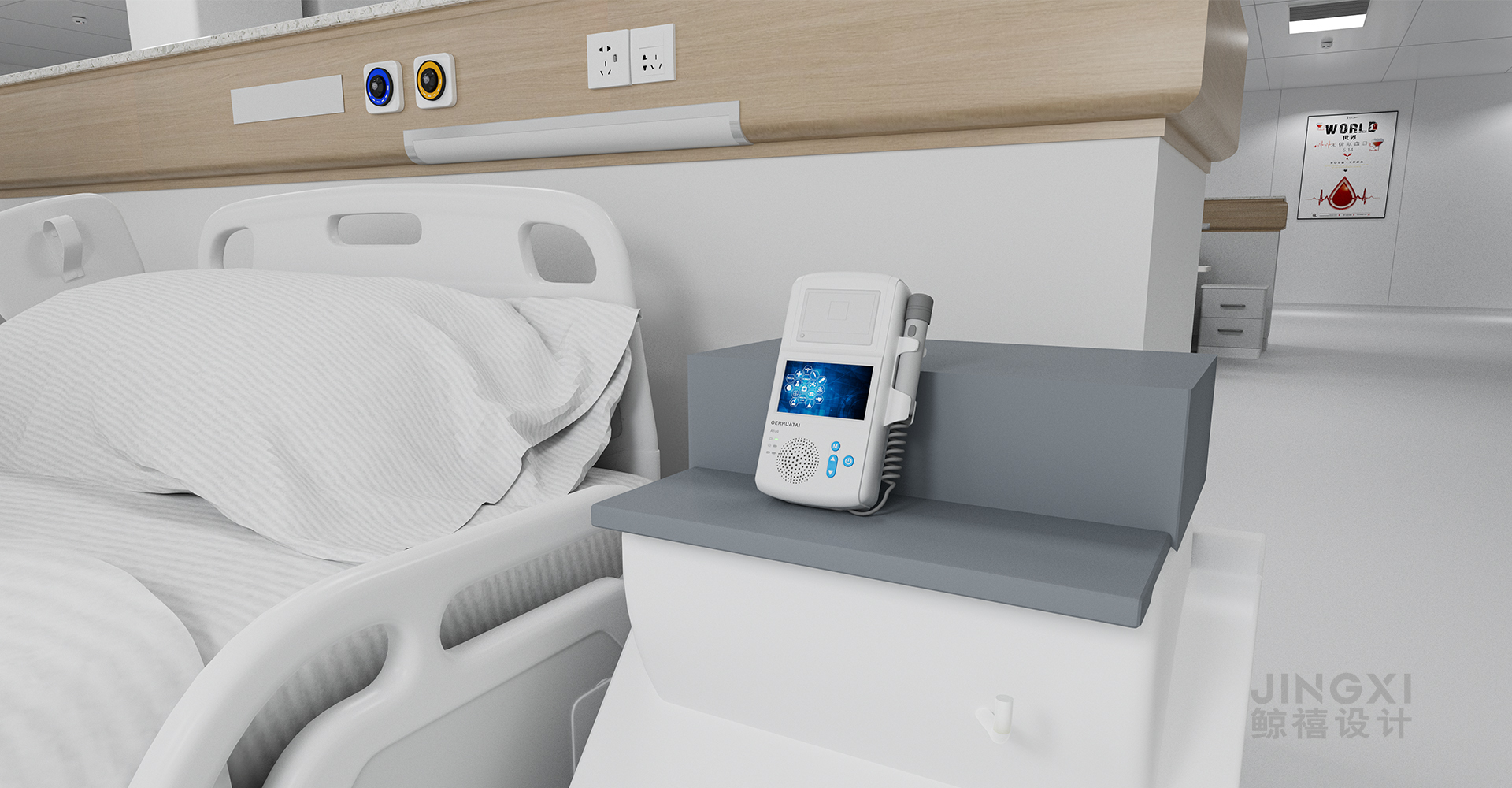

The design of this Doppler blood flow analyzer takes "medical aesthetics" as the core, and perfectly integrates precise function and humanized operation. The equipment adopts portable modular structure, streamlined body with rounded edges and corners, which not only conforms to the simple trend of modern medical equipment, but also avoids potential safety hazards in use through non-acute angle design, reflecting the detailed care for medical staff.

Modern minimalist overall architecture]

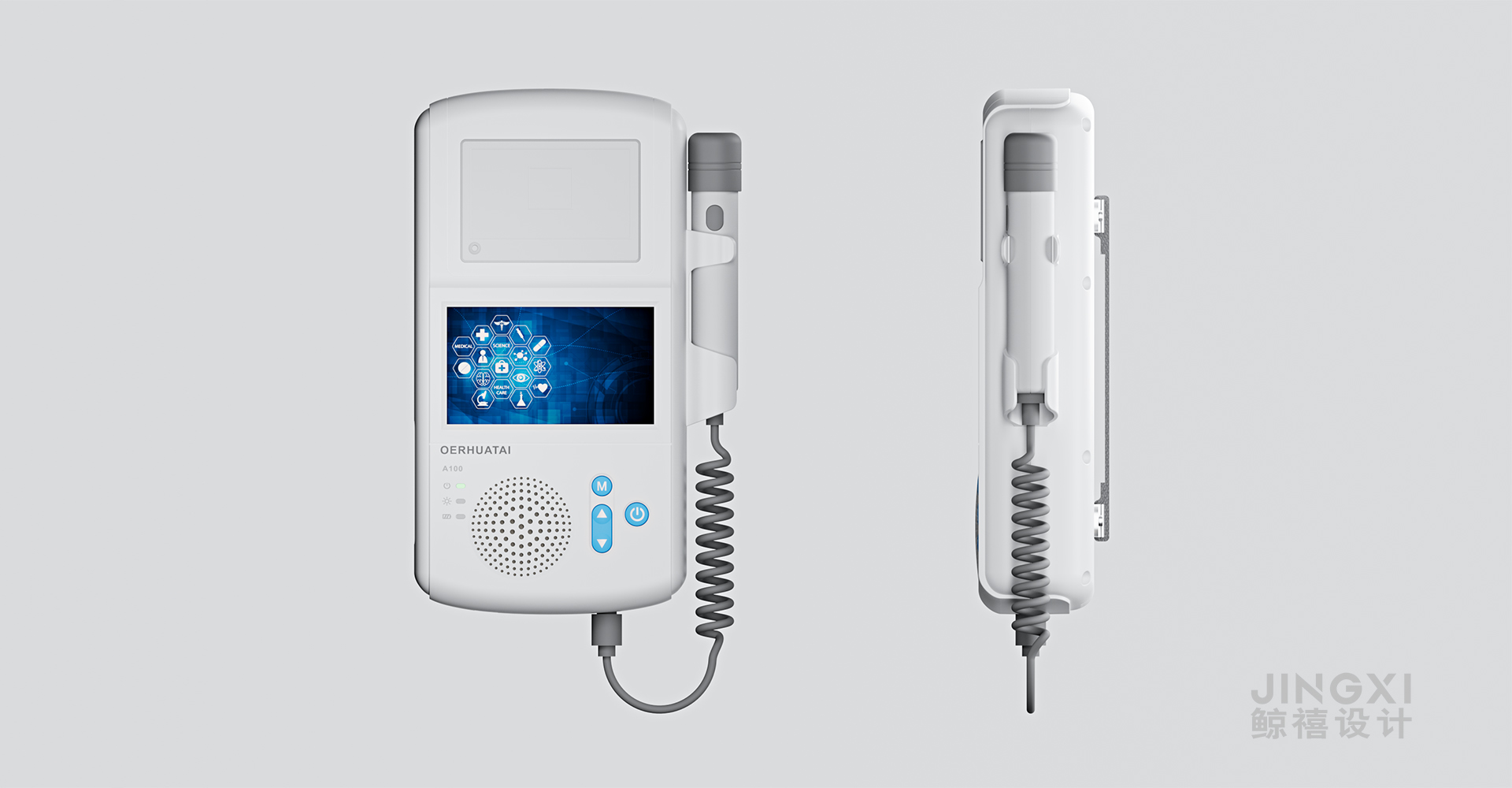

The product adopts minimalist rectangular cylindrical design, with 45 ° inclined transition at the top and rounded corners at the bottom to form visual stability. The streamlined contour is processed and the surface is covered with medical-grade PC/ABS alloy plastic, which realizes a 1.2kg lightweight body while ensuring 94V-0 flame retardant performance, giving consideration to portability and structural strength.

Professional color and material system]
The main color adopts operating room standard white (RAL 9003), with deep space gray (RAL 7045) decorative strip and medical blue (Pantone 19-4052 TCX) function keys to form a three-level color system. The IMD in-mold injection molding process is implemented on the surface, the brand and operation logo are directly embedded into the panel, and the nano-scale anti-fingerprint coating is matched to ensure that it remains clean after long-term use.

functional visual focus]

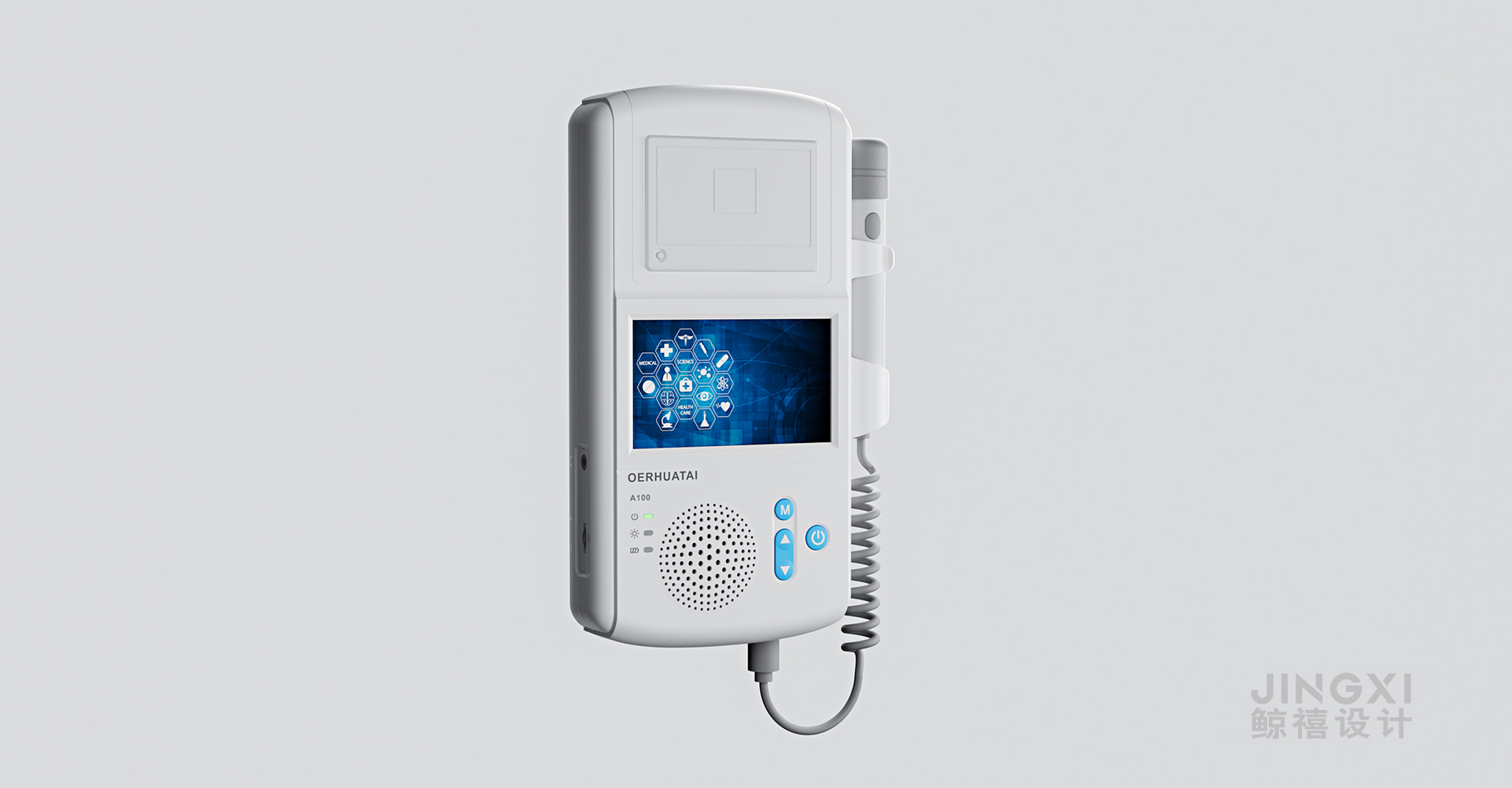

The front color display is treated with anti-glare, and six silicone buttons are arranged at the bottom of the screen to realize blind operation through raised texture. The top of the display is integrated with an infrared sensor window to support non-contact wake-up function. The right side of the equipment is equipped with a standard D-type ultrasonic probe interface, equipped with a screw locking device, to ensure that the probe connection stability up to a certain waterproof.

ergonomic details]

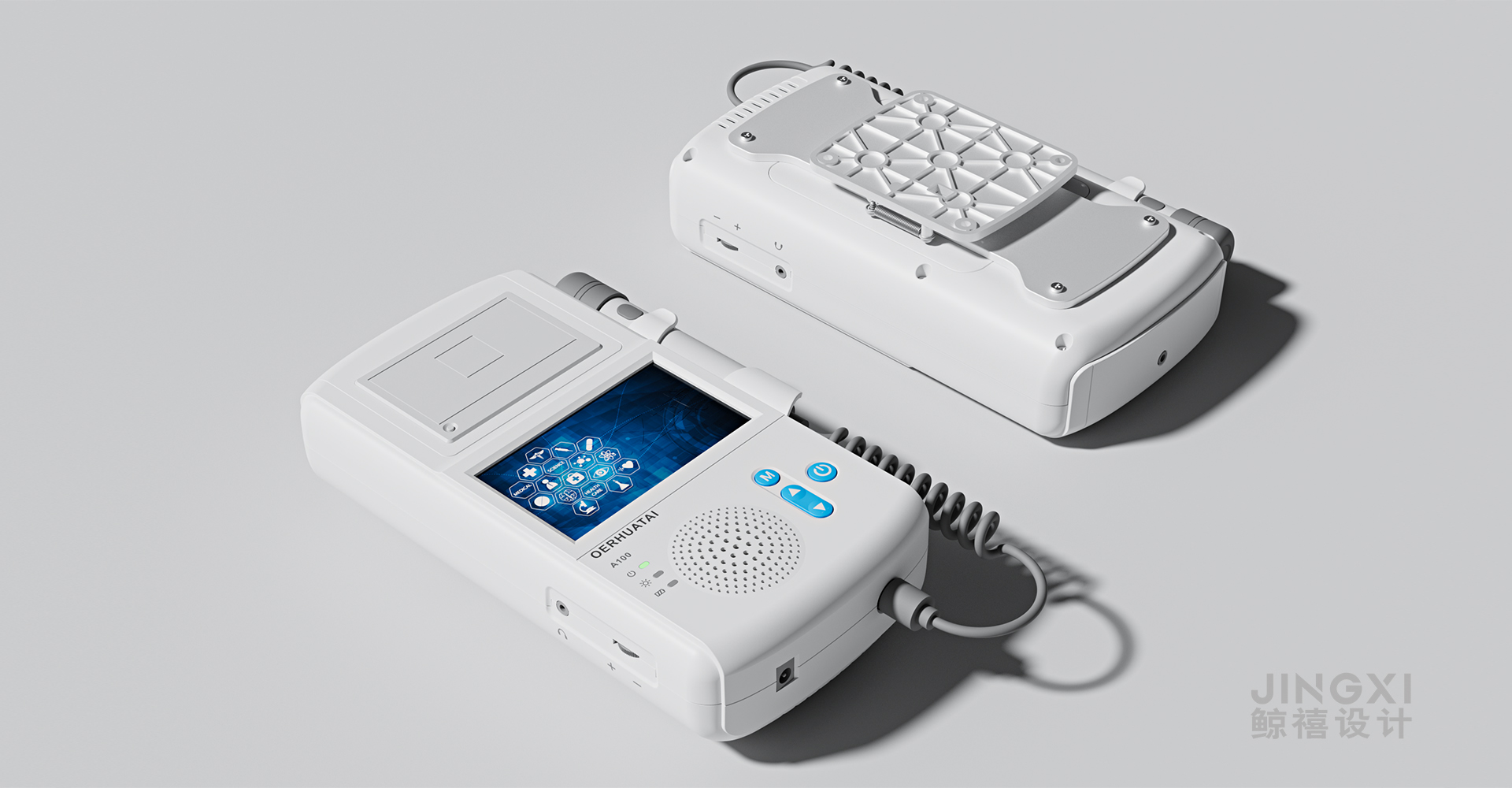

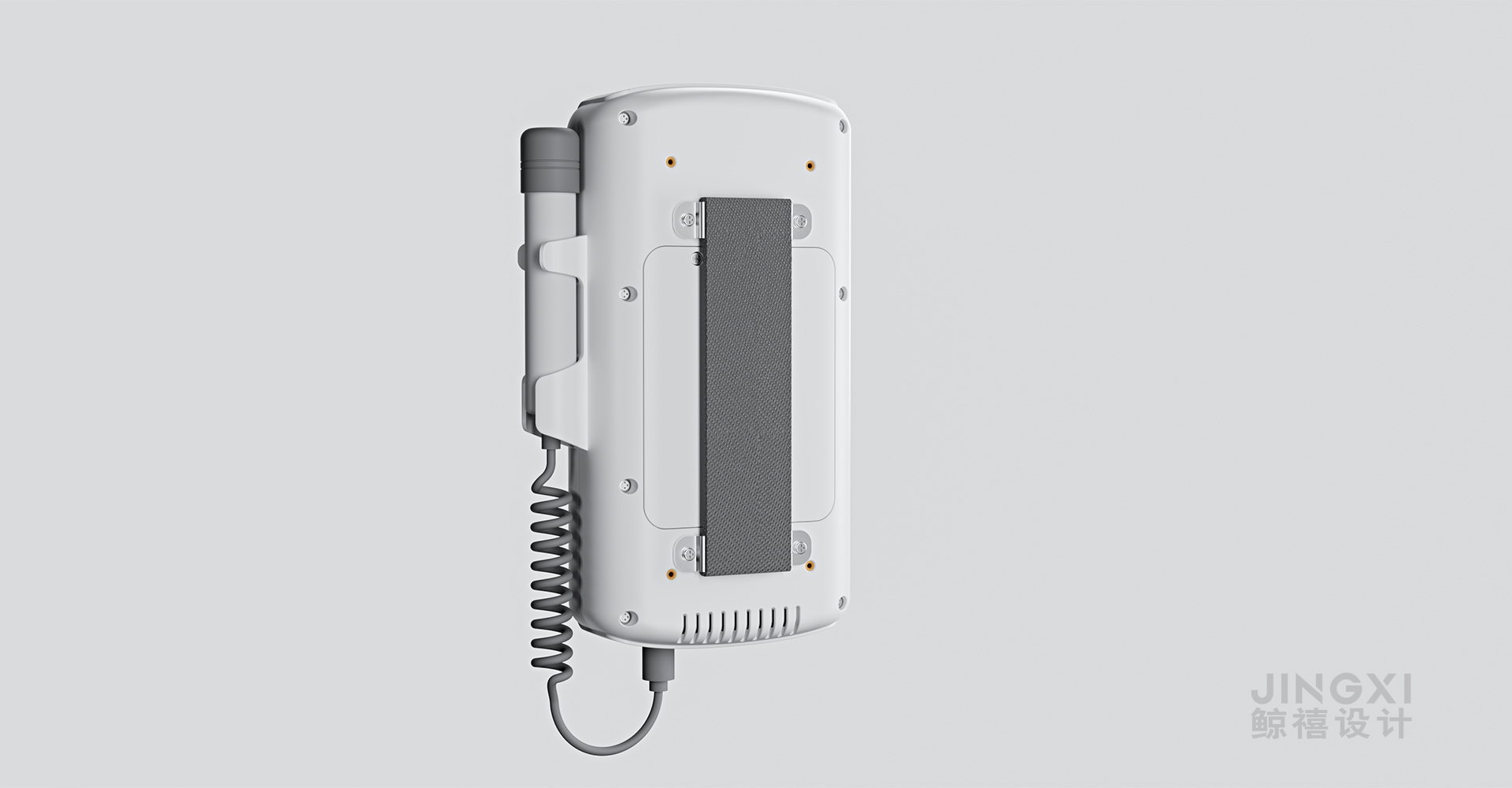

The handheld probe adopts bionic streamline design, the grip part is covered with TPE soft glue, and the tilt angle is adapted to the operation gesture of medical staff. The VESA standard hanging hole is set on the back of the device, which is compatible with two installation modes of medical cart and wall hanging. At the bottom of the four silicone anti-slip pad with honeycomb arrangement, effectively reduce the work of vibration noise to 45dB.
